This document discusses different types of building structures: load bearing, framed, and composite. Load bearing structures transfer loads directly to the foundation through walls. The walls are the main load-carrying members, so if a wall collapses the whole structure is at risk. Framed structures are more stable as they transfer loads through beams and columns to the foundation, with non-load bearing walls for cladding. Questions are provided about designing load bearing and reinforced concrete framed structures for bungalows with specific room requirements, including plans, elevations, sections and schedules.

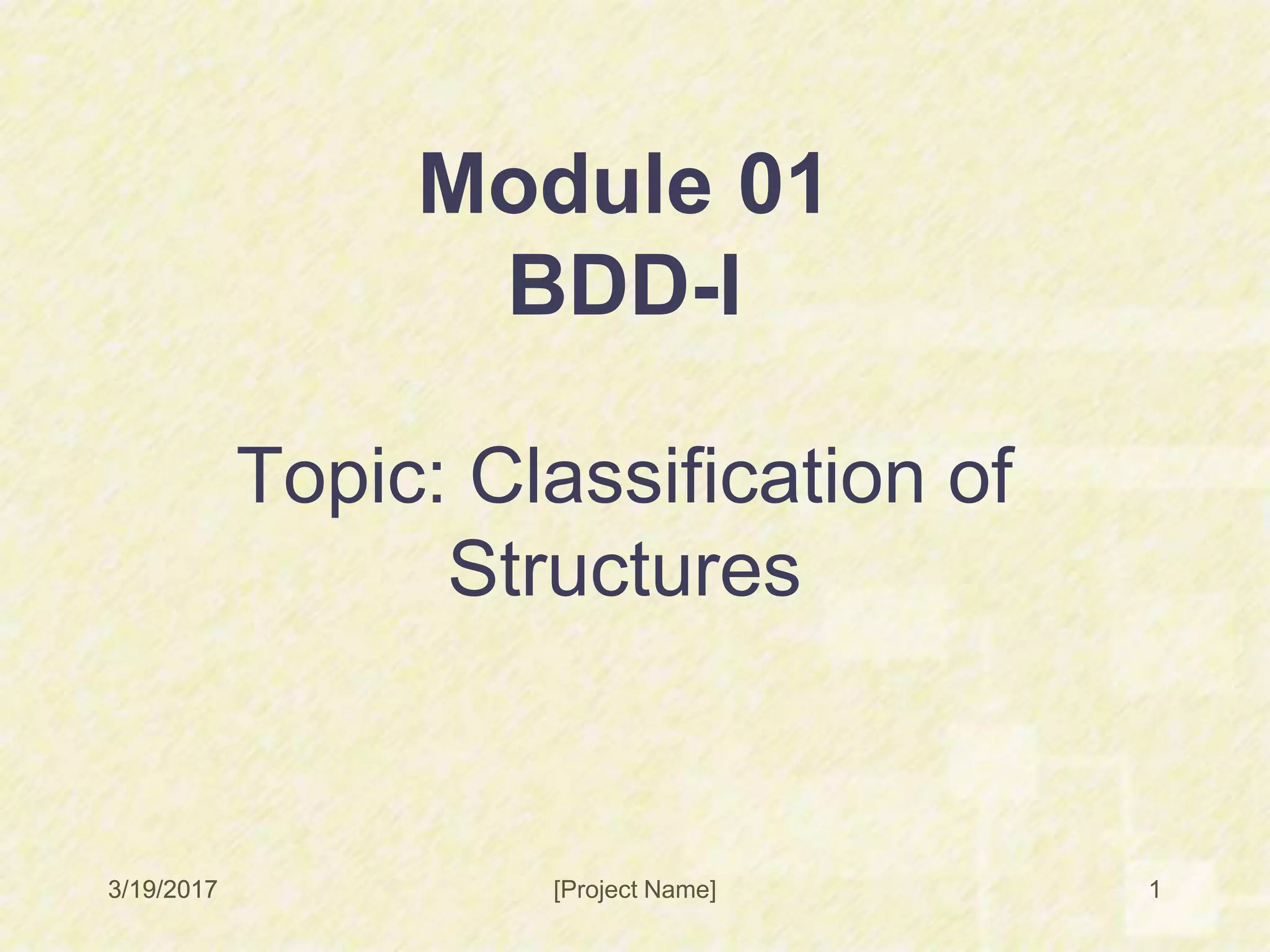

1. 3/19/2017 [Project Name]3/19/2017 1
Module 01
BDD-I
Topic: Classification of
Structures

2. 3/19/2017 [Project Name]
Introduction
• Load Bearing Structure
• Framed Structure
• Composite Structure
2

3. 3/19/2017 [Project Name]
Load Bearing Structure
• Load bearing Structure transfer the load to
Foundation in this way,
Slab Wall Foundation
• The Foundation of load bearing structure are
made with Rubble Masonry or with Stone
which bear all load coming from the wall.
• Wall is actually load carrying member.
• And Problem is also that when the wall
collapse in any situation then whole structure
will collapse.
3

4. 3/19/2017 [Project Name] 4

5. 3/19/2017 [Project Name]

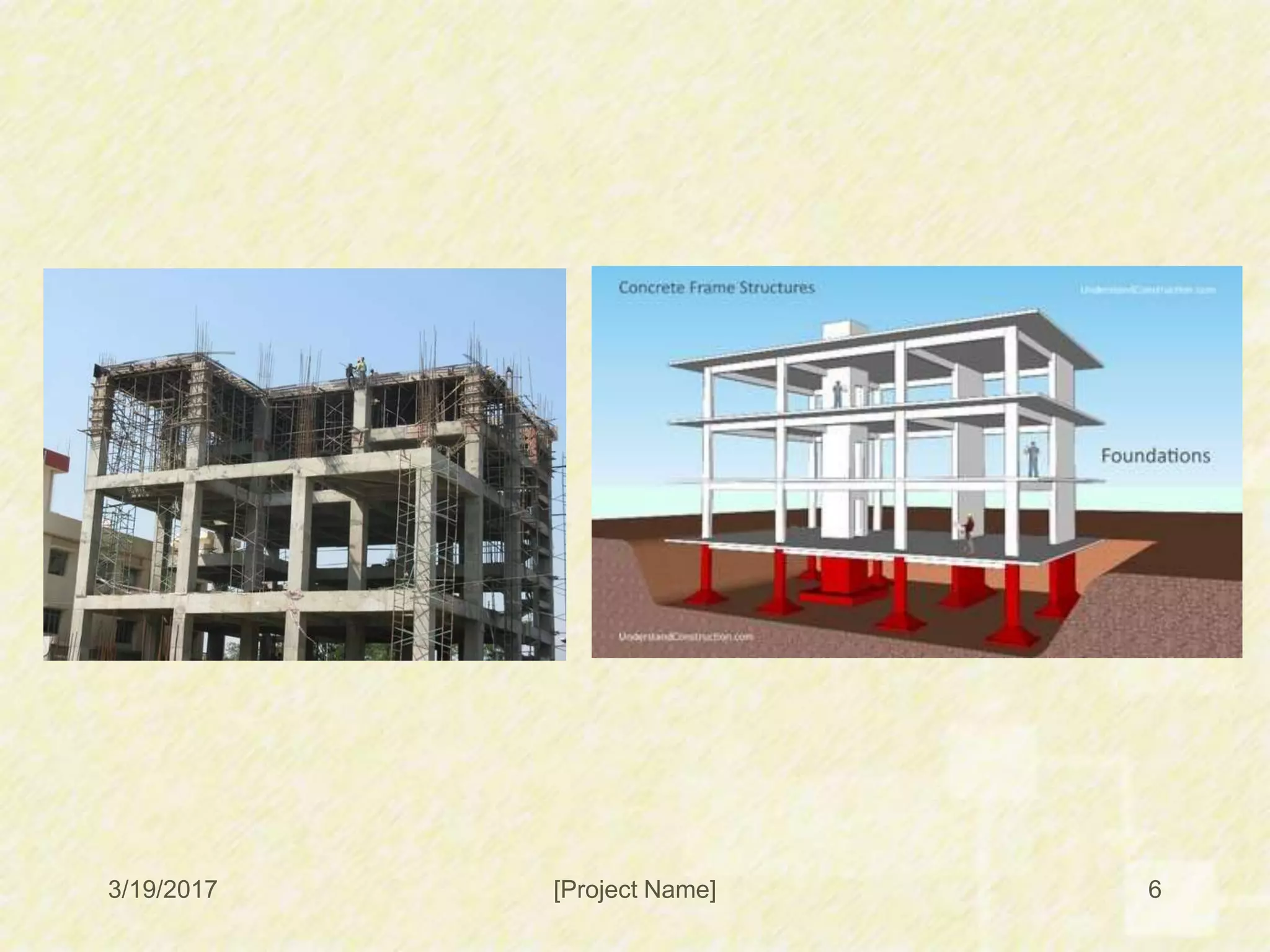

Framed Structure
• The Frame structure are more stable and
reliable in Earthquake.
• Frame Structure make whole structure
Flexible.
• Frame Structure transfer the load in this Path.
Slab Beam Column Foundation
• In the Frame Structure the load carrying
Element is The Beam and Column.
• The brick don't take any type of load but it is
used for cladding.
5

6. 3/19/2017 [Project Name] 6

7. 3/19/2017 [Project Name] 7
Composite Structure

8. 3/19/2017 [Project Name]
G+1 Load Bearing Structure
8
Q.No. Questions
1. Assuming the standard dimensions of rooms, plan a
luxurious bungalow for a celebrity to be constructed on a
plot of size 20 m x 30 m (G+1, load bearing structure.
Provide varandah, staircase, passage and sanitary units
as per bye laws.
Provide pitched roof.
i) Draw site plan, ground floor plan, first floor plan,
elevation and section passing through staircase, bath
& WC
ii) Write door and window schedule and construction
notes.

9. 3/19/2017 [Project Name]
G+1 R.C.C. Framed Structure
9
Q.No. Questions
1. It is proposed to construct a R.C.C. framed structure
bungalow (single storey) with the following area
requirements: drawing hall = 20 m2, children’s
bedroom = 15 m2, guest room = 15 m2, kitchen and
dining room = 20 m2. Provide verandah, passage,
sanitary units etc. as per byelaws.
i) Draw site plan, ground floor plan, first floor plan,
elevation and section passing through staircase,
bath & WC
ii) Write door and window schedule and construction
notes.

10. 3/19/2017 [Project Name]
G+1 R.C.C. Framed Structure
10
Q.No. Questions
1. From the designed structure in Drawing Sheet No. 2,
draw the following details down to scale as per
standard practice:
a) roof plan and its section
b) foundation plan and its section
c) stair and its section
d) typical door and window details including section
e) any other specific details

11. 3/19/2017 [Project Name] 11
