1. Inflammation and Cellular
Responses
Dr.Mohanad
QPT10203

2. Inflammation
 Is a protective response of the body’s to

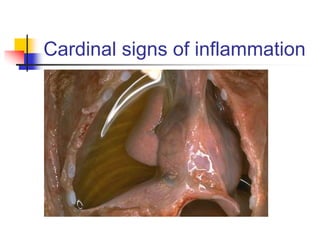

injury
 Consist of complex biological process by
body responds to pathogens and irritants
 Eliminate the initial cause of cell injury
destroying and neutralizing the harmful
agents
 Remove the damaged tissue
 Generate new tissue

3. Causes of inflammation
 Bacterial
 Viral
 Protozoal
 Metazoal
 Fungal
 Immunological
 Tumours
 Chemicals, toxins etc
 Radiation

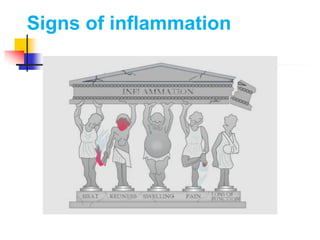

4. Signs of inflammation

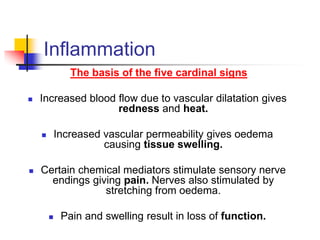

5. Inflammation
The basis of the five cardinal signs
 Increased blood flow due to vascular dilatation gives
redness and heat.
 Increased vascular permeability gives oedema
causing tissue swelling.
 Certain chemical mediators stimulate sensory nerve
endings giving pain. Nerves also stimulated by
stretching from oedema.
 Pain and swelling result in loss of function.

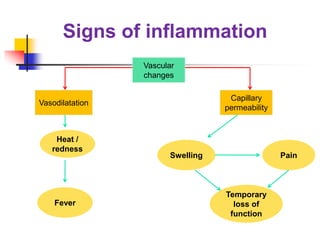

6. Signs of inflammation
Vascular
changes
Vasodilatation
Capillary
permeability
Heat /
redness
Temporary
loss of
function
Fever
Swelling Pain

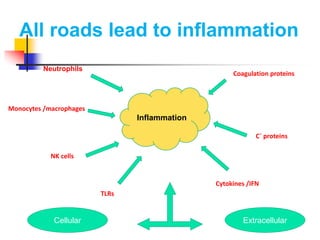

7. All roads lead to inflammation
Inflammation
Neutrophils
Monocytes /macrophages
NK cells
TLRs
Cytokines /IFN
C` proteins
Coagulation proteins
Cellular Extracellular

8. Cardinal signs of inflammation
Acute inflammation

9. Cardinal signs of inflammation

10. Cardinal signs of inflammation

11. Cardinal signs of inflammation

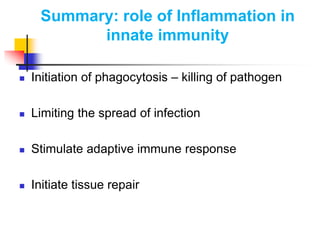

12. Summary: role of Inflammation in
innate immunity
 Initiation of phagocytosis – killing of pathogen
 Limiting the spread of infection
 Stimulate adaptive immune response
 Initiate tissue repair

13. Cardinal signs of inflammation

14. Cell of the acute inflammatory
response
 Polymorphonuclear leukocyte

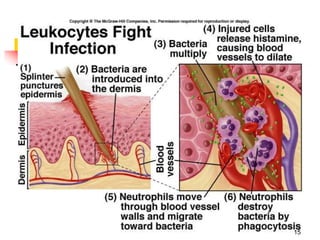

15. 15

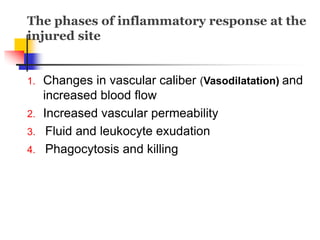

16. The phases of inflammatory response at the
injured site
1. Changes in vascular caliber (Vasodilatation) and
increased blood flow
2. Increased vascular permeability
3. Fluid and leukocyte exudation
4. Phagocytosis and killing

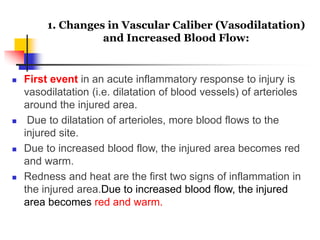

17.  First event in an acute inflammatory response to injury is
vasodilatation (i.e. dilatation of blood vessels) of arterioles
around the injured area.
 Due to dilatation of arterioles, more blood flows to the
injured site.
 Due to increased blood flow, the injured area becomes red
and warm.
 Redness and heat are the first two signs of inflammation in
the injured area.Due to increased blood flow, the injured
area becomes red and warm.
1. Changes in Vascular Caliber (Vasodilatation)
and Increased Blood Flow:

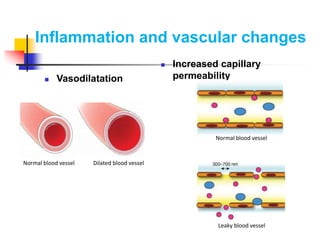

18. Inflammation and vascular changes
 Vasodilatation
 Increased capillary
permeability
Normal blood vessel Dilated blood vessel
Normal blood vessel
Leaky blood vessel

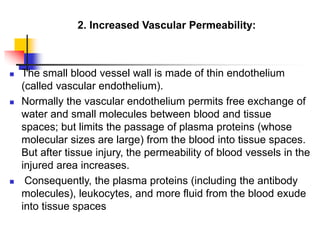

19.  The small blood vessel wall is made of thin endothelium
(called vascular endothelium).
 Normally the vascular endothelium permits free exchange of
water and small molecules between blood and tissue
spaces; but limits the passage of plasma proteins (whose
molecular sizes are large) from the blood into tissue spaces.
But after tissue injury, the permeability of blood vessels in the
injured area increases.
 Consequently, the plasma proteins (including the antibody
molecules), leukocytes, and more fluid from the blood exude
into tissue spaces
2. Increased Vascular Permeability:

20. Local vascular manifestations of acute inflammation

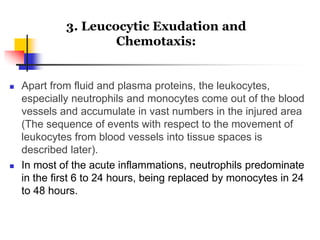

21.  Apart from fluid and plasma proteins, the leukocytes,
especially neutrophils and monocytes come out of the blood
vessels and accumulate in vast numbers in the injured area
(The sequence of events with respect to the movement of
leukocytes from blood vessels into tissue spaces is
described later).
 In most of the acute inflammations, neutrophils predominate
in the first 6 to 24 hours, being replaced by monocytes in 24
to 48 hours.
3. Leucocytic Exudation and
Chemotaxis:

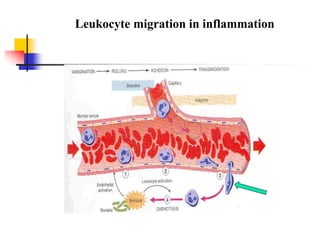

22. Leukocyte migration in inflammation

23. Molecules modulating endothelial-neutrophil interactions

24.  The leukocytes engulf (phagocytose) the microbes and kill
them. Phagocytosis and intracellular killing of ingested
microbe (such as bacteria) can be described in three
interrelated steps.
 i. Recognition and attachment of leukocyte to bacteria
 ii. Engulfment (phagocytosis) of bacteria
 Killing or degradation of bacteria
 Recognition and Attachment of Leukocytes to Bacteria:
 The leukocytes recognize the microorganisms through serum factors called
opsonins. There are two major opsonins.
 1. IgG (subtypes IgGl and IgG3) and
 2. C3b (opsonic fragment of C3), which is generated by activation of complement
system by direct or alternative pathway.
4. Phagocytosis and Intracellular
Killing:

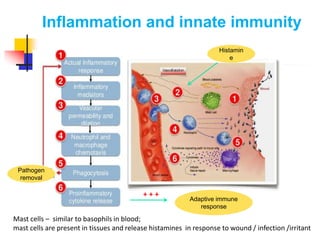

25. Inflammation and innate immunity
Mast cells – similar to basophils in blood;
mast cells are present in tissues and release histamines in response to wound / infection /irritant
Histamin
e
Pathogen
removal
Adaptive immune
response
+ + +

26. Acute inflammation: tissue effects

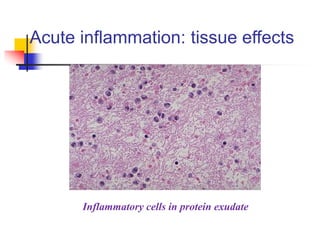

27. Acute inflammation: tissue effects
Inflammatory cells in protein exudate

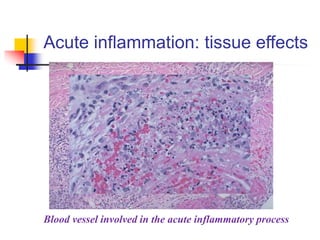

28. Acute inflammation: tissue effects
Blood vessel involved in the acute inflammatory process

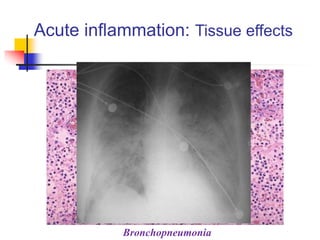

29. Acute inflammation: Tissue effects
Bronchopneumonia

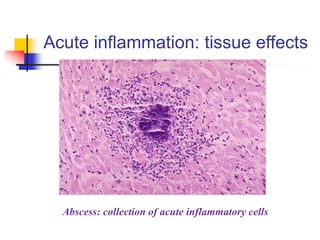

30. Acute inflammation: tissue effects
Abscess: collection of acute inflammatory cells

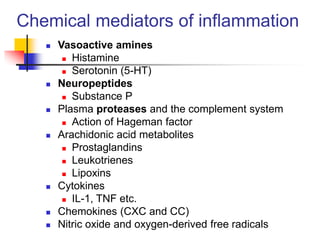

33.  Vasoactive amines
 Histamine
 Serotonin (5-HT)
 Neuropeptides
 Substance P
 Plasma proteases and the complement system
 Action of Hageman factor
 Arachidonic acid metabolites
 Prostaglandins
 Leukotrienes
 Lipoxins
 Cytokines
 IL-1, TNF etc.
 Chemokines (CXC and CC)
 Nitric oxide and oxygen-derived free radicals
Chemical mediators of inflammation

34. Chemical mediators of inflammation
 PREFORMED
Histamine, Serotonin
 NEWLY SYNTHESISED
Prostaglandins
Leucotrienes
Platelet activating factor
Cytokines
Nitric oxide
 LOCAL AND SYSTEMIC

35. Chemical mediators of inflammation
(local and systemic)

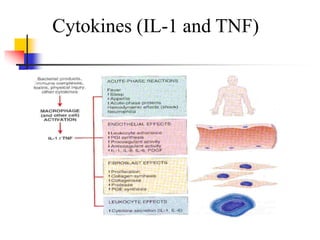

36. Cytokines (IL-1 and TNF)

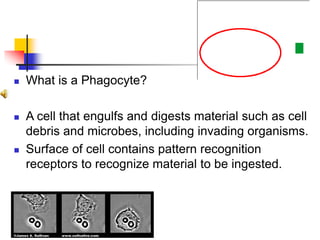

37.  What is a Phagocyte?
 A cell that engulfs and digests material such as cell
debris and microbes, including invading organisms.
 Surface of cell contains pattern recognition
receptors to recognize material to be ingested.

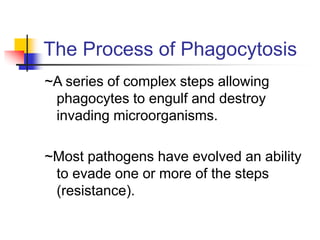

38. The Process of Phagocytosis
~A series of complex steps allowing
phagocytes to engulf and destroy
invading microorganisms.
~Most pathogens have evolved an ability
to evade one or more of the steps
(resistance).

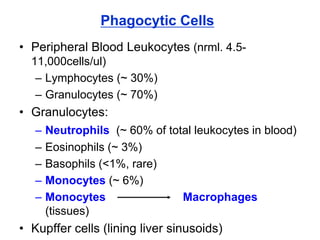

39. Phagocytic Cells
• Peripheral Blood Leukocytes (nrml. 4.5-
11,000cells/ul)
– Lymphocytes (~ 30%)
– Granulocytes (~ 70%)
• Granulocytes:
– Neutrophils (~ 60% of total leukocytes in blood)
– Eosinophils (~ 3%)
– Basophils (<1%, rare)
– Monocytes (~ 6%)
– Monocytes Macrophages
(tissues)
• Kupffer cells (lining liver sinusoids)

40. Peripheral Blood Smear
Neutrophil
Lymphocyte
Regents of the University of Michigan

41. Lymphocyte
Platelets
Regents of the University of Michigan

42. Neutrophil
Regents of the University of Michigan

43. Monocyte
Regents of the University of Michigan

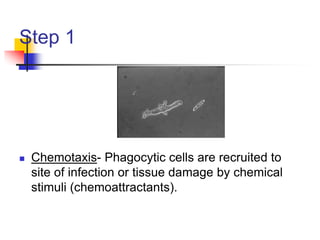

44. Step 1
 Chemotaxis- Phagocytic cells are recruited to
site of infection or tissue damage by chemical
stimuli (chemoattractants).

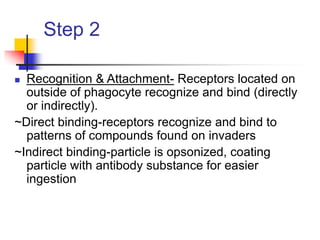

45. Step 2
 Recognition & Attachment- Receptors located on
outside of phagocyte recognize and bind (directly
or indirectly).
~Direct binding-receptors recognize and bind to
patterns of compounds found on invaders
~Indirect binding-particle is opsonized, coating
particle with antibody substance for easier
ingestion

46. Step 3
 Engulfment-Phagocytic cell engulfs invader, forming a
membrane-bound vacuole called a phagosome.
~Cytoskeleton of phagocyte rearranges to form armlike
extensions (pseudopods) that surround material being
engulfed.

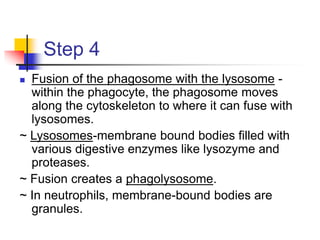

47. Step 4
 Fusion of the phagosome with the lysosome -
within the phagocyte, the phagosome moves
along the cytoskeleton to where it can fuse with
lysosomes.
~ Lysosomes-membrane bound bodies filled with
various digestive enzymes like lysozyme and
proteases.
~ Fusion creates a phagolysosome.
~ In neutrophils, membrane-bound bodies are
granules.

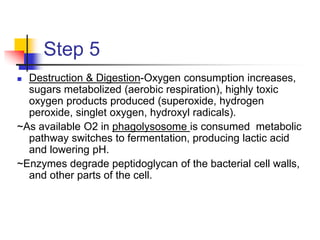

48. Step 5
 Destruction & Digestion-Oxygen consumption increases,
sugars metabolized (aerobic respiration), highly toxic
oxygen products produced (superoxide, hydrogen
peroxide, singlet oxygen, hydroxyl radicals).
~As available O2 in phagolysosome is consumed metabolic
pathway switches to fermentation, producing lactic acid
and lowering pH.
~Enzymes degrade peptidoglycan of the bacterial cell walls,
and other parts of the cell.

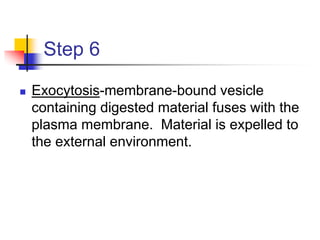

49. Step 6
 Exocytosis-membrane-bound vesicle
containing digested material fuses with the
plasma membrane. Material is expelled to
the external environment.

50. What do neutrophils do?
Phagocytosis
Contact, Recognition, Internalisation.
Opsonins: e.g. Fc and C3b receptors
Cytoskeletal changes (as with chemotaxis);
‘zipper’ effect.

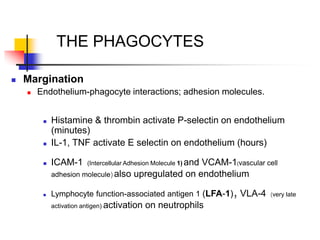

52. THE PHAGOCYTES
 Margination
 Endothelium-phagocyte interactions; adhesion molecules.
 Histamine & thrombin activate P-selectin on endothelium
(minutes)
 IL-1, TNF activate E selectin on endothelium (hours)
 ICAM-1 (Intercellular Adhesion Molecule 1) and VCAM-1(vascular cell
adhesion molecule) also upregulated on endothelium
 Lymphocyte function-associated antigen 1 (LFA-1), VLA-4 (very late
activation antigen) activation on neutrophils

53. How do neutrophils escape from vessels?
 Relaxation of inter-endothelial cell junctions
 Digestion of vascular basement membrane
 Movement

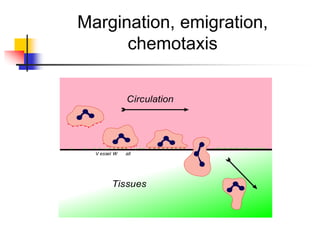

54. Margination, emigration,
chemotaxis
V essel W all
Circulation
Tissues

57. How do neutrophils move?
Diapedesis and Emigration; Chemotaxis.
 Chemotaxis implies detection of concentration
gradients
 Receptor-ligand binding
 Phospholipase C activation
 Local release of free intracellular Ca+
 Rearrangement of cytoskeleton
 Production of pseudopod

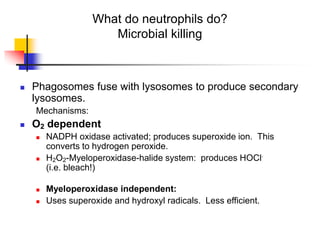

58. What do neutrophils do?
Microbial killing
 Phagosomes fuse with lysosomes to produce secondary
lysosomes.
Mechanisms:
 O2 dependent
 NADPH oxidase activated; produces superoxide ion. This
converts to hydrogen peroxide.
 H2O2-Myeloperoxidase-halide system: produces HOCl.
(i.e. bleach!)
 Myeloperoxidase independent:
 Uses superoxide and hydroxyl radicals. Less efficient.

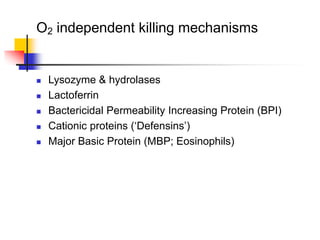

59. O2 independent killing mechanisms
 Lysozyme & hydrolases
 Lactoferrin
 Bactericidal Permeability Increasing Protein (BPI)
 Cationic proteins (‘Defensins’)
 Major Basic Protein (MBP; Eosinophils)

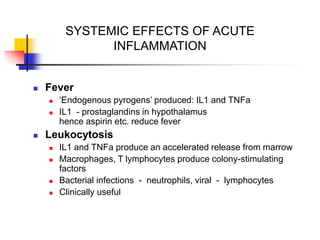

60. SYSTEMIC EFFECTS OF ACUTE
INFLAMMATION
 Fever
 ‘Endogenous pyrogens’ produced: IL1 and TNFa
 IL1 - prostaglandins in hypothalamus
hence aspirin etc. reduce fever
 Leukocytosis
 IL1 and TNFa produce an accelerated release from marrow
 Macrophages, T lymphocytes produce colony-stimulating
factors
 Bacterial infections - neutrophils, viral - lymphocytes
 Clinically useful

61. PROBLEMS CAUSED BY ACUTE INFLAMMATION
 Local
 Swelling: Blockage of tubes, e.g. bile duct, intestine
 Exudate: Compression e.g. cardiac tamponade
Loss of fluid e.g. burns
 Pain & loss of function - especially if prolonged

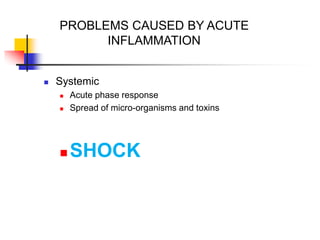

62. PROBLEMS CAUSED BY ACUTE
INFLAMMATION
 Systemic
 Acute phase response
 Spread of micro-organisms and toxins
 SHOCK

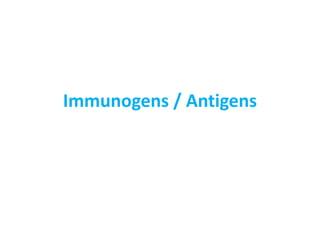

63. Immunogens / Antigens

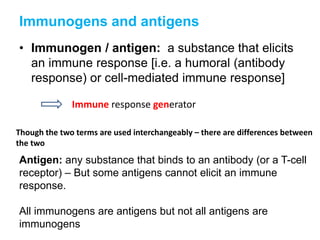

64. Immunogens and antigens
• Immunogen / antigen: a substance that elicits
an immune response [i.e. a humoral (antibody
response) or cell-mediated immune response]
Immune response generator
Though the two terms are used interchangeably – there are differences between
the two
Antigen: any substance that binds to an antibody (or a T-cell
receptor) – But some antigens cannot elicit an immune
response.
All immunogens are antigens but not all antigens are
immunogens

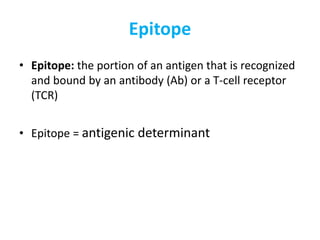

65. Epitope
• Epitope: the portion of an antigen that is recognized
and bound by an antibody (Ab) or a T-cell receptor
(TCR)
• Epitope = antigenic determinant

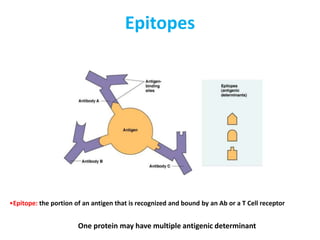

66. Epitopes
•Epitope: the portion of an antigen that is recognized and bound by an Ab or a T Cell receptor
One protein may have multiple antigenic determinant

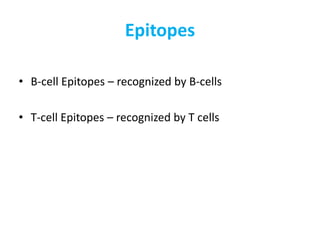

67. Epitopes
• B-cell Epitopes – recognized by B-cells
• T-cell Epitopes – recognized by T cells

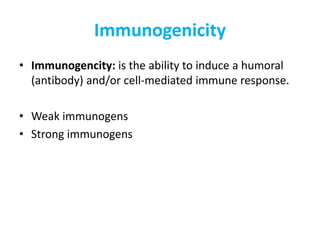

68. Immunogenicity
• Immunogencity: is the ability to induce a humoral
(antibody) and/or cell-mediated immune response.
• Weak immunogens
• Strong immunogens

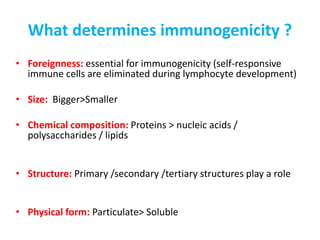

69. What determines immunogenicity ?
• Foreignness: essential for immunogenicity (self-responsive
immune cells are eliminated during lymphocyte development)
• Size: Bigger>Smaller
• Chemical composition: Proteins > nucleic acids /
polysaccharides / lipids
• Structure: Primary /secondary /tertiary structures play a role
• Physical form: Particulate> Soluble

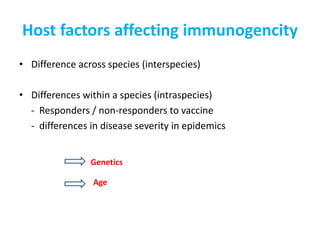

70. Host factors affecting immunogencity
• Difference across species (interspecies)
• Differences within a species (intraspecies)
- Responders / non-responders to vaccine
- differences in disease severity in epidemics
Genetics
Age

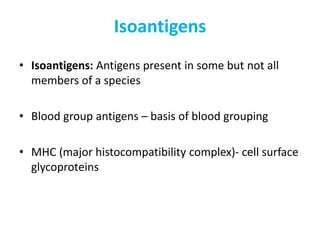

71. Isoantigens
• Isoantigens: Antigens present in some but not all
members of a species
• Blood group antigens – basis of blood grouping
• MHC (major histocompatibility complex)- cell surface
glycoproteins

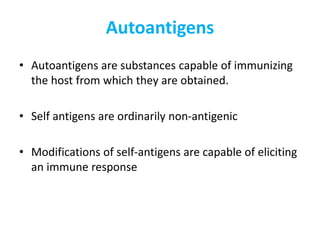

72. Autoantigens
• Autoantigens are substances capable of immunizing
the host from which they are obtained.
• Self antigens are ordinarily non-antigenic
• Modifications of self-antigens are capable of eliciting
an immune response

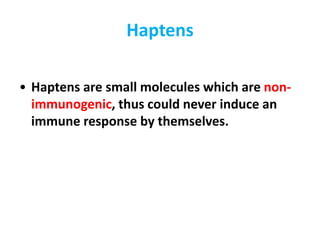

73. Haptens
• Haptens are small molecules which are non-
immunogenic, thus could never induce an
immune response by themselves.

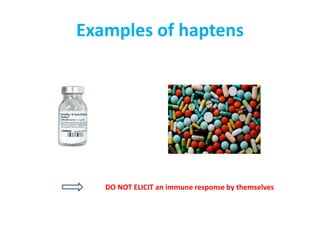

74. Examples of haptens
DO NOT ELICIT an immune response by themselves

75. Immunogens / Antigens

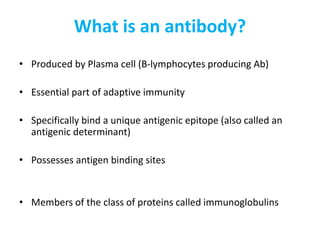

76. What is an antibody?
• Produced by Plasma cell (B-lymphocytes producing Ab)
• Essential part of adaptive immunity
• Specifically bind a unique antigenic epitope (also called an
antigenic determinant)
• Possesses antigen binding sites
• Members of the class of proteins called immunoglobulins

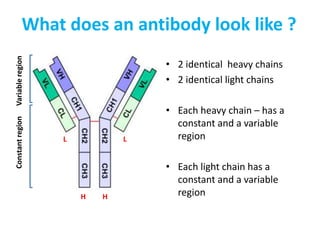

77. What does an antibody look like ?
• 2 identical heavy chains
• 2 identical light chains
• Each heavy chain – has a
constant and a variable
region
• Each light chain has a
constant and a variable
region
H H
L L
Constant
region
Variable
region

78. Antibody: structure and function
• Fab – fragment antigen
binding
• Fc- Fragment constant

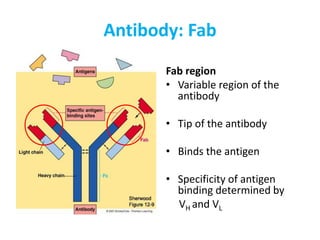

79. Antibody: Fab
Fab region
• Variable region of the
antibody
• Tip of the antibody
• Binds the antigen
• Specificity of antigen
binding determined by
VH and VL

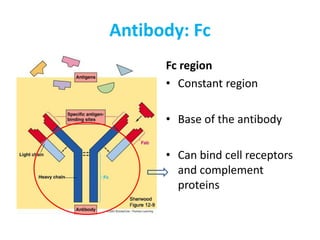

80. Antibody: Fc
Fc region
• Constant region
• Base of the antibody
• Can bind cell receptors
and complement
proteins

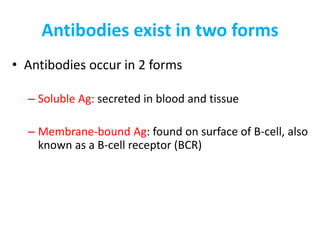

81. • Antibodies occur in 2 forms
– Soluble Ag: secreted in blood and tissue
– Membrane-bound Ag: found on surface of B-cell, also
known as a B-cell receptor (BCR)
Antibodies exist in two forms

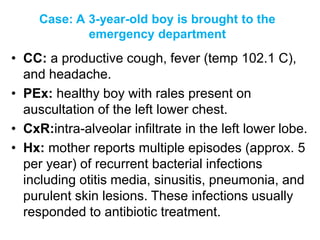

82. Case: A 3-year-old boy is brought to the
emergency department
• CC: a productive cough, fever (temp 102.1 C),
and headache.
• PEx: healthy boy with rales present on
auscultation of the left lower chest.
• CxR:intra-alveolar infiltrate in the left lower lobe.
• Hx: mother reports multiple episodes (approx. 5
per year) of recurrent bacterial infections
including otitis media, sinusitis, pneumonia, and
purulent skin lesions. These infections usually
responded to antibiotic treatment.

83. QUESTIONS?
