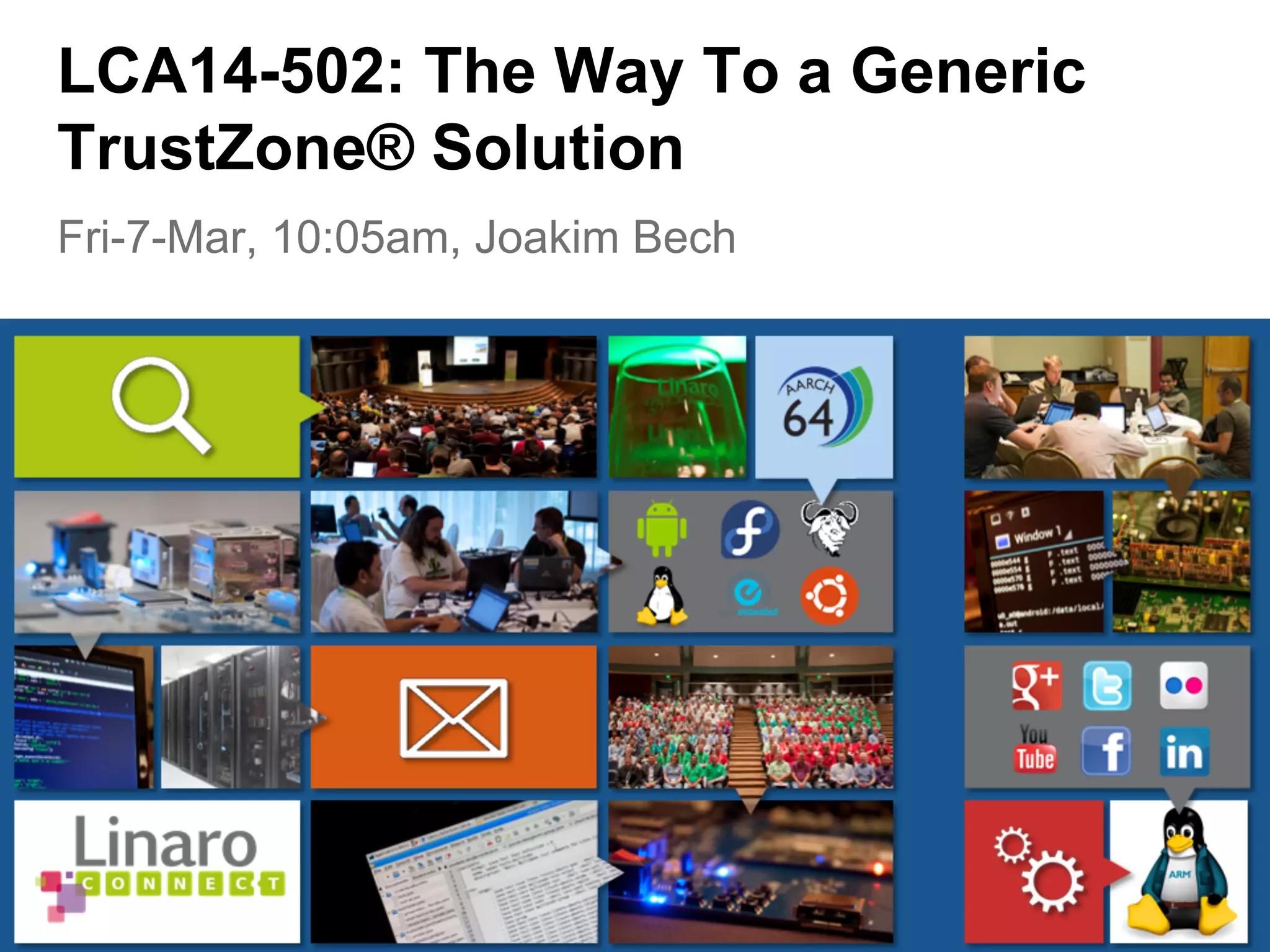

LCA14-502: The Way To a Generic
TrustZone® Solution

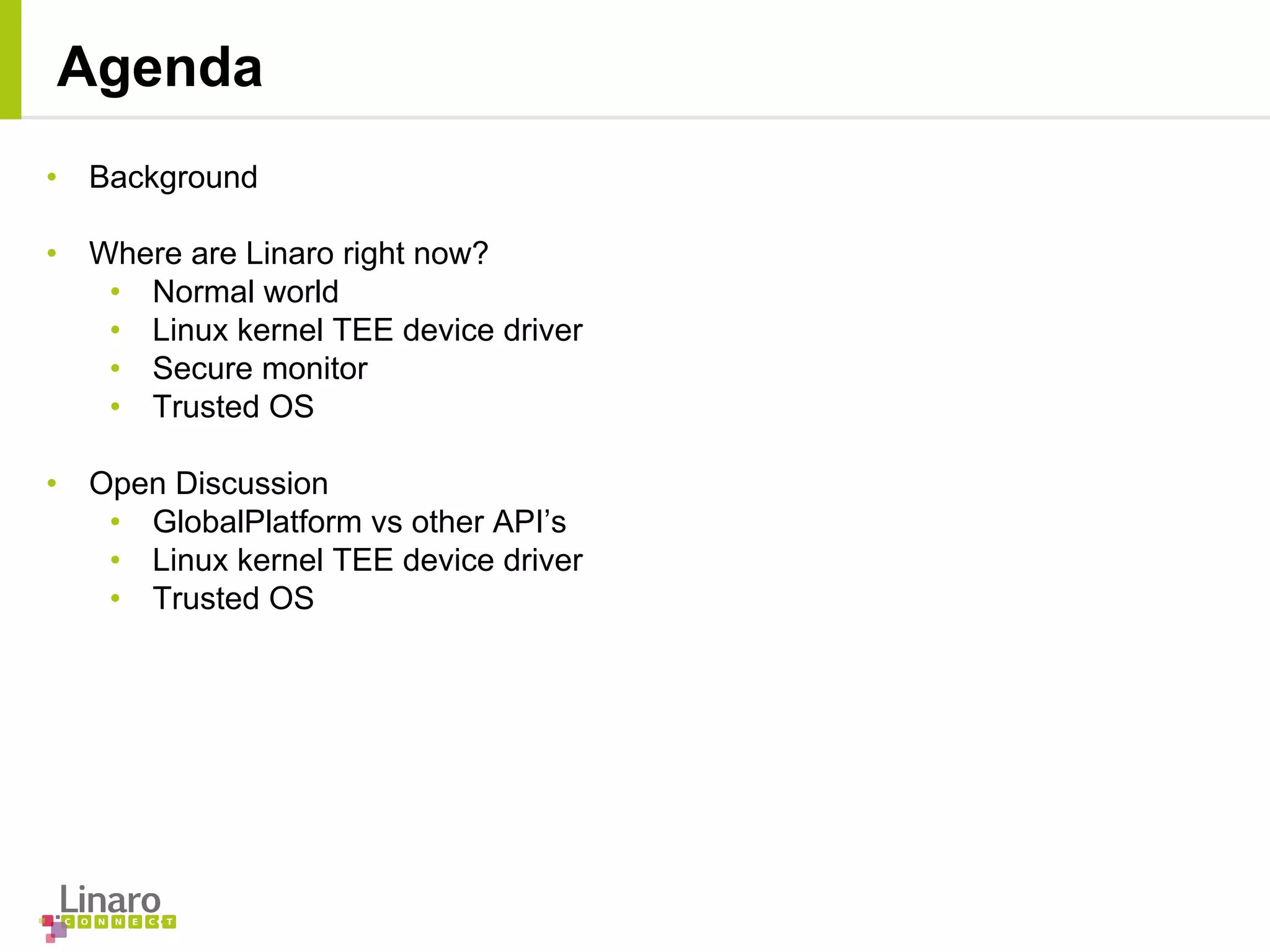

2. • Background
• Where are Linaro right now?
• Normal world
• Linux kernel TEE device driver
• Secure monitor
• Trusted OS
• Open Discussion
• GlobalPlatform vs other API’s
• Linux kernel TEE device driver
• Trusted OS
Agenda

3. • Does everyone know what a TEE is?
• Why are Linaro involved in a TEE solution?
• A number of organisations and companies wants a full open source TEE
• Limited availability of open source reference software
• Linaro and the members implements and tests ARM’s best practice
• How will Linaro contribute?
• Upstream to available open source TEE solutions
• What do we want to achieve?
• Prevent fragmentation
• Be part of creating an open source TEE
• Share development between stakeholders
• Upstream everything
• Interchangeable TEE components! Both open source and commercial!
• Provide a good reference implementation

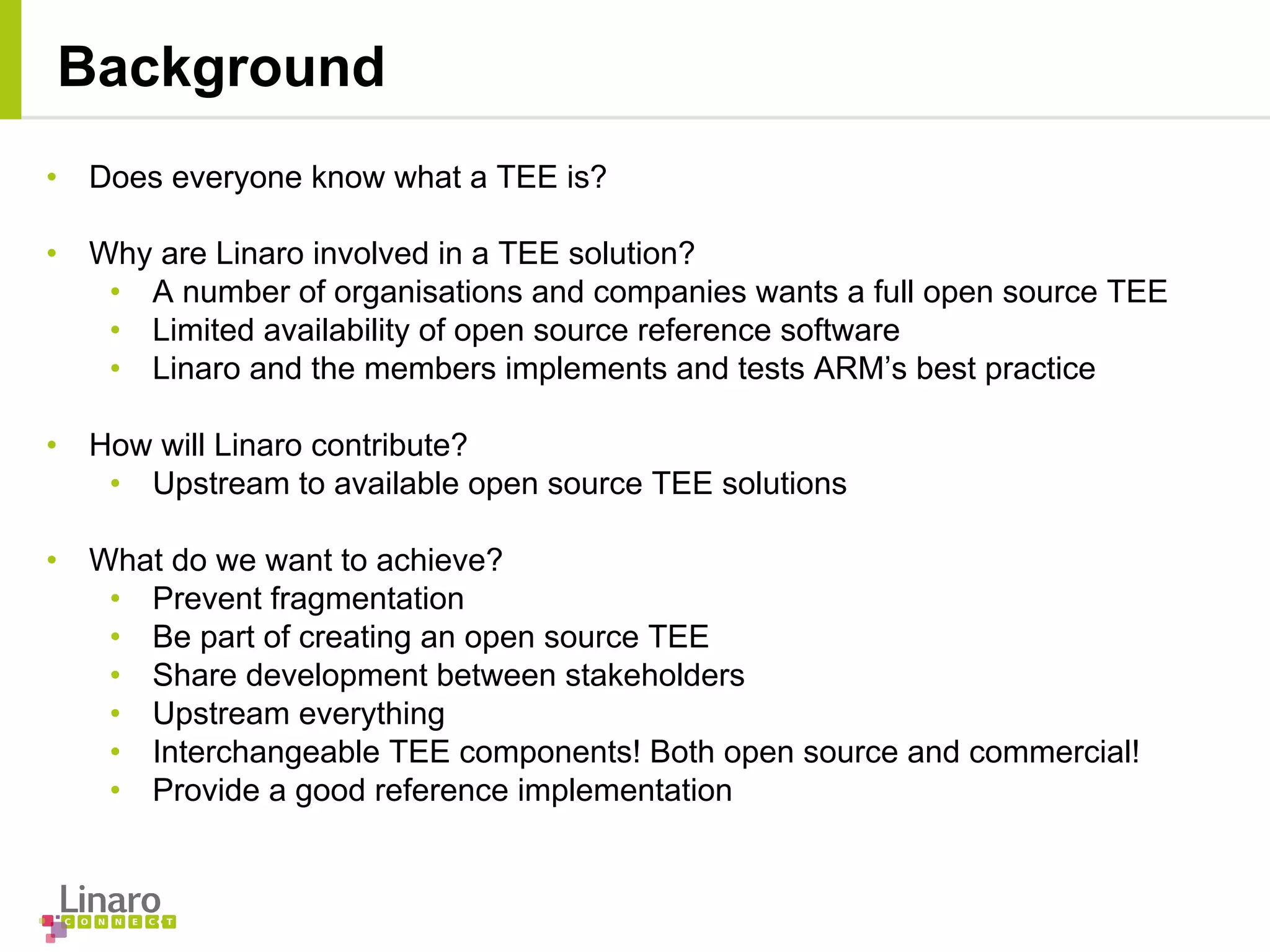

Background

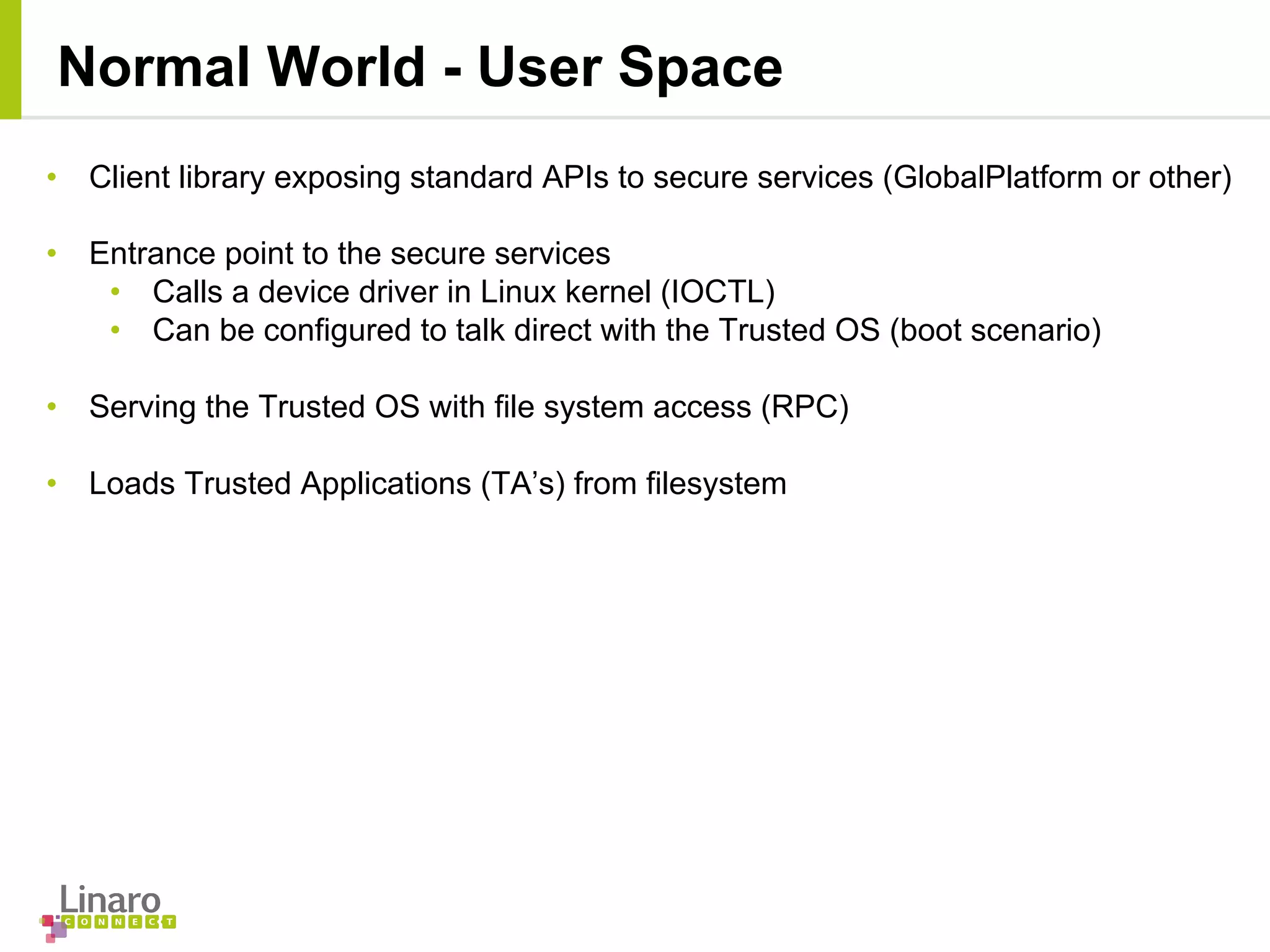

4. • Client library exposing standard APIs to secure services (GlobalPlatform or other)
• Entrance point to the secure services
• Calls a device driver in Linux kernel (IOCTL)
• Can be configured to talk direct with the Trusted OS (boot scenario)
• Serving the Trusted OS with file system access (RPC)
• Loads Trusted Applications (TA’s) from filesystem

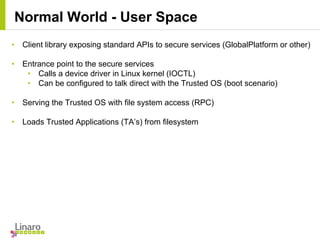

Normal World - User Space

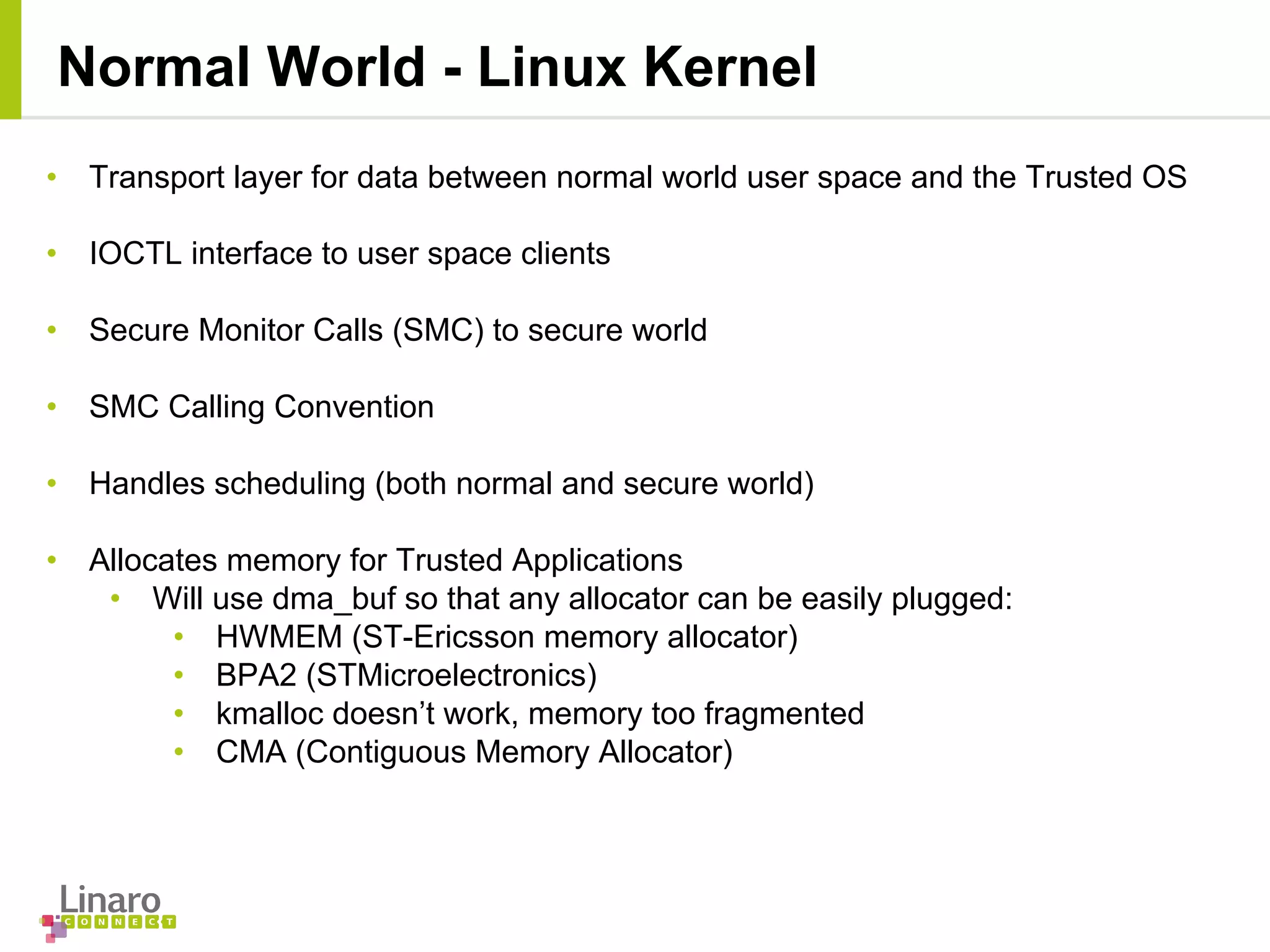

5. • Transport layer for data between normal world user space and the Trusted OS
• IOCTL interface to user space clients
• Secure Monitor Calls (SMC) to secure world
• SMC Calling Convention
• Handles scheduling (both normal and secure world)
• Allocates memory for Trusted Applications
• Will use dma_buf so that any allocator can be easily plugged:
• HWMEM (ST-Ericsson memory allocator)
• BPA2 (STMicroelectronics)
• kmalloc doesn’t work, memory too fragmented
• CMA (Contiguous Memory Allocator)
Normal World - Linux Kernel

6. • ARMv8: ARM
Trusted Firmware will
include a Secure
Monitor for switching
between secure and
non-secure world
• ARMv8: Trusted
Firmware is the
reference but need to
be extended with a
Trusted OS
Dispatcher

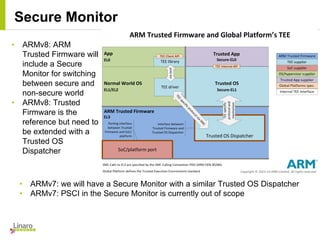

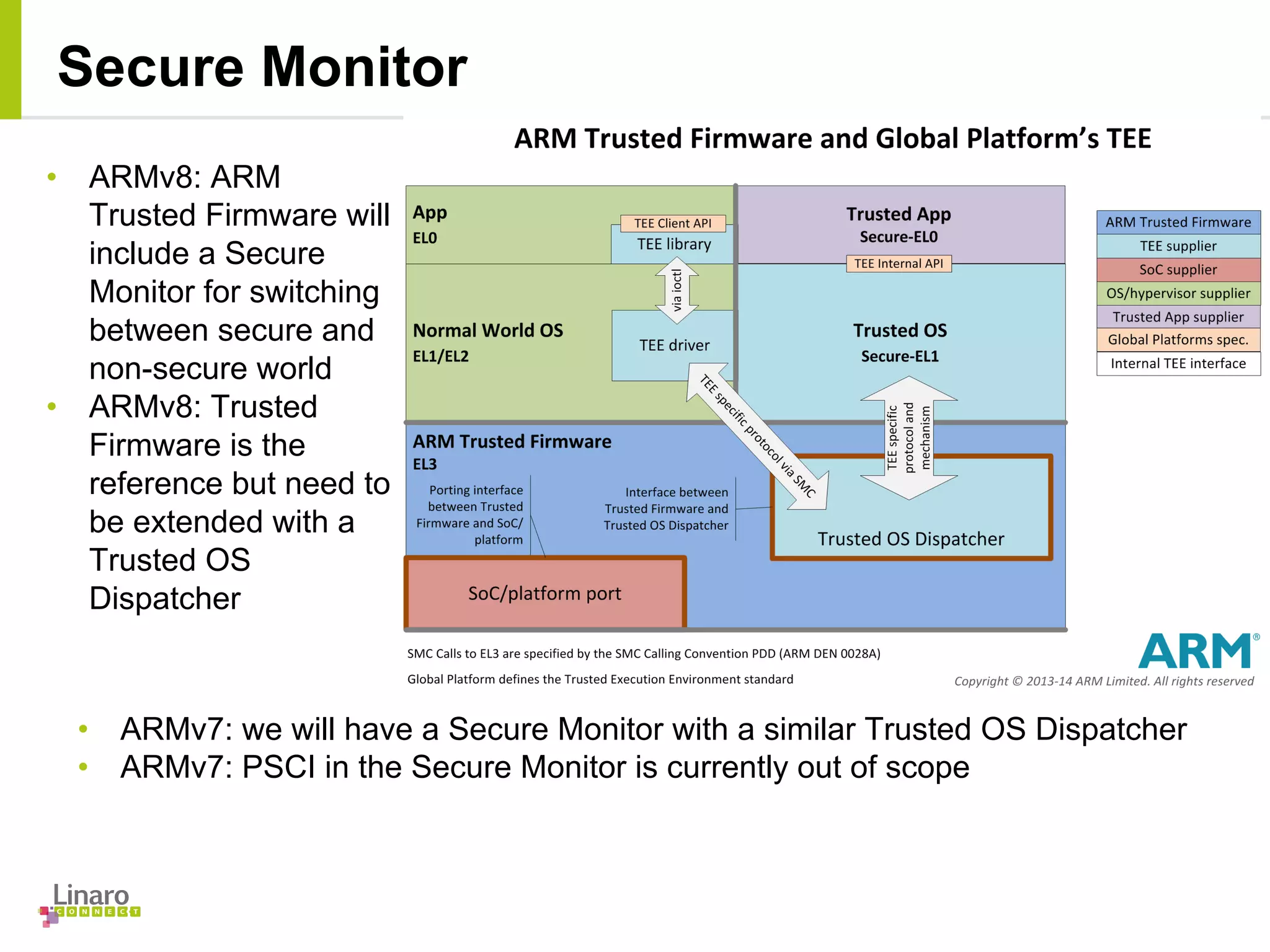

Secure Monitor
• ARMv7: we will have a Secure Monitor with a similar Trusted OS Dispatcher
• ARMv7: PSCI in the Secure Monitor is currently out of scope

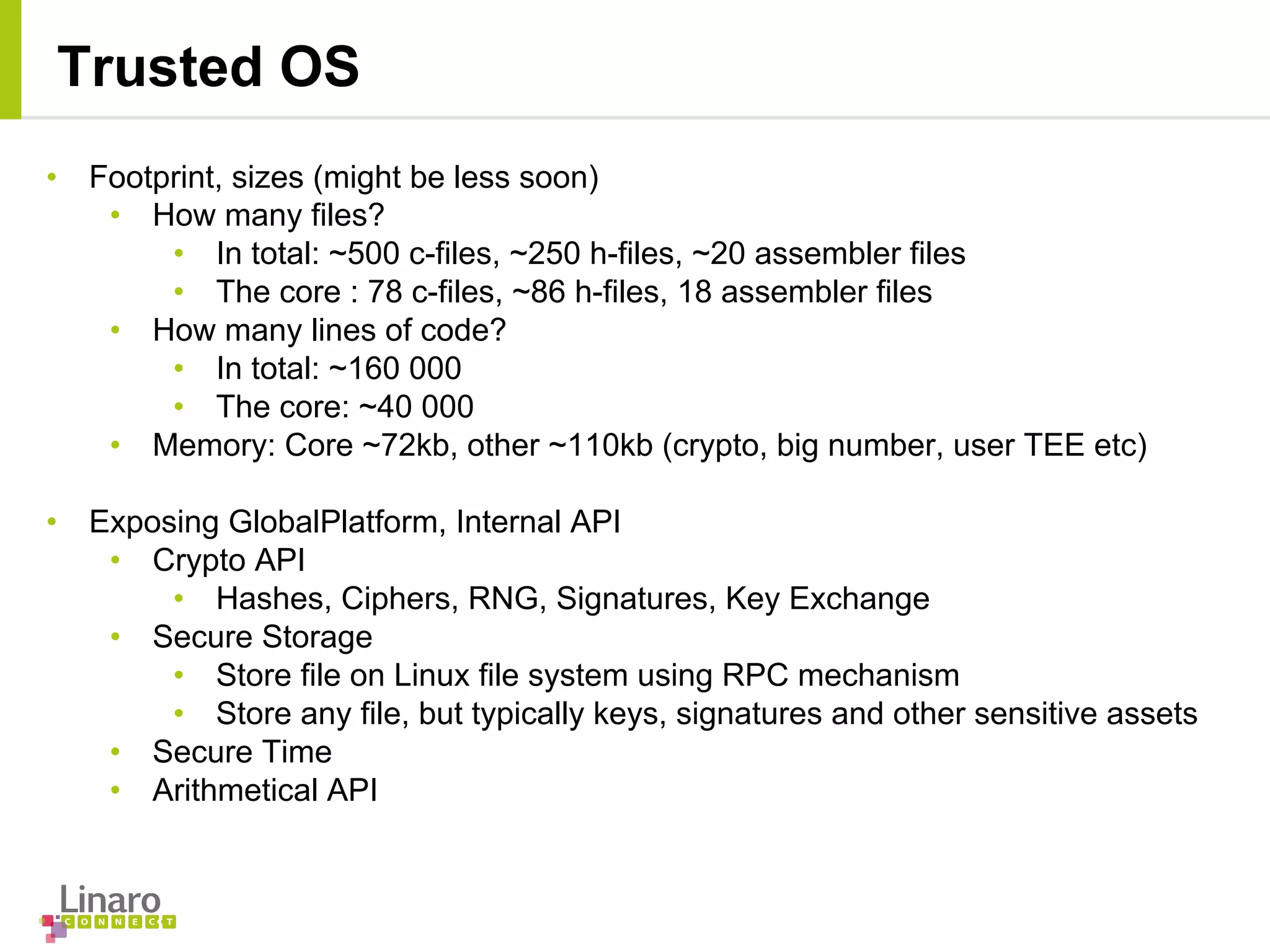

7. • Footprint, sizes (might be less soon)
• How many files?
• In total: ~500 c-files, ~250 h-files, ~20 assembler files
• The core : 78 c-files, ~86 h-files, 18 assembler files
• How many lines of code?
• In total: ~160 000
• The core: ~40 000
• Memory: Core ~72kb, other ~110kb (crypto, big number, user TEE etc)
• Exposing GlobalPlatform, Internal API
• Crypto API
• Hashes, Ciphers, RNG, Signatures, Key Exchange
• Secure Storage
• Store file on Linux file system using RPC mechanism
• Store any file, but typically keys, signatures and other sensitive assets
• Secure Time
• Arithmetical API
Trusted OS

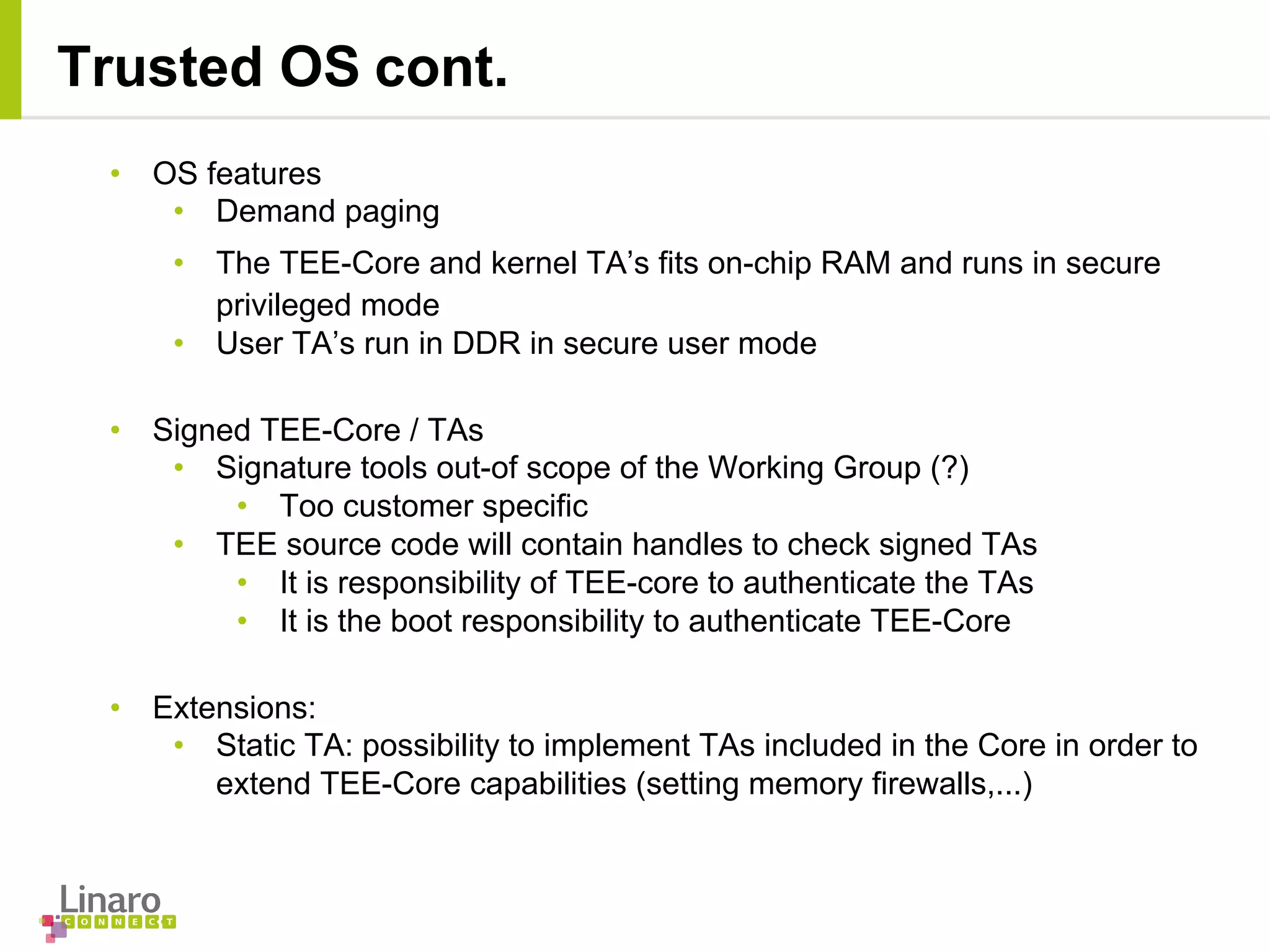

8. • OS features
• Demand paging
• The TEE-Core and kernel TA’s fits on-chip RAM and runs in secure
privileged mode
• User TA’s run in DDR in secure user mode
• Signed TEE-Core / TAs
• Signature tools out-of scope of the Working Group (?)
• Too customer specific
• TEE source code will contain handles to check signed TAs
• It is responsibility of TEE-core to authenticate the TAs
• It is the boot responsibility to authenticate TEE-Core
• Extensions:
• Static TA: possibility to implement TAs included in the Core in order to
extend TEE-Core capabilities (setting memory firewalls,...)
Trusted OS cont.

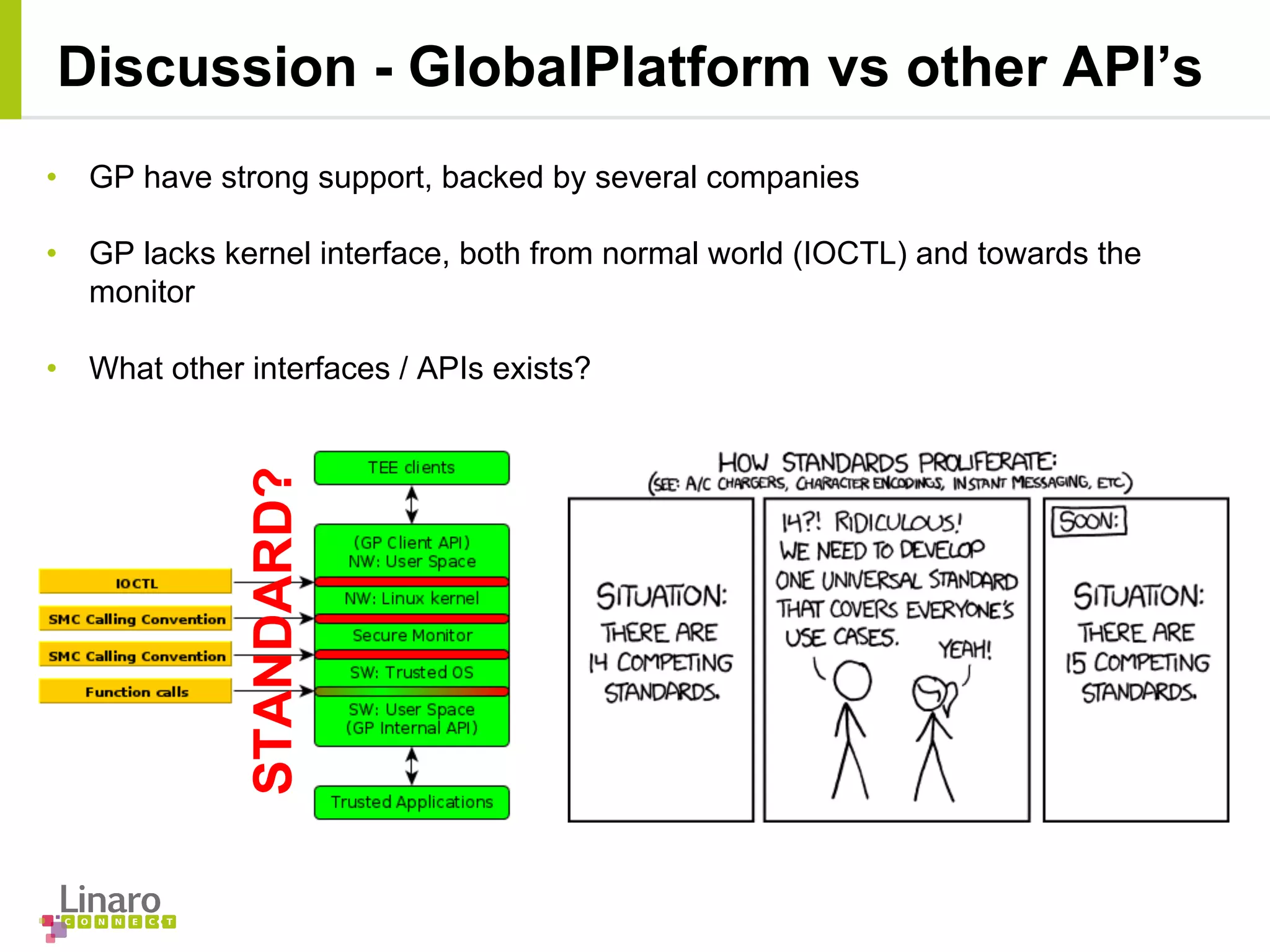

9. Discussion - GlobalPlatform vs other API’s
• GP have strong support, backed by several companies
• GP lacks kernel interface, both from normal world (IOCTL) and towards the
monitor
• What other interfaces / APIs exists?
STANDARD?

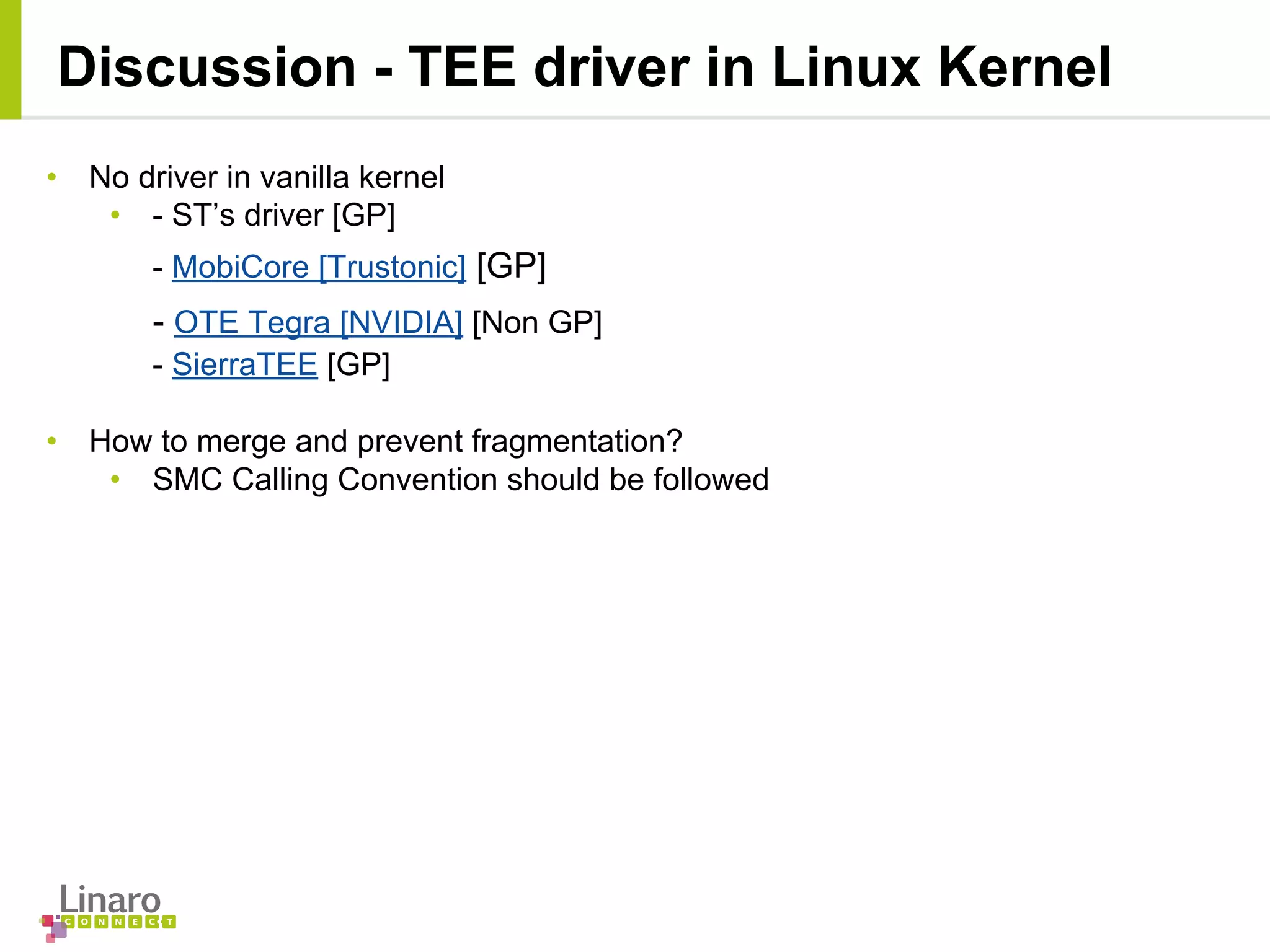

10. Discussion - TEE driver in Linux Kernel
• No driver in vanilla kernel
• - ST’s driver [GP]
- MobiCore [Trustonic] [GP]
- OTE Tegra [NVIDIA] [Non GP]
- SierraTEE [GP]
• How to merge and prevent fragmentation?
• SMC Calling Convention should be followed

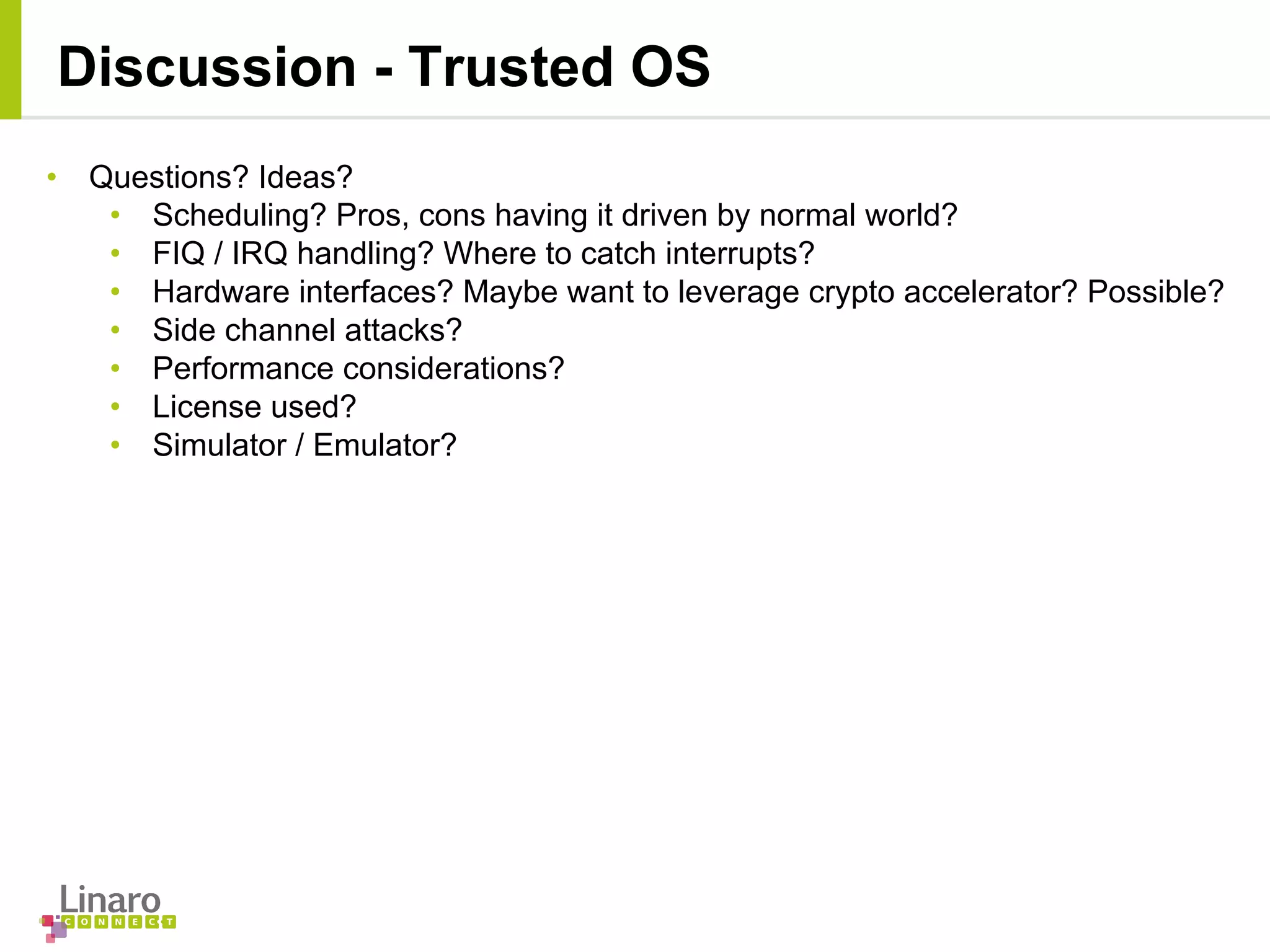

11. Discussion - Trusted OS
• Questions? Ideas?
• Scheduling? Pros, cons having it driven by normal world?
• FIQ / IRQ handling? Where to catch interrupts?
• Hardware interfaces? Maybe want to leverage crypto accelerator? Possible?
• Side channel attacks?
• Performance considerations?
• License used?
• Simulator / Emulator?

12. More about Linaro Connect: http://connect.linaro.org
More about Linaro: http://www.linaro.org/about/
More about Linaro engineering: http://www.linaro.org/engineering/
Linaro members: www.linaro.org/members

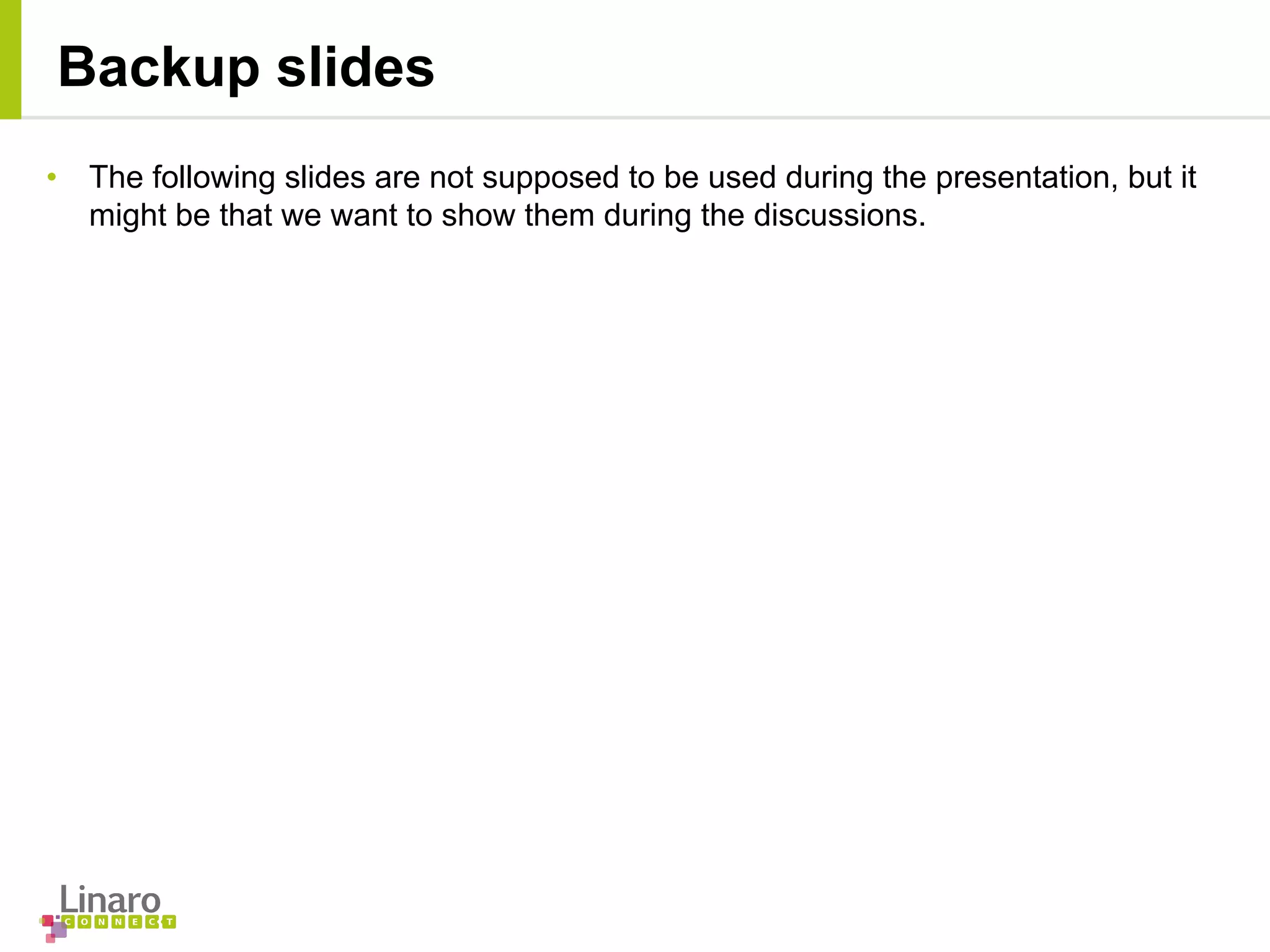

13. Backup slides
• The following slides are not supposed to be used during the presentation, but it
might be that we want to show them during the discussions.

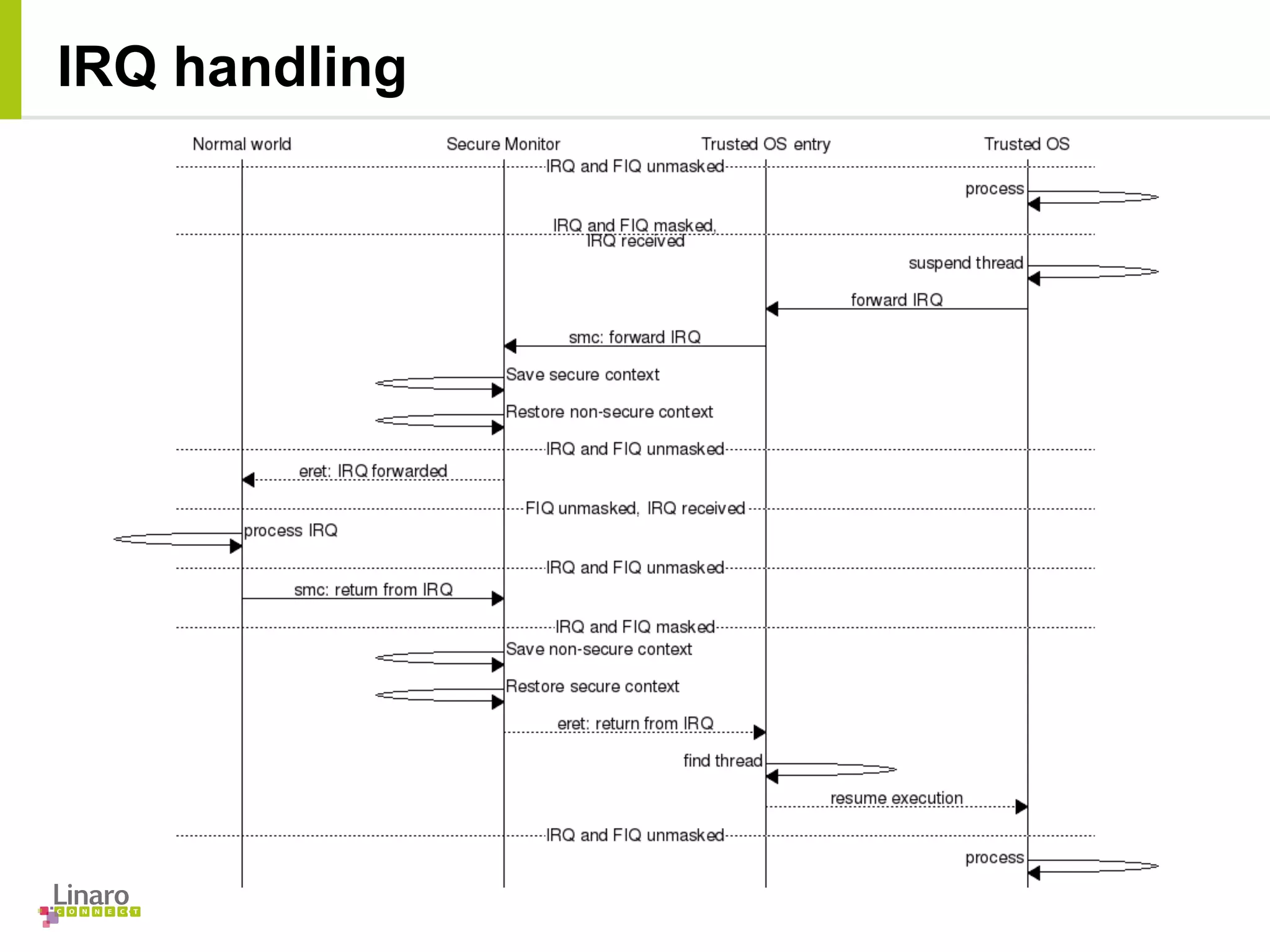

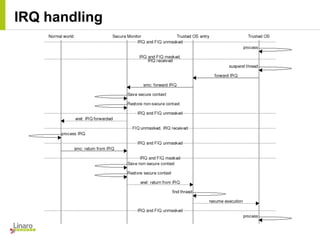

14. IRQ handling

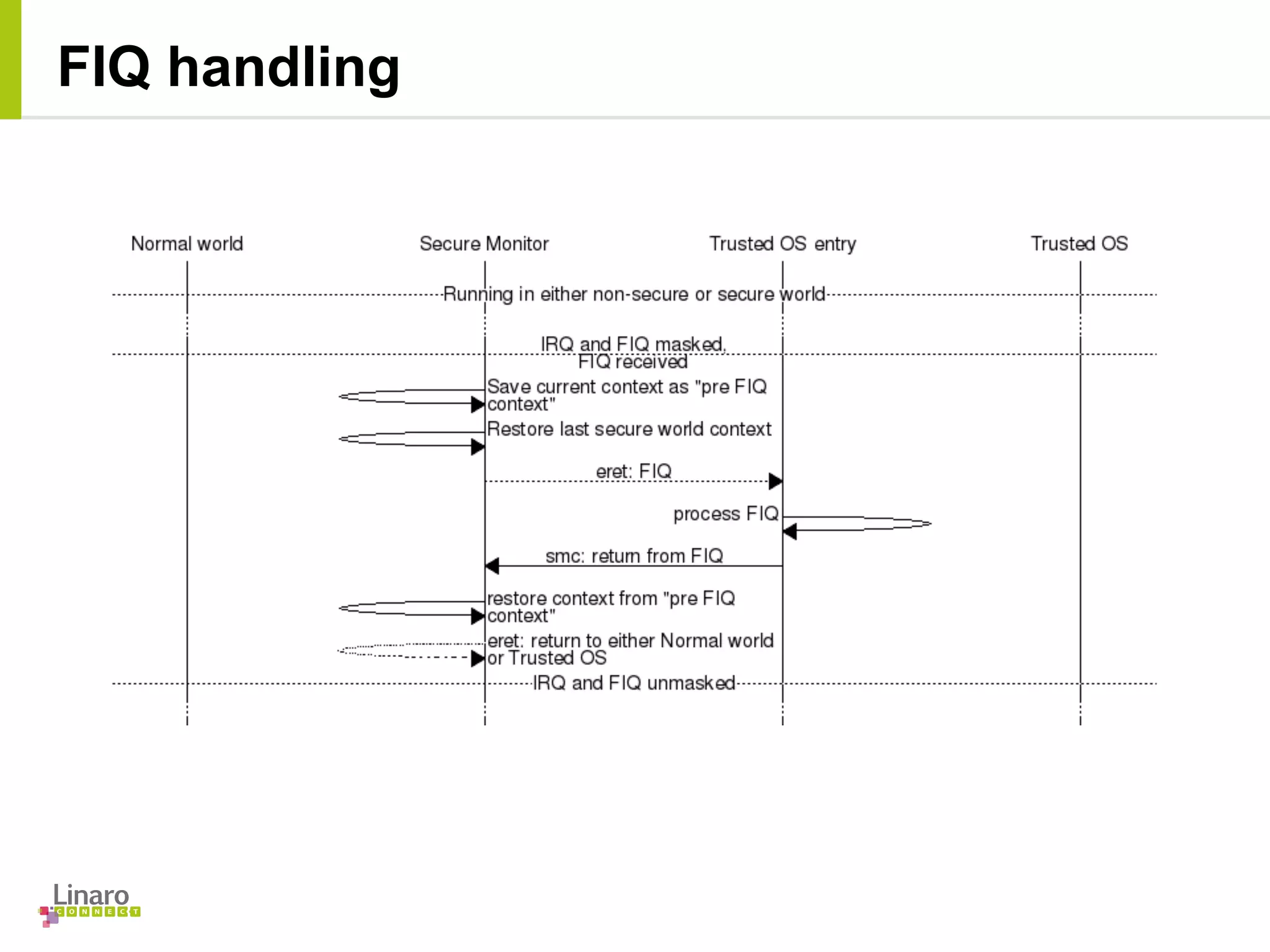

15. FIQ handling

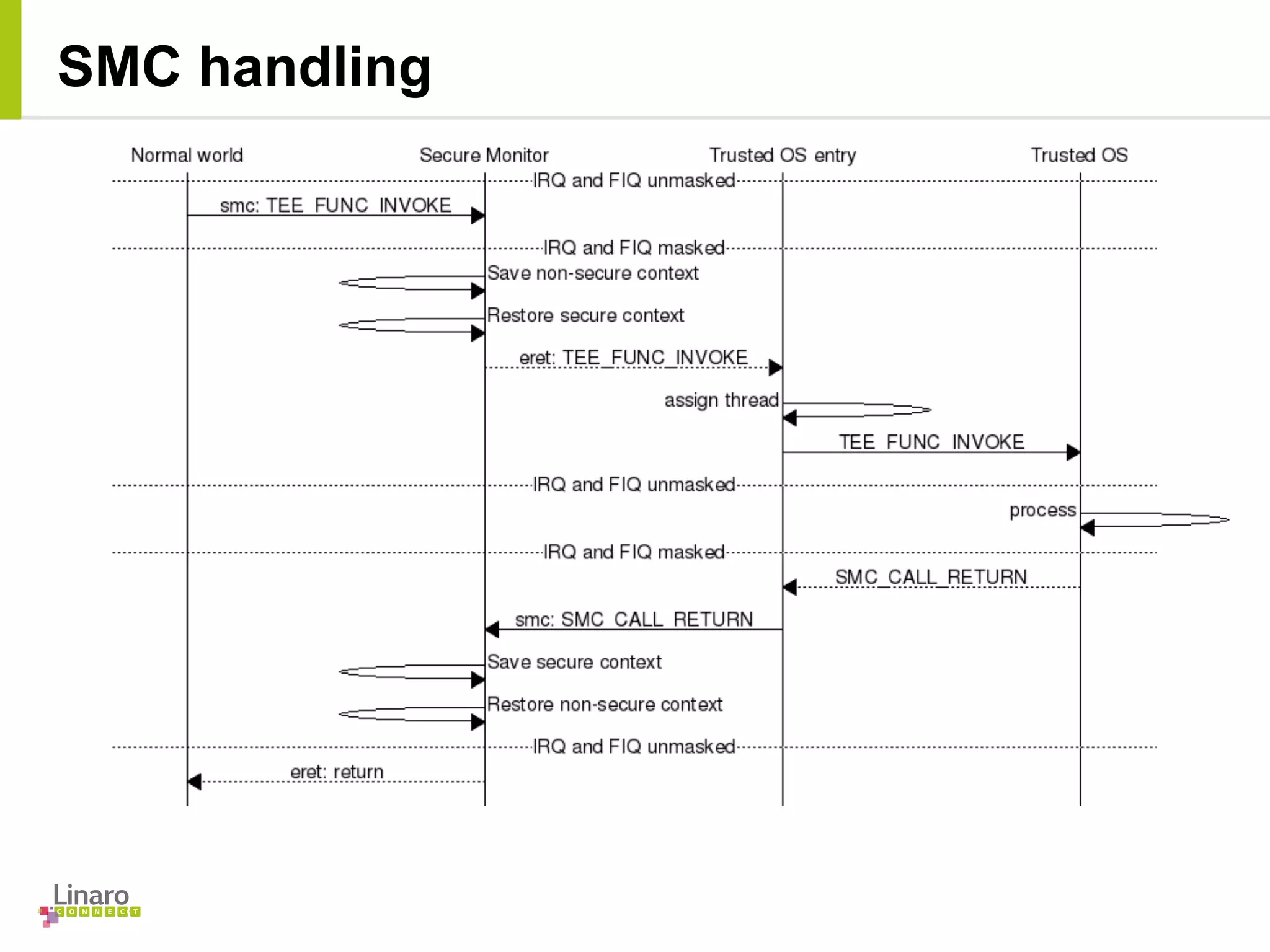

16. SMC handling
