- 1. Unrestricted © SiemensAG 2018 Jan Kiszka | Linaro Connect, March 19, 2018 Partitioning ARM Systems With the Jailhouse Hypervisor

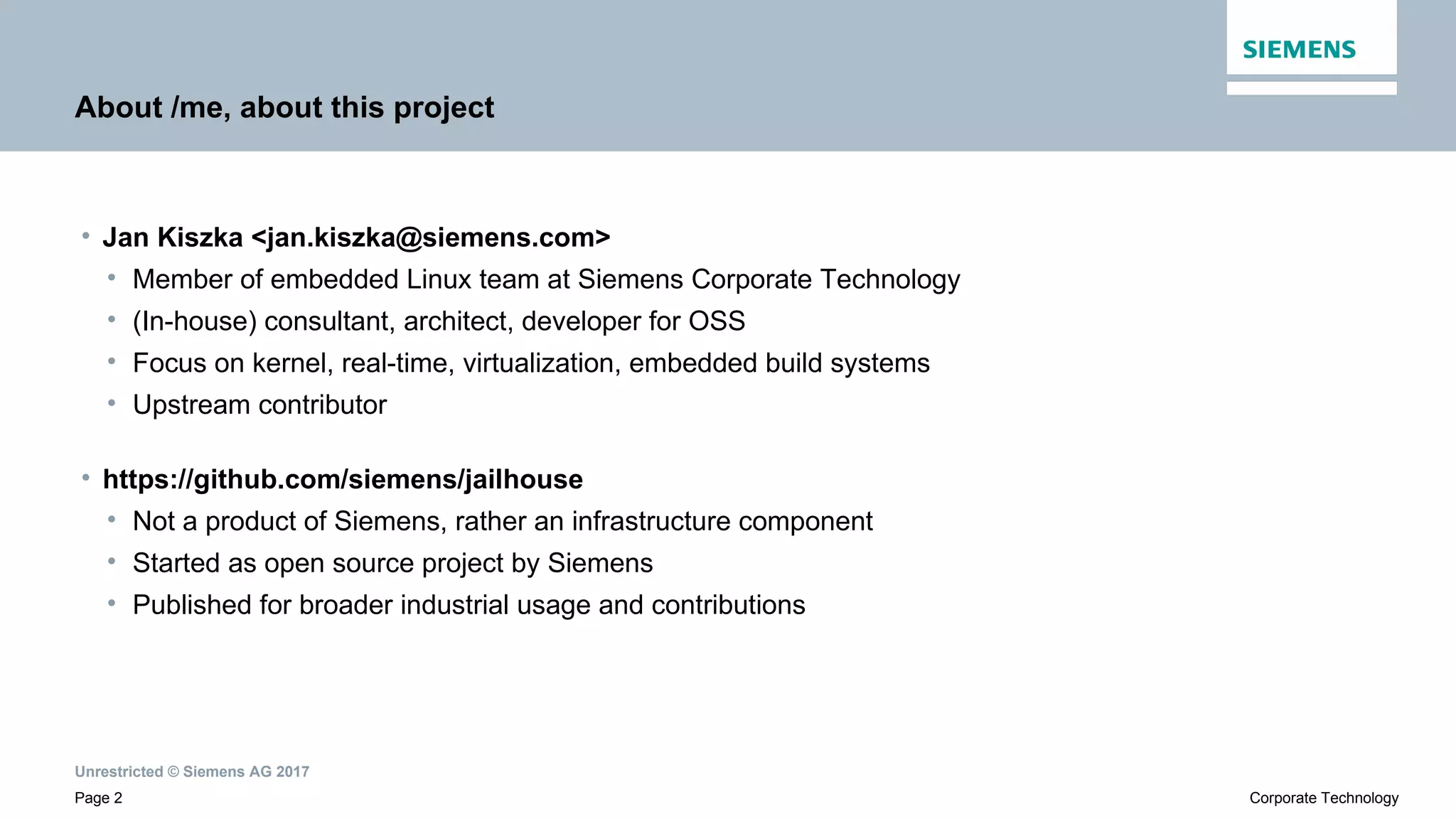

- 2. Unrestricted © SiemensAG 2017 Page 2 Corporate Technology About /me, about this project • Jan Kiszka <jan.kiszka@siemens.com> • Member of embedded Linux team at Siemens Corporate Technology • (In-house) consultant, architect, developer for OSS • Focus on kernel, real-time, virtualization, embedded build systems • Upstream contributor • https://github.com/siemens/jailhouse • Not a product of Siemens, rather an infrastructure component • Started as open source project by Siemens • Published for broader industrial usage and contributions

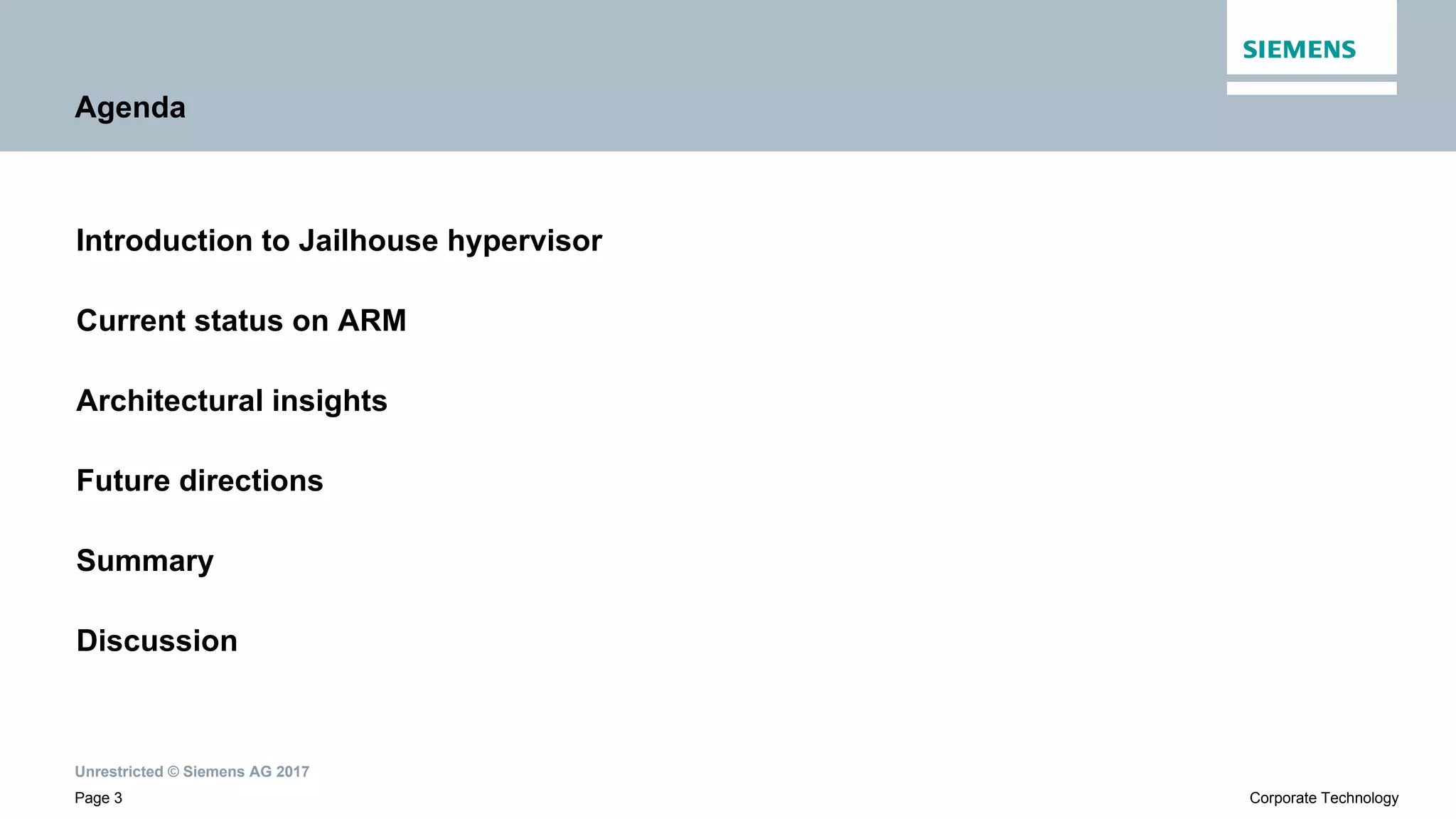

- 3. Unrestricted © SiemensAG 2017 Page 3 Corporate Technology Agenda Introduction to Jailhouse hypervisor Current status on ARM Architectural insights Future directions Summary Discussion

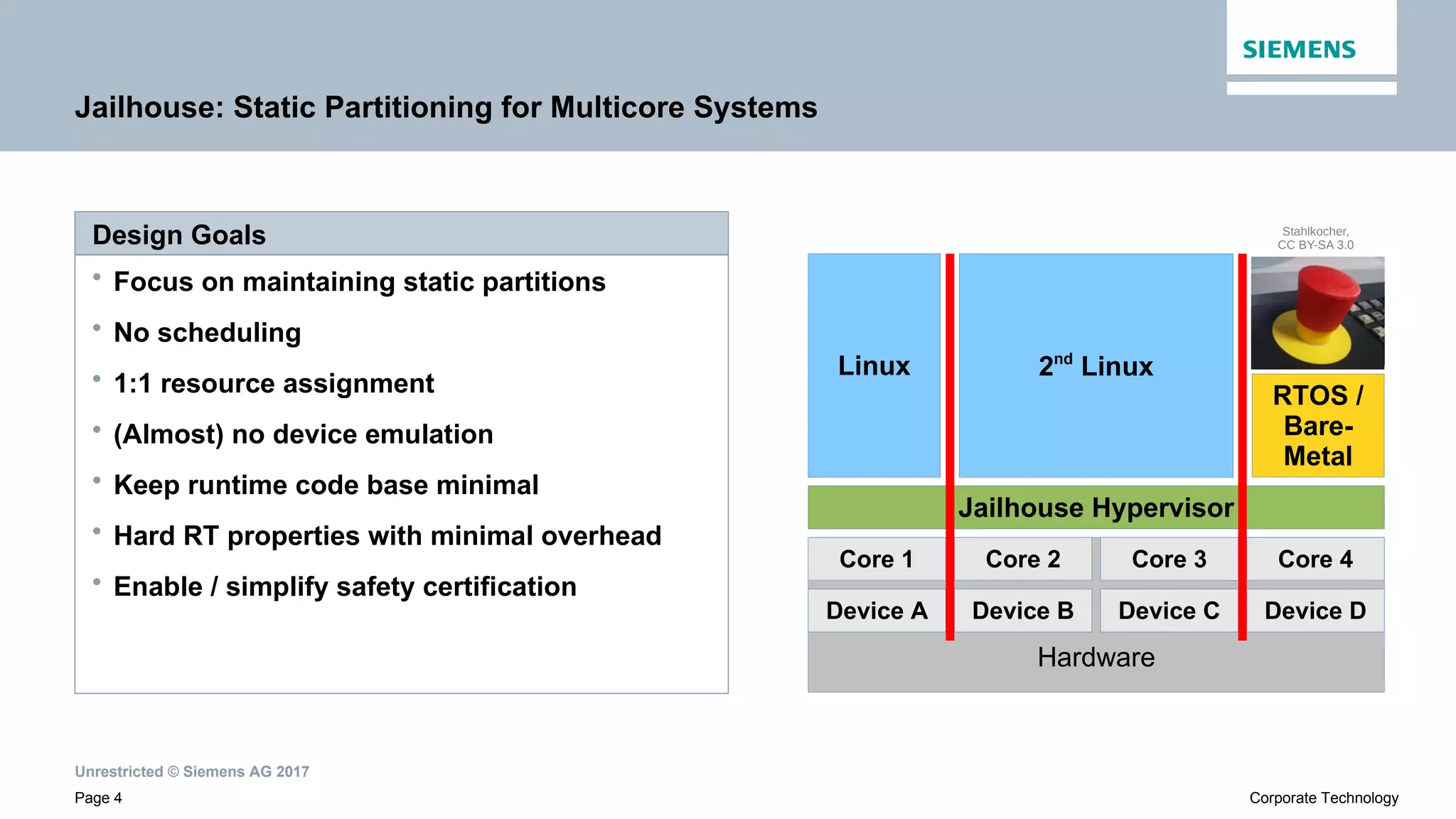

- 4. Unrestricted © SiemensAG 2017 Page 4 Corporate Technology Jailhouse: Static Partitioning for Multicore Systems • Focus on maintaining static partitions • No scheduling • 1:1 resource assignment • (Almost) no device emulation • Keep runtime code base minimal • Hard RT properties with minimal overhead • Enable / simplify safety certification Design Goals RTOS / Bare- Metal Hardware Linux Core 4Core 3Core 1 Core 2 Jailhouse Hypervisor Device A Device B Device C Device D Stahlkocher, CC BY-SA 3.0 2nd Linux

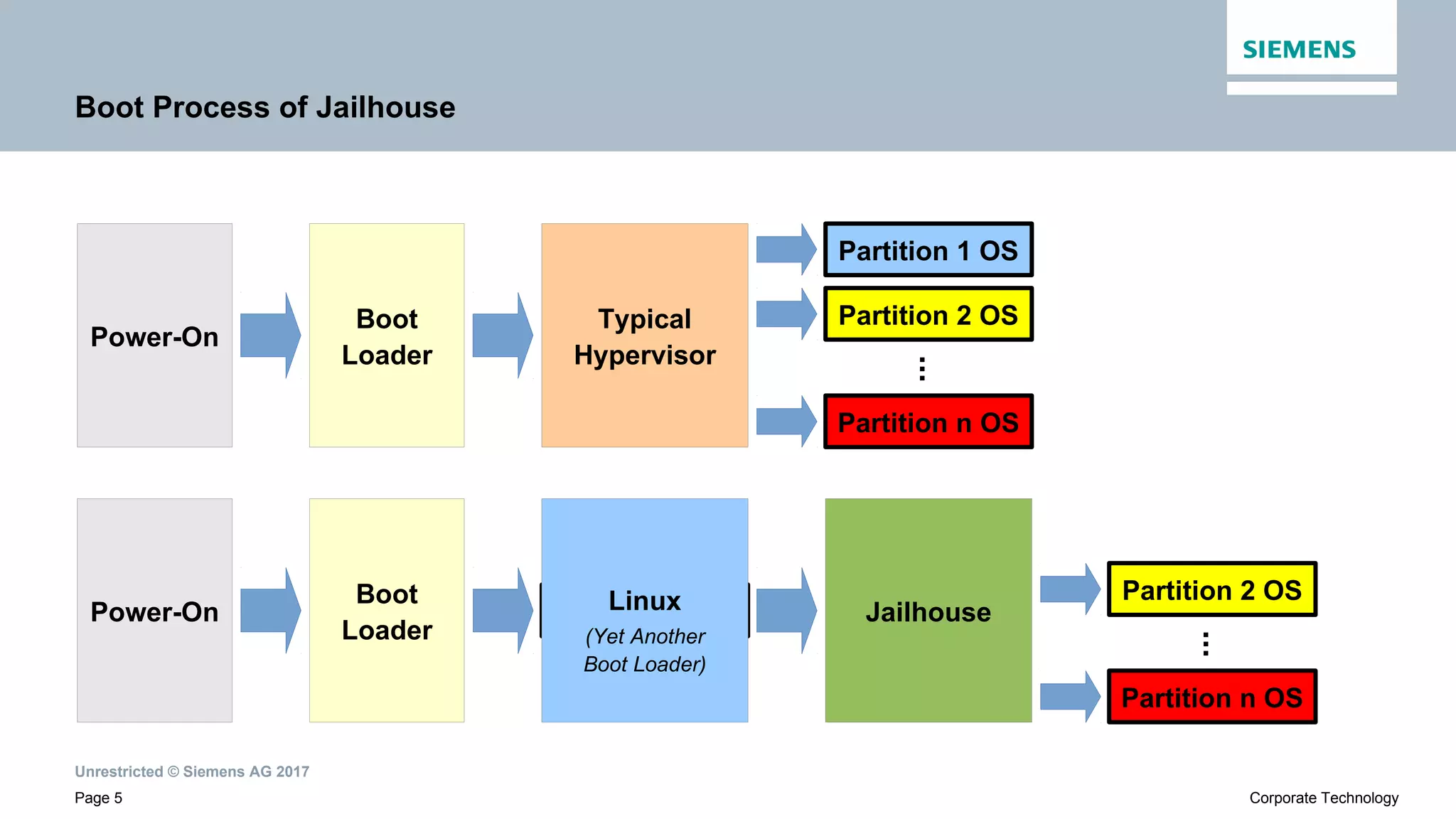

- 5. Unrestricted © SiemensAG 2017 Page 5 Corporate Technology Boot Process of Jailhouse Power-On Boot Loader Typical Hypervisor Partition 1 OS Partition n OS Jailhouse Boot Loader Partition 2 OS Partition n OS Partition 2 OS Power-On Root LinuxLinux (Yet Another Boot Loader) ... ...

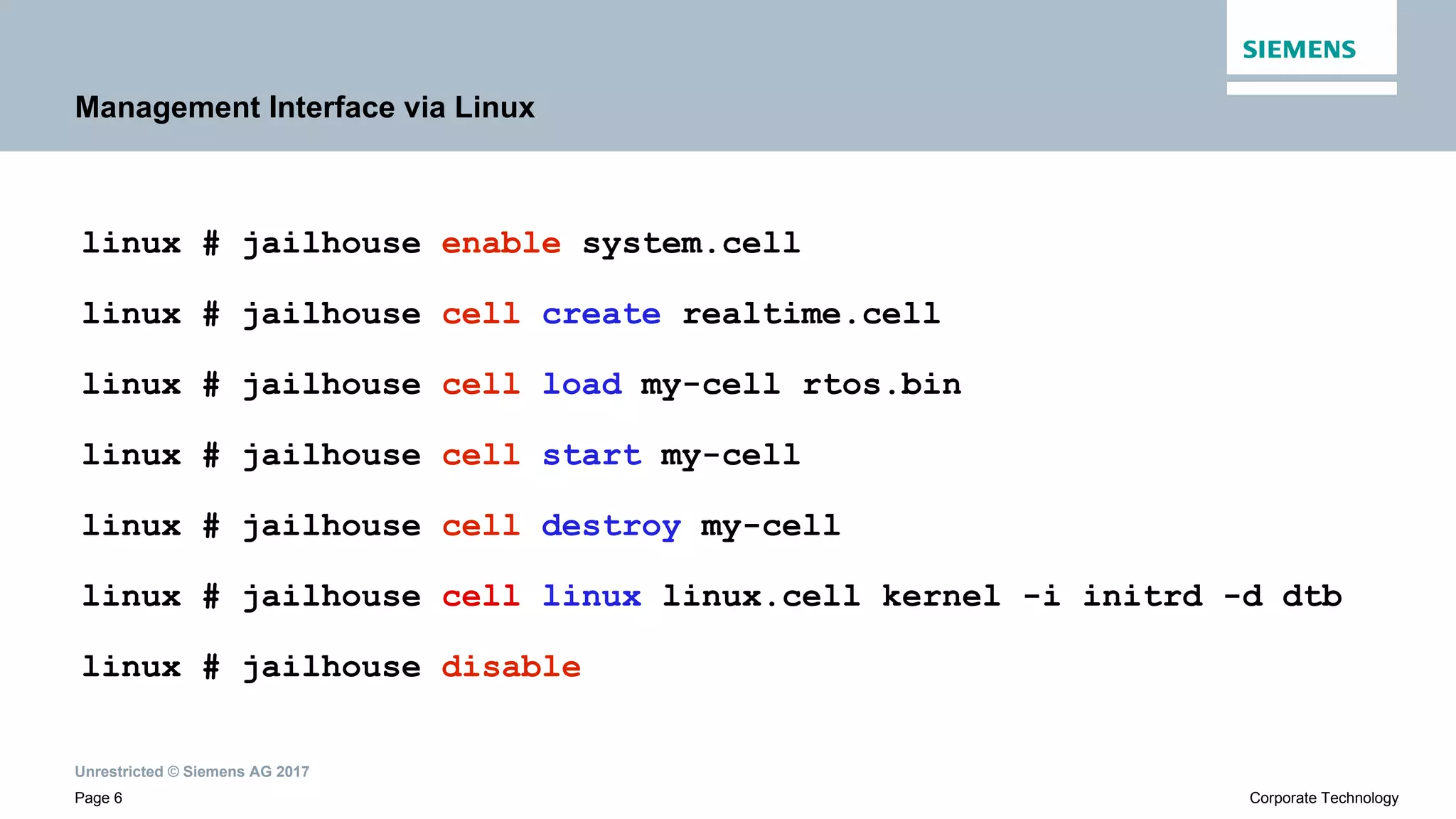

- 6. Unrestricted © SiemensAG 2017 Page 6 Corporate Technology Management Interface via Linux linux # jailhouse enable system.cell linux # jailhouse cell create realtime.cell linux # jailhouse cell load my-cell rtos.bin linux # jailhouse cell start my-cell linux # jailhouse cell destroy my-cell linux # jailhouse cell linux linux.cell kernel -i initrd -d dtb linux # jailhouse disable

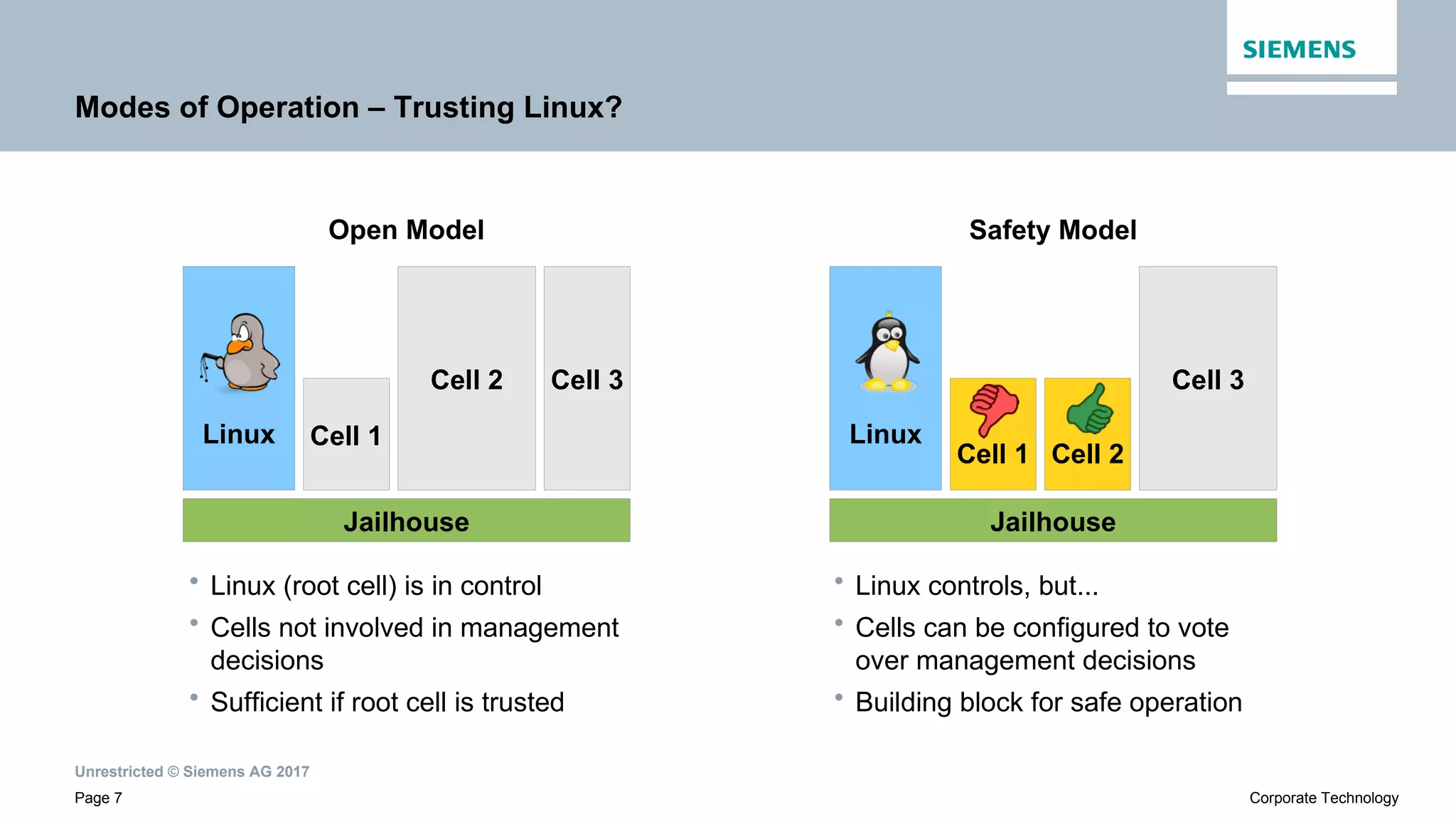

- 7. Unrestricted © SiemensAG 2017 Page 7 Corporate Technology Modes of Operation – Trusting Linux? Linux Jailhouse Cell 1 Cell 2 Cell 3 Linux Jailhouse Cell 1 Cell 3 Cell 2 Open Model Safety Model • Linux (root cell) is in control • Cells not involved in management decisions • Sufficient if root cell is trusted • Linux controls, but... • Cells can be configured to vote over management decisions • Building block for safe operation

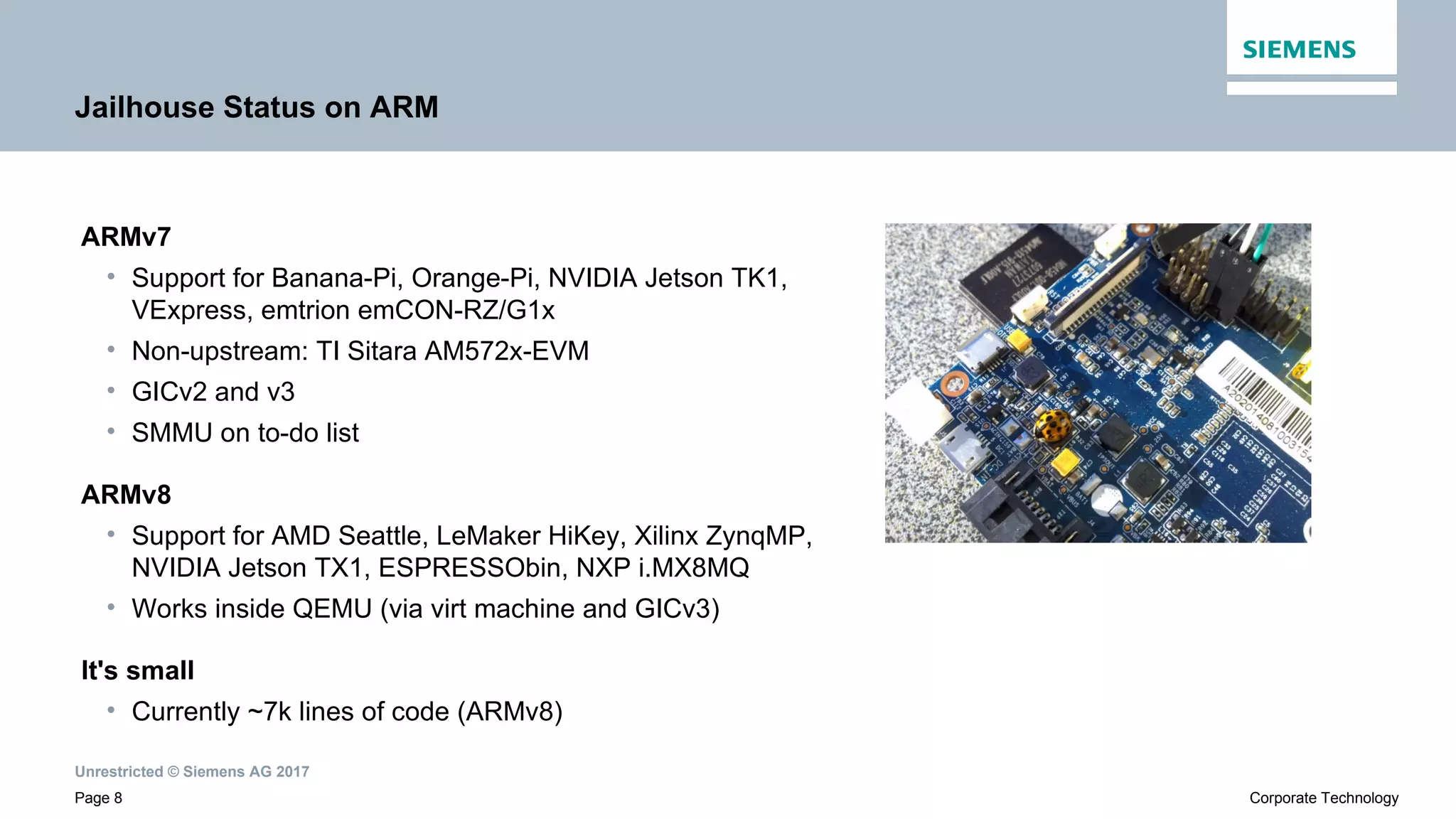

- 8. Unrestricted © SiemensAG 2017 Page 8 Corporate Technology Jailhouse Status on ARM ARMv7 • Support for Banana-Pi, Orange-Pi, NVIDIA Jetson TK1, VExpress, emtrion emCON-RZ/G1x • Non-upstream: TI Sitara AM572x-EVM • GICv2 and v3 • SMMU on to-do list ARMv8 • Support for AMD Seattle, LeMaker HiKey, Xilinx ZynqMP, NVIDIA Jetson TX1, ESPRESSObin, NXP i.MX8MQ • Works inside QEMU (via virt machine and GICv3) It's small • Currently ~7k lines of code (ARMv8)

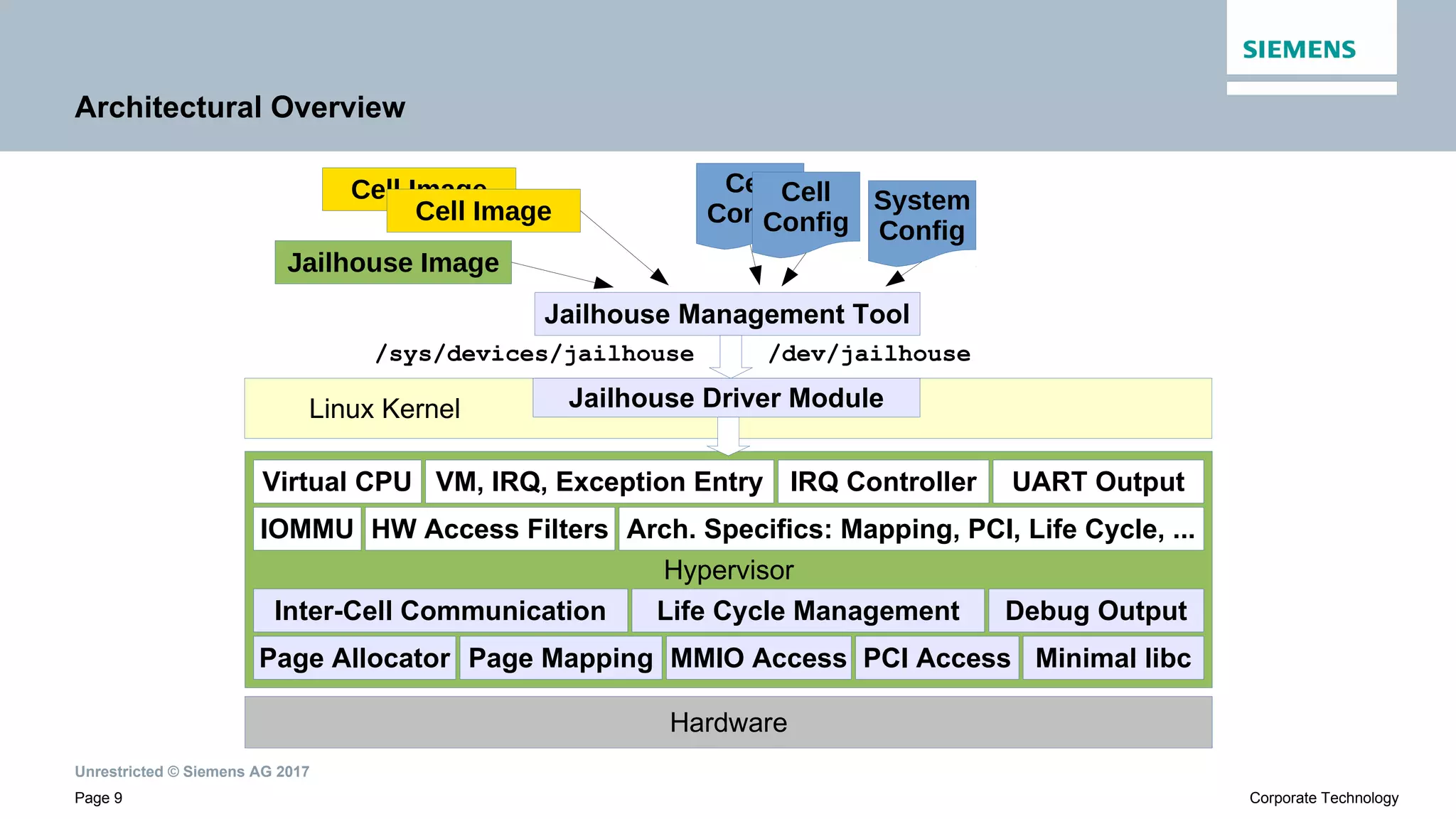

- 9. Unrestricted © SiemensAG 2017 Page 9 Corporate Technology Architectural Overview Hypervisor Hardware Page MappingPage Allocator Virtual CPU IOMMU HW Access Filters IRQ Controller Arch. Specifics: Mapping, PCI, Life Cycle, ... Inter-Cell Communication PCI Access Life Cycle Management MMIO Access Debug Output VM, IRQ, Exception Entry UART Output Minimal libc Jailhouse Management Tool /sys/devices/jailhouse /dev/jailhouse Cell Image Cell Config Jailhouse Image Cell ConfigCell Image System Config Linux Kernel Jailhouse Driver Module

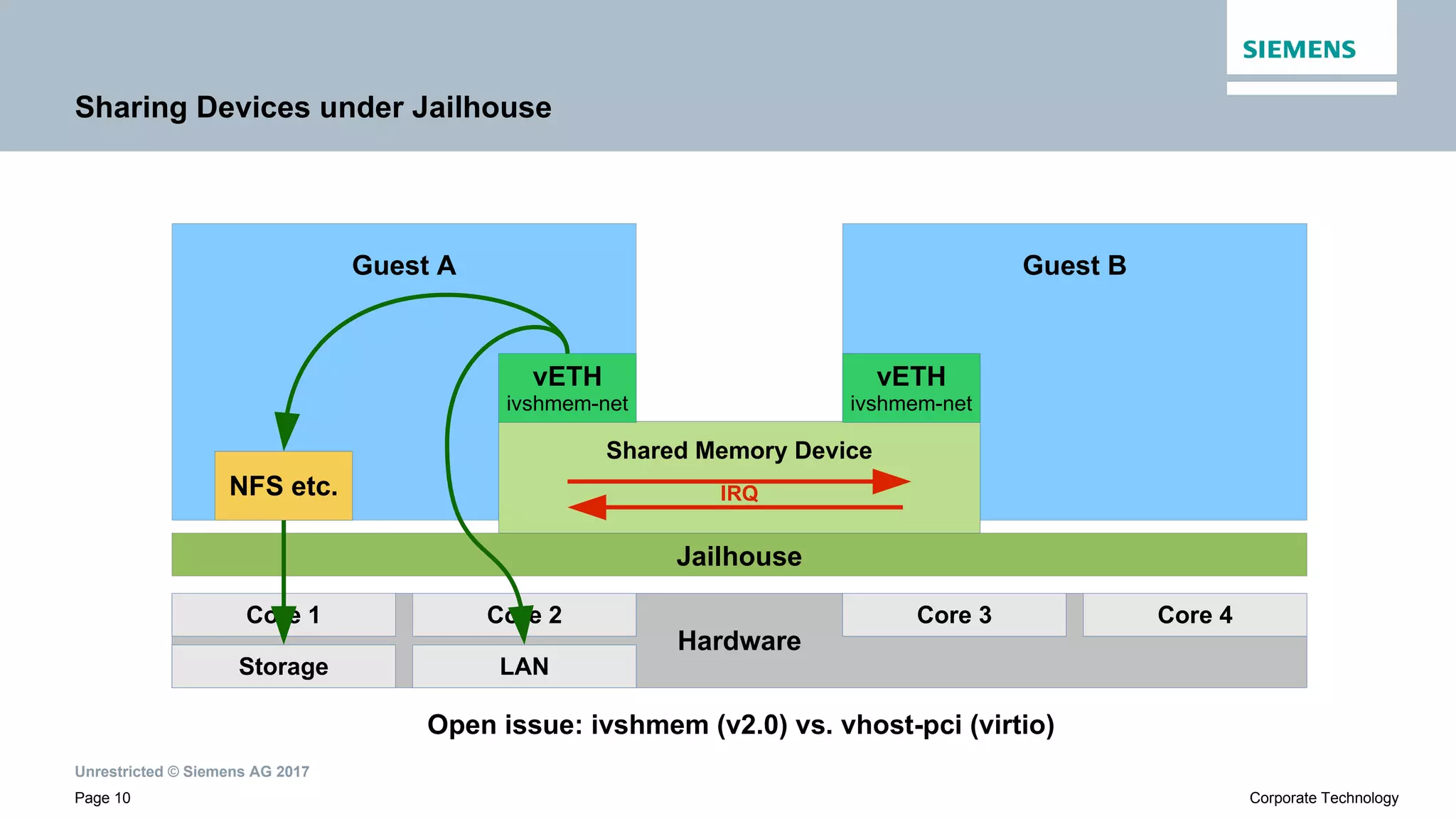

- 10. Unrestricted © SiemensAG 2017 Page 10 Corporate Technology Sharing Devices under Jailhouse Jailhouse Guest B Hardware Core 1 Core 2 Storage Core 3 Core 4 LAN Guest A Shared Memory Device IRQ vETH ivshmem-net vETH ivshmem-net NFS etc. Open issue: ivshmem (v2.0) vs. vhost-pci (virtio)

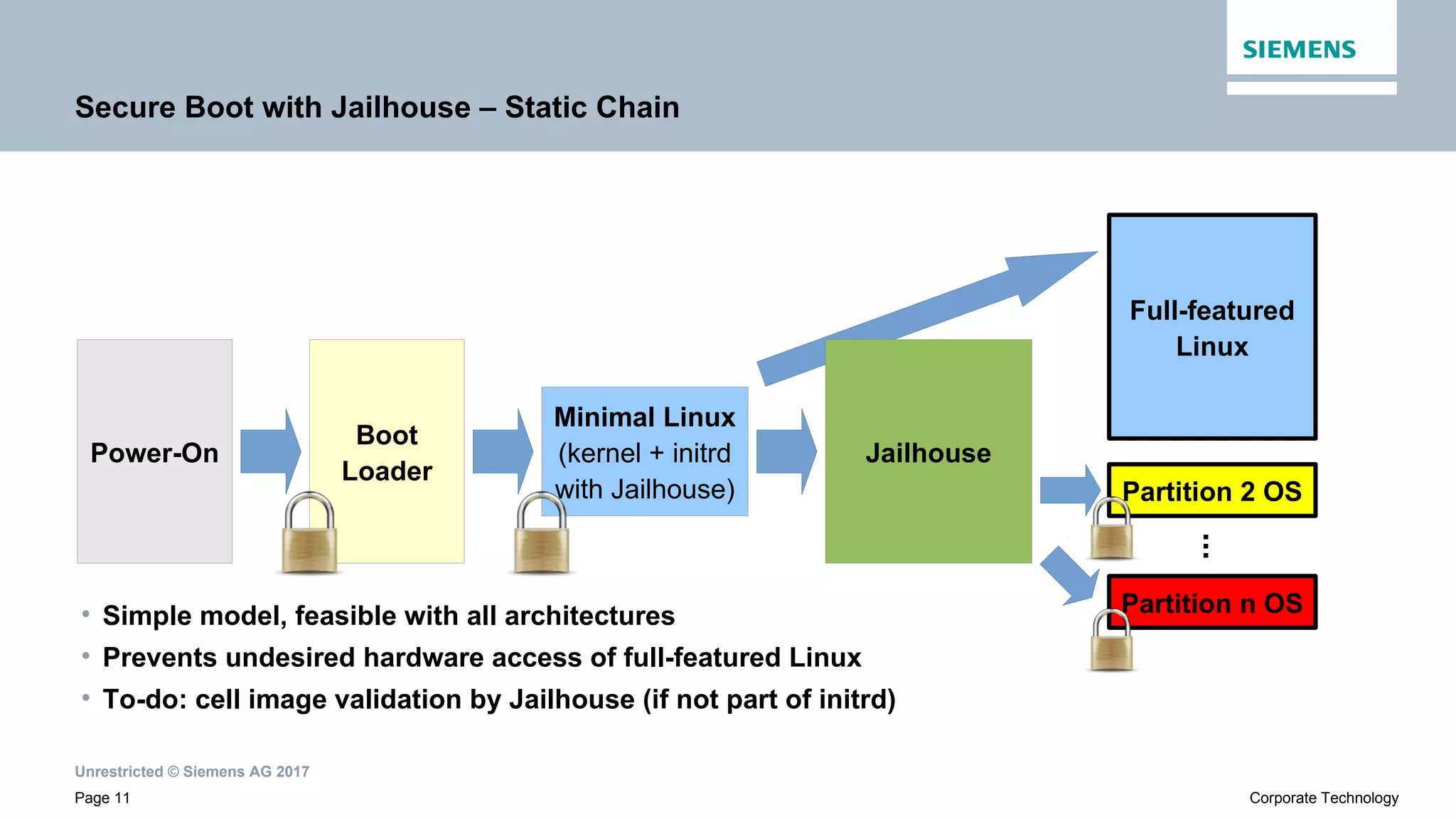

- 11. Unrestricted © SiemensAG 2017 Page 11 Corporate Technology Secure Boot with Jailhouse – Static Chain Boot Loader Partition n OS Partition 2 OS Power-On Full-featured Linux Minimal Linux (kernel + initrd with Jailhouse) ... Jailhouse • Simple model, feasible with all architectures • Prevents undesired hardware access of full-featured Linux • To-do: cell image validation by Jailhouse (if not part of initrd)

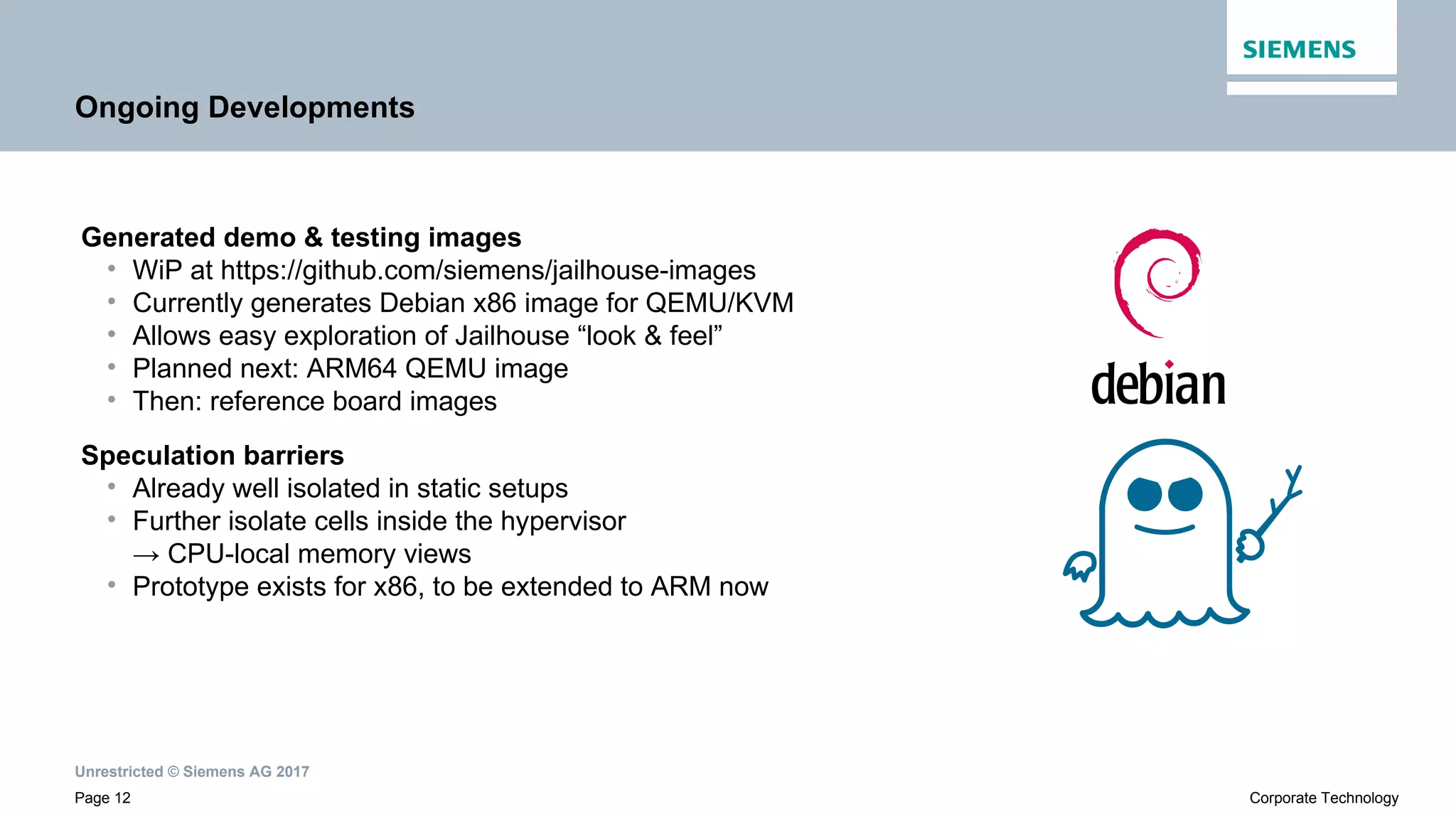

- 12. Unrestricted © SiemensAG 2017 Page 12 Corporate Technology Ongoing Developments Generated demo & testing images • WiP at https://github.com/siemens/jailhouse-images • Currently generates Debian x86 image for QEMU/KVM • Allows easy exploration of Jailhouse “look & feel” • Planned next: ARM64 QEMU image • Then: reference board images Speculation barriers • Already well isolated in static setups • Further isolate cells inside the hypervisor → CPU-local memory views • Prototype exists for x86, to be extended to ARM now

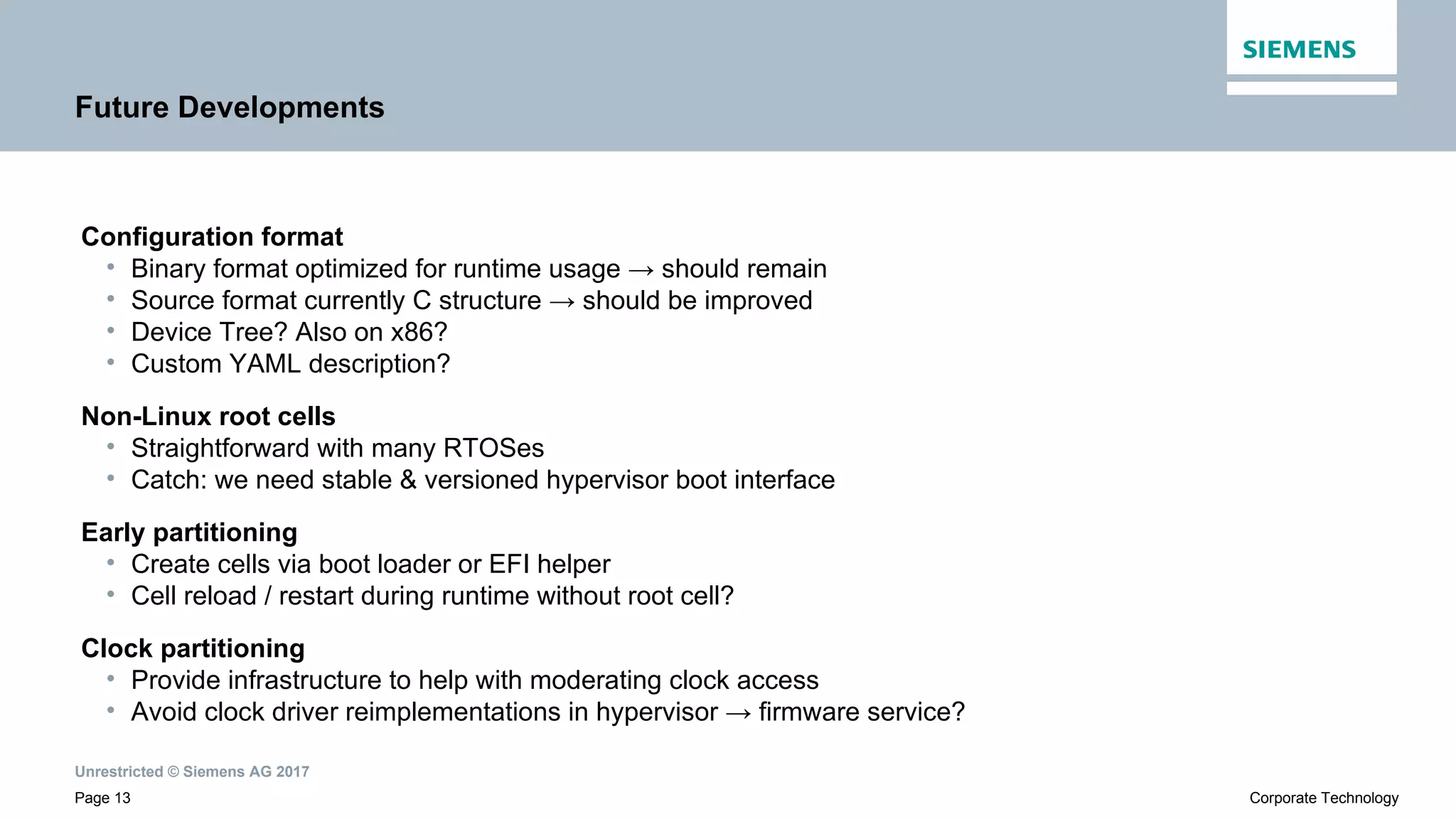

- 13. Unrestricted © SiemensAG 2017 Page 13 Corporate Technology Future Developments Configuration format • Binary format optimized for runtime usage → should remain • Source format currently C structure → should be improved • Device Tree? Also on x86? • Custom YAML description? Non-Linux root cells • Straightforward with many RTOSes • Catch: we need stable & versioned hypervisor boot interface Early partitioning • Create cells via boot loader or EFI helper • Cell reload / restart during runtime without root cell? Clock partitioning • Provide infrastructure to help with moderating clock access • Avoid clock driver reimplementations in hypervisor → firmware service?

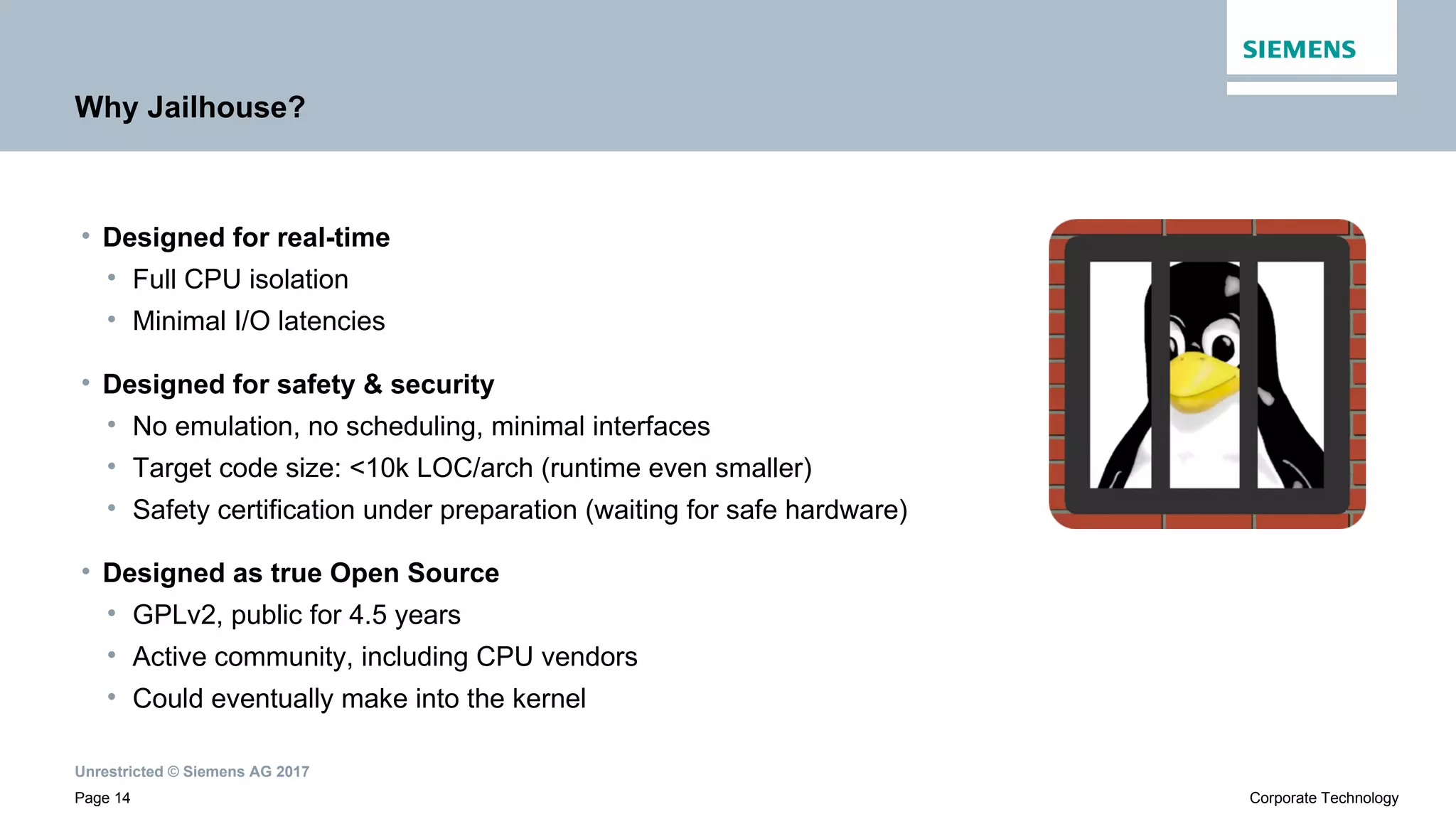

- 14. Unrestricted © SiemensAG 2017 Page 14 Corporate Technology Why Jailhouse? • Designed for real-time • Full CPU isolation • Minimal I/O latencies • Designed for safety & security • No emulation, no scheduling, minimal interfaces • Target code size: <10k LOC/arch (runtime even smaller) • Safety certification under preparation (waiting for safe hardware) • Designed as true Open Source • GPLv2, public for 4.5 years • Active community, including CPU vendors • Could eventually make into the kernel
- 15. Page 15 Thank you! JanKiszka <jan.kiszka@siemens.com>
