1. Introduction to
OP-TEE
25 May 2016

2. May-2016AGL-2.0 OP-TEE Introduction 2

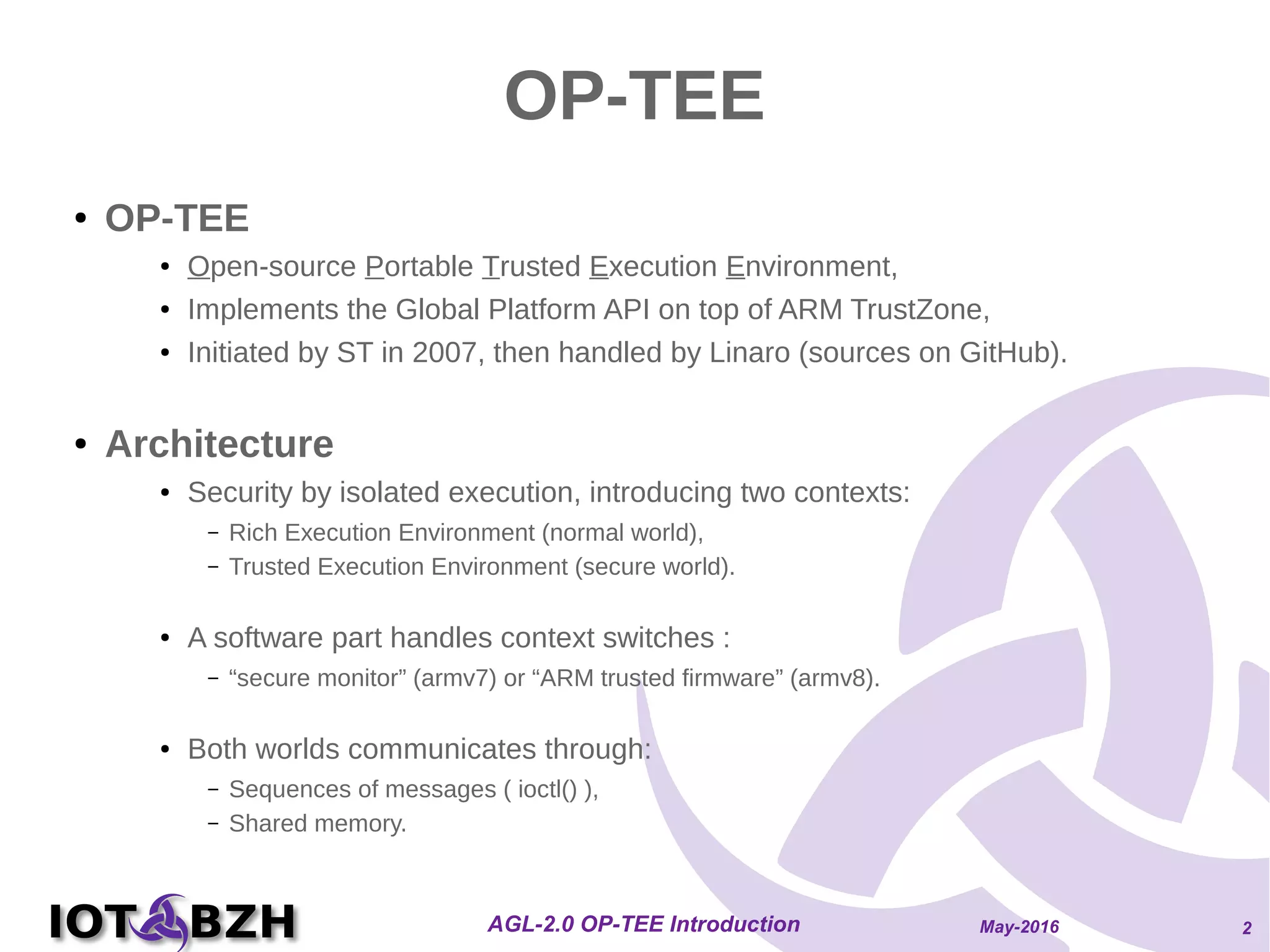

OP-TEE
● OP-TEE
● Open-source Portable Trusted Execution Environment,
● Implements the Global Platform API on top of ARM TrustZone,
● Initiated by ST in 2007, then handled by Linaro (sources on GitHub).
● Architecture
● Security by isolated execution, introducing two contexts:
– Rich Execution Environment (normal world),
– Trusted Execution Environment (secure world).
● A software part handles context switches :
– “secure monitor” (armv7) or “ARM trusted firmware” (armv8).
● Both worlds communicates through:
– Sequences of messages ( ioctl() ),
– Shared memory.

3. May-2016AGL-2.0 OP-TEE Introduction 3

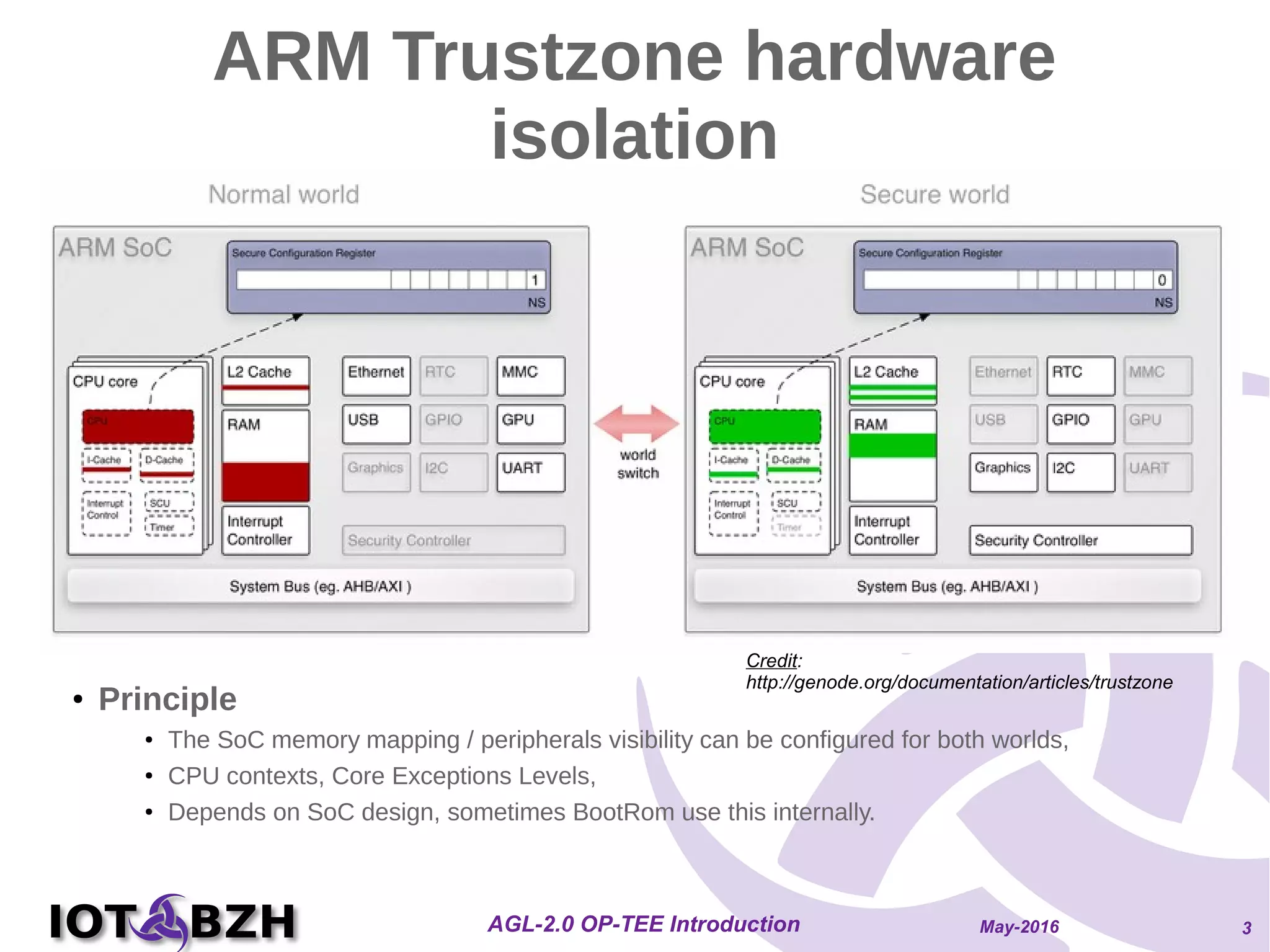

ARM Trustzone hardware
isolation
●
Principle
●
The SoC memory mapping / peripherals visibility can be configured for both worlds,
●
CPU contexts, Core Exceptions Levels,
●
Depends on SoC design, sometimes BootRom use this internally.
Credit:
http://genode.org/documentation/articles/trustzone

4. May-2016AGL-2.0 OP-TEE Introduction 4

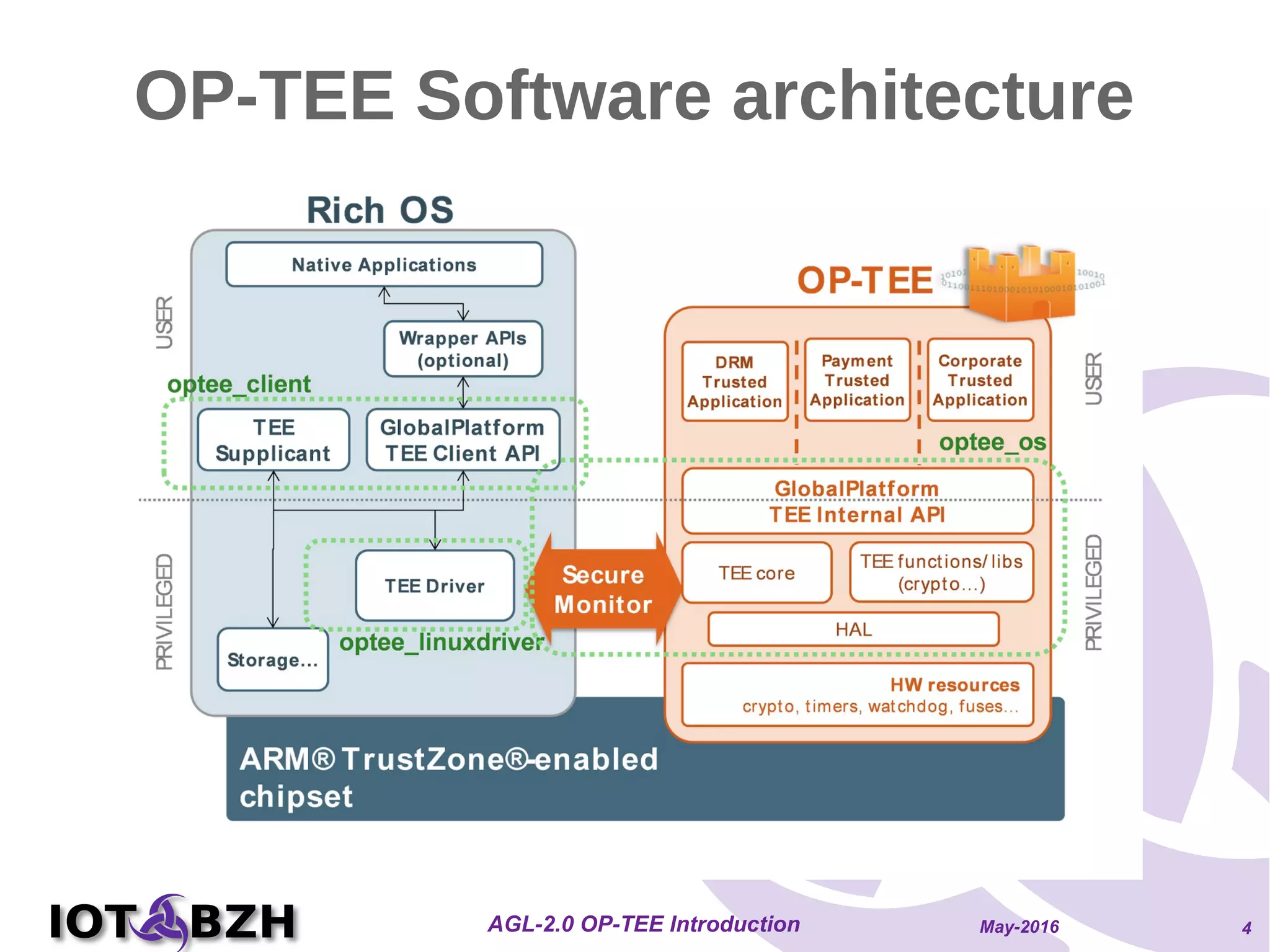

OP-TEE Software architecture

5. May-2016AGL-2.0 OP-TEE Introduction 5

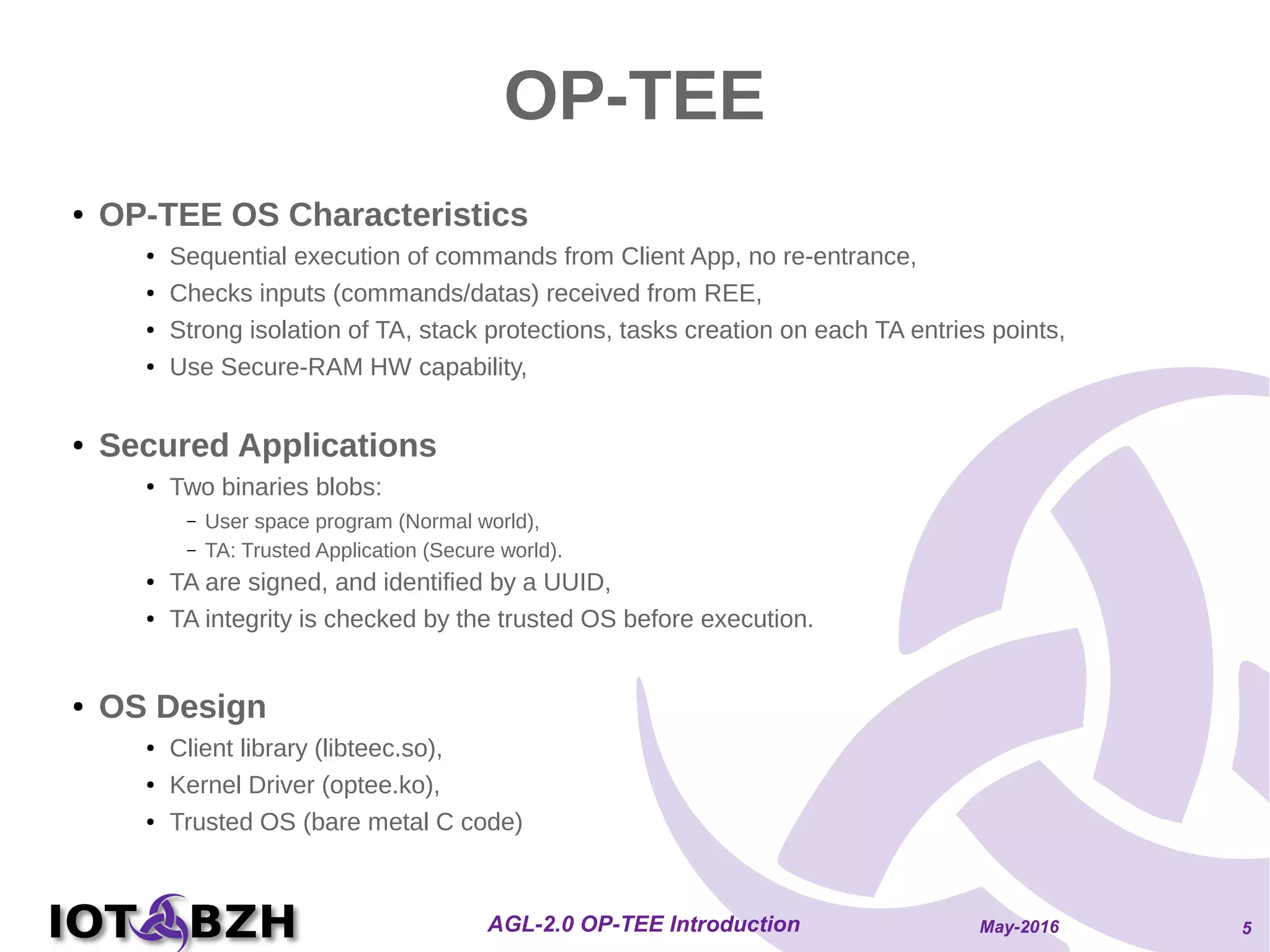

OP-TEE
● OP-TEE OS Characteristics
● Sequential execution of commands from Client App, no re-entrance,
● Checks inputs (commands/datas) received from REE,
● Strong isolation of TA, stack protections, tasks creation on each TA entries points,
● Use Secure-RAM HW capability,
● Secured Applications
● Two binaries blobs:
– User space program (Normal world),
– TA: Trusted Application (Secure world).
● TA are signed, and identified by a UUID,
● TA integrity is checked by the trusted OS before execution.
● OS Design
● Client library (libteec.so),
● Kernel Driver (optee.ko),
● Trusted OS (bare metal C code)

6. May-2016AGL-2.0 OP-TEE Introduction 6

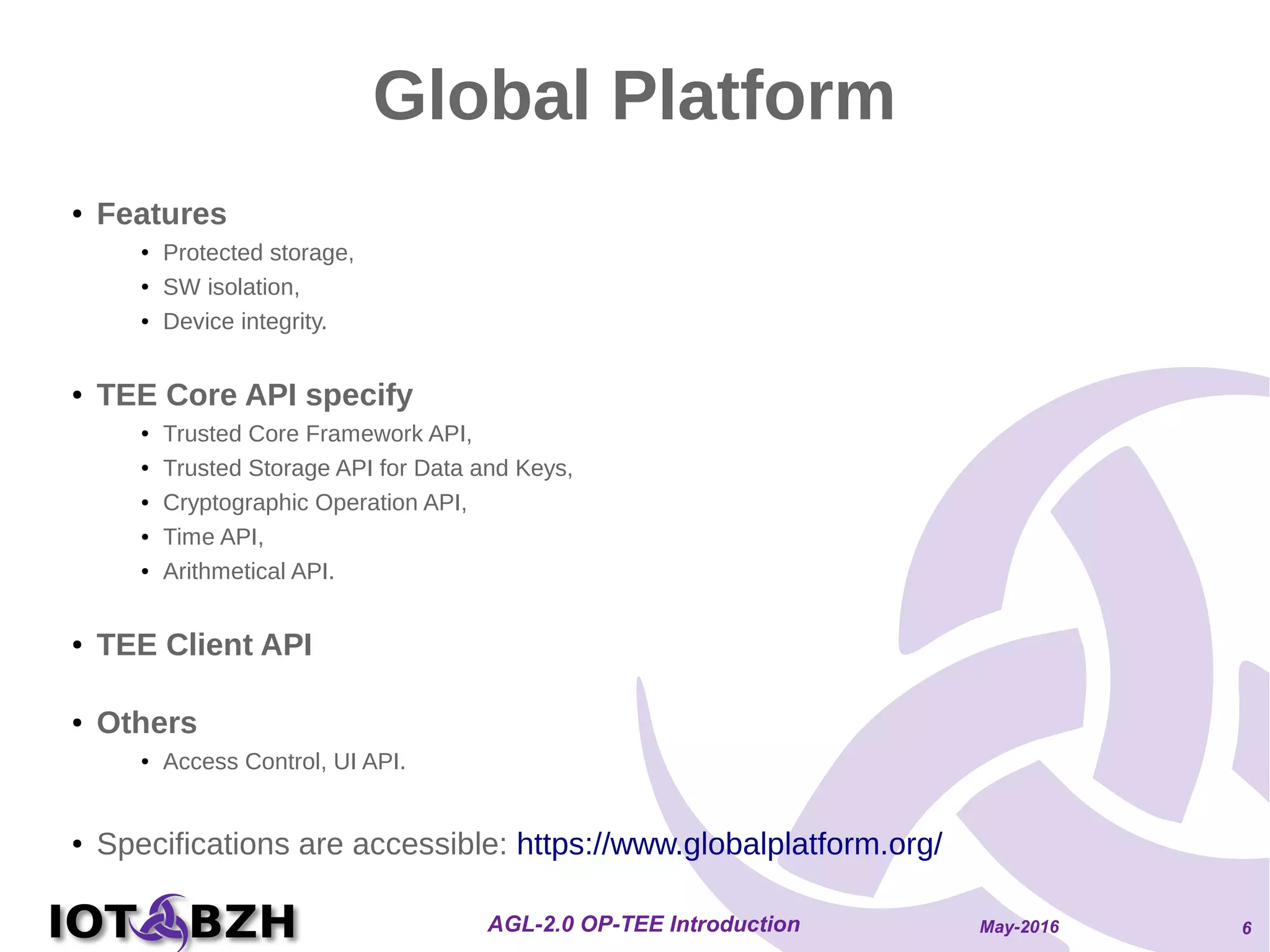

Global Platform
●
Features
● Protected storage,
● SW isolation,
● Device integrity.
● TEE Core API specify
● Trusted Core Framework API,
● Trusted Storage API for Data and Keys,
● Cryptographic Operation API,
● Time API,
● Arithmetical API.
● TEE Client API
● Others
● Access Control, UI API.
● Specifications are accessible: https://www.globalplatform.org/

7. May-2016AGL-2.0 OP-TEE Introduction 7
Dynamic view

8. May-2016AGL-2.0 OP-TEE Introduction 8

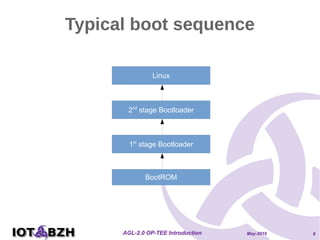

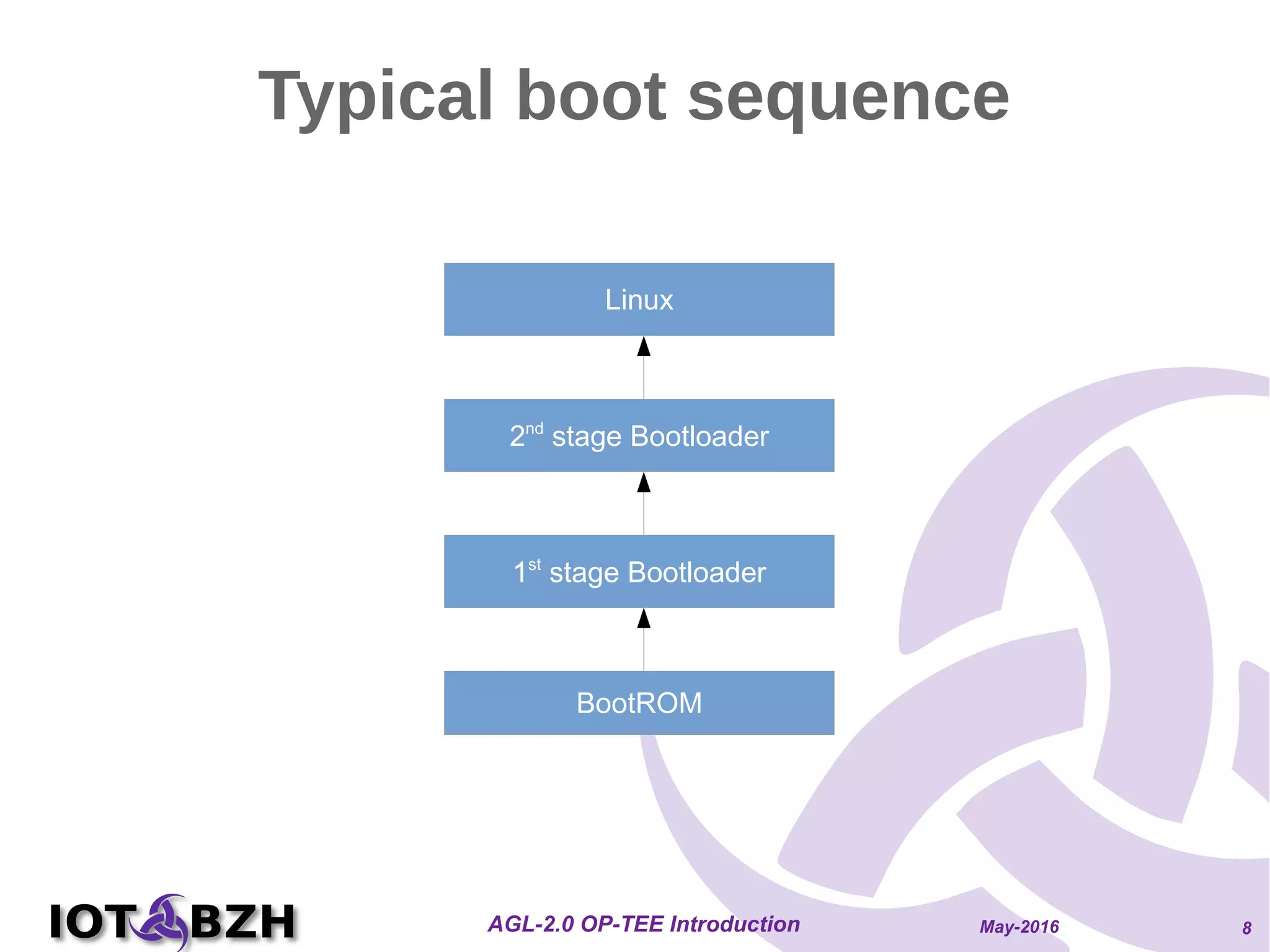

Typical boot sequence
2nd
stage Bootloader
Linux
BootROM
1st
stage Bootloader

9. May-2016AGL-2.0 OP-TEE Introduction 9

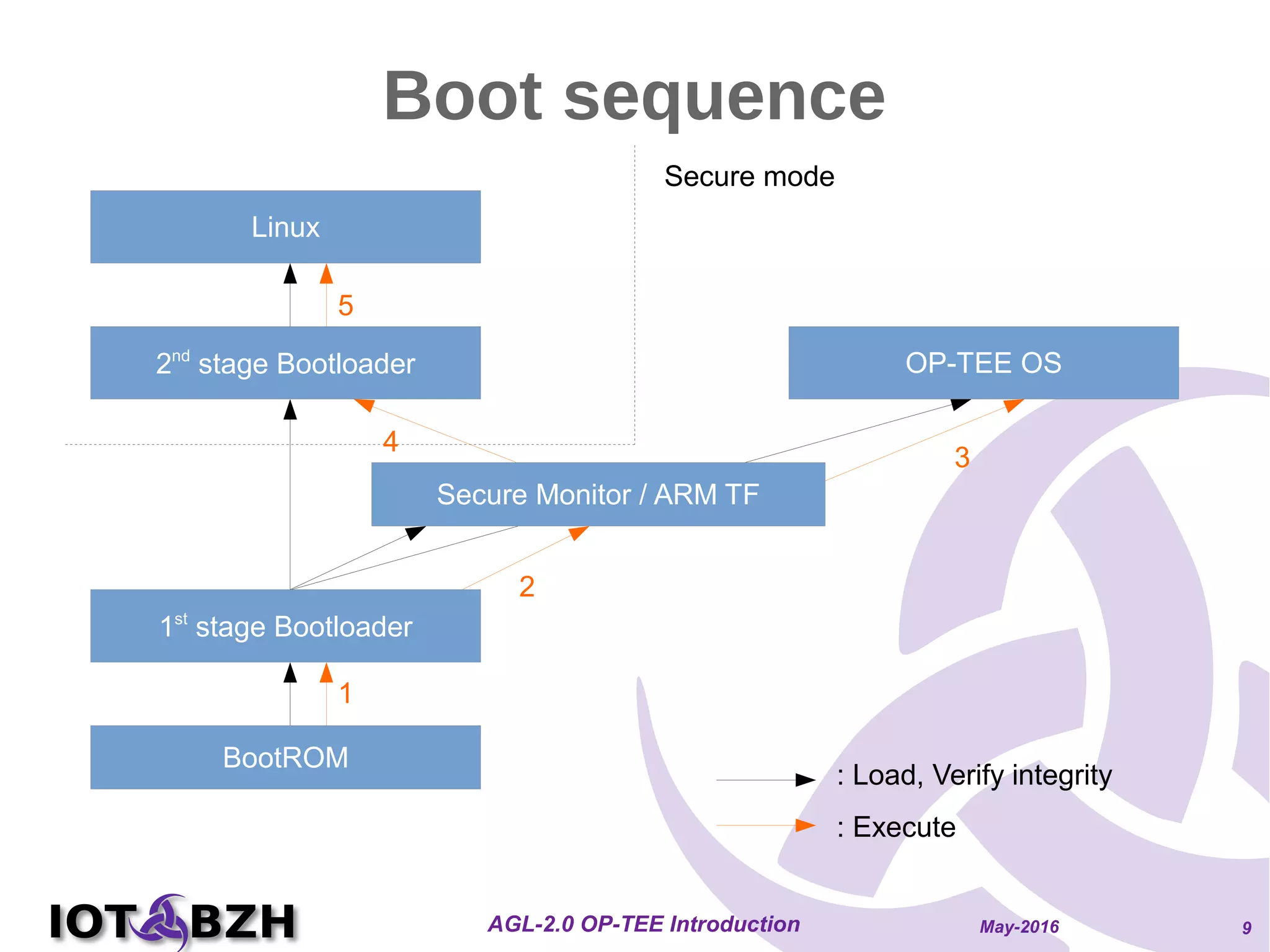

Boot sequence
2nd
stage Bootloader
Linux
BootROM
1st
stage Bootloader
Secure mode
: Load, Verify integrity
OP-TEE OS
Secure Monitor / ARM TF
1
2
3
4
5
: Execute

10. May-2016AGL-2.0 OP-TEE Introduction 10

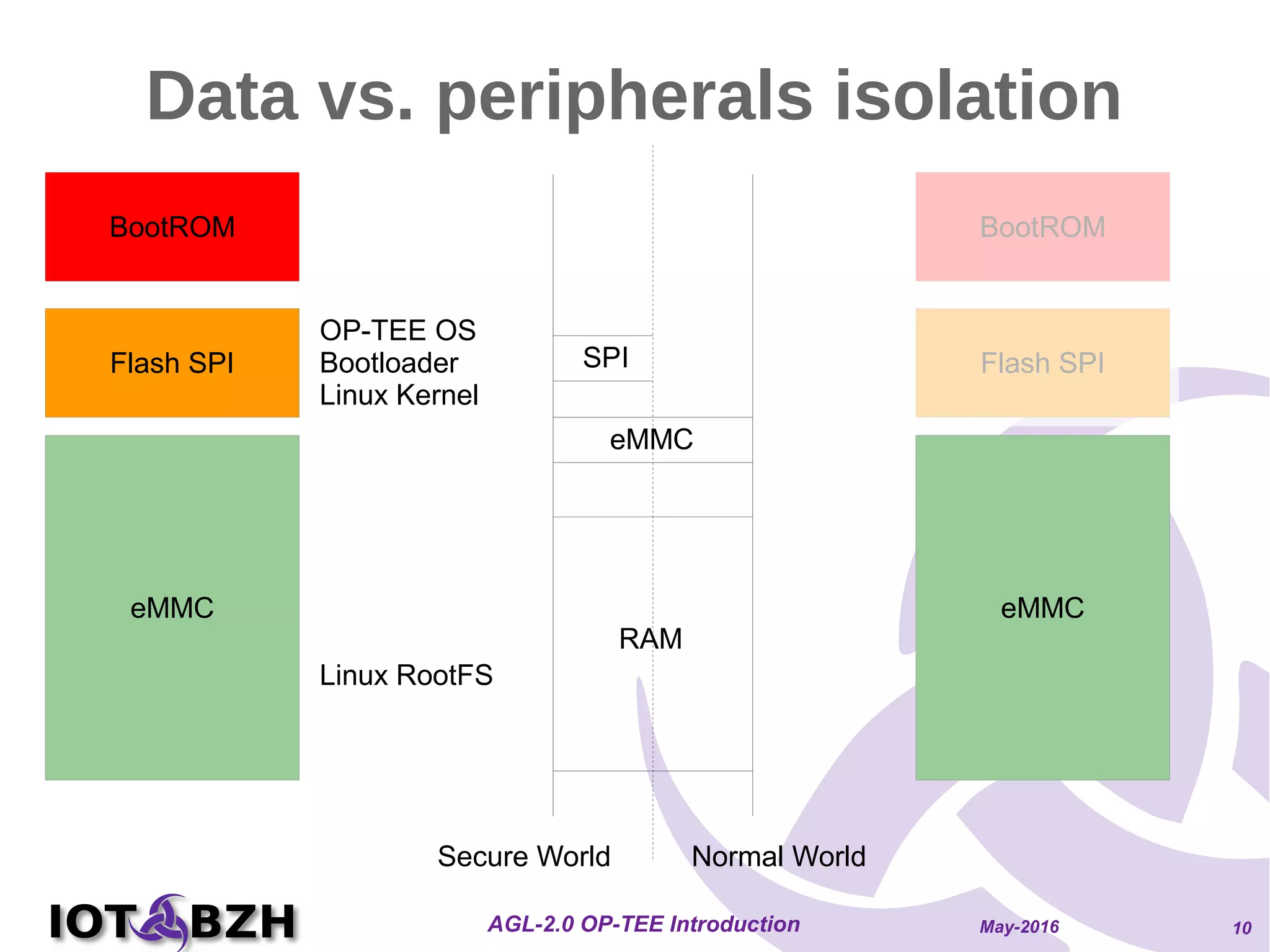

Data vs. peripherals isolation
eMMC
Flash SPI
BootROM
OP-TEE OS
Bootloader
Linux Kernel
Flash SPI
BootROM
eMMC
Linux RootFS
RAM
Secure World Normal World
eMMC
SPI

11. May-2016AGL-2.0 OP-TEE Introduction 11

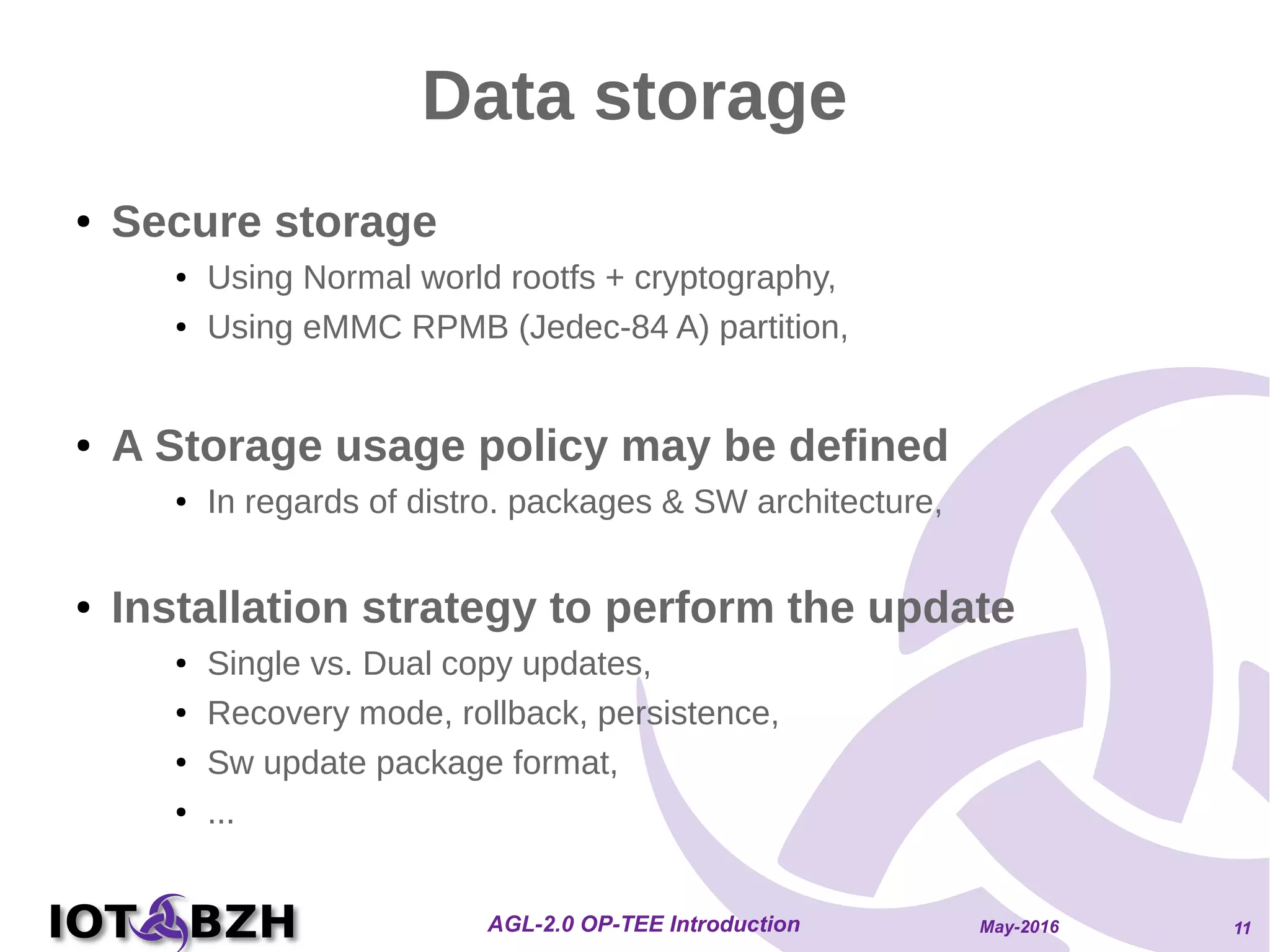

Data storage
● Secure storage
● Using Normal world rootfs + cryptography,
● Using eMMC RPMB (Jedec-84 A) partition,
● A Storage usage policy may be defined
● In regards of distro. packages & SW architecture,
● Installation strategy to perform the update
● Single vs. Dual copy updates,
● Recovery mode, rollback, persistence,
● Sw update package format,
● ...

12. May-2016AGL-2.0 OP-TEE Introduction 12

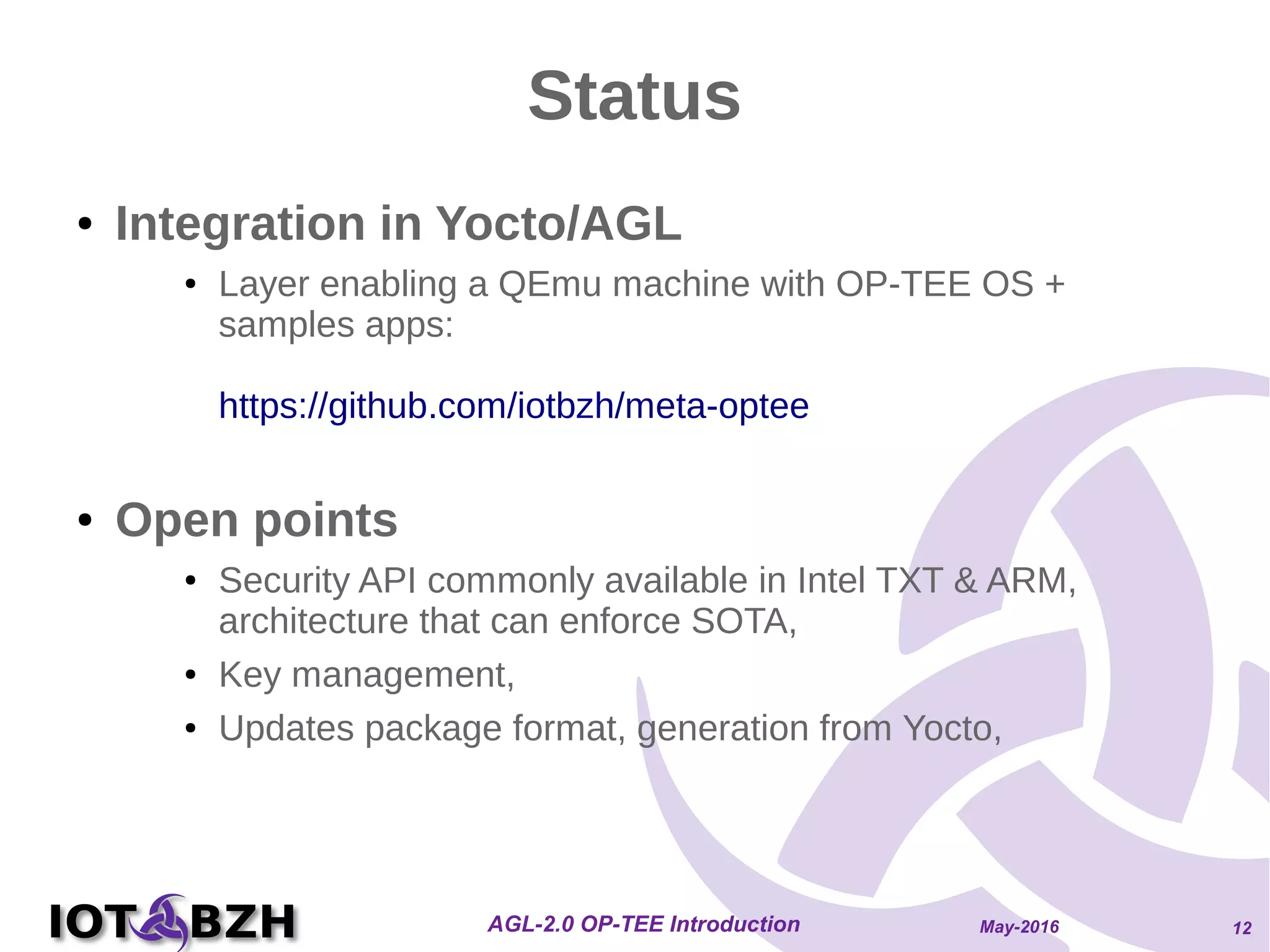

Status
● Integration in Yocto/AGL
● Layer enabling a QEmu machine with OP-TEE OS +
samples apps:
https://github.com/iotbzh/meta-optee
● Open points
● Security API commonly available in Intel TXT & ARM,
architecture that can enforce SOTA,
● Key management,
● Updates package format, generation from Yocto,

13. May-2016AGL-2.0 OP-TEE Introduction 13

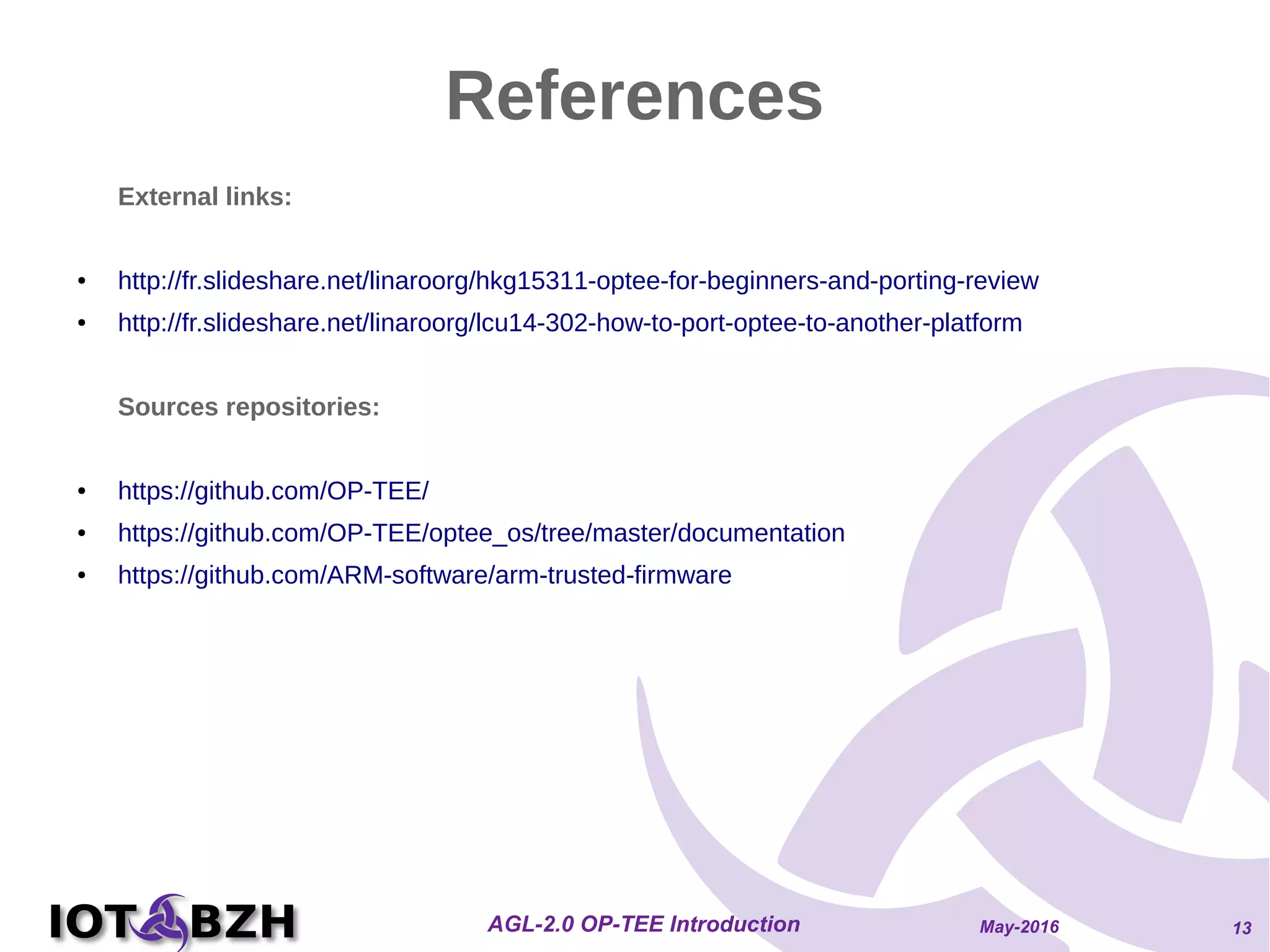

References
External links:
● http://fr.slideshare.net/linaroorg/hkg15311-optee-for-beginners-and-porting-review
● http://fr.slideshare.net/linaroorg/lcu14-302-how-to-port-optee-to-another-platform
Sources repositories:
● https://github.com/OP-TEE/
● https://github.com/OP-TEE/optee_os/tree/master/documentation
● https://github.com/ARM-software/arm-trusted-firmware
