LCU14-103: How to create and run Trusted Applications on OP-TEE
---------------------------------------------------
Speaker: Joakim Bech
Date: September 15, 2014
---------------------------------------------------
Coresight is the name given to a set of IP blocks providing hardware assisted tracing for ARM based SoCs. This presentation will give an introduction to the technology, how it works and offer a glimpse of the capabilities it offers. More specifically we will go over the components that are part of the architecture and how they are used. Next will be presented the framework Linaro is working on in an effort to provide consolidation and standardization of interfaces to the coresight subsystem. We will conclude with a status of our current upstreaming efforts and how we see the coming months unfolding.
---------------------------------------------------
★ Resources ★
Zerista: http://lcu14.zerista.com/event/member/137703
Google Event: https://plus.google.com/u/0/events/cvb85kqv10dsc4k3e0hcvbr6i58
Presentation: http://www.slideshare.net/linaroorg/lcu14-101-coresight-overview
Video: https://www.youtube.com/watch?v=IQhbM55F23U&list=UUIVqQKxCyQLJS6xvSmfndLA
Etherpad: http://pad.linaro.org/p/lcu14-101
---------------------------------------------------
★ Event Details ★
Linaro Connect USA - #LCU14
September 15-19th, 2014
Hyatt Regency San Francisco Airport
---------------------------------------------------
1. LCU14-103: How to create and run Trusted
Applications on OP-TEE
Joakim Bech, LCU14
LCU14 BURLINGAME
2. OP-TEE Overview
OP-TEE is an Open Source TEE and is the result of collaboration work between
STMicroelectronics and Linaro (Security Working Group).
It contains the complete stack from normal world client API's (optee_client), the Linux kernel TEE
driver (optee_linuxdriver) and the Trusted OS and the secure monitor (optee_os).

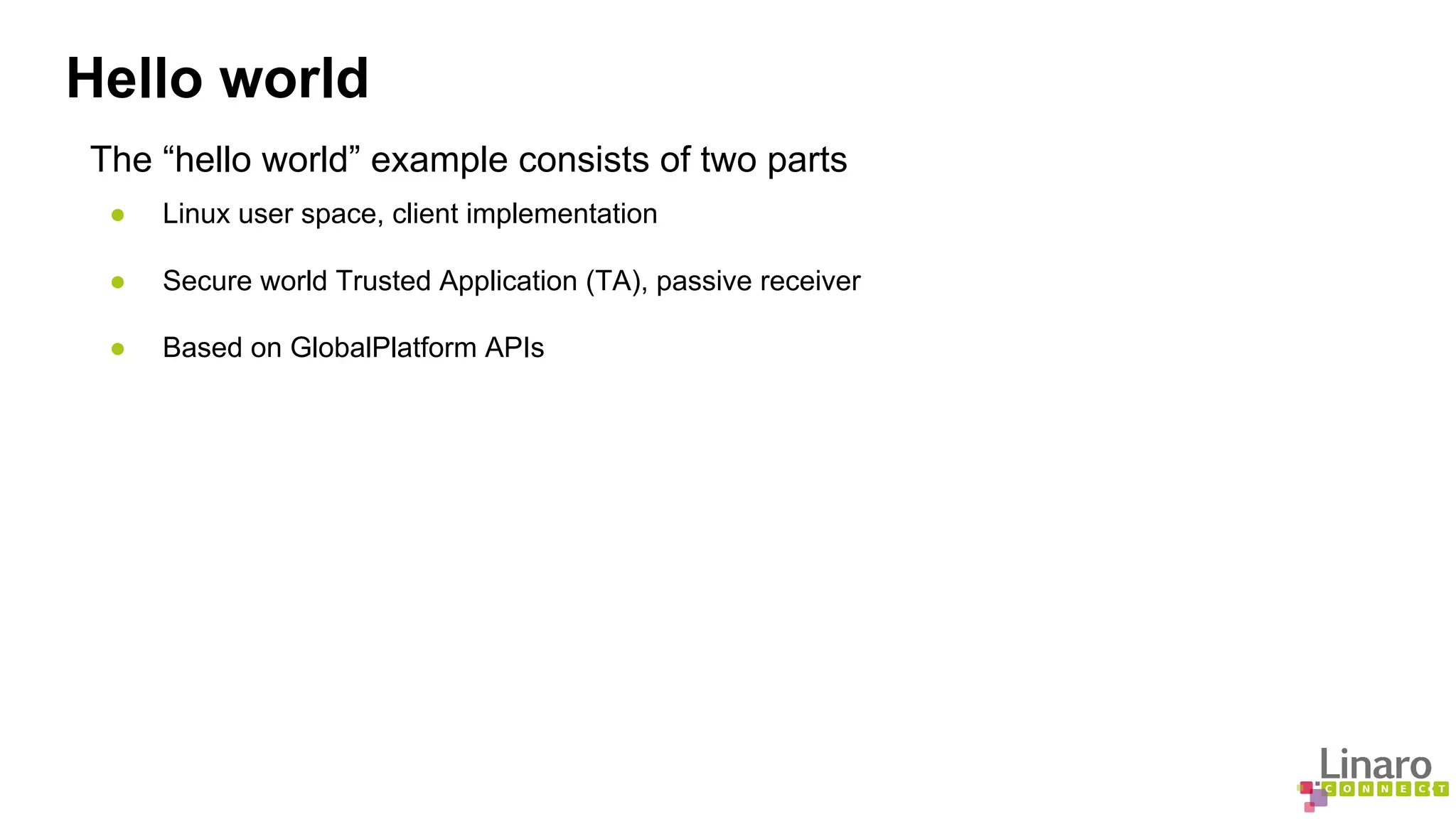

3. Hello world
The “hello world” example consists of two parts
● Linux user space, client implementation
● Secure world Trusted Application (TA), passive receiver
● Based on GlobalPlatform APIs

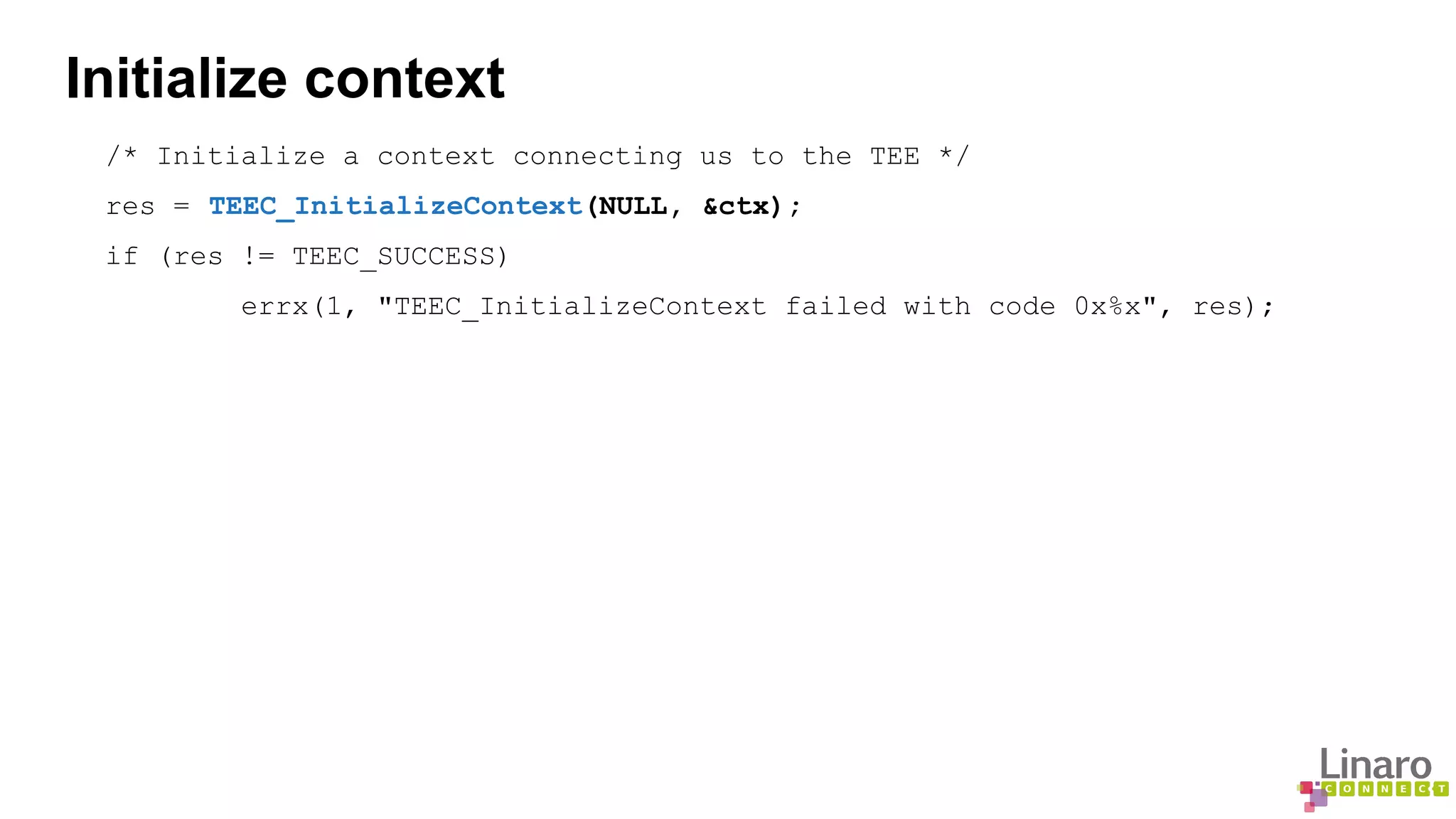

4. Initialize context
/* Initialize a context connecting us to the TEE */
res = TEEC_InitializeContext(NULL, &ctx);
if (res != TEEC_SUCCESS)
errx(1, "TEEC_InitializeContext failed with code 0x%x", res);

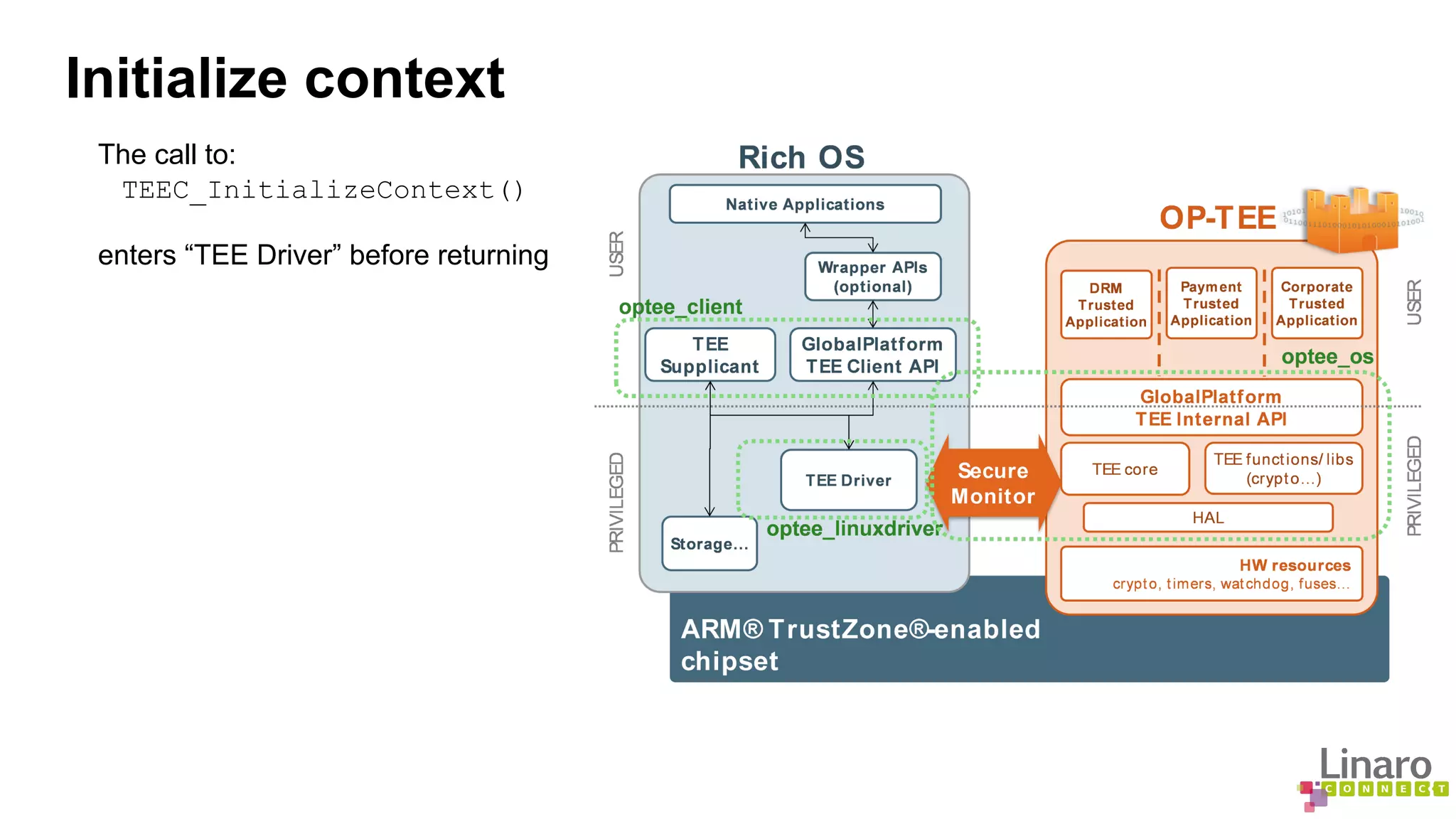

5. Initialize context
The call to:
TEEC_InitializeContext()
enters “TEE Driver” before returning

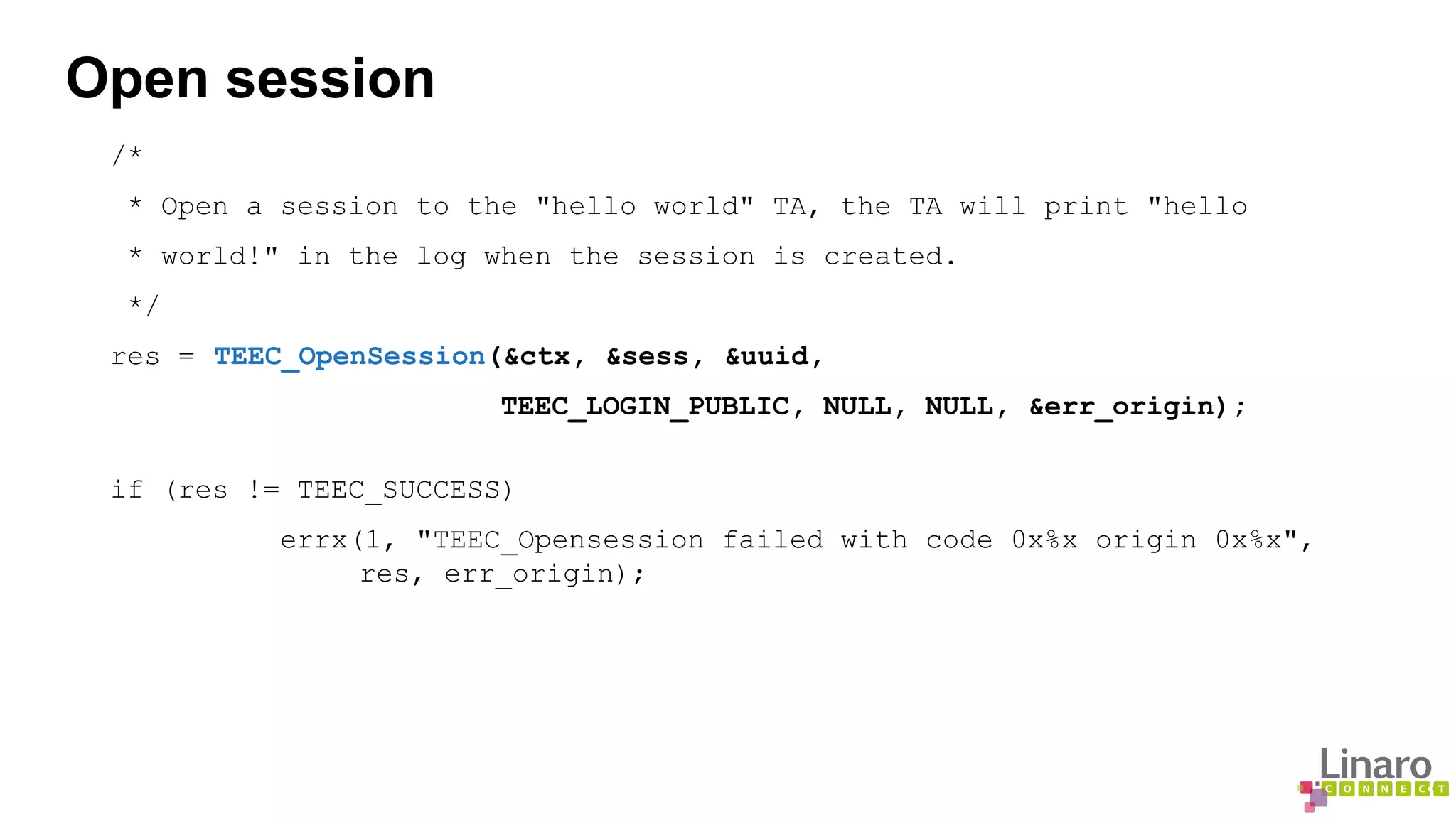

6. Open session
/*
* Open a session to the "hello world" TA, the TA will print "hello
* world!" in the log when the session is created.
*/
res = TEEC_OpenSession(&ctx, &sess, &uuid,
TEEC_LOGIN_PUBLIC, NULL, NULL, &err_origin);
if (res != TEEC_SUCCESS)
errx(1, "TEEC_Opensession failed with code 0x%x origin 0x%x",
res, err_origin);

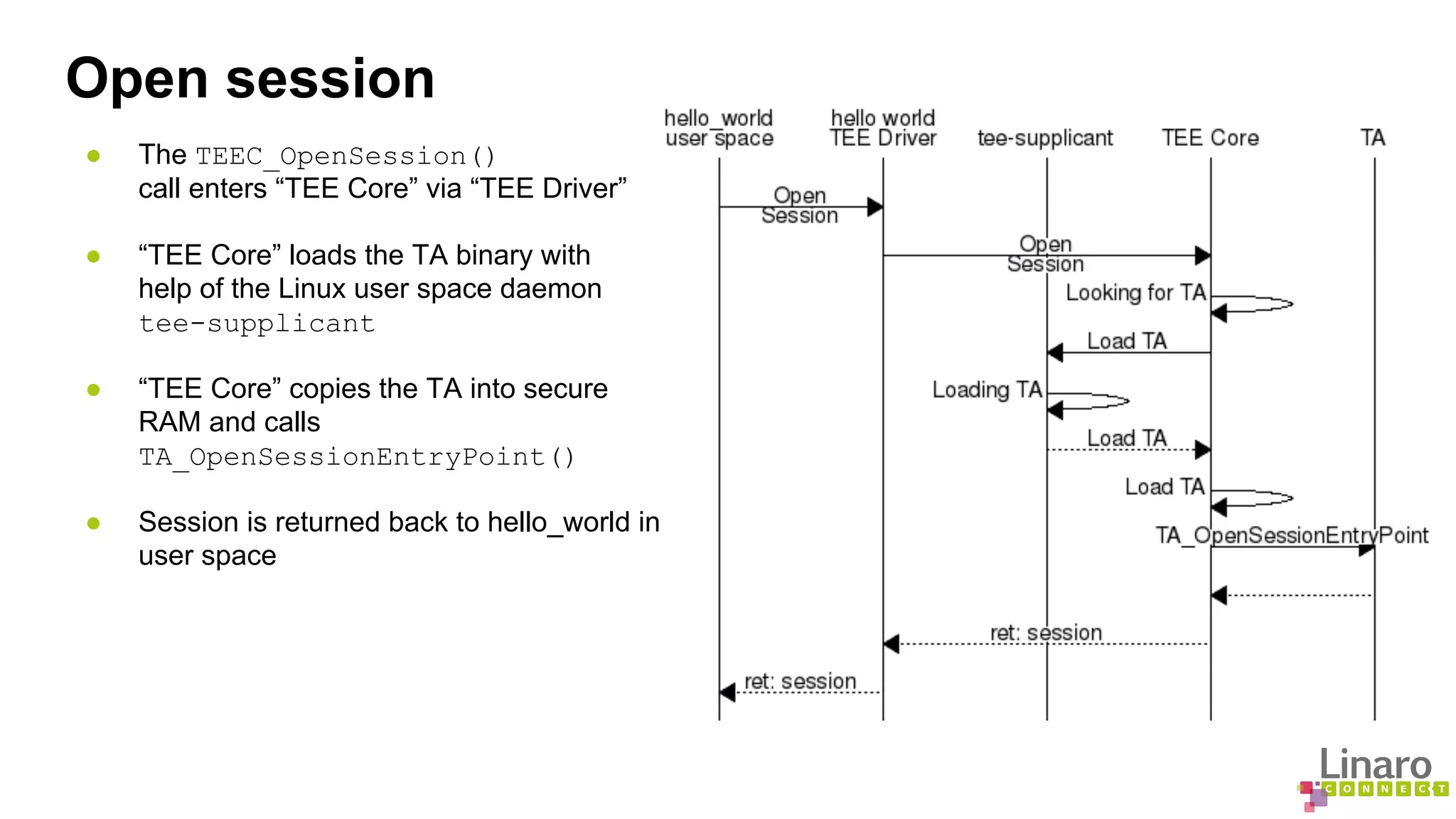

7. Open session
● The TEEC_OpenSession()
call enters “TEE Core” via “TEE Driver”
● “TEE Core” loads the TA binary with
help of the Linux user space daemon
tee-supplicant
● “TEE Core” copies the TA into secure
RAM and calls
TA_OpenSessionEntryPoint()
● Session is returned back to hello_world in
user space

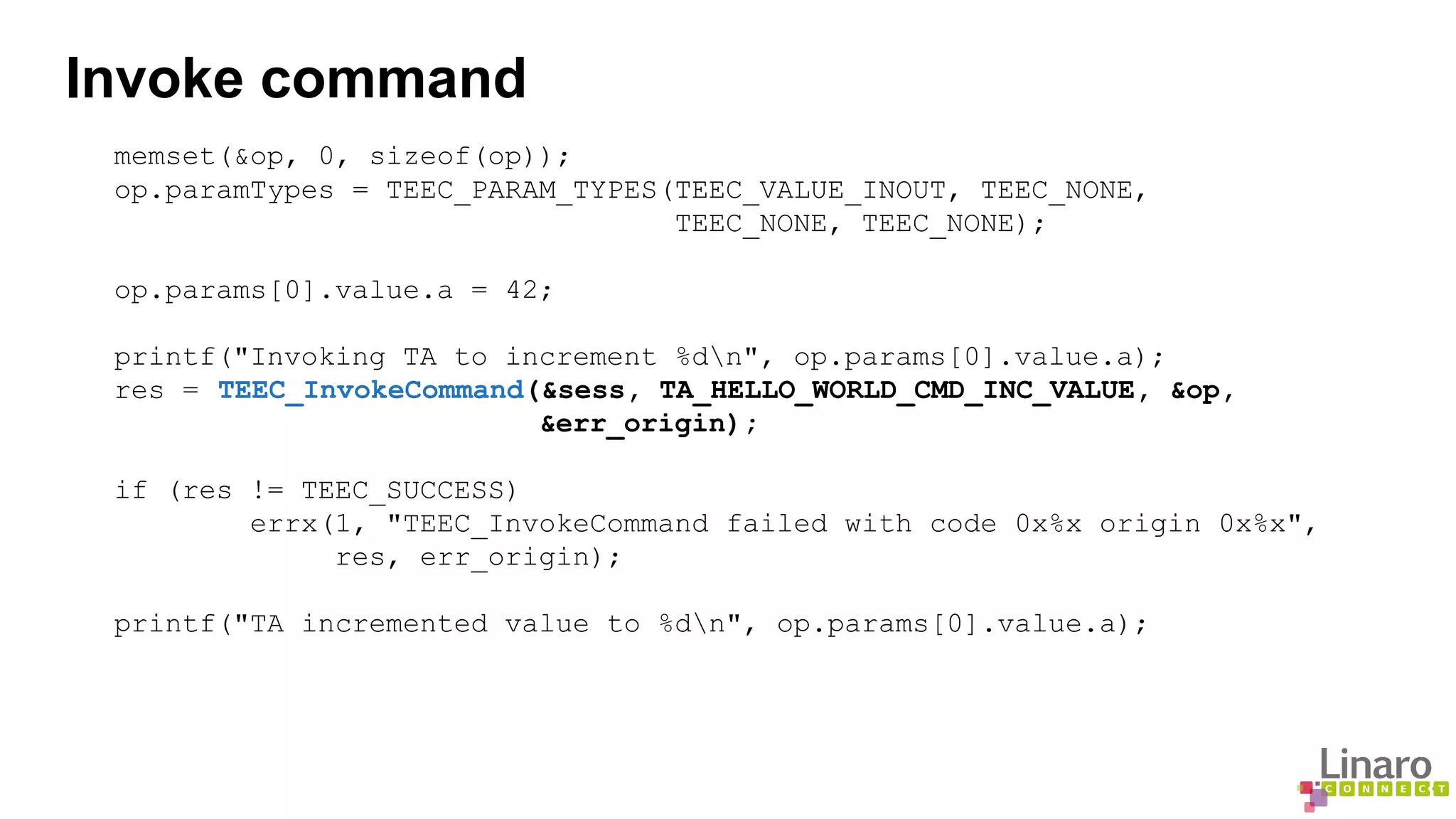

8. Invoke command
memset(&op, 0, sizeof(op));
op.paramTypes = TEEC_PARAM_TYPES(TEEC_VALUE_INOUT, TEEC_NONE,
TEEC_NONE, TEEC_NONE);
op.params[0].value.a = 42;
printf("Invoking TA to increment %dn", op.params[0].value.a);
res = TEEC_InvokeCommand(&sess, TA_HELLO_WORLD_CMD_INC_VALUE, &op,
&err_origin);
if (res != TEEC_SUCCESS)
errx(1, "TEEC_InvokeCommand failed with code 0x%x origin 0x%x",
res, err_origin);
printf("TA incremented value to %dn", op.params[0].value.a);

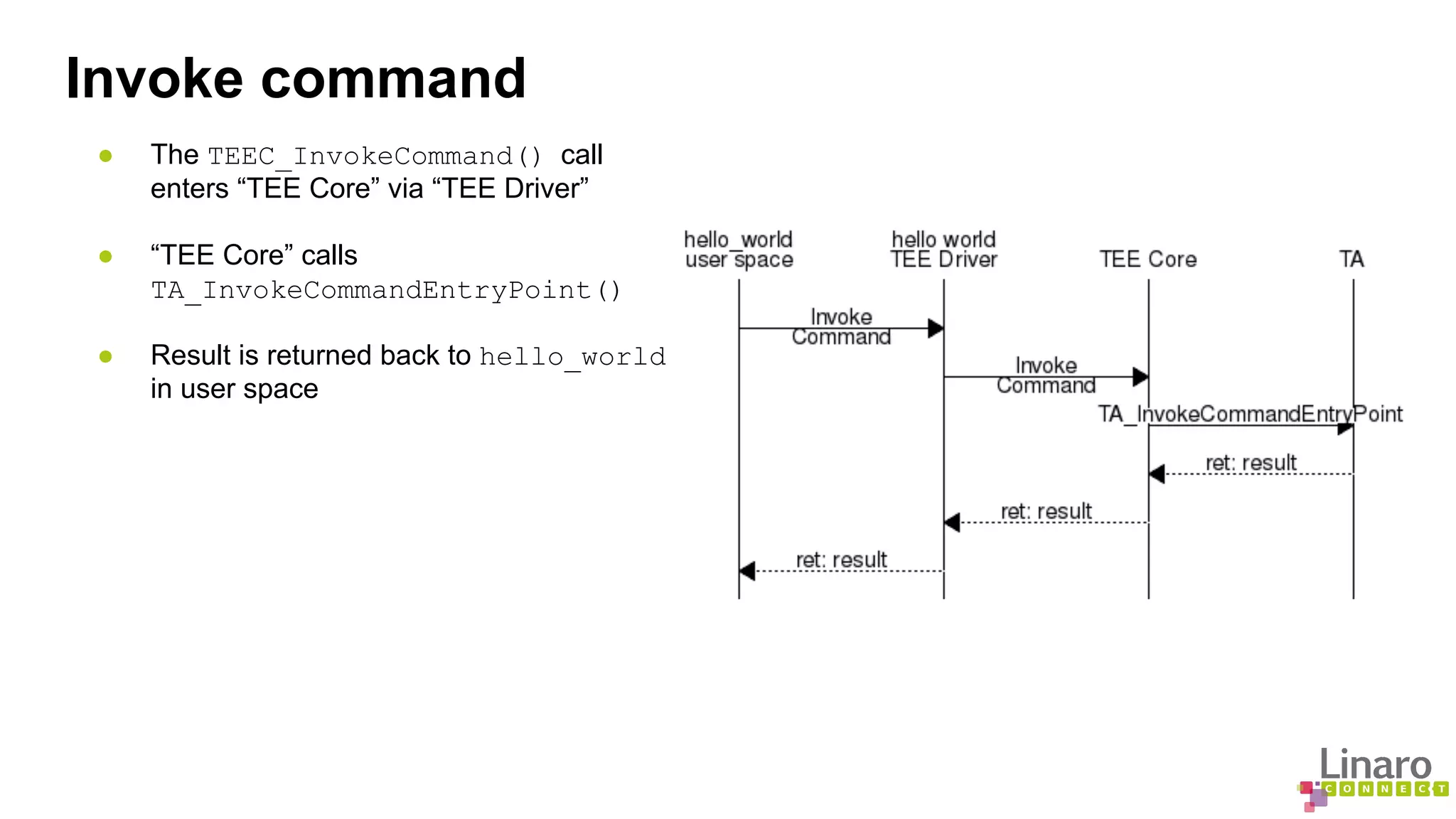

9. Invoke command
● The TEEC_InvokeCommand() call
enters “TEE Core” via “TEE Driver”
● “TEE Core” calls
TA_InvokeCommandEntryPoint()
● Result is returned back to hello_world
in user space

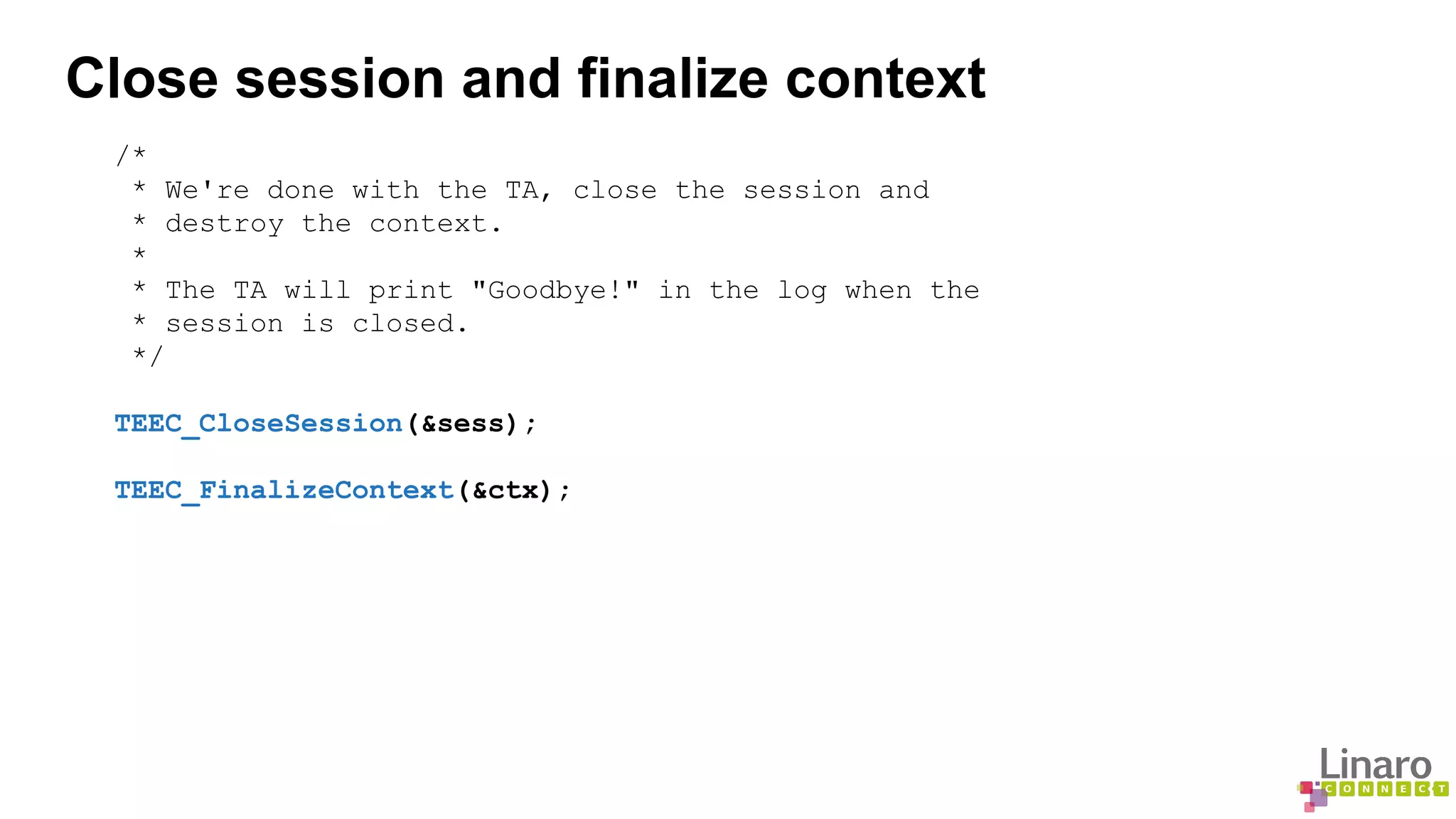

10. Close session and finalize context
/*
* We're done with the TA, close the session and
* destroy the context.
*
* The TA will print "Goodbye!" in the log when the
* session is closed.
*/
TEEC_CloseSession(&sess);
TEEC_FinalizeContext(&ctx);

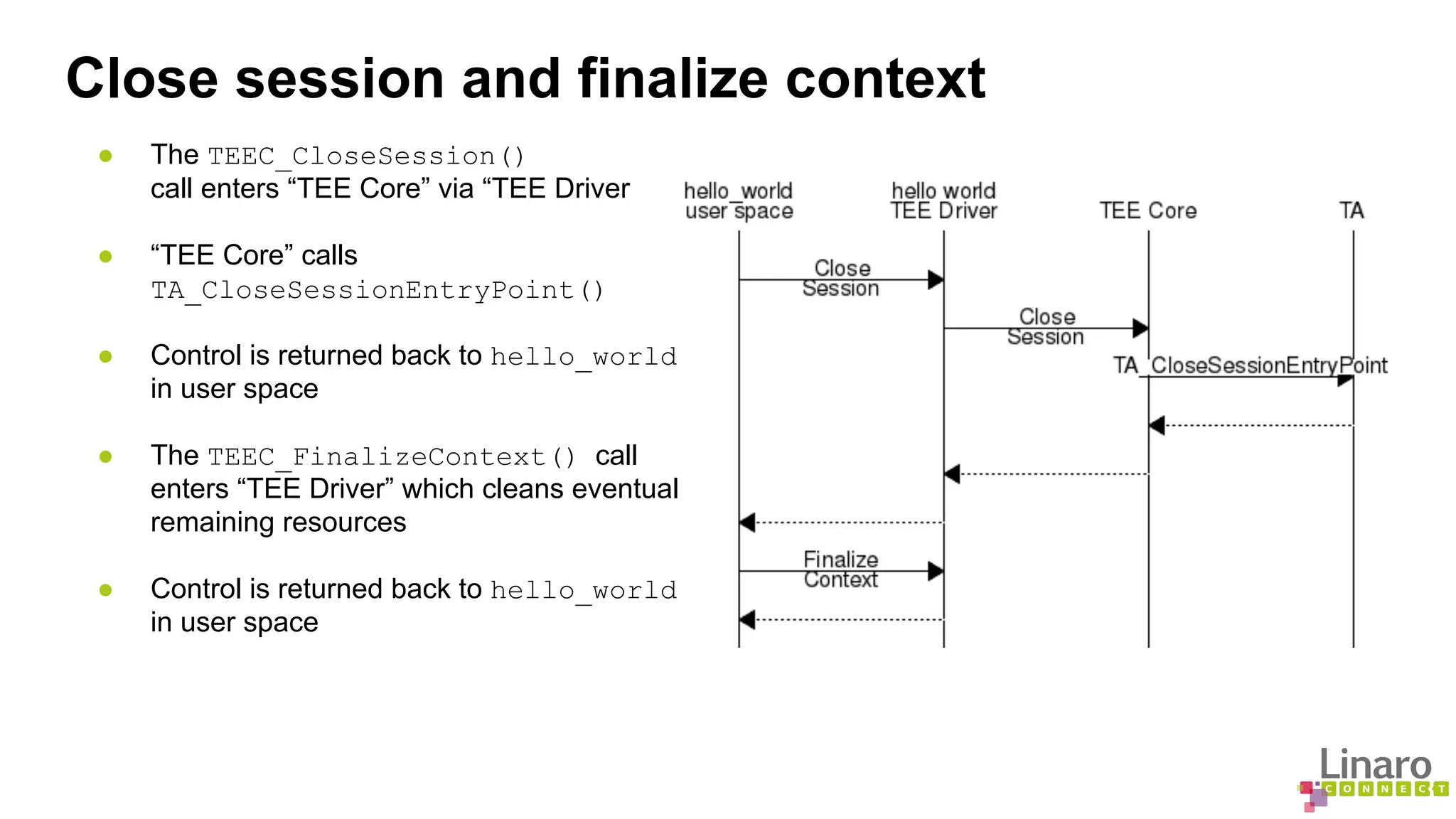

11. Close session and finalize context
● The TEEC_CloseSession()
call enters “TEE Core” via “TEE Driver
● “TEE Core” calls
TA_CloseSessionEntryPoint()
● Control is returned back to hello_world
in user space
● The TEEC_FinalizeContext() call
enters “TEE Driver” which cleans eventual
remaining resources
● Control is returned back to hello_world
in user space

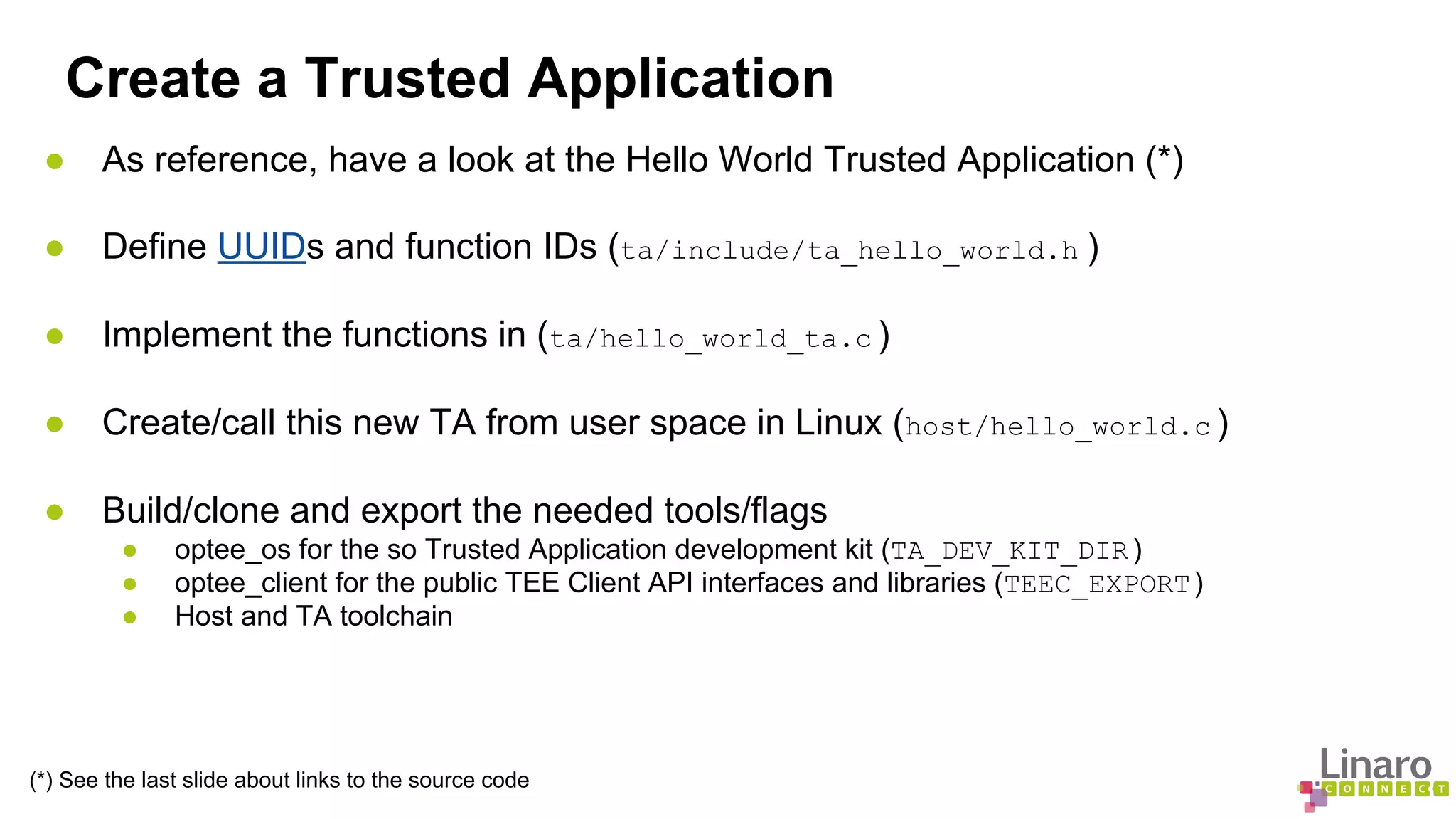

12. Create a Trusted Application
● As reference, have a look at the Hello World Trusted Application (*)
● Define UUIDs and function IDs (ta/include/ta_hello_world.h )
● Implement the functions in (ta/hello_world_ta.c )
● Create/call this new TA from user space in Linux (host/hello_world.c )
● Build/clone and export the needed tools/flags
● optee_os for the so Trusted Application development kit (TA_DEV_KIT_DIR )
● optee_client for the public TEE Client API interfaces and libraries (TEEC_EXPORT )
● Host and TA toolchain
(*) See the last slide about links to the source code

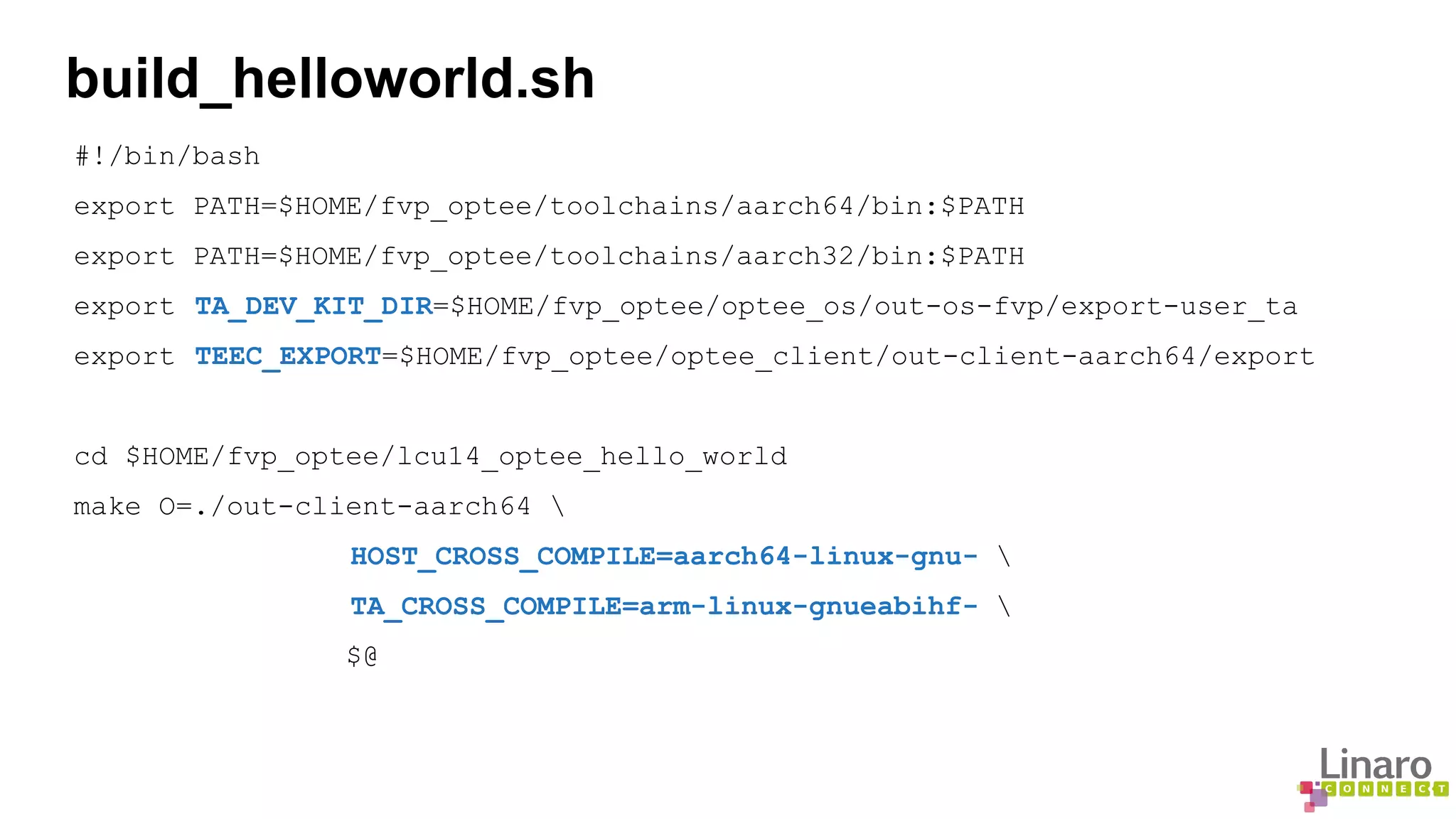

13. build_helloworld.sh
#!/bin/bash
export PATH=$HOME/fvp_optee/toolchains/aarch64/bin:$PATH
export PATH=$HOME/fvp_optee/toolchains/aarch32/bin:$PATH
export TA_DEV_KIT_DIR=$HOME/fvp_optee/optee_os/out-os-fvp/export-user_ta
export TEEC_EXPORT=$HOME/fvp_optee/optee_client/out-client-aarch64/export
cd $HOME/fvp_optee/lcu14_optee_hello_world
make O=./out-client-aarch64
HOST_CROSS_COMPILE=aarch64-linux-gnu-
TA_CROSS_COMPILE=arm-linux-gnueabihf-
$@
14. Demo Time - Hello World TA
● Trusted Application binaries should be stored on (adb, mount fs, gen_init_cpio ...)
/lib/teetz
● Run FVP
● Load optee Linux kernel driver
modprobe optee
● Run the daemon serving secure world with amongst others, filesystem access.
tee-supplicant &
● Run the client application
hello_world

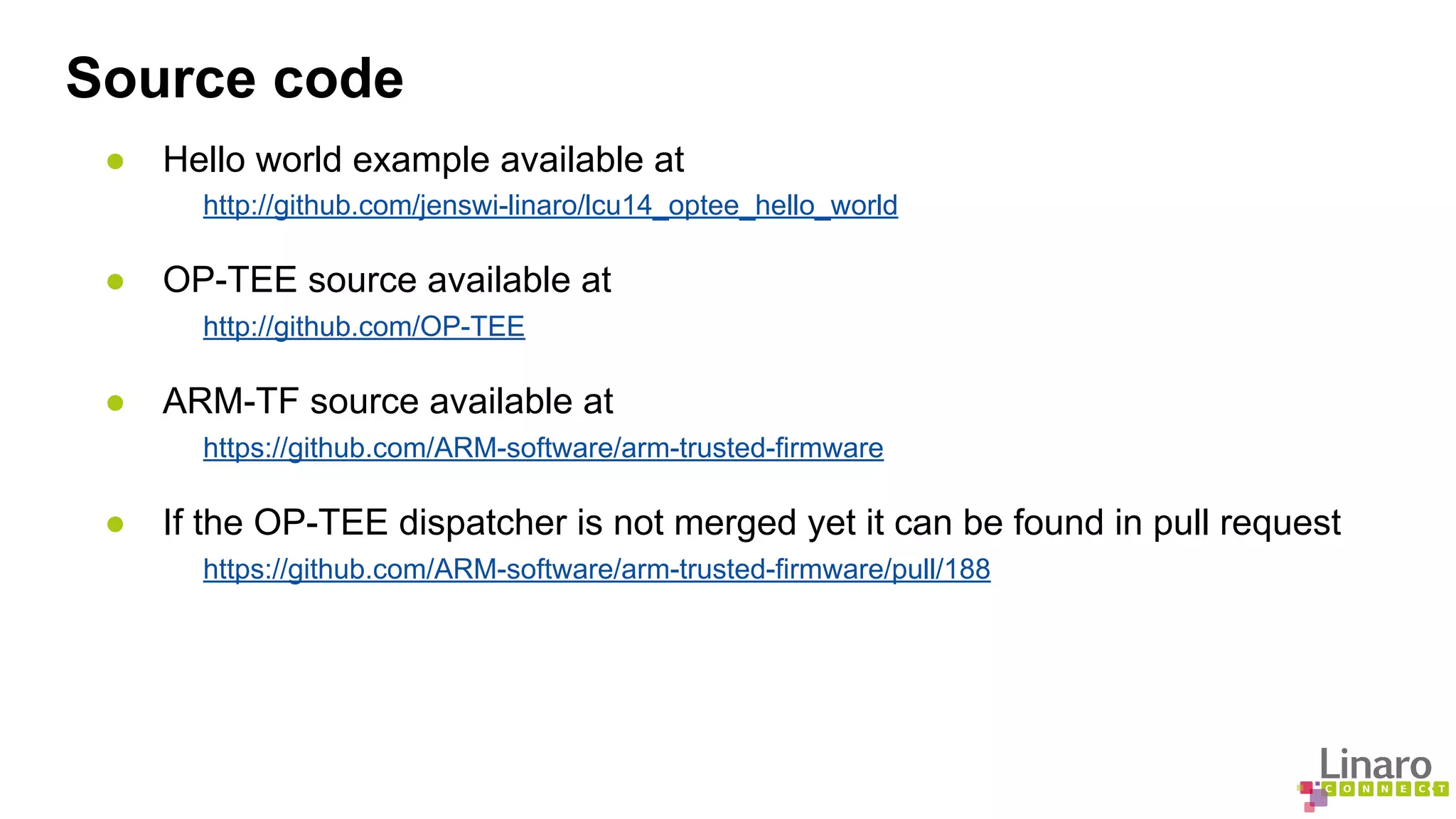

16. Source code
● Hello world example available at
http://github.com/jenswi-linaro/lcu14_optee_hello_world
● OP-TEE source available at
http://github.com/OP-TEE
● ARM-TF source available at
https://github.com/ARM-software/arm-trusted-firmware
● If the OP-TEE dispatcher is not merged yet it can be found in pull request
https://github.com/ARM-software/arm-trusted-firmware/pull/188
