1© 2018 Mellanox Technologies | Confidential
Paving the Road to Exascale
July 2018
Interconnect Your Future

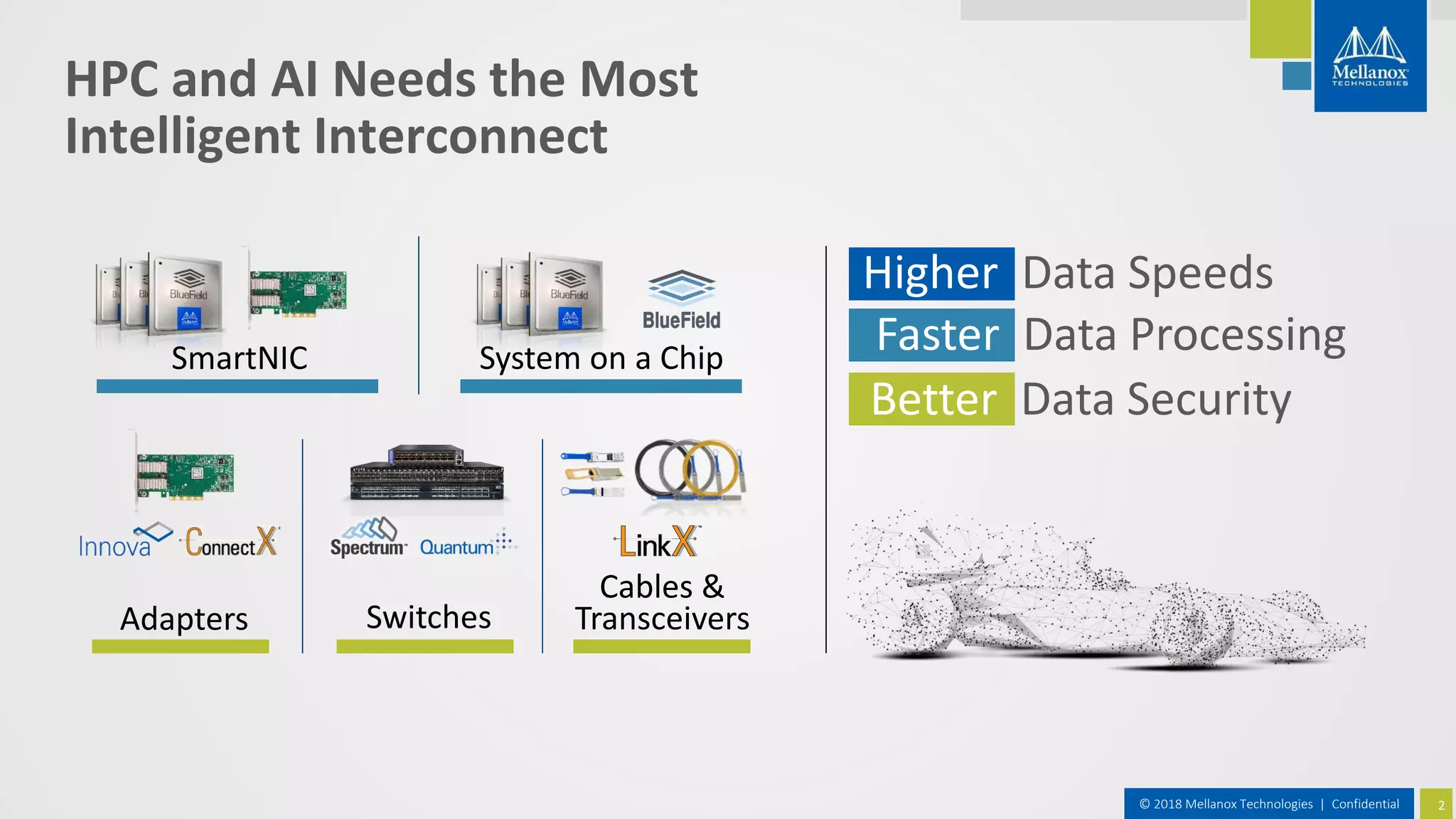

2© 2018 Mellanox Technologies | Confidential
Higher Data Speeds
Faster Data Processing
Better Data Security
Adapters Switches
Cables &
Transceivers
SmartNIC System on a Chip
HPC and AI Needs the Most
Intelligent Interconnect
3© 2018 Mellanox Technologies | Confidential
Mellanox Accelerates Leading HPC and AI Systems
‘Summit’ CORAL System
World’s Fastest HPC / AI System
9.2K InfiniBand Nodes
‘Sierra’ CORAL System
#2 USA Supercomputer
8.6K InfiniBand Nodes
Wuxi Supercomputing Center
Fastest Supercomputer in China
41K InfiniBand Nodes
1 2 3
4© 2018 Mellanox Technologies | Confidential
Mellanox Accelerates Leading HPC and AI Systems
Fastest Supercomputer in Canada
Dragonfly+ Topology
1.5K InfiniBand Nodes
‘Astra’ Arm-Based Supercomputer
NNSA Vanguard Program
2.6K InfiniBand Nodes
Fastest HPC / AI System in Japan
1.1K InfiniBand Nodes
5© 2018 Mellanox Technologies | Confidential
Data Centric Architecture to Overcome Latency Bottlenecks
CPU-Centric (Onload) Data-Centric (Offload)
Communications Latencies
of 30-40us
Intelligent Interconnect Paves the Road to Exascale Performance
GPU
CPU
GPU
CPU
GPU
CPU
CPU
GPU
GPU
CPU
GPU
CPU
GPU
CPU
CPU
GPU
Communications Latencies
of 3-4us
6© 2018 Mellanox Technologies | Confidential
In-Network Computing to Enable
Data-Centric Data Centers
GPU
CPU
GPU
CPU
GPU
CPU
CPU
GPU
GPUDirect
RDMA
Scalable Hierarchical
Aggregation and
Reduction Protocol
NVMeOver
Fabrics
7© 2018 Mellanox Technologies | Confidential
SHARP AllReduce Performance Advantages (128 Nodes)
SHARP enables 75% Reduction in Latency
Providing Scalable Flat Latency
8© 2018 Mellanox Technologies | Confidential
SHARP AllReduce Performance Advantages
1500 Nodes, 60K MPI Ranks, Dragonfly+ Topology
SHARP Enables Highest Performance
© 2018 UCF Consortium 9
UCXUnified Communication - X
Framework
WEB:
www.openucx.org
https://github.com/openucx/ucx
Mailing List:
https://elist.ornl.gov/mailman/listinfo/ucx-group
ucx-group@elist.ornl.gov
10© 2018 Mellanox Technologies | Confidential
Highest-Performance 200Gb/s Interconnect Solutions
Transceivers
Active Optical and Copper Cables
(10 / 25 / 40 / 50 / 56 / 100 / 200Gb/s)
40 HDR (200Gb/s) InfiniBand Ports
80 HDR100 InfiniBand Ports
Throughput of 16Tb/s, <90ns Latency
200Gb/s Adapter, 0.6us latency
200 million messages per second
(10 / 25 / 40 / 50 / 56 / 100 / 200Gb/s)
16 400GbE, 32 200GbE, 128 25/50GbE Ports
(10 / 25 / 40 / 50 / 100 / 200 GbE)
Throughput of 6.4Tb/s
MPI, SHMEM/PGAS, UPC
For Commercial and Open Source Applications
Leverages Hardware Accelerations
System on Chip and SmartNIC
Programmable adapter
Smart Offloads
11© 2018 Mellanox Technologies | Confidential
BlueField System on a Chip
▪ Tile Architecture - 16 ARM® A72 CPUs
▪ SkyMesh™ fully coherent low-latency interconnect
▪ 8MB L2 Cache, 8 Tiles
▪ 12MB L3 Last Level Cache
▪ Integrated ConnectX-5 subsystem
▪ Dual 100Gb/s Ethernet/InfiniBand, compatible with ConnectX-5
▪ High-end Networking Offloads
▪ RDMA, NVMe-oF, Erasure Coding, T10-DIF
▪ Fully Integrated PCIe switch
▪ 32 Bifurcated PCI Gen4 lanes (up to 200Gb/s)
▪ Root Complex or Endpoint modes
▪ 2x16, 4x8, 8x4 or 16x2 configurations
▪ Crypto Engines
▪ AES, SHA-1/2
▪ Public Key acceleration, True RNG
▪ Memory Controllers
▪ 2x Channels DDR4 Memory Controllers w/ ECC
Dual VPI Ports
Ethernet/InfiniBand:
1, 10, 25,40,50,100G
32-lanes
PCIe Gen3/4
12© 2018 Mellanox Technologies | Confidential
BlueField Product Line
▪ Different SKUs
▪ # Cores
▪ Speeds
▪ Perf points
SmartNIC
Ethernet
Dual Port 100Gb/s
Controller
BF1600
Dual Port 100Gb/s
Controller
BF1700
BlueField™ Platform
BF1100 & BF1200System on Chip
▪ Different SKUs
▪ GPU and SSD
▪ 1U and 2U
▪ Up to 16 SSDs
▪ Different SKUs
▪ 16/8/4 cores
▪ Dual 25Gb/s
▪ Storage card▪ Different SKUs
▪ PCIe x16
▪ PCIe x32
▪ SDK and Development Tools
▪ Networking , Security Features
▪ Full NVMe storage capability
Full Software Enablement
SmartNIC VPI
BF1660
▪ VPI 2-ports 100G
▪ 100Gb/s / EDR
▪ 16 Cores
13© 2018 Mellanox Technologies | Confidential
Thank You
