- 1. A Linux PacketJourney with Docker Elazar Leibovich DevOpsDays, Tel Aviv 2019
- 2. Who am I? ●Work ○ Storage @VAST Data ○ Virtualization @Ravello ○ Hadoop @Akamai ● Open Source ○ goproxy author ● elazarl @Twitter
- 3. Agenda ● A packet’slife cycle in Linux ● How it applies with containers ● Example problem & solution
- 4. Agenda ● A packet’slife cycle in Linux ● How it applies with containers ● Example problem & solution ● Overview of all network devices ● In depth in-kernel infrastructure
- 5.

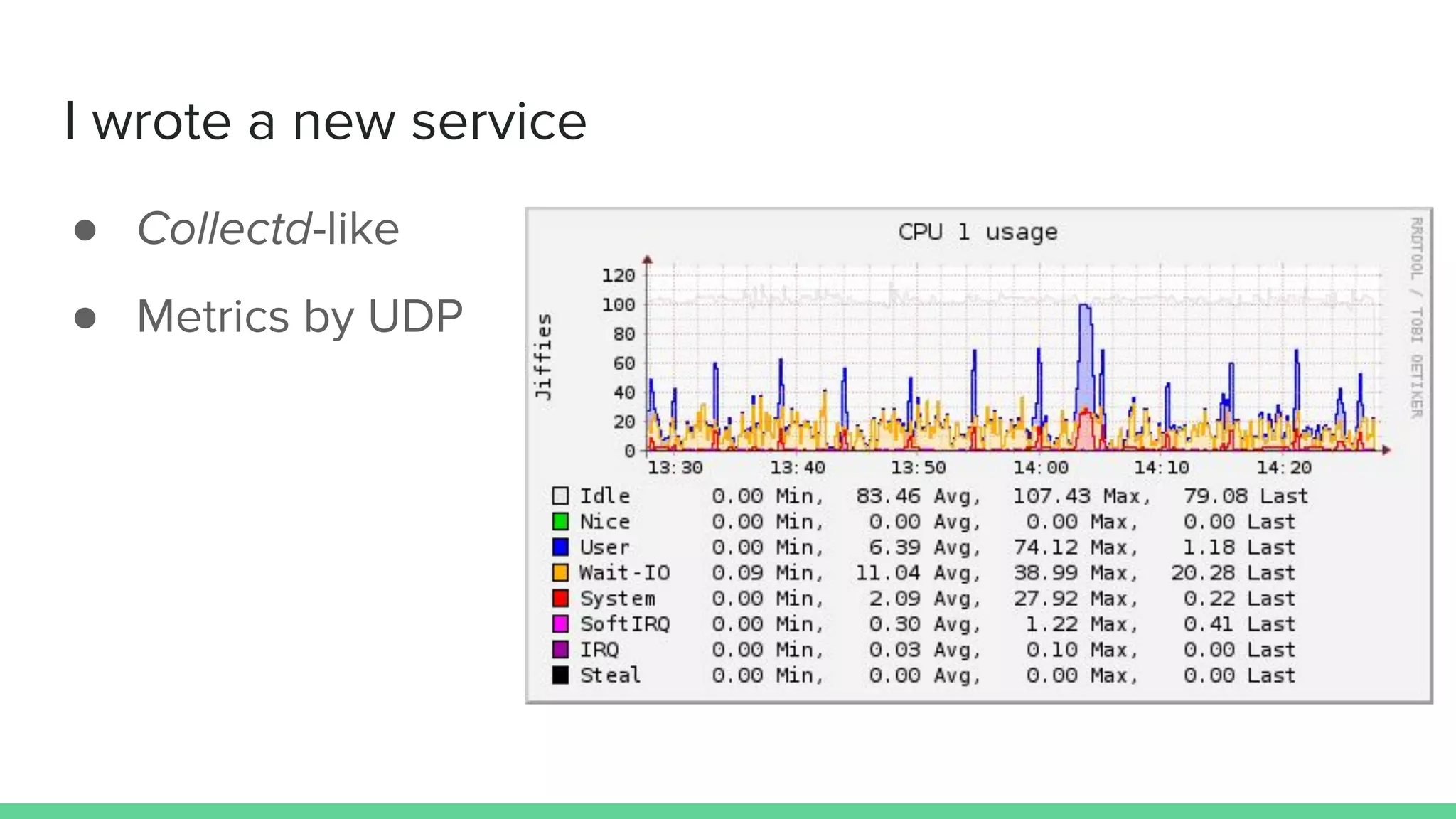

- 6. I wrote anew service ● Collectd-like ● Metrics by UDP

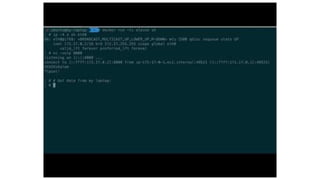

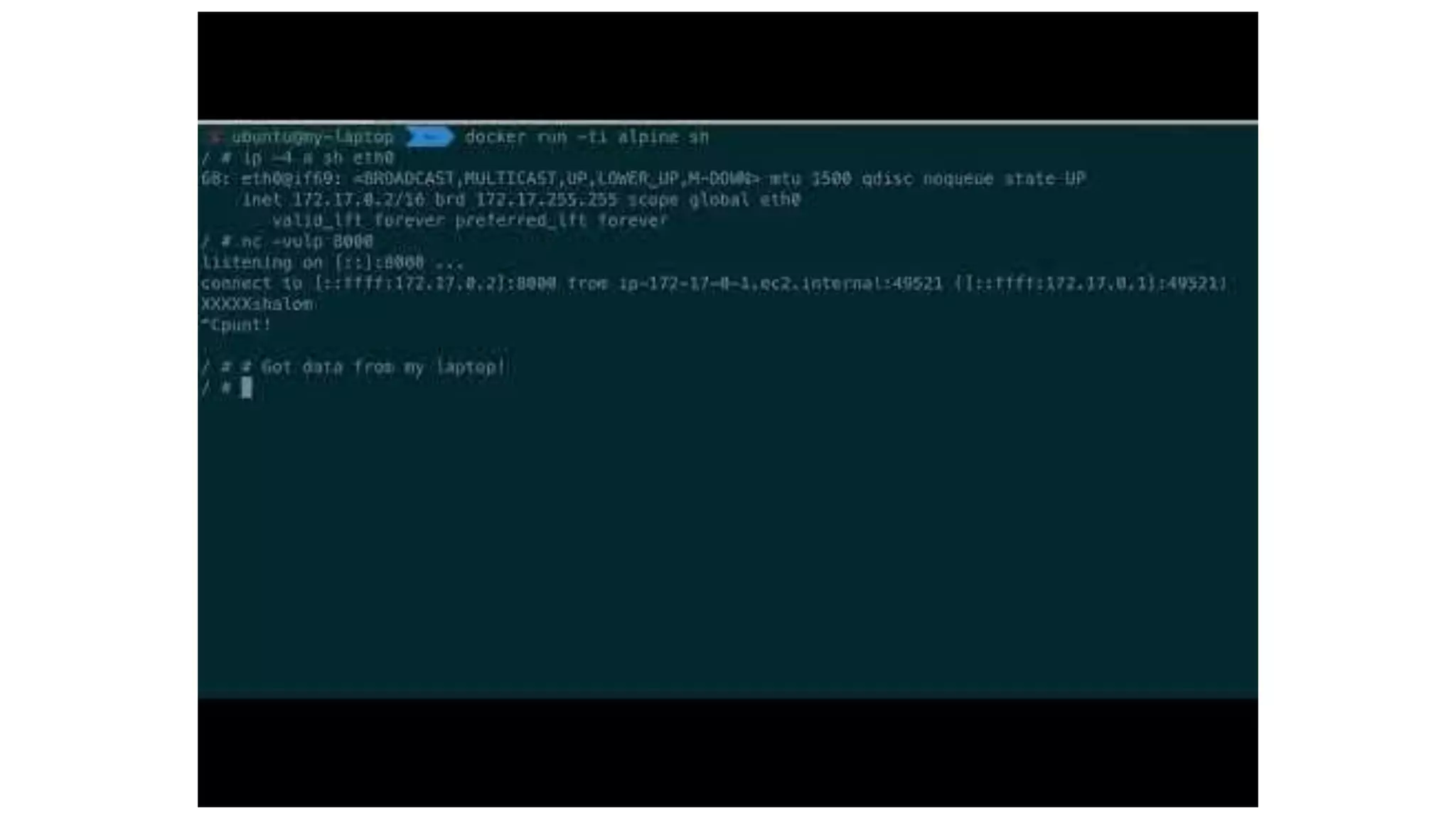

- 7. … deployed iton my laptop With Docker docker run -d myapp
- 8. How do Iget there from the outside? docker run -tip8000:8000/udp myapp

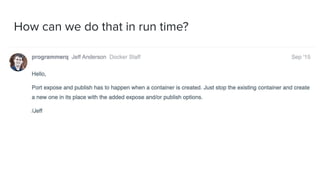

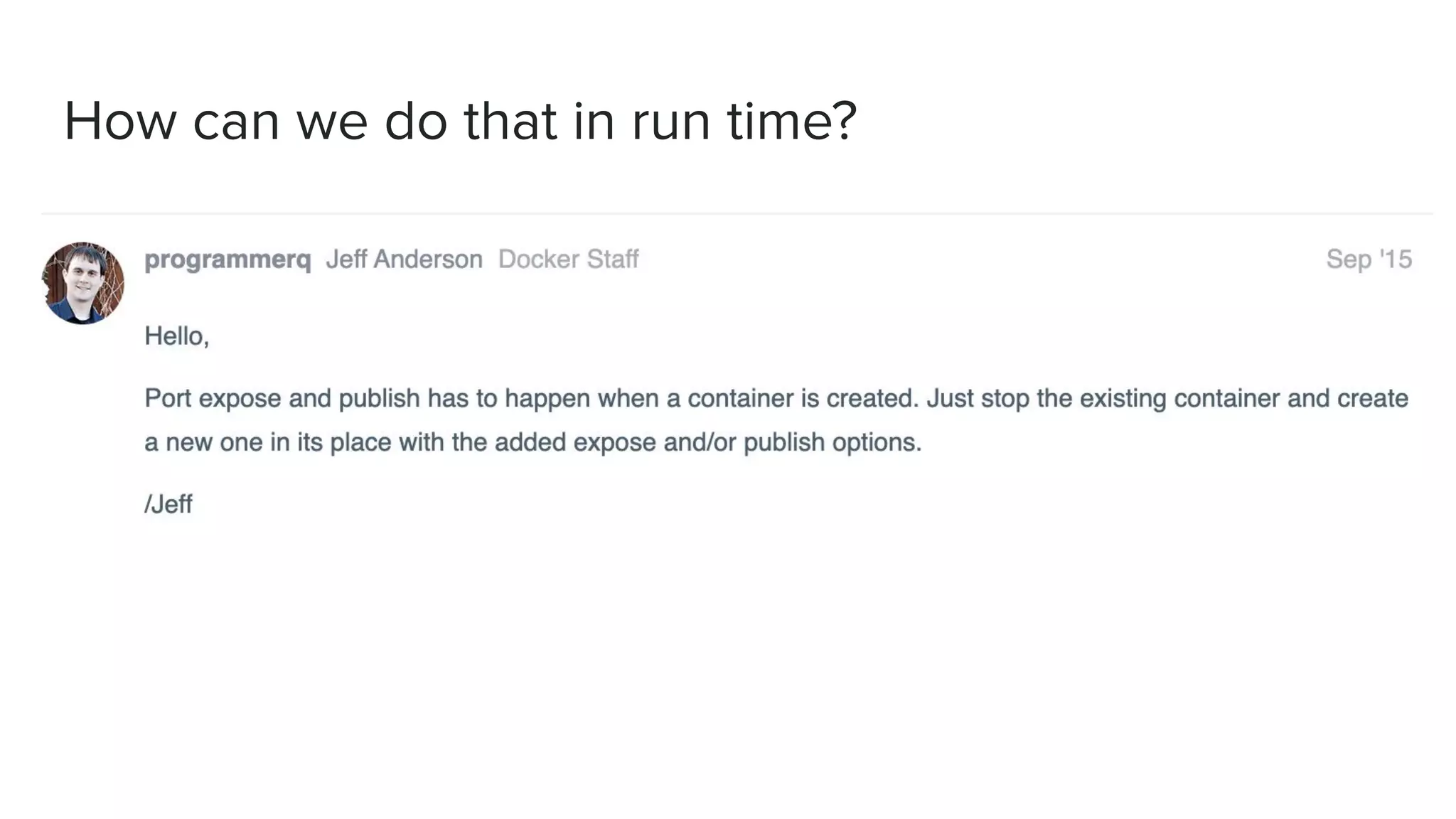

- 9. How can wedo that in run time?
- 10. How can wedo that in run time?
- 11.
- 12. Network Namespace All networkcomponents in a box: ● Network devices ● Routing tables ● … 1 Docker container → 1 network namespace

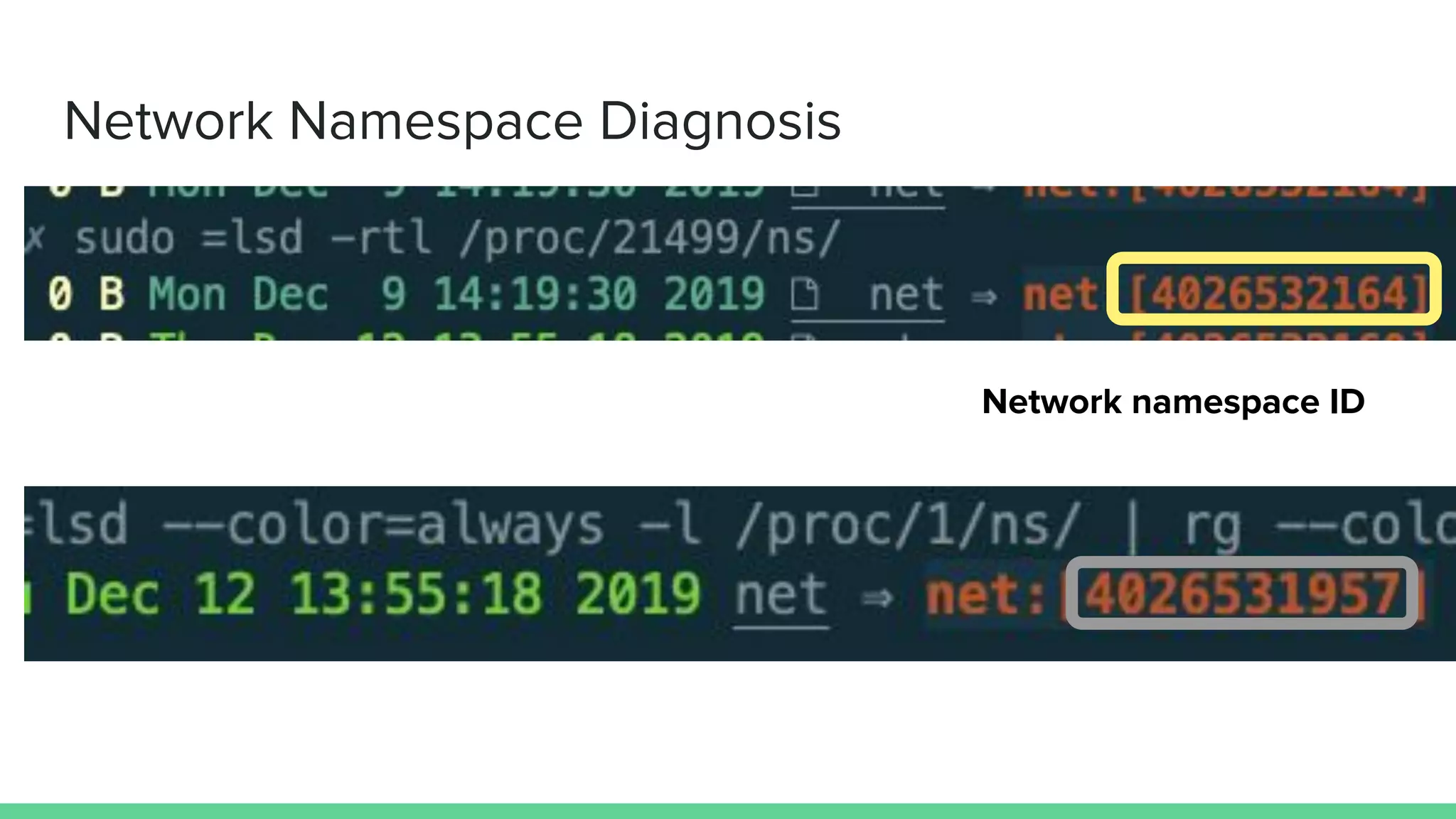

- 13. Network Namespace Diagnosis Networknamespace ID

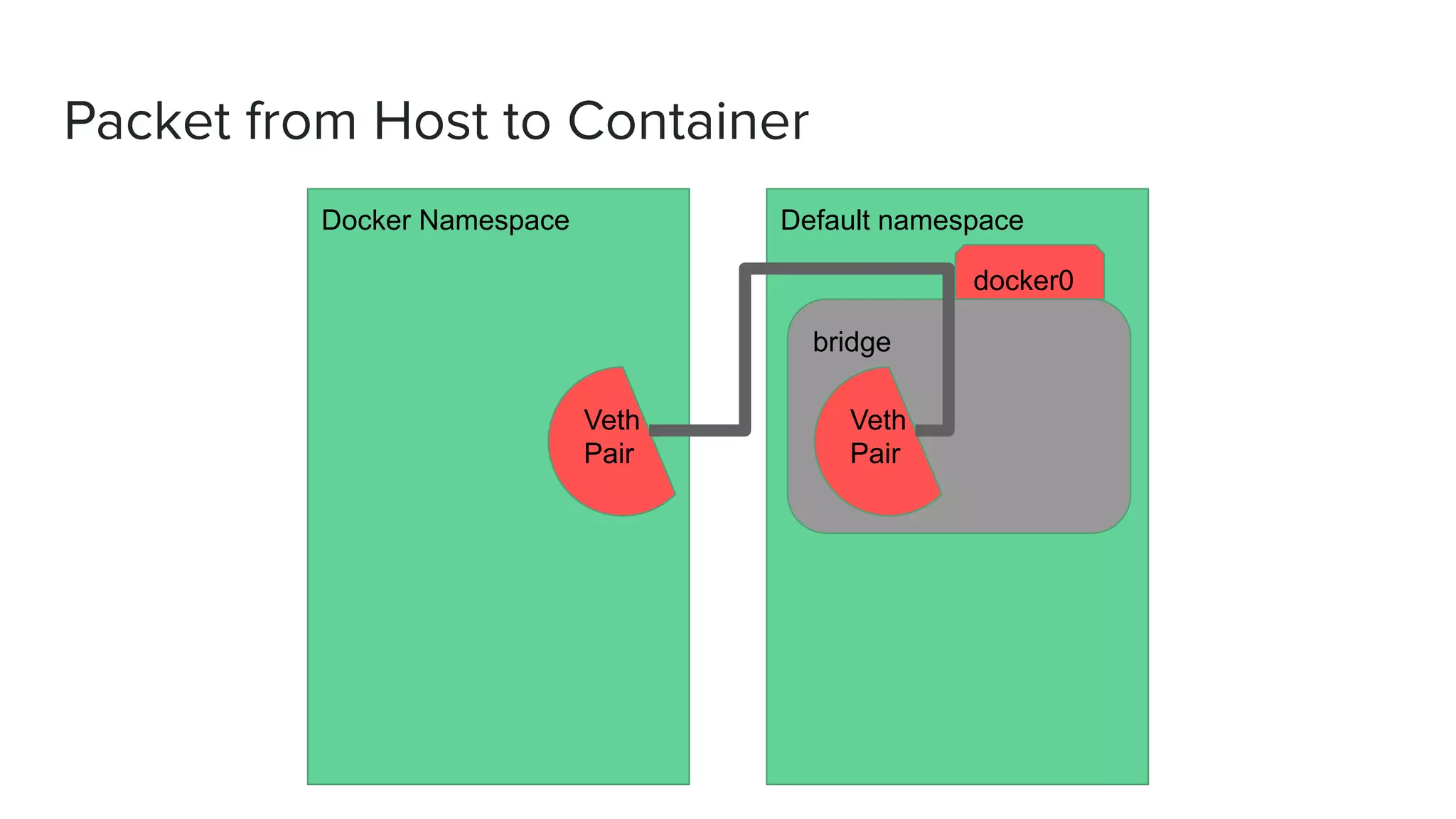

- 14. Packet from Hostto Container Docker Namespace Default namespace bridge Veth Pair Veth Pair docker0

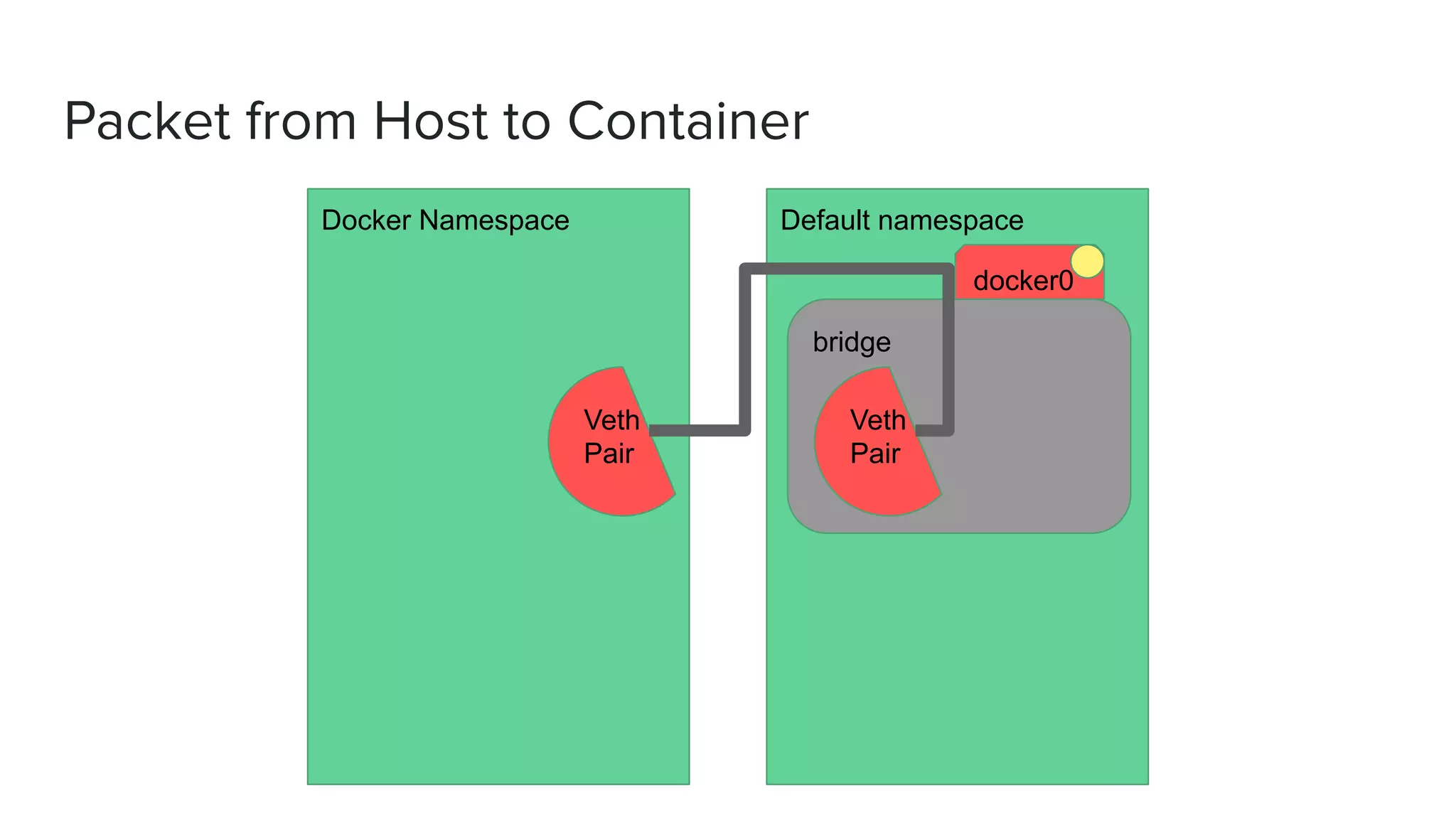

- 15. Packet from Hostto Container Docker Namespace Default namespace bridge Veth Pair Veth Pair docker0
- 16. Packet from Hostto Container Docker Namespace Default namespace bridge Veth Pair Veth Pair docker0

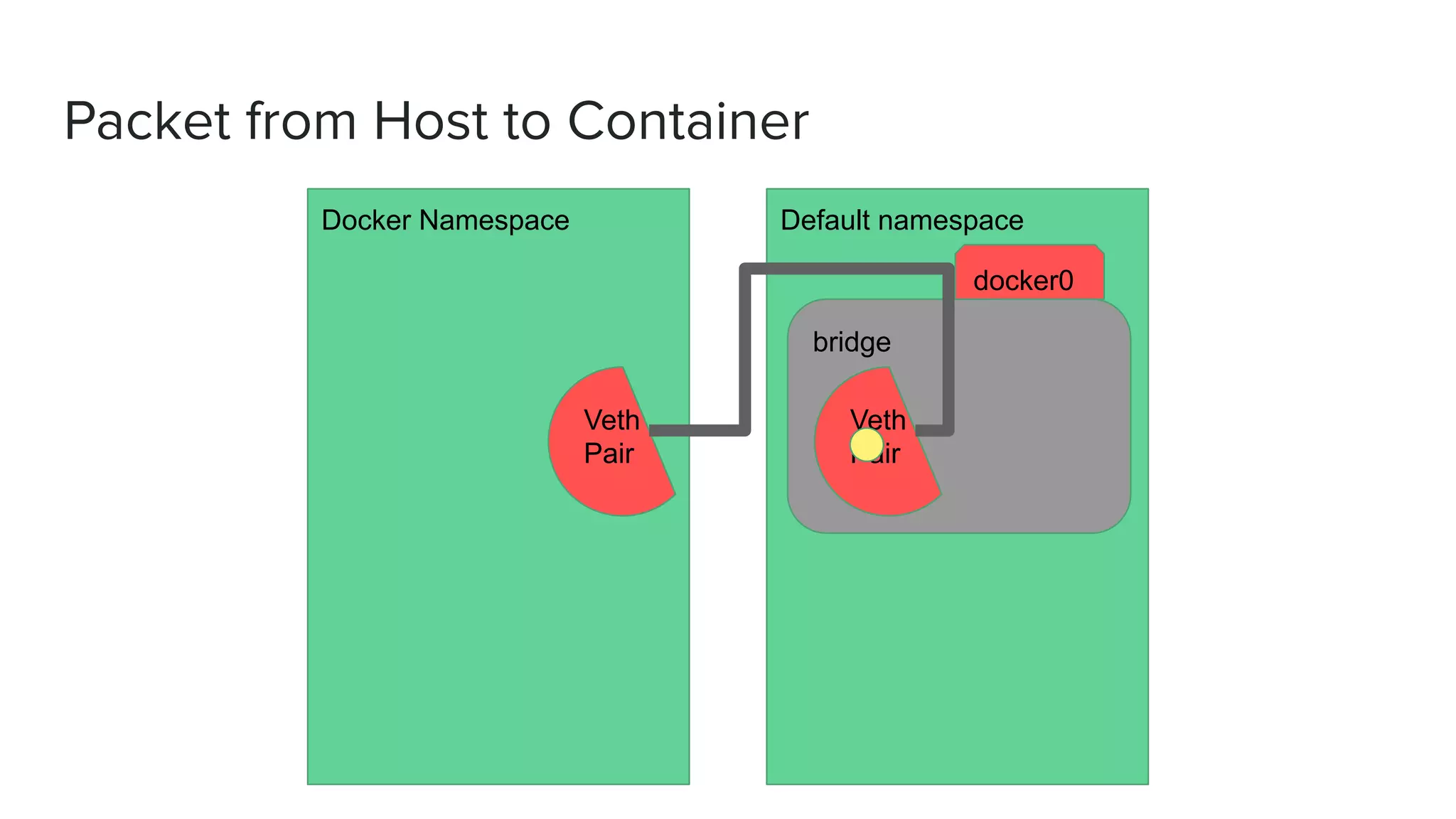

- 17. Packet from Hostto Container Docker Namespace Default namespace bridge Veth Pair Veth Pair docker0
- 18. Packet from Hostto Container Docker Namespace Default namespace bridge Veth Pair Veth Pair docker0

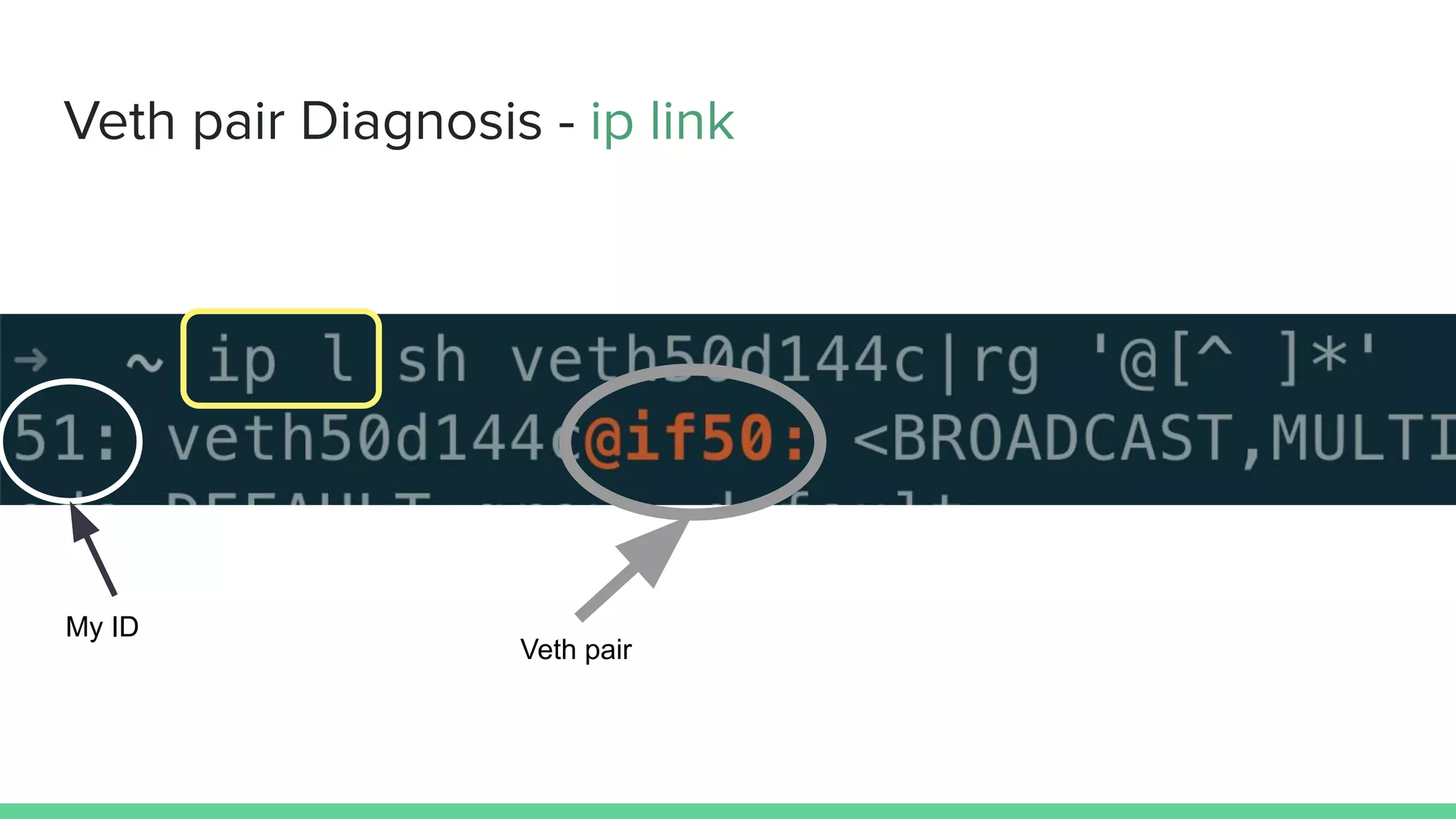

- 19. Veth pair Diagnosis- ip link My ID Veth pair

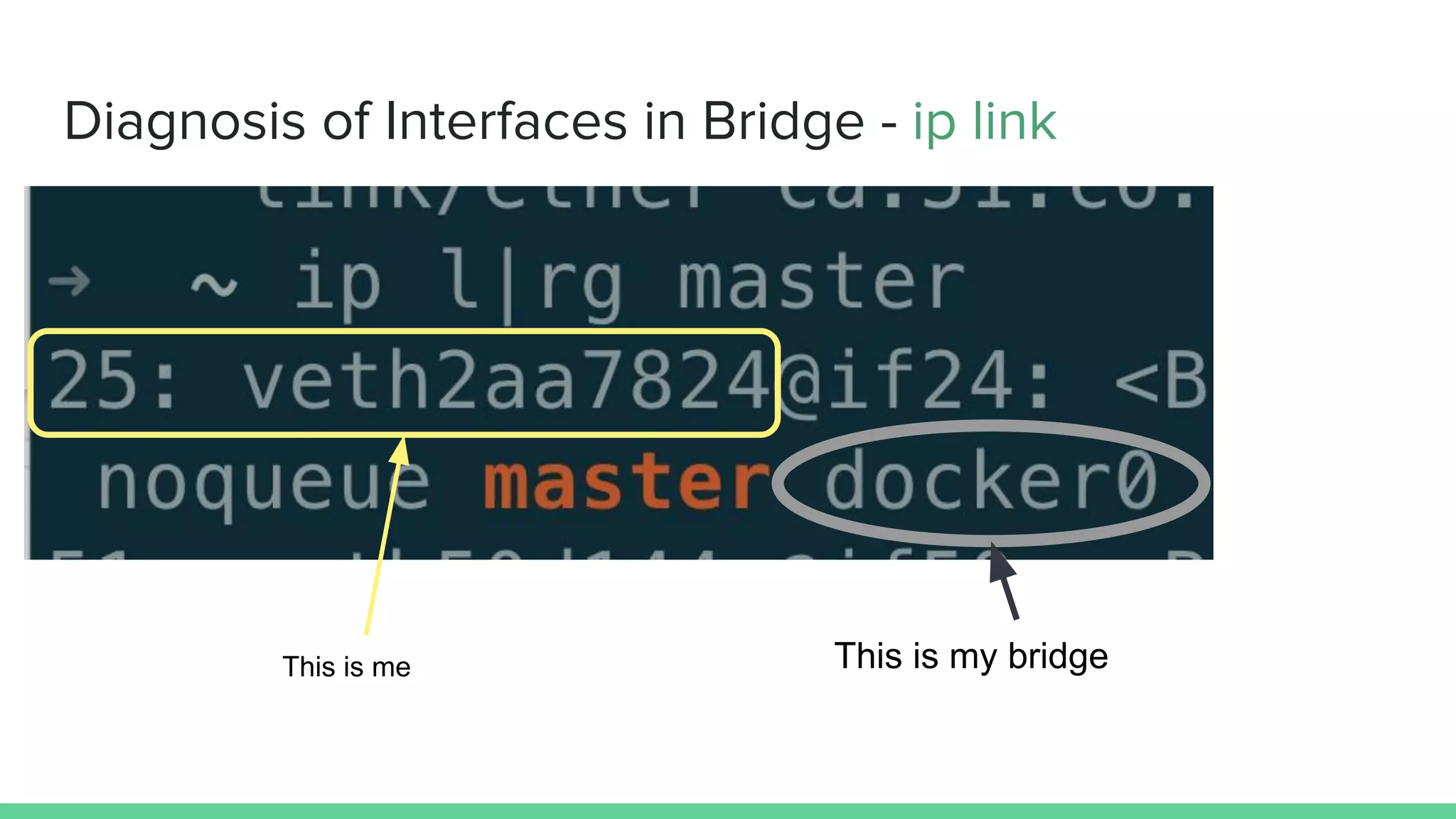

- 20. Diagnosis of Interfacesin Bridge - ip link This is my bridgeThis is me

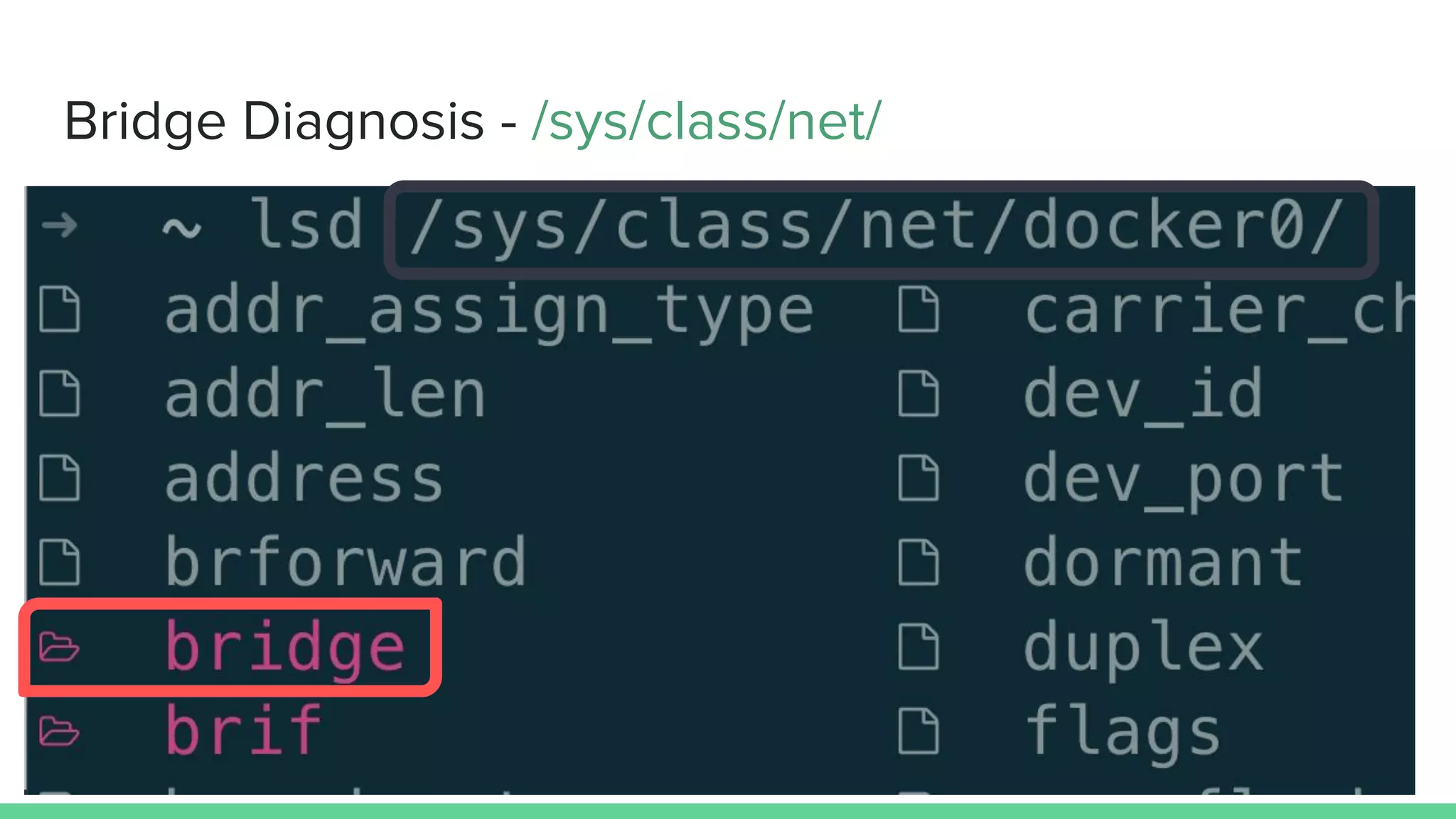

- 21. Bridge Diagnosis -/sys/class/net/
- 22. Back to OurProblem

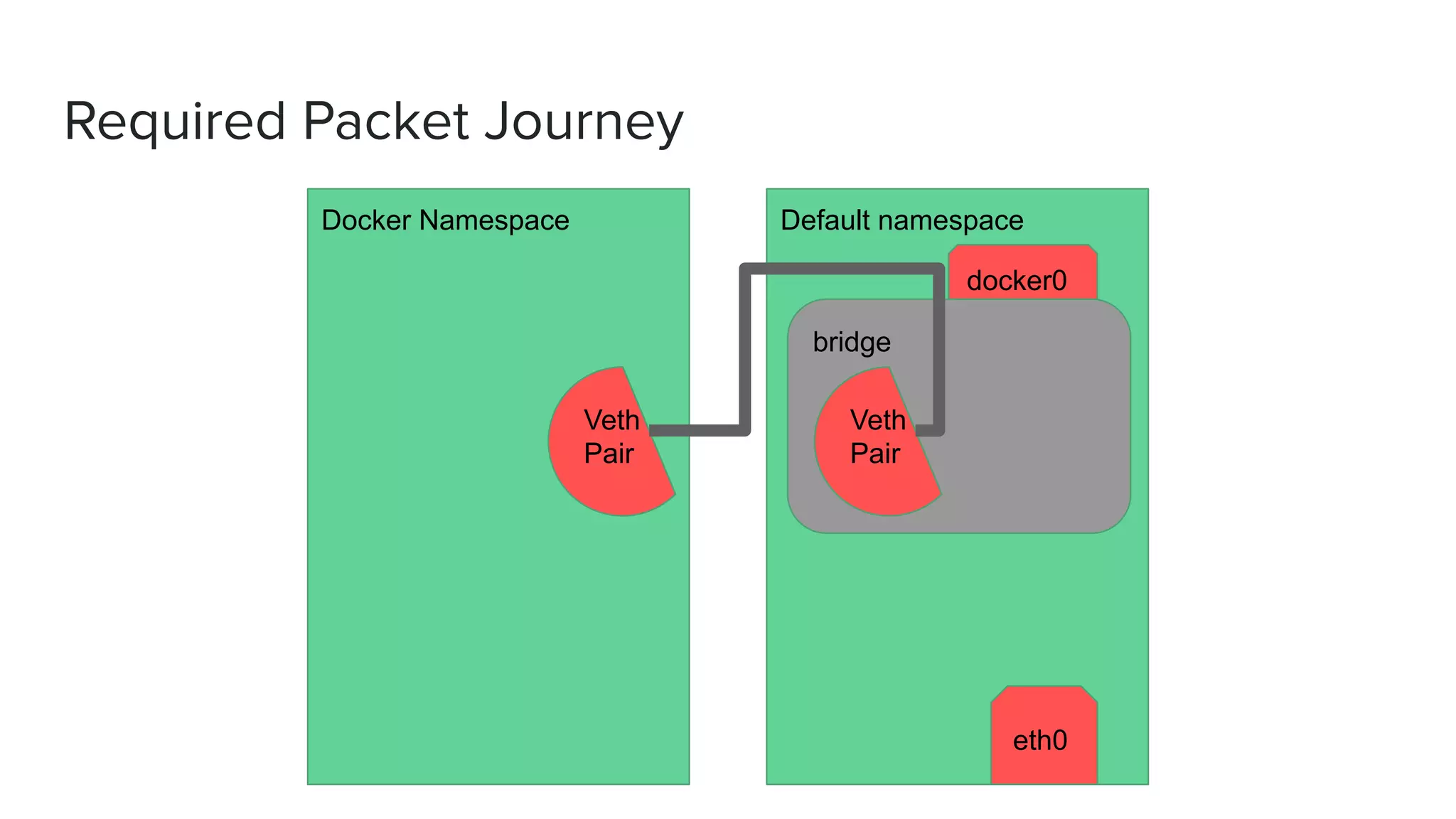

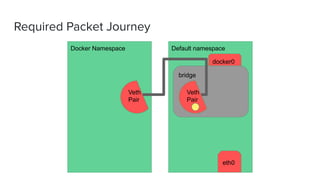

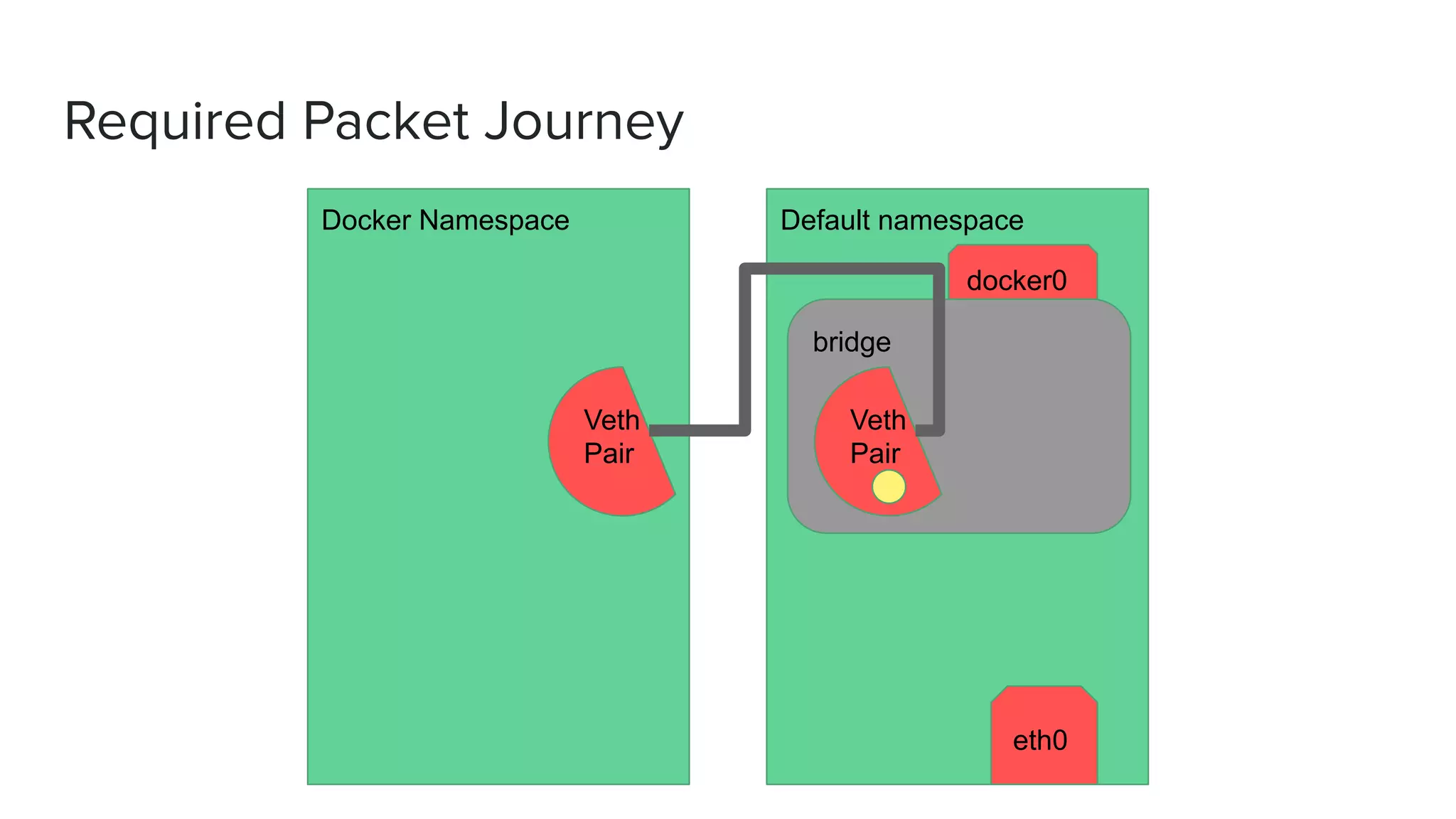

- 23. Required Packet Journey DockerNamespace Default namespace bridge Veth Pair Veth Pair docker0 eth0
- 24. Required Packet Journey DockerNamespace Default namespace bridge Veth Pair Veth Pair docker0 eth0
- 25. Required Packet Journey DockerNamespace Default namespace bridge Veth Pair Veth Pair docker0 eth0
- 26. Required Packet Journey DockerNamespace Default namespace bridge Veth Pair Veth Pair docker0 eth0
- 27. Required Packet Journey DockerNamespace Default namespace bridge Veth Pair Veth Pair docker0 eth0

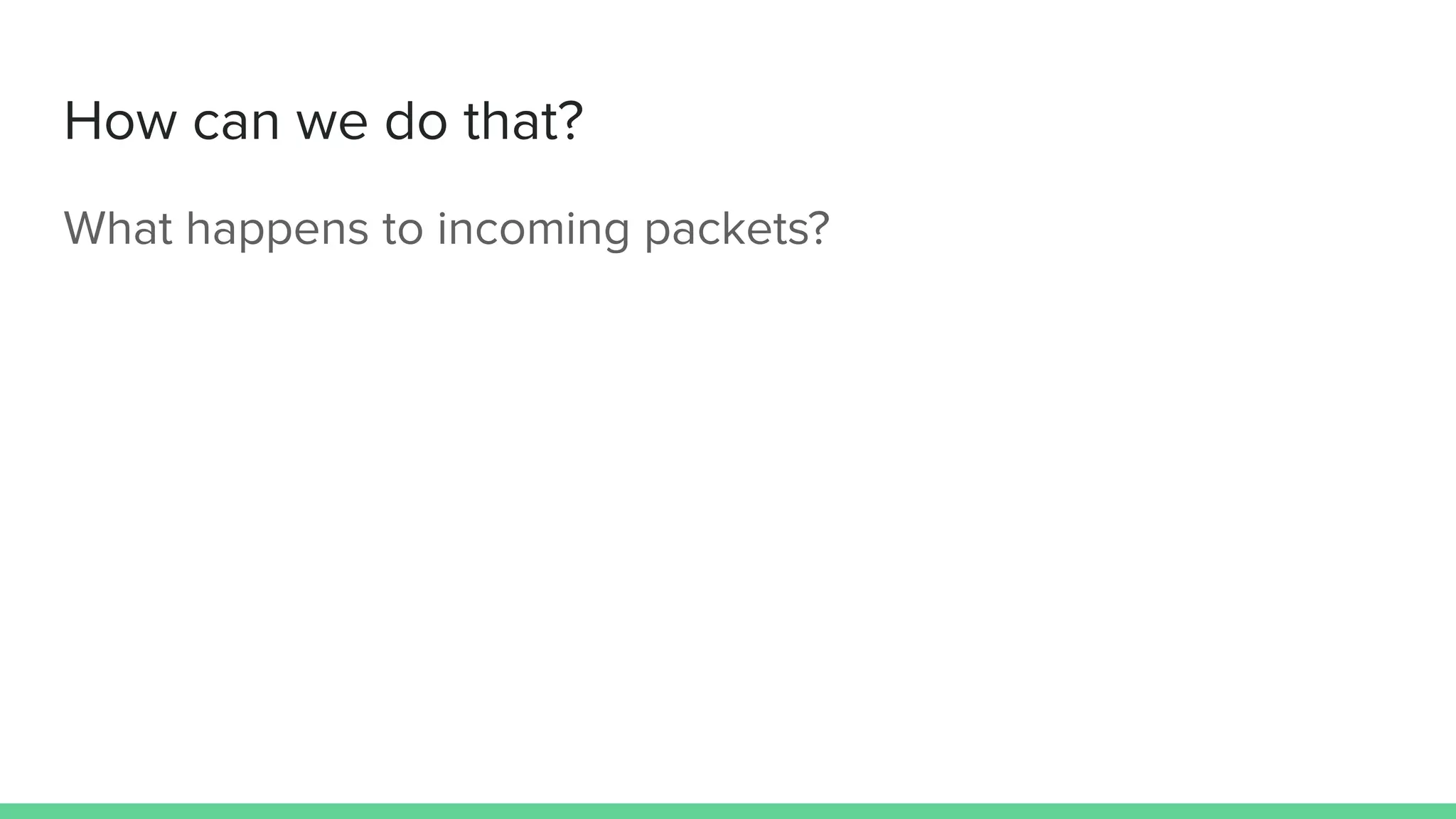

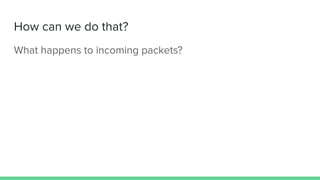

- 28. How can wedo that? What happens to incoming packets?
- 29. Ingress Packet Is thispacket for us? ● If it is - local delivery ● If it’s for someone else - forward it

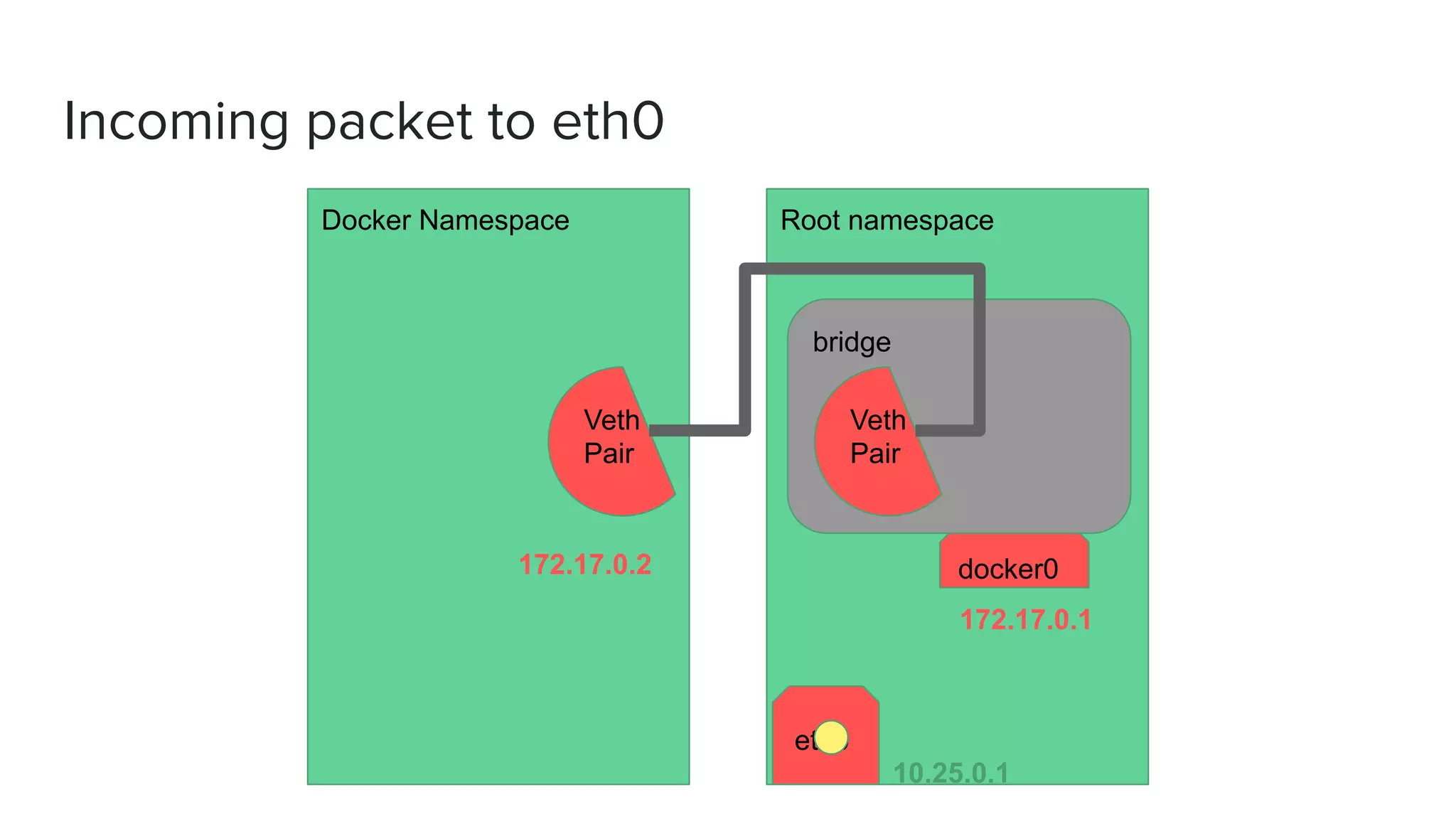

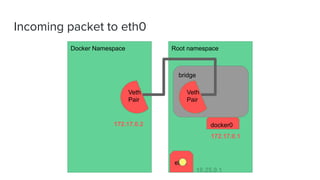

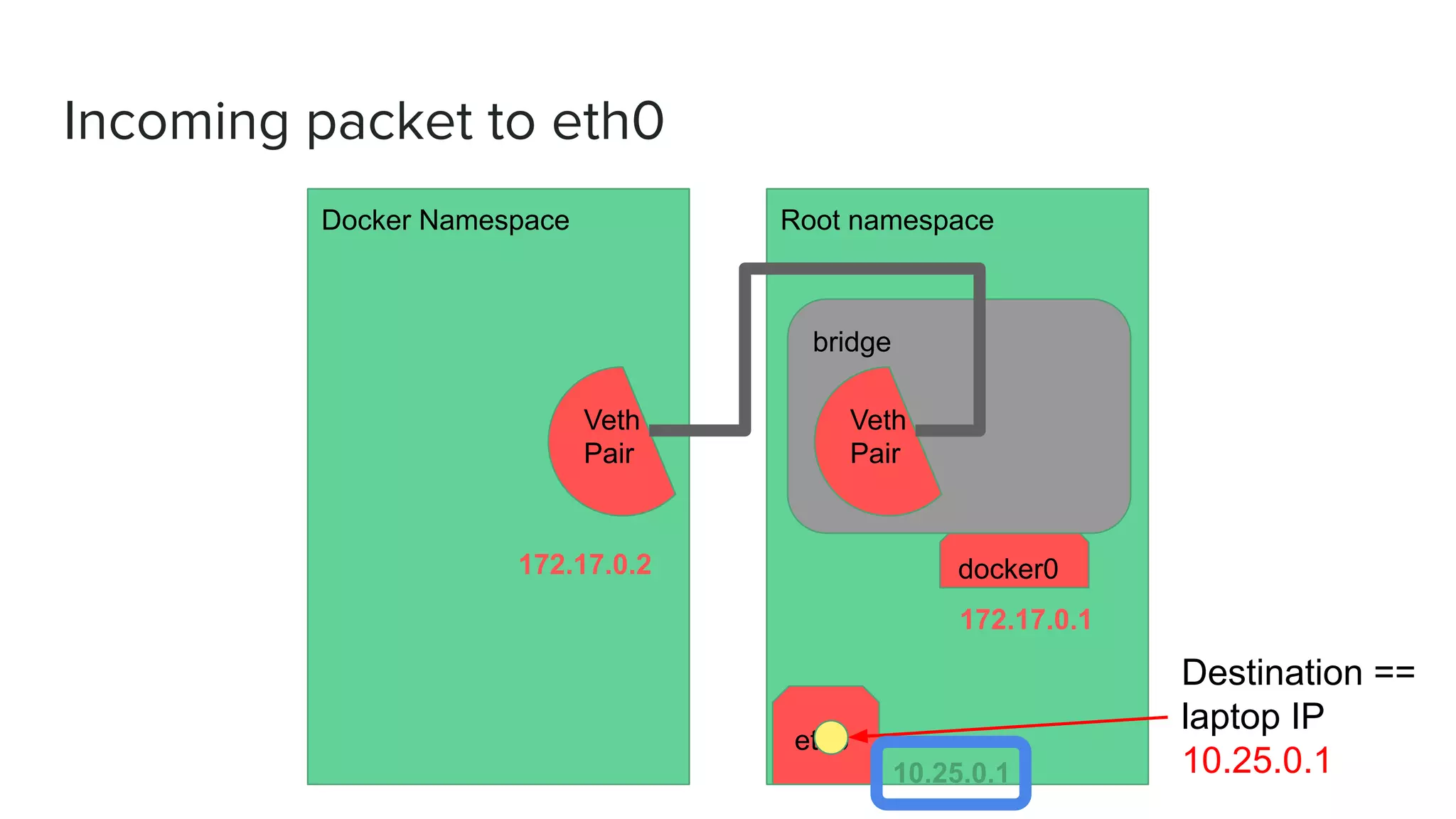

- 30. Incoming packet toeth0 Docker Namespace Root namespace bridge Veth Pair Veth Pair docker0 eth0 172.17.0.1 10.25.0.1 172.17.0.2

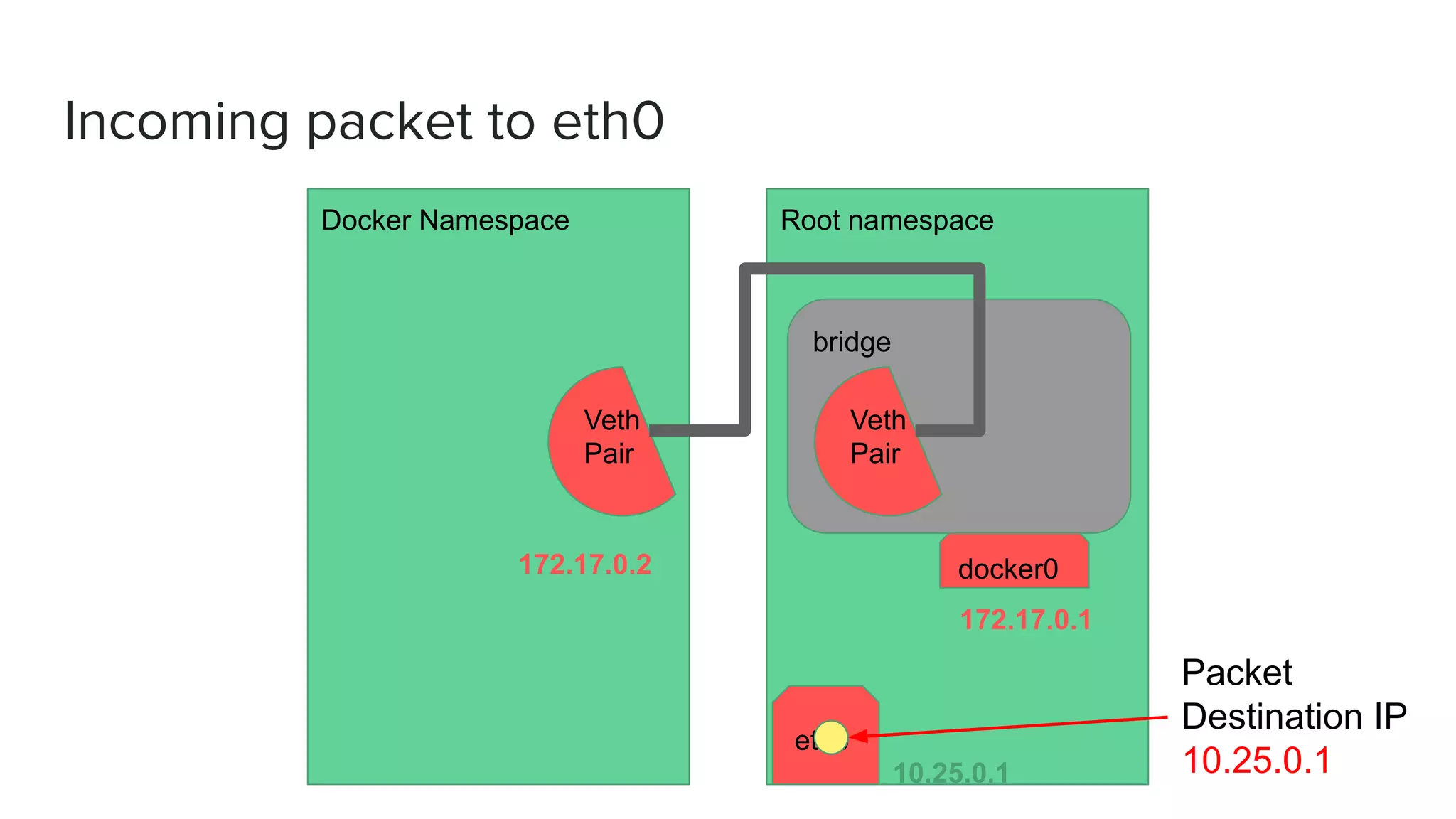

- 31. Incoming packet toeth0 Docker Namespace Root namespace bridge Veth Pair Veth Pair docker0 eth0 172.17.0.1 10.25.0.1 172.17.0.2 Packet Destination IP 10.25.0.1
- 32. Incoming packet toeth0 Docker Namespace Root namespace bridge Veth Pair Veth Pair docker0 eth0 172.17.0.1 10.25.0.1 172.17.0.2 Destination == laptop IP 10.25.0.1

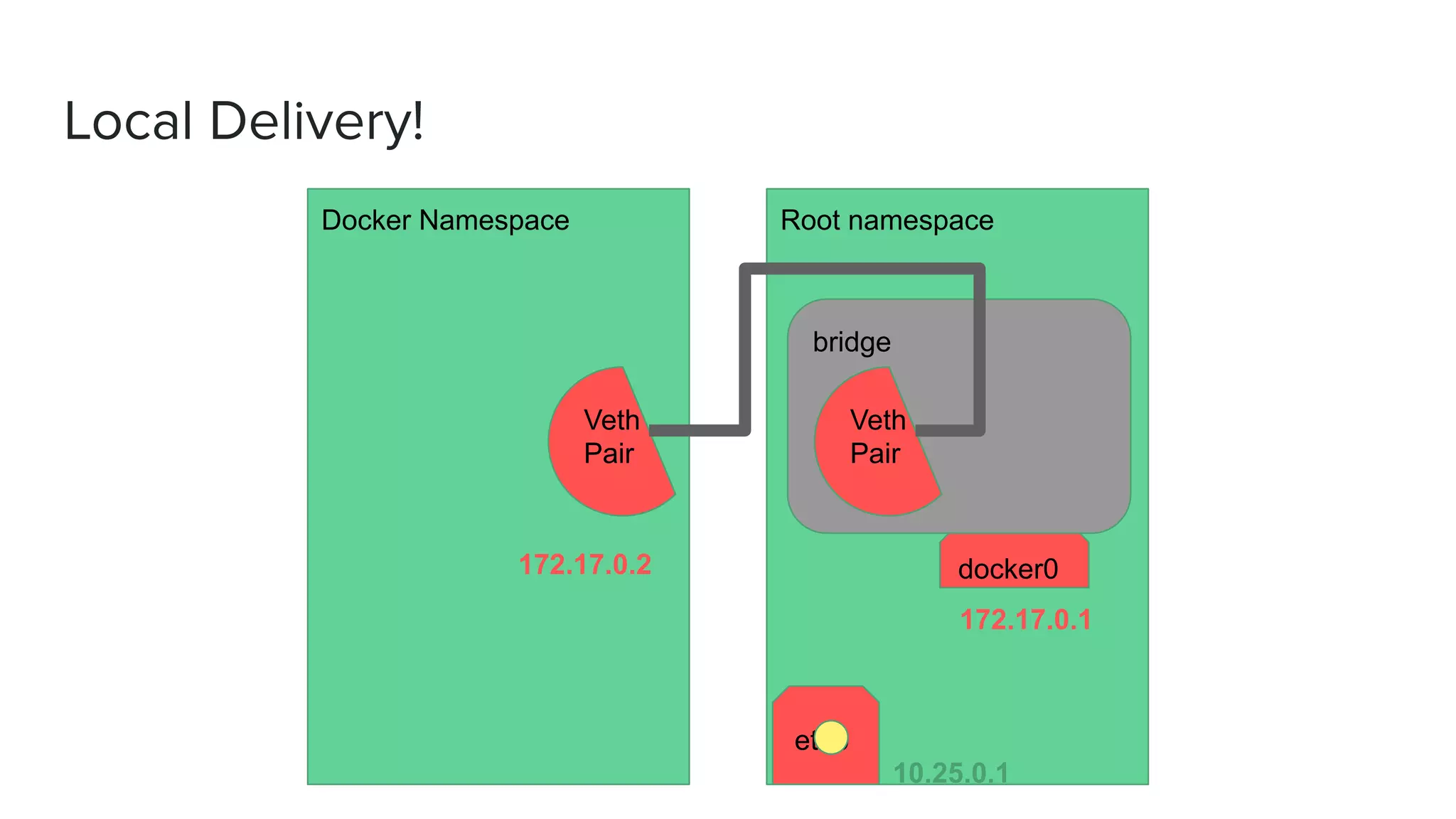

- 33. Local Delivery! Docker NamespaceRoot namespace bridge Veth Pair Veth Pair docker0 eth0 172.17.0.1 10.25.0.1 172.17.0.2

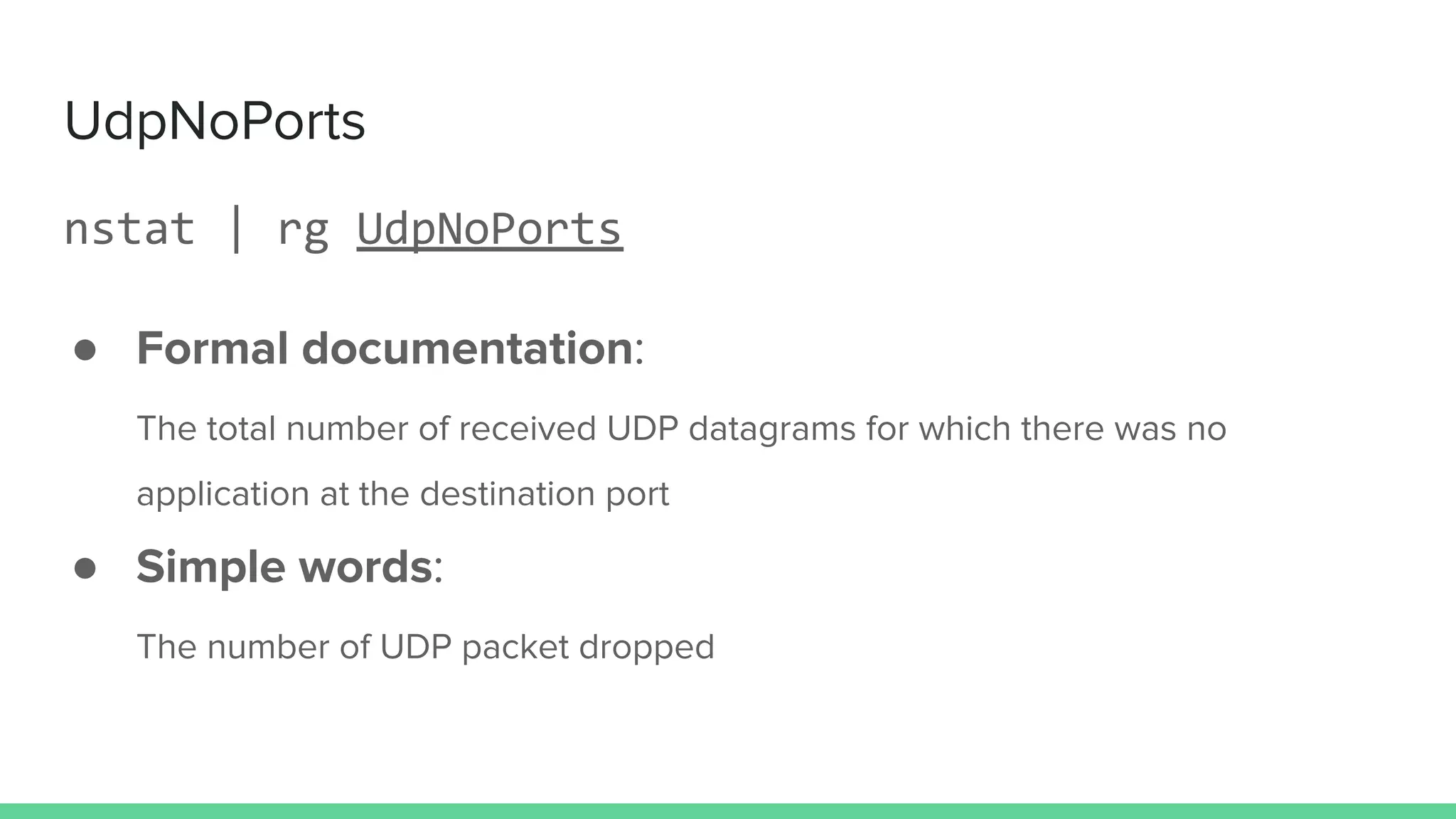

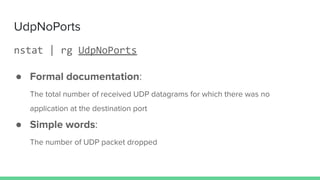

- 34. UdpNoPorts nstat | rgUdpNoPorts ● Formal documentation: The total number of received UDP datagrams for which there was no application at the destination port ● Simple words: The number of UDP packet dropped

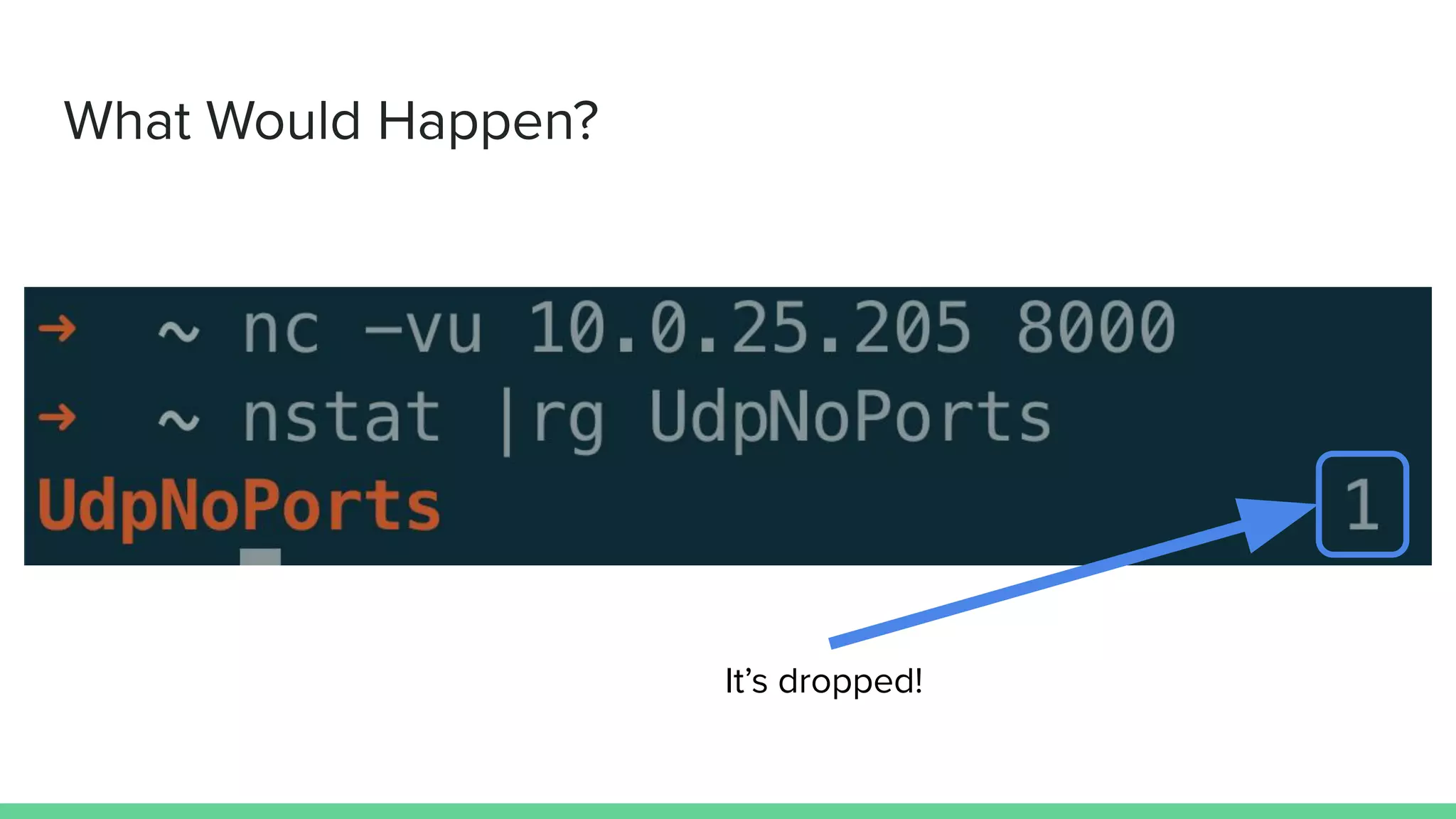

- 35. What Would Happen? Wesend a packet to port 8000

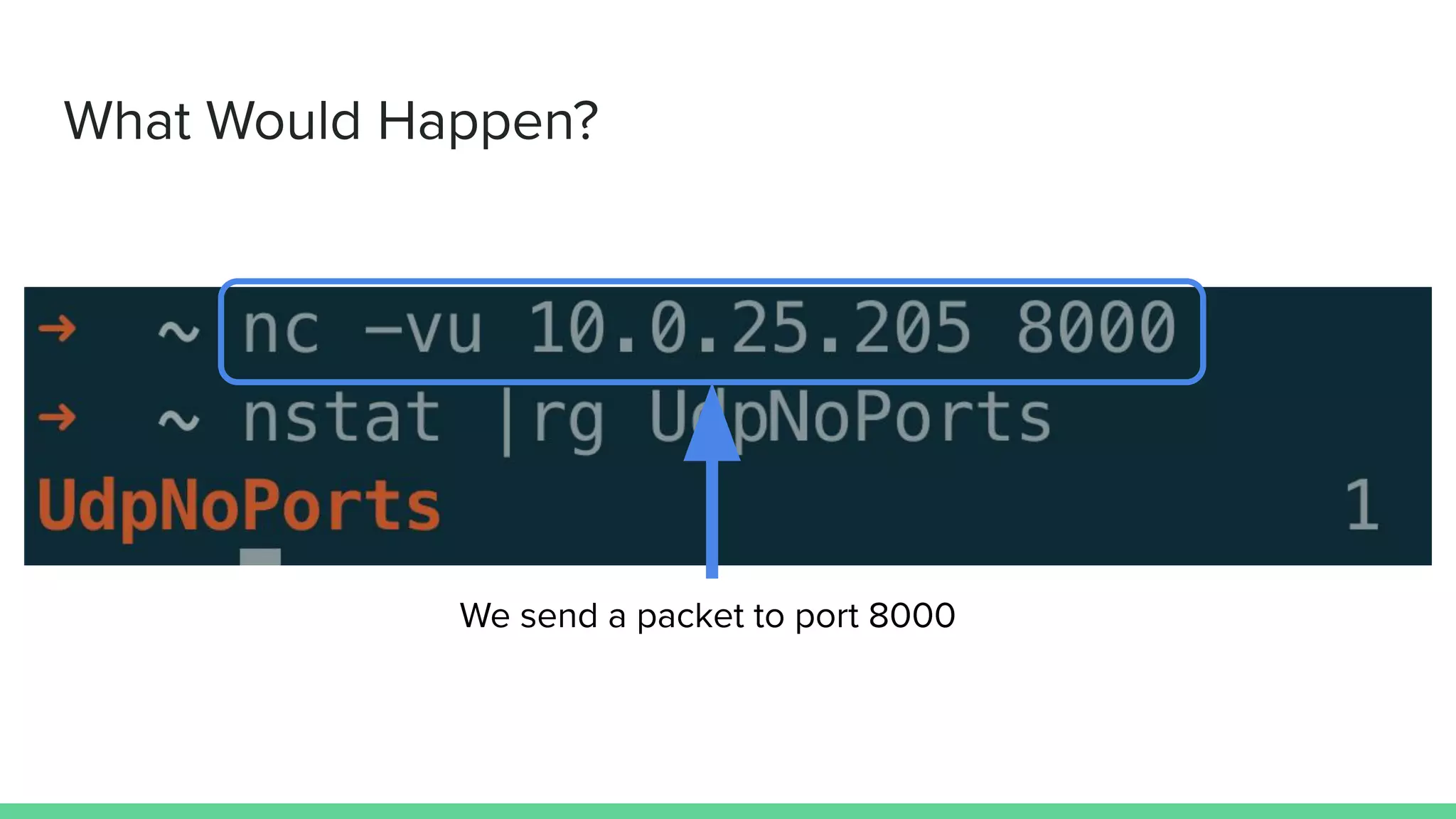

- 36. What Would Happen? It’sdropped!
- 37. Moving a Packetto docker0

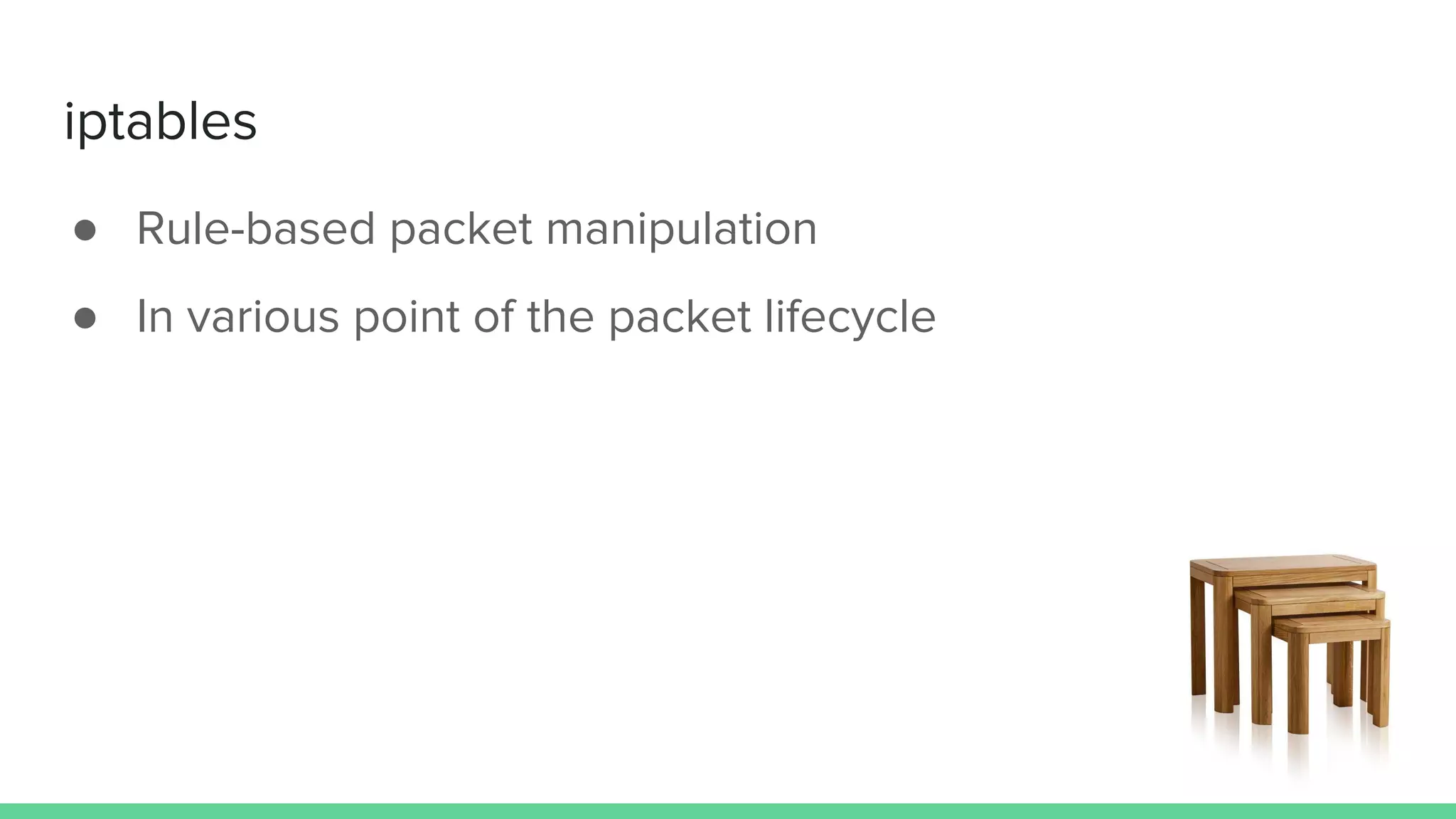

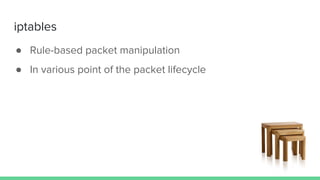

- 38. iptables ● Rule-based packetmanipulation ● In various point of the packet lifecycle
- 39. iptables ● Rule-based packetmanipulation ● In various point of the packet lifecycle ● We want to manipulate the packet’s destination before we route it!

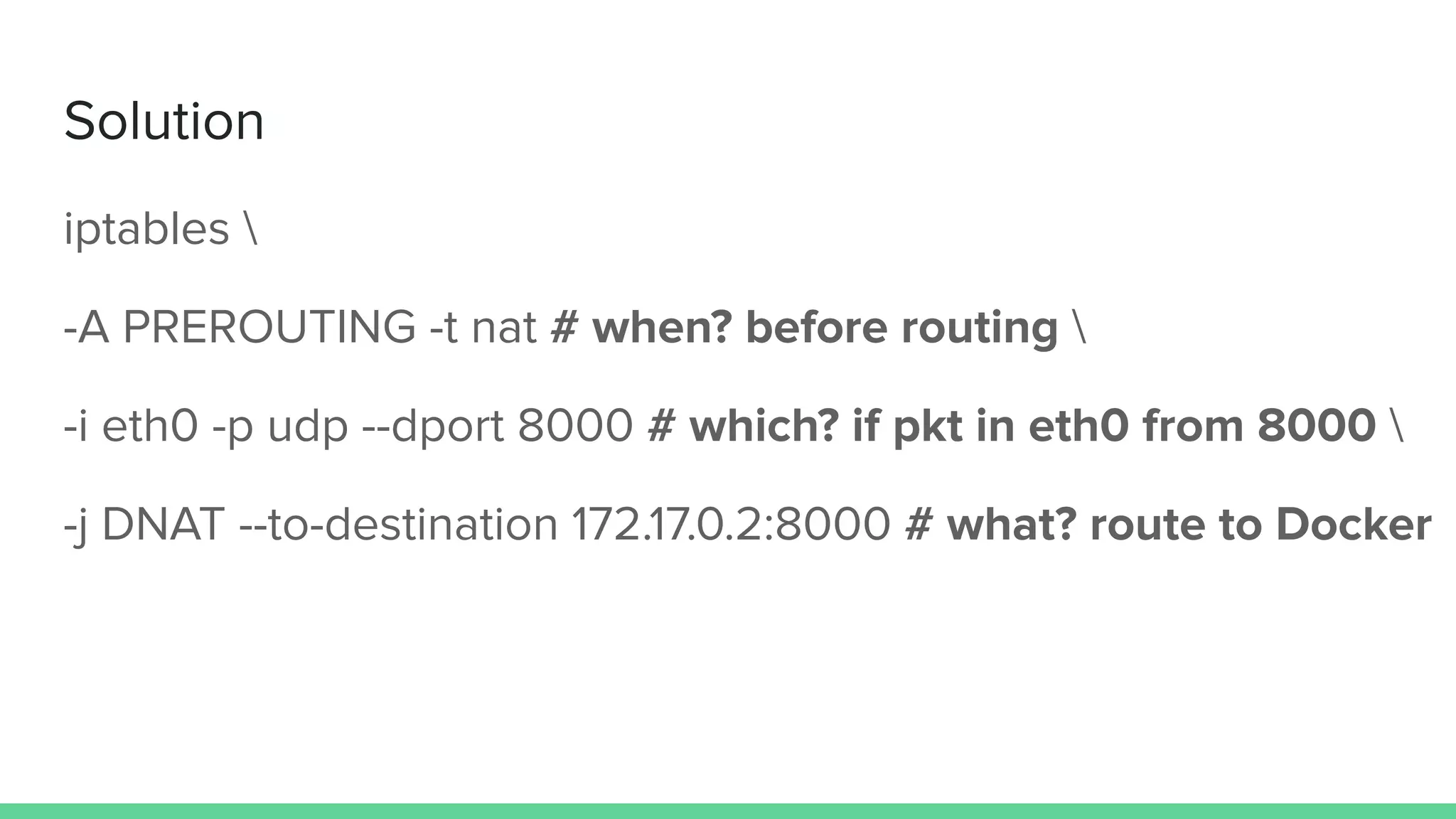

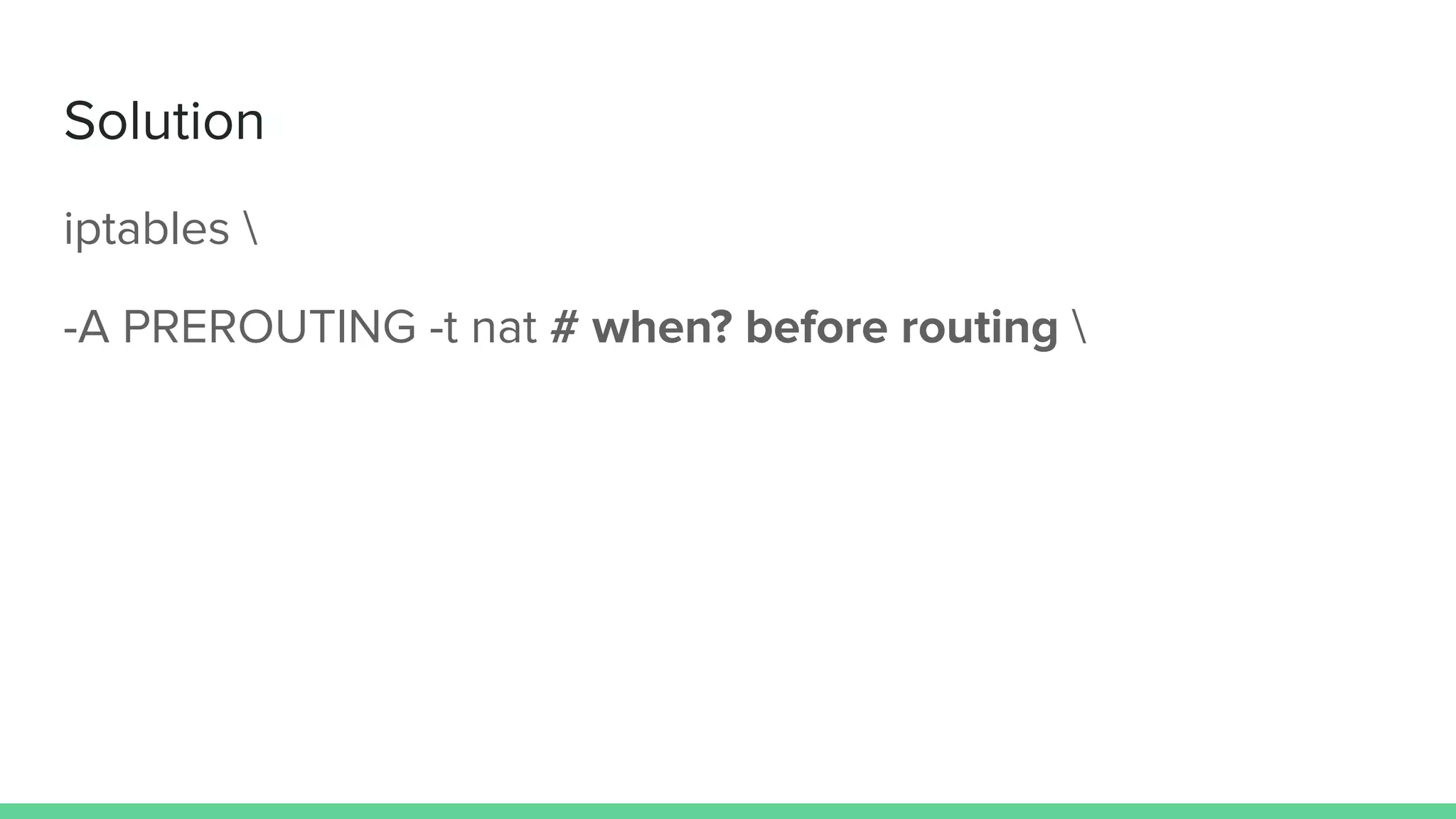

- 41. Solution iptables -A PREROUTING-t nat # when? before routing

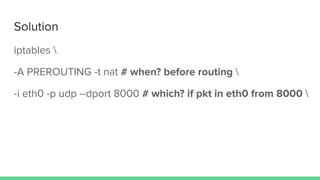

- 42. Solution iptables -A PREROUTING-t nat # when? before routing -i eth0 -p udp --dport 8000 # which? if pkt in eth0 from 8000
- 43. Solution iptables -A PREROUTING-t nat # when? before routing -i eth0 -p udp --dport 8000 # which? if pkt in eth0 from 8000 -j DNAT --to-destination 172.17.0.2:8000 # what? route to Docker

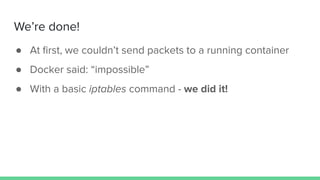

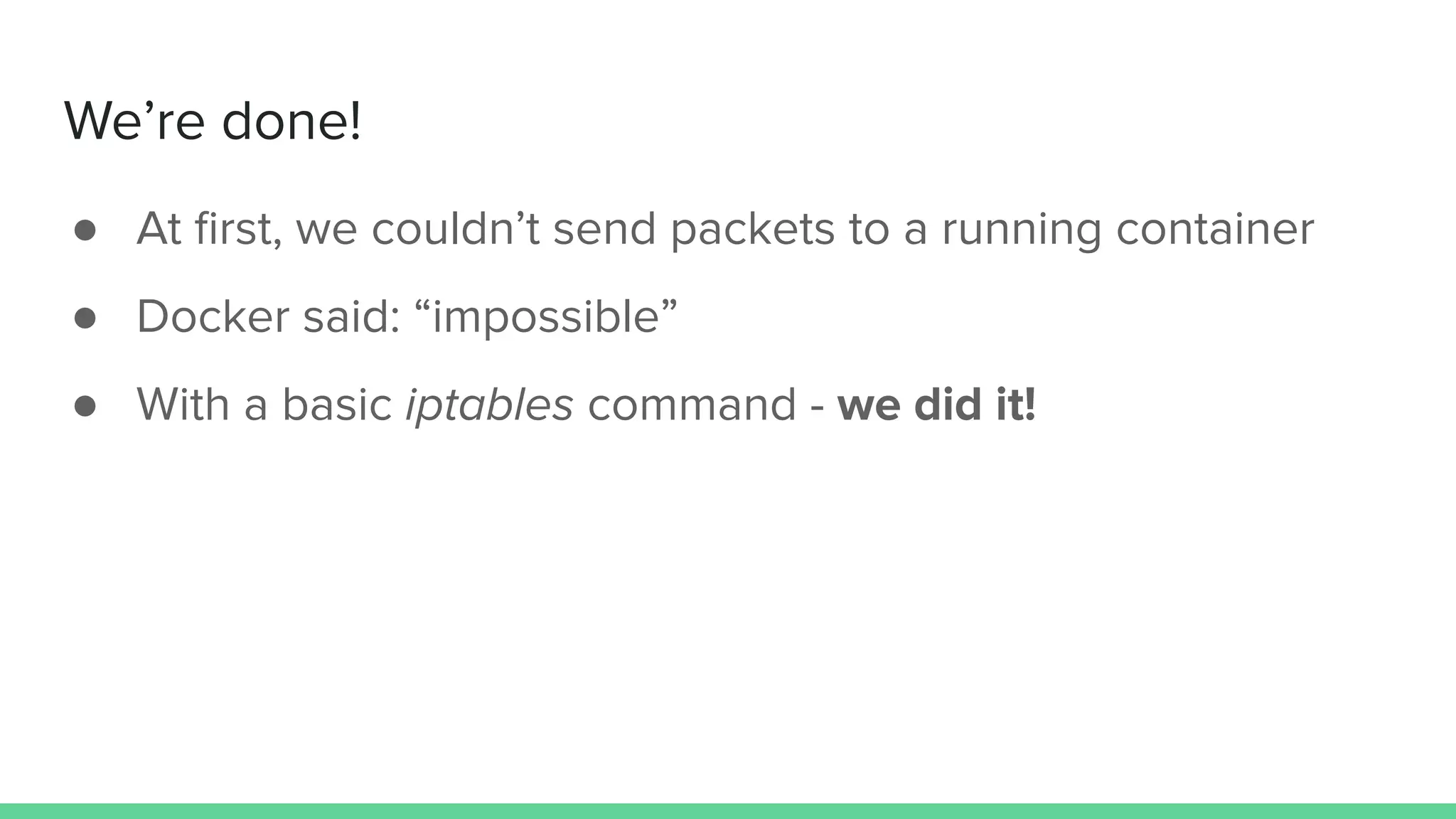

- 44. We’re done! ● Atfirst, we couldn’t send packets to a running container ● Docker said: “impossible” ● With a basic iptables command - we did it!

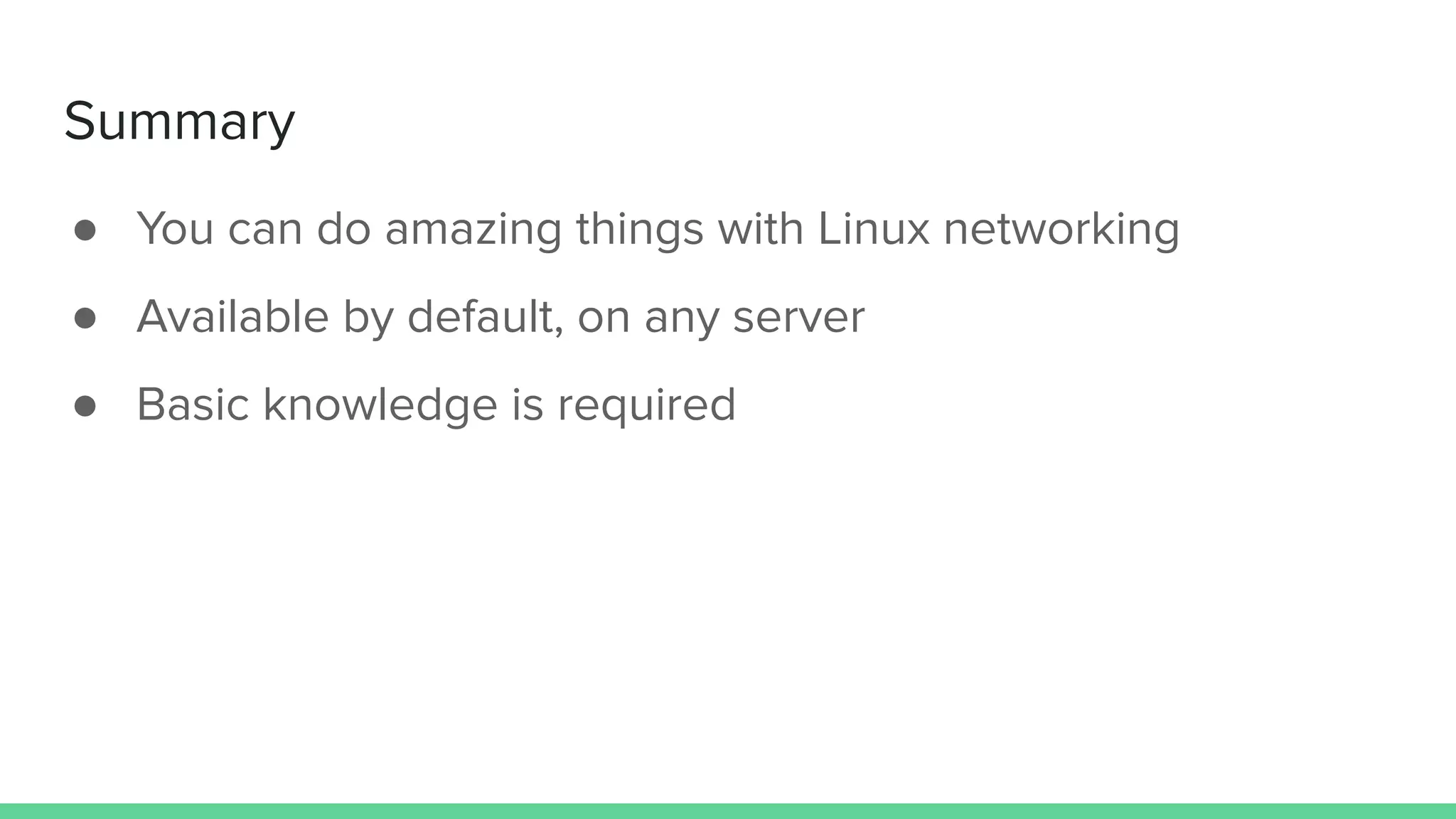

- 45. Summary ● You cando amazing things with Linux networking ● Available by default, on any server ● Basic knowledge is required

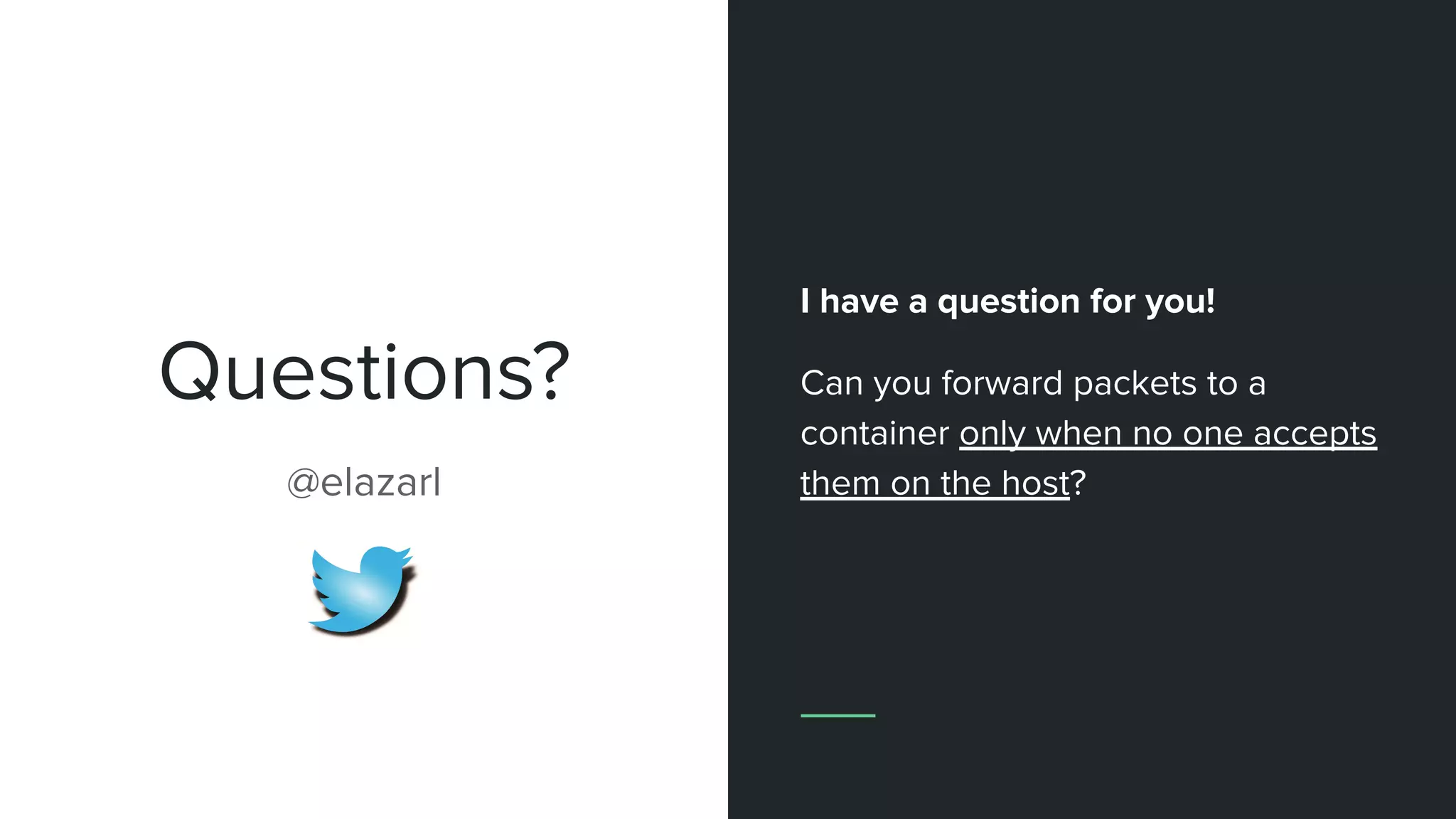

- 46. Questions? I have aquestion for you! Can you forward packets to a container only when no one accepts them on the host?@elazarl

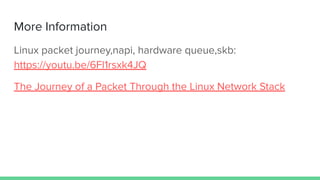

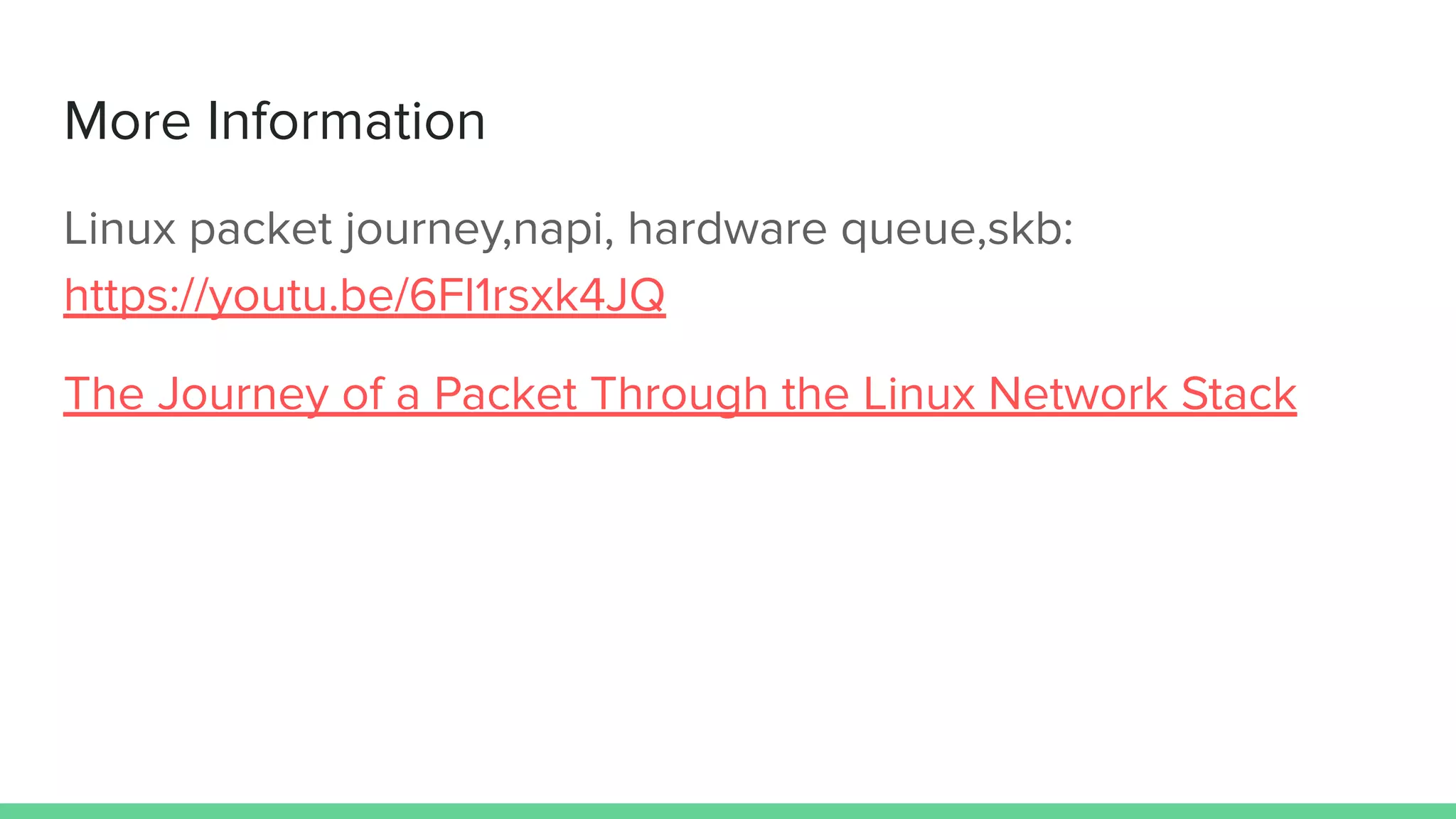

- 47. More Information Linux packetjourney,napi, hardware queue,skb: https://youtu.be/6Fl1rsxk4JQ The Journey of a Packet Through the Linux Network Stack

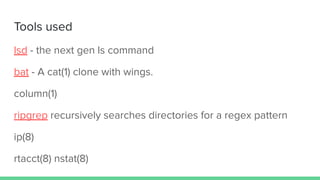

- 48. Tools used lsd -the next gen ls command bat - A cat(1) clone with wings. column(1) ripgrep recursively searches directories for a regex pattern ip(8) rtacct(8) nstat(8)
