1. Clayton Parker, Senior Web Developer
Laying Pipe with
Transmogrifier
PLONE CONFERENCE 2010
Thursday, October 28, 2010

2. PLONE CONFERENCE 2010Who Am I?
• claytron
• Python dev since 2003
• Plone Core Committer
• Foundation Member
Thursday, October 28, 2010

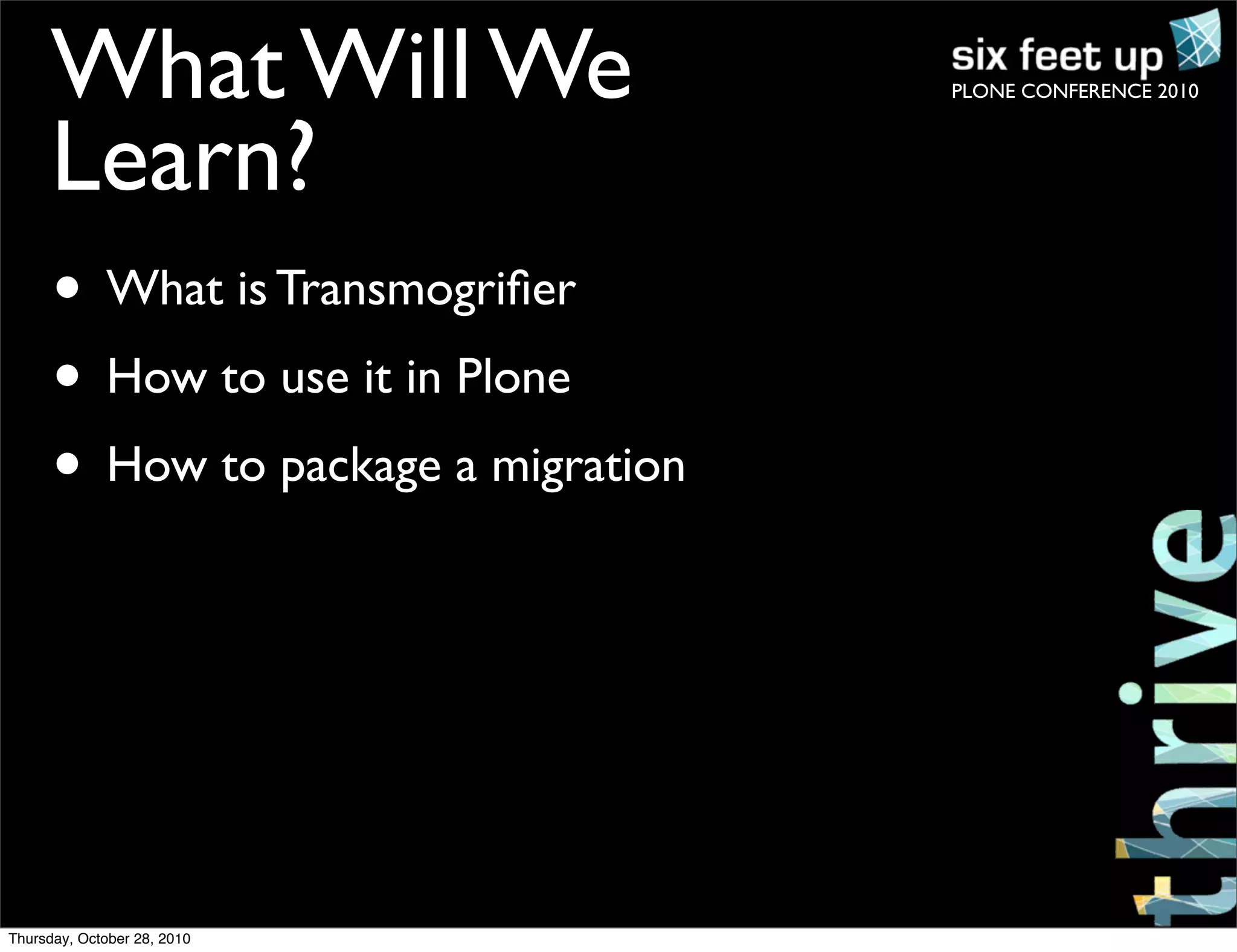

3. PLONE CONFERENCE 2010What Will We
Learn?
• What is Transmogrifier
• How to use it in Plone
• How to package a migration
Thursday, October 28, 2010

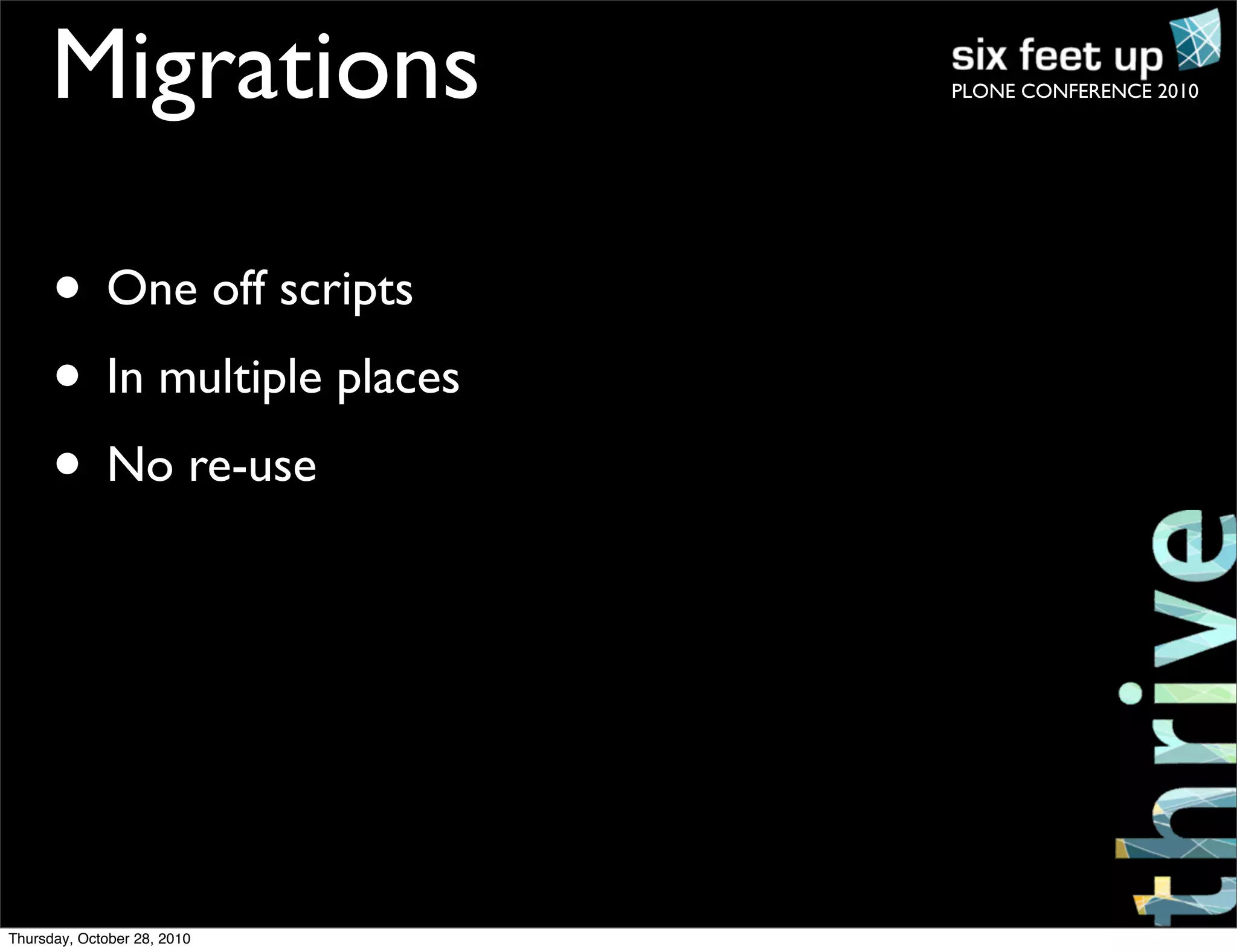

4. PLONE CONFERENCE 2010Migrations
• One off scripts
• In multiple places
• No re-use
Thursday, October 28, 2010

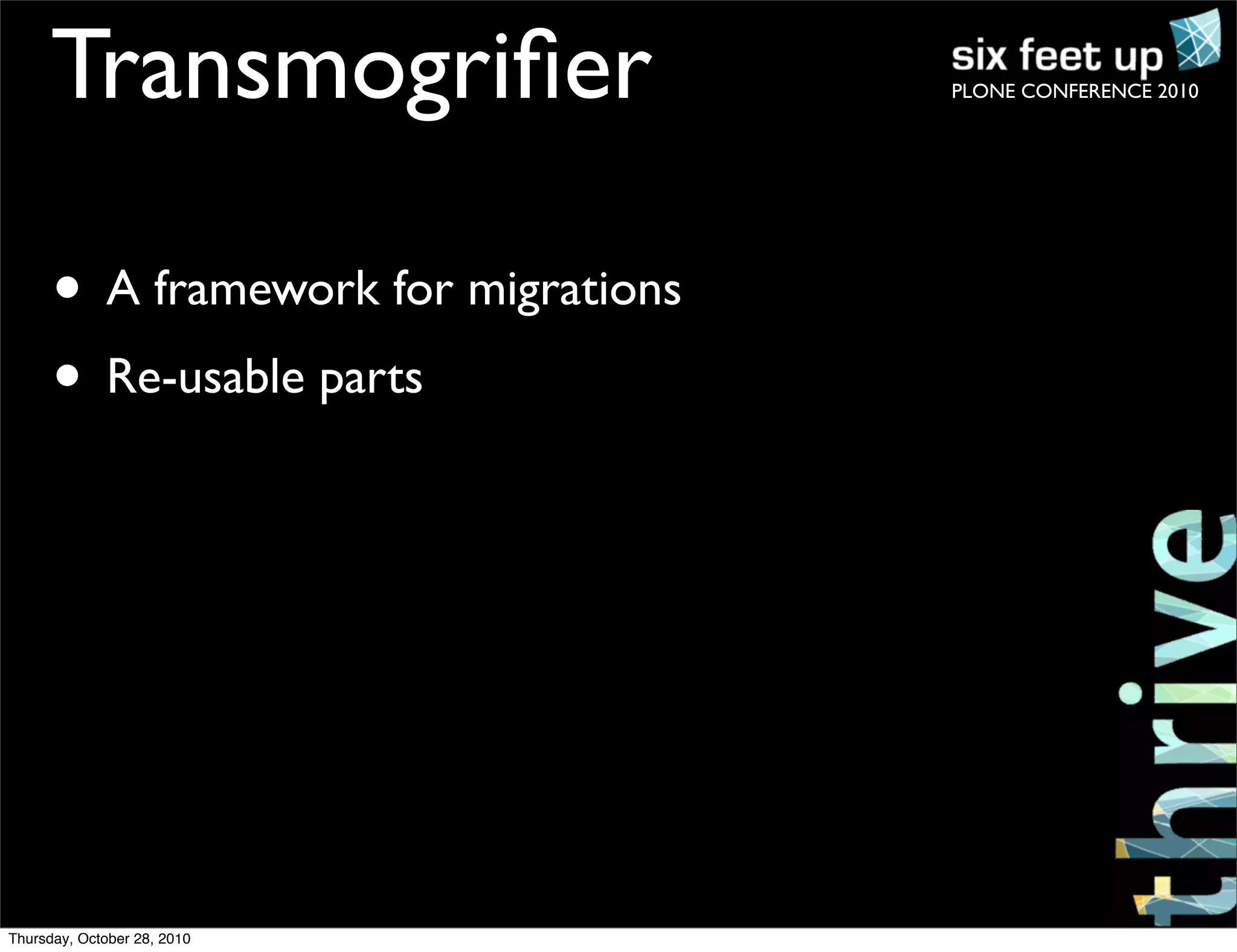

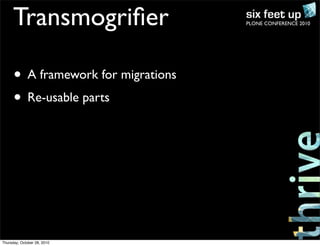

5. PLONE CONFERENCE 2010Transmogrifier
• A framework for migrations
• Re-usable parts
Thursday, October 28, 2010

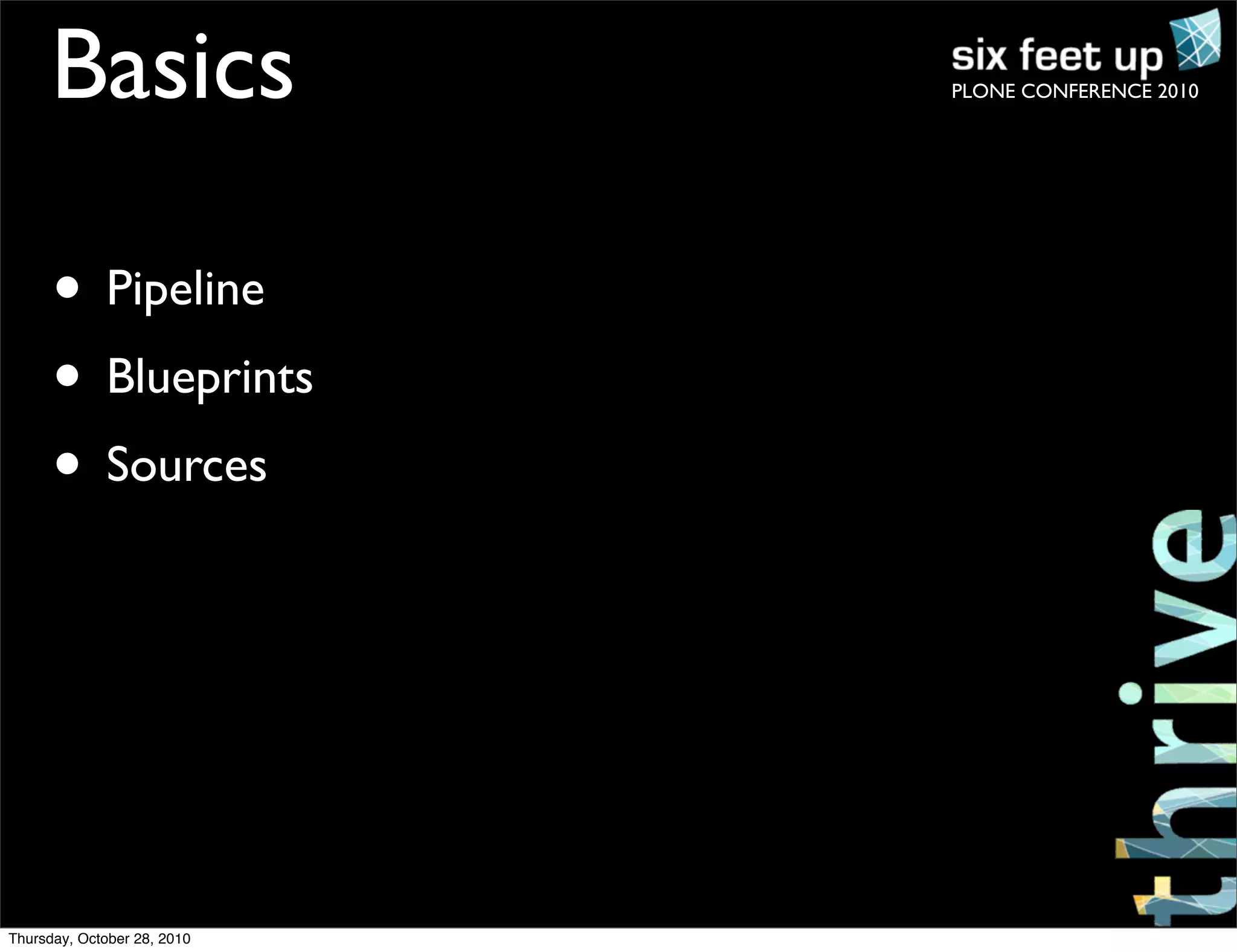

6. PLONE CONFERENCE 2010Basics
• Pipeline
• Blueprints
• Sources
Thursday, October 28, 2010

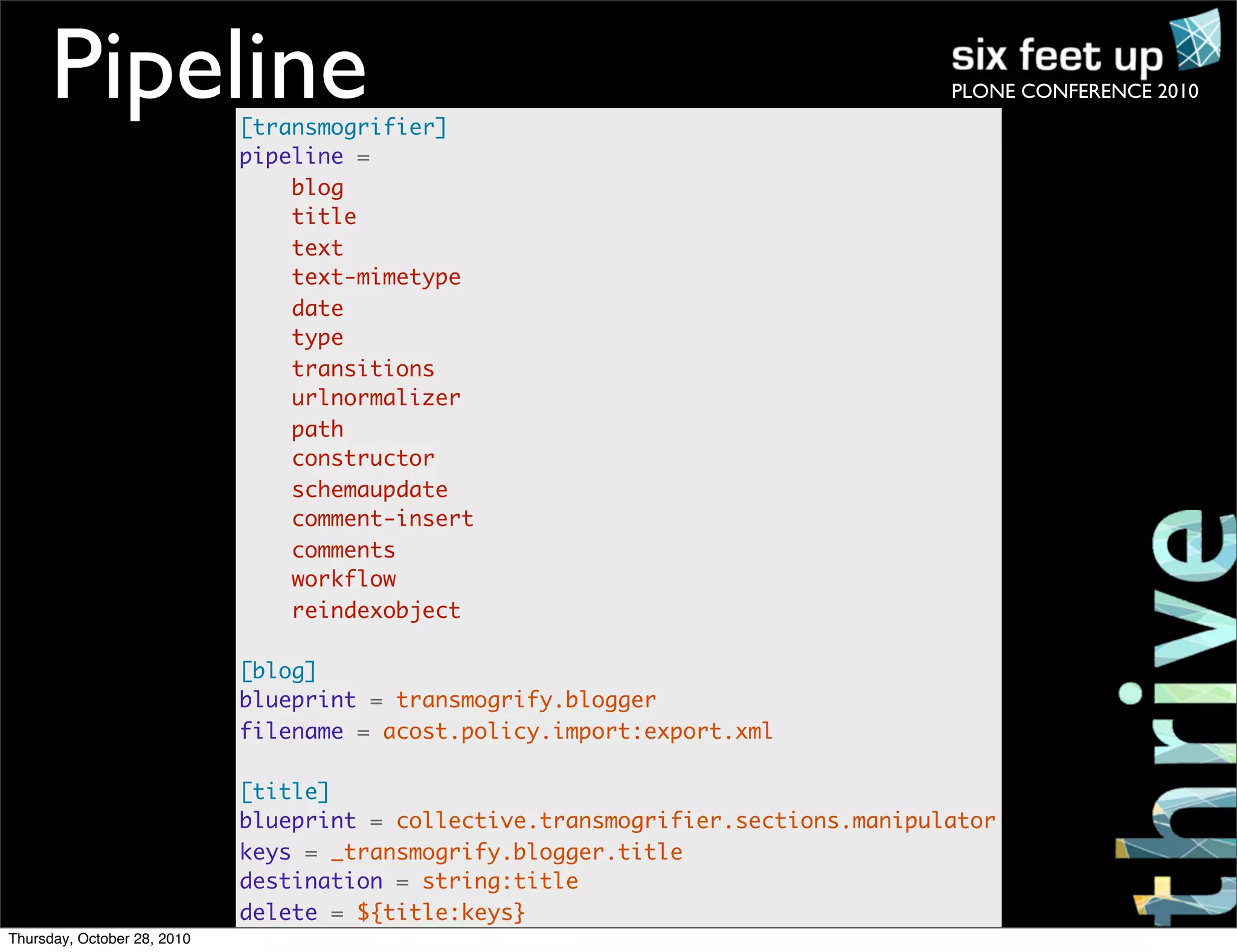

7. PLONE CONFERENCE 2010Pipeline[transmogrifier]
pipeline =
blog
title
text
text-mimetype
date
type
transitions
urlnormalizer
path
constructor
schemaupdate
comment-insert
comments
workflow
reindexobject
[blog]
blueprint = transmogrify.blogger
filename = acost.policy.import:export.xml
[title]
blueprint = collective.transmogrifier.sections.manipulator
keys = _transmogrify.blogger.title
destination = string:title
delete = ${title:keys}
Thursday, October 28, 2010

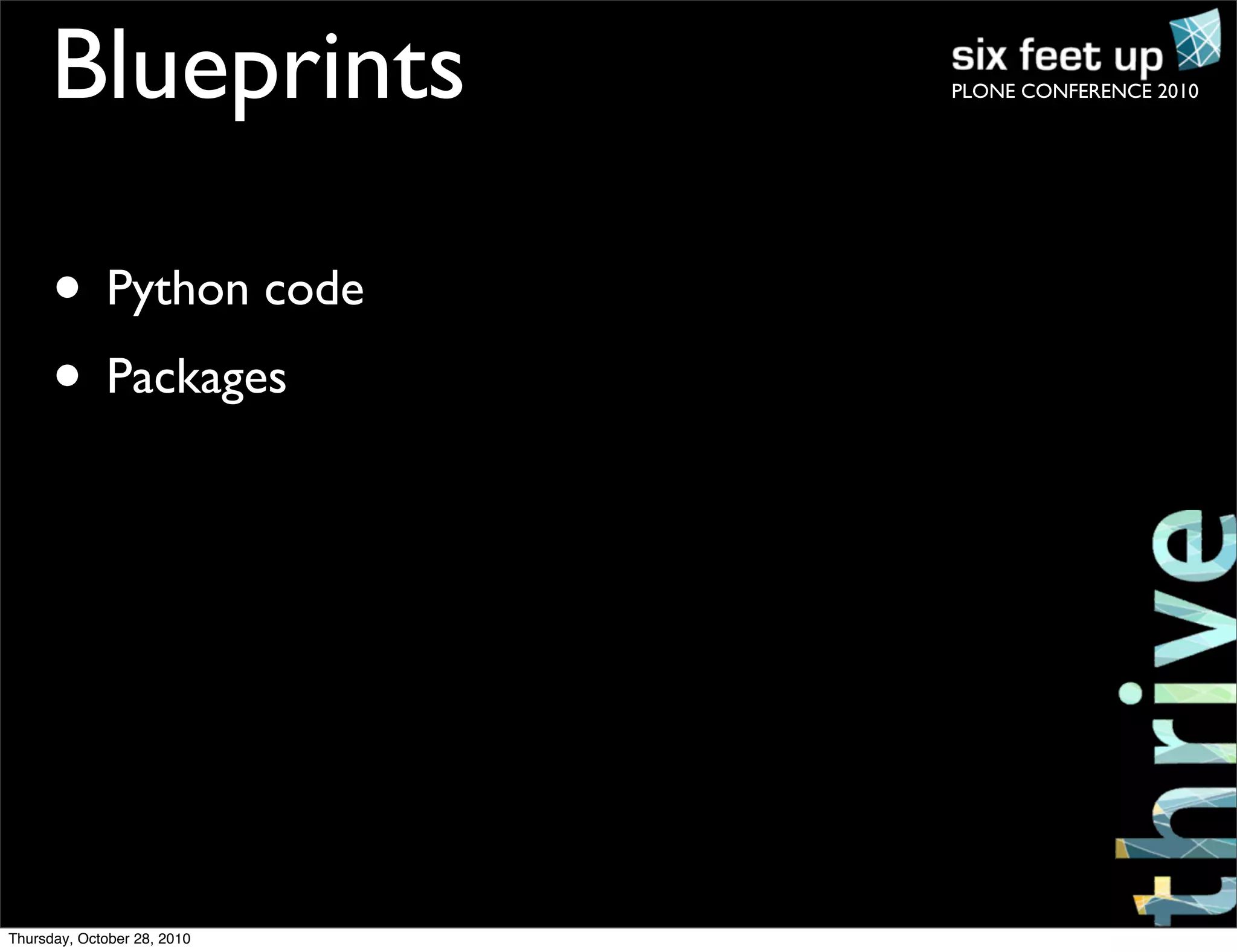

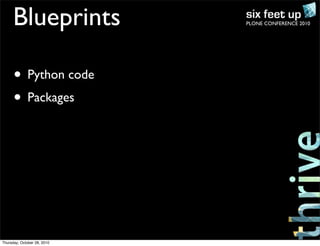

8. PLONE CONFERENCE 2010Blueprints
• Python code
• Packages
Thursday, October 28, 2010

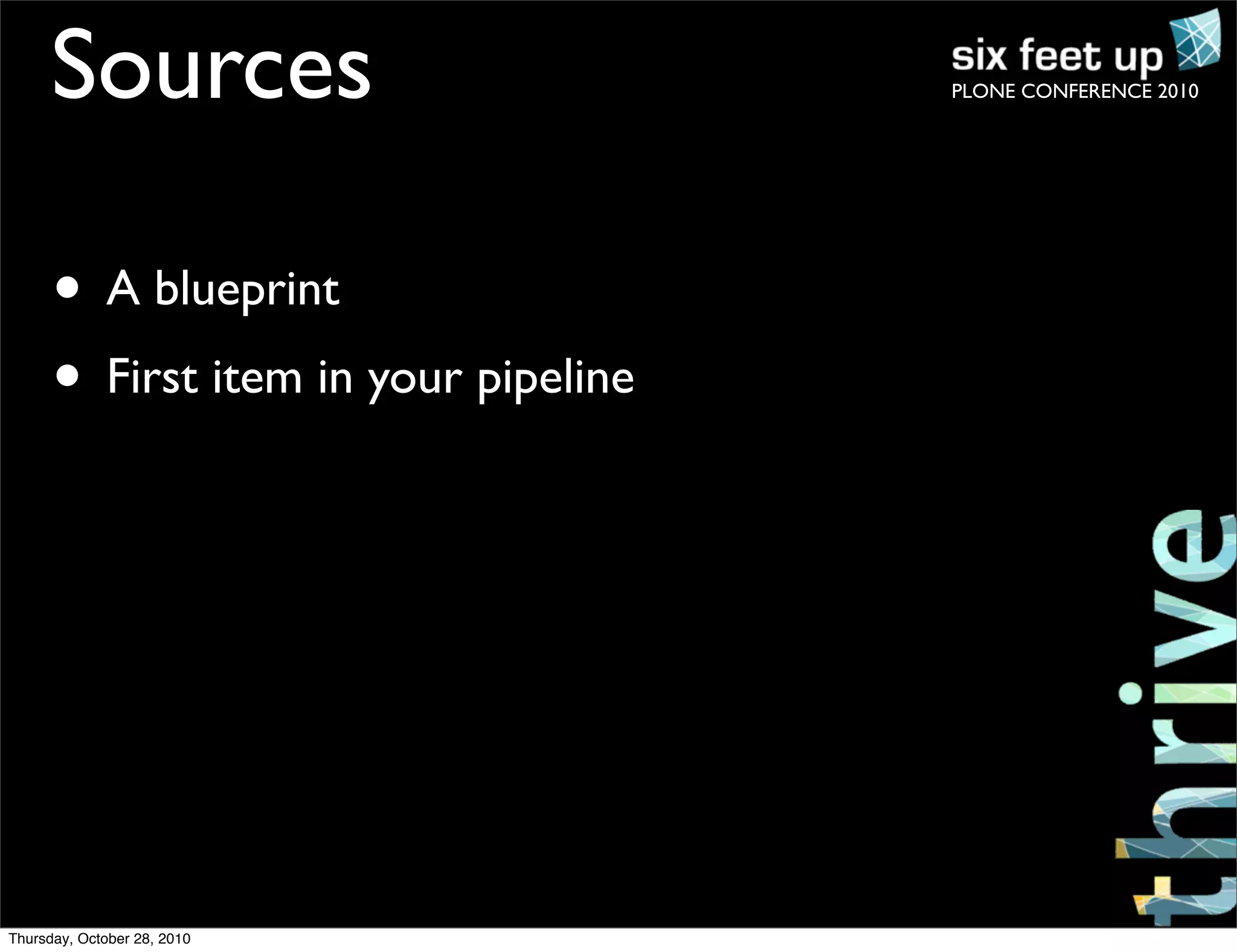

9. PLONE CONFERENCE 2010Sources
• A blueprint
• First item in your pipeline
Thursday, October 28, 2010

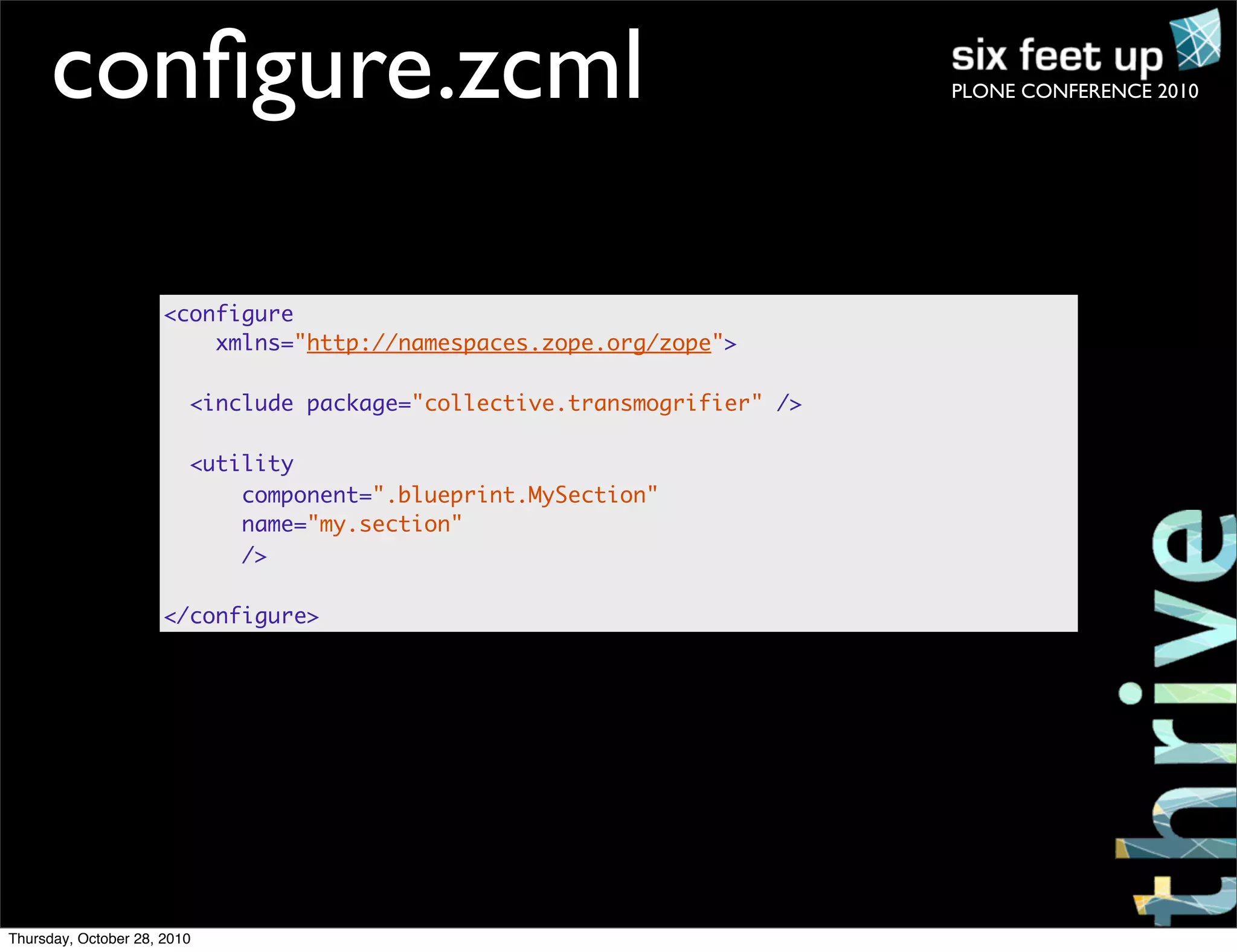

10. PLONE CONFERENCE 2010configure.zcml
<configure
xmlns="http://namespaces.zope.org/zope">
<include package="collective.transmogrifier" />
<utility
component=".blueprint.MySection"
name="my.section"
/>
</configure>
Thursday, October 28, 2010

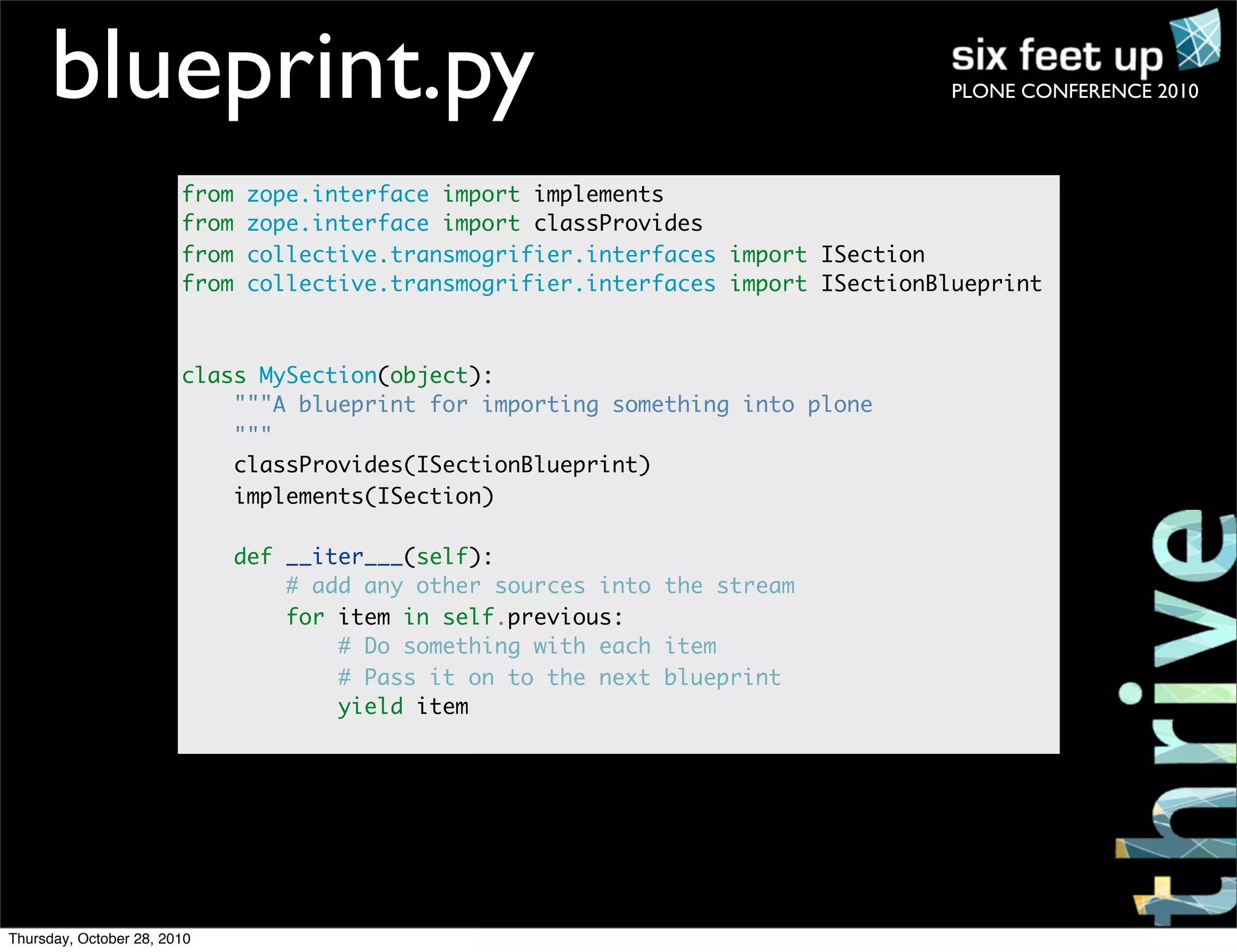

11. PLONE CONFERENCE 2010blueprint.py
from zope.interface import implements
from zope.interface import classProvides
from collective.transmogrifier.interfaces import ISection
from collective.transmogrifier.interfaces import ISectionBlueprint
class MySection(object):
"""A blueprint for importing something into plone
"""
classProvides(ISectionBlueprint)
implements(ISection)
def __iter___(self):
# add any other sources into the stream
for item in self.previous:
# Do something with each item
# Pass it on to the next blueprint
yield item
Thursday, October 28, 2010

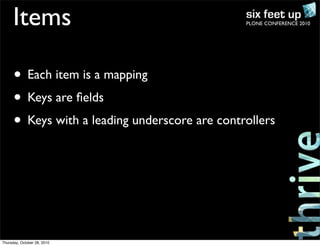

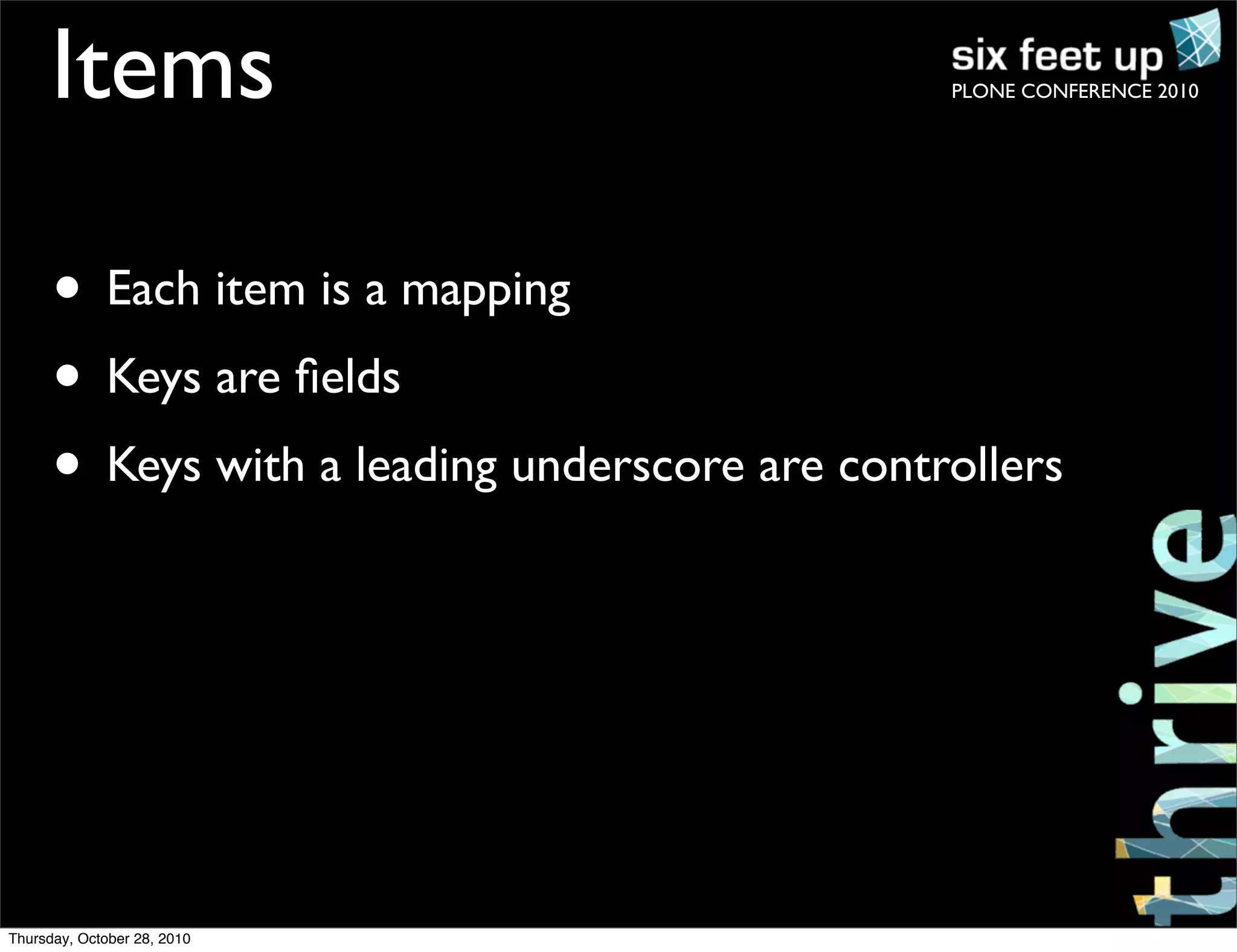

12. PLONE CONFERENCE 2010Items
• Each item is a mapping
• Keys are fields
• Keys with a leading underscore are controllers
Thursday, October 28, 2010

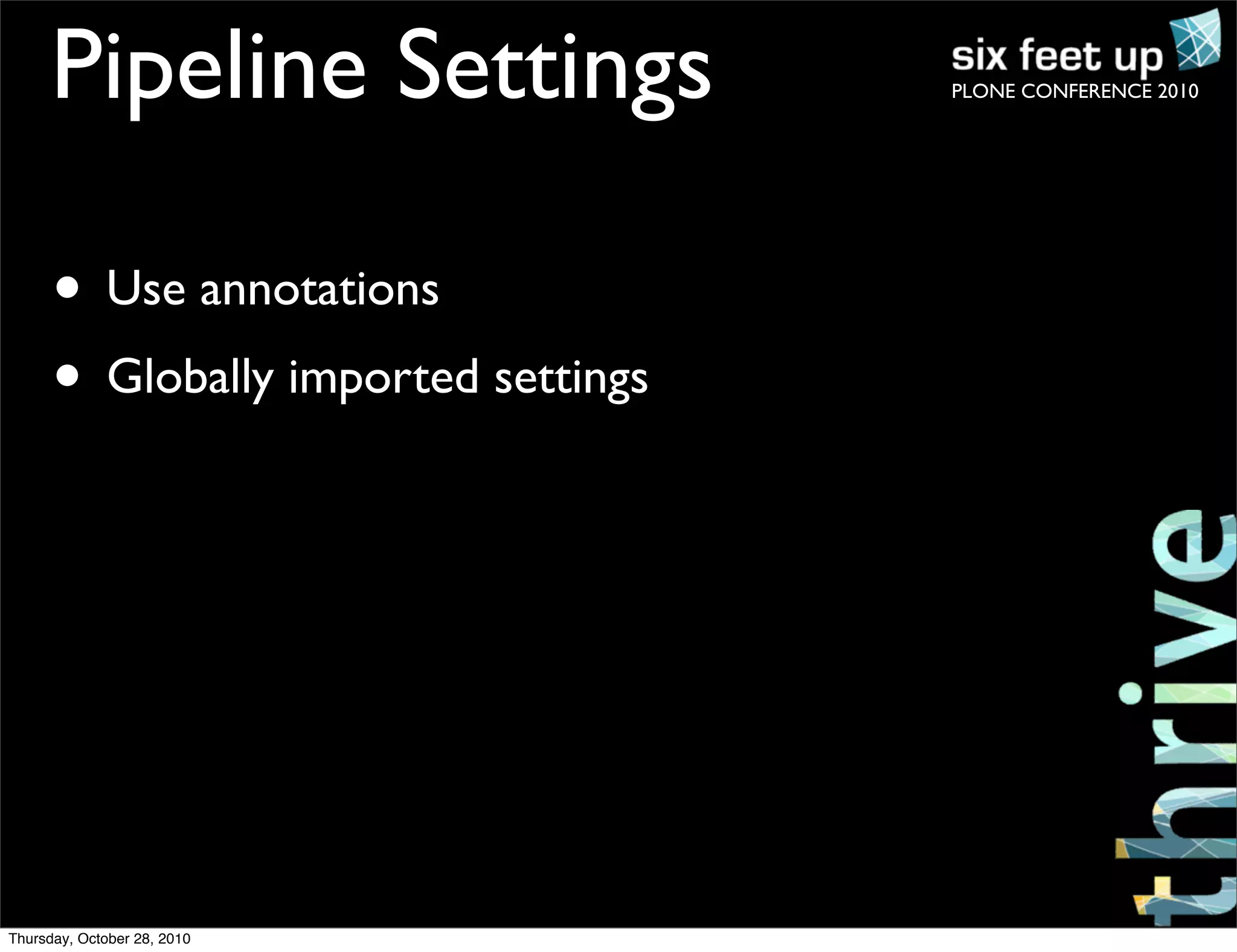

13. PLONE CONFERENCE 2010Pipeline Settings
• Use annotations
• Globally imported settings
Thursday, October 28, 2010

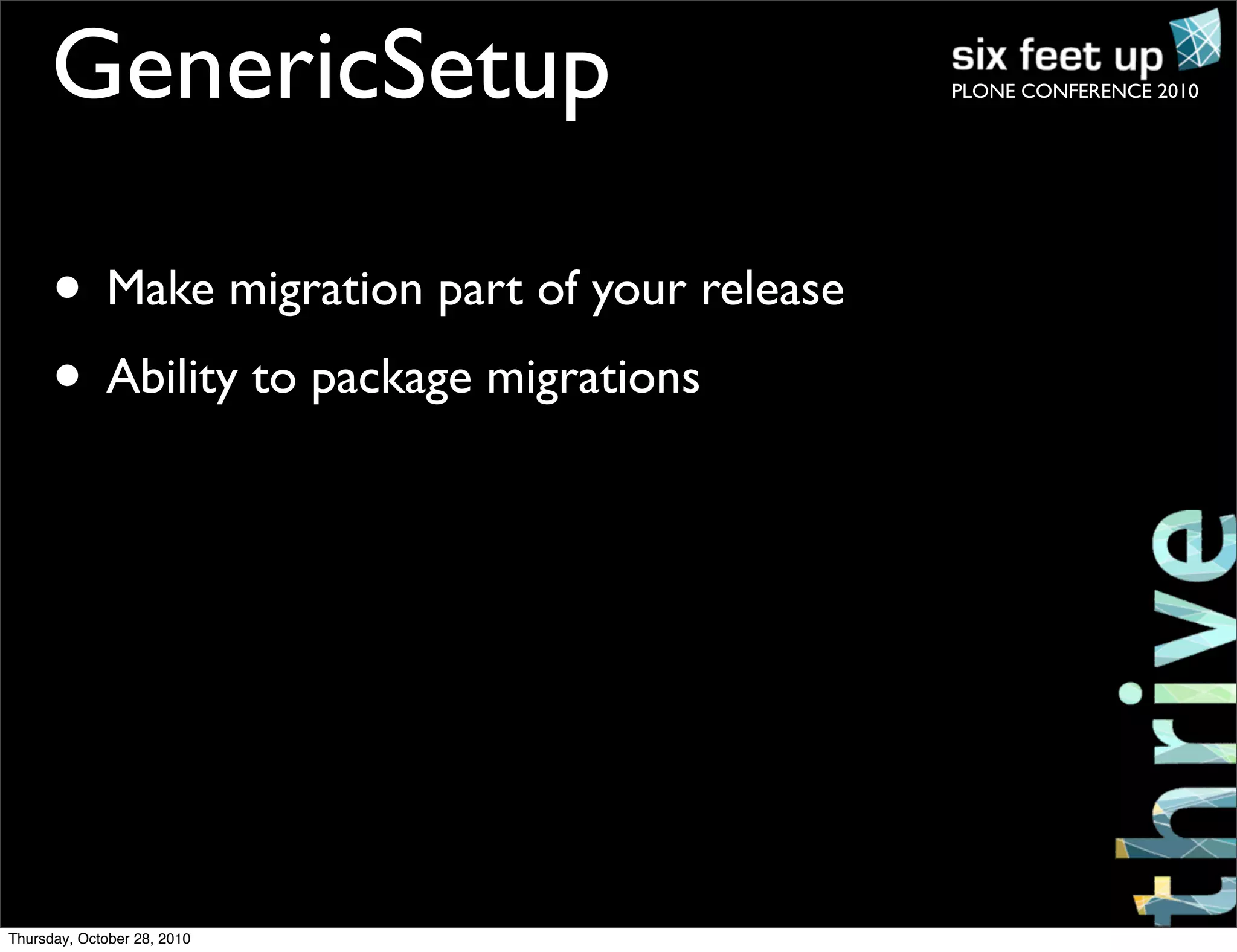

14. PLONE CONFERENCE 2010GenericSetup
• Make migration part of your release
• Ability to package migrations
Thursday, October 28, 2010

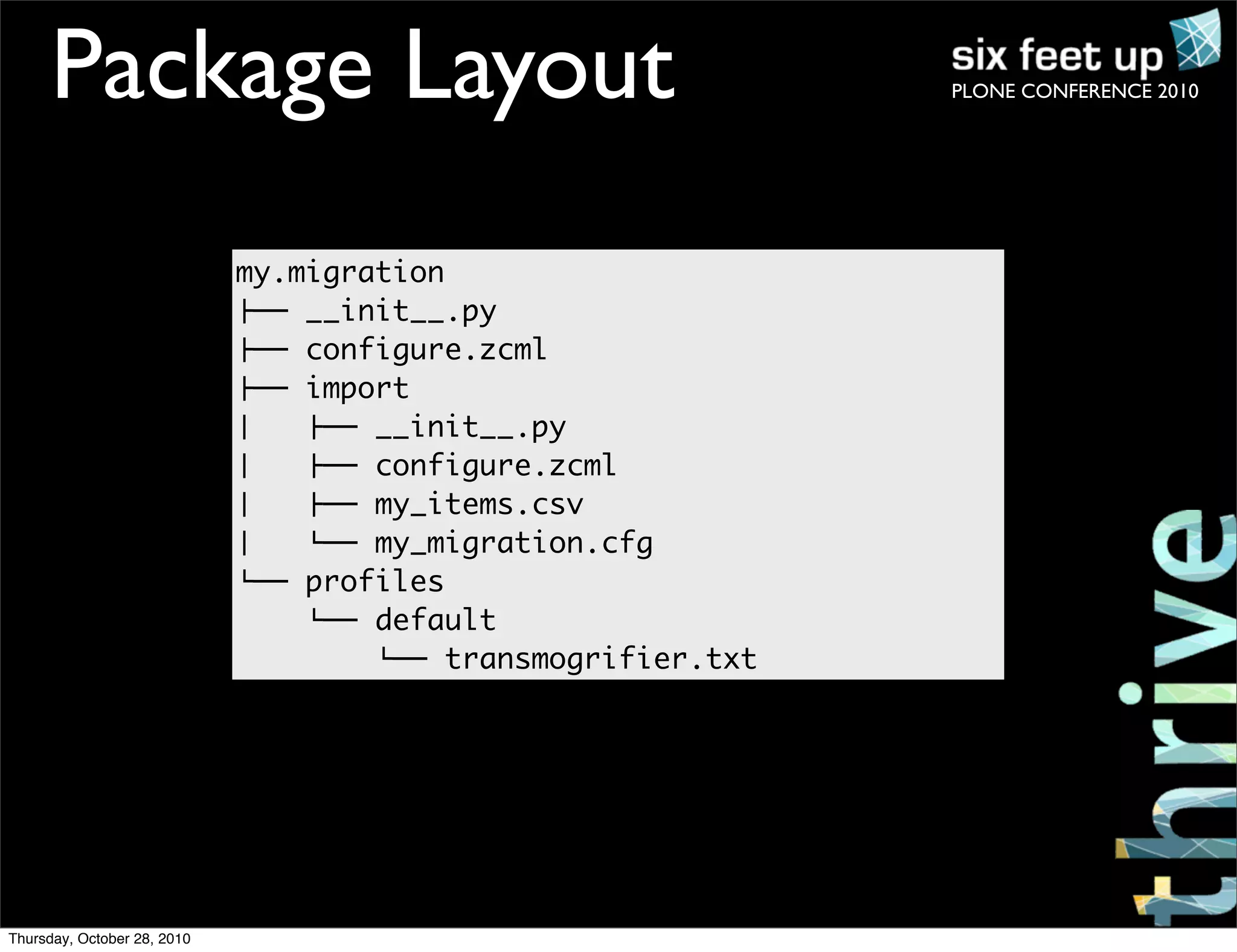

15. PLONE CONFERENCE 2010Package Layout
my.migration
!"" __init__.py
!"" configure.zcml
!"" import
# !"" __init__.py
# !"" configure.zcml
# !"" my_items.csv
# %"" my_migration.cfg
%"" profiles
%"" default
%"" transmogrifier.txt
Thursday, October 28, 2010

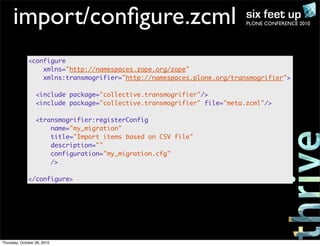

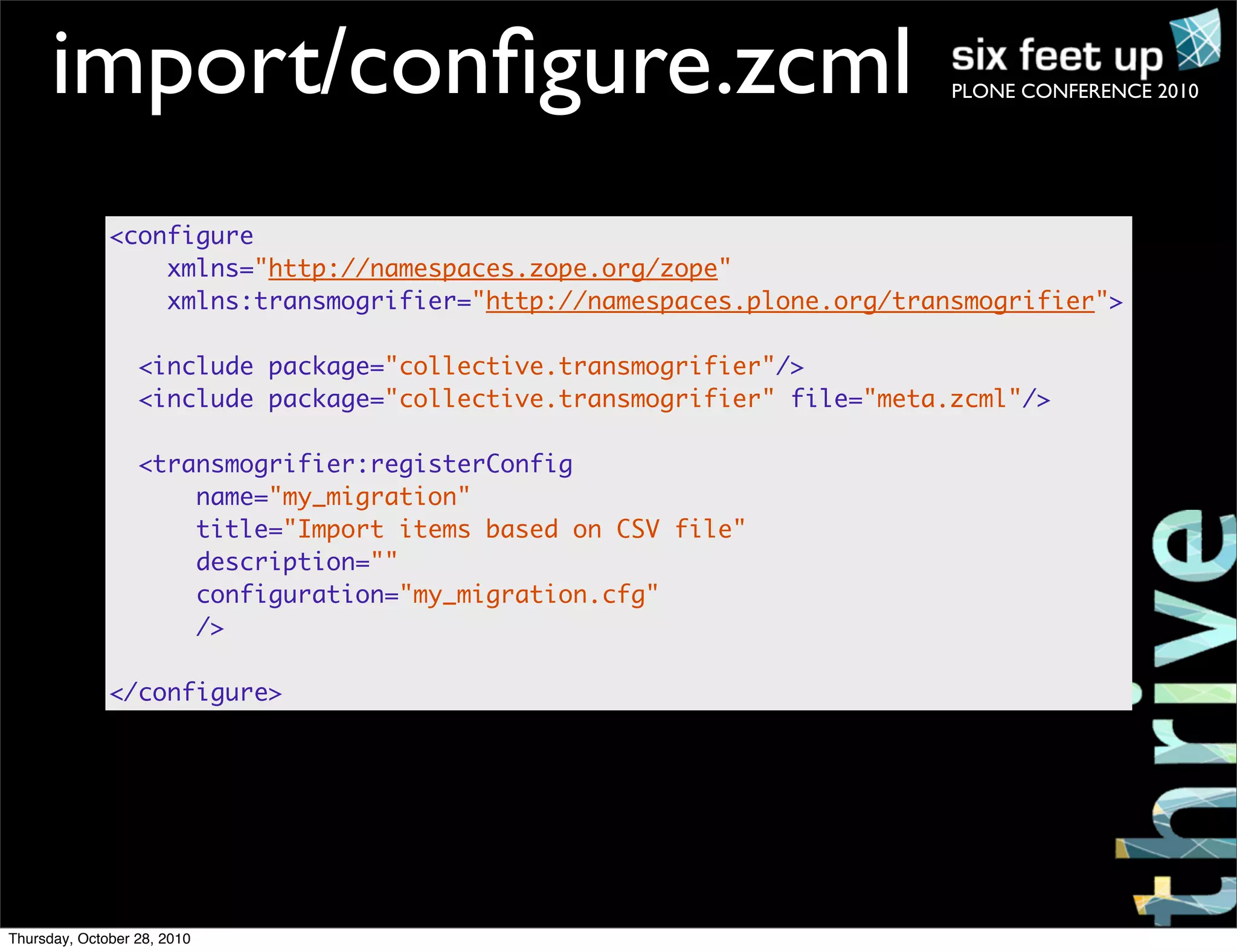

16. PLONE CONFERENCE 2010import/configure.zcml
<configure
xmlns="http://namespaces.zope.org/zope"
xmlns:transmogrifier="http://namespaces.plone.org/transmogrifier">
<include package="collective.transmogrifier"/>
<include package="collective.transmogrifier" file="meta.zcml"/>
<transmogrifier:registerConfig
name="my_migration"
title="Import items based on CSV file"
description=""
configuration="my_migration.cfg"
/>
</configure>
Thursday, October 28, 2010

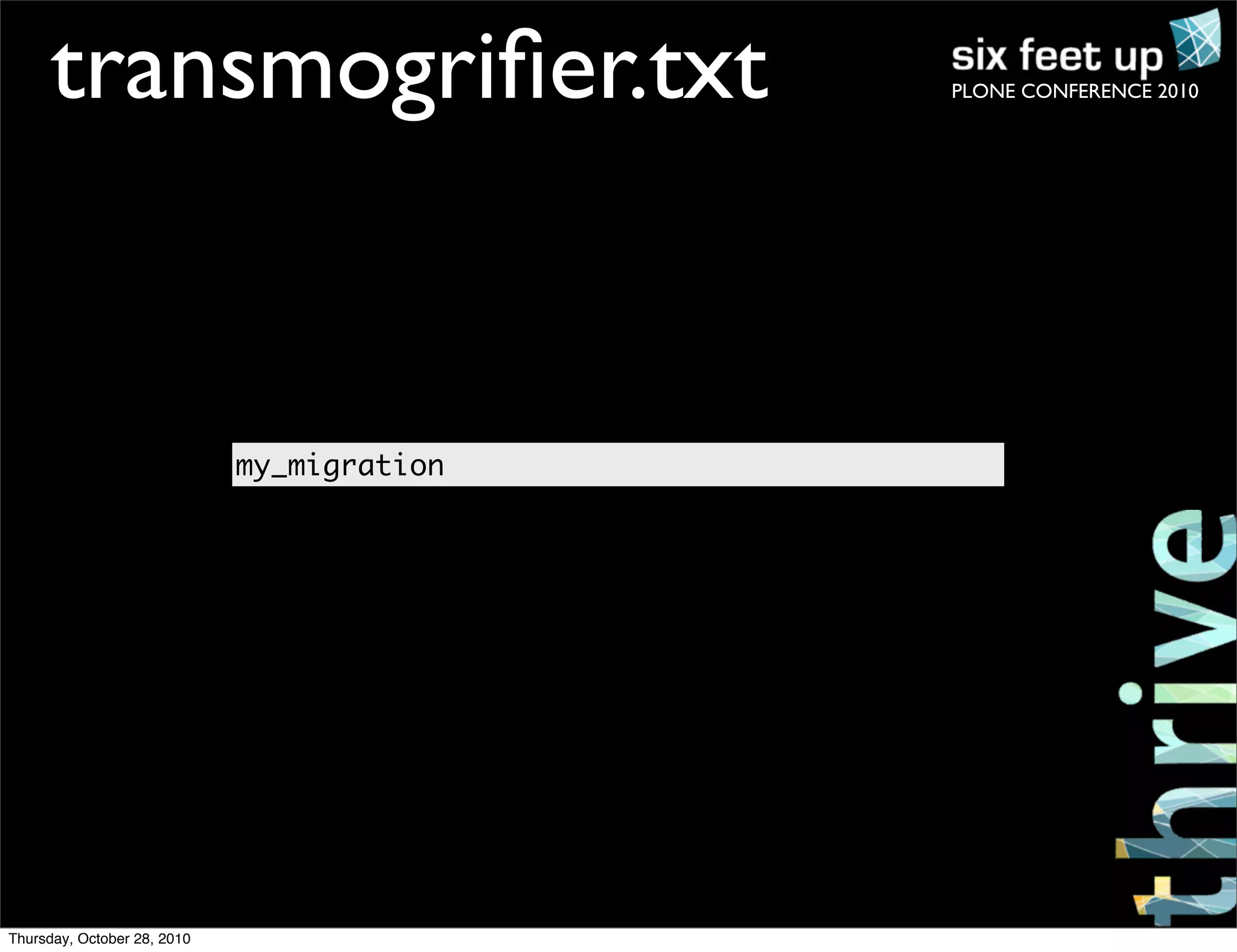

17. PLONE CONFERENCE 2010transmogrifier.txt
my_migration
Thursday, October 28, 2010

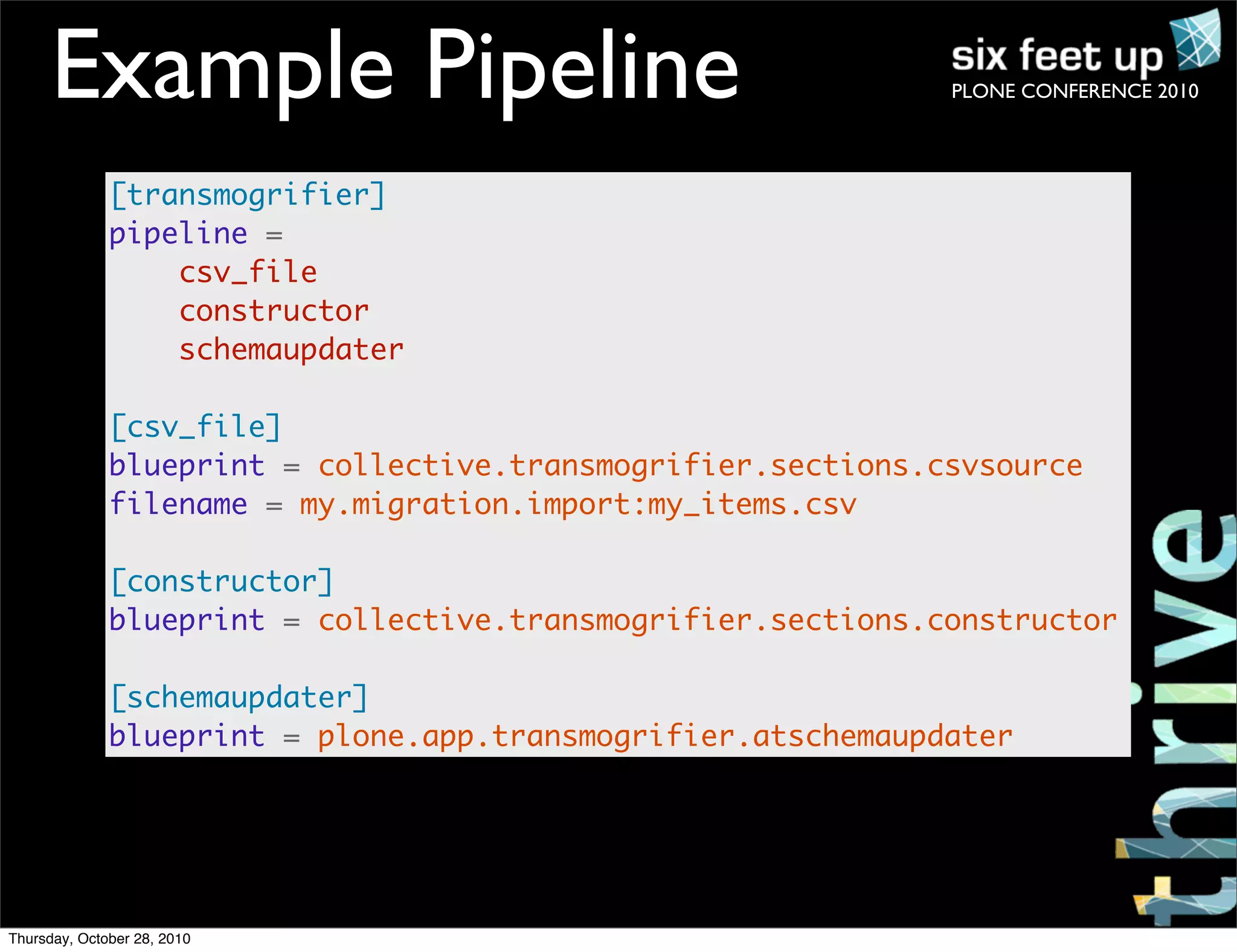

18. PLONE CONFERENCE 2010Example Pipeline
[transmogrifier]
pipeline =
csv_file
constructor
schemaupdater
[csv_file]
blueprint = collective.transmogrifier.sections.csvsource
filename = my.migration.import:my_items.csv
[constructor]
blueprint = collective.transmogrifier.sections.constructor
[schemaupdater]
blueprint = plone.app.transmogrifier.atschemaupdater
Thursday, October 28, 2010

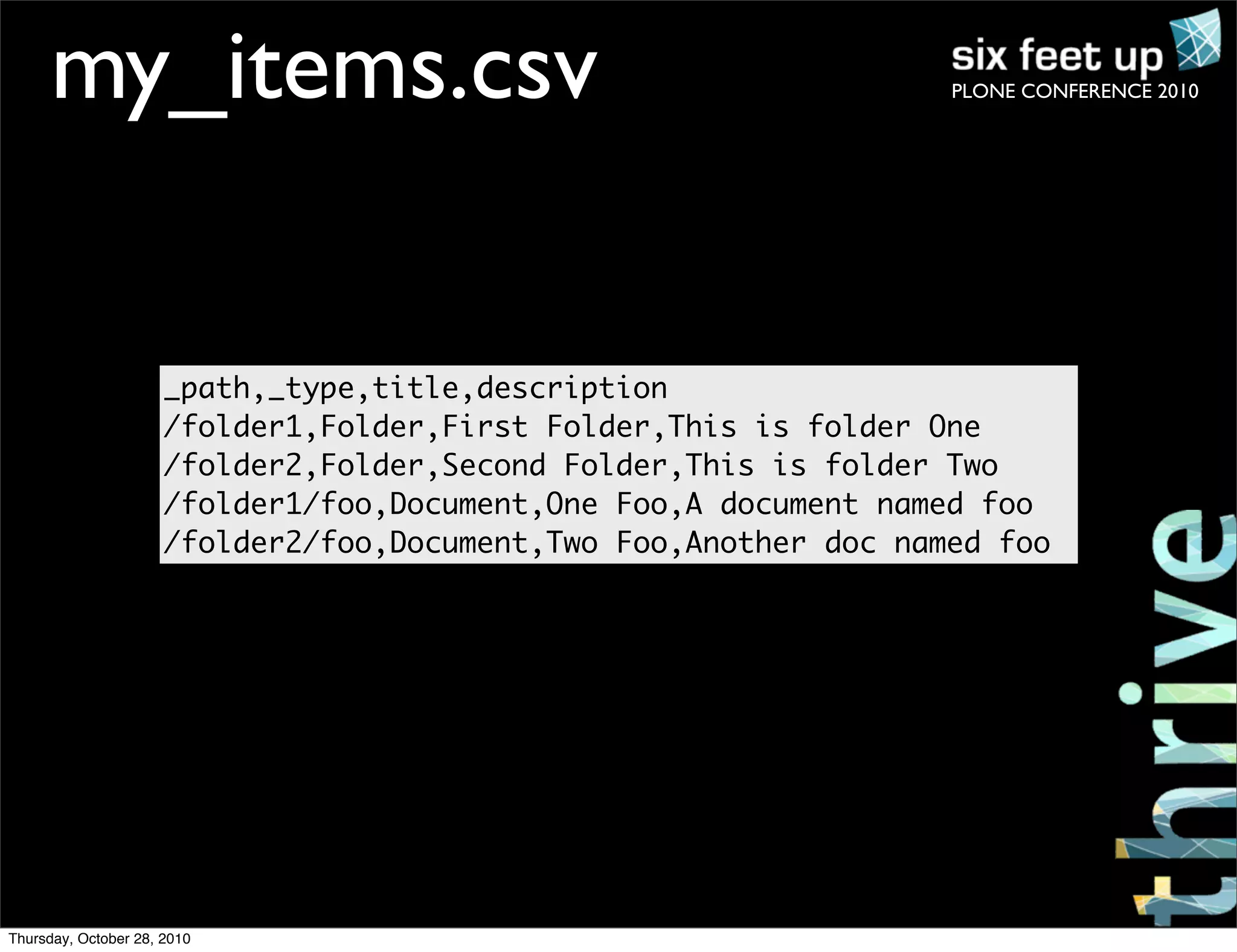

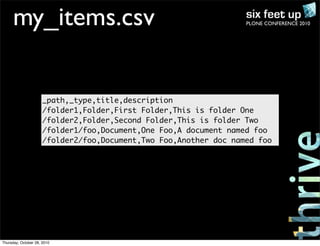

19. PLONE CONFERENCE 2010my_items.csv
_path,_type,title,description
/folder1,Folder,First Folder,This is folder One
/folder2,Folder,Second Folder,This is folder Two
/folder1/foo,Document,One Foo,A document named foo
/folder2/foo,Document,Two Foo,Another doc named foo
Thursday, October 28, 2010

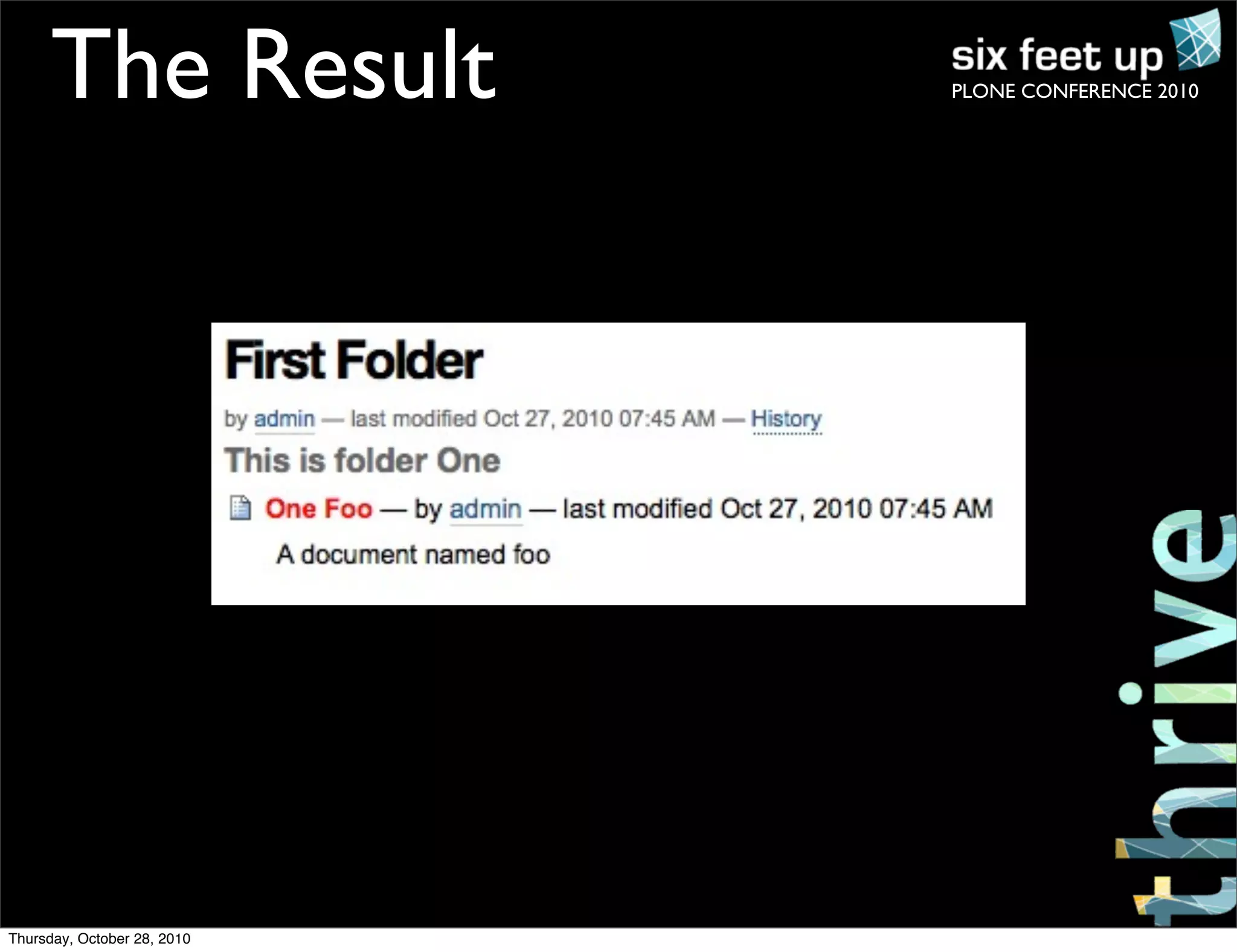

20. PLONE CONFERENCE 2010The Result
Thursday, October 28, 2010

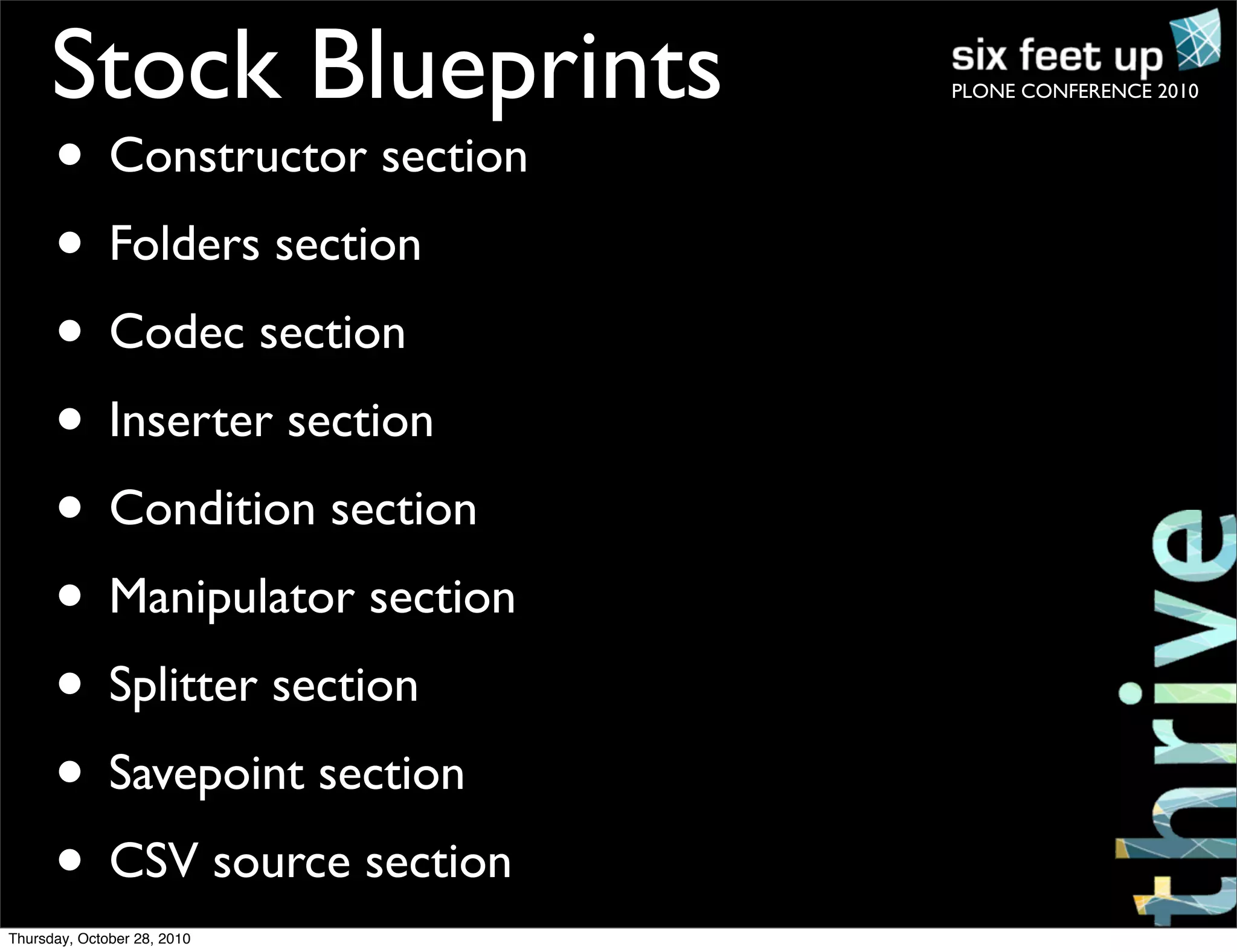

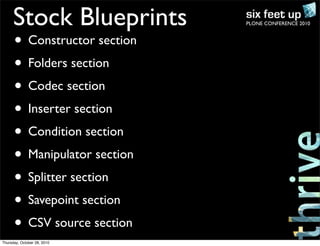

21. PLONE CONFERENCE 2010Stock Blueprints
• Constructor section
• Folders section
• Codec section
• Inserter section
• Condition section
• Manipulator section
• Splitter section
• Savepoint section
• CSV source section
Thursday, October 28, 2010

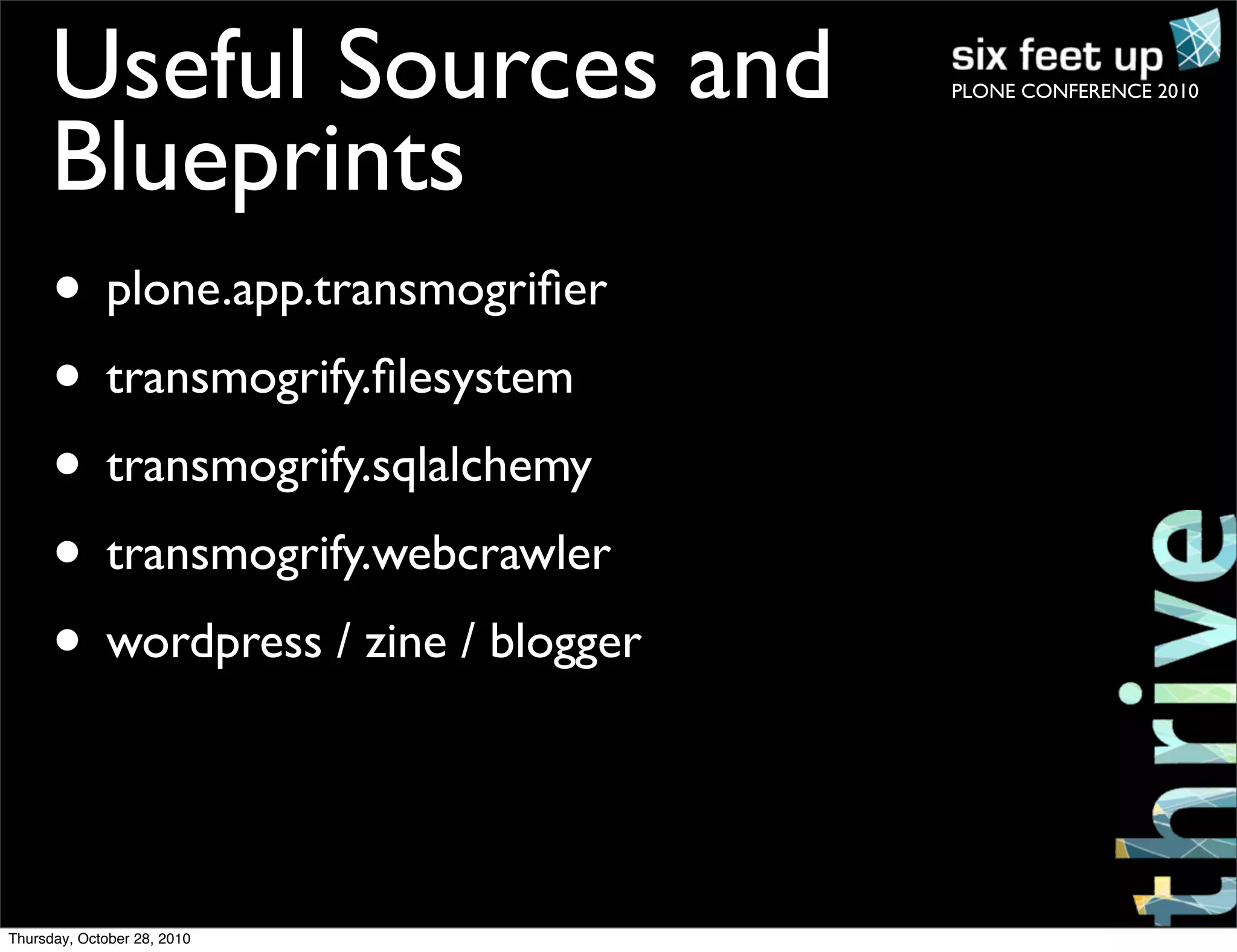

22. PLONE CONFERENCE 2010Useful Sources and
Blueprints
• plone.app.transmogrifier
• transmogrify.filesystem
• transmogrify.sqlalchemy
• transmogrify.webcrawler
• wordpress / zine / blogger
Thursday, October 28, 2010

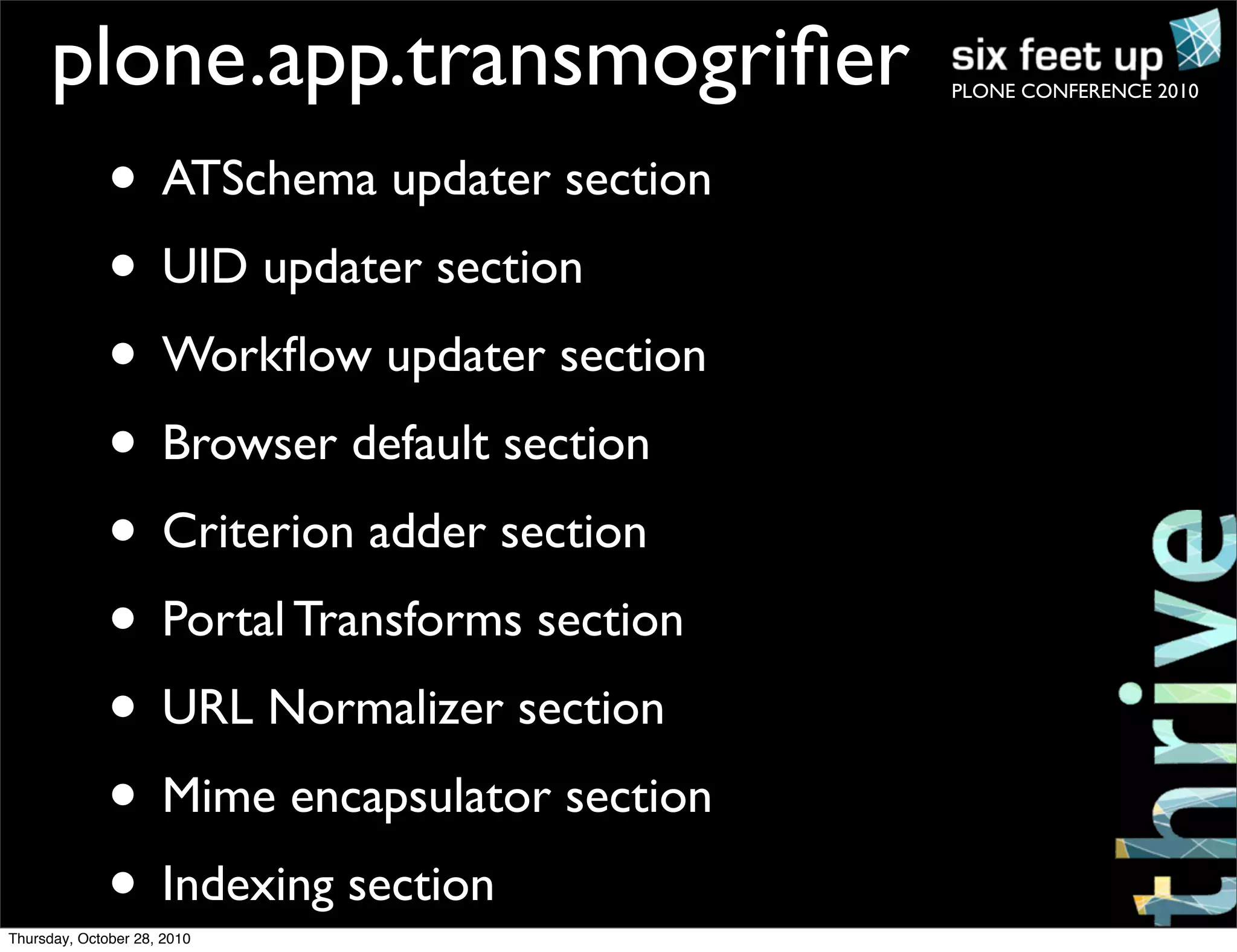

23. PLONE CONFERENCE 2010
plone.app.transmogrifier
• ATSchema updater section
• UID updater section
• Workflow updater section
• Browser default section
• Criterion adder section
• Portal Transforms section
• URL Normalizer section
• Mime encapsulator section
• Indexing section
Thursday, October 28, 2010

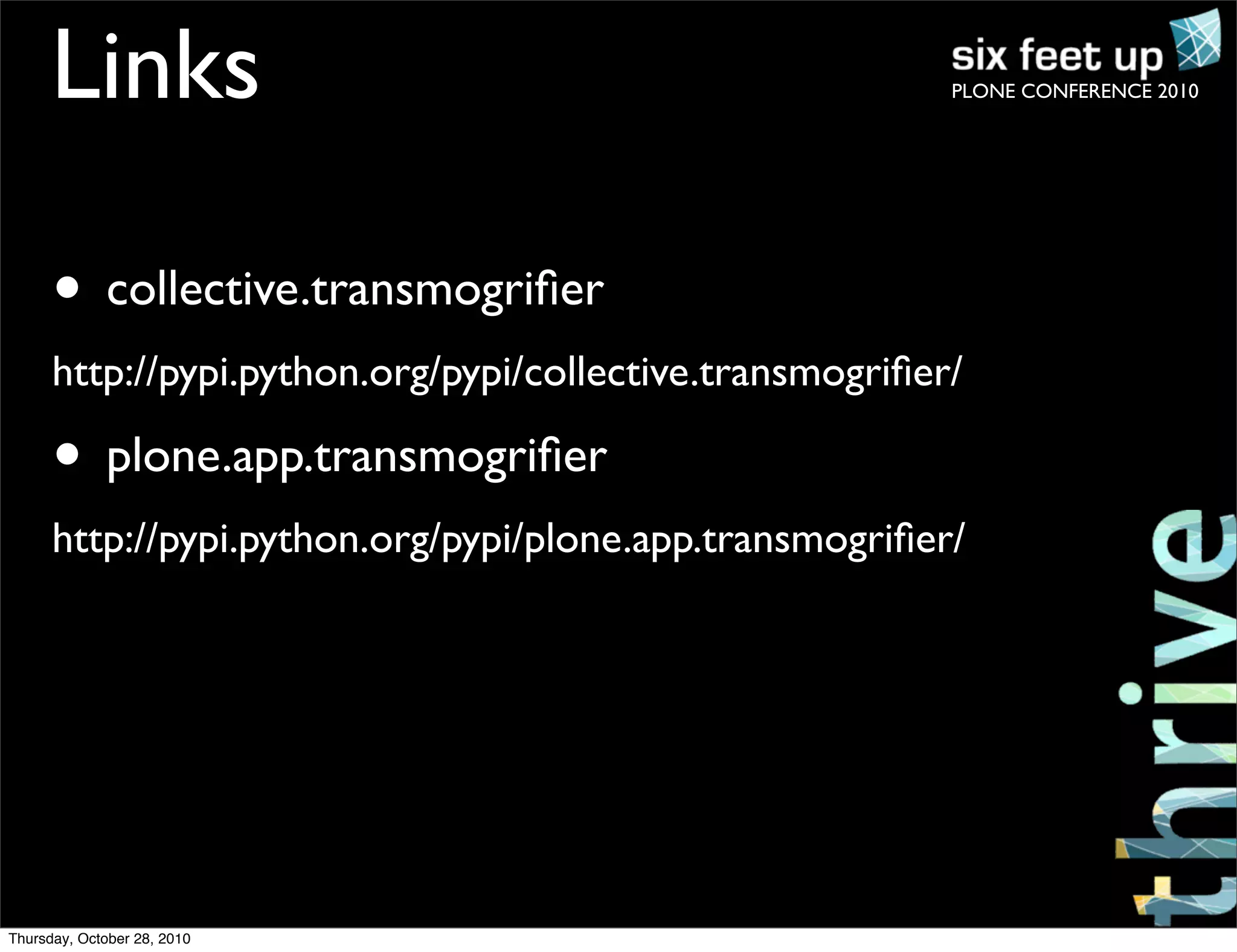

24. PLONE CONFERENCE 2010Links
• collective.transmogrifier
http://pypi.python.org/pypi/collective.transmogrifier/
• plone.app.transmogrifier
http://pypi.python.org/pypi/plone.app.transmogrifier/
Thursday, October 28, 2010

25. Check out
sixfeetup.com/demos
