This document provides an overview of LaTeX, including: 1. LaTeX is a document preparation system that is useful for writing technical documents containing mathematics. It separates document content from formatting to make documents portable and modification easy. 2. The document discusses LaTeX installation, editors, basic commands and environments for formatting text, inserting images, tables, and mathematical equations. 3. It also covers features for report writing like title pages, headers and footers, page numbering, and creating indexes, tables of contents, and bibliographies.

1. “LATEX- EFFECTIVE
DOCUMENT WRITING”
Prof.R.N.Mahind
Prof.R.S.Shinde
Assistant Professor, Computer Science & Engg.
DACOE,Karad.
Email : mahindrupali@gmail.com
rajanishinde13@gmail.com

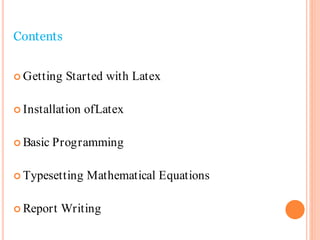

2. Contents
 Getting Started with Latex
 Installation ofLatex
 Basic Programming
 Typesetting Mathematical Equations
 Report Writing

3. GETTING STARTED WITH LATEX

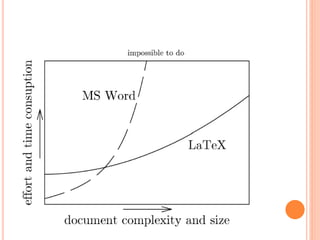

4. WHY LATEX ?

5. • Modification in big docs is easy
• Separation of content and style
• Portability
• Open Source
• Page Numbers auto
• Generates list
• Scientific features
Advantages

7. History
• Donald Knuth – January 10, 1938
• “father "of analysis of algorithms
• Asymptotic Notations
• TeX – (1978)

8. • Typesetting Mathematics & Scientific
Articles.
• Knowledge of symbols & characters
• LATEX input files - *.tex

9. COMPILATION PROCESS
ps2pdf
dvips
tex

10. WHAT IS LATEX ?

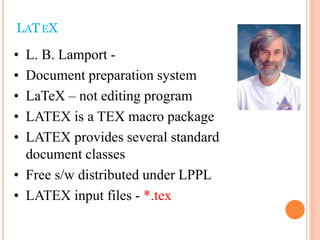

11. • L. B. Lamport -
• Document preparation system
• LaTeX – not editing program
• LATEX is a TEX macro package
• LATEX provides several standard
document classes
• Free s/w distributed under LPPL
• LATEX input files - *.tex
LATEX

12. COMPILATION PROCESS
*.tex File
tex
*.dvi File *.ps file
*.pdf File *.pdf file
dvips
pdflatex
dvi2pdf
ps2pdf

13. simple.DVI

14. simple.ps
simple.pdf

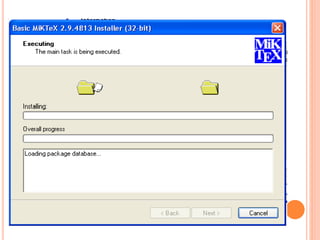

15. • Install MikTex (Base System)
• Install Editor – TexMaker
• Install GhostScript & GS View

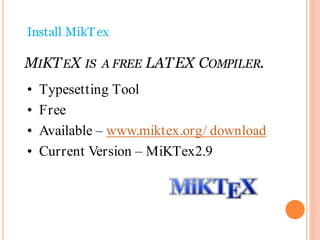

16. Install MikTex
MIKTEX IS A FREE LATEX COMPILER.
• Typesetting Tool
• Free
• Available – www.miktex.org/ download
• Current Version – MiKTex2.9

25. • LEd
• Emac
• Vim
• Texmaker
• Kile
• TexStudio
• TexShop
• TeXnicCenter

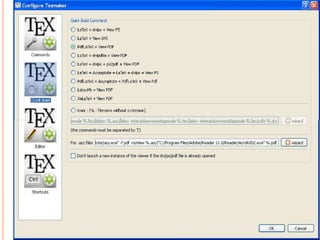

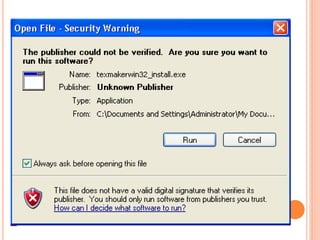

26. INSTALLING EDITOR
• TexMaker -
http://www.xm1math.net/texmaker/down
load.html

32. INSTALLING GHOST SCRIPT & GS VIEW
• Ghost Script – gs813win32
• GS View - gsv46win32

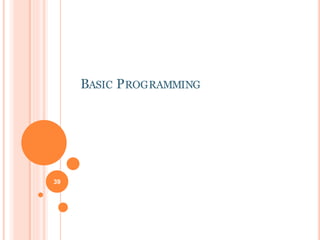

39. BASIC PROGRAMMING
39

40. documentclass[. . . ]{ . . . }
begin{document}
.
.
.
.
.
end{document}
40
Environment

41. documentclass[<option-list>]{<classname>}
41
Article
Report
Book
Letter
Slides
• 10pt| 11pt| 12pt
• letterpaper| legalpaper|
executivepaper| a4paper|
a5paper| b5paper
• oneside| twoside
• onecolumn| twocolumn

42. FIRST SIMPLE PROGRAM
documentclass[]{letter}
begin{document}
Computer Science and Engineering
end{document}
42

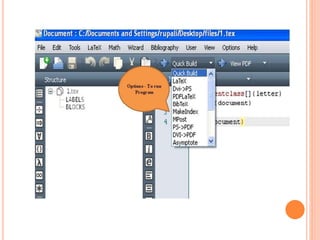

43. 43
Save program with
“Program_name.tex”
Eg. 1.tex

46. OUTPUT

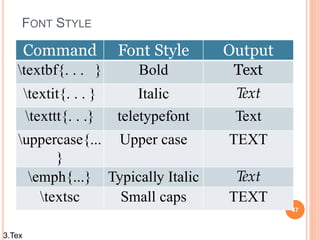

47. FONT STYLE
47
Command Font Style Output
textbf{. . . } Bold Text
textit{. . . } Italic Text
texttt{. . .} teletypefont Text
uppercase{...
}
Upper case TEXT
emph{...} Typically Italic Text
textsc Small caps TEXT
3.Tex

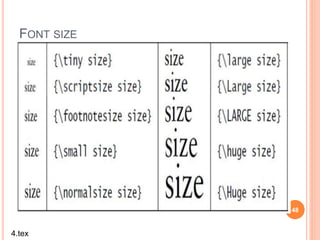

48. FONT SIZE
48
4.tex

49. 49
Font Type
fontfamily{Code}selectfont{TEXT}
5.tex

50. FONT COLOR
Package - usepackage{color}
File - color.sty

51. 51
TEXT COLORING
textcolor{color_name}{text}
6.tex

52. COLOR BOX FOR TEXT
52
colorbox{color_name}{Text}
7.tex

53. BOX BOUNDARY COLOR
53

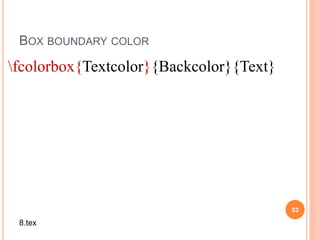

fcolorbox{Textcolor}{Backcolor}{Text}
8.tex

54. COLORING PAGE
54
pagecolor{color_name} – page color
9.tex

55. SOME COLORS
55

56. UNDERLINE & QUOTES
Underline (text)
u nderline{ Text }
Single Quote (‘text’)-
lq text rq
Double Quotes (“text”)
lqlq text rqrq
56
10.tex

57. SPECIAL SYMBOLS
textbackslash
textless
<
textgreater
>
textquoteright
’
ldots
…
$
$
57
11.tex

58. 58
• New Line
newline
• New Page
newpage
12.tex

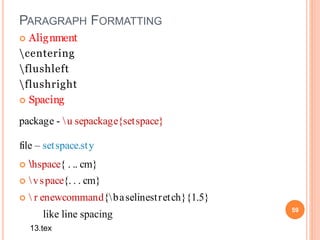

59. PARAGRAPH FORMATTING
 Alignment
centering
flushleft
flushright
 Spacing
package - u sepackage{setspace}
file – setspace.sty
 hspace{ . .. cm}
 vspace{. . . cm}
 r enewcommand{baselinestretch}{1.5}
like line spacing 59
13.tex

60. LIST
 itemize - unordered lists ( )
 enumerate - for ordered lists (1,2,3,….)
 description - lists where you want to specify your own
label (∆,*)
60

61. 61

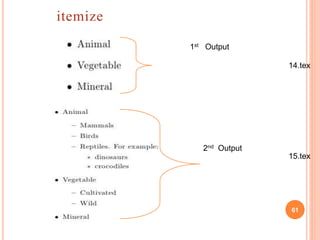

itemize
1st Output
2nd Output
14.tex
15.tex

62. 62
enumerate
1st Output
2nd Output
16.tex
17.tex

63. 63
description
18.tex

64. 64

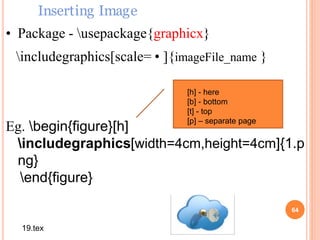

• Package - usepackage{graphicx}
includegraphics[scale= • ]{imageFile_name }
Eg. begin{figure}[h]
includegraphics[width=4cm,height=4cm]{1.p
ng}
end{figure}
Inserting Image
19.tex
[h] - here
[b] - bottom
[t] - top
[p] – separate page

65. 65

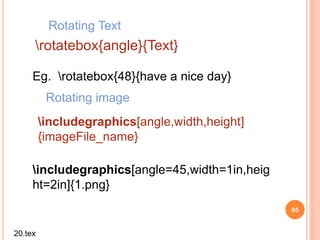

Eg. rotatebox{48}{have a nice day}
65
rotatebox{angle}{Text}
Rotating Text
includegraphics[angle=45,width=1in,heig
ht=2in]{1.png}
Rotating image
includegraphics[angle,width,height]
{imageFile_name}
20.tex

66. REFLECTING TEXT
reflectbox{Text}
Eg. reflectbox{Pune} newline
Eg. reflectbox{231} 231 --- Horizontal
Eg. raisebox{depth}{scalebox{1}[-1]{WOW}}
---Vertical
66
21.tex

67. 67
scalebox{<h scale>}[<v scale>]{<text>}
scalebox{2}[5]{Satara}
resizebox{hlength}{vlength}{some text}
resizebox{20mm}{1.7cm}{some text}
22.tex

68. INSERTING TABLE

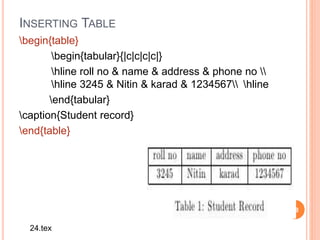

begin{table}
begin{tabular}{|c|c|c|c|}
hline roll no & name & address & phone no
hline 3245 & Nitin & karad & 1234567 hline
end{tabular}
caption{Student record}
end{table}
68
24.tex

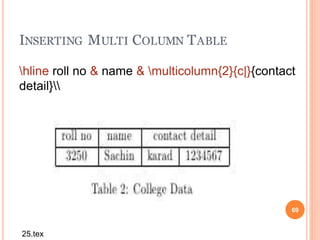

69. INSERTING MULTI COLUMN TABLE
69
hline roll no & name & multicolumn{2}{c|}{contact
detail}
25.tex

70. TABLE ALIGNMENT
centering
flushleft
flushright
70

71. INSERTING MULTI ROW
71
Package - usepackage{multirow}
begin{tabular}{|c|c|c|c|}
hline
1 & 2 & multicolumn{2}{c|}{Course}
hline
multicolumn{1}{|c}{multirow{2}{*}{Powers} } &
multicolumn{1}{ |c| }{504} & 3 & 2 cline{2-4}
multicolumn{1}{ |c }{} &
multicolumn{1}{|c|}{540} & 2 & 3 cline{1-4}
hline
end{tabular}
26.tex

72. CHANGING SIZE OF TABLE
72
% horizontal size(height) i.e. size of row
renewcommand{arraystretch}{2}
%vertical size(width)i.e. size of column
begin{tabular}{|p{3cm}|p{4cm}|}
hline name & roll
hline abc & 324
hline end{tabular}
27.tex

73. ASSIGNMENT
73
Department Information
Dept. No. of
Student
Result Year
CSE
IT
60
60
80
80
2015
2015
28.tex

74. 74
Package - usepackage{fancyheadings}
File – fancyheading.sty
pagestyle{fancy}
lhead{}
chead{}
rhead{}
lfoot{}
cfoot{}
rfoot{}
Header & Footer
29.tex

75. 75
pagenumbering{ . . . }
Roman
Arabic
roman
Alph
alph
Page Numbering

76. MARGIN
evensidemargin . .pt
oddsidemargin . . pt
topmargin . . pt
headheight . . pt
paperwidth . . pt
paperheight . . pt
76

77. TO SET PAR INDENT
77

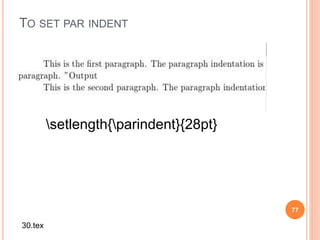

setlength{parindent}{28pt}
30.tex

78. PAGE BORDER
78
Package - u sepackage{fancybox}
t hisfancyput(-0.6in,-9.8in)
{
setlength{ unitlength}{1in}
framebox(7.5,10)
}
31.tex

79. MATHEMATICAL FORMULA
79
Donald Knuth says that his aim in
creating TEX is to beautifullytypeset
technical documents especiallythose containing a
lot of Mathematics. It is verydifficult to
produce complex mathematical formulas
using a word processor.

80. 80

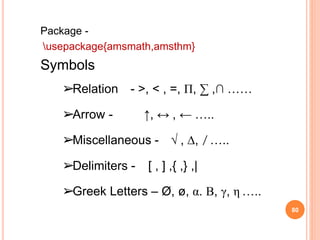

Package -
usepackage{amsmath,amsthm}
Symbols
➢Relation - >, < , =, Π, ∑ ,∩ ……
➢Arrow - ↑, ↔ , ← …..
➢Miscellaneous - √ , ∆, ̸ …..
➢Delimiters - [ , ] ,{ ,} ,|
➢Greek Letters – Ø, ø, α. Β, γ, η …..

81. Eg. y = mx + c
begin{displaymath}
y = mx + c
end{displaymath}
Eg. y = mx +c --------- (1)
begin{equation}
y = mx + c
end{equation}
81
SIMPLE EQUATION
32.tex

82. 82
a = int_{i}^{j}+frac{x}{ysqrt{z}}
Sigma_{i}^{j}=(a+b)*c
33.tex

83. 83

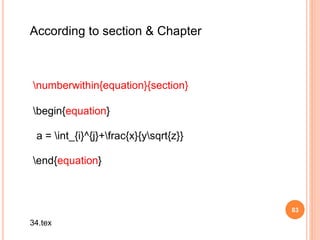

numberwithin{equation}{section}
begin{equation}
a = int_{i}^{j}+frac{x}{ysqrt{z}}
end{equation}
According to section & Chapter
34.tex

84. MATRIX
84
• vmatrix –
• Vmatrix –
• bmatrix –
• Bmatrix –
• pmatrix
$begin{vmatrix}
1 & 2 & 3
4 & 5 & 6
7 & 8 & 9
end{vmatrix}$

85. 85
Report Writing

86. CONTENTS IN REPORT
 Title page
 Declaration
 Abstract
 Index – Content, Table, Figure
 Nomenclature
 Abbreviations
 Chapter
 Section
 Bibliography

87. CLASSES
Class Chapter Section
Book Yes Yes
Report Yes Yes
Article No Yes
Paper No Yes

88. 88
title{. . . . .}
author{. . . .}
date{ . . . }
maketitle
begin{titlepage}
end{titlepage}
Title page
36.tex

89. Package - usepackage{titlesec}
File - titlesec.sty
titleformat{chapter}[display]
{normalfonthugebfseriescentering}
{chaptertitlename
thechapter}{20pt}{Huge}
Chapter Alignment
37.tex

90. Section Alignment
titleformat{section}
{normalfontLargebfseriesflushright}
{thesection}{1em}{}
Section Alignment
38.tex

91. INDEX
tableofcontents
listoftables
listoffigures

92. RPackage -
usepackage[english]{babel}
begin{thebibliography}{31}
bibitem{…} author list,paper name
end{thebibliography}
Bibliography

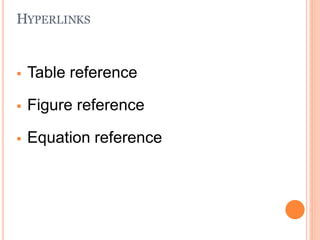

93. HYPERLINKS
 Table reference
 Figure reference
 Equation reference

94. Hyperlinks
Package - usepackage{hyperref}[]
