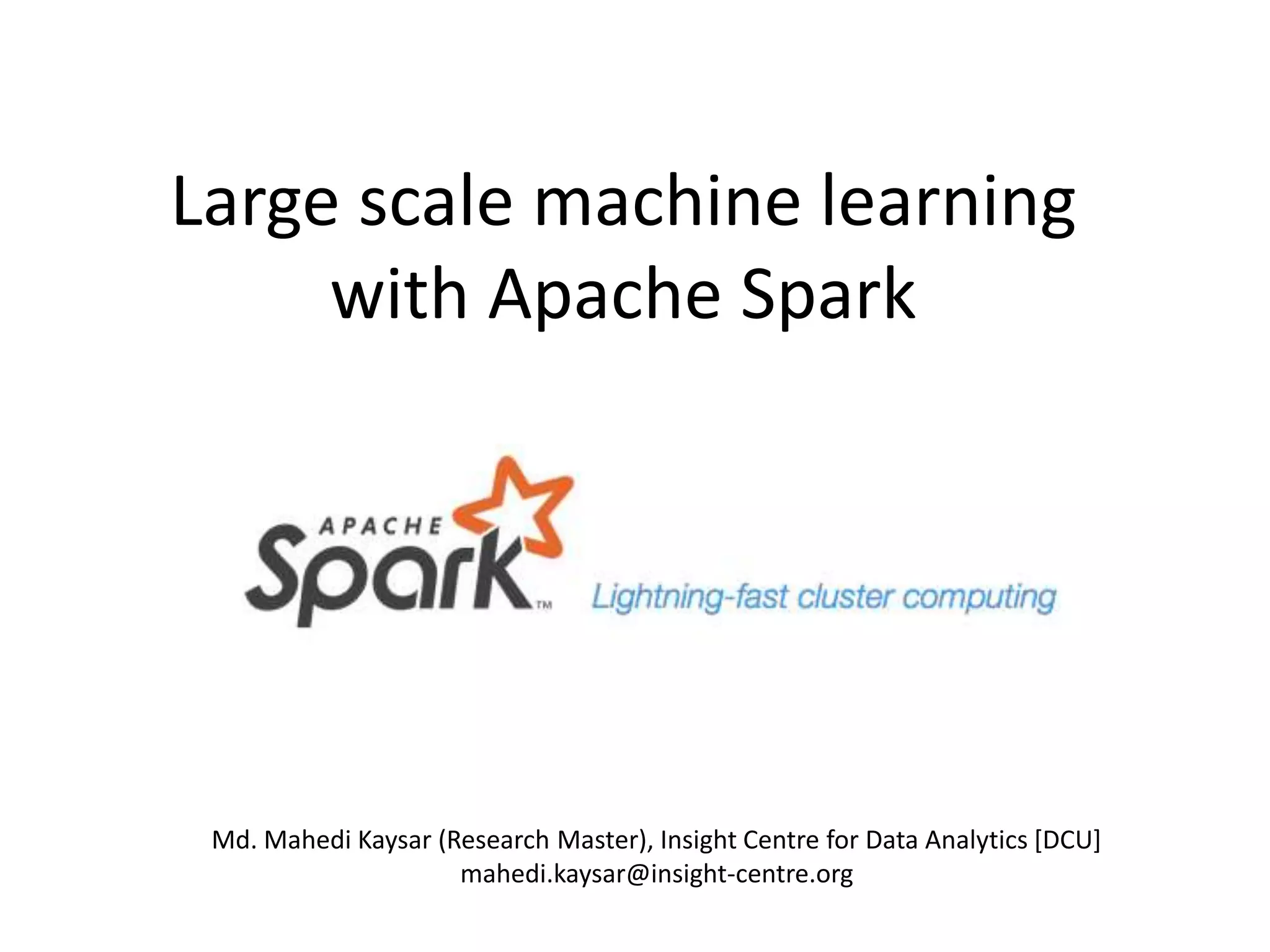

1. Large scale machine learning
with Apache Spark
Md. Mahedi Kaysar (Research Master), Insight Centre for Data Analytics [DCU]
mahedi.kaysar@insight-centre.org

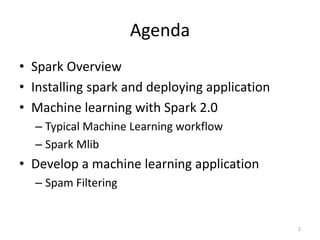

2. Agenda
• Spark Overview
• Installing spark and deploying application
• Machine learning with Spark 2.0
– Typical Machine Learning workflow
– Spark Mlib
• Develop a machine learning application
– Spam Filtering
2

3. Spark Overview
• Open source large scale data processing engine
• 100x times faster than hadoop map-reduce in
memory or 10x faster on disk
• Can write application on java, scala, python and R
• Runs on Mesos, standalone or YARN cluster
manager
• It can access diverse data sources including HDFS,
Cassandra, HBase and S3
3

4. Spark Overview
• MapReduce: distributed execution model
– Map read data from hard disk, process it and write
in back to the disk. Before doing the shuffle
operation it send data to reducer
– Reduce read data from disk and process it and
sent back to disk
4

5. Spark Overview
• MapReduce Execution Module:
– Iterative job: lots of disk i/o operation
5

6. Spark Overview
• Spark Execution Model
– Use memory instead of disk
6

7. Spark Overview
• RDD: Resilient distributed dataset
– We write program in terms of operations on
distributed data set
– Partitioned collection of object across the cluster,
stored in memory or disk
– RDDs built and manipulated though a diverse
source of parallel transformation (Map, filter,
join), action (save, count, collect)
– RDDs automatically rebuild on machine failure
7

8. Spark Overview
• RDD: Resilient distributed dataset
– immutable and programmer specifies number of
partitions for an RDD.
8

9. Spark Overview
• RDD: Transformation
– New dataset from existing one
9

10.  Spark Core: underlying general
execution engine. It provides In
memory computing. APIs are build
upon it.
• Spark SQL
• Spark Mlib
• Spark GraphX
• Spark Streaming
10
Spark Ecosystem
Apache Spark 2.0

11. Apache Spark 2.0
• Spark SQL
– Module for structured or tabular data processing
– Actually it is new data abstraction called
SchemaRDD
– Internally it has more information about the
structure of both data and the computation being
performed
– Two way to interact with Spark SQL
• SQL queries: “SELECT * FROM PEOPLE”
• Dataset/DataFrame: domain specific language
11

12. Apache Spark 2.0
• Spark SQL
12

13. Apache Spark 2.0
• Spark Mlib
– Machine learning library
– ML Algorithms: common learning algorithms such as classification,
regression, clustering, and collaborative filtering
• SVM, Decision Tree
– Featurization: feature extraction, transformation, dimensionality
reduction, and selection
• Term frequency, document frequency
– Pipelines: tools for constructing, evaluating, and tuning ML Pipelines
– Persistence: saving and load algorithms, models, and Pipelines
– Utilities: linear algebra, statistics, data handling, etc.
– DataFrame-based API is primary API (spark.ml)
13

14. Apache Spark 2.0
• Spark Streaming
– provides a high-level abstraction called discretized stream
or DStream, which represents a continuous stream of data
– DStream is represented as a sequence of RDDs.
14

15. Apache Spark 2.0
• Structured Streaming (Experimental)
– scalable and fault-tolerant stream processing engine built
on the Spark SQL engine
– The Spark SQL engine will take care of running it
incrementally and continuously and updating the final
result as streaming data continues to arrive
– Can be used Dataset or DataFrame APIs
15

16. Apache Spark 2.0
• GraphX
– extends the Spark RDD by
introducing a new Graph
abstraction
– a directed multigraph with
properties attached to each
vertex and edge
– Pagerank: measures the
importance of a vertex
– Connected component
– Triangle count
16

17. Apache Spark 2.0
• RDD vs. Data Frame vs. Dataset
– All are immutable and distributed dataset
– RDD is the main building block of Apache Spark called
resilient distributed dataset. It process data in
memory for efficient use.
– The DataFrame and Dataset are more abstract then
RDD and those are optimized and good when you
have structured data like CSV, JSON, Hive and so on.
– When you have row data like text file you can use RDD
and transform to structured data with the help of
DataFrame and Dataset
17

18. Apache Spark 2.0
• RDD:
– immutable, partitioned
collections of objects
– Two main Operations
18

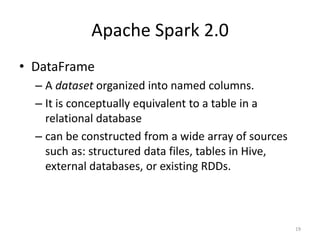

19. Apache Spark 2.0
• DataFrame
– A dataset organized into named columns.
– It is conceptually equivalent to a table in a
relational database
– can be constructed from a wide array of sources
such as: structured data files, tables in Hive,
external databases, or existing RDDs.
19

20. Apache Spark 2.0
• Dataset
– distributed collection of data
– It has all the benefits of RDD and Dataframe with
more optimization
– You can switch any form of data from dataset
– It is the latest API for data collections
20

21. Apache Spark 2.0
• DataFrame/Dataset
– Reading a json data using dataset
21

22. Apache Spark 2.0
• DataFrame/Dataset
– Connect hive and query it by HiveQL
22

23. Apache Spark 2.0
• Dataset
– You can transform a dataset to rdd and rdd to dataset
23

24. Spark Cluster Overview
• Spark uses master/slave architecture
• One central coordinator called driver
that communicates with many
distributed workers (executors)
• Drivers and executors run in their own
Java Process
24
 A Driver is a process where the main method runs.
 It converts the user program into task and schedule the task to the
executors with the help of cluster manager
 Cluster manager runs the executors and manages the worker nodes
 Executors run the spark jobs and send back the result to the Driver
program.
 They provide in-memory storage for RDDs that are cached by user
program
 The workers are in charge of communicating the cluster manager the
availability of their resources

25. Spark Cluster Overview
• Standalone: a simple cluster manager included with Spark that makes it easy to set up a cluster.
• Example: A standalone cluster with 2 worker nodes (each node having 2 cores)
– Local machine
– Cloud EC2
25
Conf/spark-env.sh
export SPARK_WORKER_MEMORY=1g
export SPARK_EXECUTOR_MEMORY=1g
export SPARK_WORKER_INSTANCES=2
export SPARK_WORKER_CORES=2
export SPARK_WORKER_DIR=/home/work/sparkdata
./sbin/start-master.sh
Conf/slaves
Master node IP
./sbin/start-slaves.sh

26. Application Deployment
• Standalone mode
26

27. Application Deployment
• Standalone mode
– Client Deploy mode
– Cluster Deploy mode
27

28. Machine Learning with Spark
• Typical Machine learning workflow:
 Load the sample data.
 Parse the data into the input format for the algorithm.
 Pre-process the data and handle the missing values.
 Split the data into two sets, one for building the model (training dataset) and one for
testing the model (validation dataset).
 Run the algorithm to build or train your ML model.
28

29. Machine Learning with Spark
• Typical Machine learning workflow:
 Make predictions with the training data and observe the results.
 Test and evaluate the model with the test data or alternatively validate the with some
cross-validator technique using the third dataset, called the validation dataset.
 Tune the model for better performance and accuracy.
 Scale-up the model so that it can handle massive datasets in the future
 Deploy the ML model in commercialization:
29

30. Machine Learning with Spark
• Pre-processing
– The three most common data preprocessing steps
that are used are
• formatting: data may not be in a good shape
• cleaning: data may have unwanted records or
sometimes with missing entries against a record. This
cleaning process deals with the removal or fixing of
missing data
• sampling the data: when the available data size is large
– Data Transformation
– Dataset, RDD and DataFrame
30

31. Machine Learning with Spark
• Feature Engineering
 Extraction: Extracting features from “raw” data
 Transformation: Scaling, converting, or modifying features
 Selection: Selecting a subset from a larger set of features
31

32. Machine Learning with Spark
• ML Algorithms
 Classifications
 Regression
 Tuning
32

33. Machine Learning with Spark
• ML Pipeline:
– Higher level API build on top of DataFrame
– Can combines multiple algorithms together to
make a complete workflow.
– For example: text analytics
• Split the texts=> words
• Convert words => numerical feature vectors
• Numerical feature vectors => labeling
• Build an ML model as a prediction model using vectors
and labels
33

34. Machine Learning with Spark
• ML Pipeline Component:
– Transformers
• is an abstraction that includes feature transformers and
learned models
• an algorithm for transforming one dataset or dataframe
to another dataset or dataframe
• Ex. HashingTF
– Estimators
• an algorithm which can fit on a dataset or dataframe to
produce a transformer or model. Ex- Logistic Regression
34

35. Machine Learning with Spark
• Spam detection or spam filtering:
– Given some e-mails in an inbox, the task is to
identify those e-mails that are spam and those
that are non-spam (often called ham) e-mail
messages.
35

36. Machine Learning with Spark
• Spam detection or spam filtering:
– Reading dataset
– SparkSession is the single entry point to interact
with underlying spark functionality. It allows
dataframe and dataset for programming
36

37. Machine Learning with Spark
• Spam detection or spam filtering:
– Pre-process the dataset
37

38. Machine Learning with Spark
• Spam detection or spam filtering:
– Feature Extraction: make feature vectors
– TF: Term frequency is the number of times that
term appears in document
• Feature vectorization method
38

39. Machine Learning with Spark
• Spam detection or spam filtering:
– Tokenizer: Transformer to tokenise the text into
words
– HashingTF: Transformer for making feature Vector
using TF techniques.
• Takes set of terms
• Converts it to set of feature vector
• It uses hashing trick for indexing terms
39

40. Machine Learning with Spark
• Spam detection or spam filtering:
– Train a model
– Define classifier
– Fit transet
40

41. Machine Learning with Spark
• Spam detection or spam filtering:
– Test a model
41

42. Machine Learning with Spark
• Tuning
– Model selection:
• Hyper parameter tuning
• Find the best model or parameter for a given task
• Tuning can be done for individial estimator such as
logistic regression, pipeline
– Model selection via cross-validation
– Model selection via train validation split
42

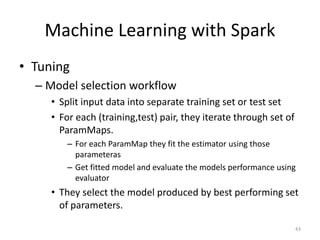

43. Machine Learning with Spark
• Tuning
– Model selection workflow
• Split input data into separate training set or test set
• For each (training,test) pair, they iterate through set of
ParamMaps.
– For each ParamMap they fit the estimator using those
parameteras
– Get fitted model and evaluate the models performance using
evaluator
• They select the model produced by best performing set
of parameters.
43

44. Machine Learning with Spark
• Tuning
– Model selection workflow
• The evaluator can be RegressionEvaluator or
BinaryClassificationEvaluator and so on.
44

45. Machine Learning with Spark
• Tuning
– Model selection via cross validation
• CrossValidator begins by splitting the dataset into a set of folds
(k=3) means create 3 (training,test) dataset pair
• Each pair use 2/3 of the data for training and 1/3 for testing
• To evaluate particular ParamMap it computes the average
evaluation matric for the three model fitting by estimator
• However, it is also a well-established method for choosing
parameters which is more statistically sound than heuristic hand-
tuning.
– Model selection via train-validation split
• only evaluates each combination of parameters once
• less expensive, but will not produce as reliable results when the
training dataset is not sufficiently large.
45

46. Spam Filtering Application
• What we did so far?
– Reading dataset
– Cleaning
– Feature engineering
– Training
– Testing
– Tuning
– Deploying
– Persisting the model
– Reuse the existing model
46

47. Spam Filtering Application
• Deployment
47

48. Thanks
Questions??
48
