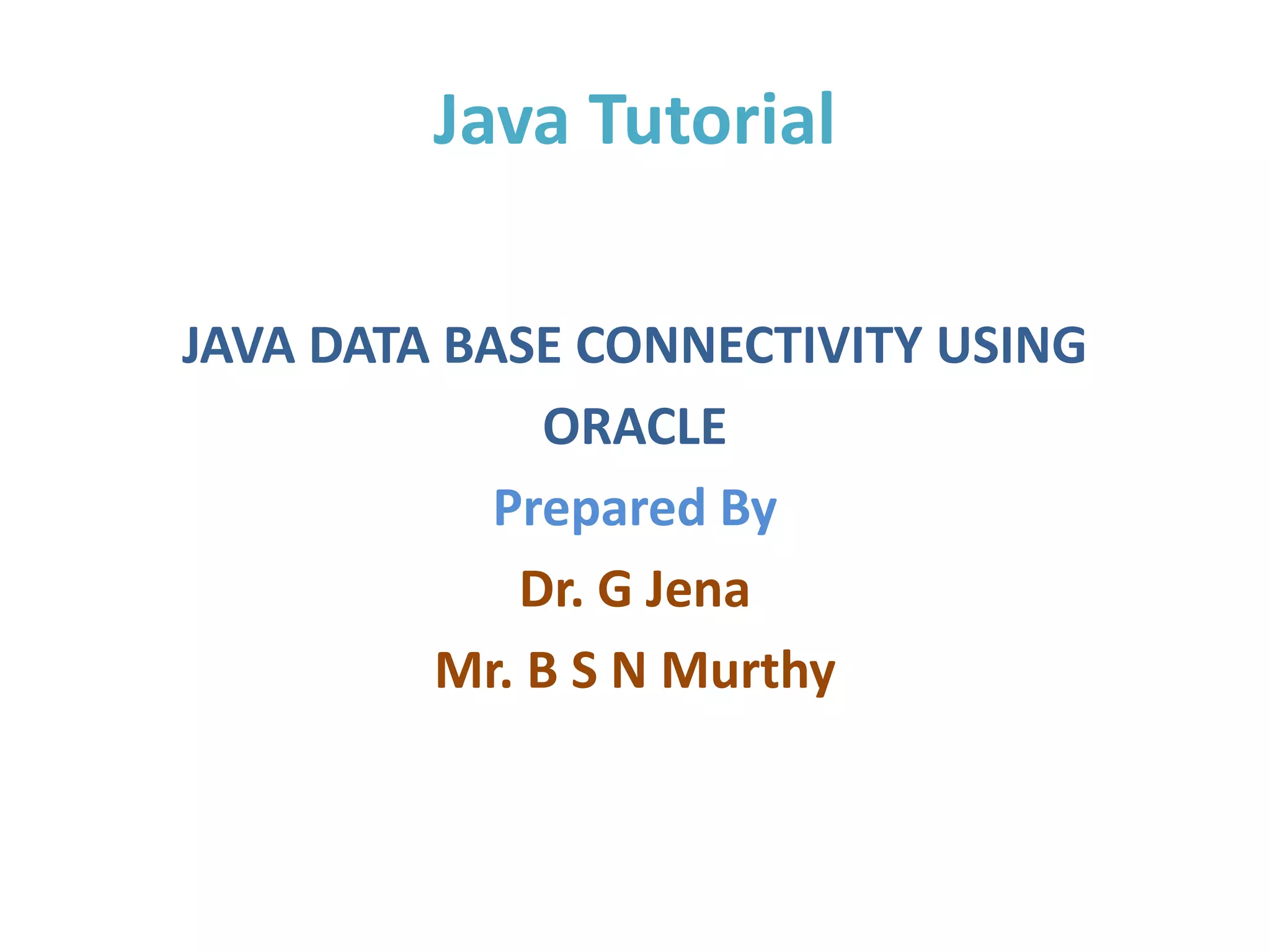

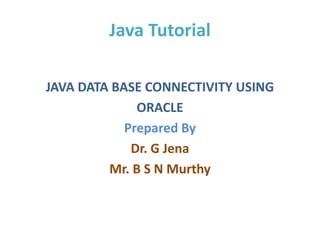

Java Tutorial
JAVA DATA BASE CONNECTIVITY USING
ORACLE
Prepared By
Dr. G Jena
Mr. B S N Murthy
JDBC Connection using Java
• Install JDK 1.5 and JRE 1.5 or later version
• Install Oracle 9i or later versions
• Crate data source name ‘dsn’ using following
steps:
1. Got Control Panel-> Administrative Tools->
Data Sources(ODBC)
Contd…
Contd…
2. Selest ‘Add’ -> Microsoft ODBC for Oracle
Contd…
3. Click ‘Finish’ and enter Data source name
->Ok.
Contd….
step 4: Go to Connection pooling tab->
Enable->Apply->Ok
Contd…
Write the Java source Code:
import java.sql.*;
class jdbc
{
public static void main(String args[])
{
try
{
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
Connection
con=DriverManager.getConnection("jdbc:odbc:dsn3","scott","tiger");
Statement st=con.createStatement();
String sq="create table student(roll number(4),name varchar2(10))";
Contd…
st.executeUpdate(sq);
st.executeUpdate("insert into student values(501,'Murthy1')");
st.executeUpdate("insert into student values(502,'Murthy2')");
System.out.println("table created ...");
st.close(); con.close();
}
catch(Exception e) { System.out.println(e.getMessage()); }
}
}
Cont….
• Compile the source code
C:> javac jdbc.java
• Run the java code
C:> java jdbc.
