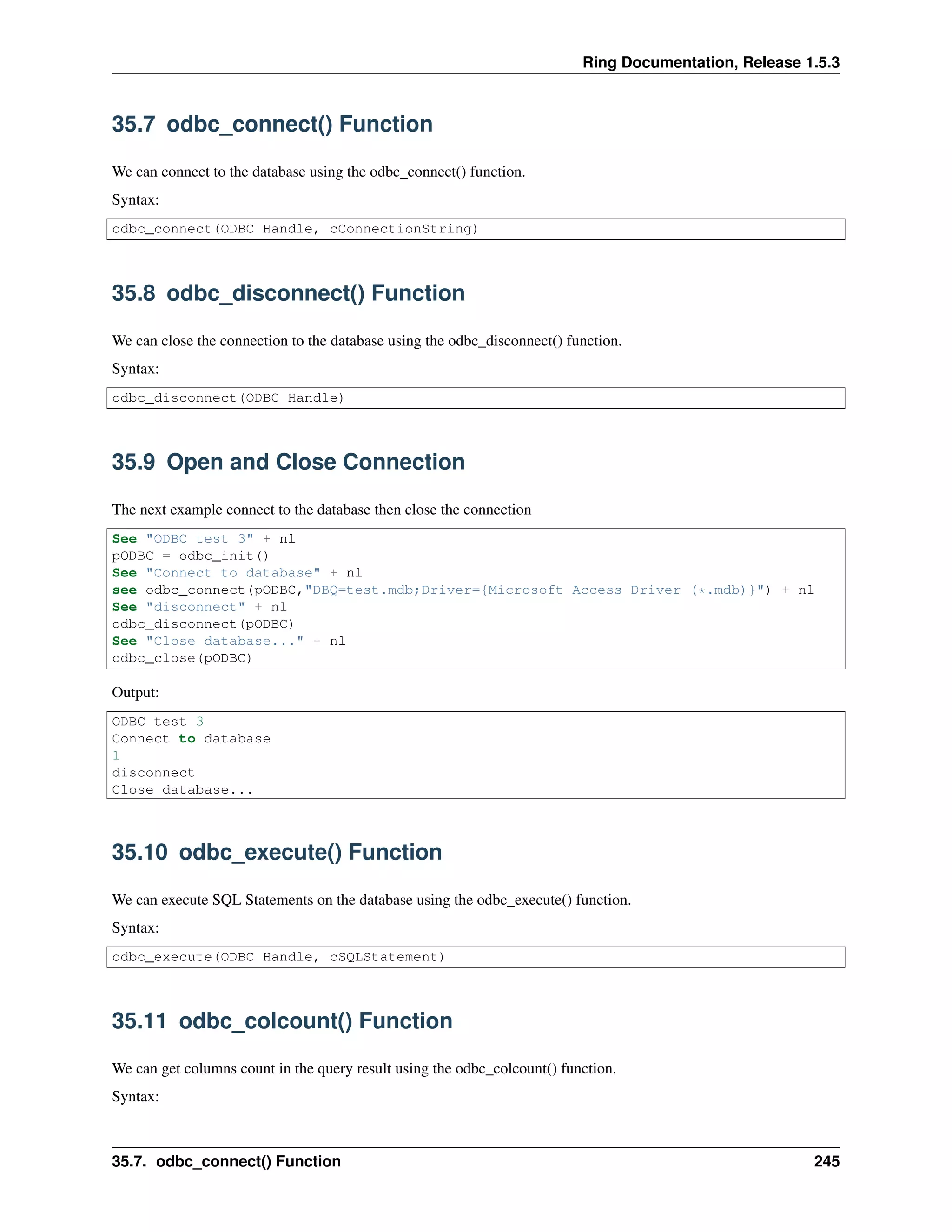

1. Ring Documentation, Release 1.5.3
35.7 odbc_connect() Function
We can connect to the database using the odbc_connect() function.
Syntax:
odbc_connect(ODBC Handle, cConnectionString)
35.8 odbc_disconnect() Function
We can close the connection to the database using the odbc_disconnect() function.
Syntax:
odbc_disconnect(ODBC Handle)
35.9 Open and Close Connection
The next example connect to the database then close the connection
See "ODBC test 3" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "disconnect" + nl
odbc_disconnect(pODBC)
See "Close database..." + nl
odbc_close(pODBC)
Output:
ODBC test 3
Connect to database
1
disconnect
Close database...
35.10 odbc_execute() Function
We can execute SQL Statements on the database using the odbc_execute() function.
Syntax:
odbc_execute(ODBC Handle, cSQLStatement)
35.11 odbc_colcount() Function
We can get columns count in the query result using the odbc_colcount() function.
Syntax:
35.7. odbc_connect() Function 245

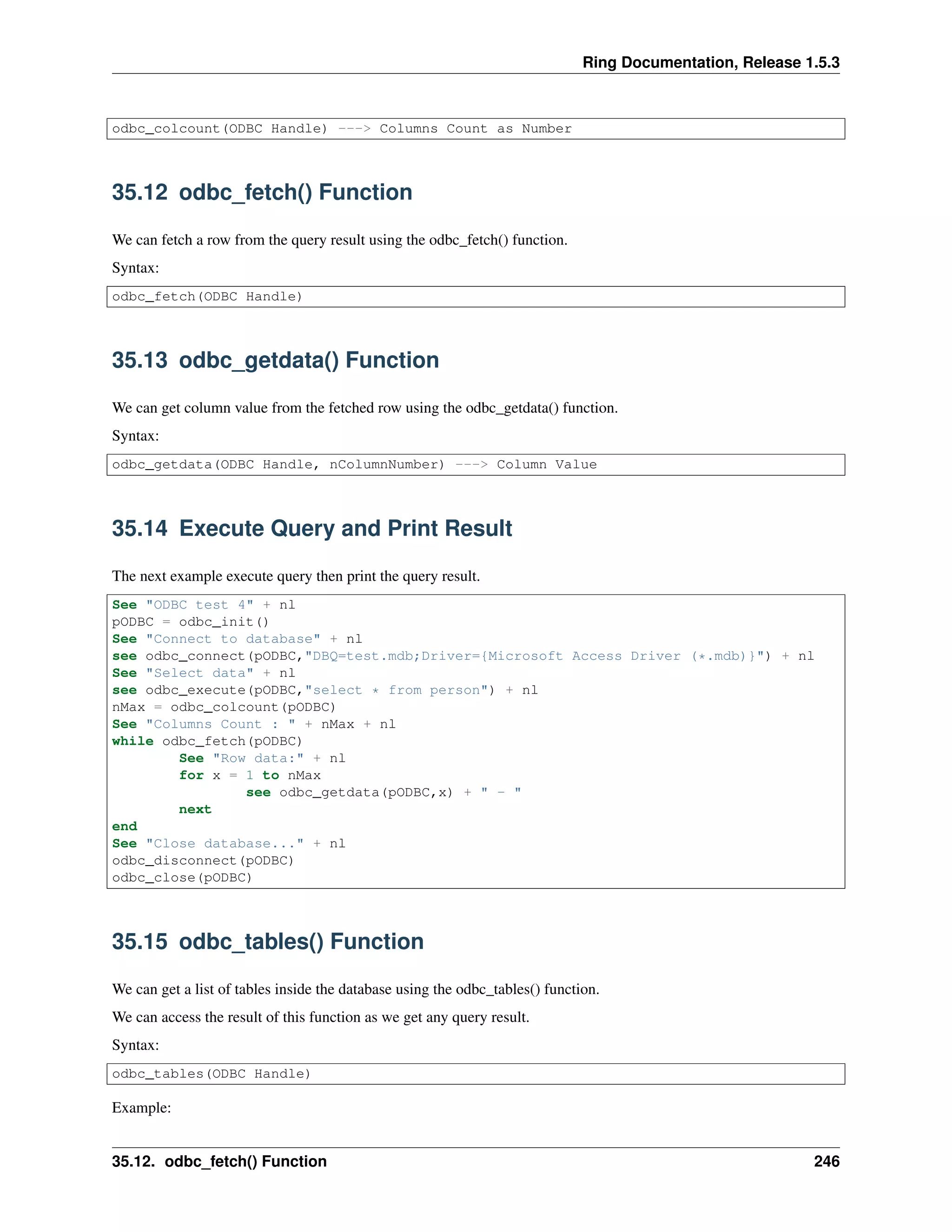

2. Ring Documentation, Release 1.5.3
odbc_colcount(ODBC Handle) ---> Columns Count as Number
35.12 odbc_fetch() Function
We can fetch a row from the query result using the odbc_fetch() function.
Syntax:
odbc_fetch(ODBC Handle)
35.13 odbc_getdata() Function
We can get column value from the fetched row using the odbc_getdata() function.
Syntax:
odbc_getdata(ODBC Handle, nColumnNumber) ---> Column Value
35.14 Execute Query and Print Result
The next example execute query then print the query result.
See "ODBC test 4" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Select data" + nl
see odbc_execute(pODBC,"select * from person") + nl
nMax = odbc_colcount(pODBC)
See "Columns Count : " + nMax + nl
while odbc_fetch(pODBC)
See "Row data:" + nl
for x = 1 to nMax
see odbc_getdata(pODBC,x) + " - "
next
end
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
35.15 odbc_tables() Function
We can get a list of tables inside the database using the odbc_tables() function.
We can access the result of this function as we get any query result.
Syntax:
odbc_tables(ODBC Handle)
Example:
35.12. odbc_fetch() Function 246

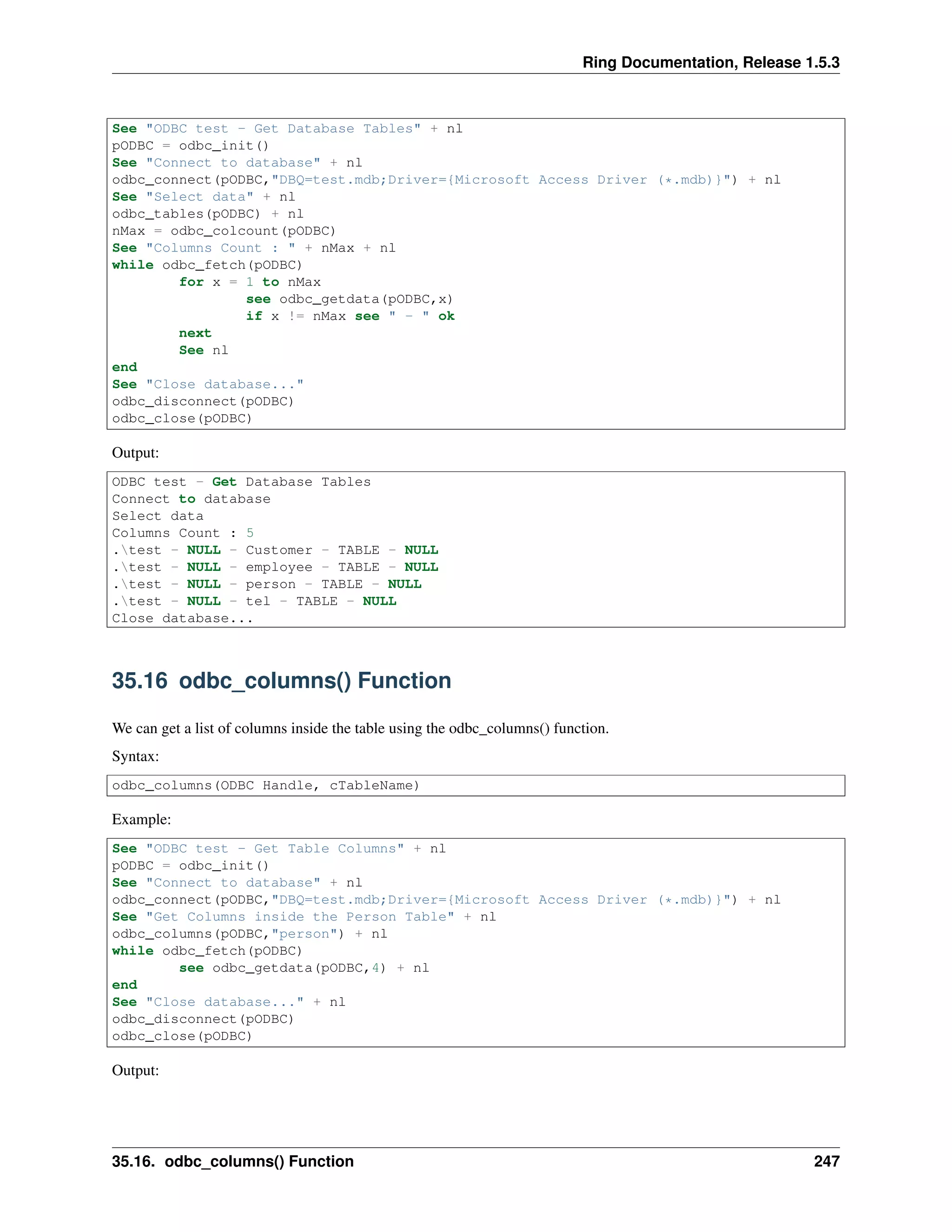

3. Ring Documentation, Release 1.5.3
See "ODBC test - Get Database Tables" + nl
pODBC = odbc_init()
See "Connect to database" + nl
odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Select data" + nl
odbc_tables(pODBC) + nl
nMax = odbc_colcount(pODBC)
See "Columns Count : " + nMax + nl
while odbc_fetch(pODBC)
for x = 1 to nMax
see odbc_getdata(pODBC,x)
if x != nMax see " - " ok
next
See nl
end
See "Close database..."
odbc_disconnect(pODBC)
odbc_close(pODBC)
Output:
ODBC test - Get Database Tables
Connect to database
Select data
Columns Count : 5
.test - NULL - Customer - TABLE - NULL
.test - NULL - employee - TABLE - NULL
.test - NULL - person - TABLE - NULL
.test - NULL - tel - TABLE - NULL
Close database...
35.16 odbc_columns() Function
We can get a list of columns inside the table using the odbc_columns() function.
Syntax:
odbc_columns(ODBC Handle, cTableName)
Example:
See "ODBC test - Get Table Columns" + nl
pODBC = odbc_init()
See "Connect to database" + nl
odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Get Columns inside the Person Table" + nl
odbc_columns(pODBC,"person") + nl
while odbc_fetch(pODBC)
see odbc_getdata(pODBC,4) + nl
end
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
Output:
35.16. odbc_columns() Function 247

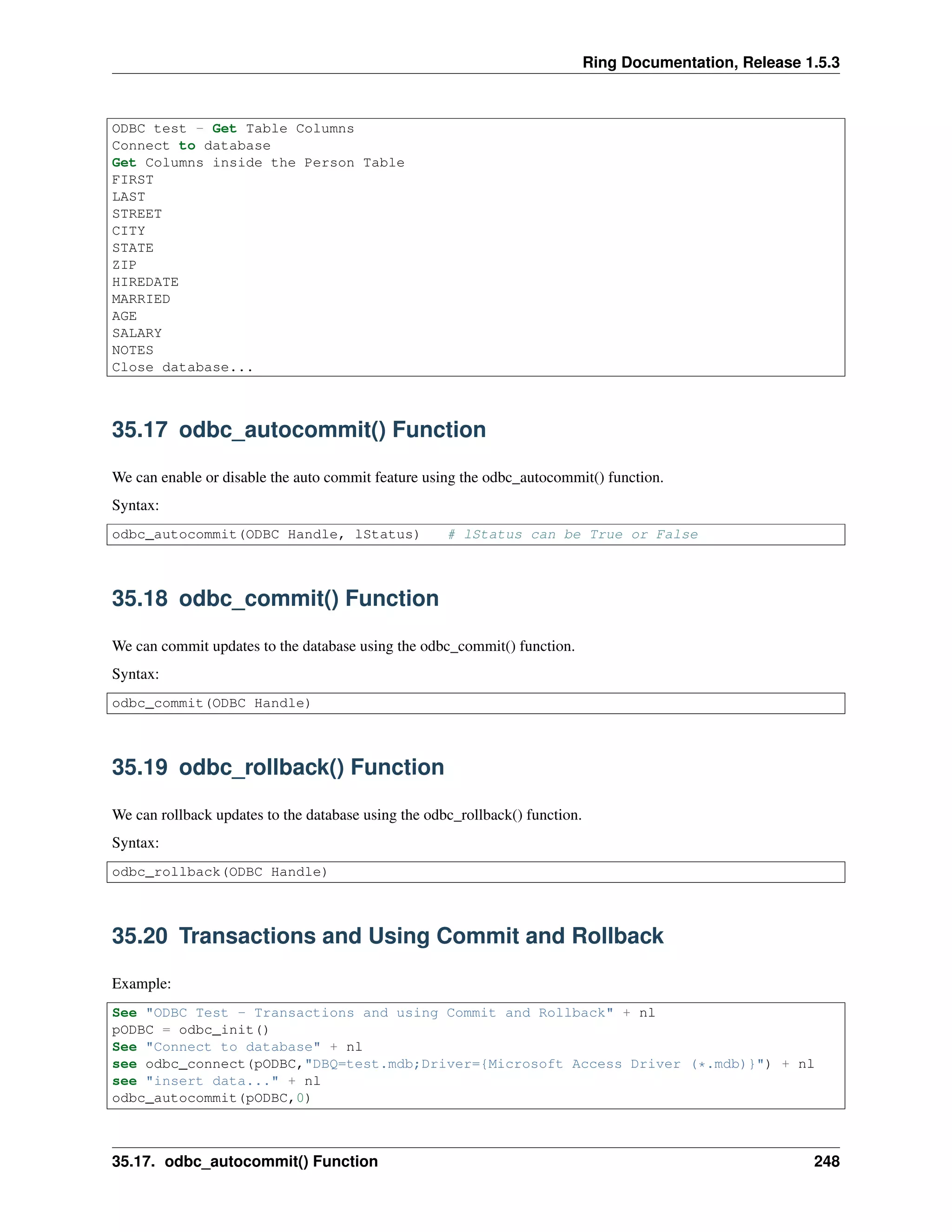

4. Ring Documentation, Release 1.5.3
ODBC test - Get Table Columns
Connect to database
Get Columns inside the Person Table
FIRST
LAST
STREET
CITY
STATE
ZIP
HIREDATE
MARRIED
AGE
SALARY
NOTES
Close database...
35.17 odbc_autocommit() Function
We can enable or disable the auto commit feature using the odbc_autocommit() function.
Syntax:
odbc_autocommit(ODBC Handle, lStatus) # lStatus can be True or False
35.18 odbc_commit() Function
We can commit updates to the database using the odbc_commit() function.
Syntax:
odbc_commit(ODBC Handle)
35.19 odbc_rollback() Function
We can rollback updates to the database using the odbc_rollback() function.
Syntax:
odbc_rollback(ODBC Handle)
35.20 Transactions and Using Commit and Rollback
Example:
See "ODBC Test - Transactions and using Commit and Rollback" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
see "insert data..." + nl
odbc_autocommit(pODBC,0)
35.17. odbc_autocommit() Function 248

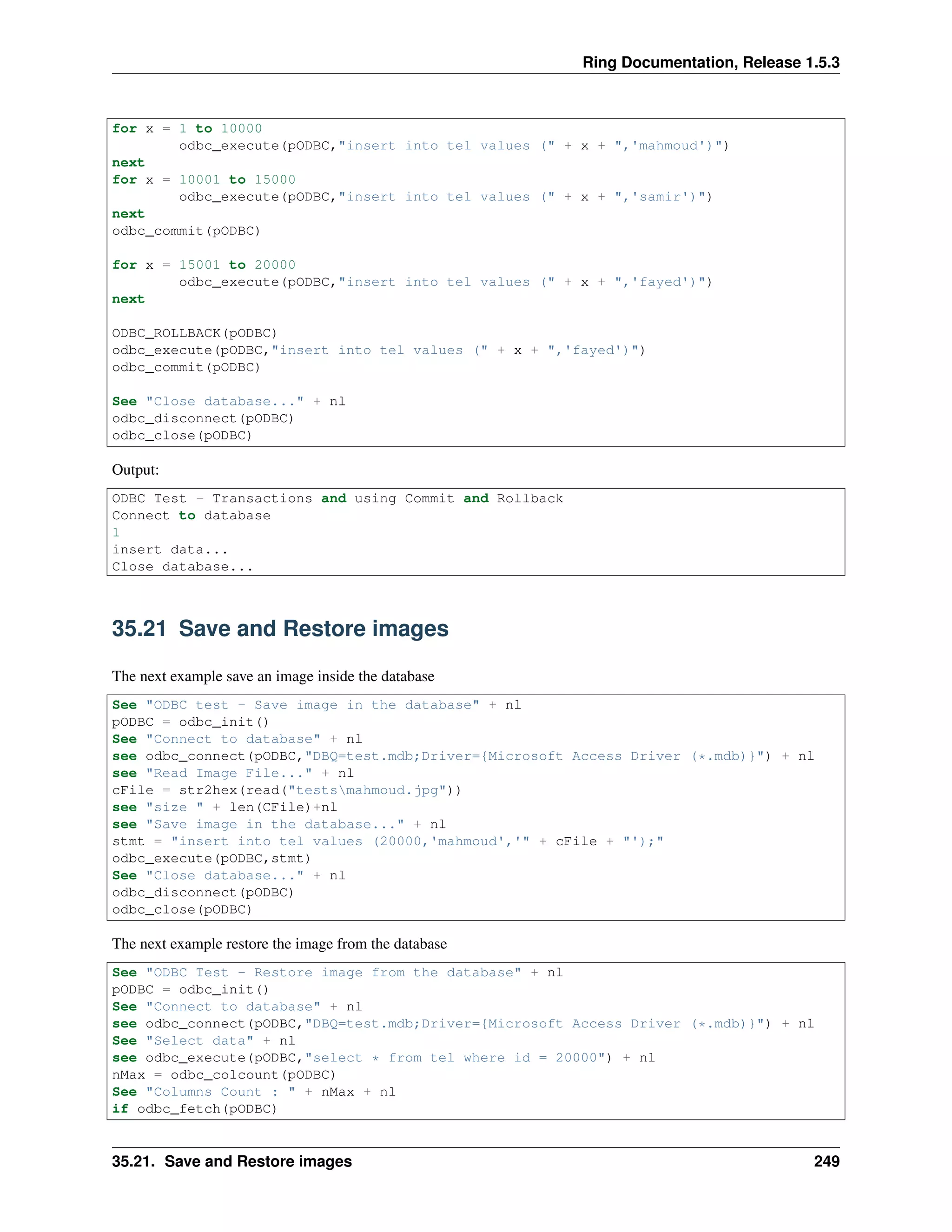

5. Ring Documentation, Release 1.5.3
for x = 1 to 10000
odbc_execute(pODBC,"insert into tel values (" + x + ",'mahmoud')")
next
for x = 10001 to 15000
odbc_execute(pODBC,"insert into tel values (" + x + ",'samir')")
next
odbc_commit(pODBC)
for x = 15001 to 20000
odbc_execute(pODBC,"insert into tel values (" + x + ",'fayed')")
next
ODBC_ROLLBACK(pODBC)
odbc_execute(pODBC,"insert into tel values (" + x + ",'fayed')")
odbc_commit(pODBC)
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
Output:
ODBC Test - Transactions and using Commit and Rollback
Connect to database
1
insert data...
Close database...
35.21 Save and Restore images
The next example save an image inside the database
See "ODBC test - Save image in the database" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
see "Read Image File..." + nl
cFile = str2hex(read("testsmahmoud.jpg"))
see "size " + len(CFile)+nl
see "Save image in the database..." + nl
stmt = "insert into tel values (20000,'mahmoud','" + cFile + "');"
odbc_execute(pODBC,stmt)
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
The next example restore the image from the database
See "ODBC Test - Restore image from the database" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Select data" + nl
see odbc_execute(pODBC,"select * from tel where id = 20000") + nl
nMax = odbc_colcount(pODBC)
See "Columns Count : " + nMax + nl
if odbc_fetch(pODBC)
35.21. Save and Restore images 249

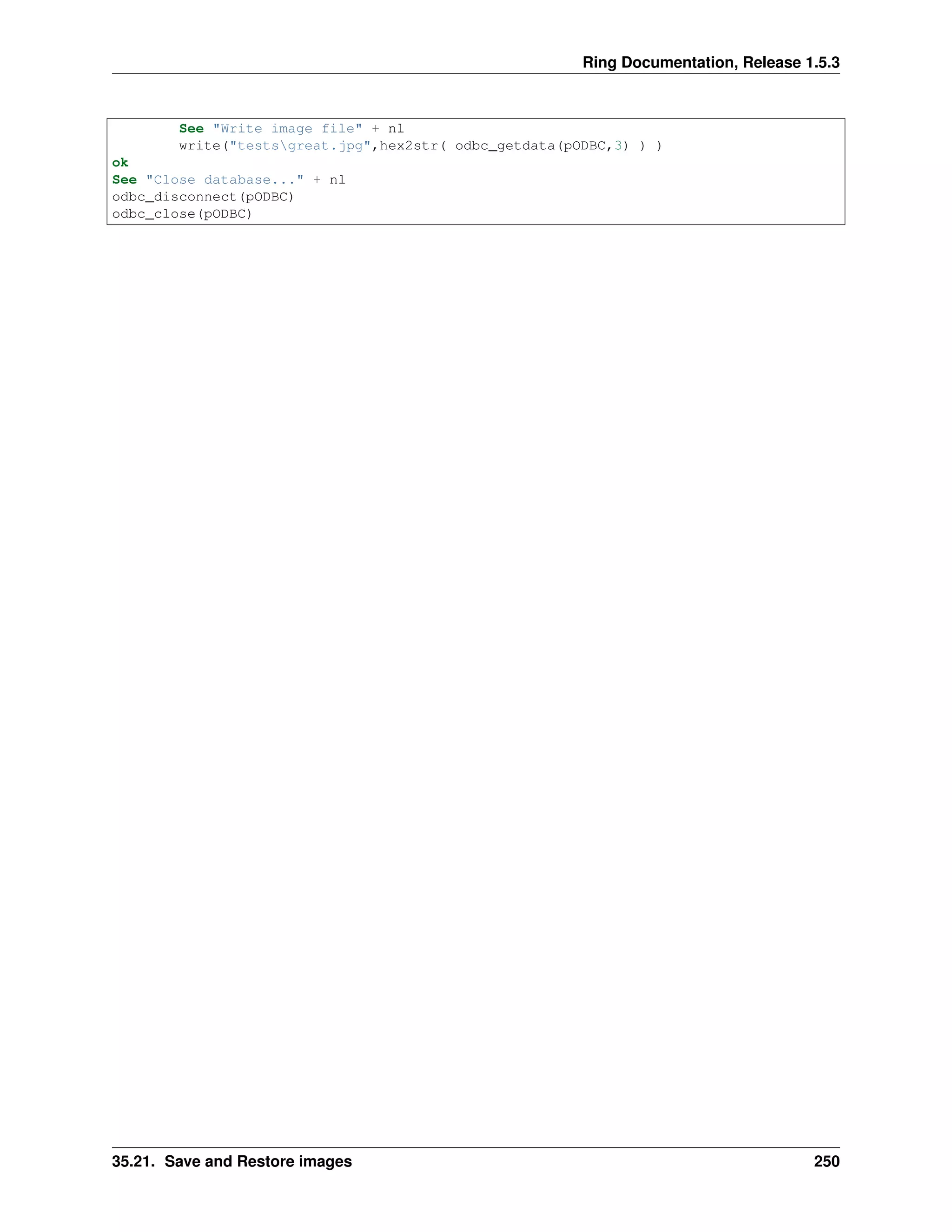

6. Ring Documentation, Release 1.5.3
See "Write image file" + nl
write("testsgreat.jpg",hex2str( odbc_getdata(pODBC,3) ) )
ok
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
35.21. Save and Restore images 250

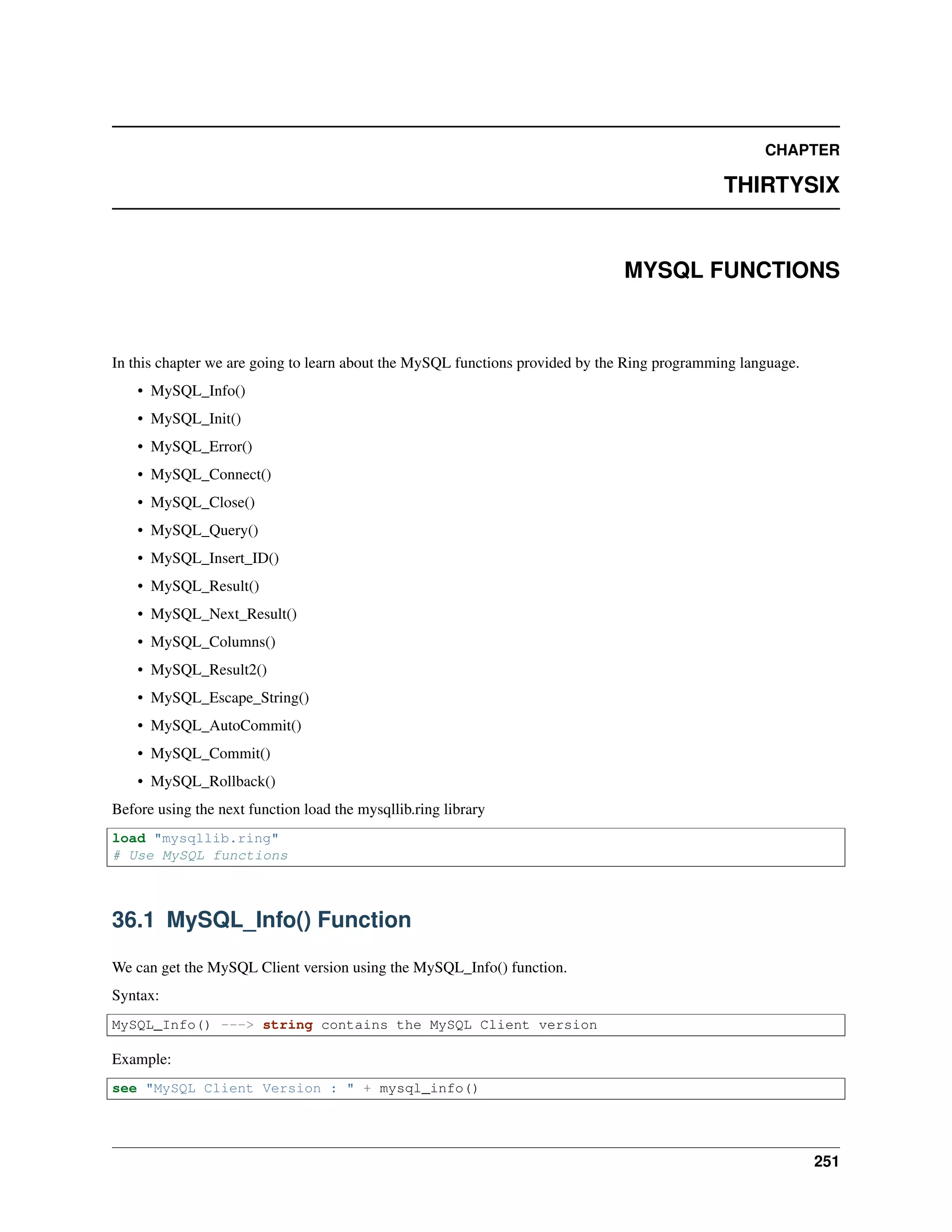

7. CHAPTER
THIRTYSIX
MYSQL FUNCTIONS
In this chapter we are going to learn about the MySQL functions provided by the Ring programming language.
• MySQL_Info()
• MySQL_Init()
• MySQL_Error()
• MySQL_Connect()
• MySQL_Close()
• MySQL_Query()
• MySQL_Insert_ID()
• MySQL_Result()
• MySQL_Next_Result()
• MySQL_Columns()
• MySQL_Result2()
• MySQL_Escape_String()
• MySQL_AutoCommit()
• MySQL_Commit()
• MySQL_Rollback()
Before using the next function load the mysqllib.ring library
load "mysqllib.ring"
# Use MySQL functions
36.1 MySQL_Info() Function
We can get the MySQL Client version using the MySQL_Info() function.
Syntax:
MySQL_Info() ---> string contains the MySQL Client version
Example:
see "MySQL Client Version : " + mysql_info()
251

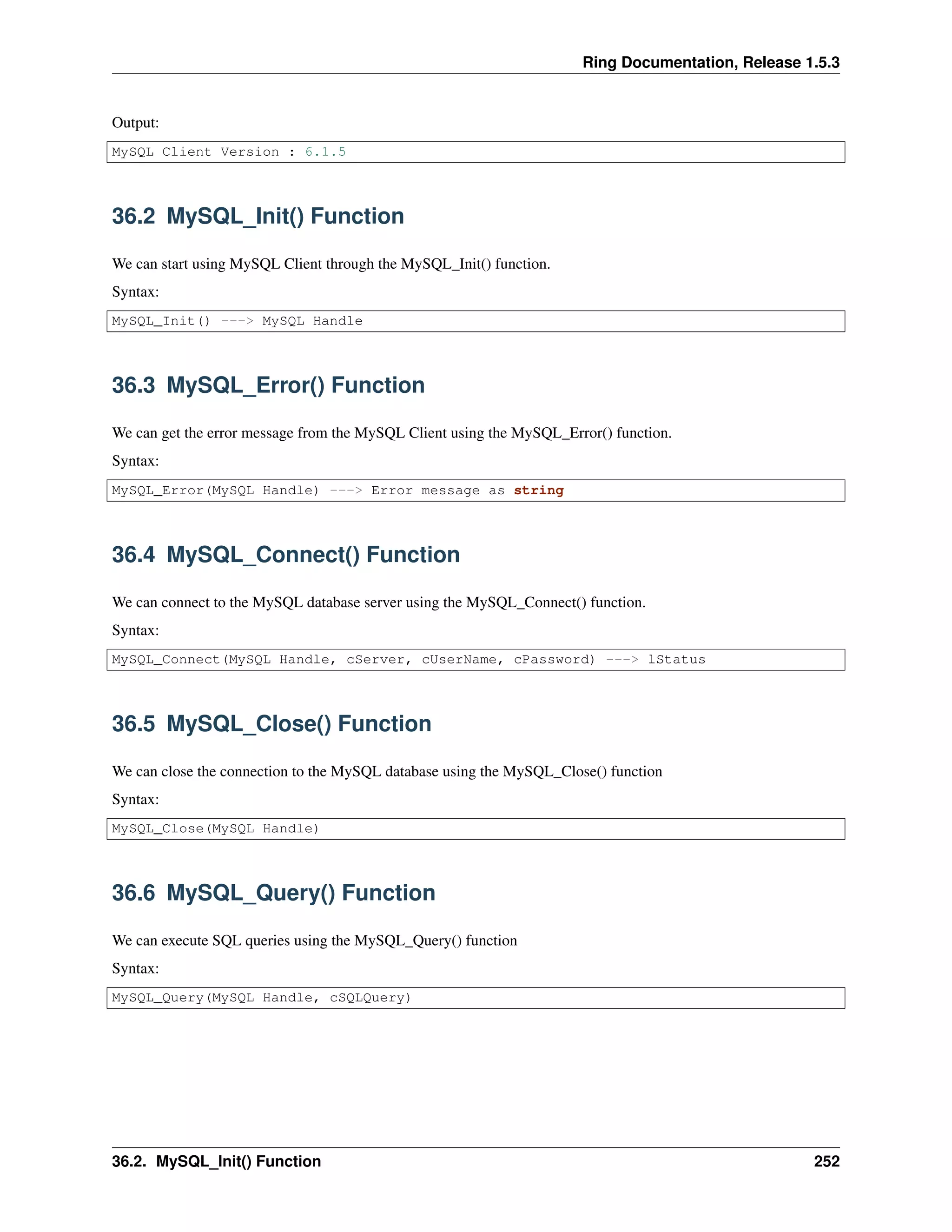

8. Ring Documentation, Release 1.5.3
Output:
MySQL Client Version : 6.1.5
36.2 MySQL_Init() Function
We can start using MySQL Client through the MySQL_Init() function.
Syntax:
MySQL_Init() ---> MySQL Handle
36.3 MySQL_Error() Function
We can get the error message from the MySQL Client using the MySQL_Error() function.
Syntax:
MySQL_Error(MySQL Handle) ---> Error message as string
36.4 MySQL_Connect() Function
We can connect to the MySQL database server using the MySQL_Connect() function.
Syntax:
MySQL_Connect(MySQL Handle, cServer, cUserName, cPassword) ---> lStatus
36.5 MySQL_Close() Function
We can close the connection to the MySQL database using the MySQL_Close() function
Syntax:
MySQL_Close(MySQL Handle)
36.6 MySQL_Query() Function
We can execute SQL queries using the MySQL_Query() function
Syntax:
MySQL_Query(MySQL Handle, cSQLQuery)
36.2. MySQL_Init() Function 252

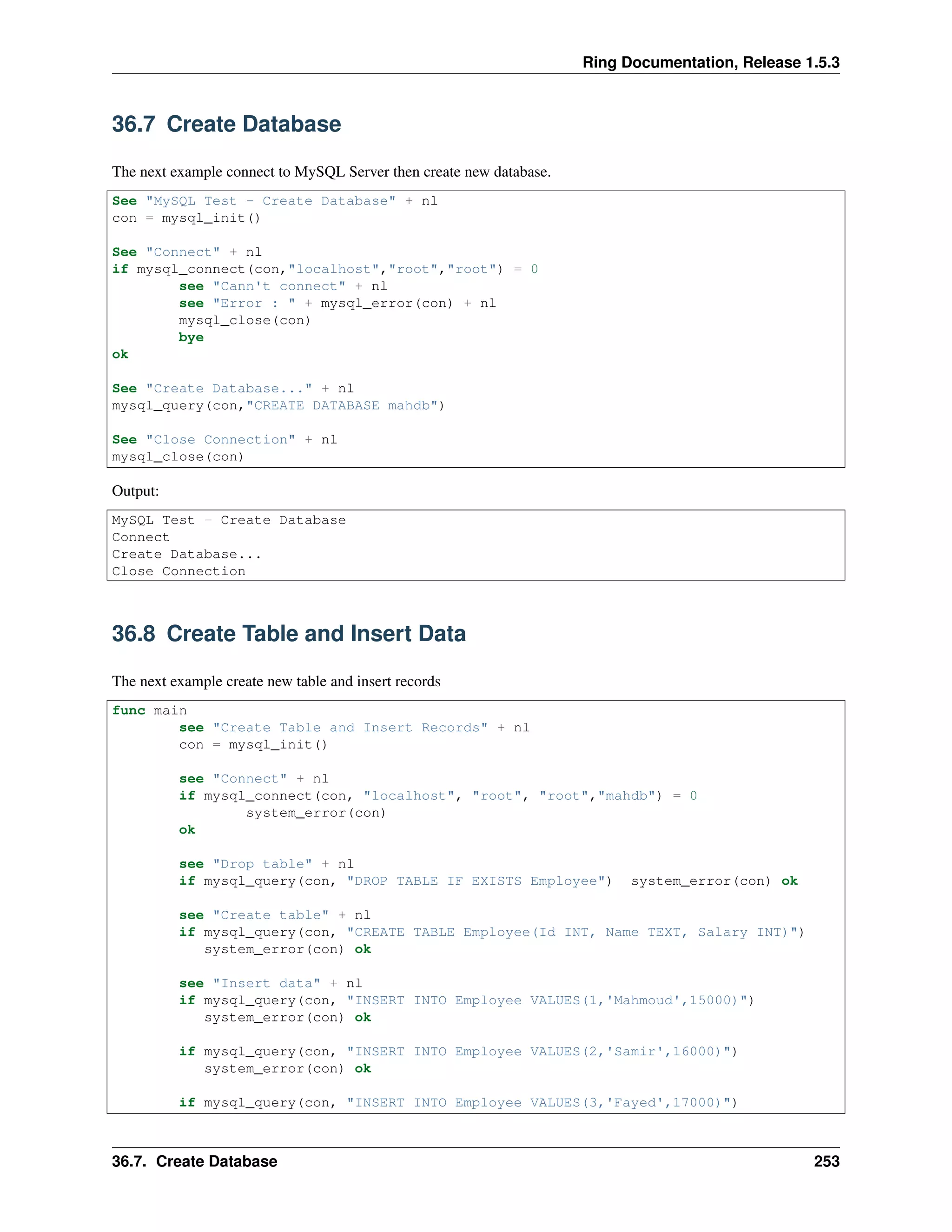

9. Ring Documentation, Release 1.5.3
36.7 Create Database
The next example connect to MySQL Server then create new database.
See "MySQL Test - Create Database" + nl
con = mysql_init()
See "Connect" + nl
if mysql_connect(con,"localhost","root","root") = 0
see "Cann't connect" + nl
see "Error : " + mysql_error(con) + nl
mysql_close(con)
bye
ok
See "Create Database..." + nl
mysql_query(con,"CREATE DATABASE mahdb")
See "Close Connection" + nl
mysql_close(con)
Output:
MySQL Test - Create Database
Connect
Create Database...
Close Connection
36.8 Create Table and Insert Data
The next example create new table and insert records
func main
see "Create Table and Insert Records" + nl
con = mysql_init()
see "Connect" + nl
if mysql_connect(con, "localhost", "root", "root","mahdb") = 0
system_error(con)
ok
see "Drop table" + nl
if mysql_query(con, "DROP TABLE IF EXISTS Employee") system_error(con) ok
see "Create table" + nl
if mysql_query(con, "CREATE TABLE Employee(Id INT, Name TEXT, Salary INT)")
system_error(con) ok
see "Insert data" + nl
if mysql_query(con, "INSERT INTO Employee VALUES(1,'Mahmoud',15000)")
system_error(con) ok
if mysql_query(con, "INSERT INTO Employee VALUES(2,'Samir',16000)")
system_error(con) ok
if mysql_query(con, "INSERT INTO Employee VALUES(3,'Fayed',17000)")
36.7. Create Database 253

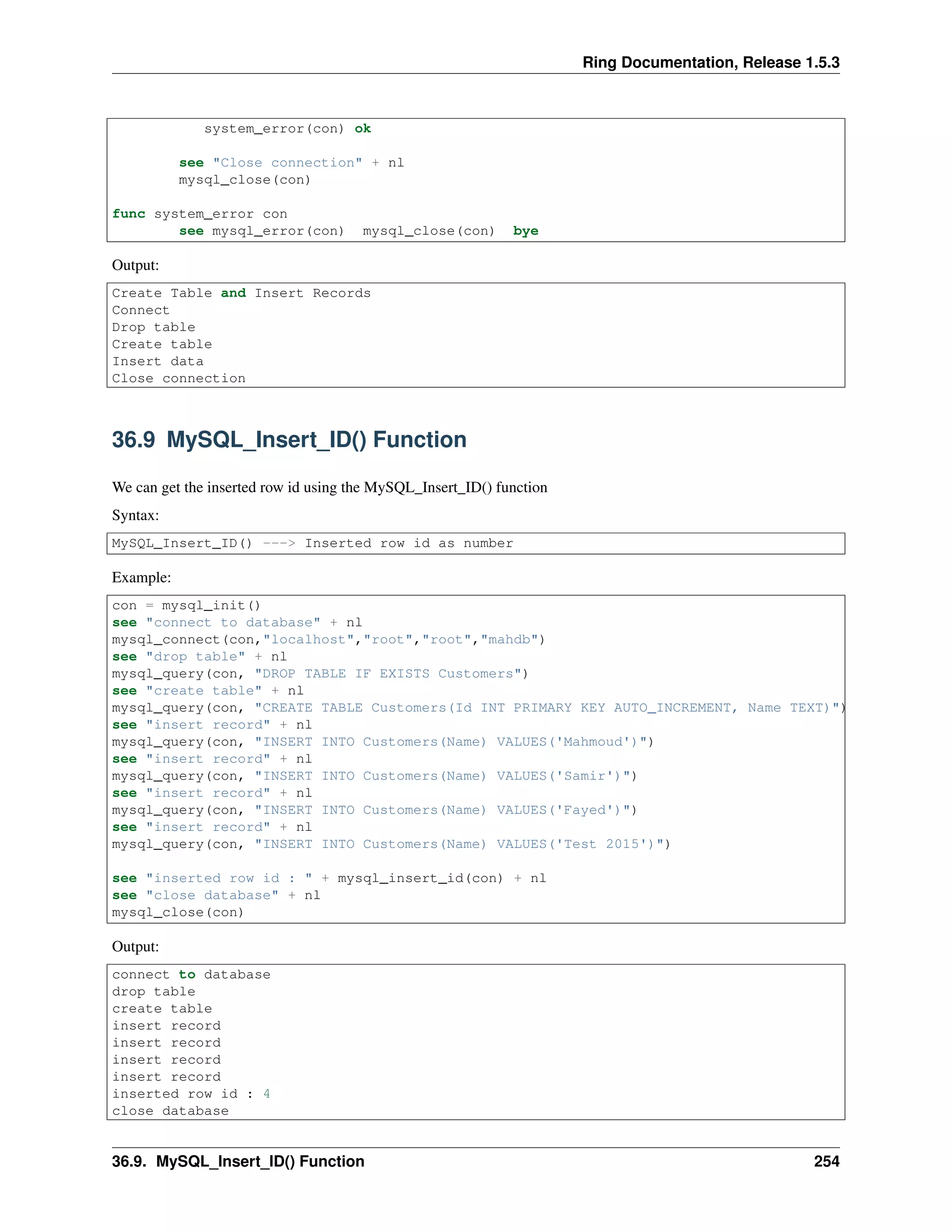

10. Ring Documentation, Release 1.5.3
system_error(con) ok
see "Close connection" + nl
mysql_close(con)
func system_error con
see mysql_error(con) mysql_close(con) bye
Output:
Create Table and Insert Records
Connect
Drop table
Create table
Insert data
Close connection
36.9 MySQL_Insert_ID() Function
We can get the inserted row id using the MySQL_Insert_ID() function
Syntax:
MySQL_Insert_ID() ---> Inserted row id as number
Example:
con = mysql_init()
see "connect to database" + nl
mysql_connect(con,"localhost","root","root","mahdb")
see "drop table" + nl
mysql_query(con, "DROP TABLE IF EXISTS Customers")
see "create table" + nl
mysql_query(con, "CREATE TABLE Customers(Id INT PRIMARY KEY AUTO_INCREMENT, Name TEXT)")
see "insert record" + nl
mysql_query(con, "INSERT INTO Customers(Name) VALUES('Mahmoud')")
see "insert record" + nl
mysql_query(con, "INSERT INTO Customers(Name) VALUES('Samir')")
see "insert record" + nl
mysql_query(con, "INSERT INTO Customers(Name) VALUES('Fayed')")
see "insert record" + nl
mysql_query(con, "INSERT INTO Customers(Name) VALUES('Test 2015')")
see "inserted row id : " + mysql_insert_id(con) + nl
see "close database" + nl
mysql_close(con)
Output:
connect to database
drop table
create table
insert record
insert record
insert record
insert record
inserted row id : 4
close database
36.9. MySQL_Insert_ID() Function 254
