1. ITTEHAD CHEMICAL
INTERNSHIP REPORT
Hamidmalik Aftab 8/16/14 Internship

2. HAMIDMALIKAFTAB 1
ITTEHAD CHEMICAL

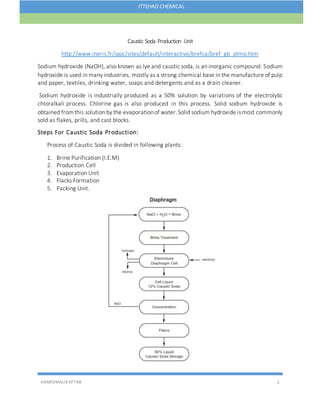

Caustic Soda Production Unit
http://www.ineris.fr/ippc/sites/default/interactive/brefca/bref_gb_ptmo.htm
Sodium hydroxide (NaOH), also known as lye and caustic soda, is an inorganic compound. Sodium
hydroxide is used in many industries, mostly as a strong chemical base in the manufacture of pulp
and paper, textiles, drinking water, soaps and detergents and as a drain cleaner.
Sodium hydroxide is industrially produced as a 50% solution by variations of the electrolytic
chloralkali process. Chlorine gas is also produced in this process. Solid sodium hydroxide is
obtained fromthis solution by the evaporationof water.Solid sodium hydroxide ismost commonly
sold as flakes, prills, and cast blocks.
Steps For Caustic Soda Production:
Process of Caustic Soda is divided in following plants:
1. Brine Purification (I.E.M)
2. Production Cell
3. Evaporation Unit
4. Flacks Formation
5. Packing Unit.

3. HAMIDMALIKAFTAB 2
ITTEHAD CHEMICAL

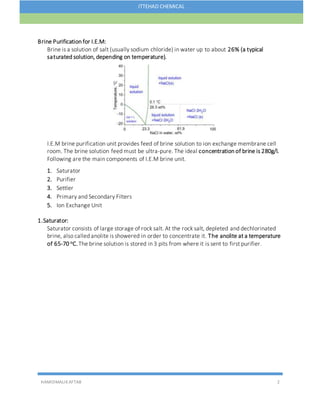

Brine Purification for I.E.M:
Brine is a solution of salt (usually sodium chloride) in water up to about 26% (a typical
saturated solution, depending on temperature).
I.E.M brine purification unit provides feed of brine solution to ion exchange membrane cell
room. The brine solution feed must be ultra-pure. The ideal concentration of brine is 280g/l.
Following are the main components of I.E.M brine unit.
1. Saturator
2. Purifier
3. Settler
4. Primary and Secondary Filters
5. Ion Exchange Unit
1.Saturator:
Saturator consists of large storage of rock salt. At the rock salt, depleted and dechlorinated
brine, also called anolite is showered in order to concentrate it. The anolite at a temperature
of 65-70 oC.The brine solution is stored in 3 pits from where it is sent to first purifier.

4. HAMIDMALIKAFTAB 3
ITTEHAD CHEMICAL

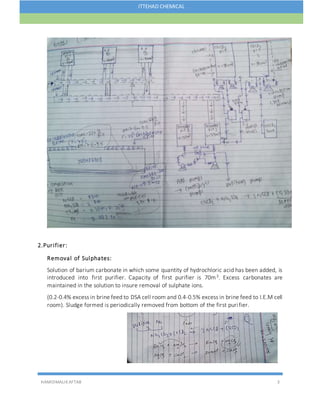

2.Purifier:
Removal of Sulphates:
Solution of barium carbonate in which some quantity of hydrochloric acid has been added, is
introduced into first purifier. Capacity of first purifier is 70m3. Excess carbonates are
maintained in the solution to insure removal of sulphate ions.
(0.2-0.4% excess in brine feed to DSA cell room and 0.4-0.5% excess in brine feed to I.E.M cell
room). Sludge formed is periodically removed from bottom of the first purifier.

5. HAMIDMALIKAFTAB 4
ITTEHAD CHEMICAL

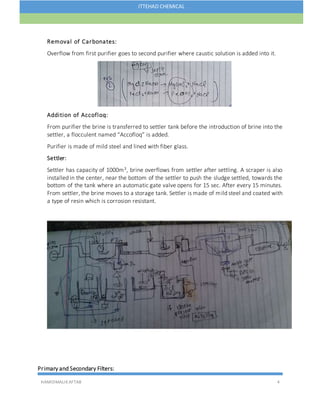

Removal of Carbonates:
Overflow from first purifier goes to second purifier where caustic solution is added into it.
Addition of Accofloq:
From purifier the brine is transferred to settler tank before the introduction of brine into the
settler, a flocculent named “Accofloq” is added.
Purifier is made of mild steel and lined with fiber glass.
Settler:
Settler has capacity of 1000m3, brine overflows from settler after settling. A scraper is also
installed in the center, near the bottom of the settler to push the sludge settled, towards the
bottom of the tank where an automatic gate valve opens for 15 sec. After every 15 minutes.
From settler, the brine moves to a storage tank. Settler is made of mild steel and coated with
a type of resin which is corrosion resistant.
Primary and Secondary Filters:

6. HAMIDMALIKAFTAB 5
ITTEHAD CHEMICAL
Primary Filter:
From settler, the brine moves to a series of filters where 5 different layers of pebbles are
used to filter the brine solution. The layer at the top is of anthracite and remaining layer is of
pebbles whose size increases from top to bottom.
Secondary Filters:
In secondary filters, 140 tubes of CPVC are installed, sleeves and a sock is mounted over it.
Alpha cellulose is filled into the filter o wet the sock with it and subsequently drained
before the purifier start operation. And then the brine is passed through the tubes.
Impurities stick with alpha cellulose and are washed later during regeneration. From
secondary filters, brine is pumped to feed tank for ion exchange unit.

7. HAMIDMALIKAFTAB 6
ITTEHAD CHEMICAL
Ion Exchange Unit:
From secondary filters, brine is transferred to ion exchange unit, where an ion exchange
resin of general formula R-Na2 is used to completely remove all impurities out of it. The
purified brine is then sent to I.E.M cell room.
I.E.M unit:
The cells are not only the most important but also the most component of cell rooms.
Construction:
A cell consists of following parts.
1. Bulk Heads
2. Bulk Head Insulators
3. Inter Cells Spacers
4. Current Distributers (made of coppers with mesh of nickel sticking over it)
5. Membranes g
6. Electrode Plates
 Cathode is made of Nickel
 Anode is made of titanium
Electrodes are activated with coating of noble metals to minimize voltage drop. Life of
electrodes depends on chlorine formed. Greater the chlorine lesser will be the life.

8. HAMIDMALIKAFTAB 7
ITTEHAD CHEMICAL

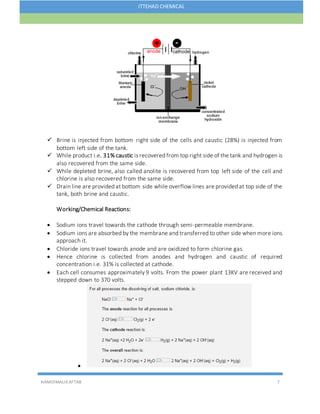

 Brine is injected from bottom right side of the cells and caustic (28%) is injected from
bottom left side of the tank.
 While product i.e. 31% caustic is recovered from top right side of the tank and hydrogen is
also recovered from the same side.
 While depleted brine, also called anolite is recovered from top left side of the cell and
chlorine is also recovered from the same side.
 Drain line are provided at bottom side while overflow lines are provided at top side of the
tank, both brine and caustic.
Working/Chemical Reactions:
 Sodium ions travel towards the cathode through semi-permeable membrane.
 Sodium ions are absorbed by the membrane and transferred to other side when more ions
approach it.
 Chloride ions travel towards anode and are oxidized to form chlorine gas.
 Hence chlorine is collected from anodes and hydrogen and caustic of required
concentration i.e. 31% is collected at cathode.
 Each cell consumes approximately 9 volts. From the power plant 13KV are received and
stepped down to 370 volts.


9. HAMIDMALIKAFTAB 8
ITTEHAD CHEMICAL

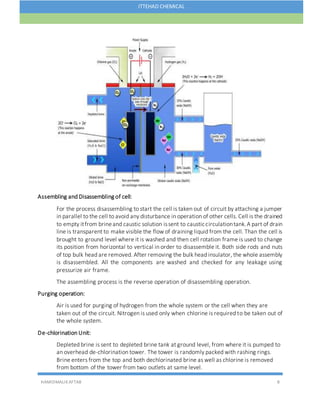

Assembling and Disassembling of cell:
For the process disassembling to start the cell is taken out of circuit by attaching a jumper
in parallel to the cell to avoid any disturbance in operation of other cells. Cell is the drained
to empty itfrom brineand caustic solution issent to causticcirculationtank.A part of drain
line is transparent to make visible the flow of draining liquid from the cell. Than the cell is
brought to ground level where it is washed and then cell rotation frame is used to change
its position from horizontal to vertical in order to disassemble it. Both side rods and nuts
of top bulk head are removed. After removing the bulk head insulator, the whole assembly
is disassembled. All the components are washed and checked for any leakage using
pressurize air frame.
The assembling process is the reverse operation of disassembling operation.
Purging operation:
Air is used for purging of hydrogen from the whole system or the cell when they are
taken out of the circuit. Nitrogen is used only when chlorine is required to be taken out of
the whole system.
De-chlorination Unit:
Depleted brine is sent to depleted brine tank at ground level, from where it is pumped to
an overhead de-chlorination tower. The tower is randomly packed with rashing rings.
Brine enters from the top and both dechlorinated brine as well as chlorine is removed
from bottom of the tower from two outlets at same level.

10. HAMIDMALIKAFTAB 9
ITTEHAD CHEMICAL

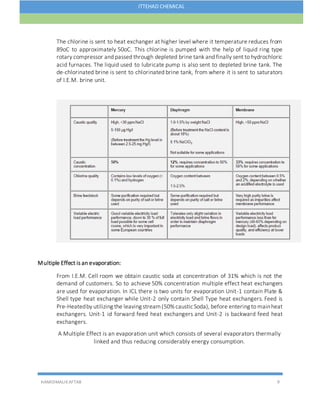

The chlorine is sent to heat exchanger at higher level where it temperature reduces from
89oC to approximately 50oC. This chlorine is pumped with the help of liquid ring type
rotary compressor and passed through depleted brine tank and finally sent to hydrochloric
acid furnaces. The liquid used to lubricate pump is also sent to depleted brine tank. The
de-chlorinated brine is sent to chlorinated brine tank, from where it is sent to saturators
of I.E.M. brine unit.
Multiple Effect is an evaporation:
From I.E.M. Cell room we obtain caustic soda at concentration of 31% which is not the
demand of customers. So to achieve 50% concentration multiple effect heat exchangers
are used for evaporation. In ICL there is two units for evaporation Unit-1 contain Plate &
Shell type heat exchanger while Unit-2 only contain Shell Type heat exchangers. Feed is
Pre-Heatedby utilizing the leaving stream(50% causticSoda), before entering to mainheat
exchangers. Unit-1 id forward feed heat exchangers and Unit-2 is backward feed heat
exchangers.
A Multiple Effect is an evaporation unit which consists of several evaporators thermally
linked and thus reducing considerably energy consumption.

11. HAMIDMALIKAFTAB 10
ITTEHAD CHEMICAL

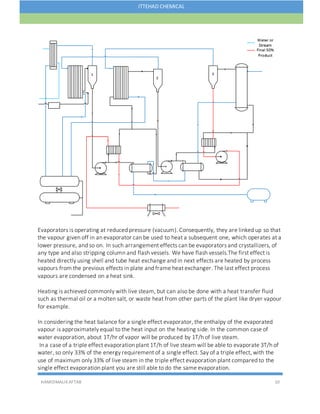

Evaporators is operating at reduced pressure (vacuum). Consequently, they are linked up so that
the vapour given off in an evaporator can be used to heat a subsequent one, which operates at a
lower pressure, and so on. In such arrangement effects can be evaporators and crystallizers, of
any type and also stripping column and flash vessels. We have flash vessels.The first effect is
heated directly using shell and tube heat exchange and in next effects are heated by process
vapours from the previous effects in plate and frame heat exchanger. The last effect process
vapours are condensed on a heat sink.
Heating is achieved commonly with live steam, but can also be done with a heat transfer fluid
such as thermal oil or a molten salt, or waste heat from other parts of the plant like dryer vapour
for example.
In considering the heat balance for a single effect evaporator, the enthalpy of the evaporated
vapour is approximately equal to the heat input on the heating side. In the common case of
water evaporation, about 1T/hr of vapor will be produced by 1T/h of live steam.
In a case of a triple effect evaporation plant 1T/h of live steam will be able to evaporate 3T/h of
water, so only 33% of the energy requirement of a single effect. Say of a triple effect, with the
use of maximum only 33% of live steam in the triple effect evaporation plant compared to the
single effect evaporation plant you are still able to do the same evaporation.

12. HAMIDMALIKAFTAB 11
ITTEHAD CHEMICAL

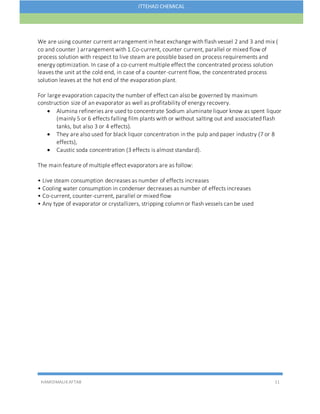

We are using counter current arrangement in heat exchange with flash vessel 2 and 3 and mix (
co and counter ) arrangement with 1.Co-current, counter current, parallel or mixed flow of
process solution with respect to live steam are possible based on process requirements and
energy optimization. In case of a co-current multiple effect the concentrated process solution
leaves the unit at the cold end, in case of a counter-current flow, the concentrated process
solution leaves at the hot end of the evaporation plant.
For large evaporation capacity the number of effect can also be governed by maximum
construction size of an evaporator as well as profitability of energy recovery.
 Alumina refineries are used to concentrate Sodium aluminate liquor know as spent liquor
(mainly 5 or 6 effects falling film plants with or without salting out and associated flash
tanks, but also 3 or 4 effects).
 They are also used for black liquor concentration in the pulp and paper industry (7 or 8
effects),
 Caustic soda concentration (3 effects is almost standard).
The main feature of multiple effect evaporators are as follow:
• Live steam consumption decreases as number of effects increases
• Cooling water consumption in condenser decreases as number of effects increases
• Co-current, counter-current, parallel or mixed flow
• Any type of evaporator or crystallizers, stripping column or flash vessels can be used
