2 Summer Internship (machine shop) at Uflex Ltd.

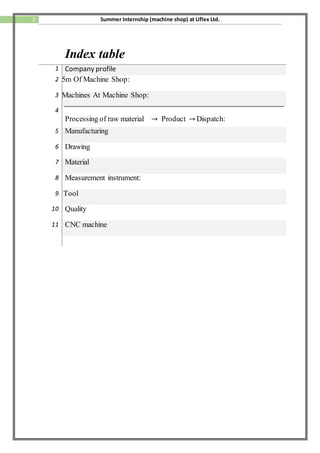

Index table
1 Company profile
2 5m Of Machine Shop:
3 Machines At Machine Shop:
4
Processing of raw material → Product → Dispatch:
5 Manufacturing
6 Drawing
7 Material
8 Measurement instrument:
9 Tool
10 Quality
11 CNC machine

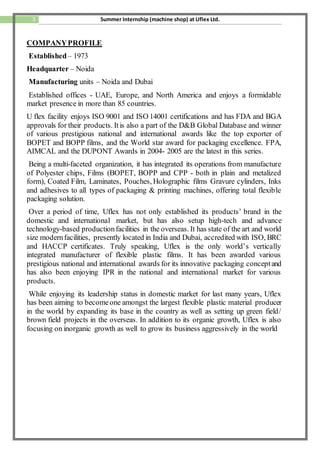

COMPANYPROFILE
Established– 1973
Headquarter – Noida
Manufacturing units – Noida and Dubai
Established offices - UAE, Europe, and North America and enjoys a formidable
market presence in more than 85 countries.
U flex facility enjoys ISO 9001 and ISO 14001 certifications and has FDA and BGA
approvals for their products. Itis also a part of the D&B Global Database and winner
of various prestigious national and international awards like the top exporter of
BOPET and BOPP films, and the World star award for packaging excellence. FPA,
AIMCAL and the DUPONT Awards in 2004- 2005 are the latest in this series.
Being a multi-faceted organization, it has integrated its operations from manufacture
of Polyester chips, Films (BOPET, BOPP and CPP - both in plain and metalized
form), Coated Film, Laminates, Pouches, Holographic films Gravure cylinders, Inks
and adhesives to all types of packaging & printing machines, offering total flexible
packaging solution.
Over a period of time, Uflex has not only established its products’ brand in the
domestic and international market, but has also setup high-tech and advance
technology-based productionfacilities in the overseas. It has state of the art and world
size modernfacilities, presently located in India and Dubai, accredited with ISO, BRC
and HACCP certificates. Truly speaking, Uflex is the only world’s vertically
integrated manufacturer of flexible plastic films. It has been awarded various
prestigious national and international awards for its innovative packaging conceptand
has also been enjoying IPR in the national and international market for various
products.
While enjoying its leadership status in domestic market for last many years, Uflex
has been aiming to becomeone amongst the largest flexible plastic material producer
in the world by expanding its base in the country as well as setting up green field/
brown field projects in the overseas. In addition to its organic growth, Uflex is also
focusing on inorganic growth as well to grow its business aggressively in the world

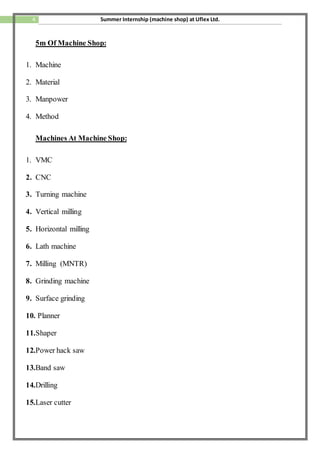

5m Of Machine Shop:
1. Machine
2. Material
3. Manpower
4. Method
Machines At Machine Shop:
1. VMC
2. CNC
3. Turning machine
4. Vertical milling
5. Horizontal milling
6. Lath machine
7. Milling (MNTR)
8. Grinding machine
9. Surface grinding
10. Planner
11.Shaper
12.Power hack saw
13.Band saw
14.Drilling
15.Laser cutter

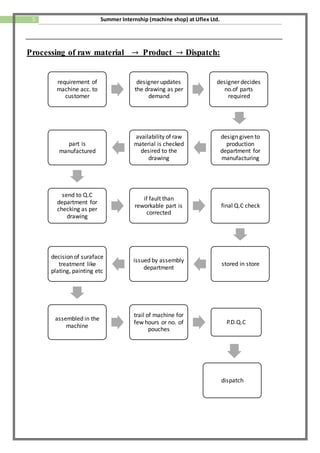

Processing of raw material → Product → Dispatch:
requirement of
machine acc. to
customer
designer updates
the drawing as per
demand
designer decides
no.of parts
required
design given to
production
department for
manufacturing
availability of raw
material is checked
desired to the
drawing
part is
manufactured
send to Q.C
department for
checking as per
drawing
if fault than
reworkable part is
corrected
final Q.C check
stored in store
issued by assembly
department
decision of suraface
treatment like
plating, painting etc
assembled in the
machine
trail of machine for
few hours or no. of
pouches
P.D.Q.C
dispatch

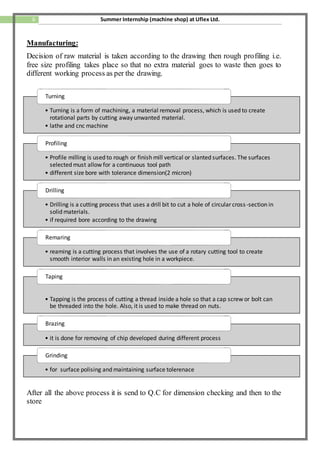

Manufacturing:
Decision of raw material is taken according to the drawing then rough profiling i.e.
free size profiling takes place so that no extra material goes to waste then goes to
different working process as per the drawing.
After all the above process it is send to Q.C for dimension checking and then to the
store
• Turning is a form of machining, a material removal process, which is used to create
rotational parts by cutting away unwanted material.
• lathe and cnc machine
Turning
• Profile milling is used to rough or finish mill vertical or slanted surfaces. The surfaces
selected must allow for a continuous tool path
• different size bore with tolerance dimension(2 micron)
Profiling
• Drilling is a cutting process that uses a drill bit to cut a hole of circular cross-section in
solid materials.
• if required bore according to the drawing
Drilling
• reaming is a cutting process that involves the use of a rotary cutting tool to create
smooth interior walls in an existing hole in a workpiece.
Remaring
• Tapping is the process of cutting a thread inside a hole so that a cap screw or bolt can
be threaded into the hole. Also, it is used to make thread on nuts.
Taping
• it is done for removing of chip developed during different process
Brazing
• for surface polising and maintaining surface tolerenace
Grinding

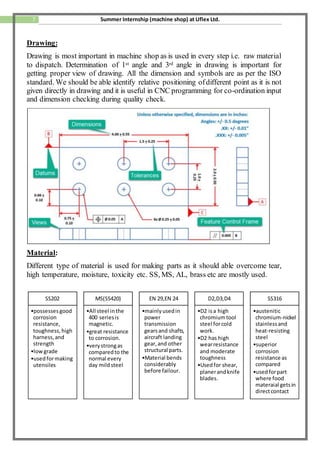

Drawing:
Drawing is most important in machine shop as is used in every step i.e. raw material
to dispatch. Determination of 1st angle and 3rd angle in drawing is important for
getting proper view of drawing. All the dimension and symbols are as per the ISO
standard. We should be able identify relative positioning ofdifferent point as it is not
given directly in drawing and it is useful in CNC programming for co-ordination input
and dimension checking during quality check.
Material:
Different type of material is used for making parts as it should able overcome tear,
high temperature, moisture, toxicity etc. SS, MS, AL, brass etc are mostly used.
SS202
•possessesgood
corrosion
resistance,
toughness, high
harness, and
strength
•low grade
•usedformaking
utensiles
MS(SS420)
•All steel inthe
400 seriesis
magnetic.
•great resistance
to corrosion.
•verystrongas
comparedto the
normal every
day mildsteel
EN 29,EN 24
•mainlyusedin
power
transmission
gearsand shafts,
aircraft landing
gear,and other
structural parts.
•Material bends
considerably
before failour.
D2,D3,D4
•D2 isa high
chromiumtool
steel forcold
work.
•D2 has high
wearresistance
and moderate
toughness
•Usedfor shear,
planerandknife
blades.
SS316
•austenitic
chromium-nickel
stainlessand
heat-resisting
steel
•superior
corrosion
resistance as
compared
•usedforpart
where food
materaial getsin
directcontact

Measurementinstrument:
Knowledge of measurement instrument is sole of engineer as it is used in every step
such as to determine linear dimension, circular, bore, slot etc
• Least count:0.02 mm
• vernier caliper, instrument
for making very accurate
linear measurements
Vernier Caliper
•Leastcount:0.001 mm
•A micrometerisan
instrumentusedformaking
precise linearmeasurements
of dimensionssuchas
diameter,thickness,and
lengthsof solidbodies.
Vernier
Micrometre
•Go/No-Go gages measure parts
to ensure that they are within
their specified tolerances.The
“no-go” portion represents one
end of the tolerancerange, and
the “go” portion represents the
other.
Go/No-Go Gage
•Least count:0.02 mm
•used to determine the height
of an object or workpiece with
extremely high precision and
accuracy, or to provide marked
locations on the item relative
to a reference plane for
subsequent use
Height gauge
•. Air gages function by shooting
air out of a specifically calibrated
nozzle, and recordingthe rate at
which the air returns to multiple
sensingnozzles.Thus, they are
ableto read the air flow
between the measuringtool and
the object being measured.
Air Gage
•it used in different slotto check
if it ableto pass through itis
more accuratethan a vernier
scalemeasuringthe same
dimension
Slip gauges
•mechanical coordinatesystem
with the platform of measuring
machineas the reference plane,
to collectthe coordinatevalues
of the measured points on the
surfaceof the measured
workpiece, then projectit into
the spatial coordinatesystemto
constructa spatial model of the
workpiece.
Coordinate
Measuring
Machine (CMM)
•leastcount of 0.01mm
•Dial gauges areused to measure
the flatness and inclination of
objects. Itis used to check round
bar roundness.It checks the
flatness of an object as
compared to the flatness of the
standard object
plunger dial

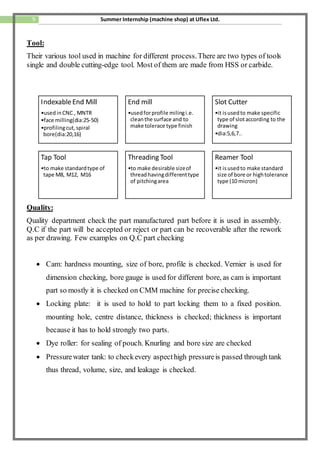

Tool:
Their various tool used in machine for different process.There are two types of tools
single and double cutting-edge tool. Most of them are made from HSS or carbide.
Quality:
Quality department check the part manufactured part before it is used in assembly.
Q.C if the part will be accepted or reject or part can be recoverable after the rework
as per drawing. Few examples on Q.C part checking
 Cam: hardness mounting, size of bore, profile is checked. Vernier is used for
dimension checking, bore gauge is used for different bore, as cam is important
part so mostly it is checked on CMM machine for precise checking.
 Locking plate: it is used to hold to part locking them to a fixed position.
mounting hole, centre distance, thickness is checked; thickness is important
because it has to hold strongly two parts.
 Dye roller: for sealing of pouch. Knurling and bore size are checked
 Pressurewater tank: to checkevery aspecthigh pressureis passed through tank
thus thread, volume, size, and leakage is checked.
IndexableEnd Mill
•usedinCNC , MNTR
•face milling(dia:25-50)
•profilingcut, spiral
bore(dia:20,16)
End mill
•usedforprofile milingi.e.
cleanthe surface and to
make tolerace type finish
Slot Cutter
•it isusedto make specific
type of slotaccording to the
drawing
•dia:5,6,7..
Tap Tool
•to make standardtype of
tape M8, M12, M16
Threading Tool
•to make desirable sizeof
threadhavingdifferenttype
of pitchingarea
Reamer Tool
•it isusedto make standard
size of bore or hightolerance
type (10 micron)

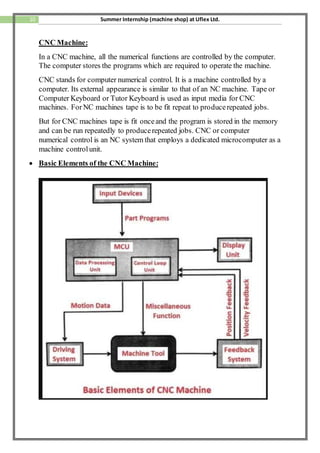

CNC Machine:
In a CNC machine, all the numerical functions are controlled by the computer.
The computer stores the programs which are required to operate the machine.
CNC stands for computer numerical control. It is a machine controlled by a
computer. Its external appearance is similar to that of an NC machine. Tape or
Computer Keyboard or Tutor Keyboard is used as input media for CNC
machines. ForNC machines tape is to be fit repeat to producerepeated jobs.
But for CNC machines tape is fit onceand the program is stored in the memory
and can be run repeatedly to producerepeated jobs. CNC or computer
numerical control is an NC system that employs a dedicated microcomputer as a
machine controlunit.
 Basic Elements of the CNC Machine:

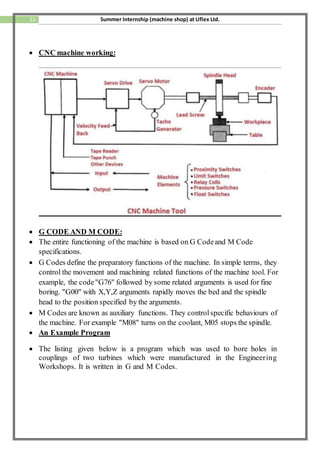

 CNC machine working:
 G CODE AND M CODE:
 The entire functioning of the machine is based on G Codeand M Code
specifications.
 G Codes define the preparatory functions of the machine. In simple terms, they
control the movement and machining related functions of the machine tool. For
example, the code"G76" followed by some related arguments is used for fine
boring. "G00" with X,Y,Z arguments rapidly moves the bed and the spindle
head to the position specified by the arguments.
 M Codes are known as auxiliary functions. They controlspecific behaviours of
the machine. For example "M08" turns on the coolant, M05 stops the spindle.

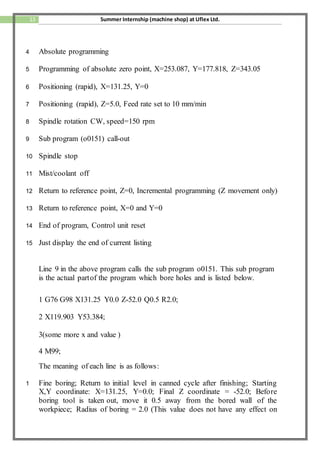

 An Example Program

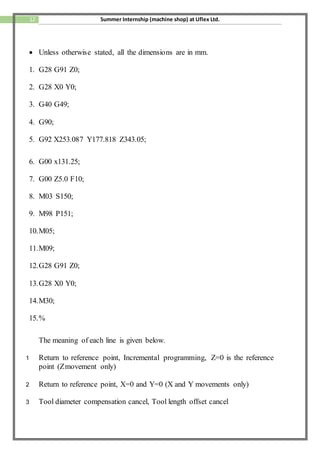

 The listing given below is a program which was used to bore holes in
couplings of two turbines which were manufactured in the Engineering
Workshops. It is written in G and M Codes.

 Unless otherwise stated, all the dimensions are in mm.
1. G28 G91 Z0;
2. G28 X0 Y0;
3. G40 G49;
4. G90;
5. G92 X253.087 Y177.818 Z343.05;
6. G00 x131.25;
7. G00 Z5.0 F10;
8. M03 S150;
9. M98 P151;
10.M05;
11.M09;
12.G28 G91 Z0;
13.G28 X0 Y0;
14.M30;
15.%
The meaning of each line is given below.
1 Return to reference point, Incremental programming, Z=0 is the reference
point (Zmovement only)
2 Return to reference point, X=0 and Y=0 (X and Y movements only)
3 Tool diameter compensation cancel, Tool length offset cancel

4 Absolute programming
5 Programming of absolute zero point, X=253.087, Y=177.818, Z=343.05
6 Positioning (rapid), X=131.25, Y=0
7 Positioning (rapid), Z=5.0, Feed rate set to 10 mm/min
8 Spindle rotation CW, speed=150 rpm
9 Sub program (o0151) call-out
10 Spindle stop
11 Mist/coolant off
12 Return to reference point, Z=0, Incremental programming (Z movement only)
13 Return to reference point, X=0 and Y=0
14 End of program, Control unit reset
15 Just display the end of current listing
Line 9 in the above program calls the sub program o0151. This sub program
is the actual partof the program which bore holes and is listed below.
1 G76 G98 X131.25 Y0.0 Z-52.0 Q0.5 R2.0;
2 X119.903 Y53.384;
3(some more x and value )
4 M99;
The meaning of each line is as follows:
1 Fine boring; Return to initial level in canned cycle after finishing; Starting
X,Y coordinate: X=131.25, Y=0.0; Final Z coordinate = -52.0; Before
boring tool is taken out, move it 0.5 away from the bored wall of the
workpiece; Radius of boring = 2.0 (This value does not have any effect on

boring since the tool determines the actual radius.).
2 Repeat boring for X=119.903 and Y=53.384.
3 Repeat the same in line 2.
4 End of sub program.
 Steps In Using The Machine
The distinct operations involved in using the CNC machine are listed below
in sequence they are done.
1. Generating the program (in G & M Codes)
2. Sending it to the machine
3. Running the program
First a drawing of the machined workpiece is created using AutoCAD in a
PC. Then using aspecial routine of AutoCAD, the contours of the cutting
tool are generated. This is finally stored as a text file in the hard drive of the
PC.
Next, the CNC machine is set to retrieve this file. Through the coaxial cable
which links the PC and CNC machine, it is then fed into the machine tool. A
numeric name for the program isgiven at the beginning of the file retrieval to
figure out the starting point (or the address in thememory) of the retrieving
program from earlier read programs.
Using this numeric name of the program, it is taken to the front from other
programs in the memory and it stays waiting to run. Pressing the "Start"
button sequentially executes the listing.
shows the monitor (on the Main Control Panel) displaying a program
waiting to beexecuted.
If needed a program can directly be written using the Main Control Panel of
the CNC machine and executed. This is tedious and errors may occur easily.

SUMMER INTERNSHIP PROGRAM.docx

More Related Content

What's hot

Similar to SUMMER INTERNSHIP PROGRAM.docx

Recently uploaded

SUMMER INTERNSHIP PROGRAM.docx
