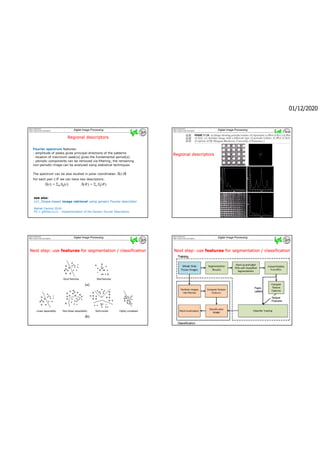

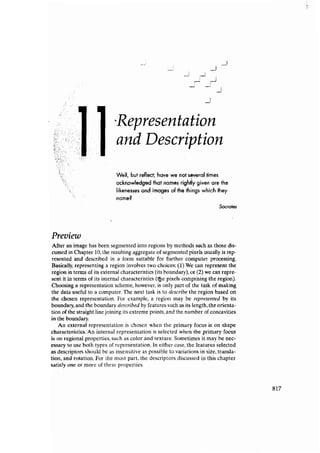

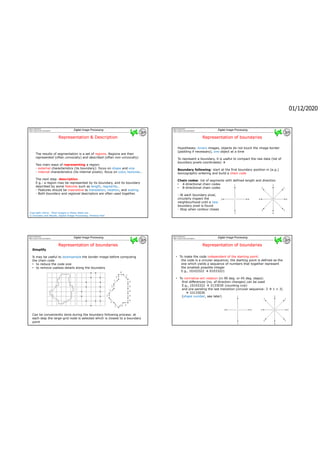

Representation & Description
Representation & Description
The results of segmentation is a set of regions. Regions are then
represented (often univocally) and described (often non-univocally)
Two main ways of representing a region:
- external characteristics (its boundary): focus on shape and size
- internal characteristics (its internal pixels): focus on color, textures…
The next step: description
E.g.: a region may be represented by its boundary, and its boundary
described by some features such as length, regularity…
- Features should be insensitive to translation, rotation, and scaling.
- Both boundary and regional descriptors are often used together.
Copyright notice: Most images in these slides are
© Gonzalez and Woods, Digital Image Processing, Prentice-Hall
Gianni Ramponi
Representation of boundaries
Hypotheses: binary images, objects do not touch the image border
(padding if necessary), one object at a time
To represent a boundary, it is useful to compact the raw data (list of
boundary pixels coordinates) 

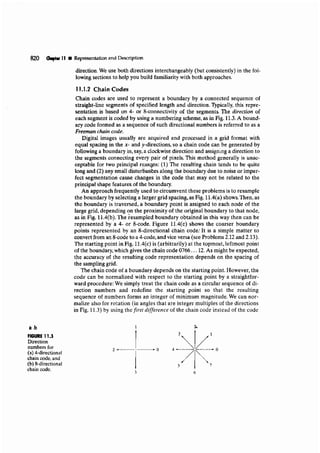

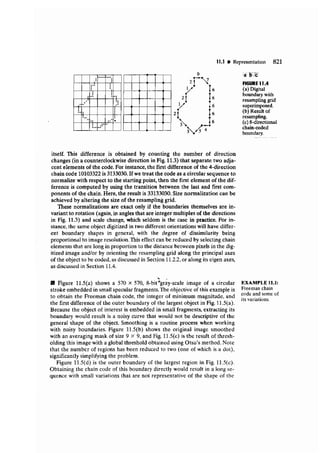

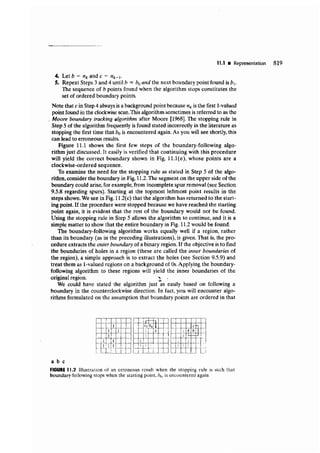

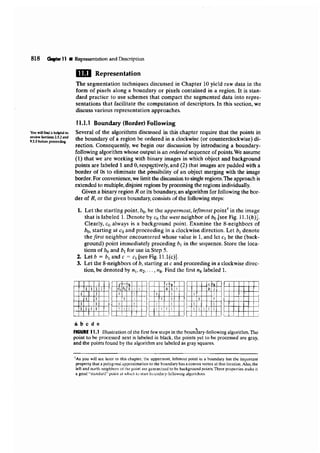

Boundary following: start at the first boundary position in (e.g.)
lexicographic ordering and build a chain code
Chain codes: list of segments with defined length and direction
• 4-directional chain codes
• 8-directional chain codes
- At each boundary pixel,
circularly inspect the
neighbourhood until a new
boundary pixel is found
- Stop when contour closes
Gianni Ramponi

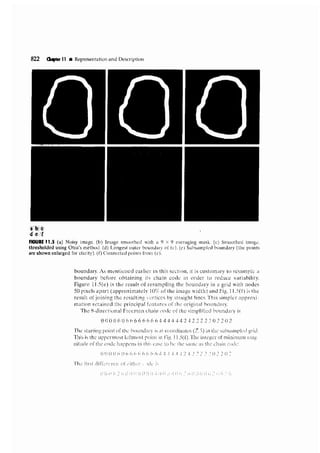

Simplify
It may be useful to downsample the border image before computing
the chain code
• to reduce the code size
• to remove useless details along the boundary
Can be conveniently done during the boundary following process: at
each step the large-grid node is selected which is closest to a boundary
point
Gianni Ramponi
• To make the code independent of the starting point:
the code is a circular sequence; the starting point is defined as the
one which yields a sequence of numbers that together represent
the smallest possible integer
E.g., 10103322  01033221
• To normalize wrt rotation (in 90 deg. or 45 deg. steps):
first differences (no. of direction changes) can be used
E.g., 10103322  3133030 (counting ccw)
and pre-pending the last transition (circular sequence: 2  1 = 3)
 33133030
(shape number, see later)

01/12/2020
Gianni Ramponi

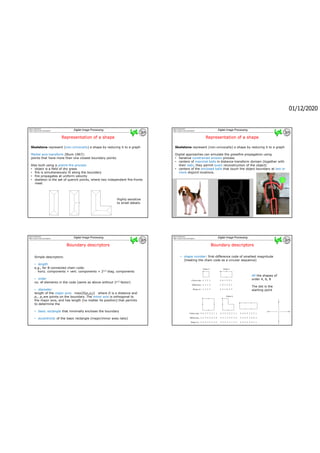

Representation of a shape
Skeletons represent (non-univocally) a shape by reducing it to a graph
Medial axis transform (Blum 1967):
points that have more than one closest boundary points.
Also built using a prairie fire process
• object is a field of dry grass
• fire is simultaneously lit along the boundary
• fire propagates at uniform velocity
• skeleton is the set of quench points, where two independent fire-fronts
meet
Highly sensitive
to small details
Gianni Ramponi
Skeletons represent (non-univocally) a shape by reducing it to a graph
Digital approaches can simulate the grassfire propagation using
• iterative constrained erosion process
• centers of maximal balls in distance-transform domain (together with
their radii, they permit exact reconstruction of the object)
• centers of the enclosed balls that touch the object boundary at two or
more disjoint locations.
Gianni Ramponi

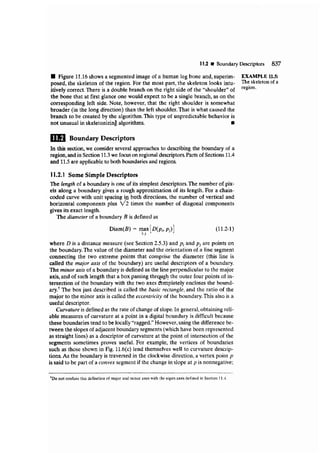

Boundary descriptors
Simple descriptors:
• length
e.g., for 8-connected chain code:
horiz. components + vert. components + 21/2 diag. components
• order
no. ef elements in the code (same as above without 21/2 factor)
• diameter
length of the major axis: max(D(pi,pj)) where D is a distance and
pi , pj are points on the boundary. The minor axis is orthogonal to
the major axis, and has length [no matter its position] that permits
to determine the
• basic rectangle that minimally encloses the boundary
• eccentricity of the basic rectangle (major/minor axes ratio)
Gianni Ramponi
• shape number: first-difference code of smallest magnitude
(treating the chain code as a circular sequence)
All the shapes of
order 4, 6, 8
The dot is the
starting point

01/12/2020
Gianni Ramponi

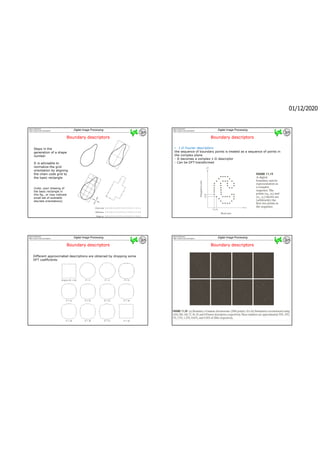

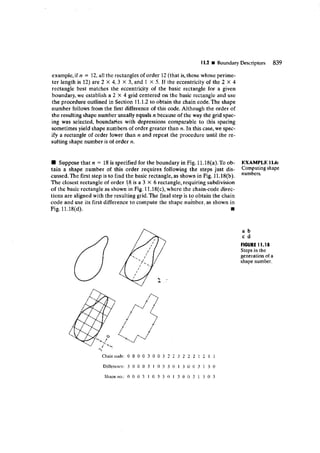

Steps in the
generation of a shape
number
It is advisable to
normalize the grid
orientation by aligning
the chain code grid to
the basic rectangle
(note: poor drawing of
the basic rectangle in
this fig., or may indicate
small set of available
discrete orientations)
Gianni Ramponi

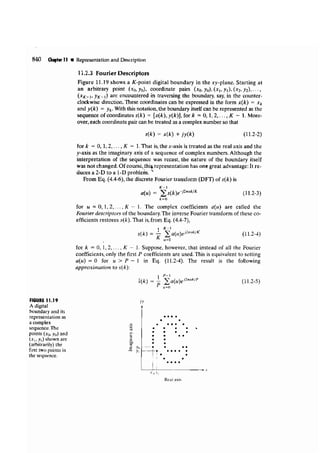

• 1-D Fourier descriptors
the sequence of boundary points is treated as a sequence of points in
the complex plane
- It becomes a complex 1-D descriptor
- Can be DFT-transformed
Gianni Ramponi
Different approximated descriptions are obtained by dropping some
DFT coefficients
Gianni Ramponi

01/12/2020
Gianni Ramponi

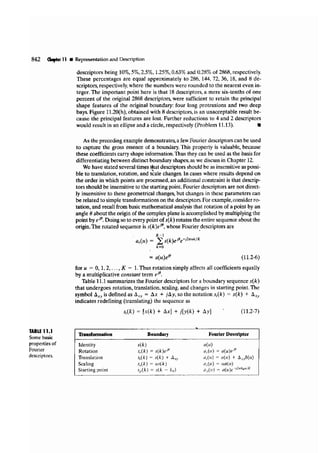

Fourier descriptors are not insensitive to translation etc.,
but their effects on the transform coefficients are known:
Gianni Ramponi

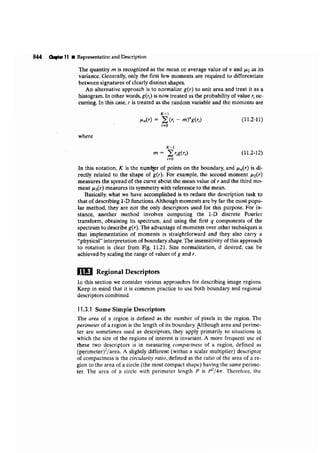

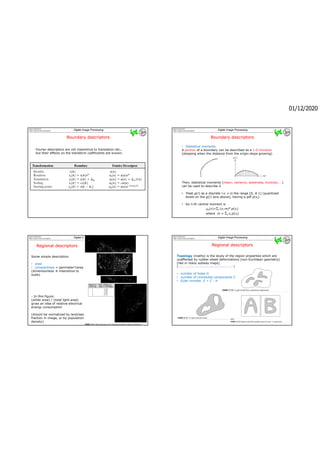

• Statistical moments
A portion of a boundary can be described as a 1-D function
(stopping when the distance from the origin stops growing)
Then, statistical moments (mean, variance, skewness, kurtosis, …)
can be used to describe it
• Treat g(r) as a discrete r.v. v in the range [0, A-1] (quantized
levels on the g(r) axis above), having a pdf p(vi)
• Its n-th central moment is
mn(v)=Si (vi-m)n p(vi)
where m = Si vi p(vi)
Gianni Ramponi

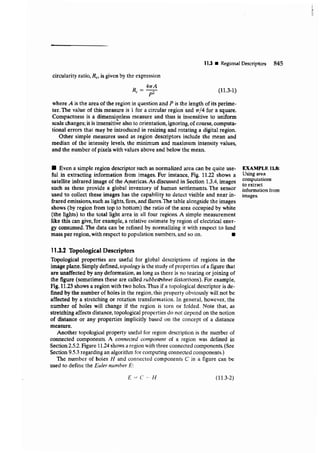

Regional descriptors
Some simple descriptors
• area
• compactness = perimeter2/area
(dimensionless  insensitive to
scale)
- In this figure:
(white area) / (total light area)
gives an idea of relative electrical
energy consumption
(should be normalized by land/sea
fraction in image, or by population
density)
Gianni Ramponi

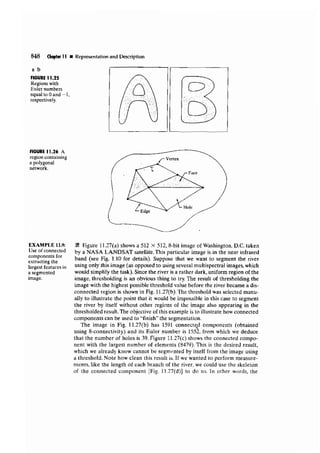

Topology (maths) is the study of the region properties which are
unaffected by rubber-sheet deformations (non-Euclidean geometry)
[like in many subway maps]
[http://www.rrb.wayne.edu/topology.html]

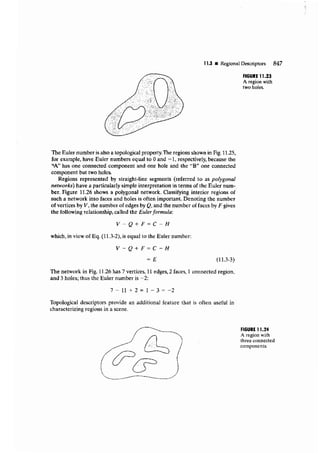

• number of holes H
• number of connected components C
• Euler number, E = C - H

01/12/2020
Gianni Ramponi

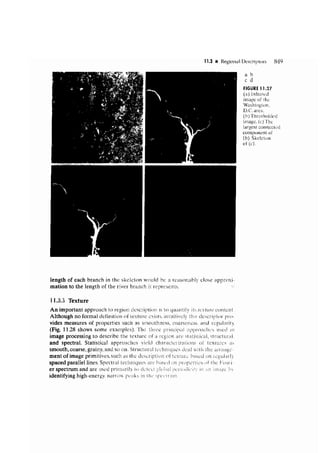

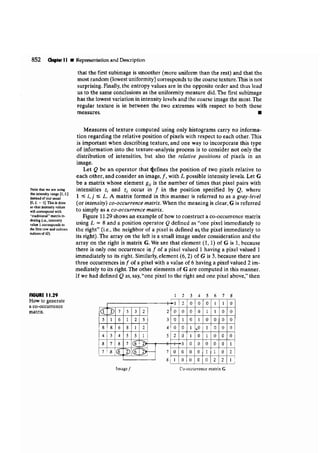

Textures can be analyzed by statistical descriptors in terms of
smoothness, coarseness, regularity …
Gianni Ramponi

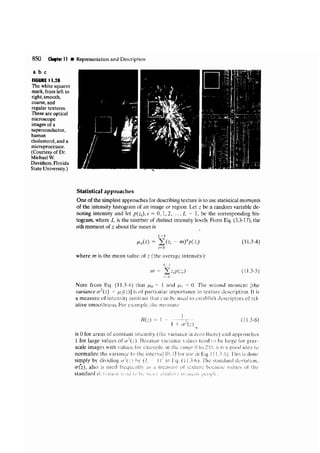

Regional descriptors:
some statistical descriptors
Regional descriptors:
some statistical descriptors

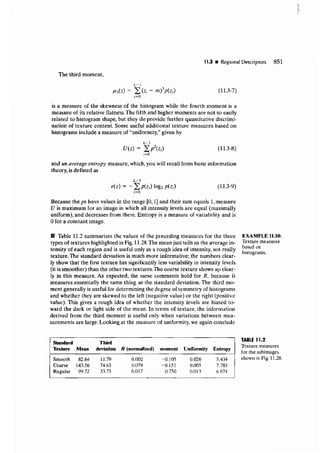

- Statistical (central) moments mn(z) = Si (zi-m)np(zi)
of the gray-level histogram p(zi)
- Activity index R R = 1 - 1/(1+s 2)
(R=0 in flat areas,  1 in very active ones)
- Uniformity U U = Si p2(zi)
(max. if gray levels are equally distributed)
- Entropy e e = - Si p(zi) log2 p(zi)
(is 0 for a constant image)
[R, U, and e provide approx. the same information]
Gianni Ramponi
Moments of the image as a 2-D function
Moment: mpq= SxSy xp yq f (x,y)
Central moment: mpq= SxSy (x-x’)p (y-y’)q f(x,y)
with x’= m10 / m00 and y’= m01 / m00
If we define the normalized central moments
hpq = mpq / m00
g with g = (p+q)/2 + 1
seven invariant moments can be defined, e.g.
f1 = h20h02
f2 = (h20-h02)2 + 4h11
2
…
which are invariant to translation, rotation, scaling, and mirroring
(but for a sign change)
Gianni Ramponi

01/12/2020
Gianni Ramponi
Fourier spectrum features:
- amplitude of peaks gives principal directions of the patterns
- location of maximum peak(s) gives the fundamental period(s)
- periodic components can be removed via filtering; the remaining
non-periodic image can be analyzed using statistical techniques
The spectrum can be also studied in polar coordinates: S(r,q)
For each pair r,q we can have two descriptors:
S(r) = Sq Sq(r) S(q ) = Sr Sr(q )
see also:
z11_Shape-based image retrieval using generic Fourier descriptor
Matlab Central 2016:
FD = gfd(bw,m,n) - Implementation of the Generic Fourier Descriptors
Gianni Ramponi
Gianni Ramponi

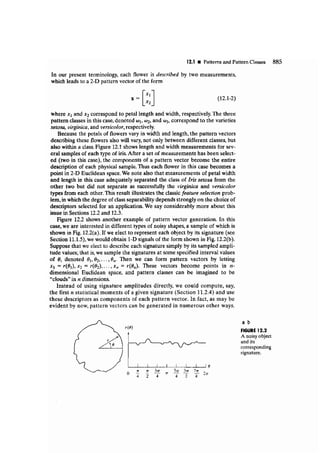

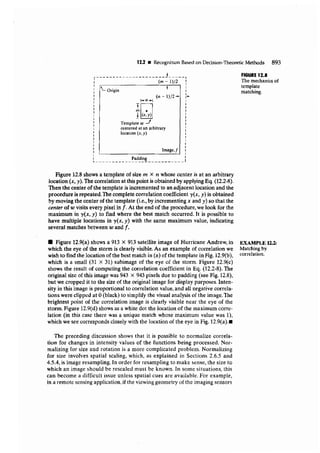

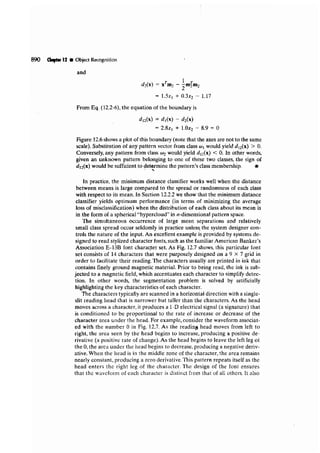

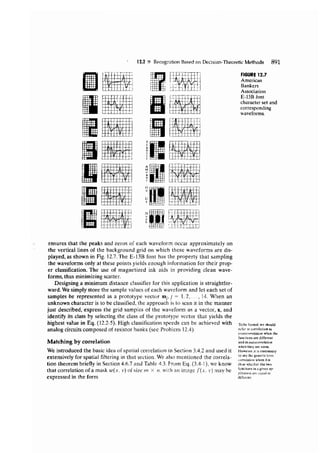

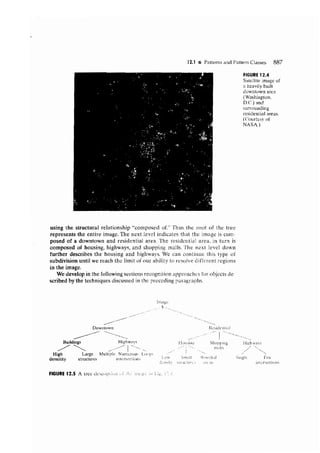

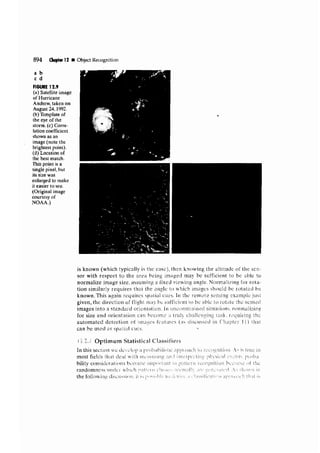

Next step: use features for segmentation / classification
Gianni Ramponi

01/12/2020
Gianni Ramponi

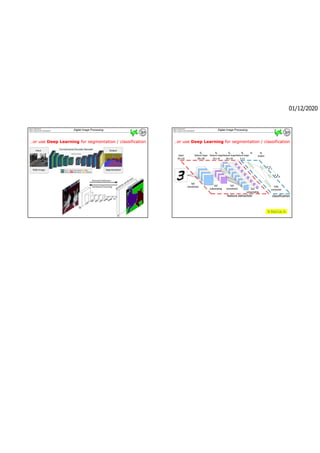

…or use Deep Learning for segmentation / classification
Gianni Ramponi
