- 1. IoT Smart Home TechTalks | Team Technologies LLC Sergey Seletsky Cloud Solutions Architect

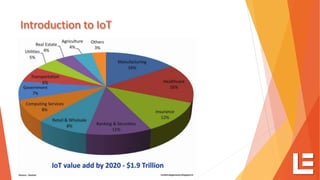

- 2. Agenda Introduction toIoT MQTT and other IoT protocols IoT Smart Home AWS IoT Architecture patterns AWS IoT Core Services and Security Comparison to other services: AWS IoT vs Azure IoT Suite Java sample overview & Alexa demo (Vitaliy) User pattern detection approaches (Andy)
- 3.
- 4. 6.3 Billion 6.8Billion Billion7.2 Billion7.6 500 Million 12.5 Billion 25 Billion Billion50 Connected Devices Connected Devices Per Person 0.08 1.84 3.47 6.58 2003 2010 2015 2020 More connected devices than people Source: Cisco IBSG, April[ 2011]

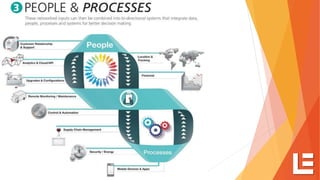

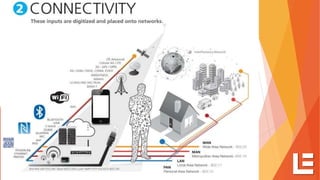

- 8.
- 9. TECHNOLOGIES THAT ENABLEIOT Cheap sensors (50% cheaper) Cheap bandwidth )(40x cheaper Cheap processing & smarter (60x cheaper ) Ubiquitous wireless coverage (free wifi ) Big data (unstructured data) IPv6 Smartphones (personal gateway ) For the Past 10 Years

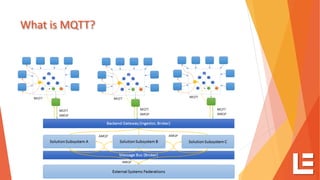

- 10.

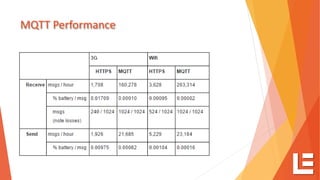

- 11.

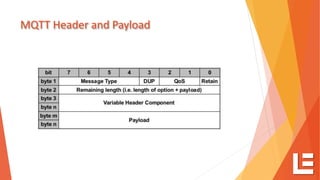

- 12. MQTT Header andPayload

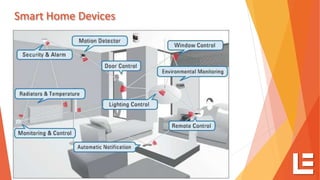

- 13.
- 14. Dude, Ask myfridge...

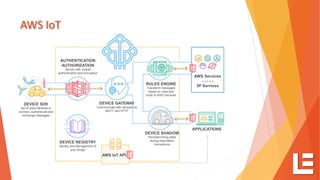

- 15. AWS IoT DEVICE SDK Setof client libraries to connect, authenticate and exchange messages DEVICE GATEWAY Communicate with devices via MQTT and HTTP AUTHENTICATION AUTHORIZATION Secure with mutual authentication and encryption RULES ENGINE Transform messages based on rules and route to AWS Services AWS Services - - - - - 3P Services DEVICE SHADOW Persistent thing state during intermittent connections APPLICATIONS AWS IoT API DEVICE REGISTRY Identity and Management of your things

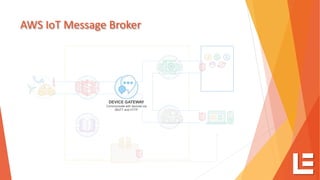

- 16. AWS IoT MessageBroker DEVICE GATEWAY Communicate with devices via MQTT and HTTP

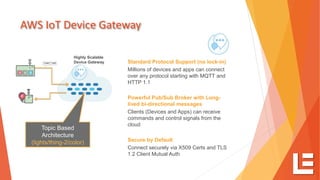

- 17. AWS IoT DeviceGateway Standard Protocol Support (no lock-in) Millions of devices and apps can connect over any protocol starting with MQTT and HTTP 1.1 Powerful Pub/Sub Broker with Long- lived bi-directional messages Clients (Devices and Apps) can receive commands and control signals from the cloud Secure by Default Connect securely via X509 Certs and TLS Client Mutual Auth1.2 Topic Based Architecture (lights/thing-2 )/color Highly Scalable Device Gateway

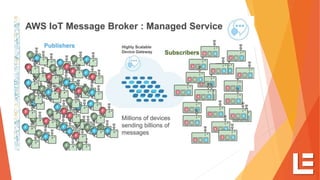

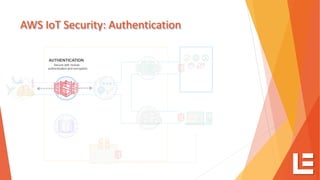

- 19. AWS IoT Security:Authentication Secure with mutual authentication and encryption AUTHENTICATION
- 20. AWS IoT RulesEngine RULES ENGINE Transform messages based on rules and route to AWS Services

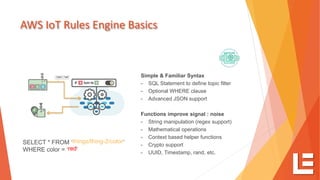

- 21. AWS IoT RulesEngine Basics Simple & Familiar Syntax - SQL Statement to define topic filter - Optional WHERE clause - Advanced JSON support Functions improve signal : noise - String manipulation (regex support) - Mathematical operations - Context based helper functions - Crypto support - UUID, Timestamp, rand, etc. SELECT * FROM ‘things/thing-2/color’ WHERE color = ‘red’

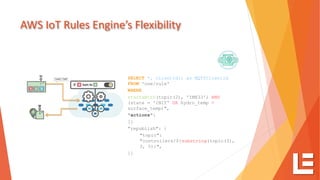

- 22. AWS IoT RulesEngine’s Flexibility SELECT *, clientId() as MQTTClientId FROM 'one/rule' WHERE startsWith(topic(2), 'IME33') AND (state = 'INIT' OR hydro_temp > surface_temp)", "actions": [{ "republish": { "topic": "controllers/${substring(topic(3), 3, 5)}", }]

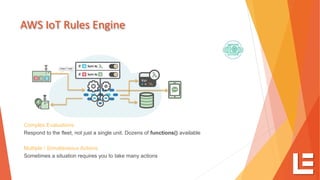

- 23. AWS IoT RulesEngine Complex Evaluations Respond to the fleet, not just a single unit. Dozens of functions() available Multiple / Simultaneous Actions Sometimes a situation requires you to take many actions

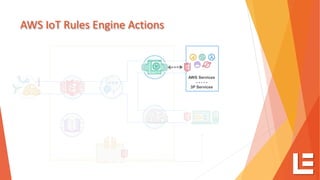

- 24. AWS IoT RulesEngine Actions RULES ENGINE Transform messages based on rules and route to AWS Services AWS Services - - - - - 3P Services AWS Services - - - - - 3P Services

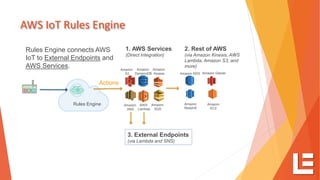

- 25. AWS IoT RulesEngine . AWS Services1 )Direct Integration( Rules Engine Actions AWS Lambda Amazon SNS Amazon SQS Amazon S3 Amazon Kinesis Amazon DynamoDB Amazon RDS Amazon Redshift Amazon Glacier Amazon EC2 . External3 Endpoints via Lambda and SNS( ) Rules Engine connects AWS IoT to External Endpoints and AWS Services. . Rest of AWS2 via Amazon Kinesis, AWS( Lambda, Amazon S3, and more)

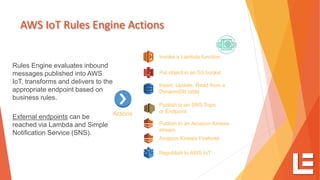

- 26. AWS IoT RulesEngine Actions Rules Engine evaluates inbound messages published into AWS IoT, transforms and delivers to the appropriate endpoint based on business rules. External endpoints can be reached via Lambda and Simple Notification Service (SNS). Invoke a Lambda function Put object in an S3 bucket Insert, Update, Read from a DynamoDB table Publish to an SNS Topic or Endpoint Publish to an Amazon Kinesis stream Actions Amazon Kinesis Firehose Republish to AWS IoT

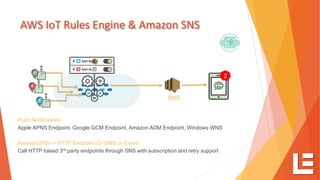

- 27. AWS IoT RulesEngine & Amazon SNS Push Notifications Apple APNS Endpoint, Google GCM Endpoint, Amazon ADM Endpoint, Windows WNS Amazon SNS - )HTTP Endpoint (Or SMS or Email> Call HTTP based 3rd party endpoints through SNS with subscription and retry support SNS 2

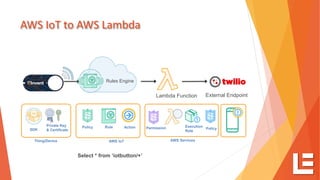

- 28. AWS IoT toAWS Lambda Lambda Function Rules Engine PolicyPrivate Key & Certificate Thing/Device Rule SDK AWS IoT AWS Services Execution Role Policy External Endpoint Permission Select * from ‘iotbutton/+’ Action

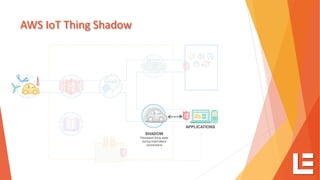

- 29. AWS IoT ThingShadow THING SHADOW Persistent thing state during intermittent connections SHADOW Persistent thing state during intermittent connections APPLICATIONS

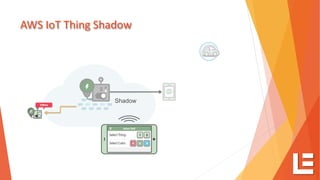

- 30. AWS IoT ThingShadow Shadow

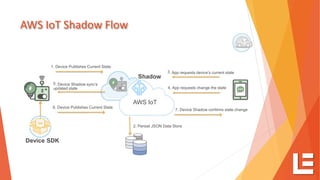

- 31. AWS IoT ShadowFlow Shadow Device SDK . Device Publishes Current State1 2. Persist JSON Data Store 3. App requests device’s current state 4. App requests change the state 5. Device Shadow sync’s updated state 6. Device Publishes Current State 7. Device Shadow confirms state change AWS IoT

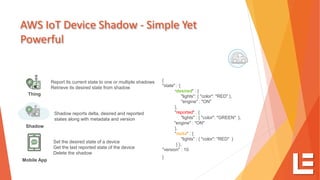

- 32. AWS IoT DeviceShadow - Simple Yet Powerful { "state" : { “desired" : { "lights": { "color": "RED" }, "engine" : "ON" }, "reported" : { "lights" : { "color": "GREEN" }, "engine" : "ON" }, "delta" : { "lights" : { "color": "RED" } } }, "version" : 10 } Thing Report its current state to one or multiple shadows Retrieve its desired state from shadow Mobile App Set the desired state of a device Get the last reported state of the device Delete the shadow Shadow Shadow reports delta, desired and reported states along with metadata and version

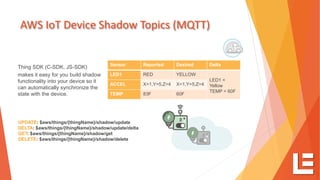

- 33. AWS IoT DeviceShadow Topics (MQTT) Thing SDK (C-SDK, JS-SDK) makes it easy for you build shadow functionality into your device so it can automatically synchronize the state with the device. AWS IoT Thing Shadow UPDATE: $aws/things/{thingName}/shadow/update DELTA: $aws/things/{thingName}/shadow/update/delta GET: $aws/things/{thingName}/shadow/get DELETE: $aws/things/{thingName}/shadow/delete Sensor Reported Desired Delta LED1 RED YELLOW LED1 = Yellow TEMP = 60F ACCEL X=1,Y=5,Z=4 X=1,Y=5,Z=4 TEMP 83F F60

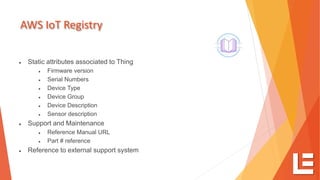

- 34. AWS IoT Registry •Static attributes associated to Thing • Firmware version • Serial Numbers • Device Type • Device Group • Device Description • Sensor description • Support and Maintenance • Reference Manual URL • Part # reference • Reference to external support system

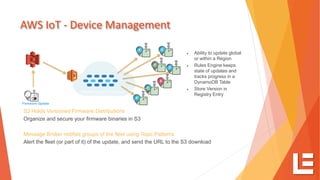

- 35. AWS IoT -Device Management S3 Holds Versioned Firmware Distributions Organize and secure your firmware binaries in S3 Message Broker notifies groups of the fleet using Topic Patterns Alert the fleet (or part of it) of the update, and send the URL to the S3 download Firmware Update Stored in S3 Publish to groups of devices • Ability to update global or within a Region • Rules Engine keeps state of updates and tracks progress in a DynamoDB Table • Store Version in Registry Entry

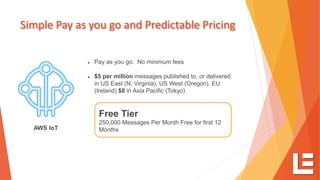

- 36. Simple Pay asyou go and Predictable Pricing • Pay as you go. No minimum fees • $5 per million messages published to, or delivered in US East (N. Virginia), US West (Oregon), EU (Ireland) $8 in Asia Pacific (Tokyo) AWS IoT Free Tier 250,000 Messages Per Month Free for first 12 Months
- 37. Get Started withAWS IoT Device SDK C-SDK (Ideal for embedded OS) JS-SDK (Ideal for Embedded Linux Platforms) Arduino Library (Arduino Yun) Mobile SDK (Android and iOS)

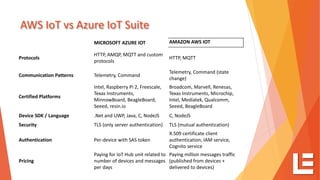

- 38. AWS IoT vsAzure IoT Suite MICROSOFT AZURE IOT AMAZON AWS IOT Protocols HTTP, AMQP, MQTT and custom protocols HTTP, MQTT Communication Patterns Telemetry, Command Telemetry, Command (state change) Certified Platforms Intel, Raspberry Pi 2, Freescale, Texas Instruments, MinnowBoard, BeagleBoard, Seeed, resin.io Broadcom, Marvell, Renesas, Texas Instruments, Microchip, Intel, Mediatek, Qualcomm, Seeed, BeagleBoard Device SDK / Language .Net and UWP, Java, C, NodeJS C, NodeJS Security TLS (only server authentication) TLS (mutual authentication) Authentication Per-device with SAS token X.509 certificate client authentication, IAM service, Cognito service Pricing Paying for IoT Hub unit related to number of devices and messages per days Paying million messages traffic (published from devices + delivered to devices)
