This document provides an agenda and best practices for CI/CD pipelines for .NET workloads using Azure DevOps. It recommends that CI pipelines should block pull requests, run tests faster than 5 minutes, and collect metrics. It suggests repository structure, including separating code, tests, and infrastructure, and using filters to trigger specific pipelines on changes. The document also discusses gated pre-merge pipelines, build pipelines, Roslyn analyzers, SonarCloud for quality analysis, post-merge build pipelines, and release pipelines for continuous deployment.

1. Prepared by Name Surname, Position www.intellias.com
CI/CD Azure DevOps
Tips and Tricks for .NET
Workloads
www.intellias.com
Sergiy Seletsky
Senior Solution Architect

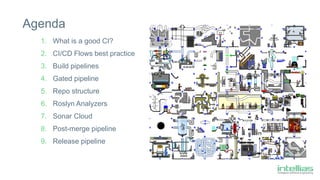

2. Agenda
1. What is a good CI?
2. CI/CD Flows best practice
3. Build pipelines
4. Gated pipeline
5. Repo structure
6. Roslyn Analyzers
7. Sonar Cloud
8. Post-merge pipeline
9. Release pipeline

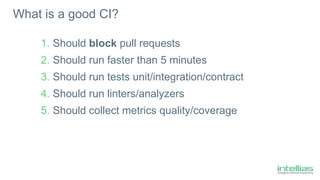

3. What is a good CI?
1. Should block pull requests
2. Should run faster than 5 minutes
3. Should run tests unit/integration/contract
4. Should run linters/analyzers
5. Should collect metrics quality/coverage

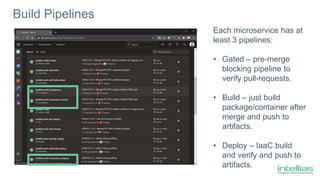

4. Build Pipelines
Each microservice has at
least 3 pipelines:
• Gated – pre-merge
blocking pipeline to
verify pull-requests.
• Build – just build
package/container after
merge and push to
artifacts.
• Deploy – IaaC build
and verify and push to
artifacts.

5. PULL
REQUEST Gated
Restore
Build
Test /
Coverage
Lint
Analyse
Sonar
MERGED
Recommended pipeline flow
Build
Restore
Build
Pack
Push
Publish
ARTIFACTS
Release
Restore
Run
IaaC
Deploy
Verify

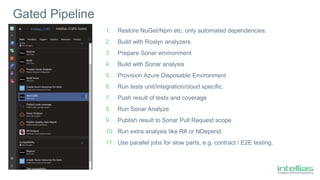

6. Gated Pipeline
1. Restore NuGet/Npm etc. only automated dependencies.
2. Build with Roslyn analyzers
3. Prepare Sonar environment
4. Build with Sonar analysis
5. Provision Azure Disposable Environment
6. Run tests unit/integration/cloud specific.
7. Push result of tests and coverage
8. Run Sonar Analyze
9. Publish result to Sonar Pull Request scope
10. Run extra analysis like R# or NDepend.
11. Use parallel jobs for slow parts, e.g. contract / E2E testing.

7. Repo Structure
1. One microservice – one repo.
2. Separate folders for src/test/IaaC/Pipelines code.
3. Use .editorconfig.
4. One Directory.Build.props per repo.
5. Readme.md should contain useful info that clearly define how to
build and run this code.
6. Configure pipeline filters to be triggered on folder content
change. E.g. change of IaaC only trigger Deploy Build.
7. Test folder should be excluded from advanced code analysis
and analytics but still Roslyn ruleset should be followed.

8. Roslyn Analyzers
Run checks in IDE if possible.
• Should be always runed on build
pipeline for double-check.
• Force null free code.
• No warning allowed.
• Use team agreement ruleset. Code
Convention as a Code.
• Make sure FullDebug mode
enabled for proper Sonar/Roslyn
pipeline analysis.
• Recommended list of analysers,
adjust for your needs.

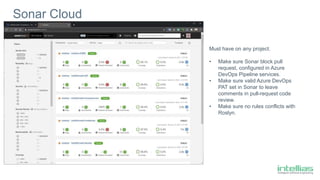

9. Sonar Cloud
Must have on any project.
• Make sure Sonar block pull
request, configured in Azure
DevOps Pipeline services.
• Make sure valid Azure DevOps
PAT set in Sonar to leave
comments in pull-request code
review.
• Make sure no rules conflicts with
Roslyn.

10. Post-merge build pipeline
Post-merge build pipeline.
• Contain only production related
steps, no debug, no analysis, no
tests.
• Should build release mode
artifacts.
• Should prepare artifacts containers
e.g. Docker/Lambda/Funcs.
• Contracts and SDKs exported by
service must be packaged in
NuGet/NPM and pushed to
artifacts.

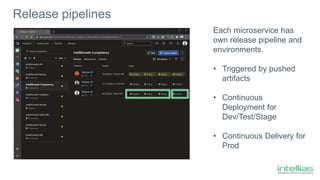

11. Release pipelines
Each microservice has
own release pipeline and
environments.
• Triggered by pushed
artifacts
• Continuous
Deployment for
Dev/Test/Stage
• Continuous Delivery for
Prod

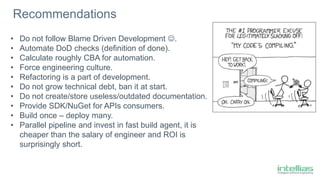

12. • Do not follow Blame Driven Development .
• Automate DoD checks (definition of done).
• Calculate roughly CBA for automation.
• Force engineering culture.
• Refactoring is a part of development.
• Do not grow technical debt, ban it at start.
• Do not create/store useless/outdated documentation.
• Provide SDK/NuGet for APIs consumers.
• Build once – deploy many.
• Parallel pipeline and invest in fast build agent, it is
cheaper than the salary of engineer and ROI is
surprisingly short.
Recommendations
