1) A group of students presented on an IOT Garbage Monitoring System to help keep cities clean. 2) The system uses ultrasonic sensors and a microcontroller to monitor garbage levels in bins and displays the status on an LCD screen and web page. 3) When fully implemented, the system will help support initiatives like Swachh Bharat Mission by enabling real-time garbage monitoring and efficient collection.

1. DEPARTEMENT OF ELECTRONICS AND
COMMUNICATION
I.T.S Engineering College Greater Noida

2. A
PRESENTATION
ON
IOT Garbage Monitoring System
Presented By
Ranjan Kumar Gupta(1322261055)
Vinay Kumar Mishra(1322231078)
Swikriti Sinha(1322231072)
Km Akanksha Dhar Dwivedi(1322231035)
Under the guidance of
Mr. Prabhakar Sharma
Mr. Mayank Tyagi

3. Presentation Outline
Introduction
Problem in Society
Motive of Project
Block diagram
Methodology(Hardware/software)
Application
Conclusions

4. Introduction
 This project IOT Garbage Monitoring system is a
very innovative system which will help to keep the
cities clean.
 A web page is built to show the status to the user
monitoring it. The web page gives a graphical view
of the garbage bins and highlights the garbage
collected in color in order to show the level of
garbage collected.
 The LCD screen shows the status of the garbage
level.

5. Main Problem
OVER FLOWING OF BINS

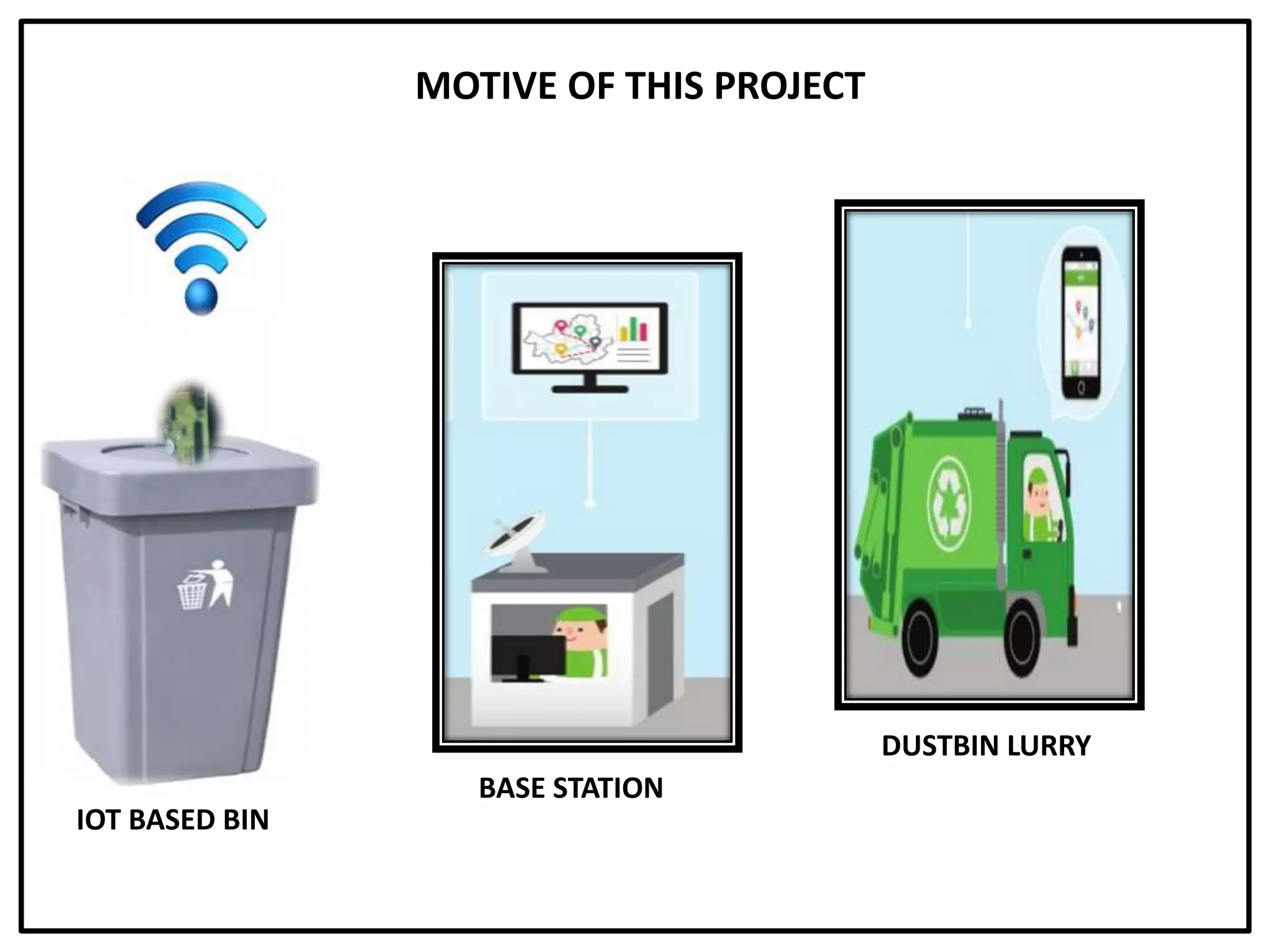

6. BASE STATION
DUSTBIN LURRY
IOT BASED BIN
MOTIVE OF THIS PROJECT

7. Block Diagram

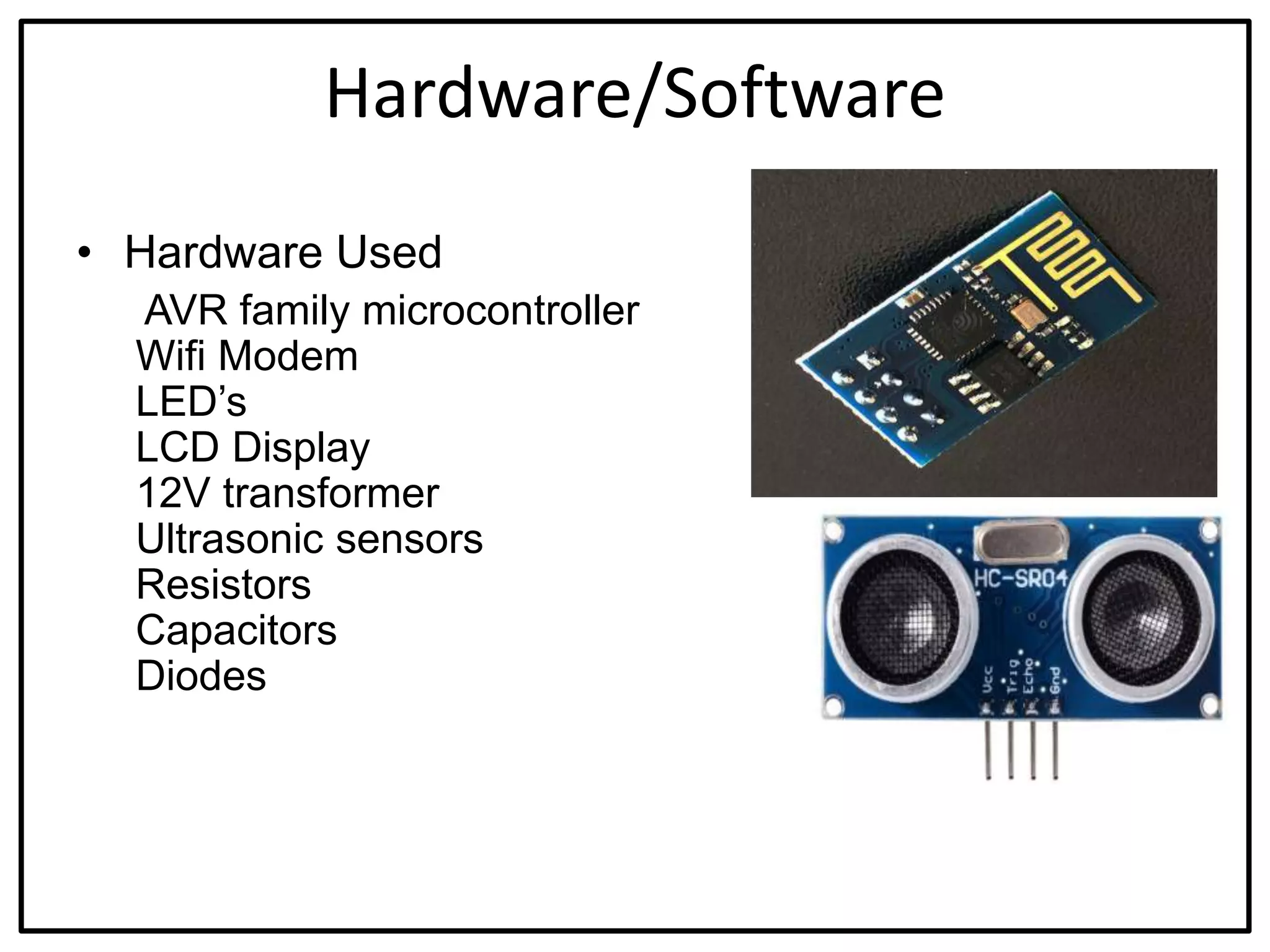

8. Hardware/Software
• Hardware Used
AVR family microcontroller
Wifi Modem
LED’s
LCD Display
12V transformer
Ultrasonic sensors
Resistors
Capacitors
Diodes

9. Major and Minor Component

10. First Presentation
• Soldered component

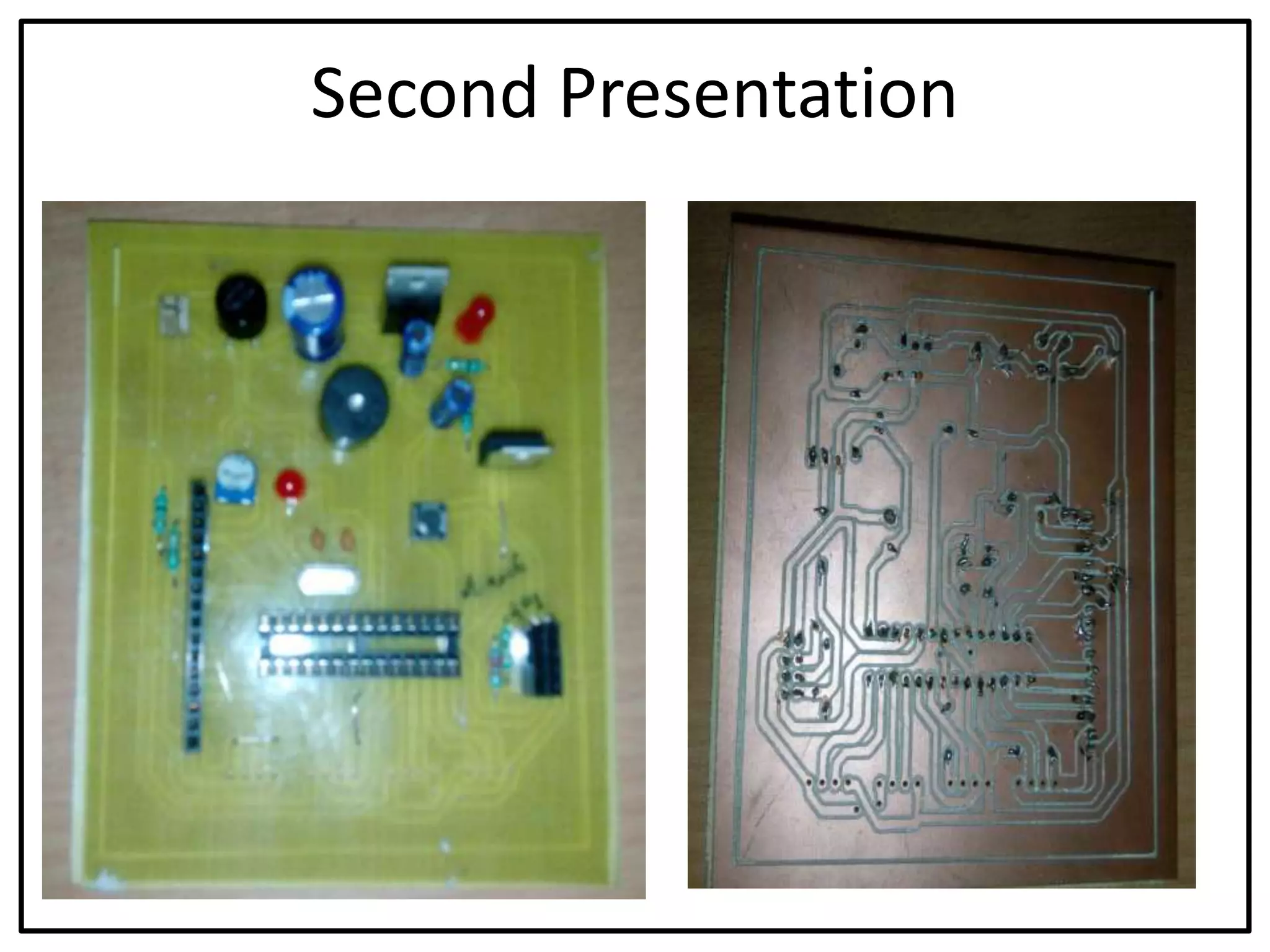

11. Second Presentation

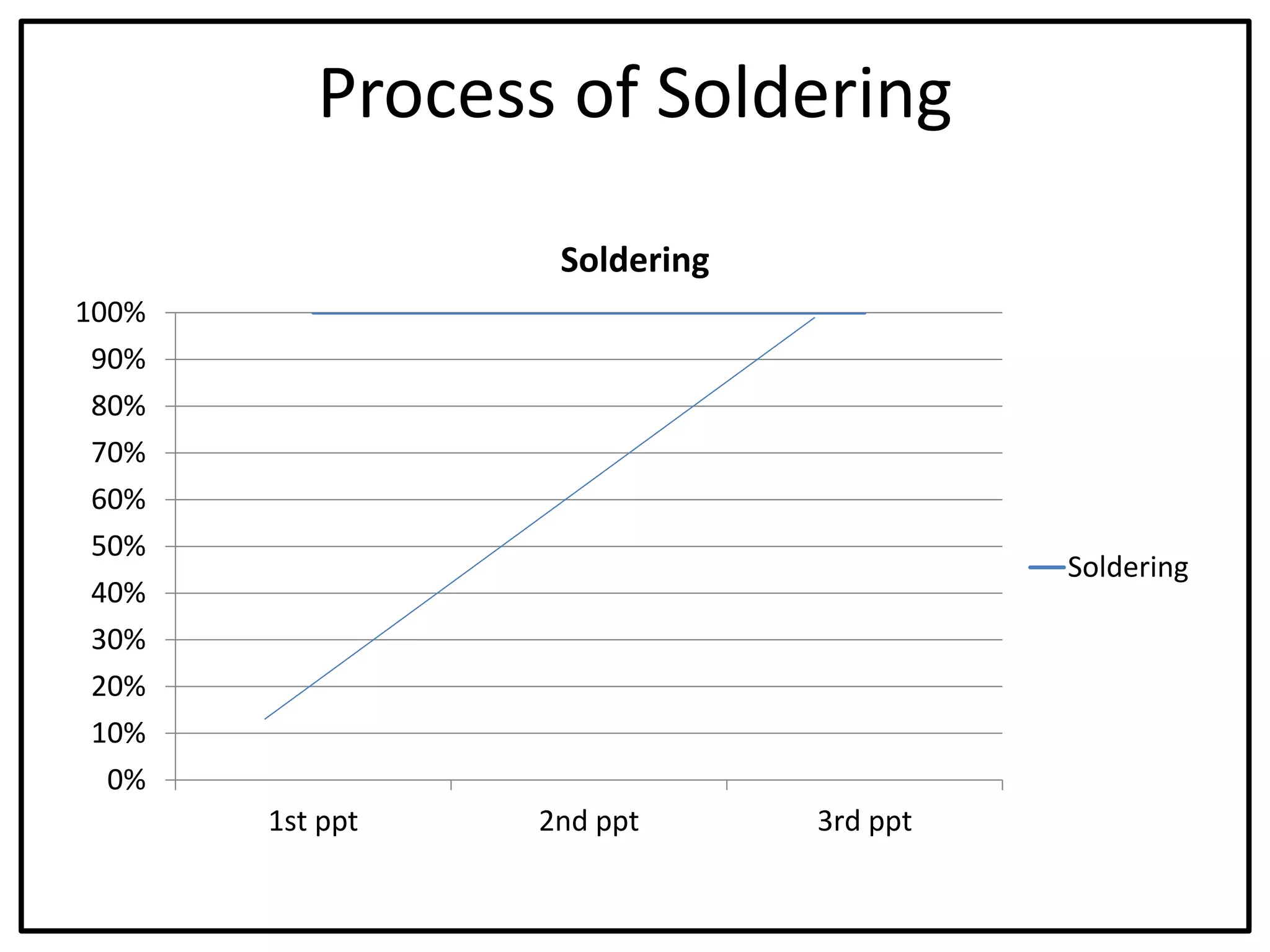

12. Process of Soldering
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
1st ppt 2nd ppt 3rd ppt
Soldering
Soldering

13. Software
Avr Studio
MC Programming Language: Embedded C
Arduino Software

14. Till Now

15. Till Now
Wi-Fi Module programming using Arduino
Software
Soldering

16. Applications
Empowered Swach Bharat Mission.
Support Digital India.
Real time based cleaning our cities.
It makes our system transparent between
Municipal corporation, Workers and Public.

17. Conclusions
 The novel cloud-based system for waste
collection in smart cities.
 Integration with modern ITS and IoT systems.
 Development of applications for city
administrations, municipal staff.

18. References
• ieeexplore.ieee.org/document/6914431/
• https://www.ijirset.com/upload/2014/july_Waste
• https://en.wikipedia.org/wiki/Swachh_Bharat_Abhiy
an
• https://en.wikipedia.org/wiki/Garbage_collection
