- 1. Electronics for the Internetof Things SUMMER SCHOOL
- 2. Outline Electronic Signals Electricity Equations GeneralPurpose Input / Output (GPIO) Pulse Width Modulation (PWM) Analog to Digital Converters (ADC) Microcontrollers and Computers Questions 2

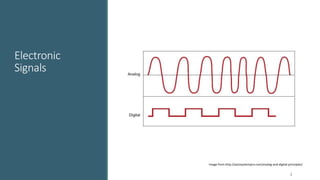

- 3.

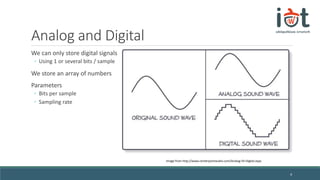

- 4. Analog and Digital Wecan only store digital signals ◦ Using 1 or several bits / sample We store an array of numbers Parameters ◦ Bits per sample ◦ Sampling rate 4 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx

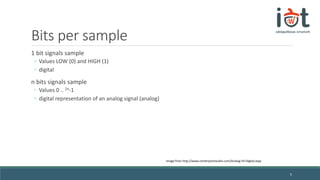

- 5. Bits per sample 1bit signals sample ◦ Values LOW (0) and HIGH (1) ◦ digital n bits signals sample ◦ Values 0 .. 2n-1 ◦ digital representation of an analog signal (analog) 5 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx

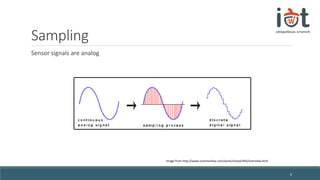

- 6. Sampling Sensor signals areanalog 6 Image from http://www.snotmonkey.com/work/school/405/overview.html

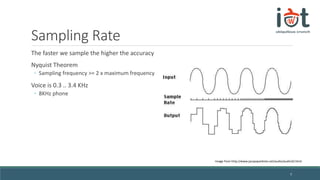

- 7. Sampling Rate The fasterwe sample the higher the accuracy Nyquist Theorem ◦ Sampling frequency >= 2 x maximum frequency Voice is 0.3 .. 3.4 KHz ◦ 8KHz phone 7 Image from http://www.jazzpoparkisto.net/audio/audio32.html

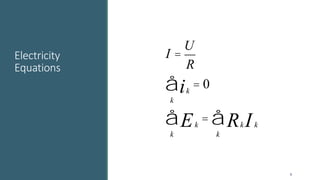

- 8. Electricity Equations 8 I = U R kik å =0 kEk å = kR kIk å

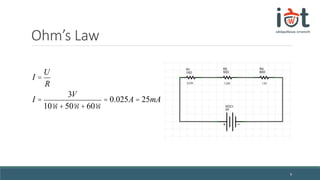

- 9. Ohm’s Law 9 I = U R I= 3V 10W+50W+ 60W = 0.025A = 25mA

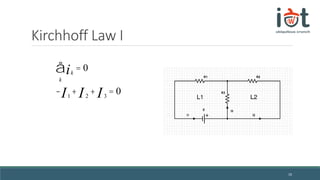

- 10. Kirchhoff Law I 10 kik å= 0 - 1I + 2I + 3I = 0

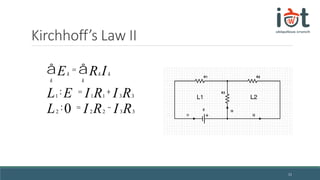

- 11. Kirchhoff’s Law II 11 kEk å= kR kIk å 1L : E = 1I 1R + 3I 3R 2L :0 = 2I 2R - 3I 3R

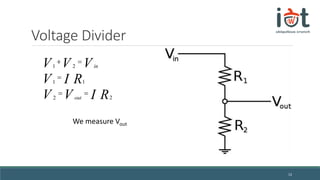

- 12. Voltage Divider 12 1V +2V = inV 1V = I 1R 2V = outV = I 2R We measure Vout
- 13. Voltage Divider 13 1R =0 outV = ?
- 14.

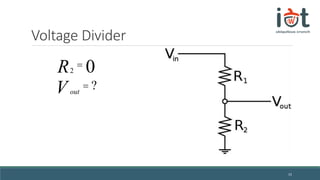

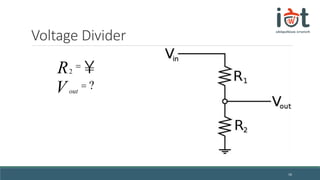

- 15. Voltage Divider 15 2R =0 outV = ?
- 16.
- 17. Voltage Divider 17 1R =0 2R = 0 outV = ?

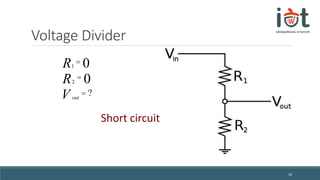

- 18. Voltage Divider 18 1R =0 2R = 0 outV = ? Short circuit
- 19. General Purpose Input /Output 19

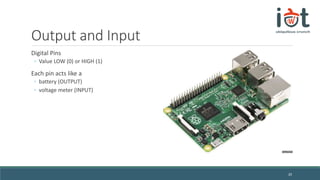

- 20. Output and Input DigitalPins ◦ Value LOW (0) or HIGH (1) Each pin acts like a ◦ battery (OUTPUT) ◦ voltage meter (INPUT) 20

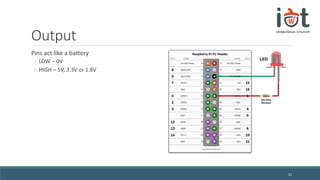

- 21. Output Pins act likea battery ◦ LOW – 0V ◦ HIGH – 5V, 3.3V or 1.8V 21

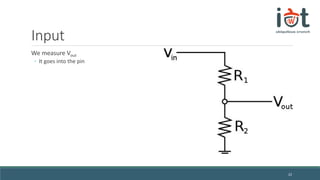

- 22. Input We measure Vout ◦It goes into the pin 22
- 23.

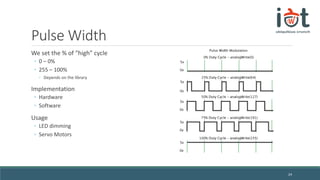

- 24. Pulse Width We setthe % of “high” cycle ◦ 0 – 0% ◦ 255 – 100% ◦ Depends on the library Implementation ◦ Hardware ◦ Software Usage ◦ LED dimming ◦ Servo Motors 24
- 25.

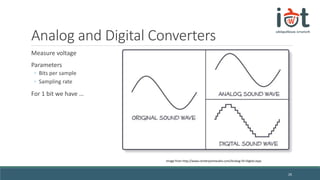

- 26. Analog and DigitalConverters Measure voltage Parameters ◦ Bits per sample ◦ Sampling rate For 1 bit we have … 26 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx
- 27. Analog and DigitalConverters Measure voltage Parameters ◦ Bits per sample ◦ Sampling rate For 1 bit we have … ◦ GPIO Input 27 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx

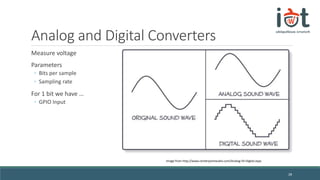

- 28. Analog and DigitalConverters Measure voltage Parameters ◦ Bits per sample ◦ Sampling rate For 1 bit we have … ◦ GPIO Input 28 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx

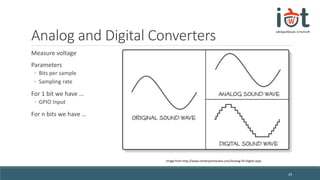

- 29. Analog and DigitalConverters Measure voltage Parameters ◦ Bits per sample ◦ Sampling rate For 1 bit we have … ◦ GPIO Input For n bits we have … 29 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx

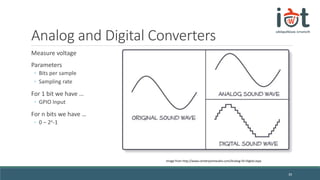

- 30. Analog and DigitalConverters Measure voltage Parameters ◦ Bits per sample ◦ Sampling rate For 1 bit we have … ◦ GPIO Input For n bits we have … ◦ 0 – 2n-1 30 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx

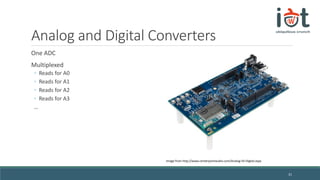

- 31. Analog and DigitalConverters One ADC Multiplexed ◦ Reads for A0 ◦ Reads for A1 ◦ Reads for A2 ◦ Reads for A3 … 31 Image from http://www.centerpointaudio.com/Analog-VS-Digital.aspx
- 32.

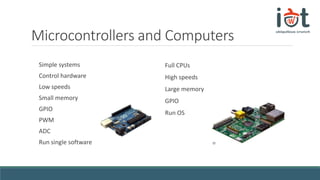

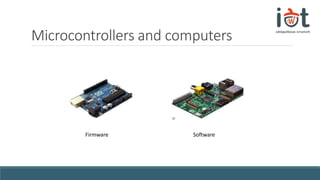

- 33. Microcontrollers and Computers Simplesystems Control hardware Low speeds Small memory GPIO PWM ADC Run single software Full CPUs High speeds Large memory GPIO Run OS
- 34.

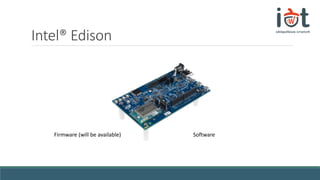

- 35. Intel® Edison Firmware (willbe available) Software
