Introduction to the Internet of Things
- 1. Introduction to the Internetof Things SUMMER SCHOOL

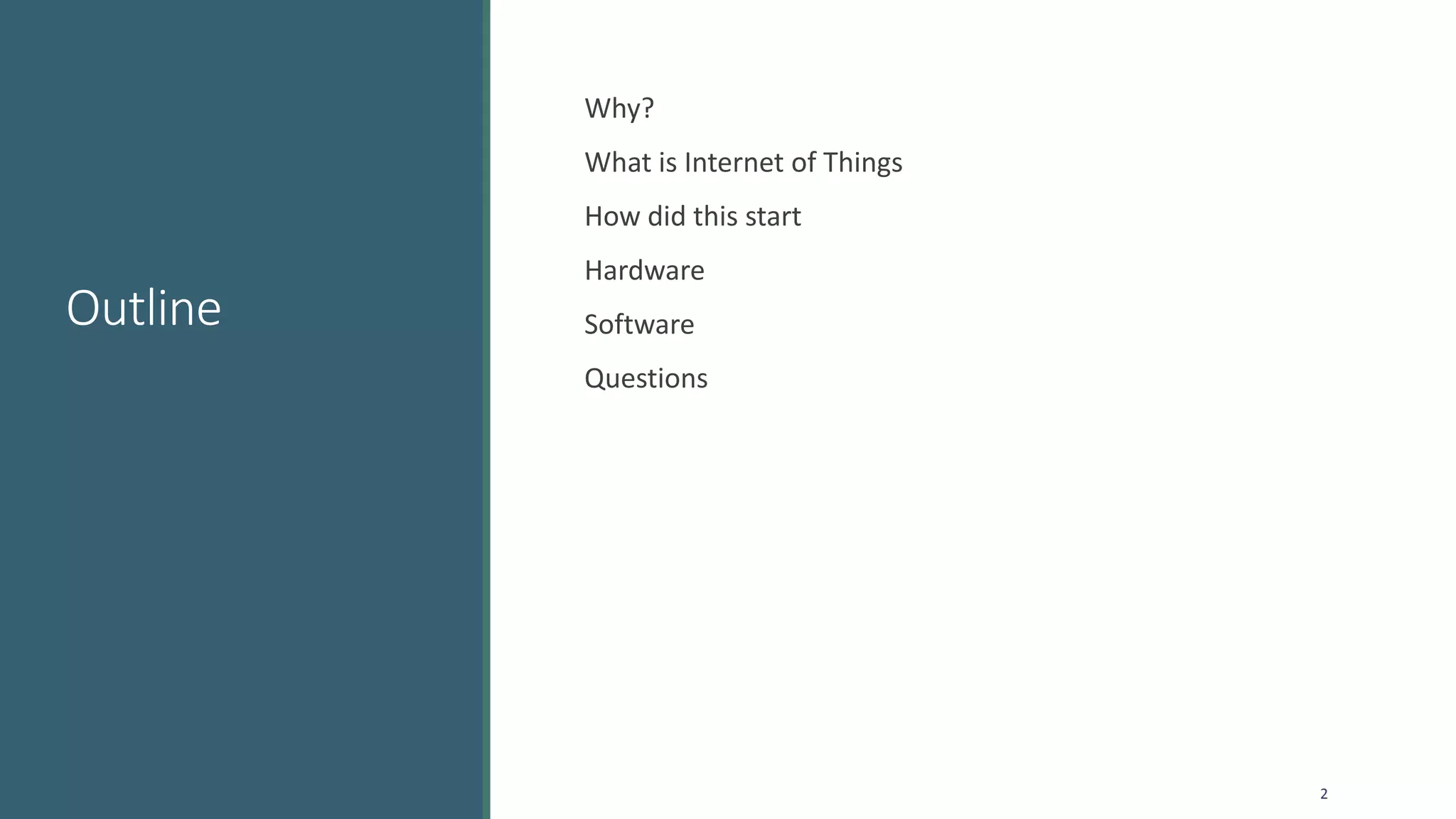

- 2. Outline Why? What is Internetof Things How did this start Hardware Software Questions 2

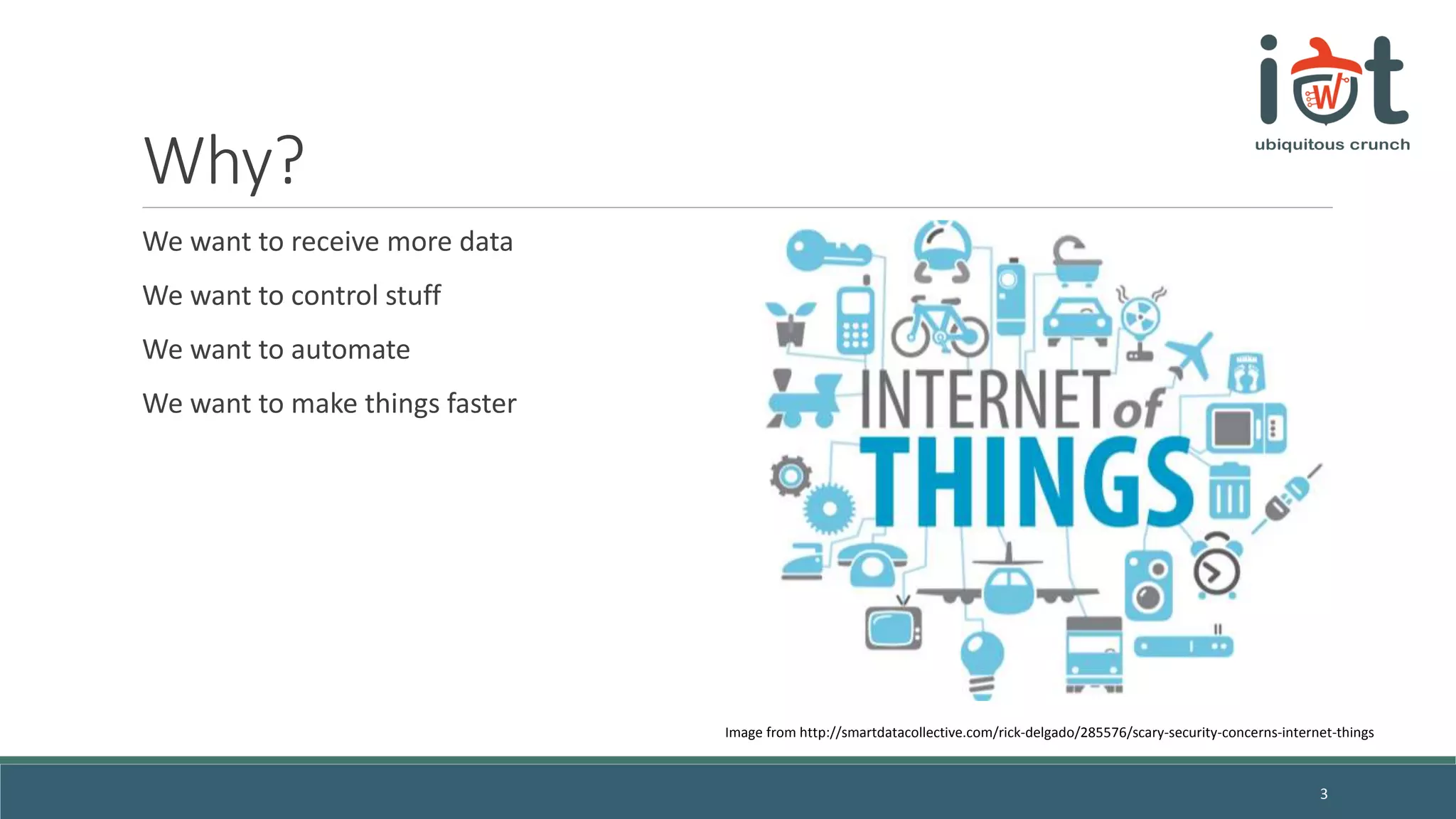

- 3. Why? We want toreceive more data We want to control stuff We want to automate We want to make things faster 3 Image from http://smartdatacollective.com/rick-delgado/285576/scary-security-concerns-internet-things

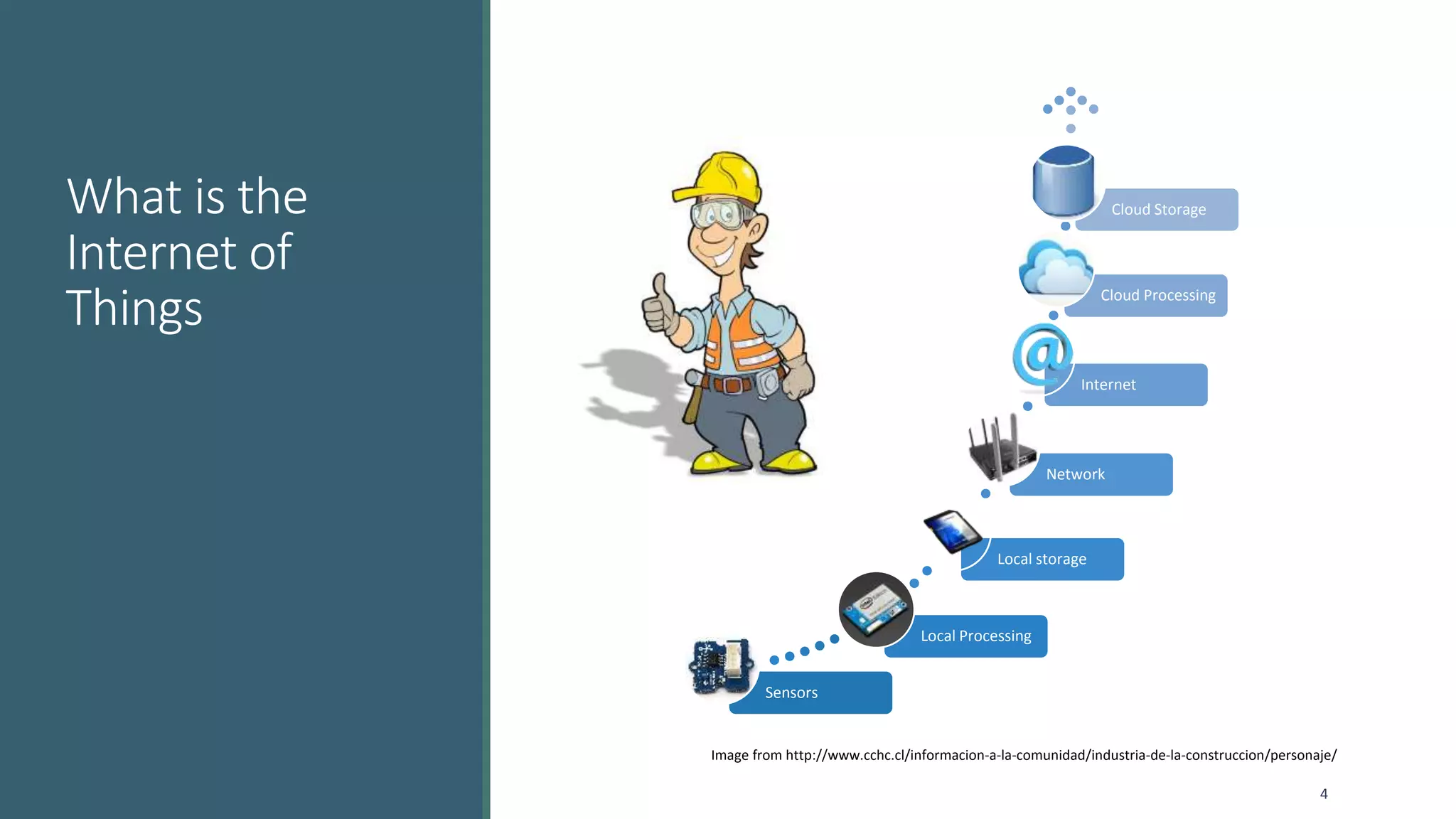

- 4. What is the Internetof Things Sensors Local Processing Local storage Network Internet Cloud Processing Cloud Storage 4 Image from http://www.cchc.cl/informacion-a-la-comunidad/industria-de-la-construccion/personaje/

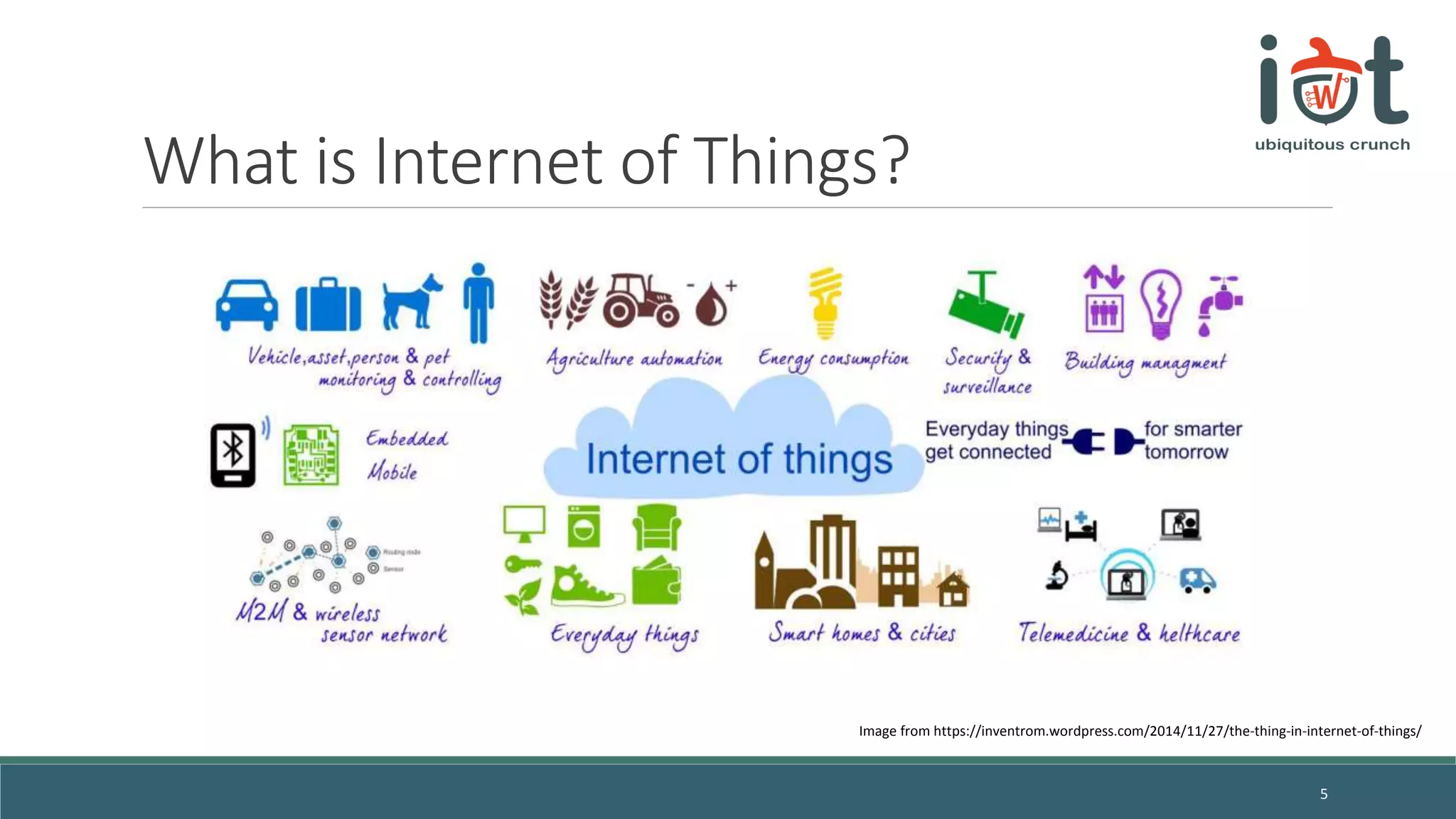

- 5. What is Internetof Things? 5 Image from https://inventrom.wordpress.com/2014/11/27/the-thing-in-internet-of-things/

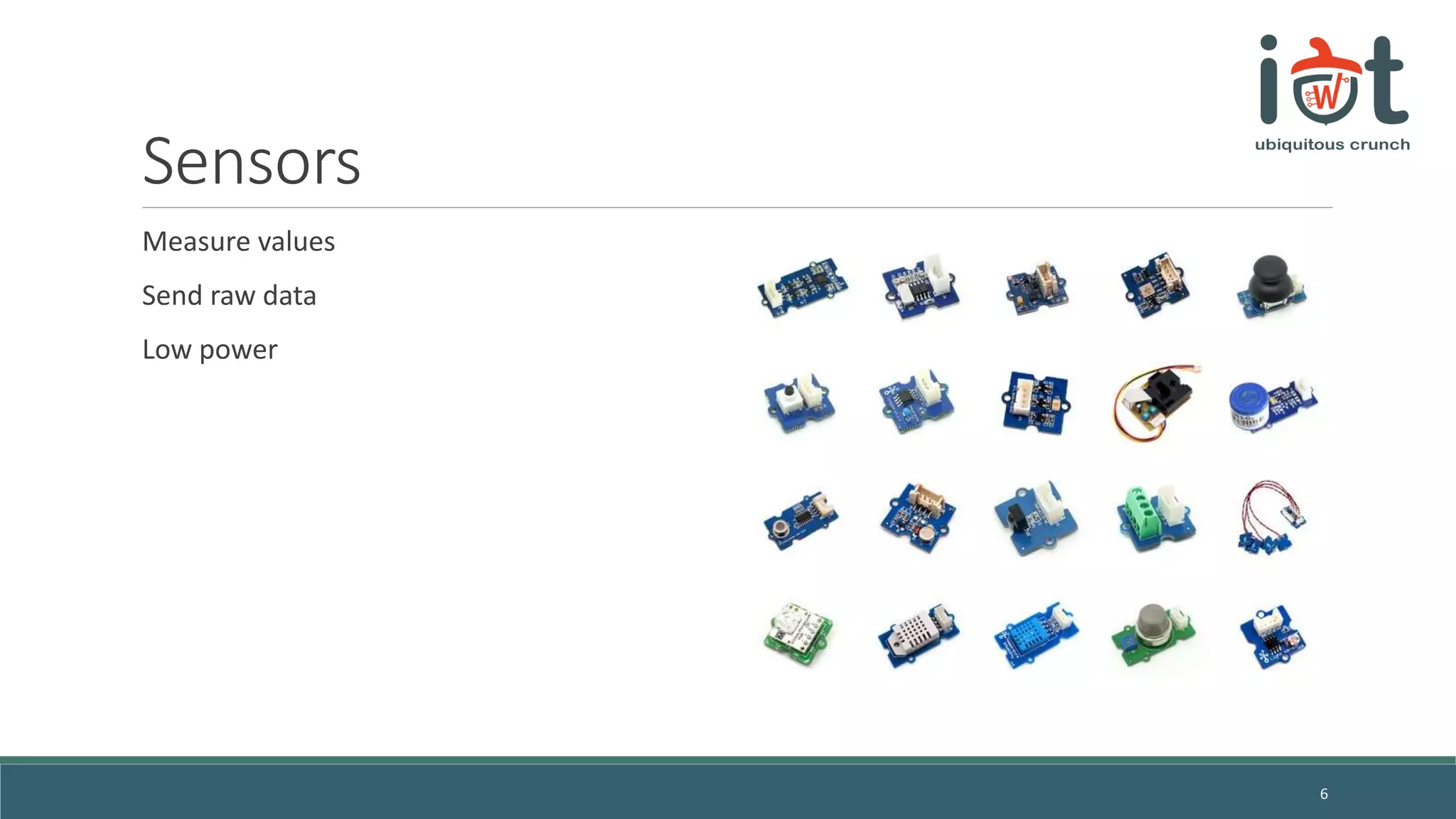

- 6. Sensors Measure values Send rawdata Low power 6

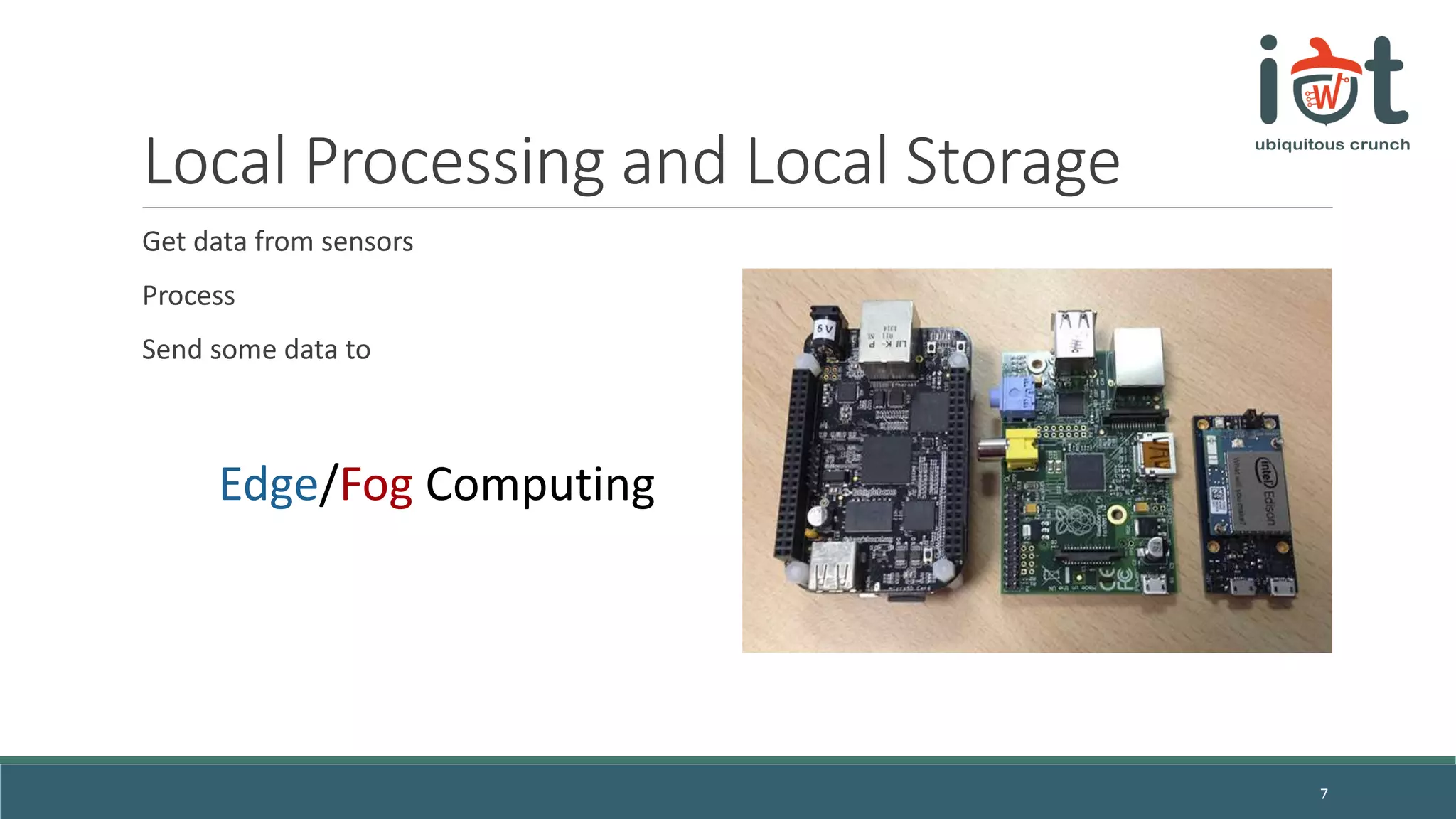

- 7. Local Processing andLocal Storage Get data from sensors Process Send some data to 7 Edge/Fog Computing

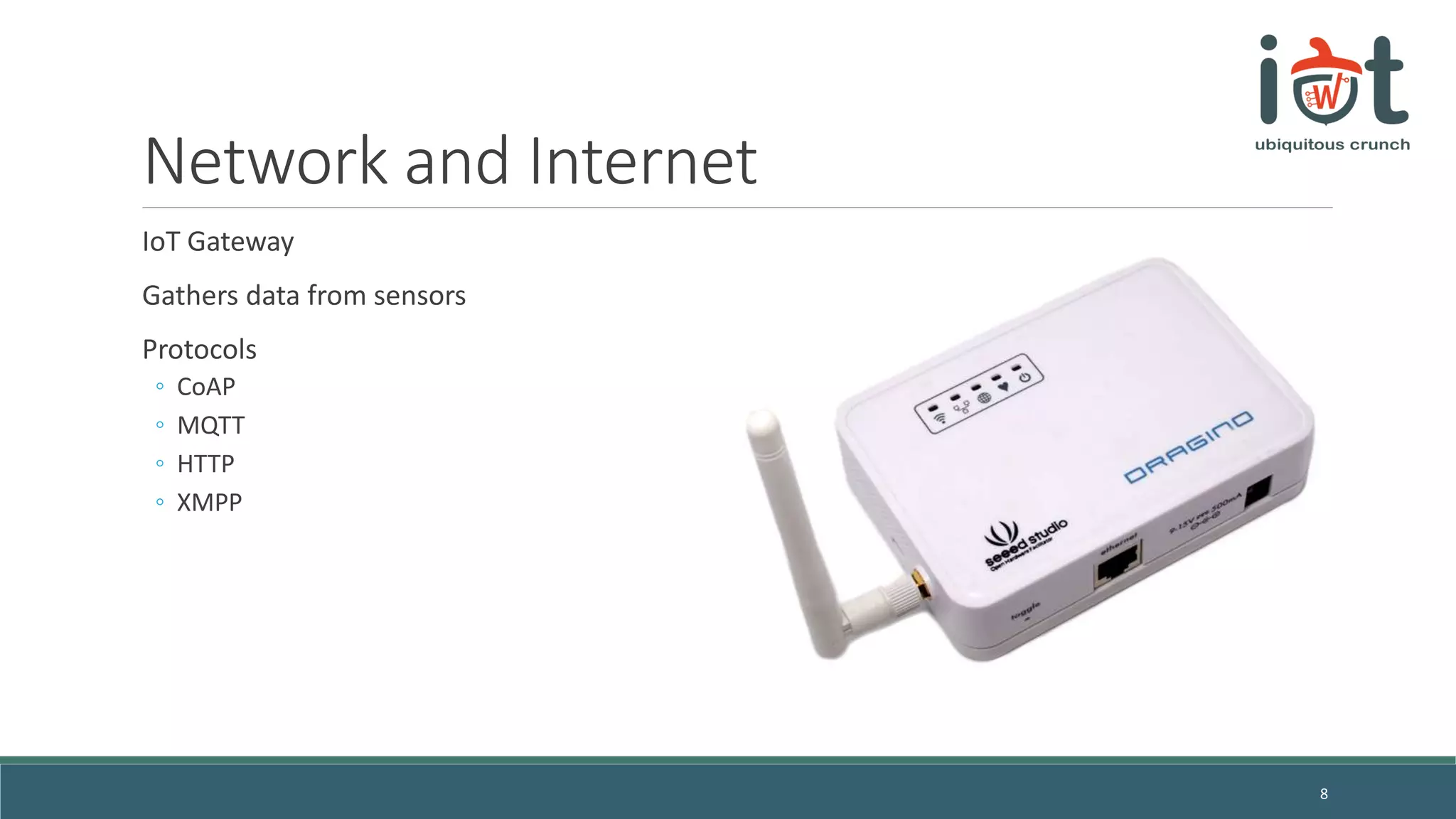

- 8. Network and Internet IoTGateway Gathers data from sensors Protocols ◦ CoAP ◦ MQTT ◦ HTTP ◦ XMPP 8
- 9. Cloud Processing andStorage Aggregate Data Storage Inferences 9
- 10. How did itstart 10

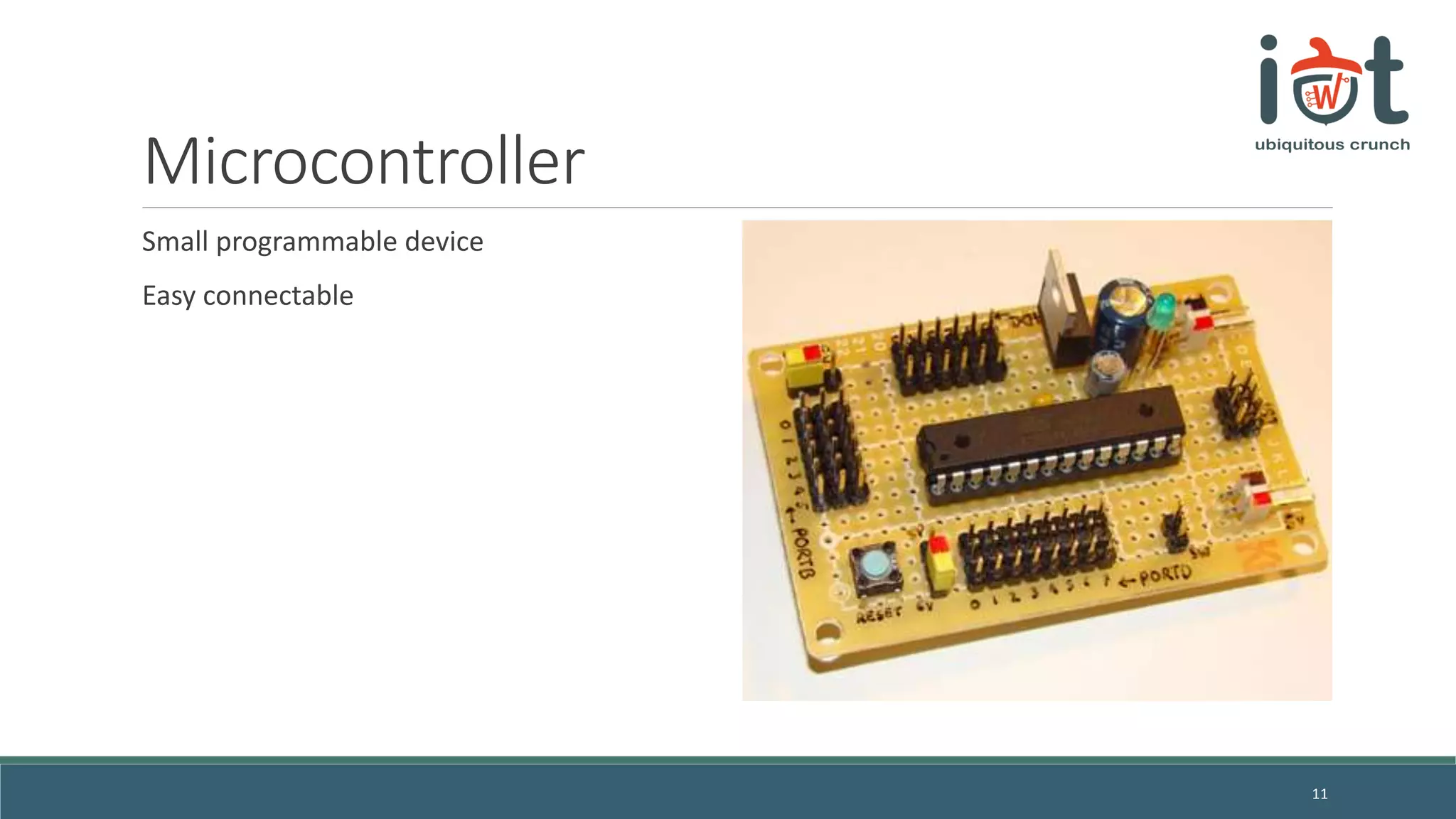

- 11. Microcontroller Small programmable device Easyconnectable 11

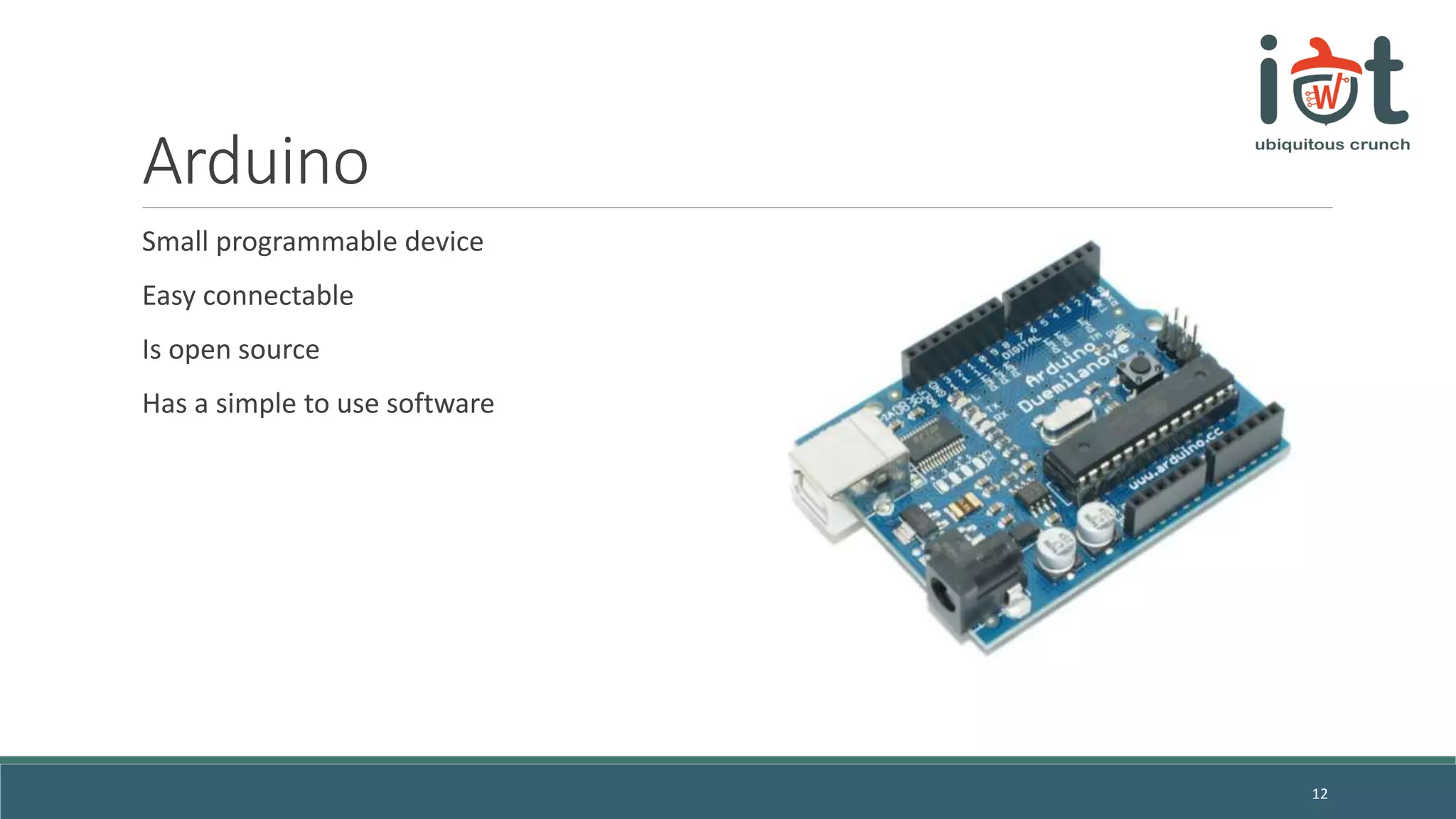

- 12. Arduino Small programmable device Easyconnectable Is open source Has a simple to use software 12

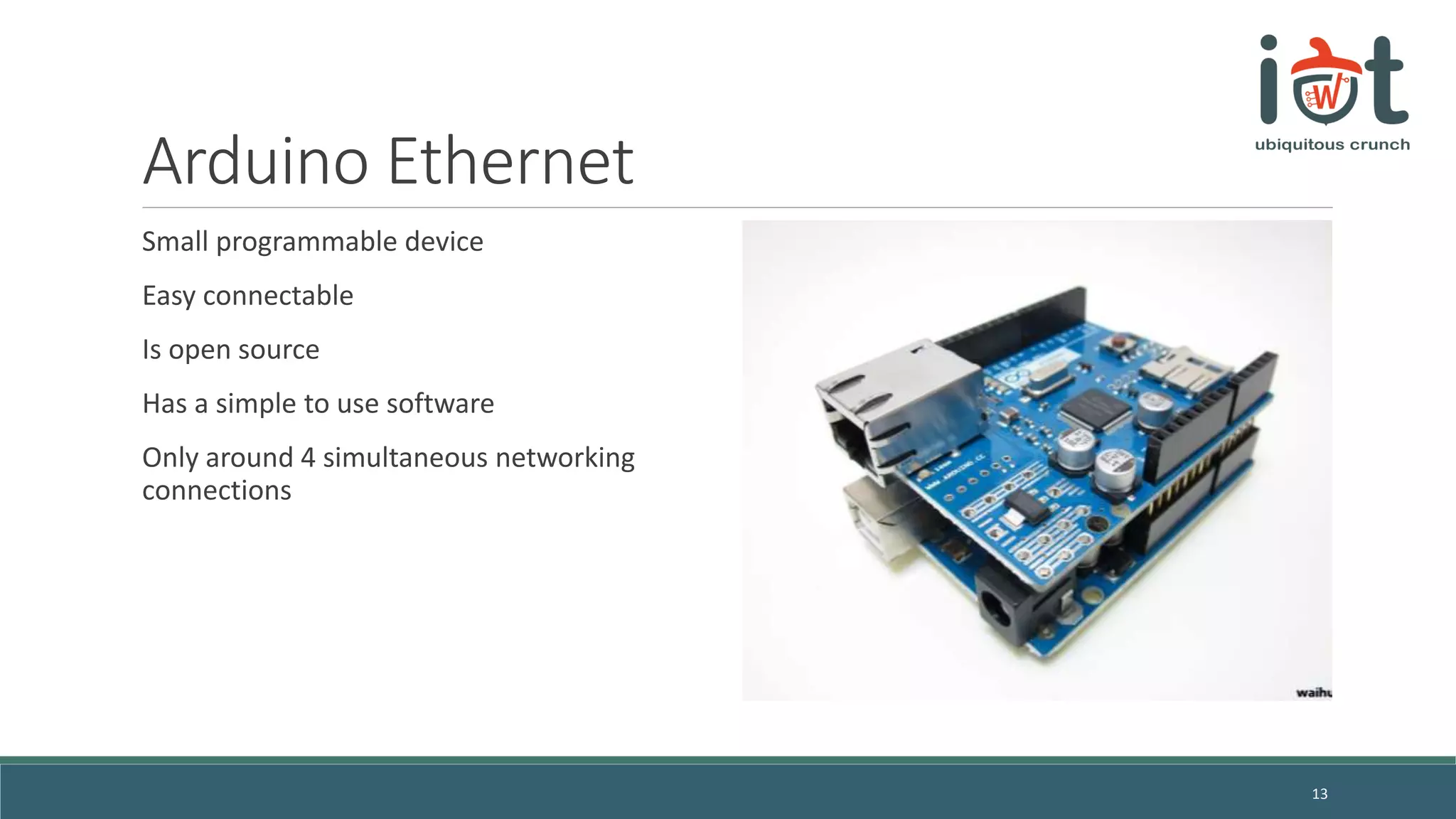

- 13. Arduino Ethernet Small programmabledevice Easy connectable Is open source Has a simple to use software Only around 4 simultaneous networking connections 13
- 14. Raspberry Pi Computer Runs Linux Moresoftware oriented programming Full Networking System 14

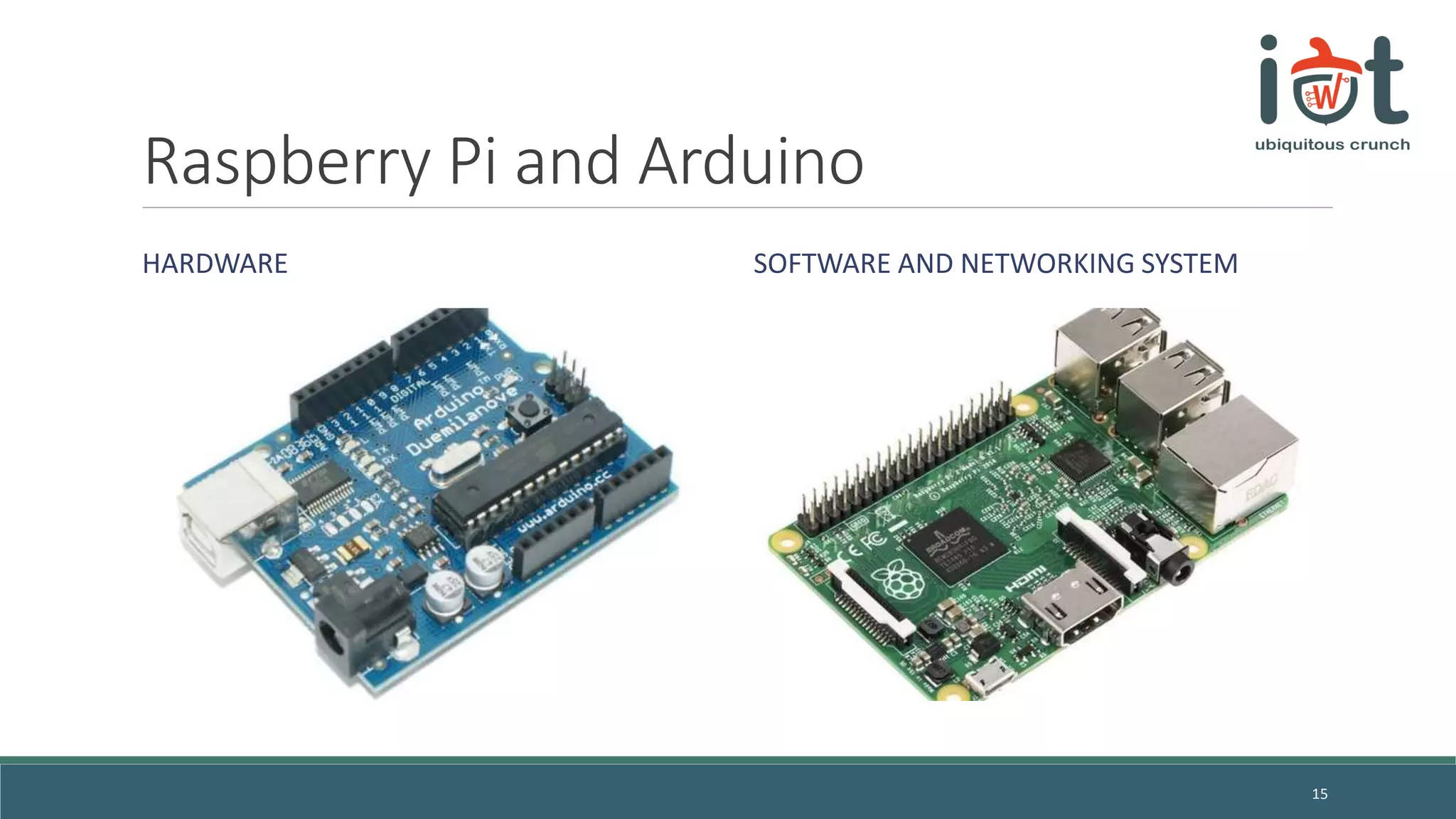

- 15. Raspberry Pi andArduino HARDWARE SOFTWARE AND NETWORKING SYSTEM 15

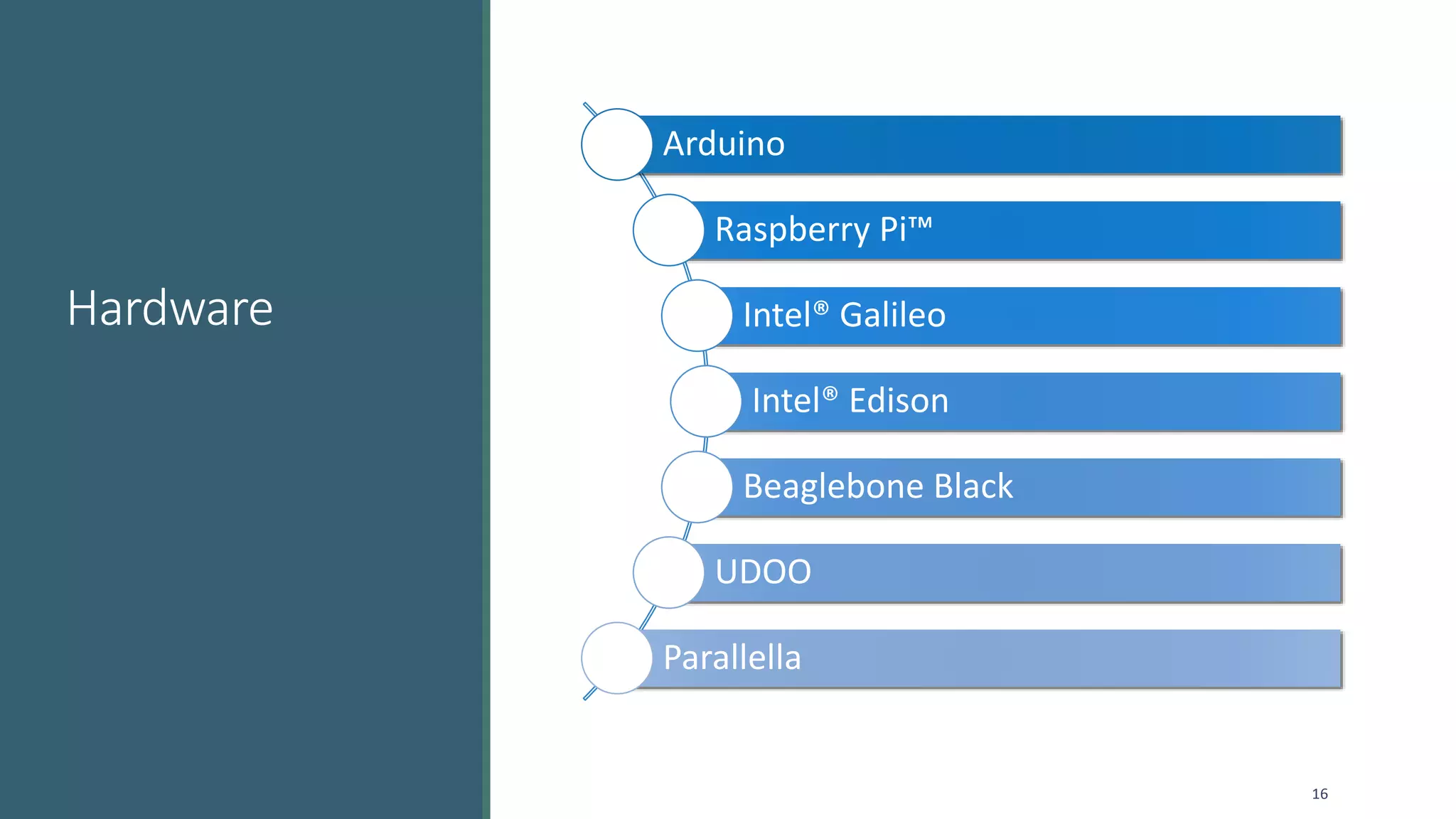

- 16. Hardware Arduino Raspberry Pi™ Intel® Galileo Intel®Edison Beaglebone Black UDOO Parallella 16

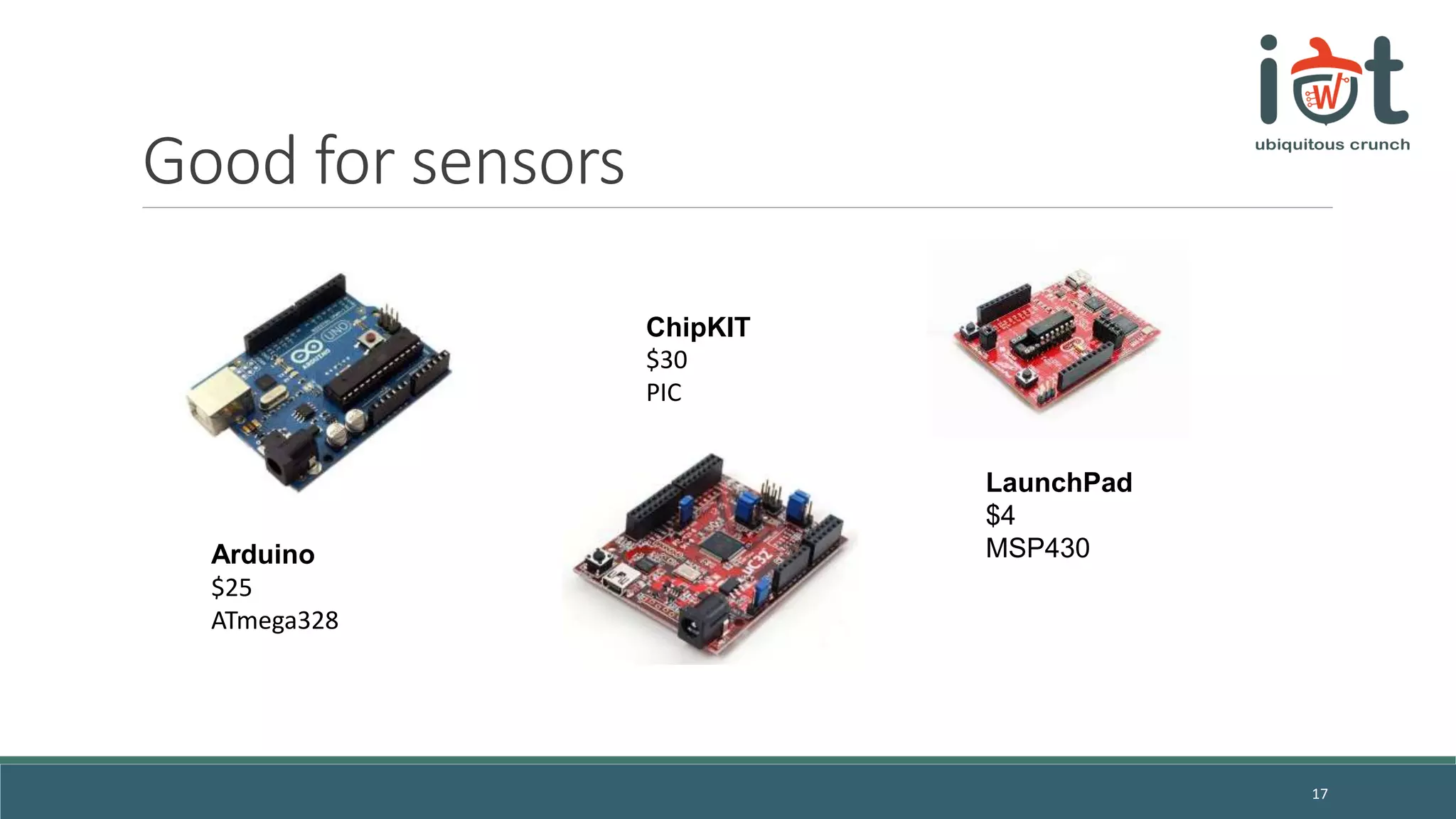

- 17.

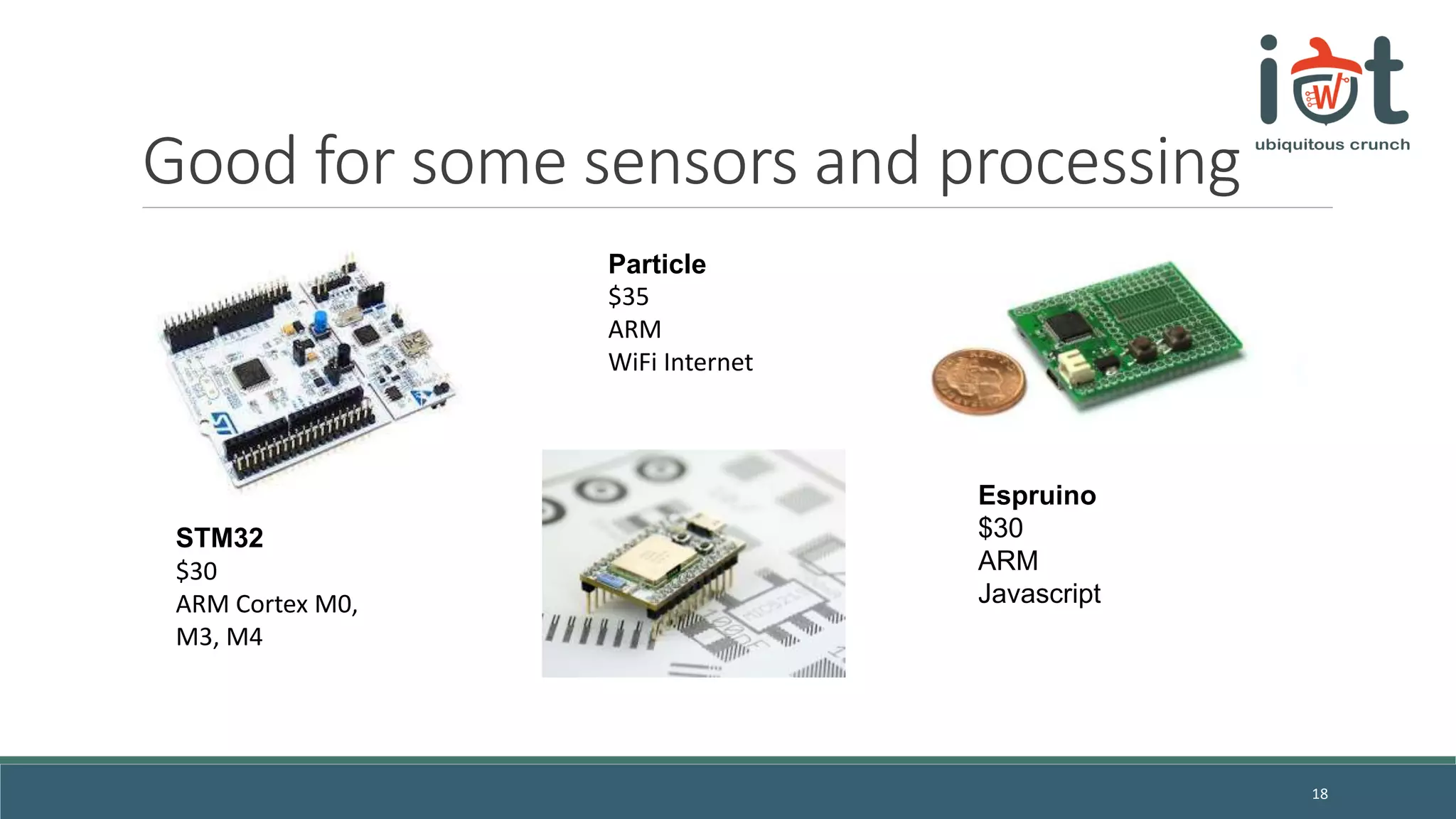

- 18. Good for somesensors and processing 18 STM32 $30 ARM Cortex M0, M3, M4 Espruino $30 ARM Javascript Particle $35 ARM WiFi Internet

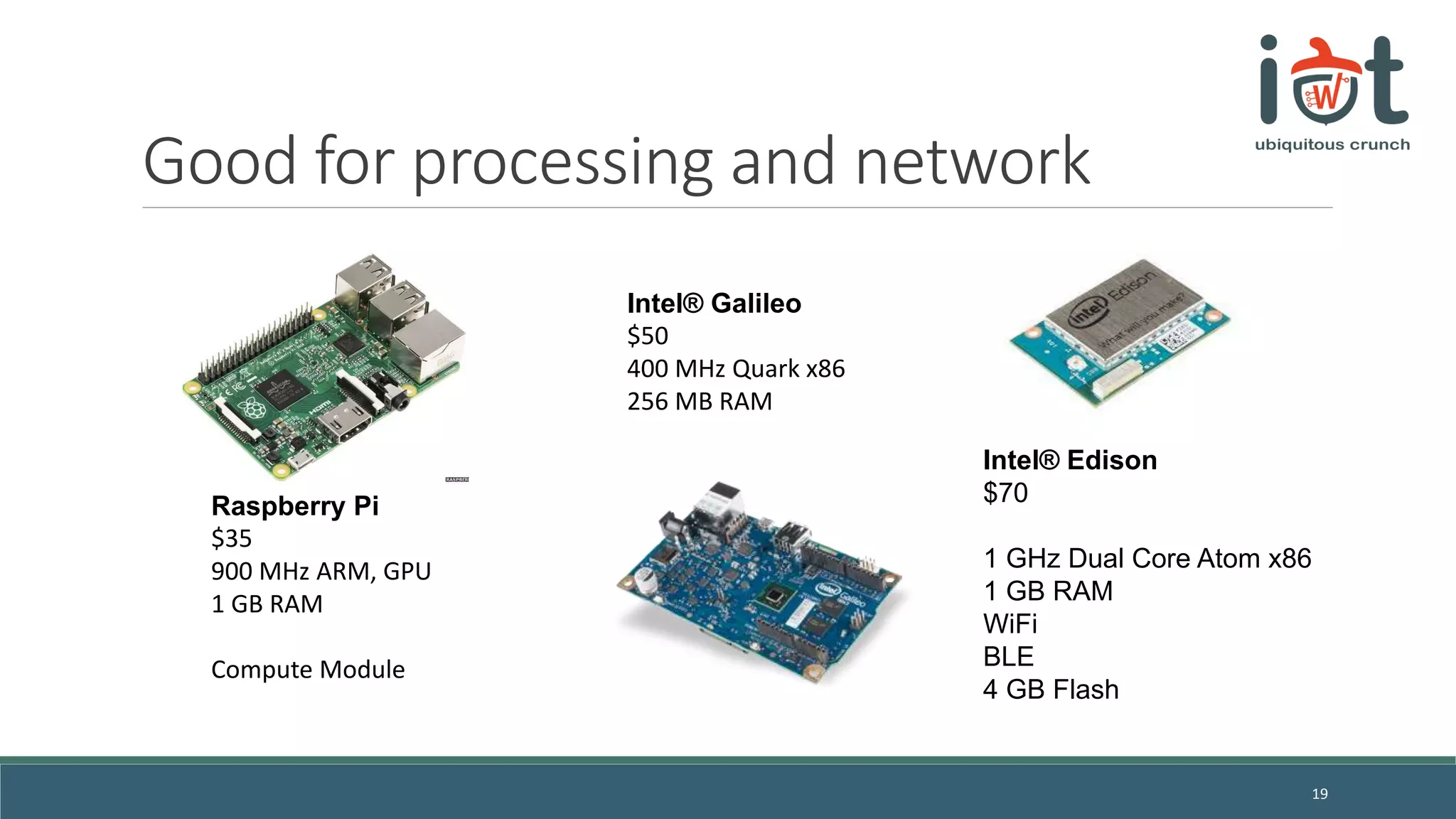

- 19. Good for processingand network 19 Raspberry Pi $35 900 MHz ARM, GPU 1 GB RAM Compute Module Intel® Galileo $50 400 MHz Quark x86 256 MB RAM Intel® Edison $70 1 GHz Dual Core Atom x86 1 GB RAM WiFi BLE 4 GB Flash

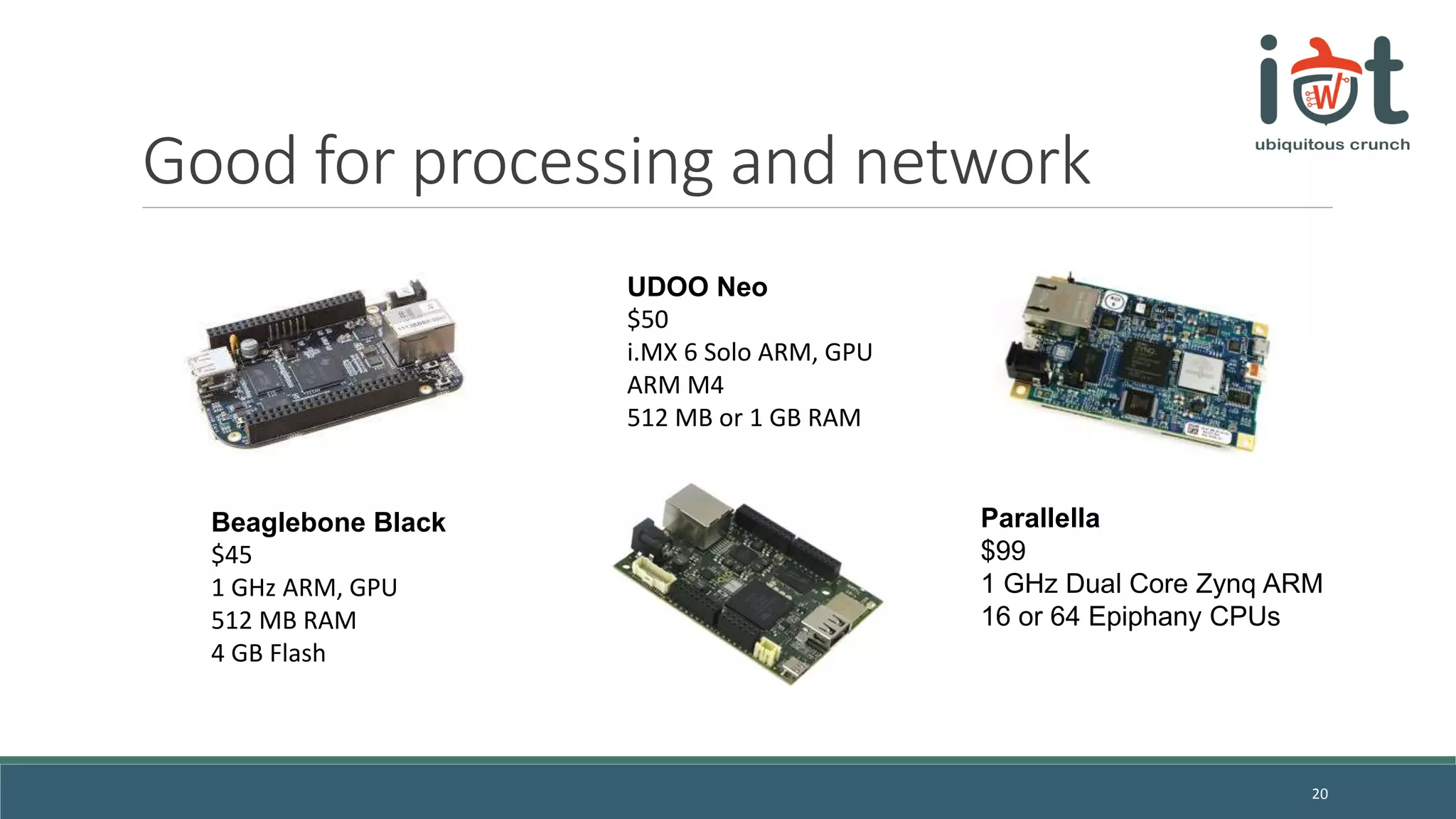

- 20. Good for processingand network 20 Beaglebone Black $45 1 GHz ARM, GPU 512 MB RAM 4 GB Flash UDOO Neo $50 i.MX 6 Solo ARM, GPU ARM M4 512 MB or 1 GB RAM Parallella $99 1 GHz Dual Core Zynq ARM 16 or 64 Epiphany CPUs

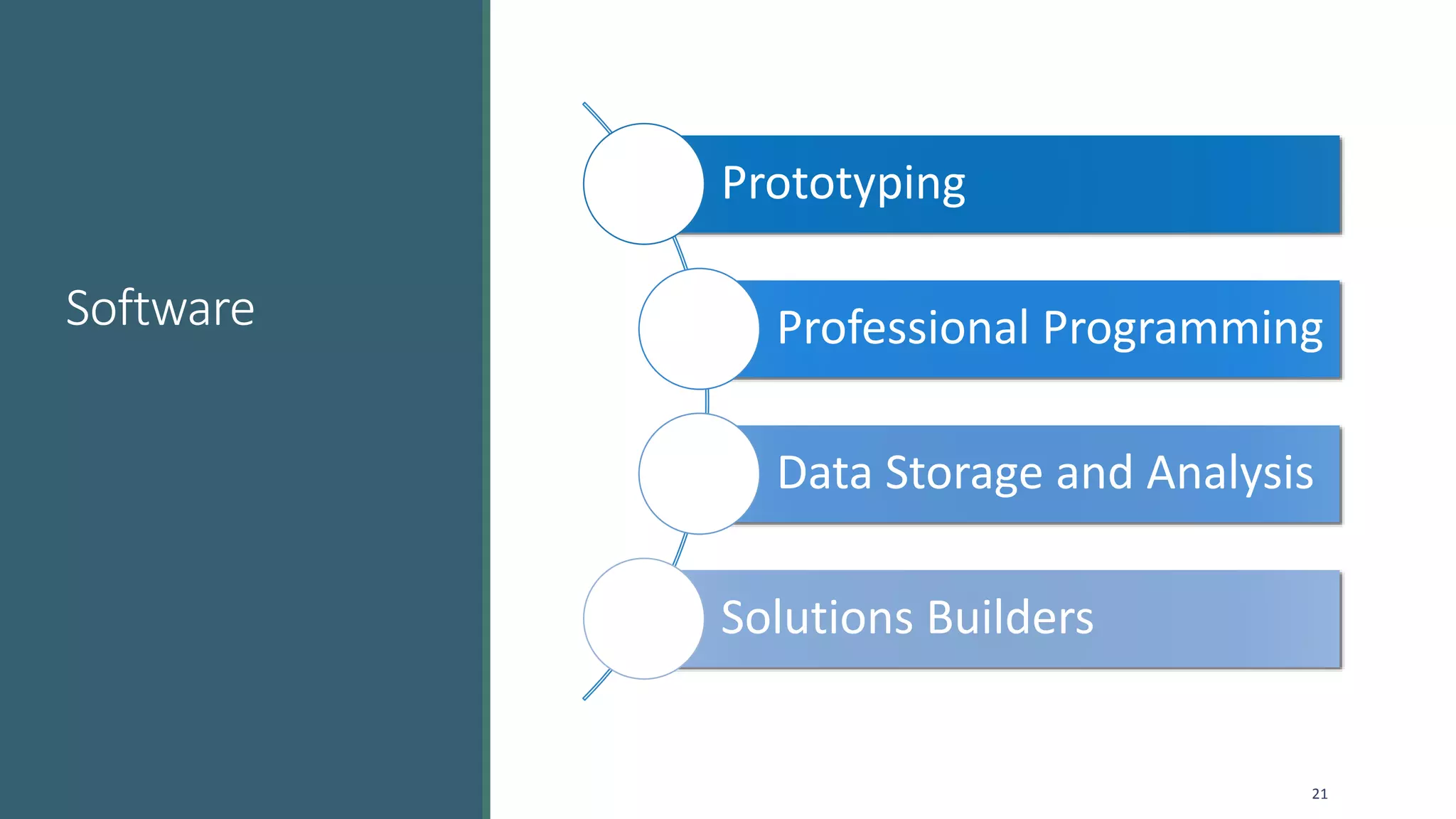

- 21. Software Prototyping Professional Programming Data Storageand Analysis Solutions Builders 21
- 22.
- 23.

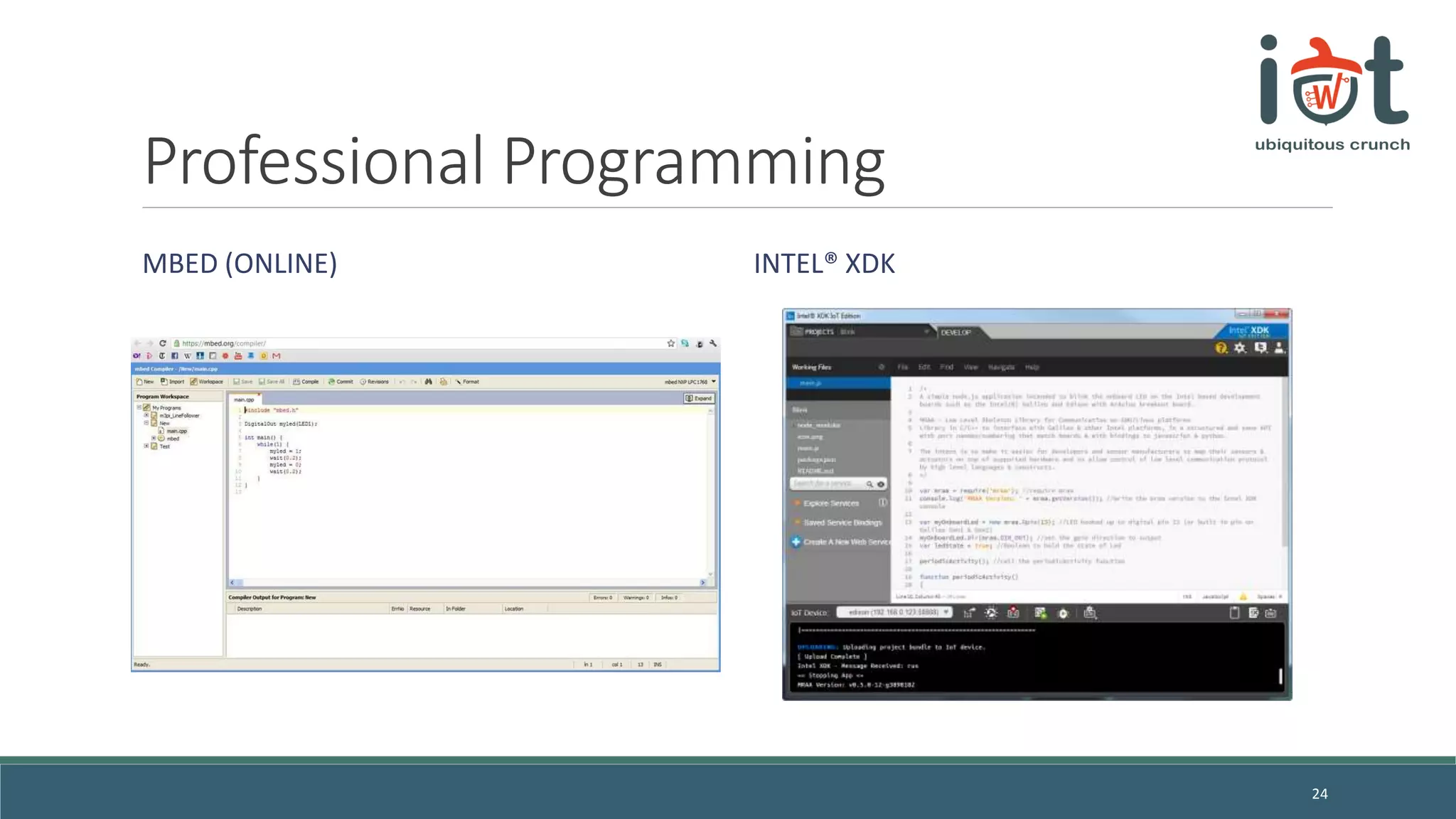

- 24. Professional Programming MBED (ONLINE)INTEL® XDK 24

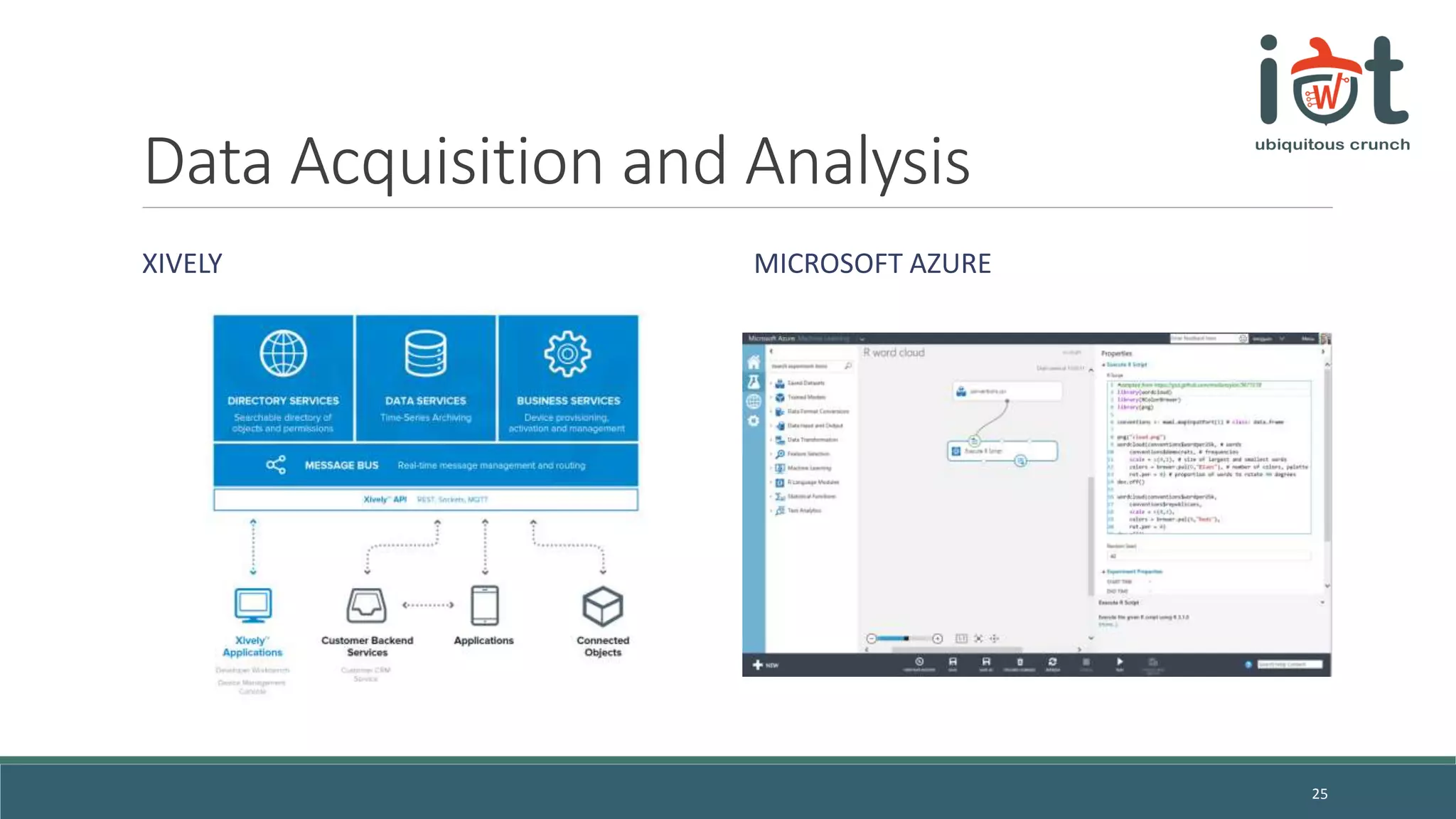

- 25. Data Acquisition andAnalysis XIVELY MICROSOFT AZURE 25

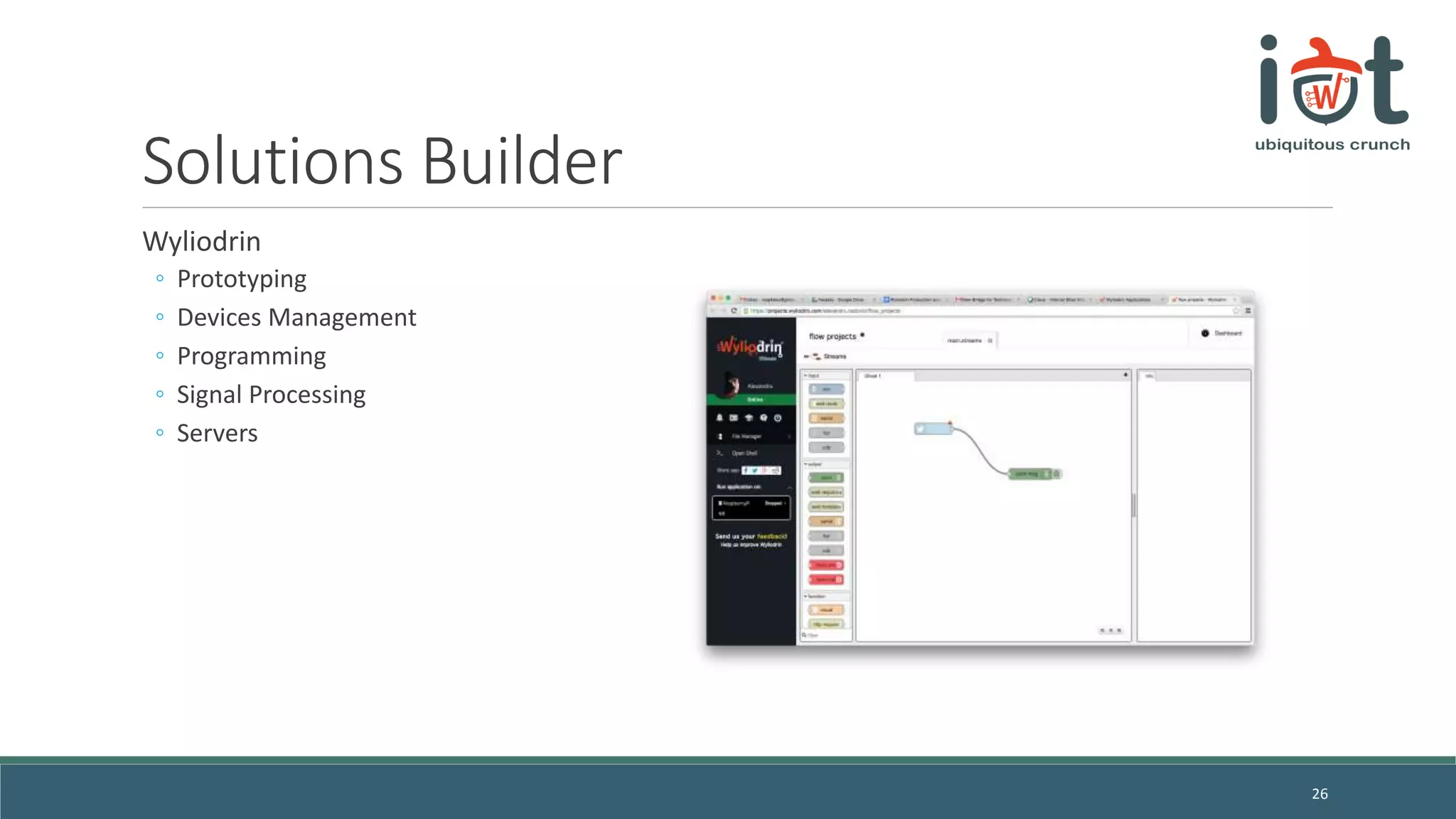

- 26. Solutions Builder Wyliodrin ◦ Prototyping ◦Devices Management ◦ Programming ◦ Signal Processing ◦ Servers 26

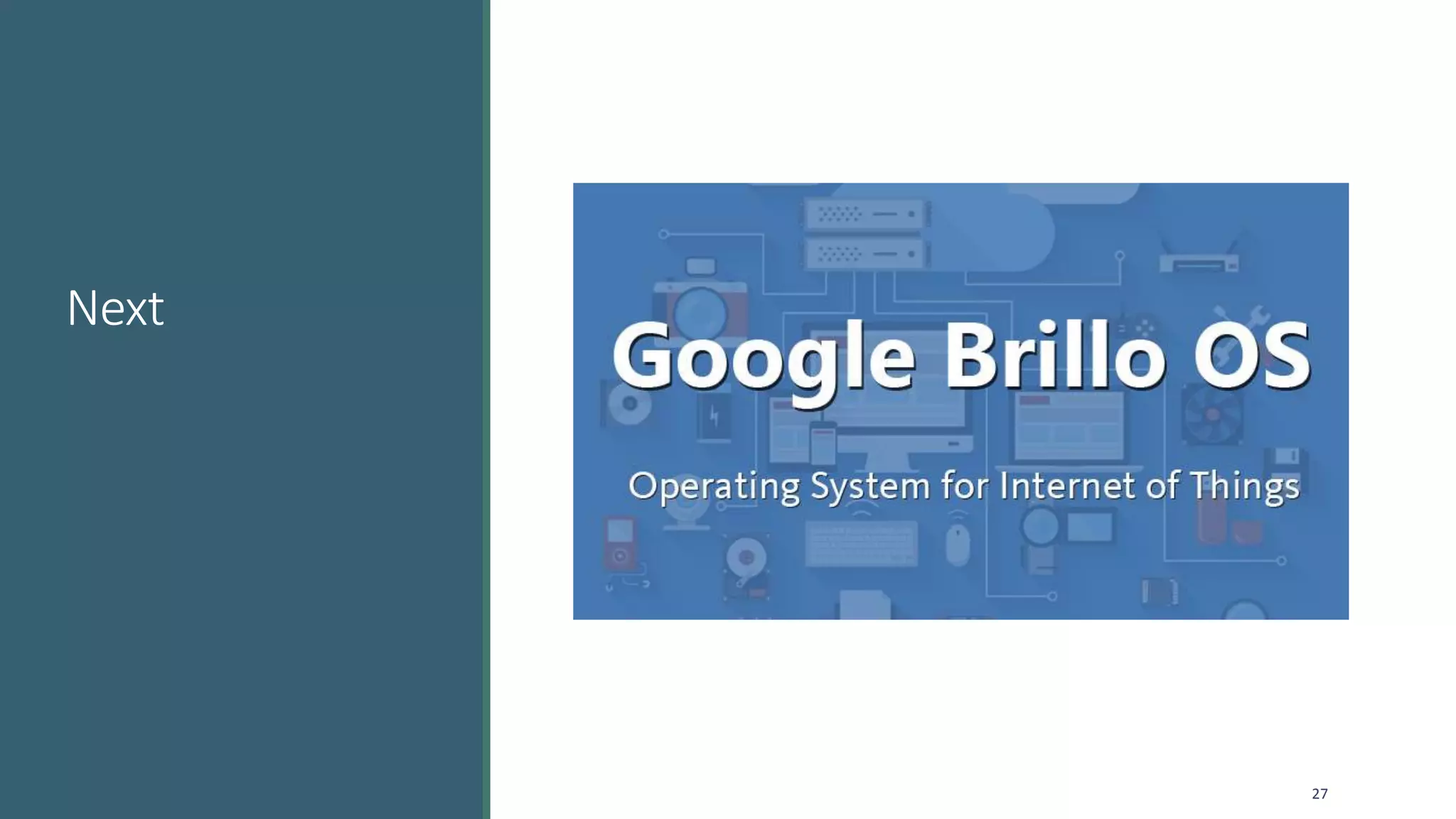

- 27.
- 28.
