Introduction to Apache Airflow - Data Day Seattle 2016
- 1. Introducing Apache Airflow (Incubating) Sid Anand (@r39132) Data Day Seattle 2016 1
- 2. About Me 2 Work [ed | s] @ Maintainer on Reports to Co-Chair for

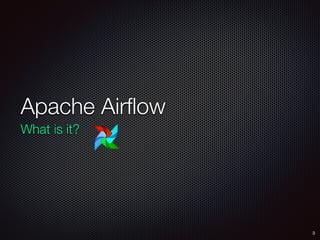

- 3. Apache Airflow 3 What is it?

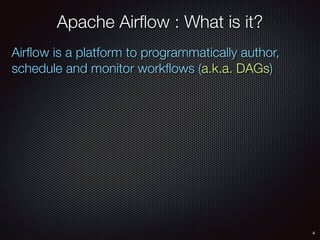

- 4. 4 Apache Airflow : What is it? Airflow is a platform to programmatically author, schedule and monitor workflows (a.k.a. DAGs)

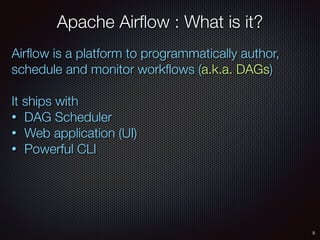

- 5. 5 Apache Airflow : What is it? Airflow is a platform to programmatically author, schedule and monitor workflows (a.k.a. DAGs) It ships with • DAG Scheduler • Web application (UI) • Powerful CLI

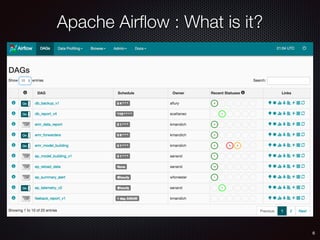

- 6. 6 Apache Airflow : What is it?
- 7. Airflow - Authoring DAGs 7 Airflow: Visualizing a DAG
- 8. 8 Airflow: Author DAGs in Python! No need to bundle many XML files! Airflow - Authoring DAGs

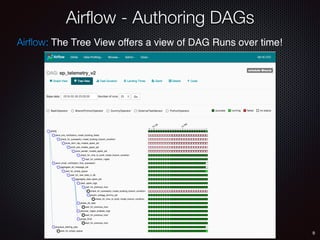

- 9. 9 Airflow: The Tree View offers a view of DAG Runs over time! Airflow - Authoring DAGs

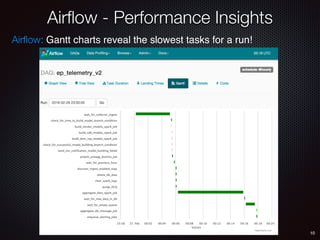

- 10. Airflow - Performance Insights 10 Airflow: Gantt charts reveal the slowest tasks for a run!

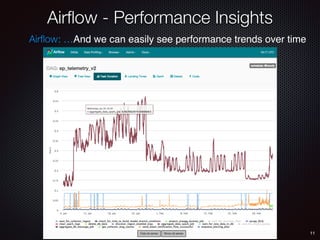

- 11. 11 Airflow: …And we can easily see performance trends over time Airflow - Performance Insights

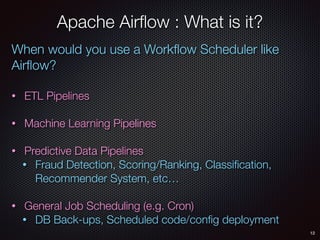

- 12. 12 Apache Airflow : What is it? When would you use a Workflow Scheduler like Airflow? • ETL Pipelines • Machine Learning Pipelines • Predictive Data Pipelines • Fraud Detection, Scoring/Ranking, Classification, Recommender System, etc… • General Job Scheduling (e.g. Cron) • DB Back-ups, Scheduled code/config deployment

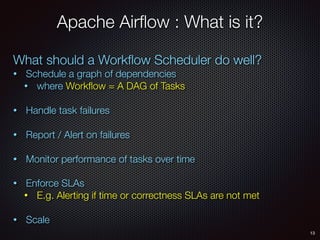

- 13. 13 Apache Airflow : What is it? What should a Workflow Scheduler do well? • Schedule a graph of dependencies • where Workflow = A DAG of Tasks • Handle task failures • Report / Alert on failures • Monitor performance of tasks over time • Enforce SLAs • E.g. Alerting if time or correctness SLAs are not met • Scale

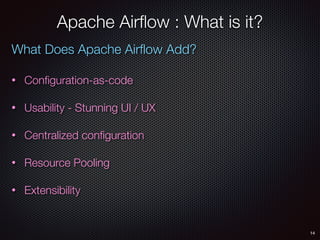

- 14. 14 Apache Airflow : What is it? What Does Apache Airflow Add? • Configuration-as-code • Usability - Stunning UI / UX • Centralized configuration • Resource Pooling • Extensibility

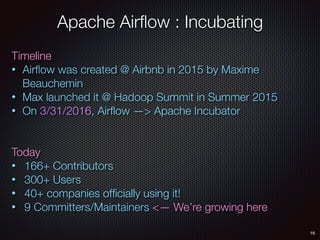

- 16. 16 Apache Airflow : Incubating Timeline • Airflow was created @ Airbnb in 2015 by Maxime Beauchemin • Max launched it @ Hadoop Summit in Summer 2015 • On 3/31/2016, Airflow —> Apache Incubator Today • 166+ Contributors • 300+ Users • 40+ companies officially using it! • 9 Committers/Maintainers <— We’re growing here

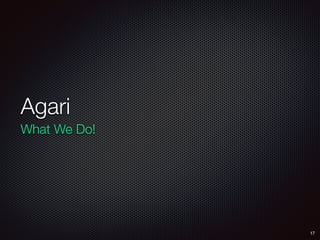

- 18. Agari : What We Do 18
- 19. 19 Agari : What We Do
- 20. 20 Agari : What We Do
- 21. 21 Agari : What We Do
- 22. 22 Agari : What We Do
- 23. 23 Enterprise Customers email metadata apply trust models email md + trust score Agari’s Current Product Agari : What We Do

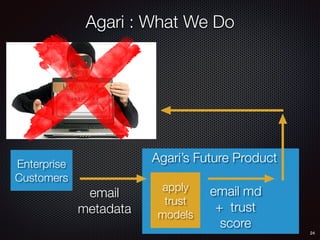

- 24. 24 email metadata apply trust models email md + trust score Agari’s Future ProductEnterprise Customers Agari : What We Do
- 25. Apache Airflow @ Agari How Do We Use It? 25

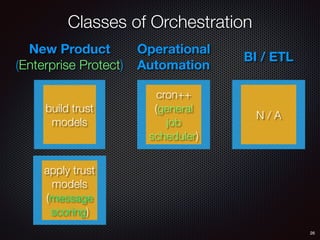

- 26. Classes of Orchestration 26 apply trust models (message scoring) build trust models cron++ (general job scheduler) New Product (Enterprise Protect) Operational Automation BI / ETL N / A

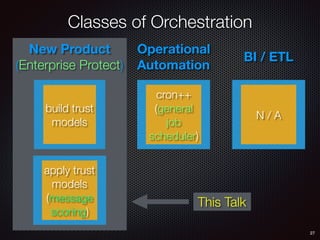

- 27. Classes of Orchestration 27 apply trust models (message scoring) build trust models cron++ (general job scheduler) New Product (Enterprise Protect) Operational Automation BI / ETL N / A This Talk
- 28. Use-Case : Message Scoring Batch Pipeline Architecture 28
- 29. Use-Case : Message Scoring 29 enterprise A enterprise B enterprise C S3 S3 uploads every 15 minutes

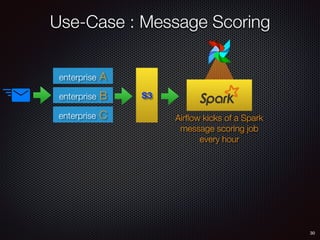

- 30. Use-Case : Message Scoring 30 enterprise A enterprise B enterprise C S3 Airflow kicks of a Spark message scoring job every hour

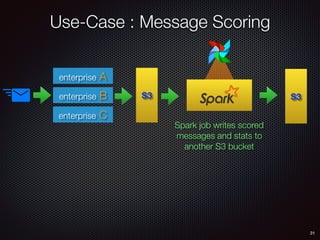

- 31. Use-Case : Message Scoring 31 enterprise A enterprise B enterprise C S3 Spark job writes scored messages and stats to another S3 bucket S3

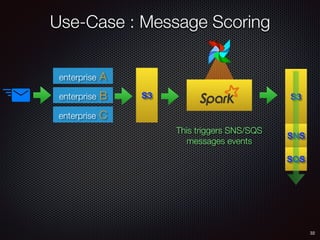

- 32. Use-Case : Message Scoring 32 enterprise A enterprise B enterprise C S3 This triggers SNS/SQS messages events S3 SNS SQS

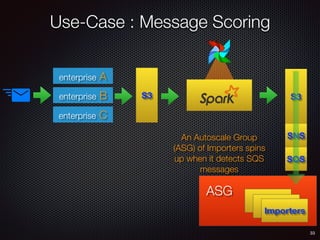

- 33. Use-Case : Message Scoring 33 enterprise A enterprise B enterprise C S3 An Autoscale Group (ASG) of Importers spins up when it detects SQS messages S3 SNS SQS Importers ASG

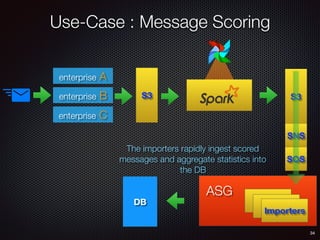

- 34. 34 enterprise A enterprise B enterprise C S3 The importers rapidly ingest scored messages and aggregate statistics into the DB S3 SNS SQS Importers ASG DB Use-Case : Message Scoring
- 35. 35 enterprise A enterprise B enterprise C S3 Users receive alerts of untrusted emails & can review them in the web app S3 SNS SQS Importers ASG DB Use-Case : Message Scoring

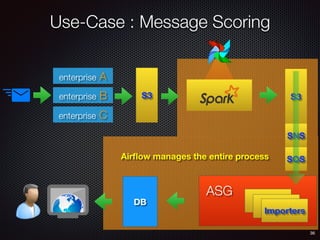

- 36. 36 enterprise A enterprise B enterprise C S3 S3 SNS SQS Importers ASG DB Airflow manages the entire process Use-Case : Message Scoring
- 37. Use-Case : Message Scoring Airflow DAG 37

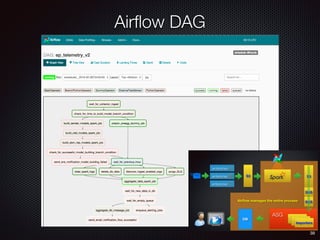

- 38. 38 Airflow DAG

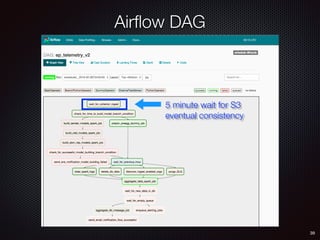

- 39. 39 5 minute wait for S3 eventual consistency Airflow DAG

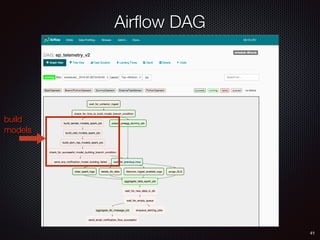

- 40. 40 1 hour a day, we also build new models Airflow DAG

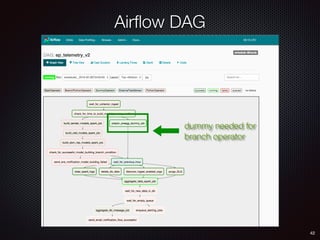

- 42. 42 dummy needed for branch operator Airflow DAG

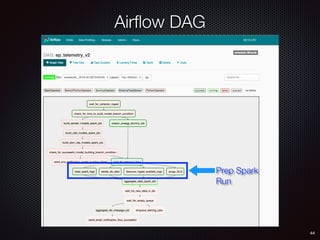

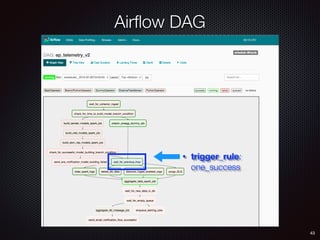

- 45. 45 • Run Spark • Verify a record is written to the DB • Wait for the SQS queue to empty Airflow DAG

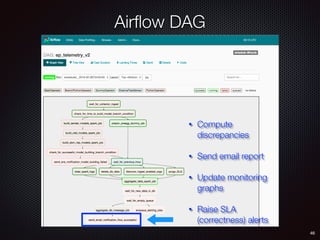

- 46. 46 • Compute discrepancies • Send email report • Update monitoring graphs • Raise SLA (correctness) alerts Airflow DAG

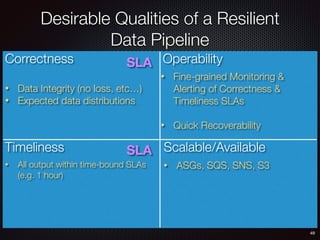

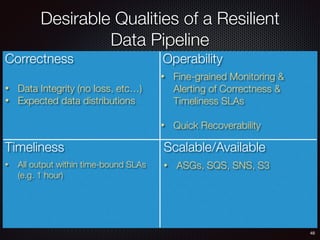

- 48. 48 Desirable Qualities of a Resilient Data Pipeline OperabilityCorrectness Timeliness Scalable/Available • Data Integrity (no loss, etc…) • Expected data distributions • All output within time-bound SLAs (e.g. 1 hour) • Fine-grained Monitoring & Alerting of Correctness & Timeliness SLAs • Quick Recoverability • ASGs, SQS, SNS, S3
- 49. 49 Desirable Qualities of a Resilient Data Pipeline OperabilityCorrectness Timeliness • Data Integrity (no loss, etc…) • Expected data distributions • All output within time-bound SLAs (e.g. 1 hour) • Fine-grained Monitoring & Alerting of Correctness & Timeliness SLAs • Quick Recoverability SLA SLA • ASGs, SQS, SNS, S3 Scalable/Available

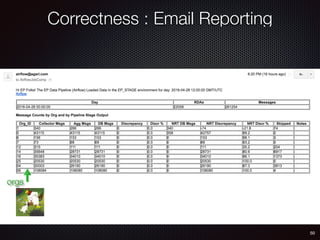

- 50. 50 Correctness : Email Reporting orgs

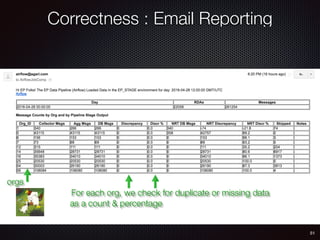

- 51. 51 Correctness : Email Reporting For each org, we check for duplicate or missing data as a count & percentage orgs

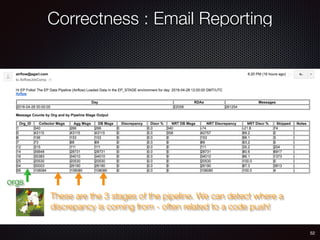

- 52. 52 Correctness : Email Reporting These are the 3 stages of the pipeline. We can detect where a discrepancy is coming from - often related to a code push! orgs

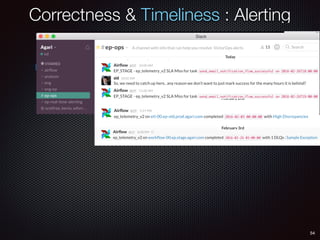

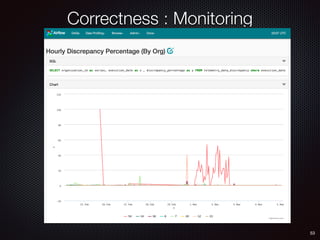

- 54. 54 Airflow: …And easy to integrate with Ops tools! Correctness & Timeliness : Alerting
- 55. 55 Airflow: …And easy to integrate with Ops tools! Correctness & Timeliness : Alerting Timeliness SLA miss

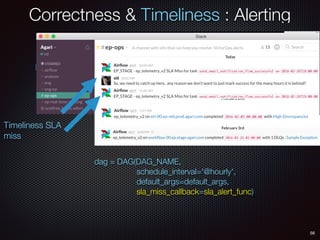

- 56. 56 Airflow: …And easy to integrate with Ops tools! Correctness & Timeliness : Alerting Timeliness SLA miss dag = DAG(DAG_NAME, schedule_interval='@hourly', default_args=default_args, sla_miss_callback=sla_alert_func)

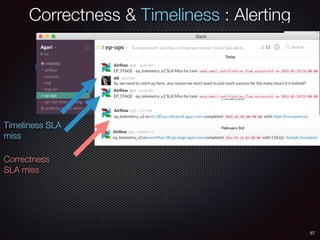

- 57. 57 Airflow: …And easy to integrate with Ops tools! Correctness & Timeliness : Alerting Timeliness SLA miss Correctness SLA miss

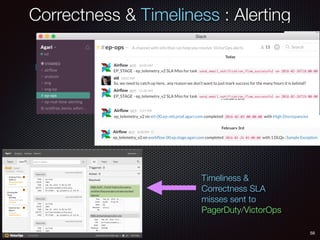

- 58. 58 Airflow: …And easy to integrate with Ops tools! Correctness & Timeliness : Alerting Timeliness & Correctness SLA misses sent to PagerDuty/VictorOps

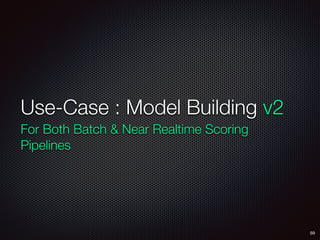

- 59. Use-Case : Model Building v2 For Both Batch & Near Realtime Scoring Pipelines 59

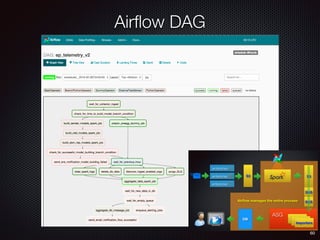

- 60. 60 Airflow DAG

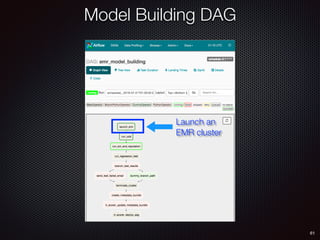

- 61. 61 Model Building DAG Launch an EMR cluster

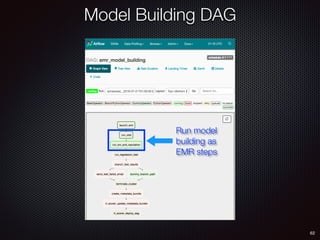

- 62. 62 Run model building as EMR steps Model Building DAG

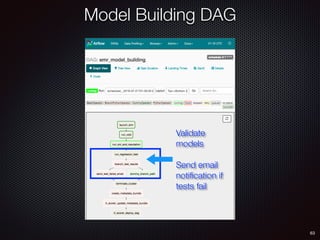

- 63. 63 Validate models Send email notification if tests fail Model Building DAG

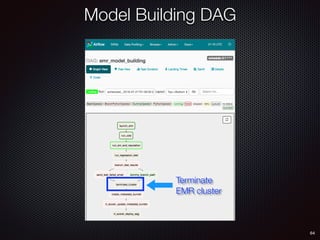

- 65. Apache Airflow Next Steps 65 Areas for Improvement

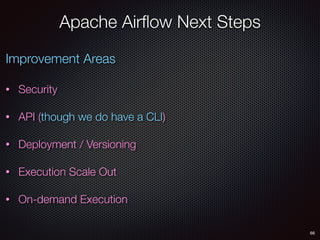

- 66. 66 Apache Airflow Next Steps Improvement Areas • Security • API (though we do have a CLI) • Deployment / Versioning • Execution Scale Out • On-demand Execution
- 67. Acknowledgments 67 • Vidur Apparao • Stephen Cattaneo • Jon Chase • Andrew Flury • William Forrester • Chris Haag • Mike Jones • Scot Kennedy • Thede Loder • Paul Lorence • Kevin Mandich • Gabriel Ortiz • Jacob Rideout • Josh Yang • Julian Mehnle None of this work would be possible without the contributions of the strong team below
