What is in a modern BI architecture? In this presentation, we explore PaaS, Azure Active Directory and Storage options including SQL Database and SQL Datawarehouse.

1. Azure Data Services
Afternoons with Azure Part 3

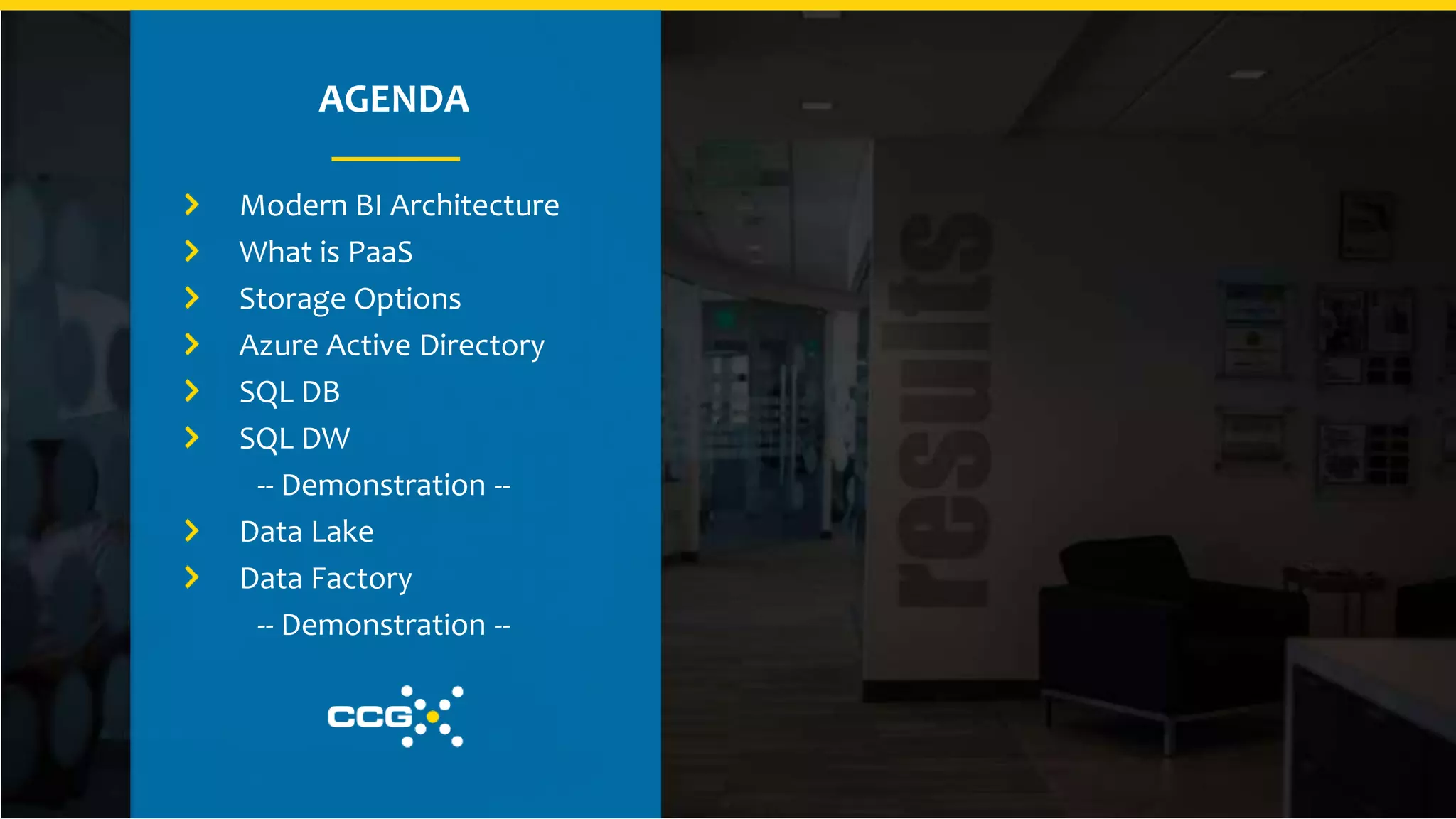

2. AGENDA
Modern BI Architecture
What is PaaS
Storage Options
Azure Active Directory
SQL DB
SQL DW
-- Demonstration --
Data Lake
Data Factory
-- Demonstration --

3. Modern BI Architecture

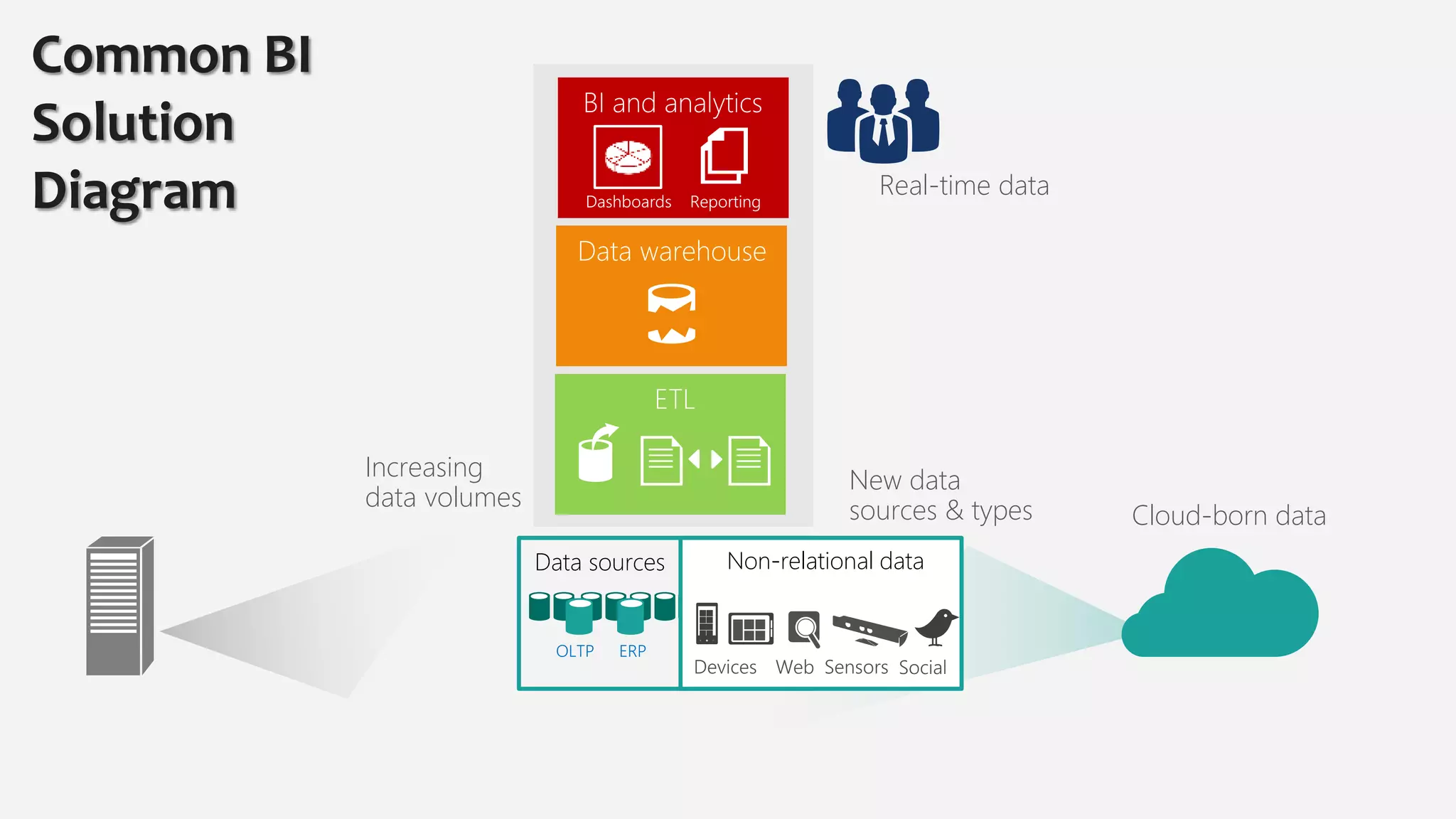

4. Common BI
Solution
Diagram
Data sources Non-relational data
New data
sources & types
Increasing
data volumes
Real-time data
Cloud-born data

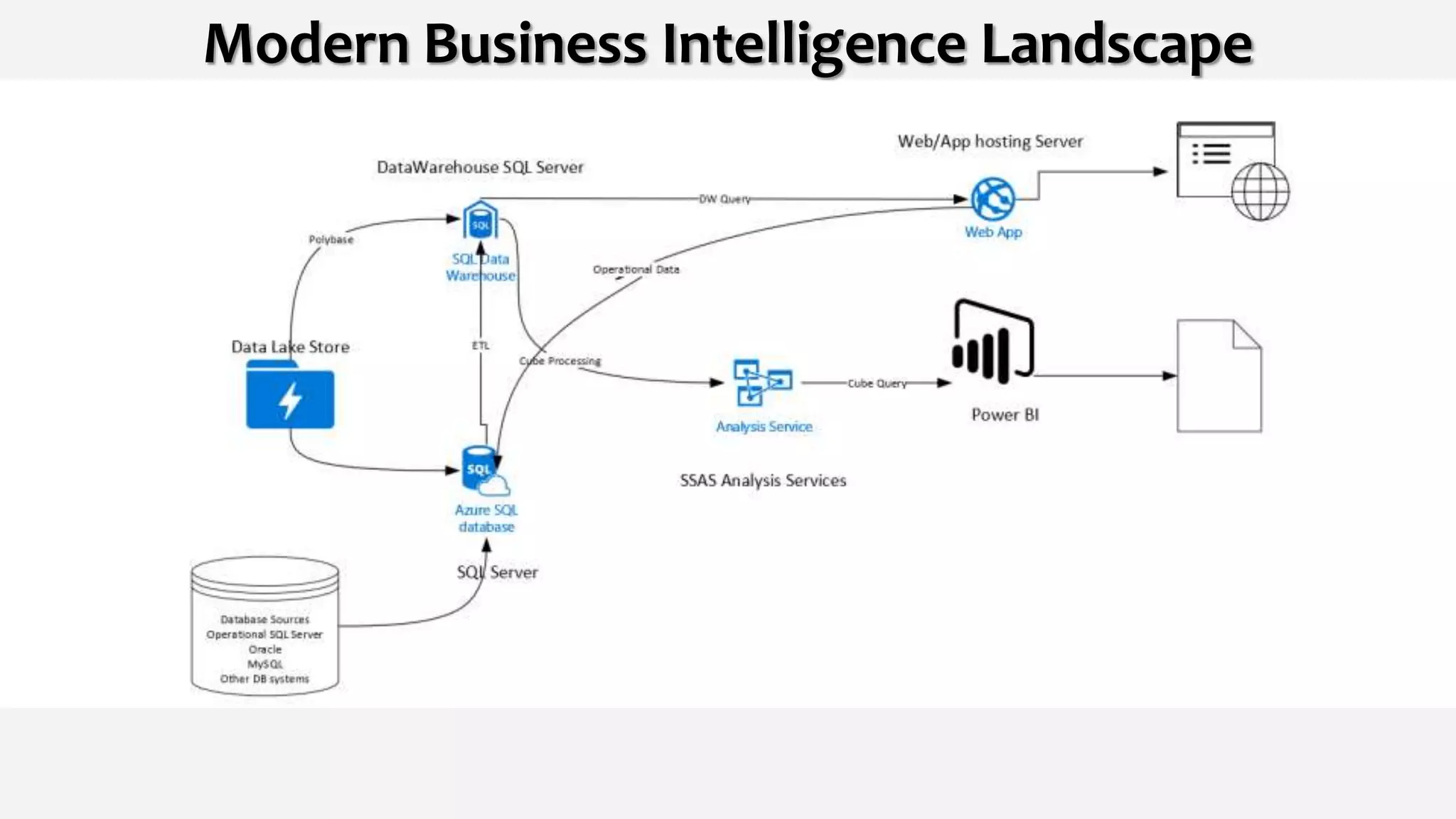

5. Modern Business Intelligence Landscape

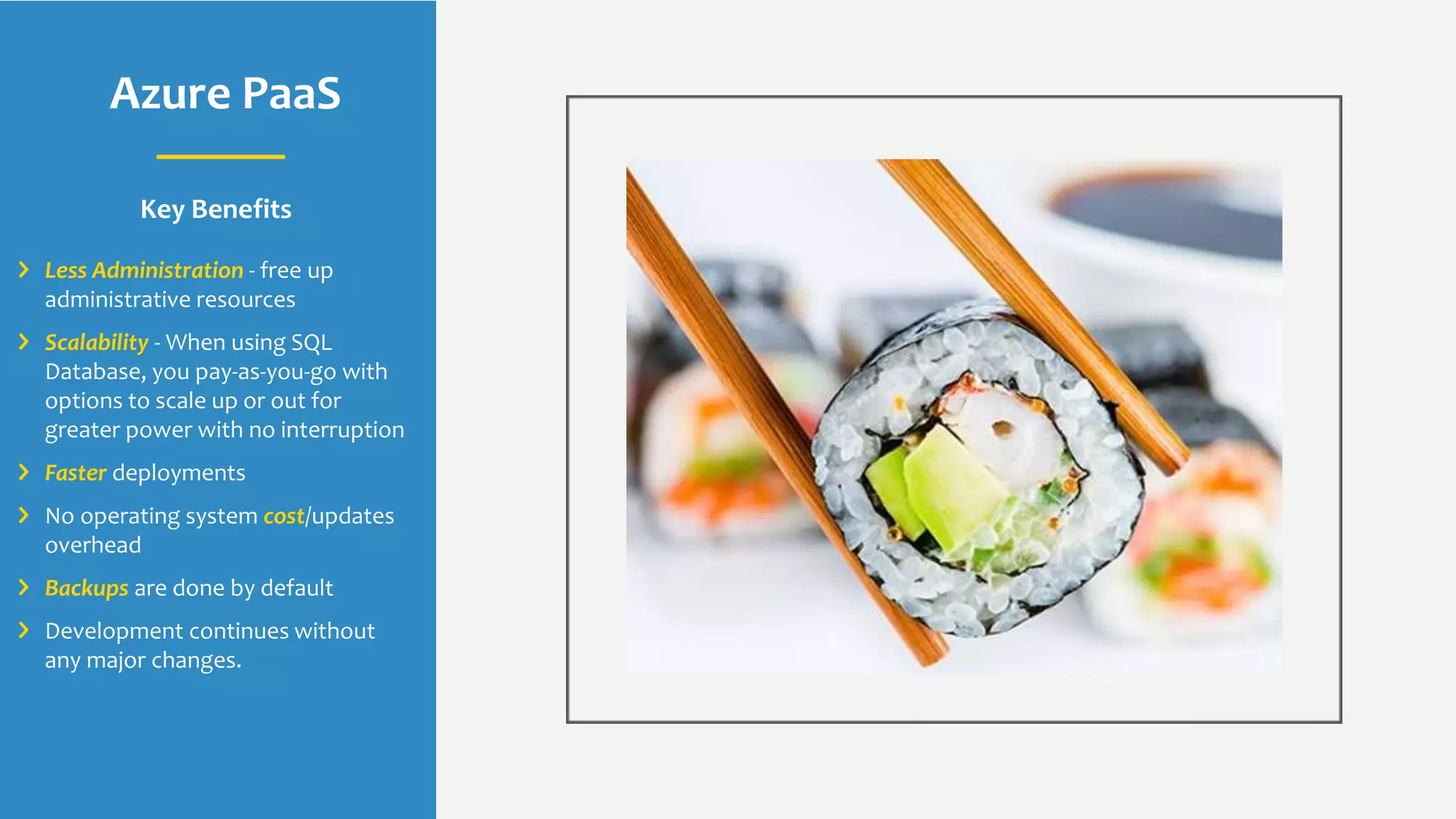

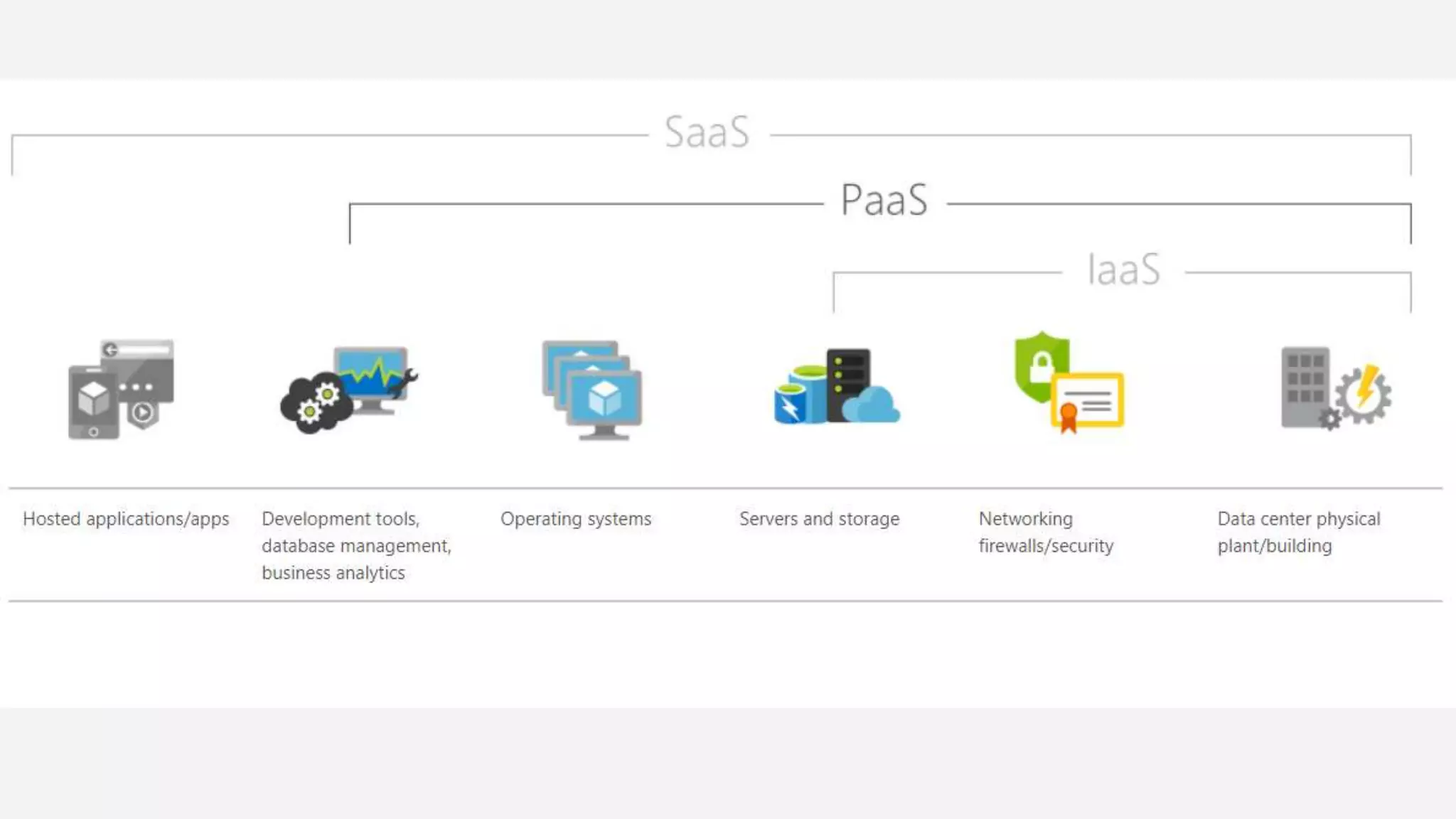

6. Azure PaaS
Key Benefits
Less Administration - free up
administrative resources
Scalability - When using SQL
Database, you pay-as-you-go with
options to scale up or out for
greater power with no interruption
Faster deployments
No operating system cost/updates
overhead
Backups are done by default
Development continues without
any major changes.

8. Azure Storage
The Foundation of All Things Azure

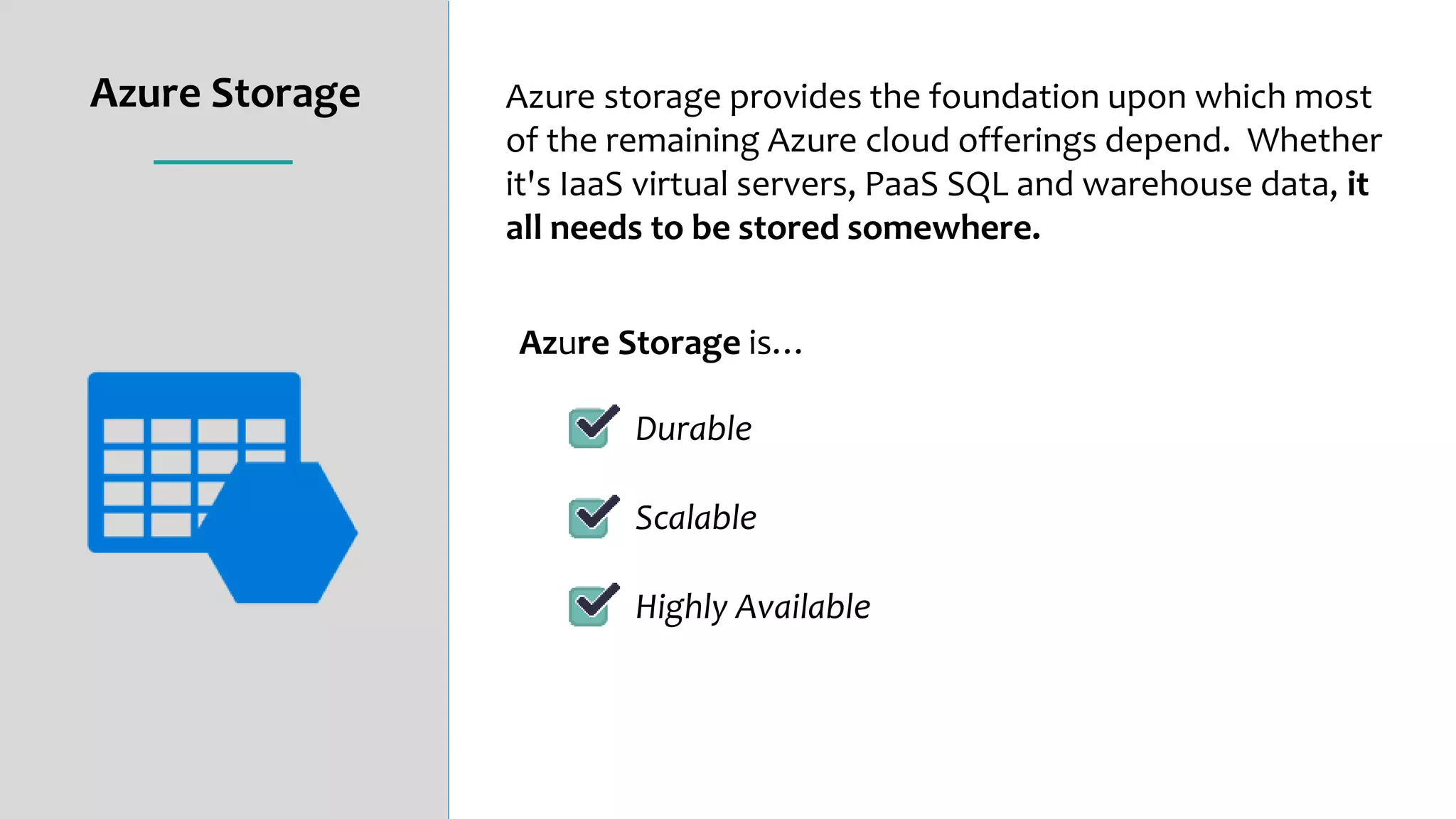

9. Azure Storage
Azure Storage is…
Durable
Scalable
Highly Available
Azure storage provides the foundation upon which most
of the remaining Azure cloud offerings depend. Whether
it's IaaS virtual servers, PaaS SQL and warehouse data, it
all needs to be stored somewhere.

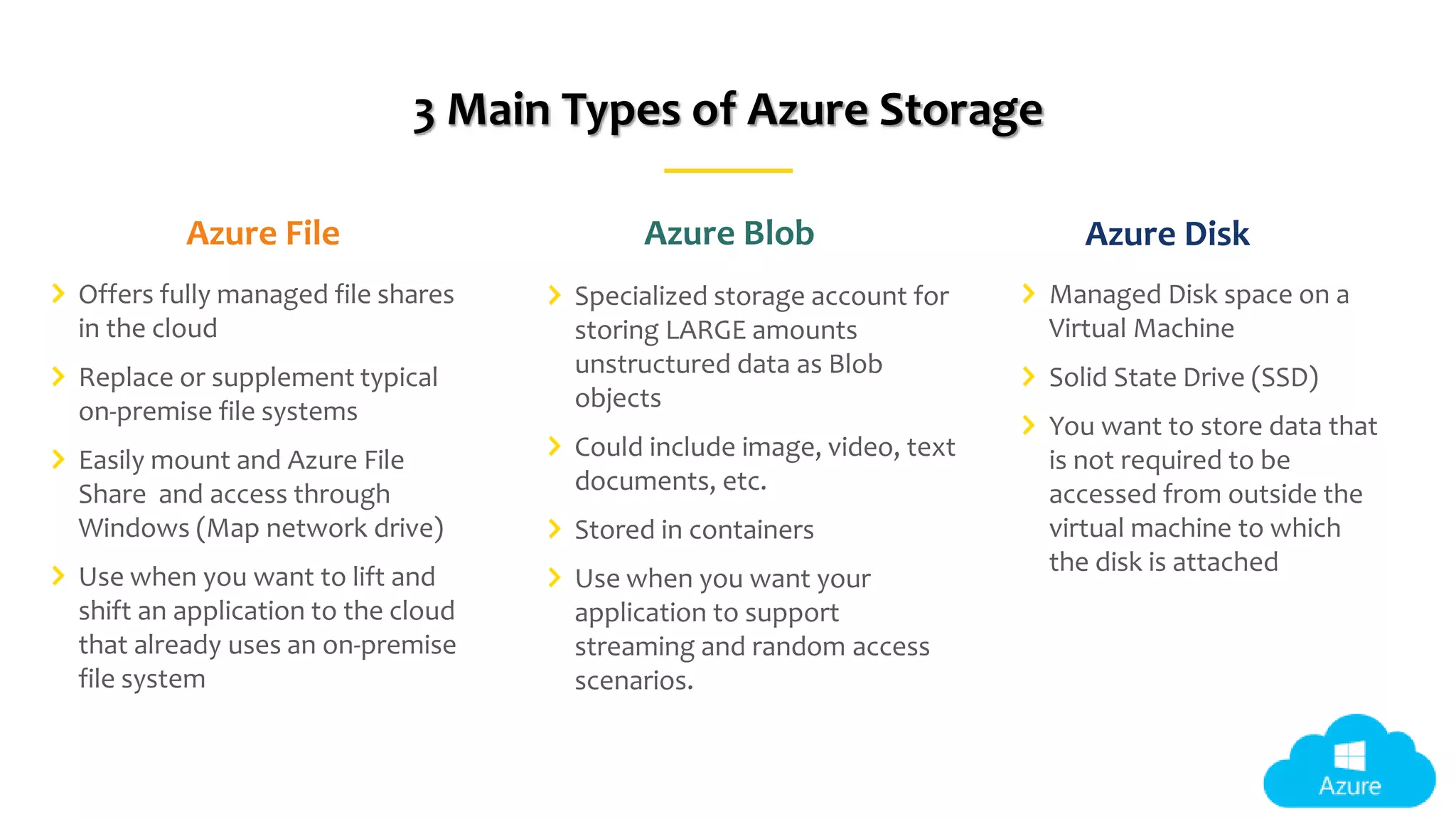

10. Azure Blob
Specialized storage account for
storing LARGE amounts
unstructured data as Blob
objects
Could include image, video, text
documents, etc.
Stored in containers
Use when you want your
application to support
streaming and random access
scenarios.
3 Main Types of Azure Storage
Azure File
Offers fully managed file shares
in the cloud
Replace or supplement typical
on-premise file systems
Easily mount and Azure File
Share and access through
Windows (Map network drive)
Use when you want to lift and
shift an application to the cloud
that already uses an on-premise
file system
Azure Disk
Managed Disk space on a
Virtual Machine
Solid State Drive (SSD)
You want to store data that
is not required to be
accessed from outside the
virtual machine to which
the disk is attached

11. Azure Active Directory
The Foundation of All Things Azure

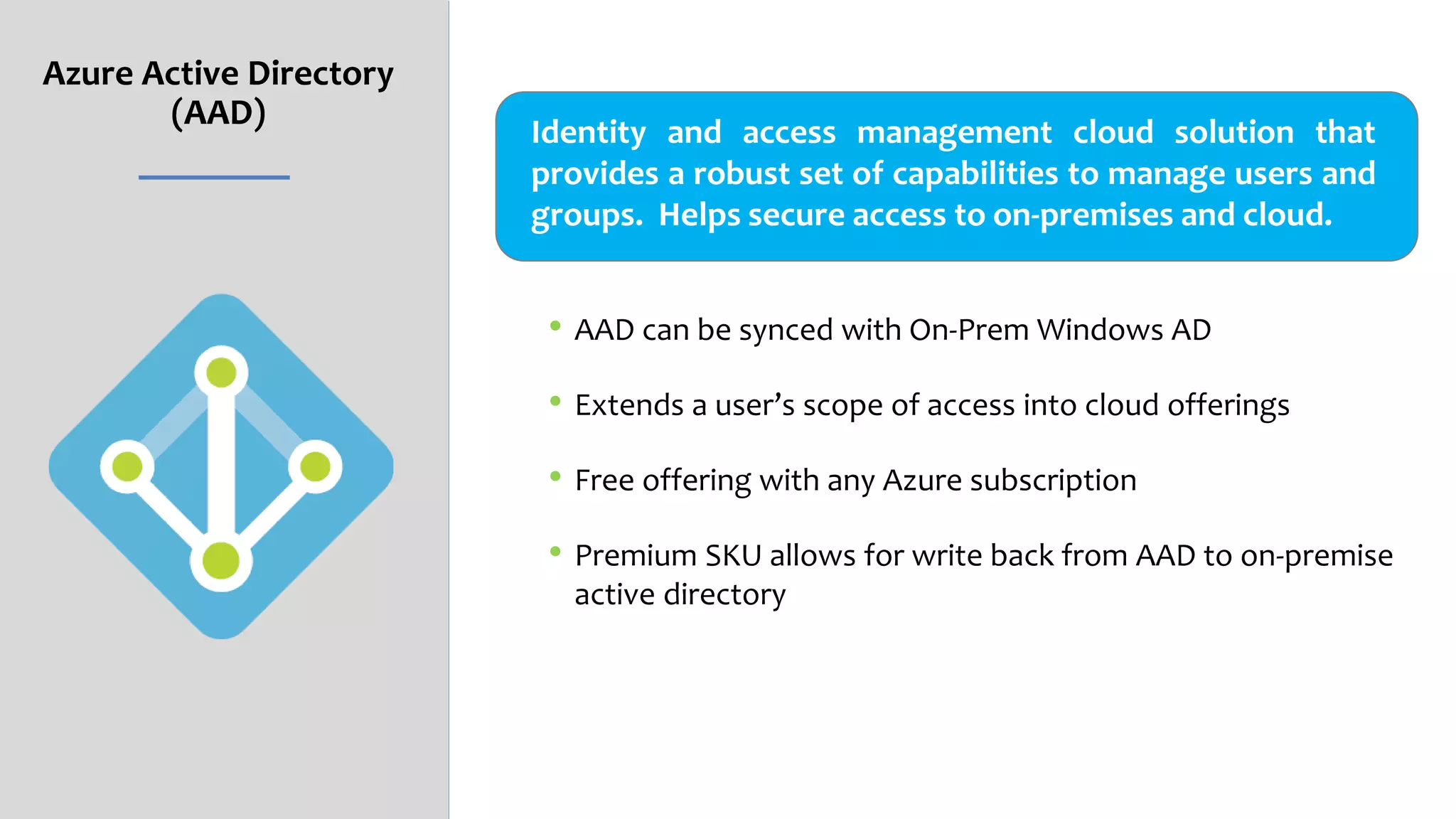

12. Azure Active Directory
(AAD)
• AAD can be synced with On-Prem Windows AD
• Extends a user’s scope of access into cloud offerings
• Free offering with any Azure subscription
• Premium SKU allows for write back from AAD to on-premise
active directory
Identity and access management cloud solution that
provides a robust set of capabilities to manage users and
groups. Helps secure access to on-premises and cloud.

13. Azure SQL DB
Azure Databases

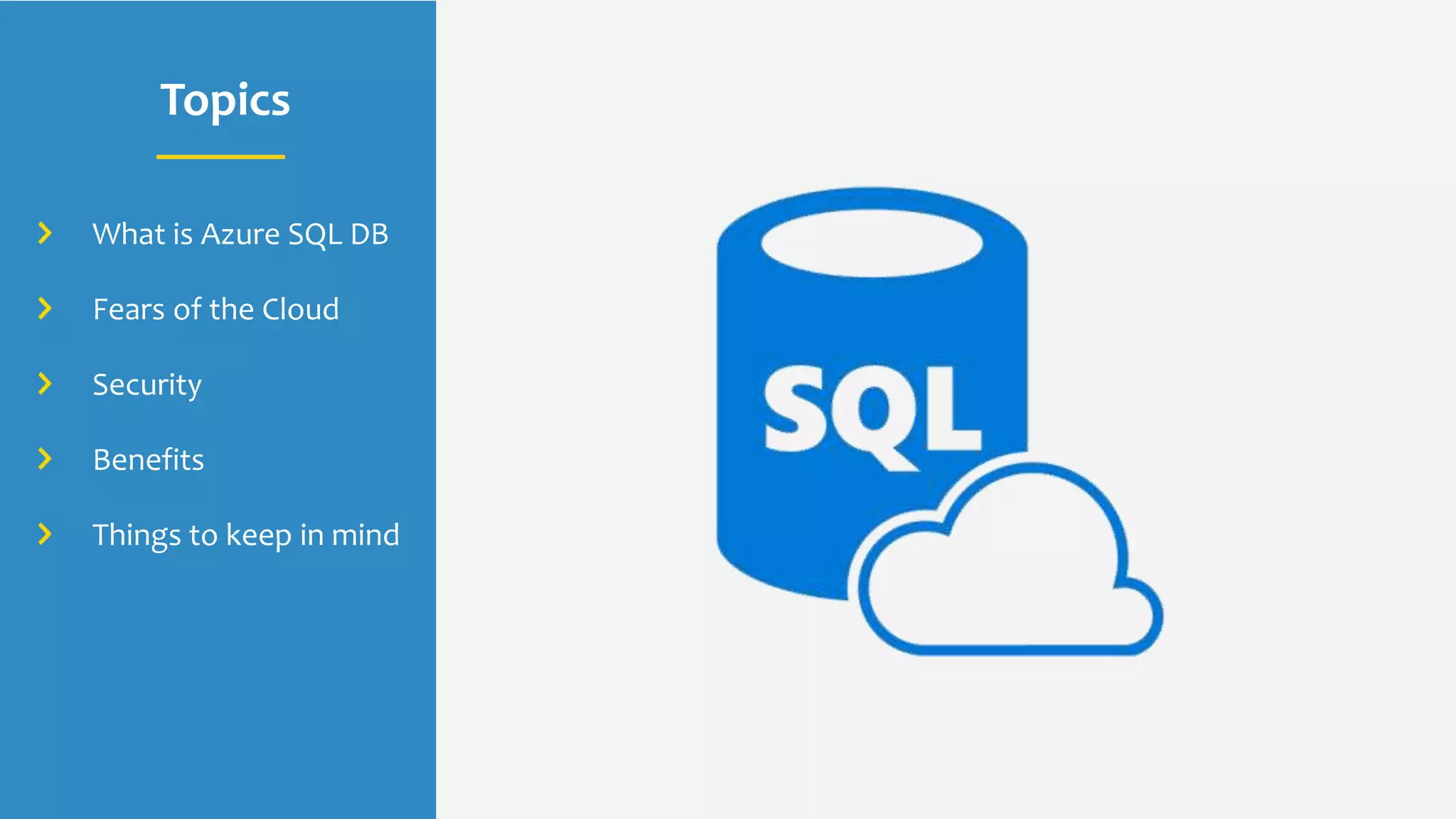

14. Topics
What is Azure SQL DB
Fears of the Cloud
Security
Benefits
Things to keep in mind

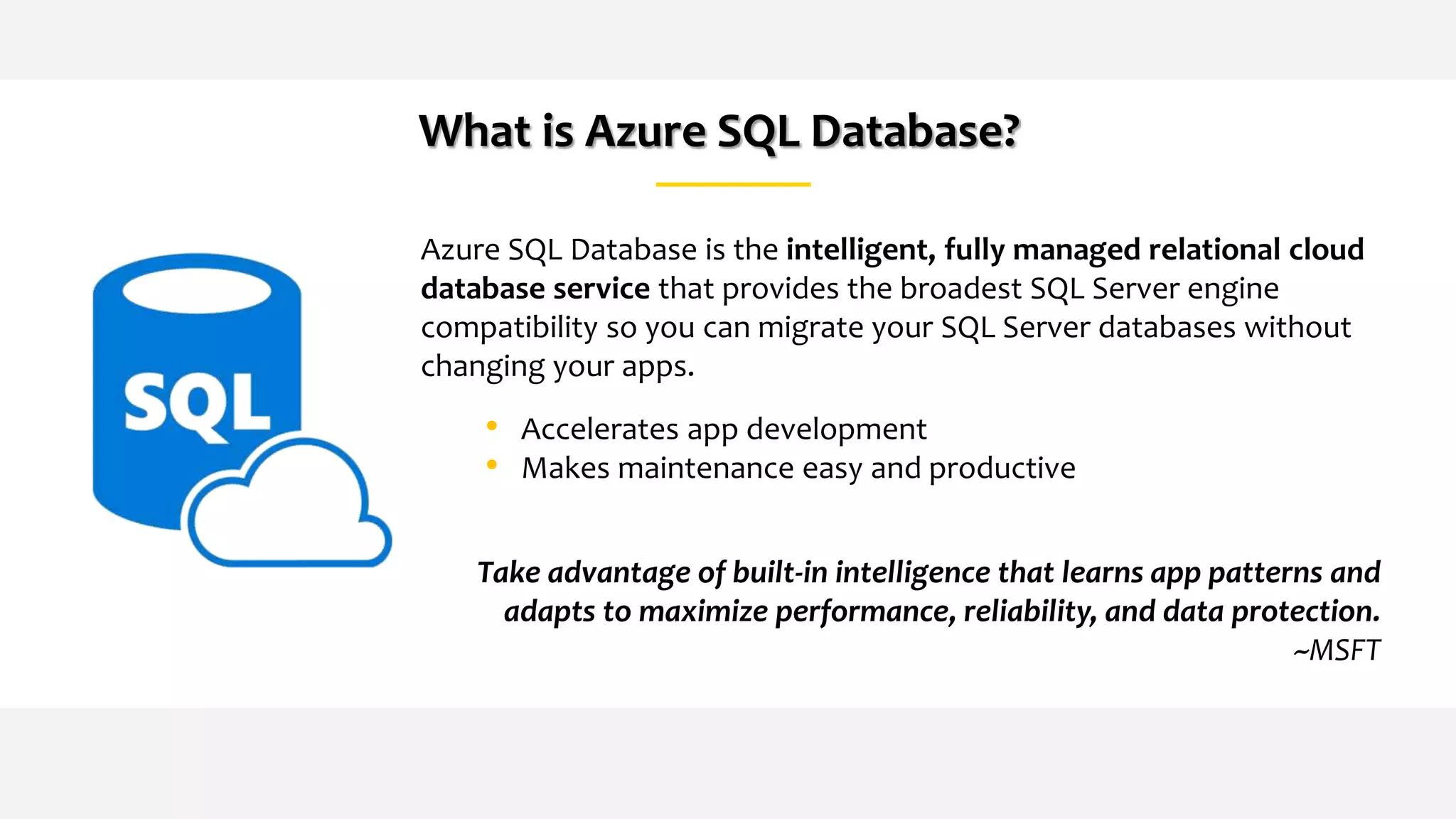

15. What is Azure SQL Database?
Azure SQL Database is the intelligent, fully managed relational cloud
database service that provides the broadest SQL Server engine
compatibility so you can migrate your SQL Server databases without
changing your apps.
• Accelerates app development
• Makes maintenance easy and productive
Take advantage of built-in intelligence that learns app patterns and
adapts to maximize performance, reliability, and data protection.
~MSFT

16. Fears of the Cloud
Change
Job Security
Accessibility
Compatibility
Infrastructure
https://www.petri.com/azure-sql-versus-sql-server-azure-vm

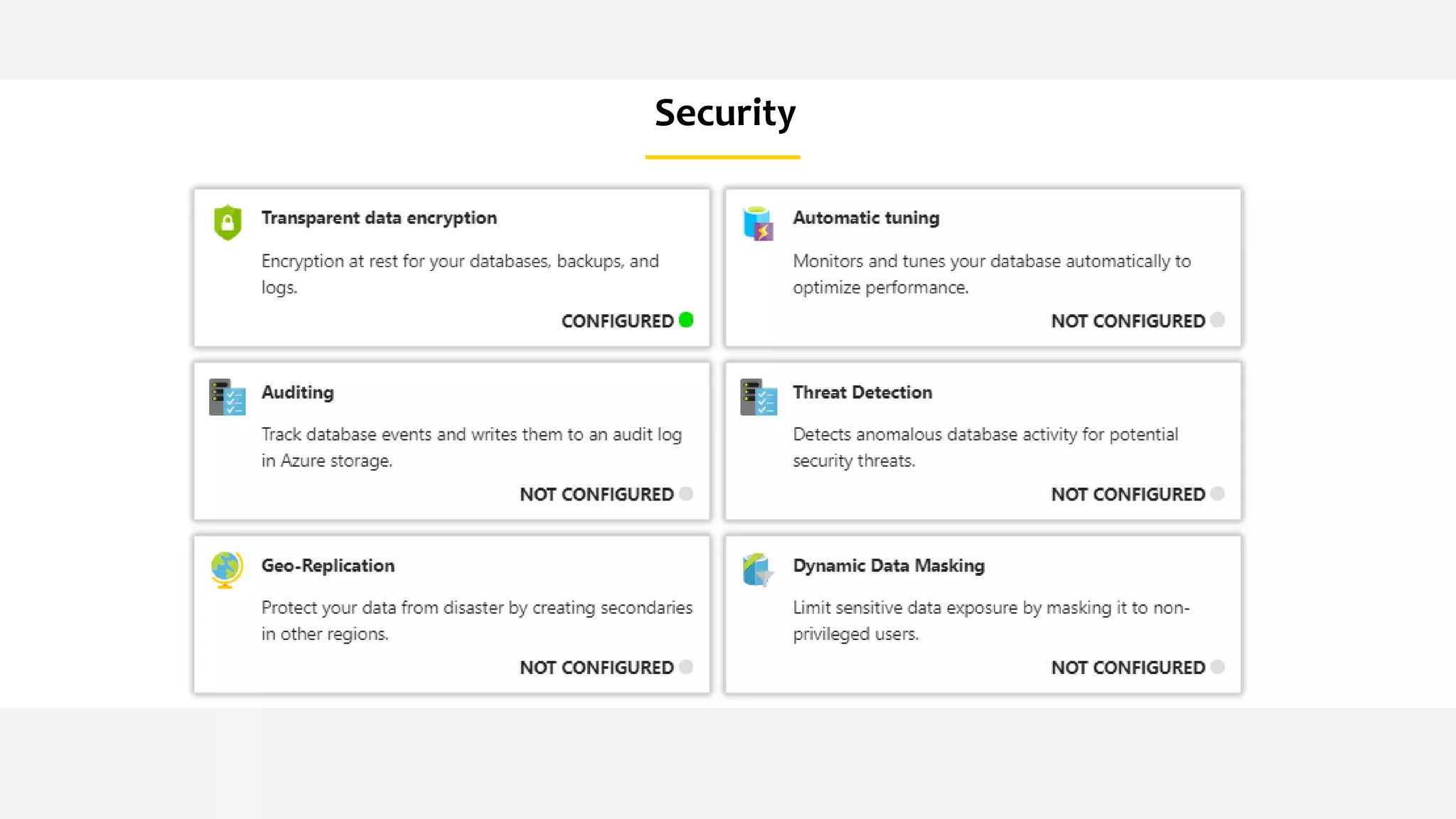

17. Security

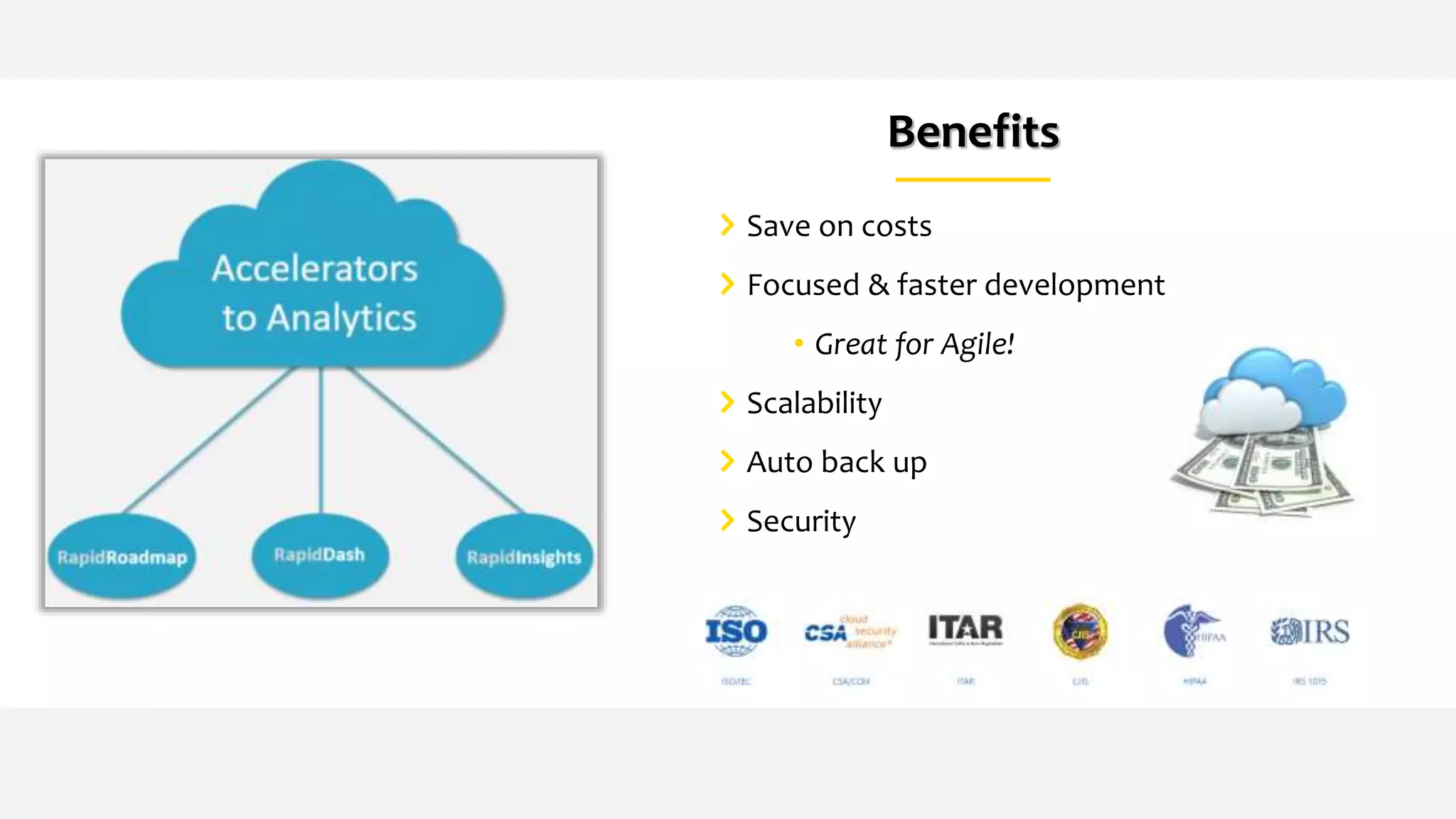

18. Benefits
Save on costs
Focused & faster development
• Great for Agile!
Scalability
Auto back up
Security

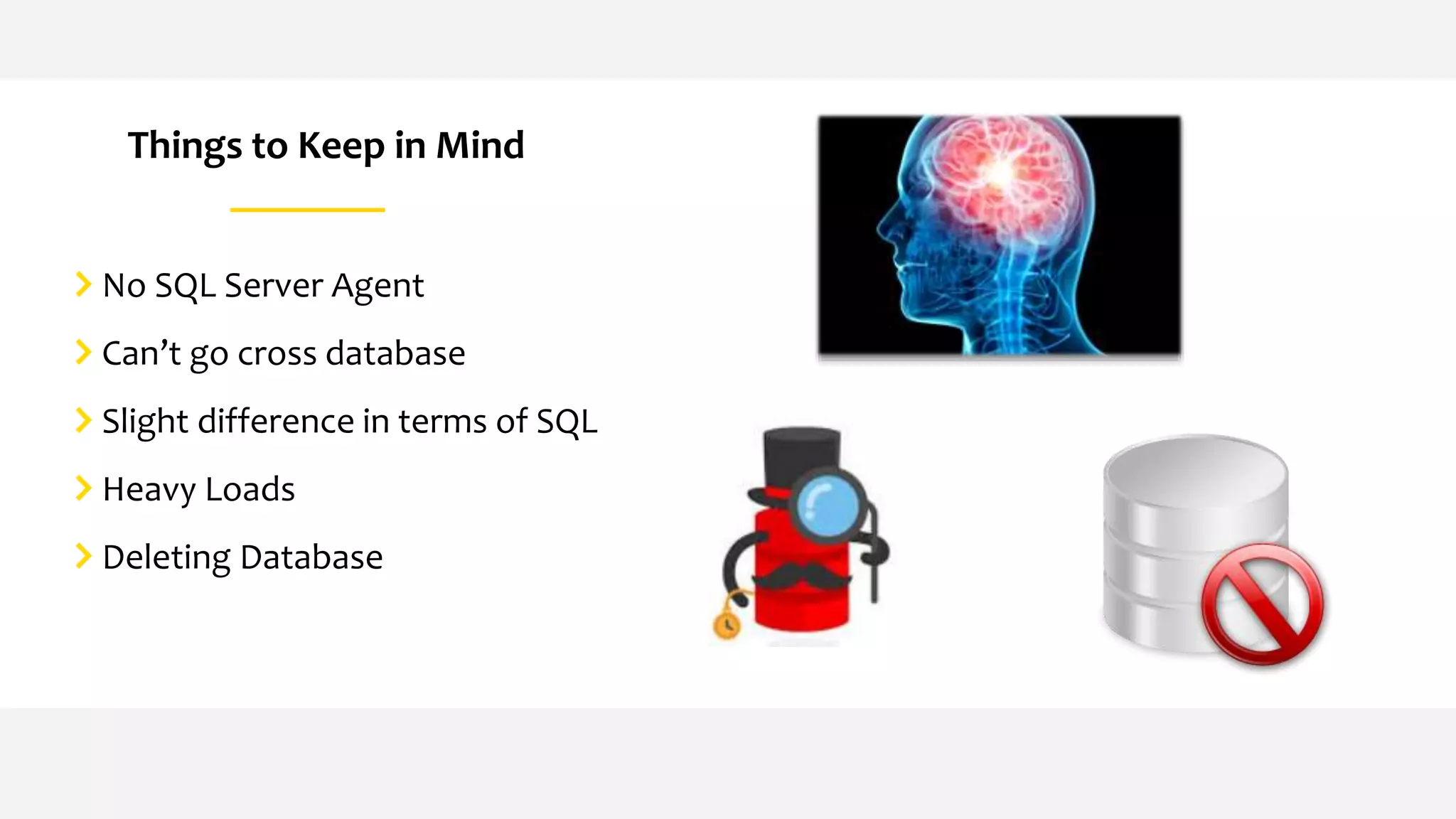

19. Things to Keep in Mind
No SQL Server Agent
Can’t go cross database
Slight difference in terms of SQL
Heavy Loads
Deleting Database

20. Azure SQL Data Warehouse
Azure Databases

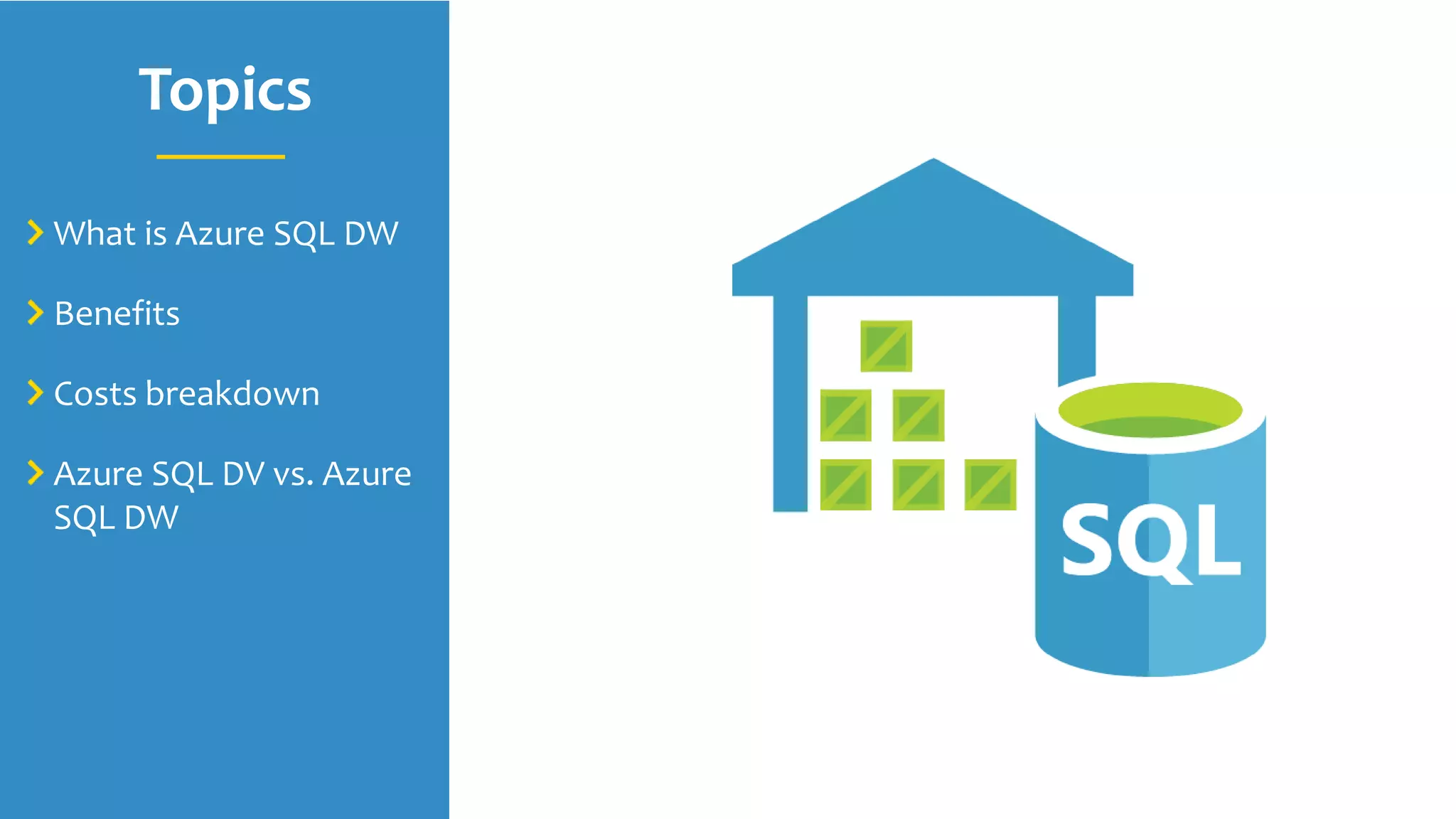

21. Topics
What is Azure SQL DW
Benefits
Costs breakdown
Azure SQL DV vs. Azure
SQL DW

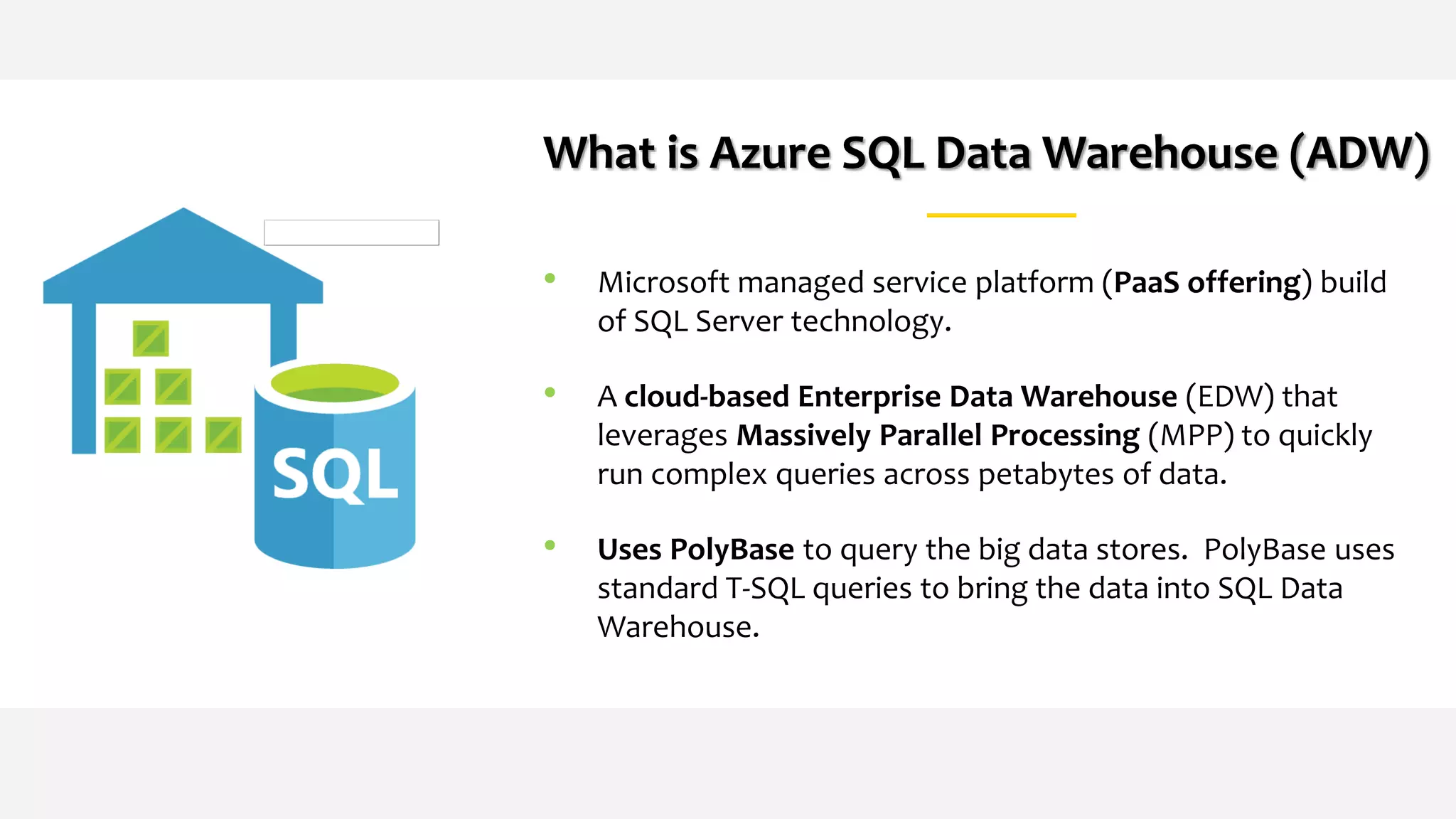

22. What is Azure SQL Data Warehouse (ADW)
• Microsoft managed service platform (PaaS offering) build
of SQL Server technology.
• A cloud-based Enterprise Data Warehouse (EDW) that
leverages Massively Parallel Processing (MPP) to quickly
run complex queries across petabytes of data.
• Uses PolyBase to query the big data stores. PolyBase uses
standard T-SQL queries to bring the data into SQL Data
Warehouse.

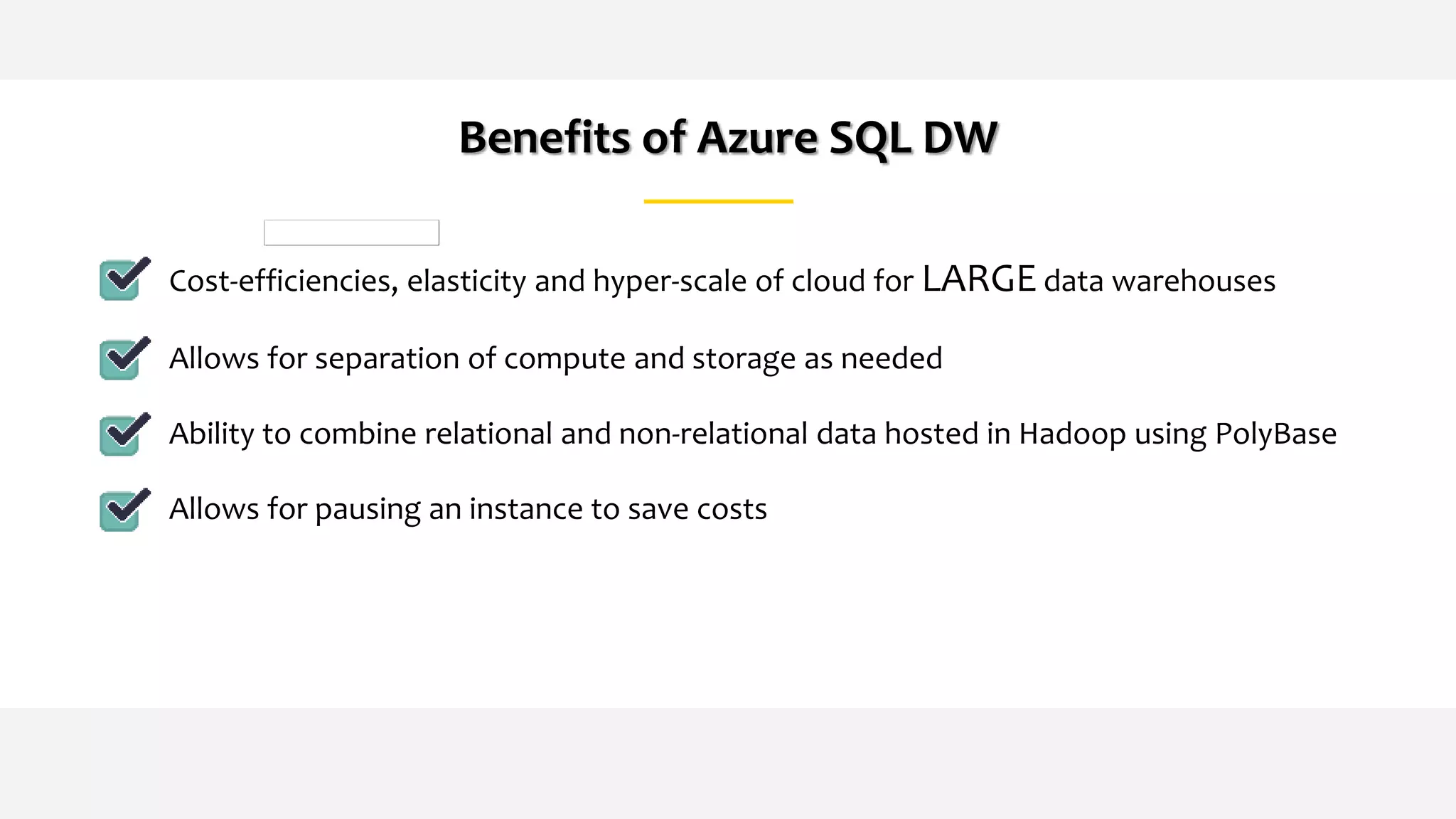

23. Benefits of Azure SQL DW
Cost-efficiencies, elasticity and hyper-scale of cloud for LARGE data warehouses
Allows for separation of compute and storage as needed
Ability to combine relational and non-relational data hosted in Hadoop using PolyBase
Allows for pausing an instance to save costs

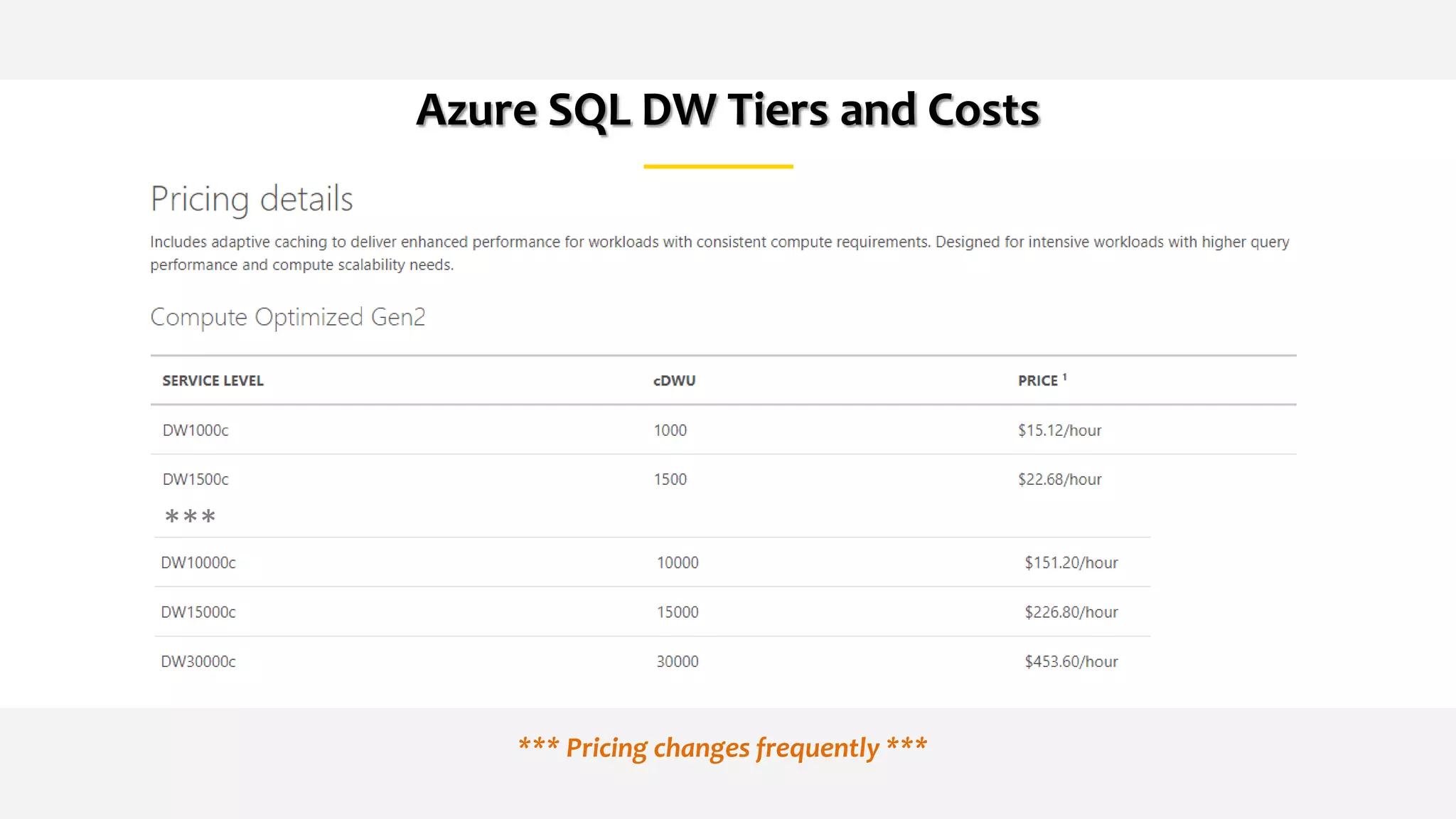

24. Azure SQL DW Tiers and Costs
***
*** Pricing changes frequently ***

25. Azure SQL DB versus Azure SQL DW
Azure Databases

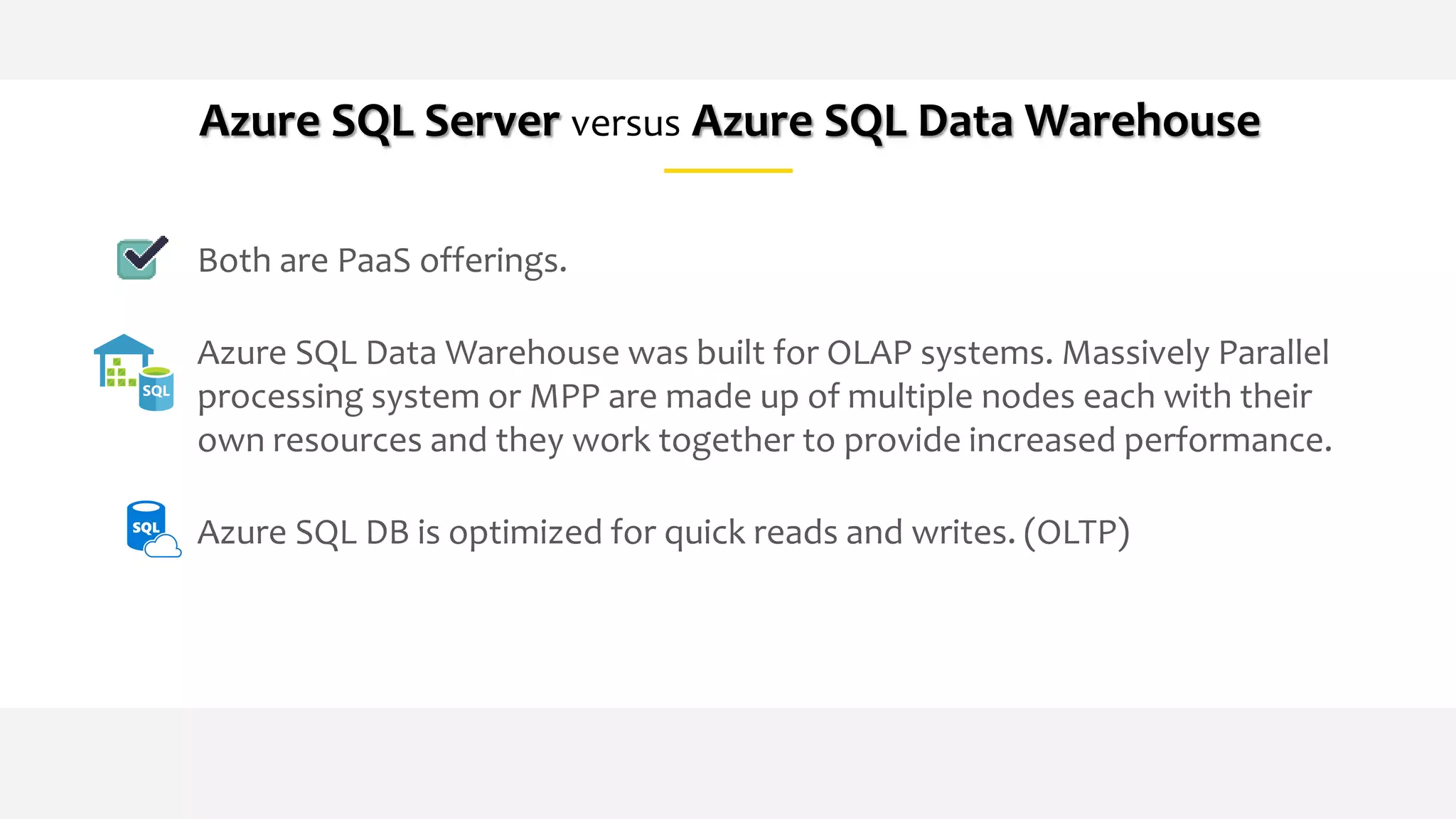

26. Both are PaaS offerings.
Azure SQL Data Warehouse was built for OLAP systems. Massively Parallel
processing system or MPP are made up of multiple nodes each with their
own resources and they work together to provide increased performance.
Azure SQL DB is optimized for quick reads and writes. (OLTP)
Azure SQL Server versus Azure SQL Data Warehouse

27. Which to Choose When???
Azure
SQL Server
Azure SQL Data
Warehouse

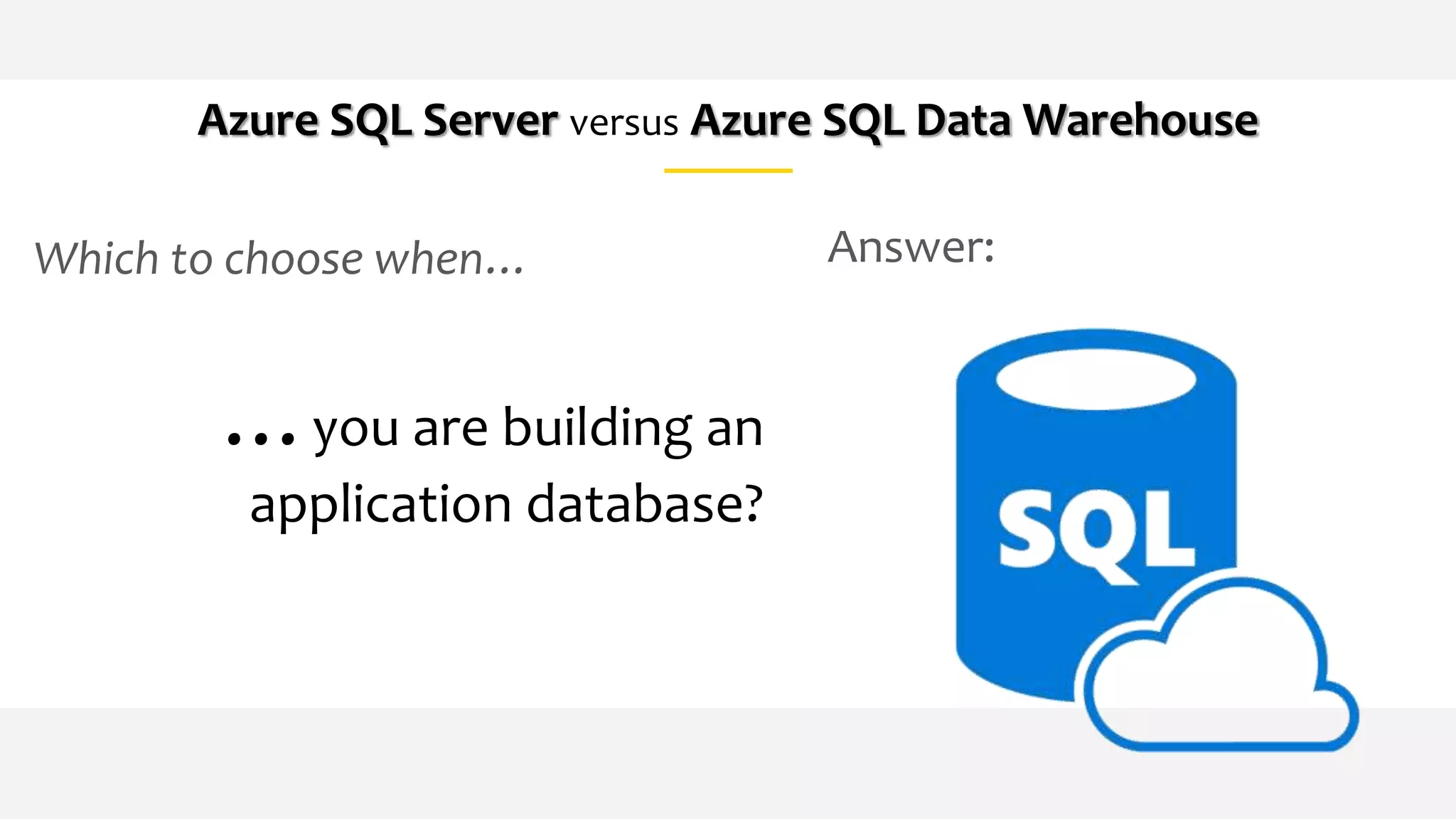

28. Which to choose when…
Azure SQL Server versus Azure SQL Data Warehouse
…you are building an
application database?
Answer:

29. Which to choose when…
Azure SQL Server versus Azure SQL Data Warehouse
…you expect to work with
large amounts of data (> 4TB)
with a small number of users??
Answer:

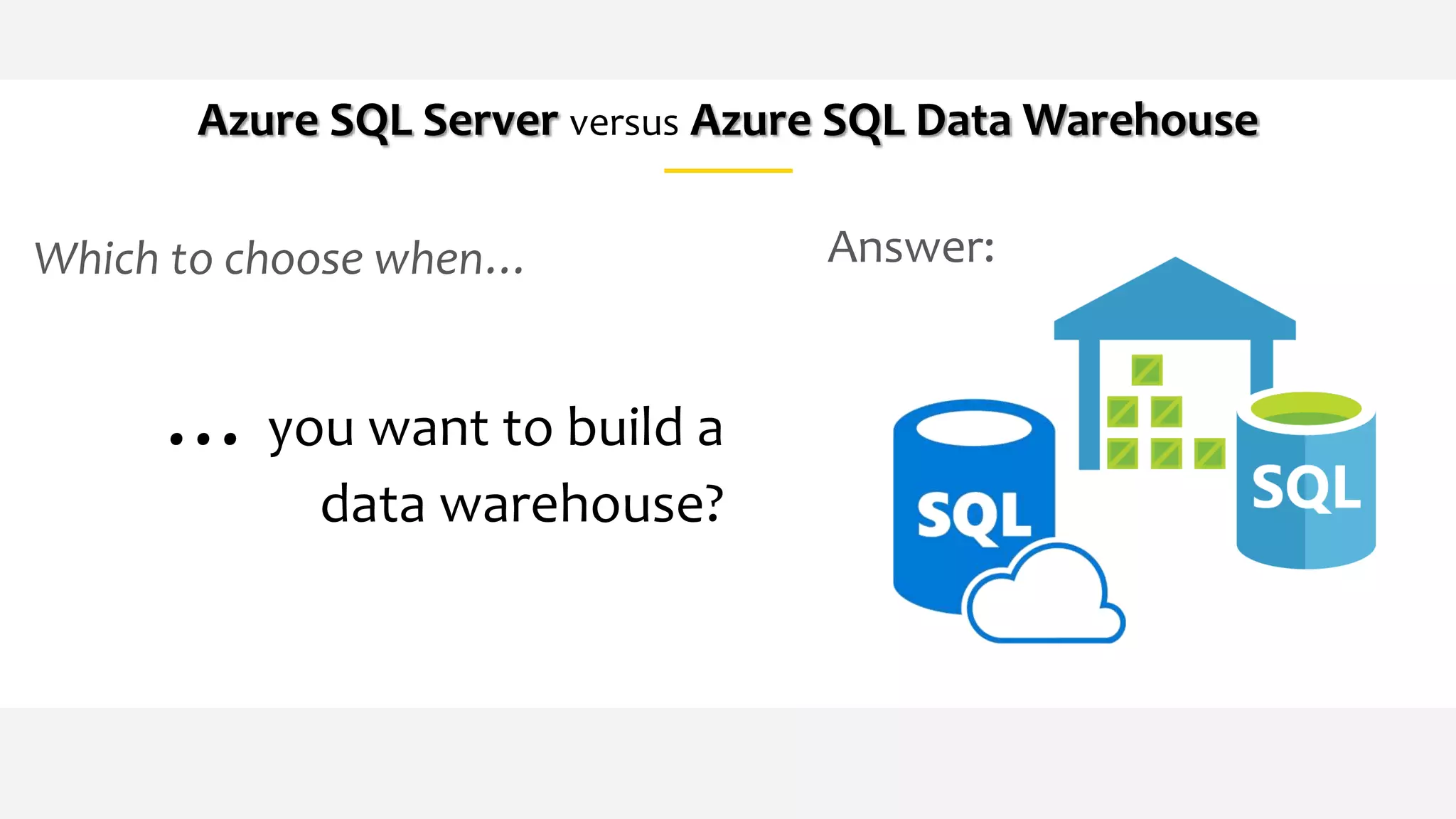

30. Which to choose when…
Azure SQL Server versus Azure SQL Data Warehouse
…you want to build a
data warehouse?
Answer:

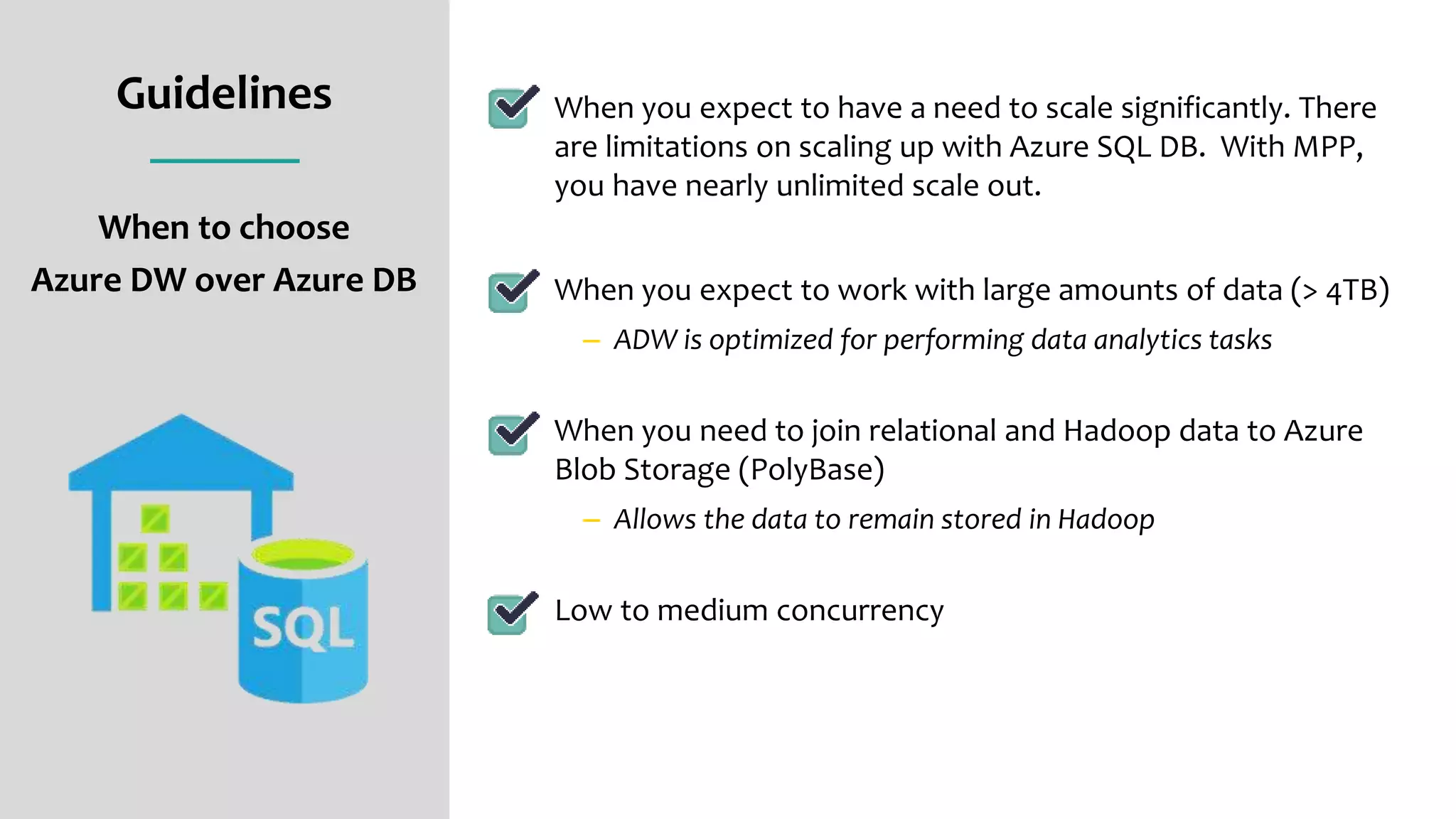

31. Guidelines
When to choose
Azure DW over Azure DB
When you expect to have a need to scale significantly. There
are limitations on scaling up with Azure SQL DB. With MPP,
you have nearly unlimited scale out.
When you expect to work with large amounts of data (> 4TB)
– ADW is optimized for performing data analytics tasks
When you need to join relational and Hadoop data to Azure
Blob Storage (PolyBase)
– Allows the data to remain stored in Hadoop
Low to medium concurrency

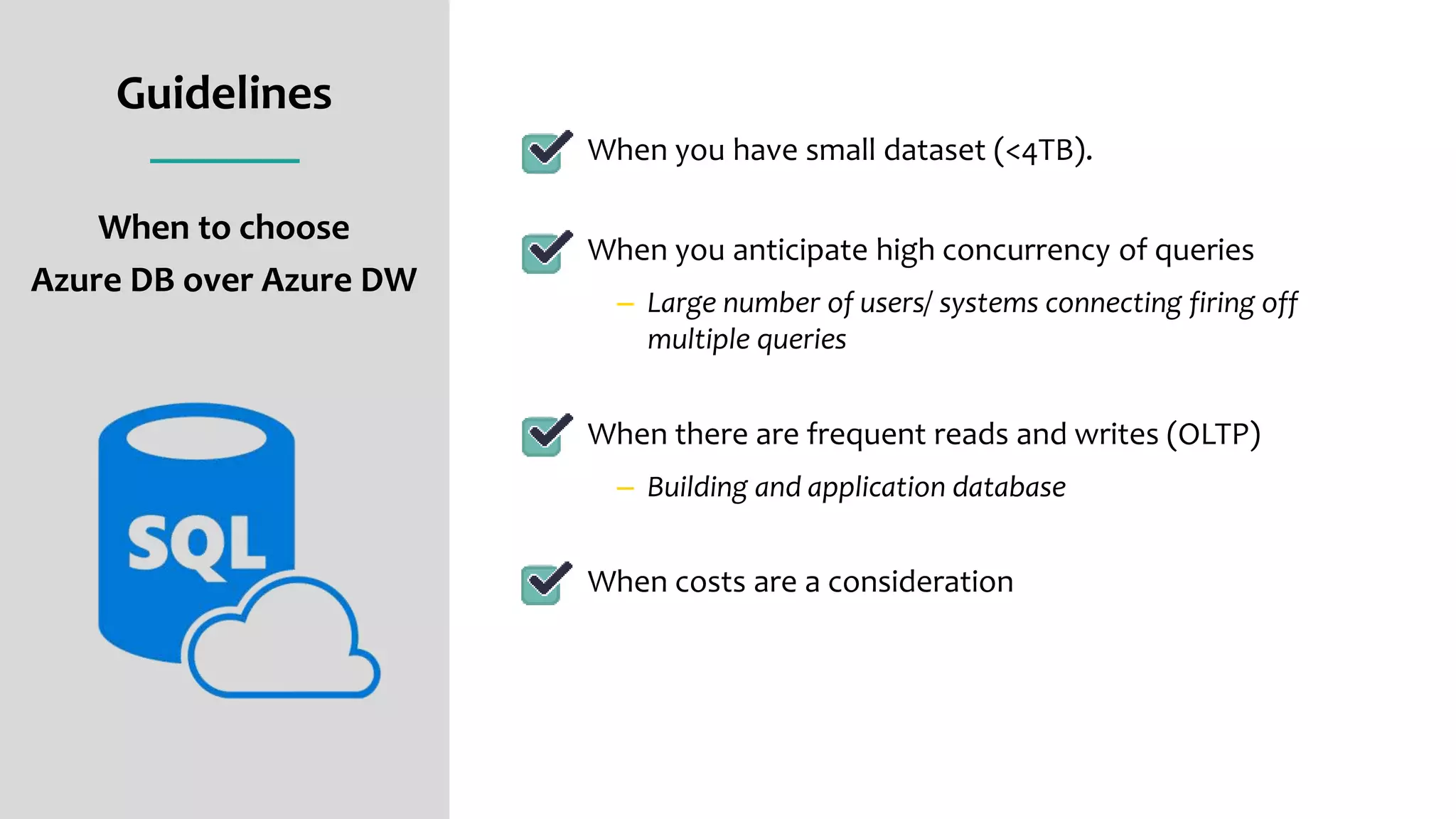

32. Guidelines
When to choose
Azure DB over Azure DW
When you have small dataset (<4TB).
When you anticipate high concurrency of queries
– Large number of users/ systems connecting firing off
multiple queries
When there are frequent reads and writes (OLTP)
– Building and application database
When costs are a consideration

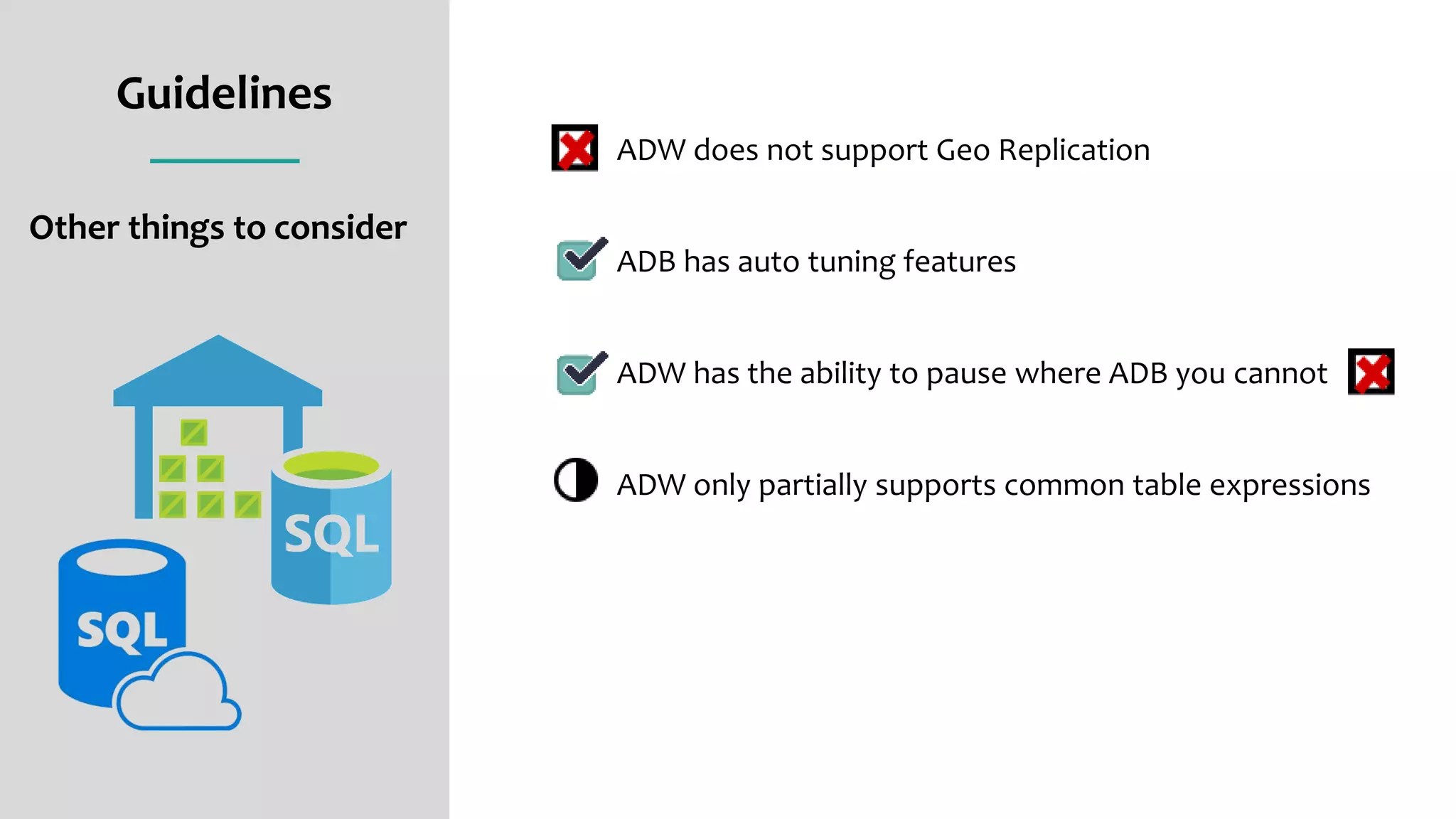

33. Guidelines
Other things to consider
ADW does not support Geo Replication
ADB has auto tuning features
ADW has the ability to pause where ADB you cannot
ADW only partially supports common table expressions

34. Azure Data Factory

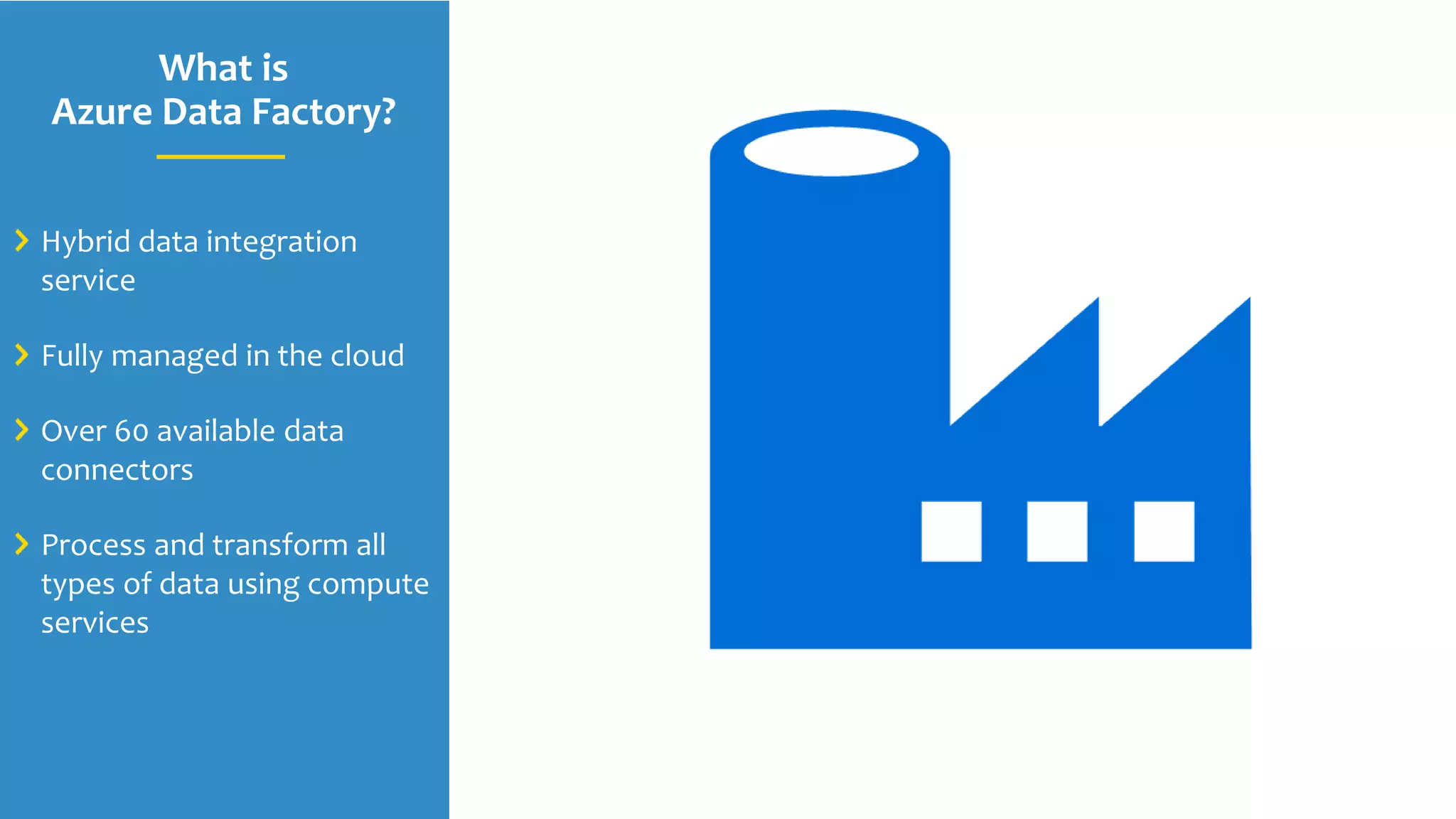

35. What is
Azure Data Factory?
Hybrid data integration
service
Fully managed in the cloud
Over 60 available data
connectors
Process and transform all
types of data using compute
services

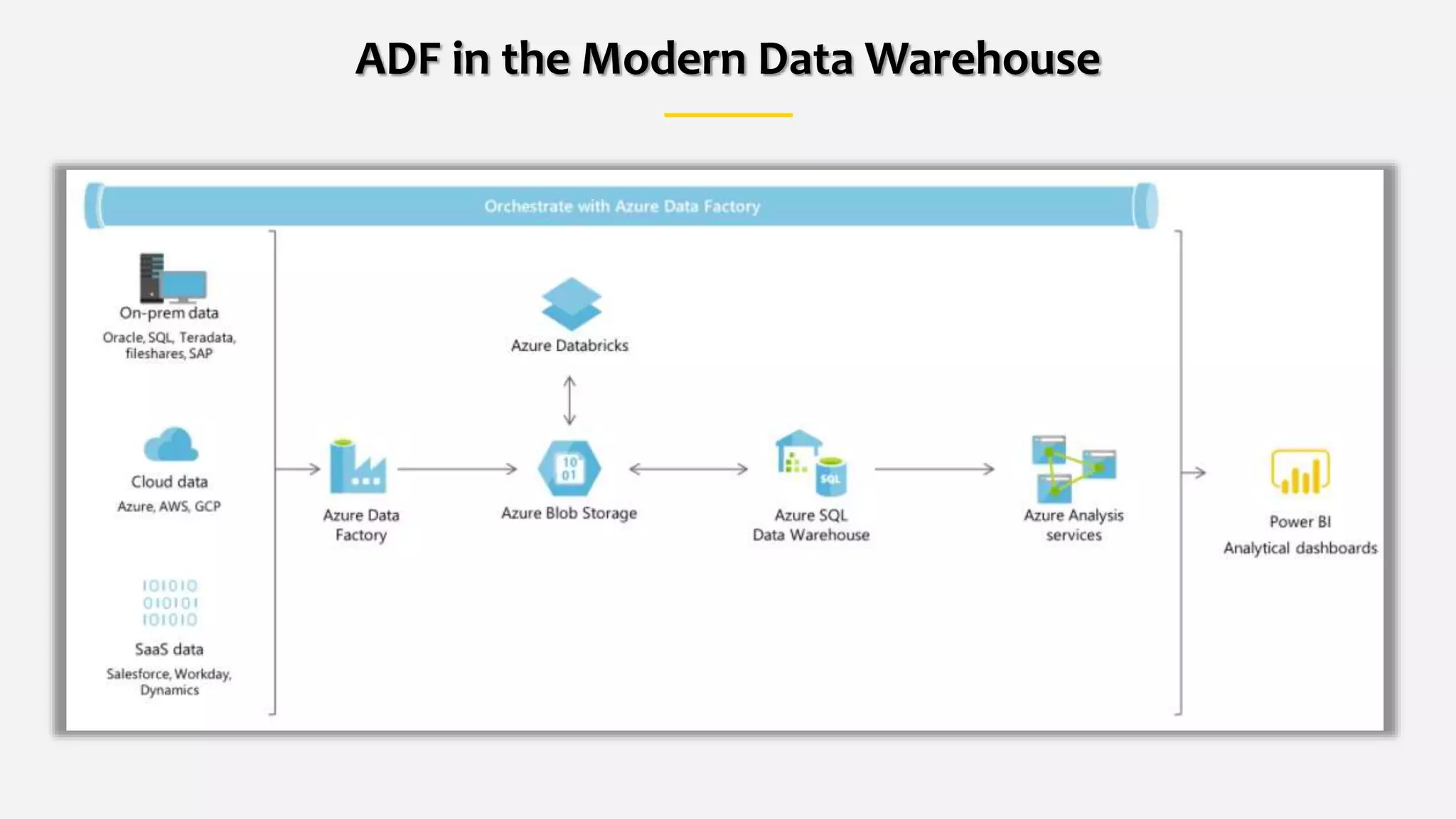

36. ADF in the Modern Data Warehouse

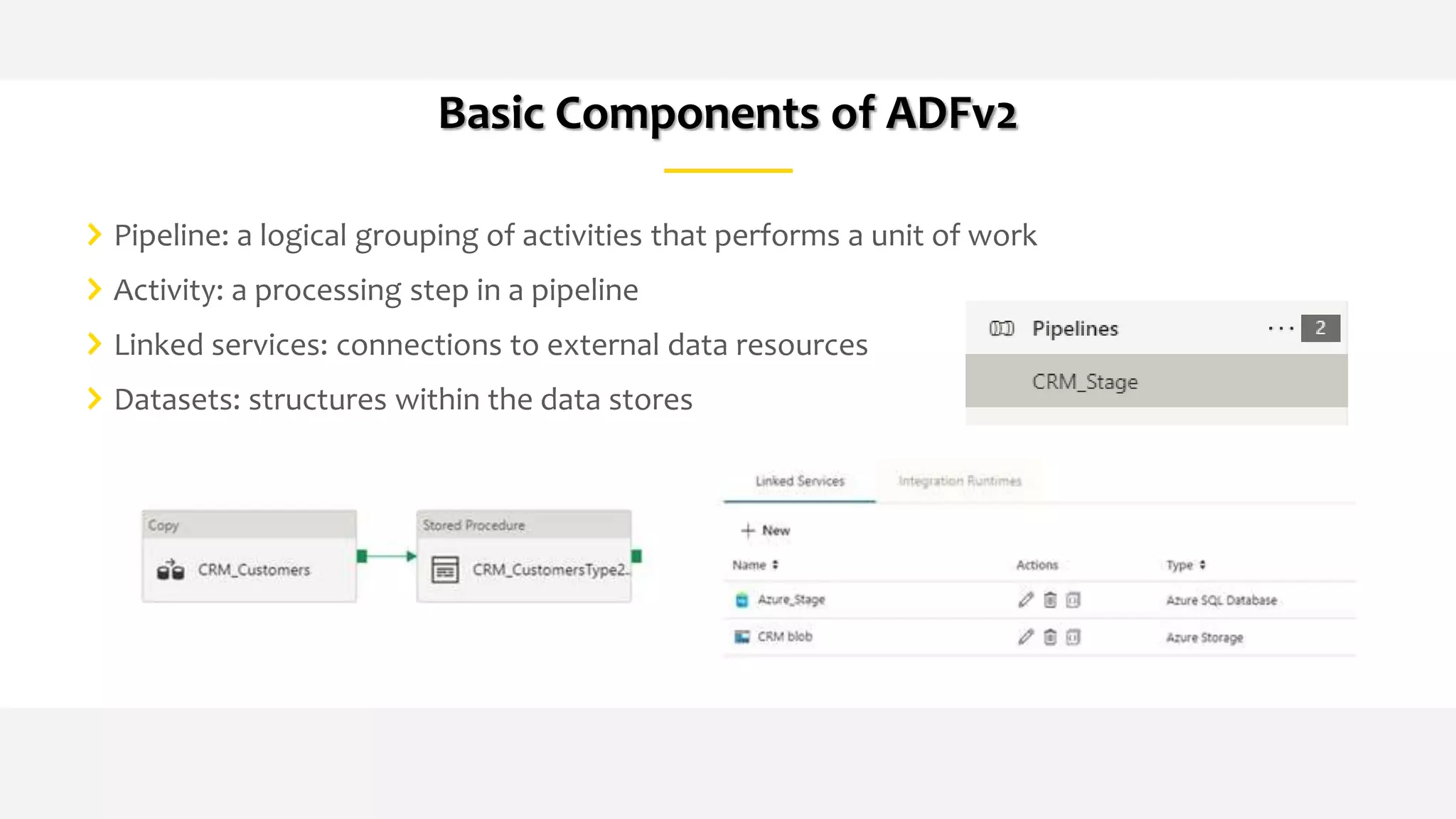

37. Pipeline: a logical grouping of activities that performs a unit of work
Activity: a processing step in a pipeline
Linked services: connections to external data resources
Datasets: structures within the data stores
Basic Components of ADFv2

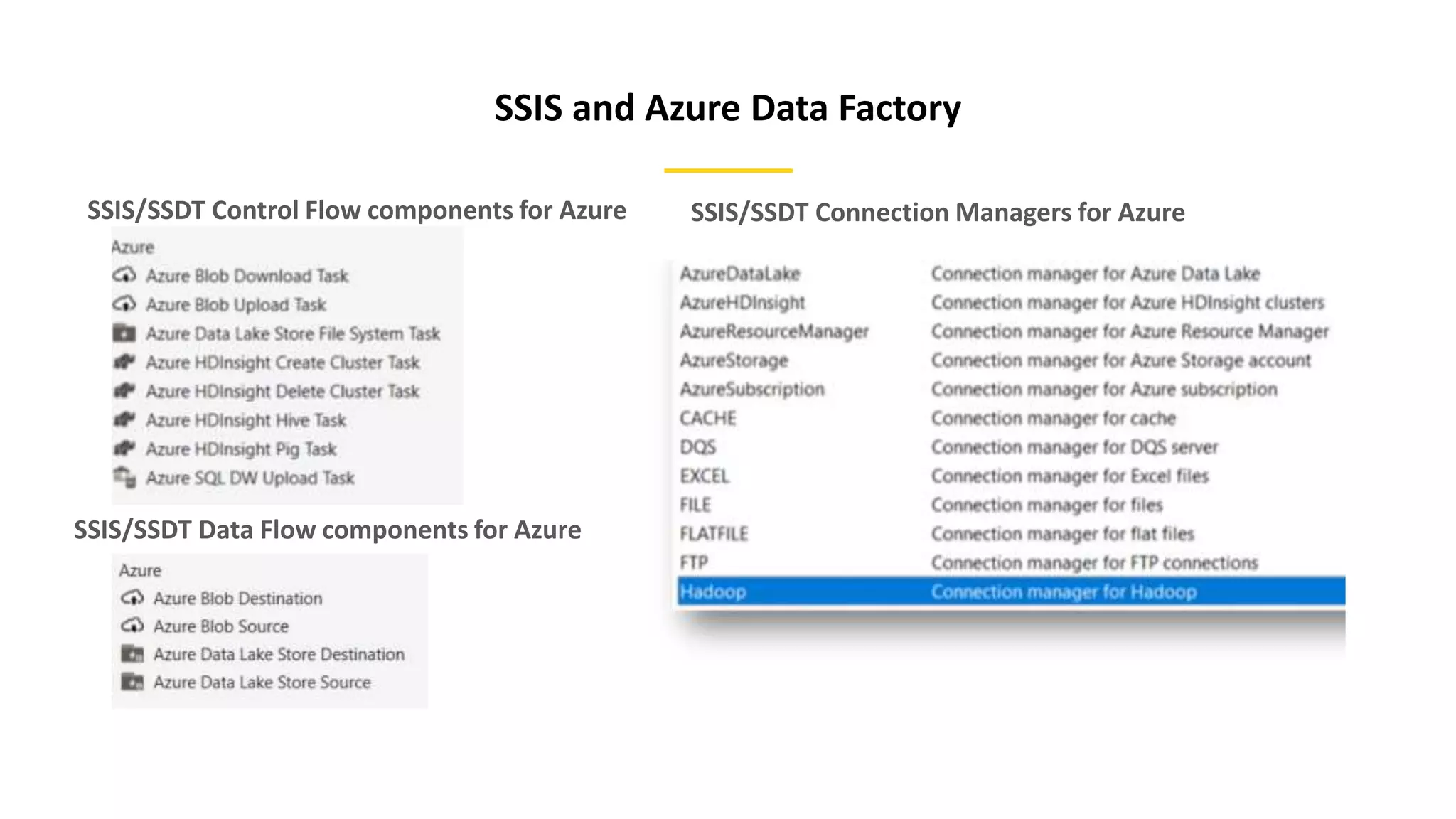

38. SSIS/SSDT Connection Managers for Azure
SSIS and Azure Data Factory
SSIS/SSDT Control Flow components for Azure
SSIS/SSDT Data Flow components for Azure

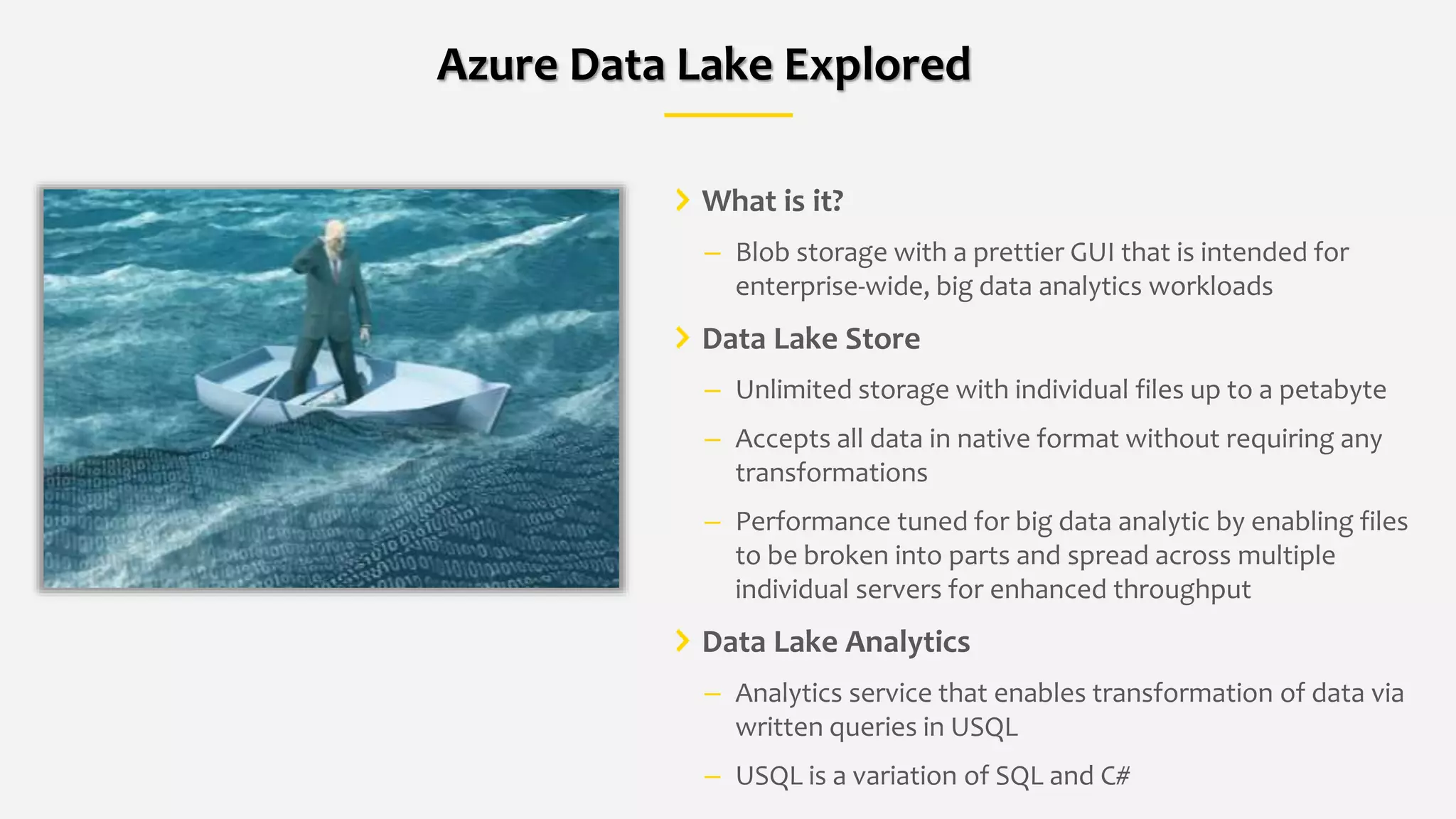

39. Azure Data Lake

40. What is it?
– Blob storage with a prettier GUI that is intended for
enterprise-wide, big data analytics workloads
Data Lake Store
– Unlimited storage with individual files up to a petabyte
– Accepts all data in native format without requiring any
transformations
– Performance tuned for big data analytic by enabling files
to be broken into parts and spread across multiple
individual servers for enhanced throughput
Data Lake Analytics
– Analytics service that enables transformation of data via
written queries in USQL
– USQL is a variation of SQL and C#
Azure Data Lake Explored

41. Blob Storage
General purpose store for a variety of storage needs
Any type of text, backup, or general purpose data
Limitations on number of storage accounts per region,
max storage account capacity, and a few other criteria
Encrypted data at rest
Allow Rest API functionality

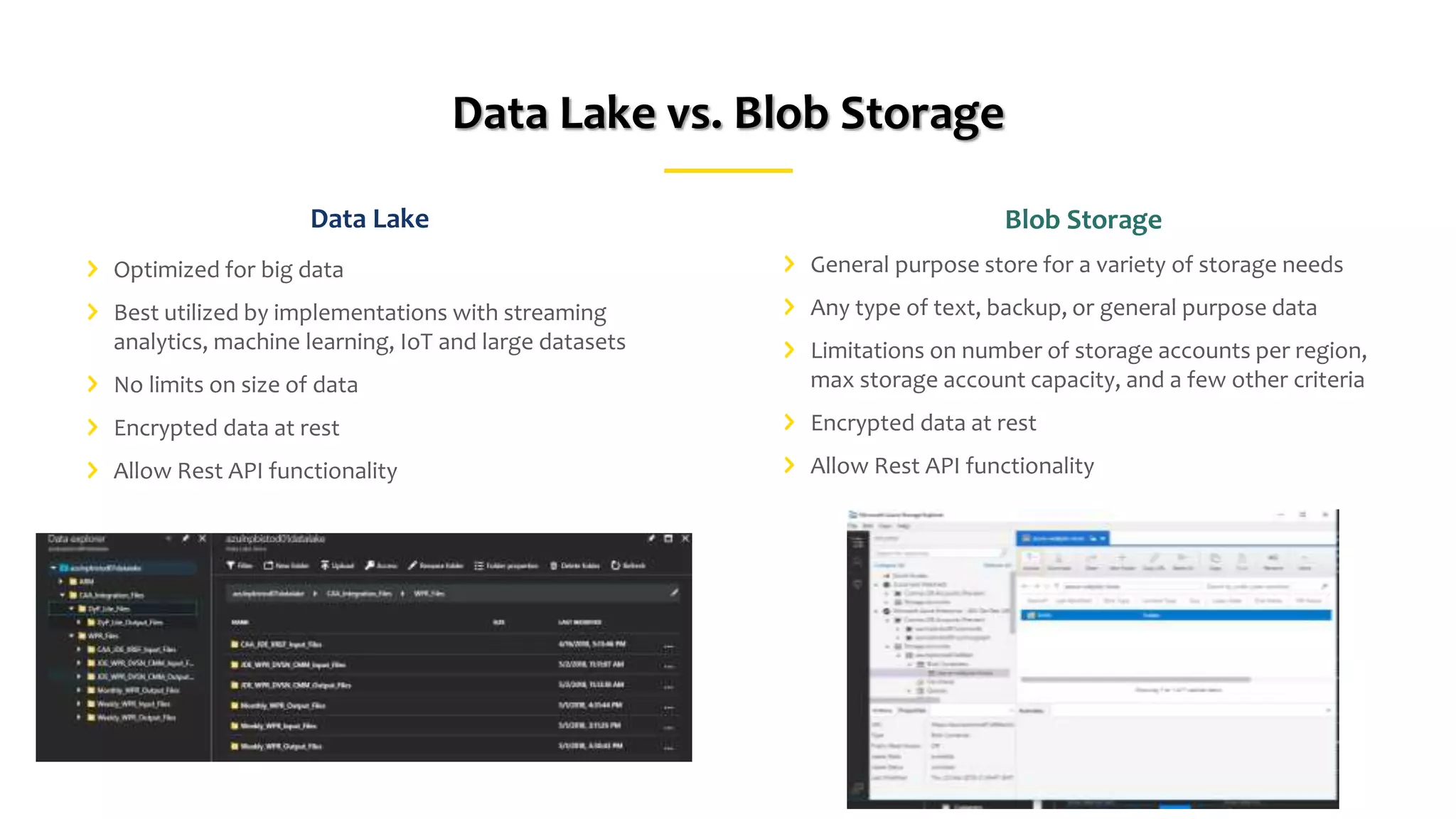

Data Lake vs. Blob Storage
Data Lake
Optimized for big data
Best utilized by implementations with streaming
analytics, machine learning, IoT and large datasets
No limits on size of data
Encrypted data at rest
Allow Rest API functionality

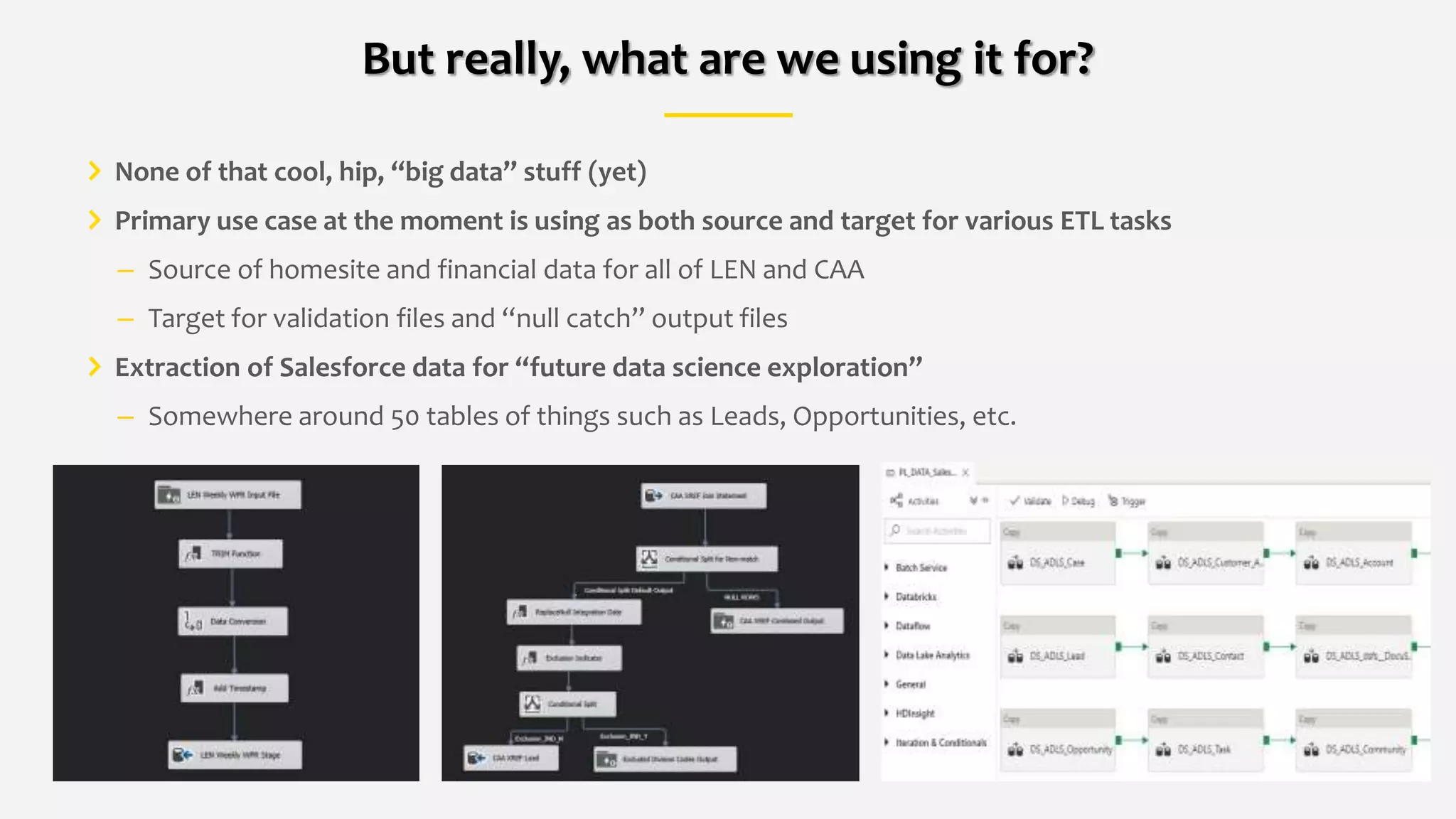

42. None of that cool, hip, “big data” stuff (yet)
Primary use case at the moment is using as both source and target for various ETL tasks
– Source of homesite and financial data for all of LEN and CAA
– Target for validation files and “null catch” output files
Extraction of Salesforce data for “future data science exploration”
– Somewhere around 50 tables of things such as Leads, Opportunities, etc.
But really, what are we using it for?

43. Questions?

44. APPENDIX

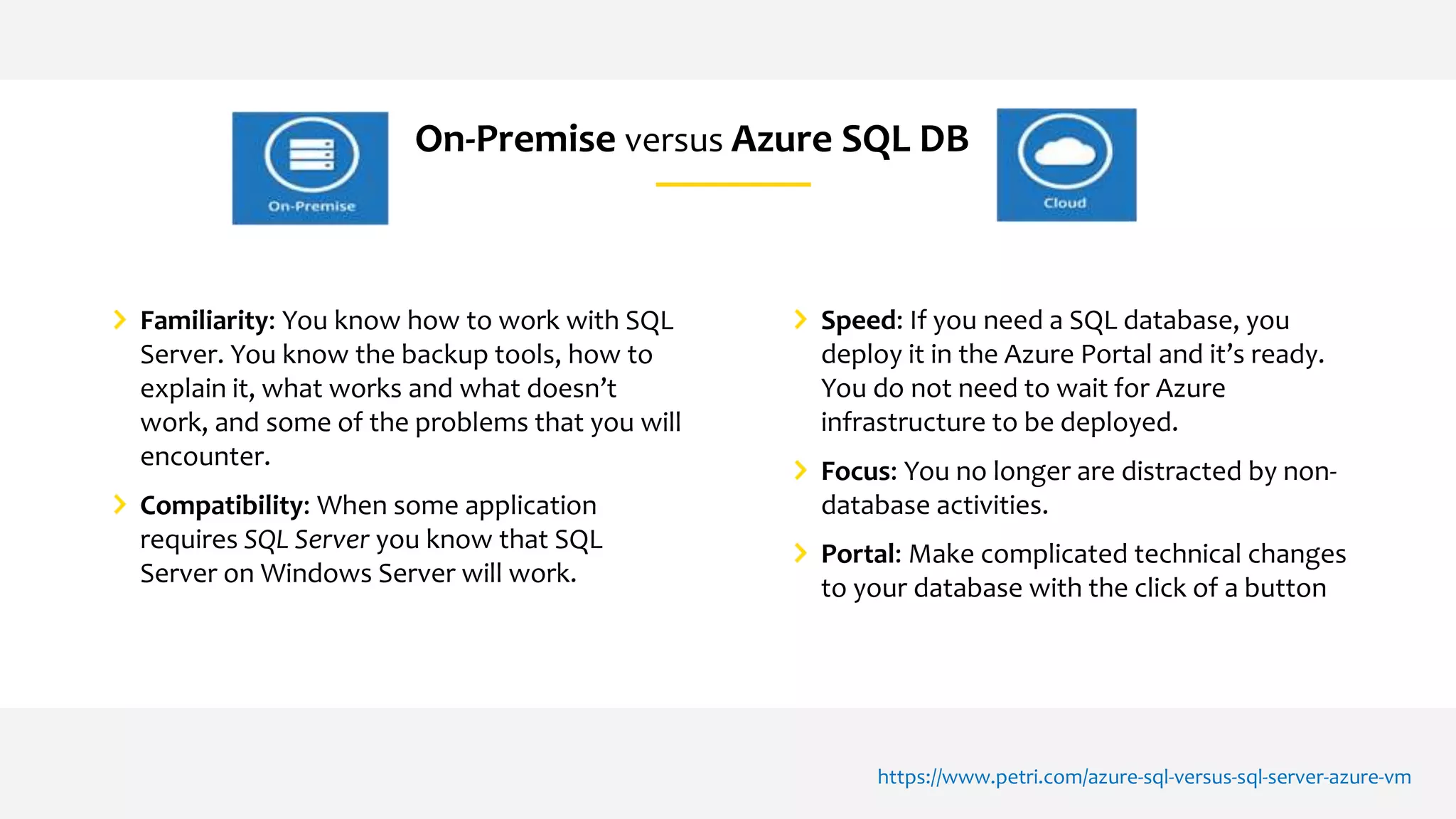

45. On-Premise versus Azure SQL DB
Speed: If you need a SQL database, you
deploy it in the Azure Portal and it’s ready.
You do not need to wait for Azure
infrastructure to be deployed.
Focus: You no longer are distracted by non-
database activities.
Portal: Make complicated technical changes
to your database with the click of a button
Familiarity: You know how to work with SQL
Server. You know the backup tools, how to
explain it, what works and what doesn’t
work, and some of the problems that you will
encounter.
Compatibility: When some application
requires SQL Server you know that SQL
Server on Windows Server will work.
https://www.petri.com/azure-sql-versus-sql-server-azure-vm
