“What about utilities?”
This is probably the most frequently asked question DeepRoot's technical manager hears on projects where the Silva Cell is being used. And it's understandable! Utilities are an extremely important consideration.
With the experience of 500 installations, we can comfortably say that we’ve seen – and have a solution – for pretty much everything out there. Integration with utilities is by no means a barrier to using the Silva Cell.

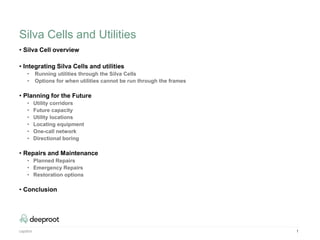

This presentation covers:
Integrating Silva Cells and utilities

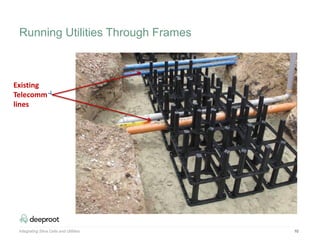

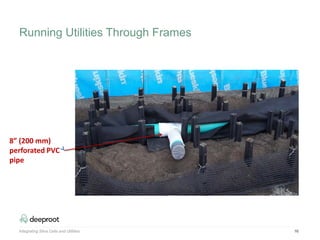

• Running utilities through the Silva Cells

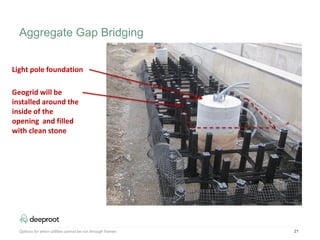

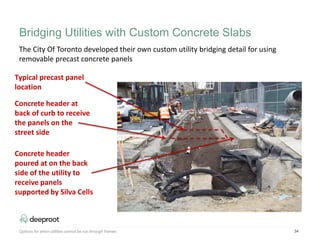

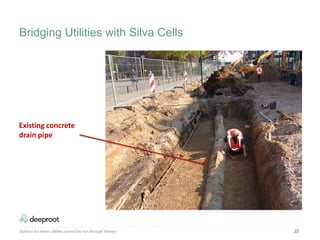

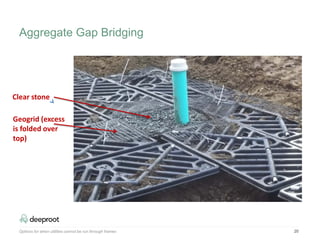

• Options for when utilities cannot be run through the frames
Planning for the Future

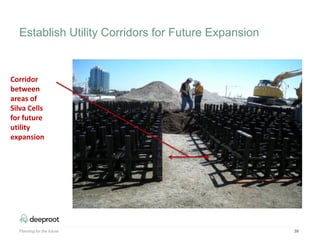

• Utility corridors
• Future capacity

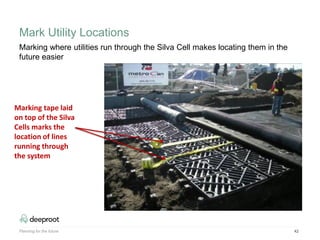

• Utility locations
• Locating equipment

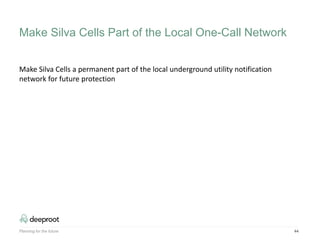

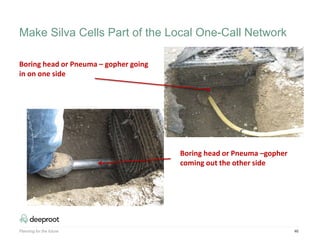

• One-call network
• Directional boring

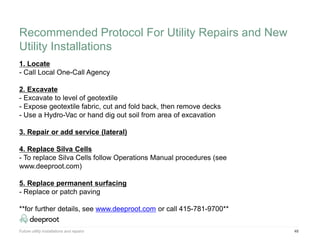

Repairs and Maintenance

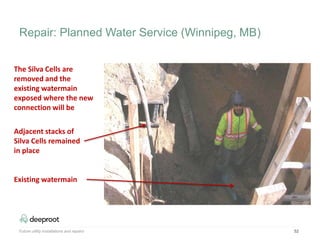

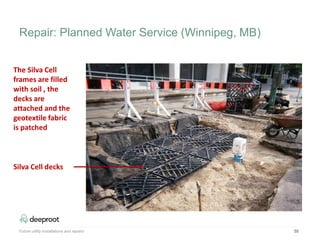

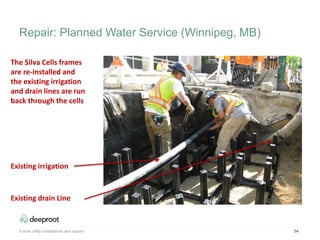

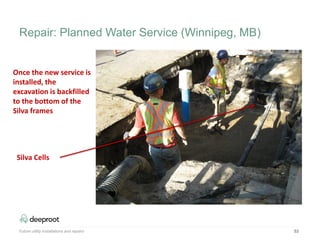

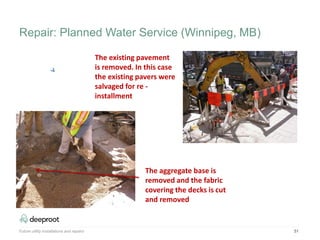

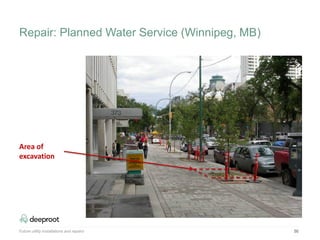

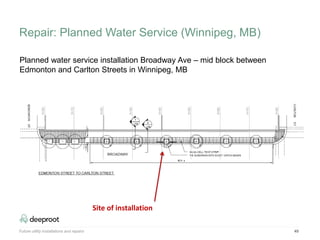

• Planned Repairs, including an example from Winnipeg, MB.

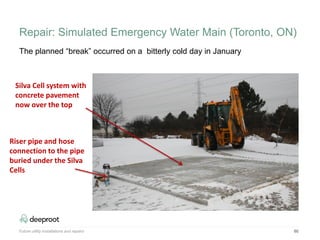

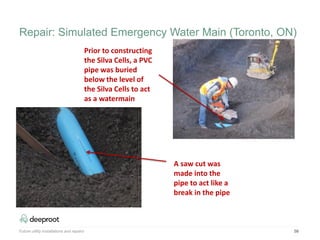

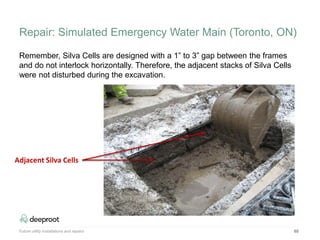

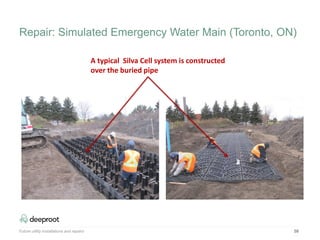

• Emergency Repairs, including a simulated repair in Toronto, ON.

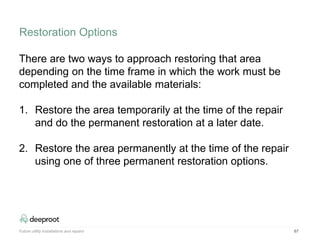

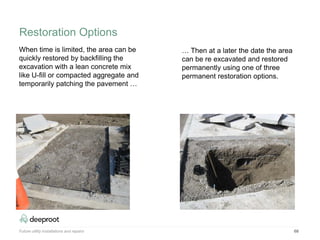

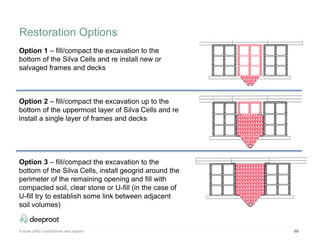

• Restoration options
Infrastructure Construction Proposal PowerPoint Presentation SlidesSlideTeam
This proposal is for infrastructure construction services for a client. It includes a scope of work outlining the project timeline and budget of $110,000. The proposal details the site work, concrete foundation, framing, electrical, and other services to be provided. It also includes information about the construction company, their team, and examples of previous projects in their portfolio. A contract and proposal sign-off are included to finalize the agreement if accepted.
This document provides a project charter for constructing a primary school building in Chechen, AJK, where education facilities were destroyed by an earthquake. The project will construct a single-story building with 7 classrooms, toilets, an office, and a playground. It will be developed in phases from design to construction to turnover. The project aims to rebuild the school and provide infrastructure for quality education while ensuring safety and mitigating risks such as material unavailability or weather issues. A budget of 100,000 RS is allocated across phases from March 2022 to June 2022. Stakeholders include the partner NGO and local authorities and community members will benefit from improved access to education.
This document discusses different types of retaining walls, including:
- Gravity walls, pre-cast crib walls, gabion walls, reinforced concrete walls, sheet pile walls, mechanically stabilized earth (MSE) walls, slurry walls, secant pile walls, soldier piles and lagging walls, cofferdam walls, and hybrid systems.
It provides details on the materials, designs, and uses of various retaining wall types. Common materials include wood, steel, concrete, and soil reinforcements. Walls are chosen based on factors like height, site conditions, costs, and whether they are temporary or permanent.
This document discusses organizational structure and how it must change and adapt as an organization grows. It presents McKinsey's 7S framework and uses case studies to show how microfinance organizations have evolved their structures from start-up through phases of growth, maturity, and potential further growth or decline. As clients and staff increase, greater management attention, resources, and specialization are needed, including attention to reporting structures and management systems.
This document discusses equipment scheduling and maintenance for construction projects. It provides a sample equipment schedule listing equipment needs by month. It also classifies construction equipment, discusses factors to consider when selecting equipment, and outlines preventative maintenance and repair requirements to keep equipment functioning properly and reduce costs. Regular inspection and maintenance of equipment is emphasized.
The document provides information about caissons, which are watertight structures used in construction projects involving excavation below water levels. It discusses different types of caissons including box caissons, open or well caissons, pneumatic caissons, and multiple well or monolith caissons. Methods of constructing and sinking each type are described. Advantages and uses of caissons are outlined. Health risks associated with working under compressed air in pneumatic caissons, known as caisson sickness, are also summarized.
Highway drainage system and how it worksRana Ibrahim
Highway drainage systems remove surface water from roadways and redirect it into drainage channels to prevent damage. Proper transverse and longitudinal slopes are needed to facilitate water flow. Inadequate drainage can damage infrastructure and reduce safety. Drainage design considers estimating water quantities, hydraulic elements, and material selection. Drainage channels and sideslopes must have adequate capacity and geometry for safety and maintenance purposes.
Infrastructure Construction Proposal PowerPoint Presentation SlidesSlideTeam
This proposal is for infrastructure construction services for a client. It includes a scope of work outlining the project timeline and budget of $110,000. The proposal details the site work, concrete foundation, framing, electrical, and other services to be provided. It also includes information about the construction company, their team, and examples of previous projects in their portfolio. A contract and proposal sign-off are included to finalize the agreement if accepted.
This document provides a project charter for constructing a primary school building in Chechen, AJK, where education facilities were destroyed by an earthquake. The project will construct a single-story building with 7 classrooms, toilets, an office, and a playground. It will be developed in phases from design to construction to turnover. The project aims to rebuild the school and provide infrastructure for quality education while ensuring safety and mitigating risks such as material unavailability or weather issues. A budget of 100,000 RS is allocated across phases from March 2022 to June 2022. Stakeholders include the partner NGO and local authorities and community members will benefit from improved access to education.
This document discusses different types of retaining walls, including:
- Gravity walls, pre-cast crib walls, gabion walls, reinforced concrete walls, sheet pile walls, mechanically stabilized earth (MSE) walls, slurry walls, secant pile walls, soldier piles and lagging walls, cofferdam walls, and hybrid systems.
It provides details on the materials, designs, and uses of various retaining wall types. Common materials include wood, steel, concrete, and soil reinforcements. Walls are chosen based on factors like height, site conditions, costs, and whether they are temporary or permanent.
This document discusses organizational structure and how it must change and adapt as an organization grows. It presents McKinsey's 7S framework and uses case studies to show how microfinance organizations have evolved their structures from start-up through phases of growth, maturity, and potential further growth or decline. As clients and staff increase, greater management attention, resources, and specialization are needed, including attention to reporting structures and management systems.
This document discusses equipment scheduling and maintenance for construction projects. It provides a sample equipment schedule listing equipment needs by month. It also classifies construction equipment, discusses factors to consider when selecting equipment, and outlines preventative maintenance and repair requirements to keep equipment functioning properly and reduce costs. Regular inspection and maintenance of equipment is emphasized.
The document provides information about caissons, which are watertight structures used in construction projects involving excavation below water levels. It discusses different types of caissons including box caissons, open or well caissons, pneumatic caissons, and multiple well or monolith caissons. Methods of constructing and sinking each type are described. Advantages and uses of caissons are outlined. Health risks associated with working under compressed air in pneumatic caissons, known as caisson sickness, are also summarized.
Highway drainage system and how it worksRana Ibrahim
Highway drainage systems remove surface water from roadways and redirect it into drainage channels to prevent damage. Proper transverse and longitudinal slopes are needed to facilitate water flow. Inadequate drainage can damage infrastructure and reduce safety. Drainage design considers estimating water quantities, hydraulic elements, and material selection. Drainage channels and sideslopes must have adequate capacity and geometry for safety and maintenance purposes.
A bridge is the key element in a transportation system; it controls both the volume and weight of the traffic. Balance must be achieved between handling future traffic volume and loads and the cost of heavier and wider bridge structure. Economic Analysis and comparisons against competing alternatives is required as Bridges are the most expensive part of a road transportation network. Monetized & Non-Monetized Benefits that will accrue like time savings to road users, benefits to business activities (and to the economy in general) and salvage value benefits like Right-of-Way and substructure use need to be assessed as well.
The Water Well Driller and Pump Installer Program establishes licensing and regulatory standards to protect groundwater resources in Texas. The program licenses qualified drillers and installers and enforces minimum standards for well construction, plugging, and pump installation. Standards address issues such as approved casing and screening materials, drilling fluids containment, annular seals, well location siting distances, and commingling prevention. Drillers must submit state well reports with construction details to TDLR and well owners within 60 days of completion. Variances can be granted for alternative completion methods that prevent pollution.
The document discusses subsurface exploration, which involves determining the soil layers and properties beneath a proposed structure. It describes the various phases of a soil investigation: collecting existing information, conducting site visits, preliminary exploration including some boreholes, detailed exploration with more boreholes and laboratory/in-situ testing, and reporting findings. Guidelines are provided for borehole depth, spacing, and number based on factors like structure type and loads, soil variability, and cost. Common subsurface exploration methods include test pits, hand augers, mechanical augers, shell and auger borings, percussion borings, wash borings, rotary borings, and diamond core drilling.
This document discusses different methods of constructing underground structures beneath existing surfaces without disrupting traffic, including box jacking, arched jacking, and thrust boring. Box jacking involves pushing pre-cast concrete boxes into the ground with hydraulic jacks to form the structure. Arched jacking and thrust boring use similar techniques to jack pipes through the ground. Freezing the soil is another method used to stabilize the ground and prevent issues like water seepage when constructing underground. Case studies demonstrate how these techniques have been applied to real projects.
There are six main types of bridges: beam, cantilever, arch, suspension, cable-stayed, and truss bridges. Beam bridges use shallow steel beams or reinforced concrete and are commonly used for pedestrian bridges. Cantilever bridges project horizontally on one end using trusses or box girders. Arch bridges transfer weight through curved arches to abutments on either side. Suspension bridges hang main cables from towers to support the deck. Cable-stayed bridges use cables from towers to support the deck. Truss bridges use connected, stressed elements like tension and compression to respond to loads.
Estimation and costing of a commercial buildinglckr117
This document provides information on estimating and costing for a commercial building project. It defines estimation as calculating expected expenditures for a project based on drawings, specifications, and schedule of rates. Estimates are needed to determine feasibility, invite tenders, control costs, and ensure funds are sufficient. The estimate preparation involves detailed measurements, unit rates, and an abstract of costs. Reinforced concrete, electrification, and sanitary works are also discussed in terms of estimating quantities and rates.
A site investigation simply is the process of the collection of information, the appraisal of data, assessment, and reporting without which the hazards in the ground beneath the site cannot be known
Mainly this presentation covers about how to understand and analyse soil as highway sub-grade material..
discussed about the basic properties of soil, classification of soils, tests to conduct on soil and how soil can be selected as highway material..
Small bore system: Wastewater EngineeringDhruv Saxena
Small bore sewer system is designed to collect and transport only the liquid portion of the domestic sewage for off-site treatment and disposal. This slideshow presents the description, components, design criteria of same.
Cross drainage works irrigation engineeringAnuj Kumar
The document discusses cross drainage works, which are structures constructed where canals cross natural drainages like rivers or streams. There are three main types of cross drainage works:
1. Type I where the canal passes over the drainage (e.g. aqueduct or siphon aqueduct).
2. Type II where the drainage passes over the canal (e.g. super passage or siphon super passage).
3. Type III where the drainage and canal intersect at the same level (e.g. level crossing or inlet and outlet).
The selection of the type of cross drainage work depends on factors like relative bed levels, foundation conditions, cost, and hydraulic considerations. The document also
"Geotechnical Engineering" is a PowerPoint designed for primary and secondary students. This presentation provides an overview of the field of geotechnical engineering; it provides definitions, understanding of field components and elaborates on careers associated within geotechnical areas. This lesson can be paired with a "Pudding Road" activity.
This document discusses groundwater hydrology and various aspects of wells. It defines groundwater and factors that influence its occurrence. There are four main types of geological formations - aquifers, aquitards, aquicludes, and aquifuges. The document describes properties of aquifers like porosity, permeability, and transmissibility. It also discusses Darcy's law, methods to measure soil permeability, and types of wells, well construction, and well development techniques.
This document discusses water demand forecasting for urban water supply systems. It covers key factors in determining water demands, including population projections, per capita water usage rates that vary by location and usage type, and factors that affect demand like climate, income levels, development patterns and water conservation efforts. The document provides guidance on estimating average day, maximum day and peak hour water demands that systems are designed for, as well as common methods for population forecasting.
The document discusses various types of construction contracts and tendering processes. It defines a tender as an invitation from an owner to contractors to execute work at a specified cost and time. There are different types of tenders including open, sealed, limited, and single tenders. Key aspects of the tendering process include tender forms, documents, notices, evaluation criteria, acceptance procedures, contract documents, deposits, and measurements. Different types of construction contracts are also summarized such as lump-sum, item rate, percentage rate, cost plus, and turn-key contracts.
Resources allocation and resources scheduling_Construction Management A Makwana
The main purpose of resources allocation is to rearrange the activities of network in such a manner that the project can be completed with available resources, with minimum increase in cost and without delaying the completion period.
RESOURCE SMOOTHING Done – shifting of activities by their available floats, so that a uniform demand for the resources are generated.
Project Time – not change in any case
This document provides an overview of different types of bridges, including their basic designs, histories, and functions. It discusses beam bridges, arch bridges, suspension bridges, cantilever bridges, truss bridges, cable-stayed bridges, floating bridges, and culverts. The document describes the key forces and materials involved in each bridge type and how they are able to span different distances. It also gives brief histories on the development of bridges from ancient times to modern innovations in bridge engineering.
Rigid pavements are constructed using cement concrete and rely on the rigidity and high modulus of elasticity of the concrete slab for load carrying capacity. They are usually provided in areas with adverse conditions like heavy rainfall, poor soil/drainage, or extreme climatic conditions. A rigid pavement consists of a concrete slab placed over a subgrade and optionally a sub-base/base. It includes joints to allow for stresses from temperature and moisture changes. Proper construction processes and quality control measures are required to ensure the designed performance of rigid pavements.
The document summarizes a presentation by Kerry Blind at a Parks & Greenspace Conference about high performance landscapes and green infrastructure in public spaces. It defines a high performance site as one that functions on multiple levels by creating habitat, enhancing air and water quality, and addressing energy efficiency. Green infrastructure is described as interconnected hydrologic features that provide environmental and community benefits through low impact development techniques incorporated into existing land development practices. The presentation includes photos showcasing examples of green infrastructure implementations in parks that manage stormwater runoff and provide other benefits.
In this presentation, the Stockholm Environment Institute presents are green infrastructure solutions to aid the resilience and sustainability of development of the Chindwin River Basin in Myanmar.
A bridge is the key element in a transportation system; it controls both the volume and weight of the traffic. Balance must be achieved between handling future traffic volume and loads and the cost of heavier and wider bridge structure. Economic Analysis and comparisons against competing alternatives is required as Bridges are the most expensive part of a road transportation network. Monetized & Non-Monetized Benefits that will accrue like time savings to road users, benefits to business activities (and to the economy in general) and salvage value benefits like Right-of-Way and substructure use need to be assessed as well.
The Water Well Driller and Pump Installer Program establishes licensing and regulatory standards to protect groundwater resources in Texas. The program licenses qualified drillers and installers and enforces minimum standards for well construction, plugging, and pump installation. Standards address issues such as approved casing and screening materials, drilling fluids containment, annular seals, well location siting distances, and commingling prevention. Drillers must submit state well reports with construction details to TDLR and well owners within 60 days of completion. Variances can be granted for alternative completion methods that prevent pollution.
The document discusses subsurface exploration, which involves determining the soil layers and properties beneath a proposed structure. It describes the various phases of a soil investigation: collecting existing information, conducting site visits, preliminary exploration including some boreholes, detailed exploration with more boreholes and laboratory/in-situ testing, and reporting findings. Guidelines are provided for borehole depth, spacing, and number based on factors like structure type and loads, soil variability, and cost. Common subsurface exploration methods include test pits, hand augers, mechanical augers, shell and auger borings, percussion borings, wash borings, rotary borings, and diamond core drilling.
This document discusses different methods of constructing underground structures beneath existing surfaces without disrupting traffic, including box jacking, arched jacking, and thrust boring. Box jacking involves pushing pre-cast concrete boxes into the ground with hydraulic jacks to form the structure. Arched jacking and thrust boring use similar techniques to jack pipes through the ground. Freezing the soil is another method used to stabilize the ground and prevent issues like water seepage when constructing underground. Case studies demonstrate how these techniques have been applied to real projects.
There are six main types of bridges: beam, cantilever, arch, suspension, cable-stayed, and truss bridges. Beam bridges use shallow steel beams or reinforced concrete and are commonly used for pedestrian bridges. Cantilever bridges project horizontally on one end using trusses or box girders. Arch bridges transfer weight through curved arches to abutments on either side. Suspension bridges hang main cables from towers to support the deck. Cable-stayed bridges use cables from towers to support the deck. Truss bridges use connected, stressed elements like tension and compression to respond to loads.
Estimation and costing of a commercial buildinglckr117
This document provides information on estimating and costing for a commercial building project. It defines estimation as calculating expected expenditures for a project based on drawings, specifications, and schedule of rates. Estimates are needed to determine feasibility, invite tenders, control costs, and ensure funds are sufficient. The estimate preparation involves detailed measurements, unit rates, and an abstract of costs. Reinforced concrete, electrification, and sanitary works are also discussed in terms of estimating quantities and rates.
A site investigation simply is the process of the collection of information, the appraisal of data, assessment, and reporting without which the hazards in the ground beneath the site cannot be known
Mainly this presentation covers about how to understand and analyse soil as highway sub-grade material..
discussed about the basic properties of soil, classification of soils, tests to conduct on soil and how soil can be selected as highway material..
Small bore system: Wastewater EngineeringDhruv Saxena
Small bore sewer system is designed to collect and transport only the liquid portion of the domestic sewage for off-site treatment and disposal. This slideshow presents the description, components, design criteria of same.
Cross drainage works irrigation engineeringAnuj Kumar
The document discusses cross drainage works, which are structures constructed where canals cross natural drainages like rivers or streams. There are three main types of cross drainage works:
1. Type I where the canal passes over the drainage (e.g. aqueduct or siphon aqueduct).
2. Type II where the drainage passes over the canal (e.g. super passage or siphon super passage).
3. Type III where the drainage and canal intersect at the same level (e.g. level crossing or inlet and outlet).
The selection of the type of cross drainage work depends on factors like relative bed levels, foundation conditions, cost, and hydraulic considerations. The document also
"Geotechnical Engineering" is a PowerPoint designed for primary and secondary students. This presentation provides an overview of the field of geotechnical engineering; it provides definitions, understanding of field components and elaborates on careers associated within geotechnical areas. This lesson can be paired with a "Pudding Road" activity.
This document discusses groundwater hydrology and various aspects of wells. It defines groundwater and factors that influence its occurrence. There are four main types of geological formations - aquifers, aquitards, aquicludes, and aquifuges. The document describes properties of aquifers like porosity, permeability, and transmissibility. It also discusses Darcy's law, methods to measure soil permeability, and types of wells, well construction, and well development techniques.
This document discusses water demand forecasting for urban water supply systems. It covers key factors in determining water demands, including population projections, per capita water usage rates that vary by location and usage type, and factors that affect demand like climate, income levels, development patterns and water conservation efforts. The document provides guidance on estimating average day, maximum day and peak hour water demands that systems are designed for, as well as common methods for population forecasting.
The document discusses various types of construction contracts and tendering processes. It defines a tender as an invitation from an owner to contractors to execute work at a specified cost and time. There are different types of tenders including open, sealed, limited, and single tenders. Key aspects of the tendering process include tender forms, documents, notices, evaluation criteria, acceptance procedures, contract documents, deposits, and measurements. Different types of construction contracts are also summarized such as lump-sum, item rate, percentage rate, cost plus, and turn-key contracts.
Resources allocation and resources scheduling_Construction Management A Makwana
The main purpose of resources allocation is to rearrange the activities of network in such a manner that the project can be completed with available resources, with minimum increase in cost and without delaying the completion period.
RESOURCE SMOOTHING Done – shifting of activities by their available floats, so that a uniform demand for the resources are generated.
Project Time – not change in any case
This document provides an overview of different types of bridges, including their basic designs, histories, and functions. It discusses beam bridges, arch bridges, suspension bridges, cantilever bridges, truss bridges, cable-stayed bridges, floating bridges, and culverts. The document describes the key forces and materials involved in each bridge type and how they are able to span different distances. It also gives brief histories on the development of bridges from ancient times to modern innovations in bridge engineering.
Rigid pavements are constructed using cement concrete and rely on the rigidity and high modulus of elasticity of the concrete slab for load carrying capacity. They are usually provided in areas with adverse conditions like heavy rainfall, poor soil/drainage, or extreme climatic conditions. A rigid pavement consists of a concrete slab placed over a subgrade and optionally a sub-base/base. It includes joints to allow for stresses from temperature and moisture changes. Proper construction processes and quality control measures are required to ensure the designed performance of rigid pavements.
The document summarizes a presentation by Kerry Blind at a Parks & Greenspace Conference about high performance landscapes and green infrastructure in public spaces. It defines a high performance site as one that functions on multiple levels by creating habitat, enhancing air and water quality, and addressing energy efficiency. Green infrastructure is described as interconnected hydrologic features that provide environmental and community benefits through low impact development techniques incorporated into existing land development practices. The presentation includes photos showcasing examples of green infrastructure implementations in parks that manage stormwater runoff and provide other benefits.
In this presentation, the Stockholm Environment Institute presents are green infrastructure solutions to aid the resilience and sustainability of development of the Chindwin River Basin in Myanmar.
The document summarizes the first meeting of a Green Infrastructure Steering Committee. It defines green infrastructure as an interconnected network of green spaces that conserves natural ecosystems while providing benefits to people. Examples include preservation of riverside corridors, wetlands, and rain gardens. The committee discussed how green infrastructure differs from "gray infrastructure" like roads and utilities. They also reviewed relevant projects on regional growth, land use and health, and developing a regional trail network to inform their planning. The goal is to form a vision and implementation strategies through public engagement and GIS mapping to link parks, downtowns and other community assets with green spaces.
This document summarizes a seminar presentation on an automatic irrigation system with remote monitoring and control. The system uses a microcontroller-based circuit to automate irrigation based on soil moisture sensors. It allows farmers to remotely control irrigation via a GSM modem and mobile phone. The system aims to save water, labor costs, and prevent crop destruction by automatically and remotely controlling irrigation only when needed based on soil moisture levels. It provides advantages like reduced costs, improved crop yields, and easy control of irrigation from anywhere.
Green Infrastructure Design Principles and ConsiderationsDan Christian
The document discusses green infrastructure design principles and considerations. It provides an overview of different types of green infrastructure practices like bioretention cells, permeable pavements, and rainwater harvesting. It also covers important design considerations like selecting appropriate plant species based on site conditions, choosing plants with high transpiration rates, and engineering soil mixes to maximize infiltration capacity. The goal is to design practices that infiltrate, evapotranspire, and reuse stormwater onsite.
Green infrastructure provides environmental, economic, and social benefits. It uses natural systems or mimics natural processes to manage stormwater, and can be implemented at various scales from regional to site levels. Examples include urban forests, parks, constructed wetlands, and green roofs. Benefits include improved air and water quality, increased physical activity, better mental health, and environmental justice. Green infrastructure principles emphasize multi-functionality, connectivity, habitability, resiliency, identity, and return on investment. Planning approaches integrate these principles through regional plans, functional plans, comprehensive plans, development regulations, and capital projects.
This document summarizes a seminar presentation on a PIC-based drip irrigation system. The system uses soil moisture sensors and a microcontroller to automate watering. It works by sensing soil moisture levels and turning a motor on or off to pump water based on whether the soil is dry or wet. This saves water and labor compared to manual irrigation. Potential applications are in agriculture fields and gardens. The system could be improved in the future by integrating additional sensors to vary watering based on season or plant growth stage.
The document discusses infrastructure in Pakistan and includes the following key points:
1. It lists five group members and provides definitions and background information on infrastructure, including that it is fundamental for a country's functioning and Pakistan loses 4-6% of GDP due to insufficient infrastructure.
2. It discusses issues in Pakistan's power sector such as capacity shortages, the need for private sector investment and PPP models, tariff and fuel supply issues, and the impact of subsidies.
3. It also briefly mentions issues in water and sanitation infrastructure as well as challenges with implementing PPP models and financing infrastructure development.
4. In conclusion, it states that investing in infrastructure can increase income, employment, productivity
Paul Roebuck, one of our London based ecologists, takes you through some basics on green infrastructure in the UK and highlights some really interesting projects we have worked on and exciting future developments.
The slides cover legislation, mitigation, habitat creation, ecology impact assessments and green roofs and walls.
Learn more about a program designed to help you validate and define your business model, build a stronger product, get your first customers and grow your business, together with a wide network of partners, mentors and experts.
about how to establish a program to make that a reality. Learn about tools like the Green Infrastructure Portfolio Standard, how to set a measurable goal and implement your project, and address challenges in financing.
This document describes a microcontroller-based automatic irrigation system. It consists of a soil moisture sensor to detect moisture levels, a comparator circuit to analyze the sensor readings, an ATmega328 microcontroller to control the system, and a solenoid valve and relay circuit to regulate water flow. The system automatically monitors soil moisture and operates the valve to optimize irrigation based on moisture thresholds, reducing water use and labor compared to manual systems.
Groundworks Equipment Issue 3 provides information on Mabey's temporary groundworks equipment products. Mabey operates from 17 depot locations across the UK, combining nationwide coverage with local solutions. They have decades of experience in the construction industry and continue to invest in high quality, engineered products and solutions. The document describes Mabey's extensive range of trench boxes, excavation bracing systems, sheeting and piling, auxiliary products, and instrumentation and monitoring equipment available for hire and sale. It also provides contact information for Mabey's specialist engineering department which can assist with complex temporary works scheme design.
Vacuworx Global is a leading supplier of vacuum lifting technology that provides safer, faster, and smarter alternatives to traditional pipe handling methods. Their vacuum lifting systems attach to various construction vehicles to lift and transport materials like pipe, plate, slabs, and barriers without the need for workers on the ground or risk of damage to coated materials. The document describes Vacuworx's product lines, features, applications in industries like construction and facilities, and their commitment to high quality, service, and safety.
Tall structures are defined as buildings over 50m or 14 stories tall. Rapid urban growth and limited land availability have driven the construction of ever taller buildings for business, prestige, and tourism. Structural systems for tall buildings must effectively resist both vertical and lateral loads. Common high-rise structural systems include rigid frames, flat plates, cores, shear walls, braced frames, outriggers, tubes, and megaframes. System selection depends on height, with tubes and outriggers enabling the tallest structures over 40 stories. Floor systems also vary between one-way and two-way slabs for steel or concrete construction.
This document discusses cranes, mobile cranes, tower cranes, utility construction, precast structures, trench excavation standards, and soil classification. It provides details on the types, components, and operation of various cranes and highlights factors that influence crane capacity. It also outlines the various underground and aerial utilities commonly encountered in construction and priorities for their installation. Standards for trench excavation and requirements for sloping, shielding, and soil classification are summarized.
At Miller Brewing Company’s Fort Worth, TX, facility, staff engineer Roy Marin was faced with an interesting problem two years ago – a problem that was solved by using the patented HammerTek Smart Elbow® deflection elbow. The Smart Elbow® deflection elbow provides change of direction in pneumatic and slurry conveying systems without the wear, plugging, product degradation or contamination problems which characterise sweep elbows and plugged-tee equipped systems––and does so in far less space.
The document provides information on smart off-grid lighting solutions from Illumient. It discusses various configuration and component options for single and dual solar pole lighting systems using steel or concrete poles. Key components include solar panels, batteries, smart controllers, and LED lights. The systems can be remotely monitored and controlled through Illumient's cloud-based software to optimize performance and reduce maintenance needs. Options include different pole styles, lights, batteries and adding motion detection sensors.
Underground transmission cables have several advantages over overhead lines including improved reliability, reduced electromagnetic fields, and allowing construction over cable routes. However, they also have some disadvantages such as higher initial installation costs and difficulties locating faults. Maintenance and repair of underground cables can also be more complex than overhead lines. Overall, underground cables are well-suited for transmission at voltages up to around 115kV for distances of a few kilometers, but overhead lines are generally used for longer high voltage transmission.
The document discusses the key components of a rotary drilling rig. It describes the major systems that make up a rig, including the power system, hoisting system, circulating system, rotary system, and well control system. For each system, it provides details on the important individual components, their functions, and how they work together to enable drilling operations. Key components discussed include the derrick, drawworks, kelly, drill pipe, blowout preventers, mud pumps, shale shakers, and other equipment used to hoist, rotate, circulate drilling fluid, and ensure well control.
Claxton holds over 1,500ft of drilling riser stock for rapid call-off - supported by a large inventory of tensioning equipment and adaptors. Our tension rings include the proprietary slimline positive grip design that saves time by being run through the rig's rotary table.
The document provides guidance on quality conformance and awareness training. It contains sections on common non-conformances found during inspections, such as dented conduits. It also outlines best practices for installation of electrical components like conduits and cables to achieve higher quality. Specific practices covered include properly sealing junction boxes before concreting, using spacer blocks to support conduits, and clearly labeling circuits in distribution boards. The training aims to reduce rework through creating awareness of proper methodologies and continuous process improvement.
Great tool provides insight into key considerations when determining whether sliplining or rehabilitating an existing culvert, bridge or storm sewer would be ideal.
The document discusses issues related to AC corrosion on pipelines located near high-voltage power lines. It provides background on how AC current can be induced in pipelines and details signs of AC corrosion observed in inspections. Thresholds of AC current density are discussed as indicators of potential corrosion risk. Methods for mitigating AC safety hazards and corrosion are described, including installing linear drain systems and deep point drains to divert current from the pipeline. Case studies show modeling and mitigation installation reducing pipeline voltages and current densities to safe levels.
Brochure - A6 More to Mabey Pocket Guide - Issue 1 Sep 2016Peter McClafferty
This document provides a product guide for Mabey, a leading supplier of temporary works equipment in the UK. It introduces Mabey's extensive range of trench boxes, excavation bracing systems, trench sheeting and light piling, safety equipment, and other temporary works products. The guide contains information on each product category as well as contact details for Mabey's 17 depot locations across the UK.
The document provides information about drilling and production wells. It discusses how a production well is drilled using a drilling rig located on an offshore production platform. It then describes the multi-stage drilling process where casing pipes are installed and cemented as drilling progresses to greater depths. Different components of the drilling system like the drill bit, drill pipes, and casing are also explained. The document concludes with discussing the typical sequence of drilling operations.
Sewer joints of pipes, sewer appurtenances, storm water drainage.pptxPriyaTalwar8
The document describes 4 main types of sewer joints used in pipes: bandage joints, spigot and socket joints, collar joints, and flush joints. It then discusses various sewer appurtenances including manholes, drop manholes, clean-outs, stormwater inlets, catch basins, inverted siphons, and stormwater regulators. Manholes provide access for inspection and maintenance of sewer lines and are constructed at intervals or changes along the sewer line. Other appurtenances like clean-outs, inlets, and regulators help with maintenance, drainage, and flow control of sewer systems.
Little Pimmit Run at Chesterbrook Road Stream Restoration and Sanitary Reali...Fairfax County
Chesterbrook Road Emergency Project – Summer 2019
Final Scoping Technical Memorandum – January 2020
Professional Services Contract Execution – April 2021
Community Meeting on stream restoration Pre-design/Channel alignments – April 2021
Final Preliminary Engineering Report – October 2021
Community Meeting on Sanitary Realignment Preliminary Engineering Report – October 2021
Value Engineering Study completed – November 2021
One joint study for both projects
Community Meeting with Board of Supervisor – December 2021
Community meeting – January 2022
Design Contract Development – (We are at this step)
Land Acquisition – (We are at this step)
Complete Design
Construction
Little Pimmit Run at Chesterbrook Stream Restoration Project and Little Pimmi...Fairfax County
Restore up to 7,500 feet of stream channel and tributaries
Reduce erosion and sediment transport
Install new sanitary sewers serving over 500 single family homes
Improve watershed conditions and reduce downstream impacts
Improve and protect public infrastructure
Prevent costly emergency repairs
Reduce risk to public health and the environment
Maintain close coordination with stakeholders and community
Build partnerships with local organizations
- Interceptors are large sewers that collect flow from trunk sewers and transport it to wastewater treatment plants. They do not connect to homes or streets. Grease interceptors are plumbing devices used in restaurants to intercept greases and solids before wastewater enters disposal systems.
- Manholes and inspection chambers provide access to sewers and drains for maintenance. Manholes are the largest access points, with minimum dimensions of 600x900mm. Inspection chambers are shallower access points for cursory inspections and access by maintenance equipment.
The document summarizes a wall-mounted fiber optic enclosure called the WBF6-24. It can hold up to 24 fiber connections, has separate splice and patch areas, and four cable entries. It provides flexibility for installers by supporting different connector styles and allowing reconfiguration without disturbing installed fibers. Accessories include pigtails, bulkhead adapters, splice sleeves, and patch cords.
The STT system is a modular technical flooring system consisting of (1) an embedded grid of ducts for electrical, data, and other installations and (2) access points called "knots" that allow installation and maintenance of these systems. It provides a long-lasting, fire-proof, and easily modifiable flooring solution that hides installations but allows permanent access. The system can be customized for different building requirements and allows flexible reconfiguration of installations without disrupting the floor or workspace layout.
Similar to Integrating Silva Cells and Utilities (20)
4. 3caption

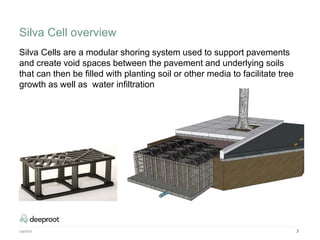

Silva Cell overview
Silva Cells are a modular shoring system used to support pavements
and create void spaces between the pavement and underlying soils
that can then be filled with planting soil or other media to facilitate tree
growth as well as water infiltration

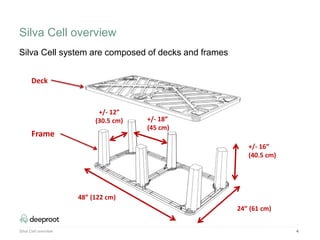

5. Silva Cell system are composed of decks and frames
Silva Cell overview 4
+/- 18”
(45 cm)
+/- 12”
(30.5 cm)
+/- 16”
(40.5 cm)
48” (122 cm)
24” (61 cm)
Frame
Deck
Silva Cell overview
6. Silva Cell overview 5
Deck
Frame

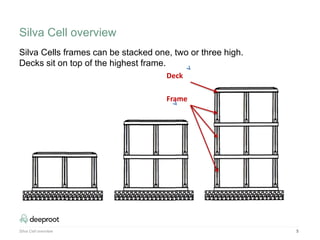

Silva Cells frames can be stacked one, two or three high.
Decks sit on top of the highest frame.
Silva Cell overview
7. Silva Cell overview 6

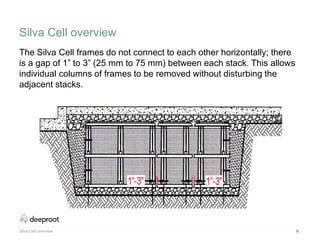

The Silva Cell frames do not connect to each other horizontally; there
is a gap of 1” to 3” (25 mm to 75 mm) between each stack. This allows
individual columns of frames to be removed without disturbing the
adjacent stacks.
Silva Cell overview

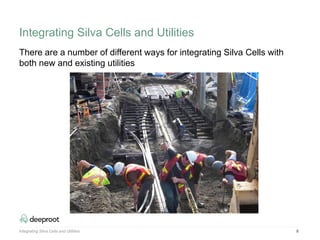

9. 8Integrating Silva Cells and Utilities
There are a number of different ways for integrating Silva Cells with
both new and existing utilities
Integrating Silva Cells and Utilities
10. Integrating Silva Cells and Utilities 9

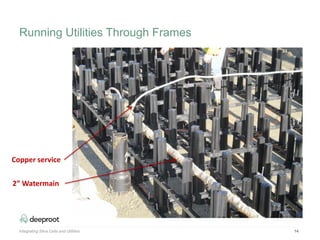

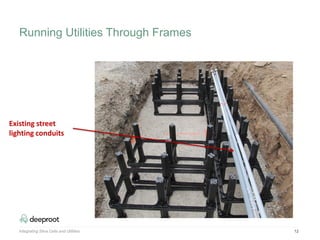

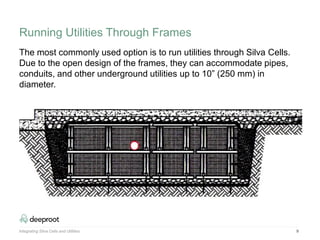

The most commonly used option is to run utilities through Silva Cells.
Due to the open design of the frames, they can accommodate pipes,
conduits, and other underground utilities up to 10” (250 mm) in
diameter.
Running Utilities Through Frames
11. Integrating Silva Cells and Utilities 10
Existing
Telecomm
lines
Running Utilities Through Frames
12. Integrating Silva Cells and Utilities 11
Irrigation
Electric
Underdrain
(wrapped in fabric)
Running Utilities Through Frames
13. Integrating Silva Cells and Utilities 12
Existing street
lighting conduits
Running Utilities Through Frames
14. Integrating Silva Cells and Utilities 13

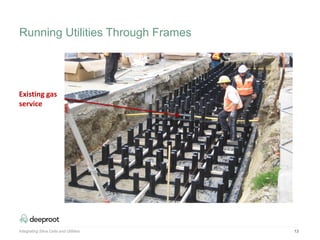

Existing gas
service
Running Utilities Through Frames
15. Integrating Silva Cells and Utilities 14
2” Watermain
Copper service
Running Utilities Through Frames
16. Integrating Silva Cells and Utilities 15
Copper water services
Running Utilities Through Frames
17. 16Integrating Silva Cells and Utilities
8” (200 mm)
perforated PVC
pipe
Running Utilities Through Frames
18. Integrating Silva Cells and Utilities 17
When integrating Silva Cells and utilities, it may not always be possible
to run utilities through the Cells. In those cases, one of the following
alternatives may be used:
• Aggregate gap detail
• Bridging utilities with Silva Cells
• Bridging utilities with small concrete slabs (< 24” wide)
• Bridging utilities with custom concrete slabs (> 24” wide)
• Running utilities outside of the Silva Cell frames but in the
same excavation ares
Please refer to the details on our website (www.deeproot.com) for more information.
Alternatives to Running Utilities Through Frames
19. Options for when utilities cannot be run through frames 18
Geogrid
Clear Stone
Geogrid
One of the simplest options is to leave a gap in the Silva Cells where
the Utility is. Then wrap the inside of the gap with geogrid and fill the
void space with clear stone (drain rock) to make a stone column. The
tree roots will work their way through the stone.
Aggregate Gap Bridging

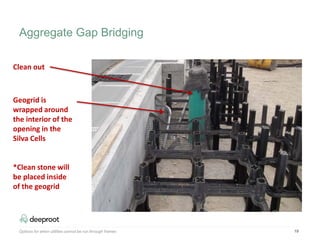

20. Options for when utilities cannot be run through frames 19
Clean out
Geogrid is
wrapped around
the interior of the
opening in the
Silva Cells
*Clean stone will
be placed inside
of the geogrid
Aggregate Gap Bridging
21. Options for when utilities cannot be run through frames 20
Clear stone
Geogrid (excess
is folded over
top)
Aggregate Gap Bridging
22. Options for when utilities cannot be run through frames 21
Light pole foundation
Geogrid will be
installed around the
inside of the
opening and filled
with clean stone
Aggregate Gap Bridging
23. 22

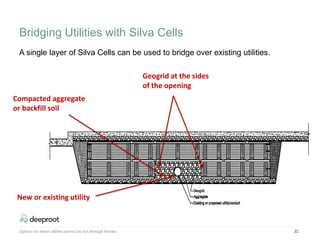

A single layer of Silva Cells can be used to bridge over existing utilities.
Geogrid at the sides
of the opening
Compacted aggregate
or backfill soil
New or existing utility
Bridging Utilities with Silva Cells
Options for when utilities cannot be run through frames

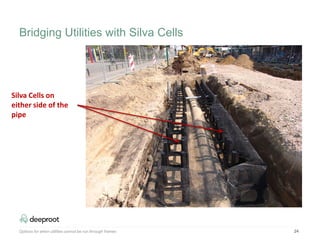

25. 24
Silva Cells on
either side of the
pipe
Bridging Utilities with Silva Cells
Options for when utilities cannot be run through frames
26. 25
Geogrid installed around the
inside perimeter of the
opening for the pipe
*Geogrid is only installed to
the top of the 1st layer of Silva
Cells, allowing the roots to
move freely through the upper
layer of Silva Cells
Bridging Utilities with Silva Cells
Options for when utilities cannot be run through frames

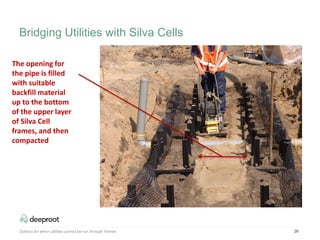

27. 26
The opening for
the pipe is filled
with suitable
backfill material
up to the bottom
of the upper layer
of Silva Cell
frames, and then
compacted
Options for when utilities cannot be run through frames
Bridging Utilities with Silva Cells
28. 27

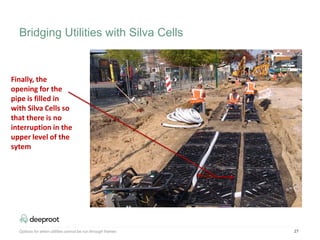

Finally, the
opening for the
pipe is filled in
with Silva Cells so
that there is no
interruption in the
upper level of the
sytem
Bridging Utilities with Silva Cells
Options for when utilities cannot be run through frames
29. 28
Existing electrical
conduits that in
the way at the
tree opening
Outline of tree
opening
Options for when utilities cannot be run through frames
Bridging Utilities with Silva Cells

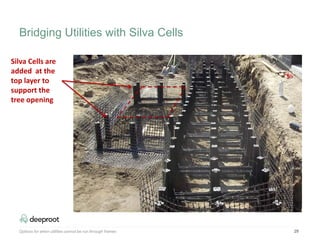

30. 29
Silva Cells are
added at the
top layer to
support the
tree opening
Bridging Utilities with Silva Cells
Options for when utilities cannot be run through frames
31. 30

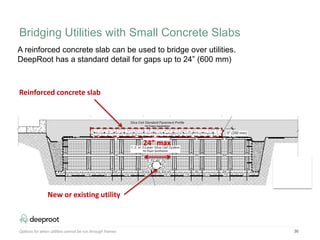

A reinforced concrete slab can be used to bridge over utilities.
DeepRoot has a standard detail for gaps up to 24” (600 mm)
Reinforced concrete slab
New or existing utility
24” max
Bridging Utilities with Small Concrete Slabs
Options for when utilities cannot be run through frames

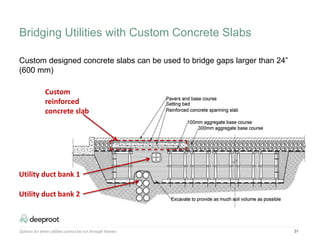

32. 31
Custom designed concrete slabs can be used to bridge gaps larger than 24”
(600 mm)
Custom
reinforced
concrete slab
Utility duct bank 1
Utility duct bank 2
Bridging Utilities with Custom Concrete Slabs
Options for when utilities cannot be run through frames

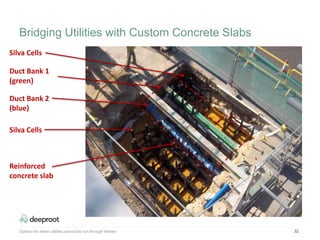

33. 32
Silva Cells
Duct Bank 1
(green)
Duct Bank 2
(blue)
Silva Cells
Reinforced
concrete slab
Bridging Utilities with Custom Concrete Slabs
Options for when utilities cannot be run through frames

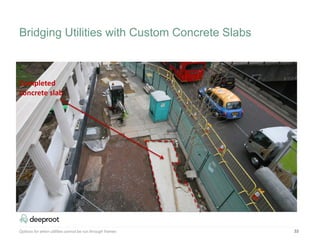

35. 34
The City Of Toronto developed their own custom utility bridging detail for using
removable precast concrete panels
Concrete header at
back of curb to receive
the panels on the
street side
Concrete header
poured at on the back
side of the utility to
receive panels
supported by Silva Cells
Typical precast panel
location
Bridging Utilities with Custom Concrete Slabs
Options for when utilities cannot be run through frames
36. 35
When utilities cannot be run through the frames, integrating them into the same
excavation is an effective option
Limits of excavation
Utilities placed in
same excavation
Running Utilities Outside of the System but in the Same Trench
Options for when utilities cannot be run through frames
37. 36

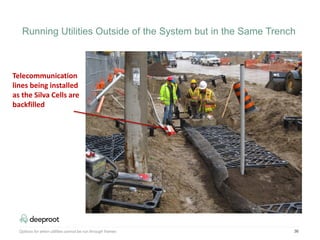

Telecommunication
lines being installed
as the Silva Cells are
backfilled
Options for when utilities cannot be run through frames
Running Utilities Outside of the System but in the Same Trench
38. 37
New electrical duct
bank installed along
with the Silva Cells
Running Utilities Outside of the System but in the Same Trench
Options for when utilities cannot be run through frames
40. Planning for the future 39
Corridor
between
areas of
Silva Cells
for future
utility
expansion
Establish Utility Corridors for Future Expansion
41. 40
Extra ducts
are added to
an electric
duct bank for
future use
Add Future Capacity Where Possible
Planning for the future
42. 41
Planning can be as simple as adding a PVC sleeve for future use
PVC sleeve for
future use
Planning for the future
Add Future Capacity Where Possible
43. 42
Marking where utilities run through the Silva Cell makes locating them in the
future easier
Marking tape laid
on top of the Silva
Cells marks the
location of lines
running through
the system
Mark Utility Locations
Planning for the future
44. 43

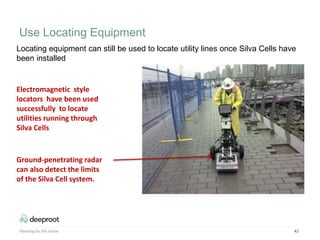

Electromagnetic style
locators have been used
successfully to locate
utilities running through
Silva Cells
Ground-penetrating radar
can also detect the limits
of the Silva Cell system.
Locating equipment can still be used to locate utility lines once Silva Cells have
been installed
Planning for the future
Use Locating Equipment
45. 44
Make Silva Cells a permanent part of the local underground utility notification
network for future protection
Make Silva Cells Part of the Local One-Call Network
Planning for the future
46. 45
Directional boring can be used for future utility installations
Silva Cells
Planning for the future
Directional Boring
47. Planning for the future 46
Boring head or Pneuma – gopher going
in on one side
Boring head or Pneuma –gopher
coming out the other side
Make Silva Cells Part of the Local One-Call Network
49. Future utility installations and repairs 48
1. Locate
- Call Local One-Call Agency
2. Excavate
- Excavate to level of geotextile
- Expose geotextile fabric, cut and fold back, then remove decks
- Use a Hydro-Vac or hand dig out soil from area of excavation
3. Repair or add service (lateral)
4. Replace Silva Cells
- To replace Silva Cells follow Operations Manual procedures (see
www.deeproot.com)
5. Replace permanent surfacing
- Replace or patch paving
**for further details, see www.deeproot.com or call 415-781-9700**
Recommended Protocol For Utility Repairs and New
Utility Installations
50. Future utility installations and repairs 49
Planned water service installation Broadway Ave – mid block between
Edmonton and Carlton Streets in Winnipeg, MB
Site of installation
Repair: Planned Water Service (Winnipeg, MB)
52. 51
The existing pavement
is removed. In this case
the existing pavers were
salvaged for re -
installment
The aggregate base is
removed and the fabric
covering the decks is cut
and removed
Future utility installations and repairs
Repair: Planned Water Service (Winnipeg, MB)
53. 52
The Silva Cells are
removed and the
existing watermain
exposed where the new
connection will be
Adjacent stacks of
Silva Cells remained
in place
Existing watermain
Repair: Planned Water Service (Winnipeg, MB)
Future utility installations and repairs
54. 53
Once the new service is
installed, the
excavation is backfilled
to the bottom of the
Silva frames
Silva Cells
Future utility installations and repairs
Repair: Planned Water Service (Winnipeg, MB)
55. 54
The Silva Cells frames
are re-installed and
the existing irrigation
and drain lines are run
back through the cells
Existing irrigation
Existing drain Line
Repair: Planned Water Service (Winnipeg, MB)
Future utility installations and repairs
56. 55
The Silva Cell
frames are filled
with soil , the
decks are
attached and the
geotextile fabric
is patched
Silva Cell decks
Future utility installations and repairs
Repair: Planned Water Service (Winnipeg, MB)
57. 56
The aggregate base is
replaced, a new curb is
installed, and the
salvaged pavers are
reinstalled to complete
the restoration
Area of installation
after restoration
Repair: Planned Water Service (Winnipeg, MB)
Future utility installations and repairs
58. 57
Deeproot along with the City of Toronto and Toronto Hydro participated in a
demonstration project that simulated an emergency water main repair
scenario
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
59. 58
Prior to constructing
the Silva Cells, a PVC
pipe was buried
below the level of
the Silva Cells to act
as a watermain
A saw cut was
made into the
pipe to act like a
break in the pipe
Repair: Simulated Emergency Water Main (Toronto, ON)
Future utility installations and repairs
60. 59
A typical Silva Cell system is constructed
over the buried pipe
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
61. 60
The planned “break” occurred on a bitterly cold day in January
Silva Cell system with
concrete pavement
now over the top
Riser pipe and hose
connection to the pipe
buried under the Silva
Cells
Repair: Simulated Emergency Water Main (Toronto, ON)
Future utility installations and repairs
62. 61
A fire hose from a
nearby hydrant was
connected to the
buried pipe via the
riser pipe. When the
hydrant was turned
on, it flooded the area
with water
*Due to the soil in the Silva
Cells being loosely
compacted, the water
came to the surface very
near to the location of the
break rather than traveling
underground
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
63. 62
The pavement over the repair area was sawcut into panels and removed
with a backhoe
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
64. 63
The aggregate base was removed and the geotextile fabric over the Silva
Cells cut out of the way, exposing the top of the Silva Cells
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
65. 64
At this point, an effort could be made to salvage the Silva Cells for re use.
However, since this simulated an emergency repair, time is of the essence.
Therefore, the crew doesn’t stop and just digs right through the Silva Cells
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
66. 65
Remember, Silva Cells are designed with a 1” to 3” gap between the frames
and do not interlock horizontally. Therefore, the adjacent stacks of Silva Cells
were not disturbed during the excavation.
Adjacent Silva Cells
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
67. 66
The pipe was exposed and
ready to be repaired in
essentially the same time as
it would be during a
traditional repair.
*Note that the lightly
compacted soil in the Silva
Cells generally puts less
downward pressure on the
sides of the excavation than
traditionally compacted soil
which helps the excavation
stay open better
Future utility installations and repairs
Repair: Simulated Emergency Water Main (Toronto, ON)
68. 67
There are two ways to approach restoring that area
depending on the time frame in which the work must be
completed and the available materials:
1. Restore the area temporarily at the time of the repair
and do the permanent restoration at a later date.
2. Restore the area permanently at the time of the repair
using one of three permanent restoration options.
Future utility installations and repairs
Restoration Options
69. 68
When time is limited, the area can be
quickly restored by backfilling the
excavation with a lean concrete mix
like U-fill or compacted aggregate and
temporarily patching the pavement …
… Then at a later the date the area
can be re excavated and restored
permanently using one of three
permanent restoration options.
Future utility installations and repairs
Restoration Options
70. 69
Option 1 – fill/compact the excavation to the
bottom of the Silva Cells and re install new or
salvaged frames and decks
Option 2 – fill/compact the excavation up to the
bottom of the uppermost layer of Silva Cells and re
install a single layer of frames and decks
Option 3 – fill/compact the excavation to the
bottom of the Silva Cells, install geogrid around the
perimeter of the remaining opening and fill with
compacted soil, clear stone or U-fill (in the case of
U-fill try to establish some link between adjacent
soil volumes)
Future utility installations and repairs
Restoration Options

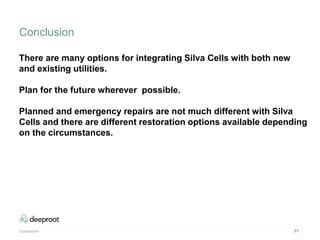

72. Conclusion 71
There are many options for integrating Silva Cells with both new
and existing utilities.
Plan for the future wherever possible.
Planned and emergency repairs are not much different with Silva
Cells and there are different restoration options available depending
on the circumstances.
Conclusion
