Boyle-Davis mouth gag and Doyen mouth's gag are used to keep the mouth open for various ENT surgeries. Denis Browne's tonsil holding forceps are used to hold and pull the tonsils during tonsillectomy. Thudicum nasal speculums are used in anterior rhinoscopy and nasal procedures to open the nasal cavity. Luc's forceps have sharp, cup-shaped blades and are useful for nasal and throat operations including submucous resection of the nasal septum.

1. INSTRUMENTS
IN ENT
Dr. Juveria Majeed ,
MS ENT.

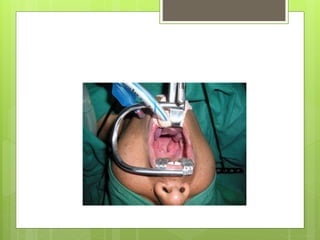

3. Boyle – Davis Mouth gag

4. Used for various operations:
 Oral cavity -palate surgery
 Oropharynx- Tonsillectomy, surgery of the
soft palate, pharyngoplasty.
 Nasopharynx- Adenoidectomy, excision
of angiofibroma.

5. Draffins Bipod and
Magauran’s Plate

6. Doyen mouth’s gag

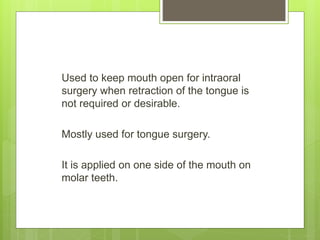

7. Used to keep mouth open for intraoral
surgery when retraction of the tongue is
not required or desirable.
Mostly used for tongue surgery.
It is applied on one side of the mouth on
molar teeth.

8. Jenning’s Mouth Gag
 Similar to Doyen’s
mouth gag
 It is applied in the
centre of the mouth.

9. Denis Browne’s Tonsil Holding
Forceps

10. Denis Browne’s tonsil holding
forceps
 Although the name ,Forcep , their jaws are
not sharp & upper jaw sits within larger lower
jaw.
 Uses – Used for holding Tonsil during
dissection & pulling it medially.

11. Waugh’s Tonsil Dissection
Forceps with and without teeth

12. Tonsil dissector and anterior pillar
retractor
 Uses – Blunt
dissection of Tonsils
by it’s blunt end.
 Retracting the
anterior pillar
 To visualize bleeders
in Tonsillar fossa
 For retracting soft
palate & Uvula

13. Tonsil artery forceps (straight and
curved)

14. Yankauer’s Suction Cannula

15. Eve’s Tonsil Snare

16. St. Clair Thompson’s Curette with
and without guard

17. Asch’s Septum Forceps

18. Walsham Forceps

20. Hartmann’s
dressing forceps
Tilley’s dressing
forceps

21. Thudicum Nasal Speculum
 They are of 2 types –
with short & Long
blades .
 Uses – For Anterior
Rhinoscopy,
Removal of nasal
foreign body,
Packing the nose.

22. Killian’s Long Bladed Nasal
Speculum

23. Killian’s Nasal Gouge and Hammer

24. Krause’s nasal snare

25. Luc’s Forceps

26. Luc’s Forceps
 Blades are fenestrated ,cup shaped ,with sharp
edges.
 Uses – Very useful for Nasal & Throat operations.
Used for thickened antral mucosa, androchonal
polyp & Neoplasms.
 Also used in submucous resection of nasal
septum for excision of septal cartilage

27. Freer’s Double ended elevator

28. Hartmann’s Dressing
Forceps
Tilley’s Dressing
Forceps

29. Mollison's self retaining
hemostatic mastoid retractor

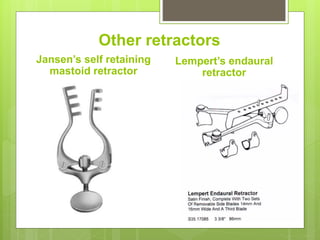

30. Other retractors
Jansen’s self retaining
mastoid retractor
Lempert’s endaural
retractor

31. Farabeuf’s Perisoteal Elevator

32. Lempert’s Currette and Scoop

33. MacEwan's curette and cell
seeker

34. Mastoid Gouge

35. Myringotome

36. Wilde’s Dressing Forceps

37. Lack’s Tongue Depressor

38. Lack’s Tongue Depressor
 It is L shaped .One blade is slightly bent at
end & used for holding depressor .
 Uses – For examining oral cavity &
oropharynx ,Used while performing posterior
Rhinoscopy , Sqeezing the Tonsil, To retract
cheek.

40. Direct Laryngoscope

41. Bronchoscope

42. Oesophagoscope

43. Silver Jackson’s Tracheostomy
Tube

44. Cuffed Tracheostomy Tube

45. Fuller’s Tracheostomy Tube

46. Trousseu’s Tracheal Dilator

47. Tracheal Hook (Blunt and
Sharp)

48. Indirect Laryngoscopic Mirror
 Laryngeal mirror. Used in examination of the
larynx (indirect laryngoscopy).

49. Post-nasal mirror.
 Used in examination of the posterior part of the
nasal cavity and nasopharynx (posterior
rhinoscopy)

50. Jobson Horne Probe
 Curette loop at one end and threaded section at the other end
for holding cotton wool.
 Wax Removal
 FB removal
 Dry mopping with cotton.

51. Tuning Forceps
