1. Instruction Sets – PIC
Done by,
Priyanga KR,
Assistant Professor,
Department of ECE,
Avinashilingam Institute.

2. • Complete set: 35 instructions.
• MC Architecture: RISC microcontroller.
Instruction Types:
1. Data Processing Operations:
– Copy data between registers.
– Manipulate data in a single register.
2. Arithmetic and Logic operations:
3. Bit Operation:
4. Program Sequence Control Operations:
– Unconditional Jump.
– Conditional Jump.
– Call.
– Control.

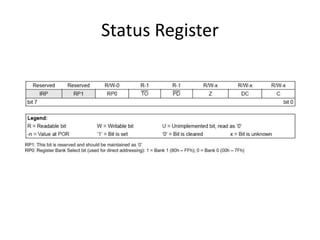

3. Status Register

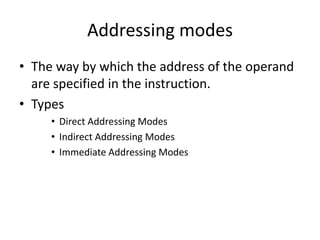

4. Addressing modes
• The way by which the address of the operand
are specified in the instruction.
• Types
• Direct Addressing Modes

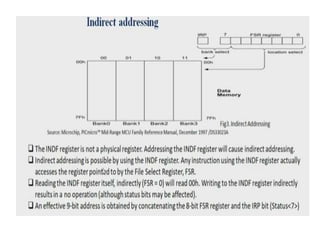

• Indirect Addressing Modes
• Immediate Addressing Modes

5. Direct Addressing Modes

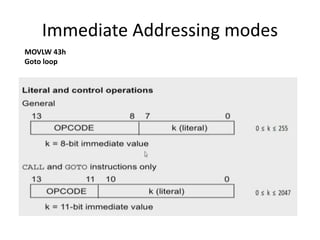

7. Immediate Addressing modes
MOVLW 43h
Goto loop

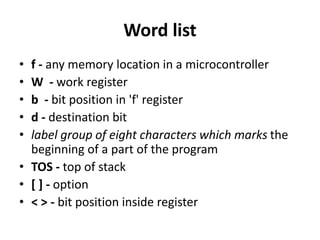

8. Word list
• f - any memory location in a microcontroller
• W - work register
• b - bit position in 'f' register
• d - destination bit
• label group of eight characters which marks the
beginning of a part of the program
• TOS - top of stack
• [ ] - option
• < > - bit position inside register

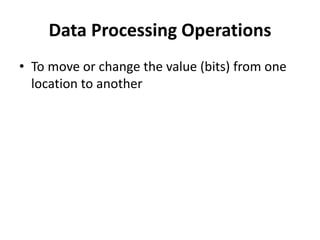

9. Data Processing Operations
• To move or change the value (bits) from one
location to another

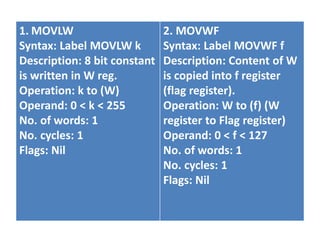

10. 1. MOVLW
Syntax: Label MOVLW k
Description: 8 bit constant
is written in W reg.
Operation: k to (W)
Operand: 0 < k < 255
No. of words: 1
No. cycles: 1
Flags: Nil
2. MOVWF
Syntax: Label MOVWF f
Description: Content of W
is copied into f register
(flag register).
Operation: W to (f) (W
register to Flag register)
Operand: 0 < f < 127
No. of words: 1
No. cycles: 1
Flags: Nil

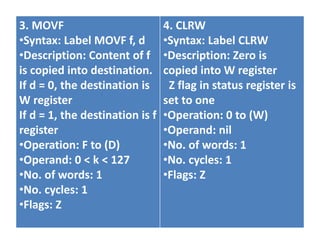

11. 3. MOVF
•Syntax: Label MOVF f, d
•Description: Content of f
is copied into destination.
If d = 0, the destination is
W register
If d = 1, the destination is f
register
•Operation: F to (D)
•Operand: 0 < k < 127
•No. of words: 1
•No. cycles: 1
•Flags: Z
4. CLRW
•Syntax: Label CLRW
•Description: Zero is
copied into W register
Z flag in status register is
set to one
•Operation: 0 to (W)
•Operand: nil
•No. of words: 1
•No. cycles: 1
•Flags: Z

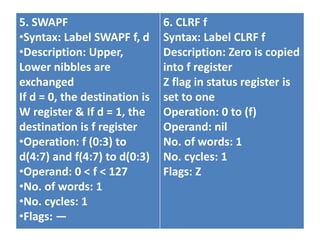

12. 5. SWAPF
•Syntax: Label SWAPF f, d
•Description: Upper,
Lower nibbles are
exchanged
If d = 0, the destination is
W register & If d = 1, the
destination is f register
•Operation: f (0:3) to
d(4:7) and f(4:7) to d(0:3)
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: —
6. CLRF f
Syntax: Label CLRF f
Description: Zero is copied
into f register
Z flag in status register is
set to one
Operation: 0 to (f)
Operand: nil
No. of words: 1
No. cycles: 1
Flags: Z

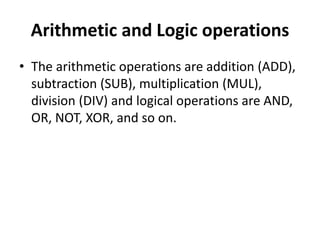

13. Arithmetic and Logic operations
• The arithmetic operations are addition (ADD),
subtraction (SUB), multiplication (MUL),
division (DIV) and logical operations are AND,
OR, NOT, XOR, and so on.

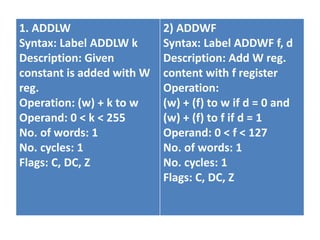

14. 1. ADDLW
Syntax: Label ADDLW k
Description: Given
constant is added with W
reg.
Operation: (w) + k to w
Operand: 0 < k < 255
No. of words: 1
No. cycles: 1
Flags: C, DC, Z
2) ADDWF
Syntax: Label ADDWF f, d
Description: Add W reg.
content with f register
Operation:
(w) + (f) to w if d = 0 and
(w) + (f) to f if d = 1
Operand: 0 < f < 127
No. of words: 1
No. cycles: 1
Flags: C, DC, Z

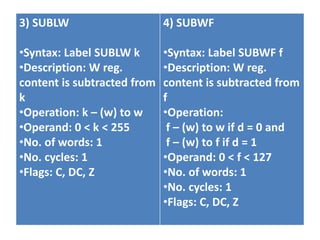

15. 3) SUBLW
•Syntax: Label SUBLW k
•Description: W reg.
content is subtracted from
k
•Operation: k – (w) to w
•Operand: 0 < k < 255
•No. of words: 1
•No. cycles: 1
•Flags: C, DC, Z
4) SUBWF
•Syntax: Label SUBWF f
•Description: W reg.
content is subtracted from
f
•Operation:
f – (w) to w if d = 0 and
f – (w) to f if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: C, DC, Z

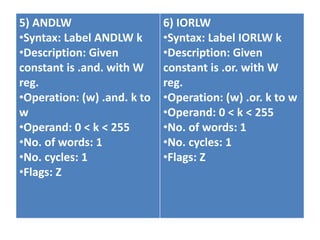

16. 5) ANDLW
•Syntax: Label ANDLW k
•Description: Given
constant is .and. with W
reg.
•Operation: (w) .and. k to
w
•Operand: 0 < k < 255
•No. of words: 1
•No. cycles: 1
•Flags: Z
6) IORLW
•Syntax: Label IORLW k
•Description: Given
constant is .or. with W
reg.
•Operation: (w) .or. k to w
•Operand: 0 < k < 255
•No. of words: 1
•No. cycles: 1
•Flags: Z

17. 7) IORWF
Logic OR the W reg. with f
•Syntax: Label IORWF f, d
•Description: W reg. is .or.
with f reg.
•Operation:
(w) .and. f to w, if d = 0
(w) .and. f to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: Z
8 ) XORLW
•Syntax: Label XORLW k
•Description: Given
constant is .XOR. with W
reg.
•Operation: (w) .xor. k to
w
•Operand: 0 < k < 255
•No. of words: 1
•No. cycles: 1
•Flags: Z

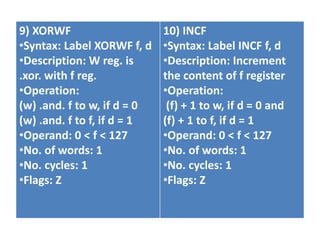

18. 9) XORWF
•Syntax: Label XORWF f, d
•Description: W reg. is
.xor. with f reg.
•Operation:
(w) .and. f to w, if d = 0
(w) .and. f to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: Z
10) INCF
•Syntax: Label INCF f, d
•Description: Increment
the content of f register
•Operation:
(f) + 1 to w, if d = 0 and
(f) + 1 to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: Z

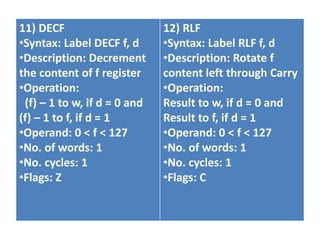

19. 11) DECF
•Syntax: Label DECF f, d
•Description: Decrement
the content of f register
•Operation:
(f) – 1 to w, if d = 0 and
(f) – 1 to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: Z
12) RLF
•Syntax: Label RLF f, d
•Description: Rotate f
content left through Carry
•Operation:
Result to w, if d = 0 and
Result to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: C

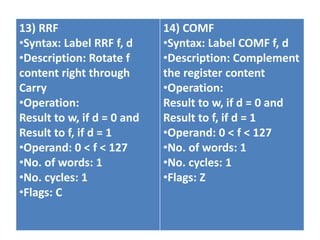

20. 13) RRF
•Syntax: Label RRF f, d
•Description: Rotate f
content right through
Carry
•Operation:
Result to w, if d = 0 and
Result to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: C
14) COMF
•Syntax: Label COMF f, d
•Description: Complement
the register content
•Operation:
Result to w, if d = 0 and
Result to f, if d = 1
•Operand: 0 < f < 127
•No. of words: 1
•No. cycles: 1
•Flags: Z

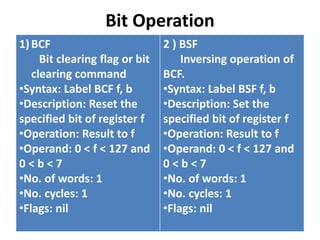

21. Bit Operation
1)BCF
Bit clearing flag or bit
clearing command
•Syntax: Label BCF f, b
•Description: Reset the
specified bit of register f
•Operation: Result to f
•Operand: 0 < f < 127 and
0 < b < 7
•No. of words: 1
•No. cycles: 1
•Flags: nil
2 ) BSF
Inversing operation of
BCF.
•Syntax: Label BSF f, b
•Description: Set the
specified bit of register f
•Operation: Result to f
•Operand: 0 < f < 127 and
0 < b < 7
•No. of words: 1
•No. cycles: 1
•Flags: nil

22. Program Sequence Control Operations:
1) BTFSC
•Current program flow.
•Syntax: Label BTFSC f, b
•Description: Test the specified
bit of register f, skip the next
instruction if it is zero
•Operation: Skip the next
instruction if f (b) = 0
•Operand: 0 < f < 127 and 0 < b
< 7
•No. of words: 1
•No. cycles: 1 or 2 depends on
bit value
•Flags: NIL
2) BTFSS
•Program flow control
instruction.
•Syntax: Label BTFSS f, b
•Description: Test the specified
bit of register f, skip the next
instruction if it is one
•Operation: Skip the next
instruction if f (b) = 1
•Operand: 0 < f < 127 and 0 < b
< 7
•No. of words: 1
•No. cycles: 1 or 2 depends on
bit value
•Flags: nil

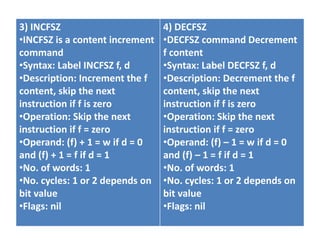

23. 3) INCFSZ
•INCFSZ is a content increment
command
•Syntax: Label INCFSZ f, d
•Description: Increment the f
content, skip the next
instruction if f is zero
•Operation: Skip the next
instruction if f = zero
•Operand: (f) + 1 = w if d = 0
and (f) + 1 = f if d = 1
•No. of words: 1
•No. cycles: 1 or 2 depends on
bit value
•Flags: nil
4) DECFSZ
•DECFSZ command Decrement
f content
•Syntax: Label DECFSZ f, d
•Description: Decrement the f
content, skip the next
instruction if f is zero
•Operation: Skip the next
instruction if f = zero
•Operand: (f) – 1 = w if d = 0
and (f) – 1 = f if d = 1
•No. of words: 1
•No. cycles: 1 or 2 depends on
bit value
•Flags: nil

24. 5) GOTO
•Syntax: Label GOTO Label
•Description:
Unconditional jump to
specified label
•Operation: k to PC(10:0),
PCLATH(4:3) to PC(12:11)
•Operand: 0 < k < 2048
•No. of words: 1
•No. cycles: 2
•Flags: nil
6) CALL
•Syntax: Label CALL Label
•Description:
Unconditional call the
label
•Operation: (PC) + 1 to Top
of stack, k to PC(10:0),
PCLATH(4:3) to PC(12:11)
•Operand: 0 < k < 2048
•No. of words: 1
•No. cycles: 2
•Flags: nil

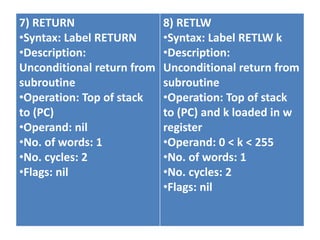

25. 7) RETURN
•Syntax: Label RETURN
•Description:
Unconditional return from
subroutine
•Operation: Top of stack
to (PC)
•Operand: nil
•No. of words: 1
•No. cycles: 2
•Flags: nil
8) RETLW
•Syntax: Label RETLW k
•Description:
Unconditional return from
subroutine
•Operation: Top of stack
to (PC) and k loaded in w
register
•Operand: 0 < k < 255
•No. of words: 1
•No. cycles: 2
•Flags: nil

26. 9) RETFIE
•Syntax: Label RETFIE
•Description:
Unconditional return from
subroutine
•Operation: Top of stack
to (PC) and Global
Interrupt bit is enabled
•Operand: nil
•No. of words: 1
•No. cycles: 2
•Flags: nil
Other Instructions in
PIC
1) NOP
•Syntax: Label NOP
•Description: No
operation
•Operation: nil
•Operand: nil
•No. of words: 1
•No. cycles: 1
•Flags: nil

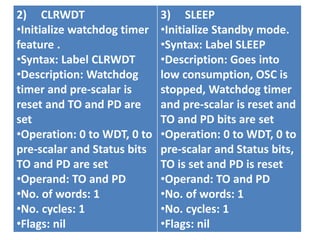

27. 2) CLRWDT
•Initialize watchdog timer
feature .
•Syntax: Label CLRWDT
•Description: Watchdog
timer and pre-scalar is
reset and TO and PD are
set
•Operation: 0 to WDT, 0 to
pre-scalar and Status bits
TO and PD are set
•Operand: TO and PD
•No. of words: 1
•No. cycles: 1
•Flags: nil
3) SLEEP
•Initialize Standby mode.
•Syntax: Label SLEEP
•Description: Goes into
low consumption, OSC is
stopped, Watchdog timer
and pre-scalar is reset and
TO and PD bits are set
•Operation: 0 to WDT, 0 to
pre-scalar and Status bits,
TO is set and PD is reset
•Operand: TO and PD
•No. of words: 1
•No. cycles: 1
•Flags: nil
