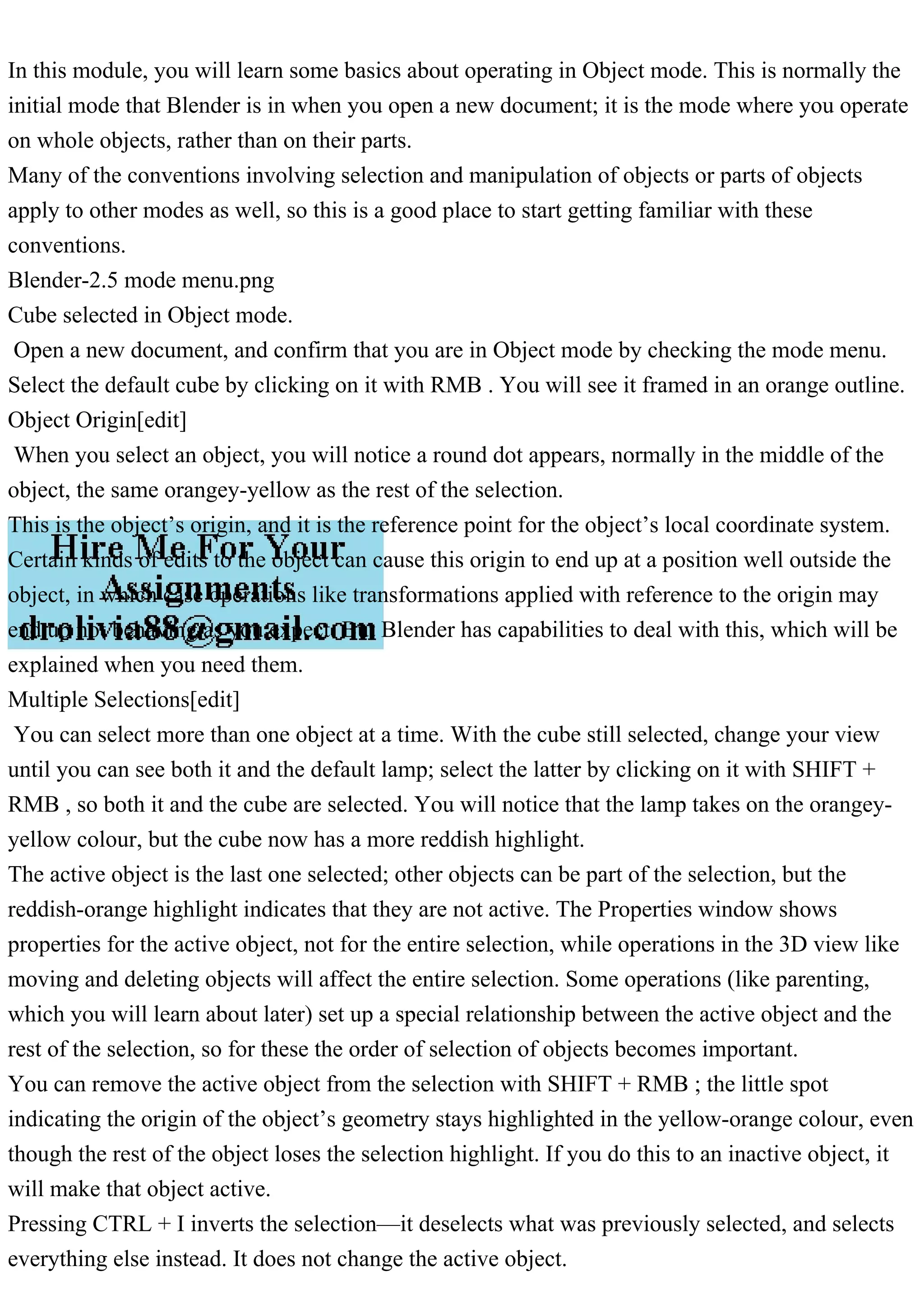

In this module, you will learn some basics about operating in Object mode. This is normally the
initial mode that Blender is in when you open a new document; it is the mode where you operate
on whole objects, rather than on their parts.
Many of the conventions involving selection and manipulation of objects or parts of objects
apply to other modes as well, so this is a good place to start getting familiar with these
conventions.
Blender-2.5 mode menu.png
Cube selected in Object mode.
Open a new document, and confirm that you are in Object mode by checking the mode menu.
Select the default cube by clicking on it with RMB . You will see it framed in an orange outline.
Object Origin[edit]
When you select an object, you will notice a round dot appears, normally in the middle of the
object, the same orangey-yellow as the rest of the selection.
This is the object’s origin, and it is the reference point for the object’s local coordinate system.
Certain kinds of edits to the object can cause this origin to end up at a position well outside the
object, in which case operations like transformations applied with reference to the origin may
end up not behaving as you expect. But Blender has capabilities to deal with this, which will be
explained when you need them.
Multiple Selections[edit]
You can select more than one object at a time. With the cube still selected, change your view
until you can see both it and the default lamp; select the latter by clicking on it with SHIFT +
RMB , so both it and the cube are selected. You will notice that the lamp takes on the orangey-
yellow colour, but the cube now has a more reddish highlight.
The active object is the last one selected; other objects can be part of the selection, but the
reddish-orange highlight indicates that they are not active. The Properties window shows
properties for the active object, not for the entire selection, while operations in the 3D view like
moving and deleting objects will affect the entire selection. Some operations (like parenting,
which you will learn about later) set up a special relationship between the active object and the
rest of the selection, so for these the order of selection of objects becomes important.
You can remove the active object from the selection with SHIFT + RMB ; the little spot
indicating the origin of the object’s geometry stays highlighted in the yellow-orange colour, even
though the rest of the object loses the selection highlight. If you do this to an inactive object, it
will make that object active.
Pressing CTRL + I inverts the selection—it deselects what was previously selected, and selects
everything else instead. It does not change the active object.

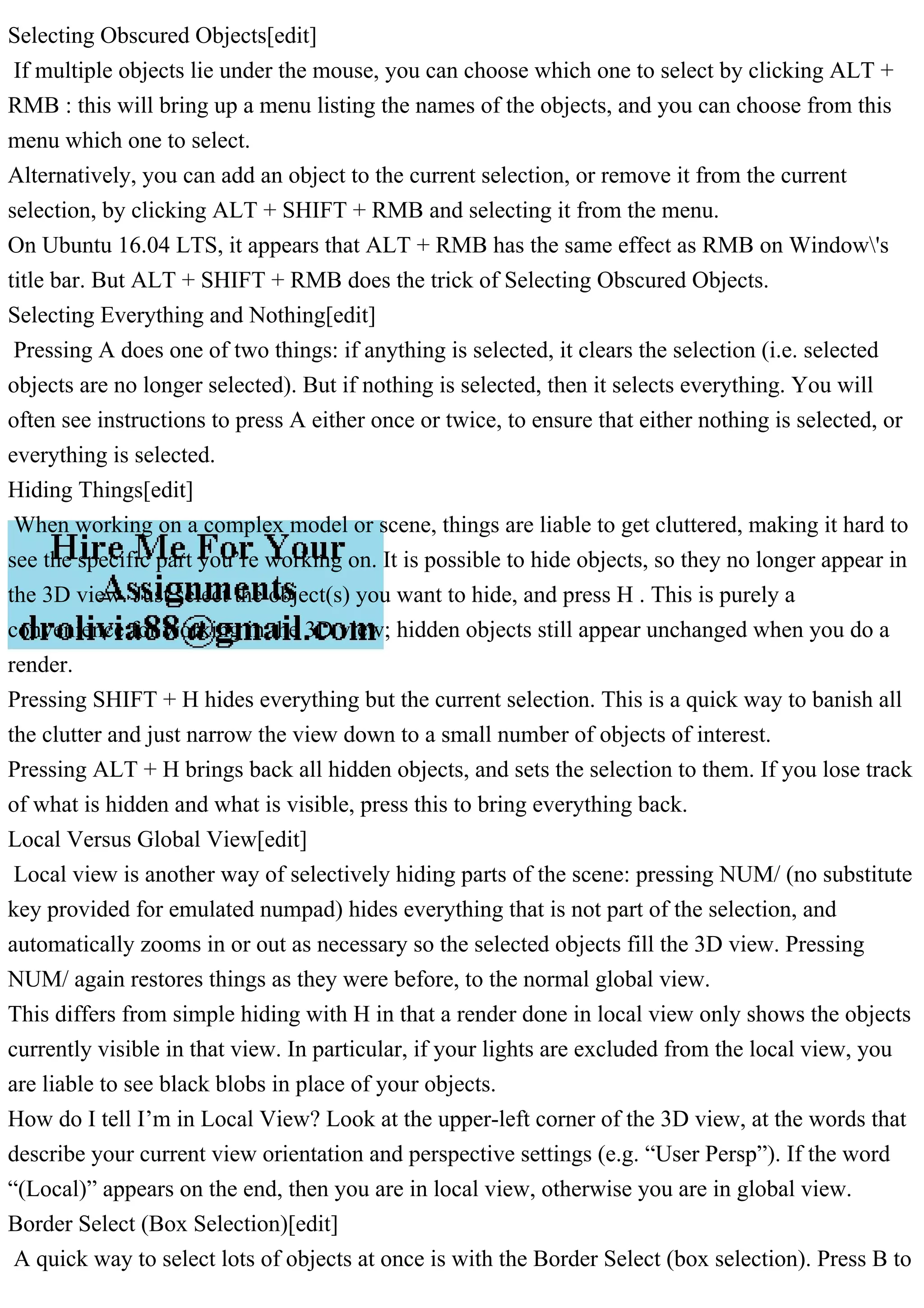

Selecting Obscured Objects[edit]
If multiple objects lie under the mouse, you can choose which one to select by clicking ALT +
RMB : this will bring up a menu listing the names of the objects, and you can choose from this
menu which one to select.
Alternatively, you can add an object to the current sel.
