Prestoに搭載された新しいUDFや、digdagの新機能を用いることで実現する効率的なワークフローを作りのテクニックを紹介します。 2018-10-17 PLAZMA TD Tech Talk 2018 at Shibuya : Part 2にて発表したスライドです https://techplay.jp/event/694468

1. © 2018 Arm Limited
• Kentaro Yoshida
Improve data engineering work
with Digdag and Presto UDF
• 2018/10/17
at Plazma TD TechTalk 2018 Fall

2. © 2018 Arm Limited2
About me
• @yoshi_ken
• Leading DATA Team
• Support data driven work at TD
• Published DWH Platform books
Familiar Products

3. © 2018 Arm Limited3
What is DATA Team?
• Management for internal data ETL & Analysis Platform on TreasureData
• As historical reason, using Luigi, Airflow(with embulk) and Digdag
• Management data visualizing and reporting workflow for business
• Not only for engineers but also sales, marketing and operation
• Make simple solution insight from complexed data ocean
• Kind of data science(analysis) solution
• A rare team who use TreasureData internally as daily basis
• We can tell feedback as user mind for new improvements

4. © 2018 Arm Limited4

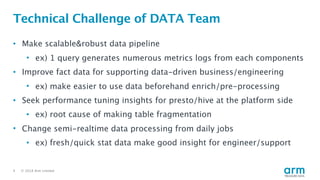

Technical Challenge of DATA Team
• Make scalable&robust data pipeline
• ex) 1 query generates numerous metrics logs from each components
• Improve fact data for supporting data-driven business/engineering
• ex) make easier to use data beforehand enrich/pre-processing
• Seek performance tuning insights for presto/hive at the platform side
• ex) root cause of making table fragmentation
• Change semi-realtime data processing from daily jobs
• ex) fresh/quick stat data make good insight for engineer/support

5. © 2018 Arm Limited
Introduce nice improvements
For Presto UDF and digdag

6. © 2018 Arm Limited6
Introduced nice improvements in Digdag and Presto
• New feature of Digdag
1. Added ${td.last_job.num_records}
• Which has number of records for job results
2. Added “_else_do” after if> operator since digdag v0.9.31
3. Added param_set> and param_get>
• For parameter sharing between workflow (not available in TD workflow)
• New feature of Presto
1. Added TD_TIME_STRING() UDF
• In SELECT clause, Make easier to format date string
2. Added TD_INTERVAL() UDF
• In WHERE clause, Make easier to specify time range extraction

7. © 2018 Arm Limited
New Feature of Digdag

8. © 2018 Arm Limited8

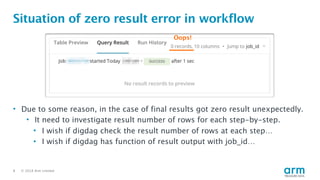

Situation of zero result error in workflow
• Due to some reason, in the case of final results got zero result unexpectedly.
• It need to investigate result number of rows for each step-by-step.
• I wish if digdag check the result number of rows at each step…
• I wish if digdag has function of result output with job_id…
Oops!

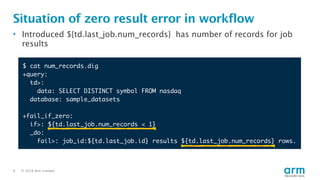

9. © 2018 Arm Limited9
Situation of zero result error in workflow
• Introduced ${td.last_job.num_records} has number of records for job
results
$ cat num_records.dig
+query:
td>:
data: SELECT DISTINCT symbol FROM nasdaq
database: sample_datasets
+fail_if_zero:
if>: ${td.last_job.num_records < 1}
_do:
fail>: job_id:${td.last_job.id} results ${td.last_job.num_records} rows.

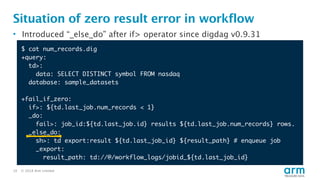

10. © 2018 Arm Limited10
Situation of zero result error in workflow
• Introduced “_else_do” after if> operator since digdag v0.9.31
$ cat num_records.dig
+query:
td>:
data: SELECT DISTINCT symbol FROM nasdaq
database: sample_datasets
+fail_if_zero:
if>: ${td.last_job.num_records < 1}
_do:
fail>: job_id:${td.last_job.id} results ${td.last_job.num_records} rows.
_else_do:
sh>: td export:result ${td.last_job_id} ${result_path} # enqueue job
_export:
result_path: td://@/workflow_logs/jobid_${td.last_job_id}

11. © 2018 Arm Limited
New Feature of Presto
TD_TIME_STRING() UDF

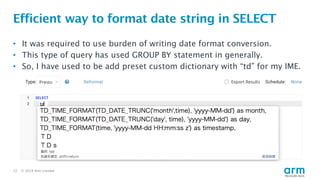

12. © 2018 Arm Limited12
Efficient way to format date string in SELECT
• It was required to use burden of writing date format conversion.
• This type of query has used GROUP BY statement in generally.
• So, I have used to be add preset custom dictionary with “td” for my IME.

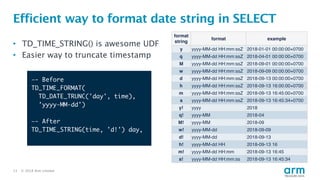

13. © 2018 Arm Limited13
Efficient way to format date string in SELECT
• TD_TIME_STRING() is awesome UDF
• Easier way to truncate timestamp
format
string
format example
y yyyy-MM-dd HH:mm:ssZ 2018-01-01 00:00:00+0700
q yyyy-MM-dd HH:mm:ssZ 2018-04-01 00:00:00+0700
M yyyy-MM-dd HH:mm:ssZ 2018-09-01 00:00:00+0700
w yyyy-MM-dd HH:mm:ssZ 2018-09-09 00:00:00+0700
d yyyy-MM-dd HH:mm:ssZ 2018-09-13 00:00:00+0700
h yyyy-MM-dd HH:mm:ssZ 2018-09-13 16:00:00+0700
m yyyy-MM-dd HH:mm:ssZ 2018-09-13 16:45:00+0700
s yyyy-MM-dd HH:mm:ssZ 2018-09-13 16:45:34+0700
y! yyyy 2018
q! yyyy-MM 2018-04
M! yyyy-MM 2018-09
w! yyyy-MM-dd 2018-09-09
d! yyyy-MM-dd 2018-09-13
h! yyyy-MM-dd HH 2018-09-13 16
m! yyyy-MM-dd HH:mm 2018-09-13 16:45
s! yyyy-MM-dd HH:mm:ss 2018-09-13 16:45:34
—- Before
TD_TIME_FORMAT(
TD_DATE_TRUNC('day', time),
'yyyy-MM-dd')
—- After
TD_TIME_STRING(time, 'd!') day,

14. © 2018 Arm Limited
New Feature of Presto
TD_INTERVAL() UDF

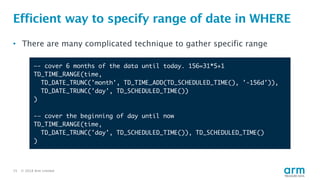

15. © 2018 Arm Limited15
Efficient way to specify range of date in WHERE
• There are many complicated technique to gather specific range
—- cover 6 months of the data until today. 156=31*5+1
TD_TIME_RANGE(time,
TD_DATE_TRUNC('month', TD_TIME_ADD(TD_SCHEDULED_TIME(), '-156d')),
TD_DATE_TRUNC('day', TD_SCHEDULED_TIME())
)
-— cover the beginning of day until now
TD_TIME_RANGE(time,
TD_DATE_TRUNC('day', TD_SCHEDULED_TIME()), TD_SCHEDULED_TIME()
)

16. © 2018 Arm Limited16

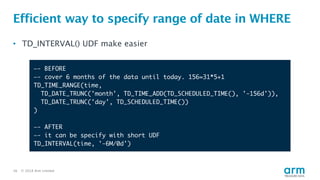

Efficient way to specify range of date in WHERE
• TD_INTERVAL() UDF make easier
—- BEFORE
—- cover 6 months of the data until today. 156=31*5+1
TD_TIME_RANGE(time,
TD_DATE_TRUNC('month', TD_TIME_ADD(TD_SCHEDULED_TIME(), '-156d')),
TD_DATE_TRUNC('day', TD_SCHEDULED_TIME())
)
—- AFTER
—- it can be specify with short UDF
TD_INTERVAL(time, '-6M/0d')

17. © 2018 Arm Limited17

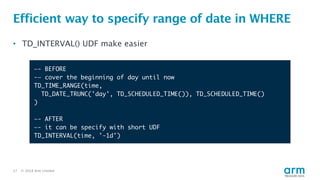

Efficient way to specify range of date in WHERE
• TD_INTERVAL() UDF make easier
—- BEFORE
-— cover the beginning of day until now
TD_TIME_RANGE(time,
TD_DATE_TRUNC('day', TD_SCHEDULED_TIME()), TD_SCHEDULED_TIME()
)
—- AFTER
—- it can be specify with short UDF
TD_INTERVAL(time, '-1d')

18. © 2018 Arm Limited18

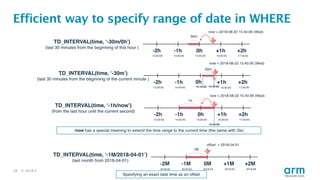

Efficient way to specify range of date in WHERE

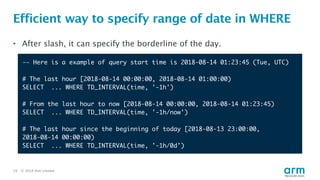

19. © 2018 Arm Limited19
Efficient way to specify range of date in WHERE
-— Here is a example of query start time is 2018-08-14 01:23:45 (Tue, UTC)
# The last hour [2018-08-14 00:00:00, 2018-08-14 01:00:00)
SELECT ... WHERE TD_INTERVAL(time, '-1h')
# From the last hour to now [2018-08-14 00:00:00, 2018-08-14 01:23:45)
SELECT ... WHERE TD_INTERVAL(time, '-1h/now')
# The last hour since the beginning of today [2018-08-13 23:00:00,
2018-08-14 00:00:00)
SELECT ... WHERE TD_INTERVAL(time, '-1h/0d')
• After slash, it can specify the borderline of the day.

20. © 2018 Arm Limited20

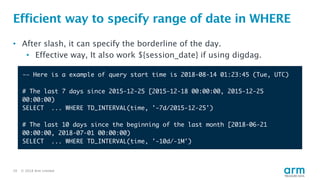

Efficient way to specify range of date in WHERE
-— Here is a example of query start time is 2018-08-14 01:23:45 (Tue, UTC)
# The last 7 days since 2015-12-25 [2015-12-18 00:00:00, 2015-12-25
00:00:00)
SELECT ... WHERE TD_INTERVAL(time, '-7d/2015-12-25')
# The last 10 days since the beginning of the last month [2018-06-21
00:00:00, 2018-07-01 00:00:00)
SELECT ... WHERE TD_INTERVAL(time, '-10d/-1M')
• After slash, it can specify the borderline of the day.
• Effective way, It also work ${session_date} if using digdag.

21. © 2018 Arm Limited21
Tips about handling time range
-- recommend to test with such a time_series table
CREATE TABLE time_series AS
SELECT
time,
TD_TIME_FORMAT(time, 'yyyy-MM-dd HH:mm:ssZ', 'UTC') AS date
FROM (
SELECT times
FROM (
VALUES
SEQUENCE(TD_TIME_PARSE('2018-01-01', 'UTC'), TD_TIME_PARSE('2018-12-31', 'UTC'), 60*60)
) AS x (times)
) t1
CROSS JOIN UNNEST(times) AS t (time)
ORDER BY time
https://qiita.com/reflet/items/151a10e9a0914e0ec3ee

22. © 2018 Arm Limited22
Let’s enjoy data engineering work with digdag!
And also feel free to talk to me

23. Thank You
Danke
Merci
谢谢
ありがとう
Gracias
Kiitos
감사합니다
धन्यवाद
‫תודה‬© 2018 Arm Limited23
