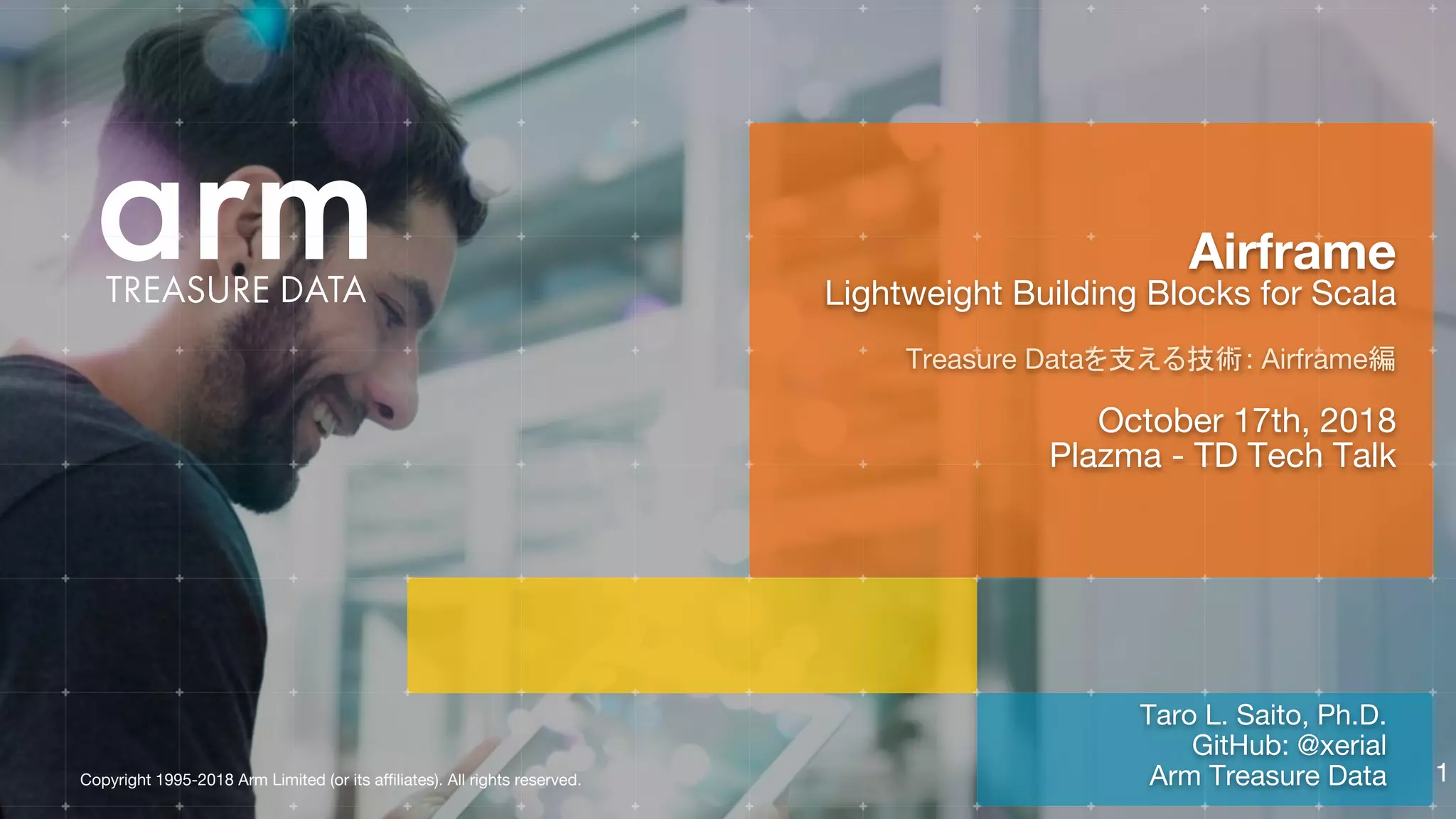

This document summarizes an Airframe technical talk given by Taro L. Saito. Airframe is a Scala library that provides lightweight building blocks for application development. It consists of 18 modules that simplify tasks like configuration, logging, object mapping, and dependency injection. The talk describes how Airframe is used at Treasure Data and provides other examples of applications like data transformation and Scala.js RPC.

1. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Taro L. Saito, Ph.D.
GitHub: @xerial
Arm Treasure Data
Airframe
Lightweight Building Blocks for Scala
Treasure Dataを支える技術: Airframe編
October 17th, 2018
Plazma - TD Tech Talk
1

2. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

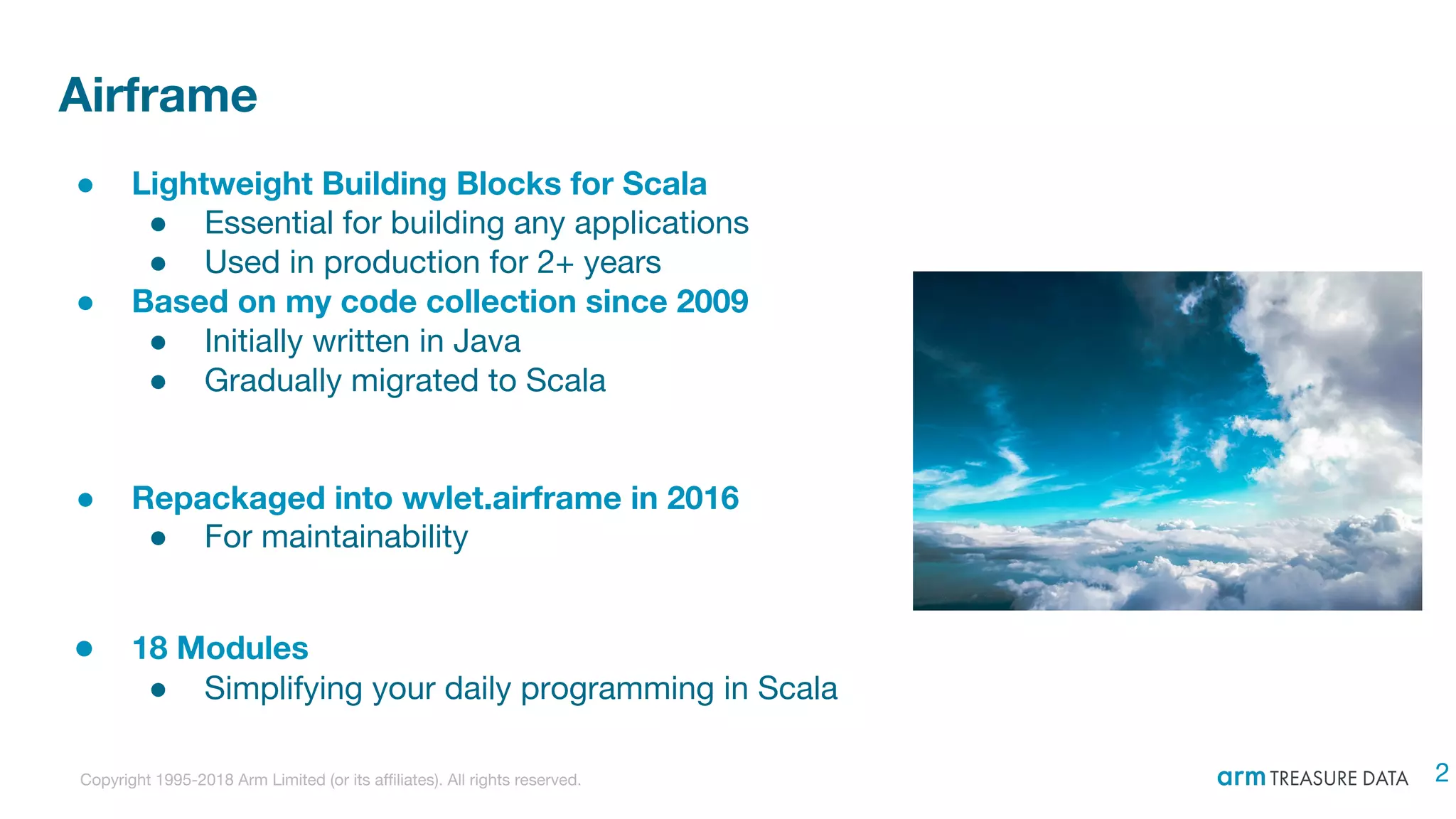

Airframe
● Lightweight Building Blocks for Scala
● Essential for building any applications
● Used in production for 2+ years
● Based on my code collection since 2009
● Initially written in Java
● Gradually migrated to Scala
● Repackaged into wvlet.airframe in 2016
● For maintainability
● 18 Modules
● Simplifying your daily programming in Scala
2

3. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Airframe
● Named From A Novel By Michael Crichton (1942-2008)
● The author of Jurassic Park
3

4. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

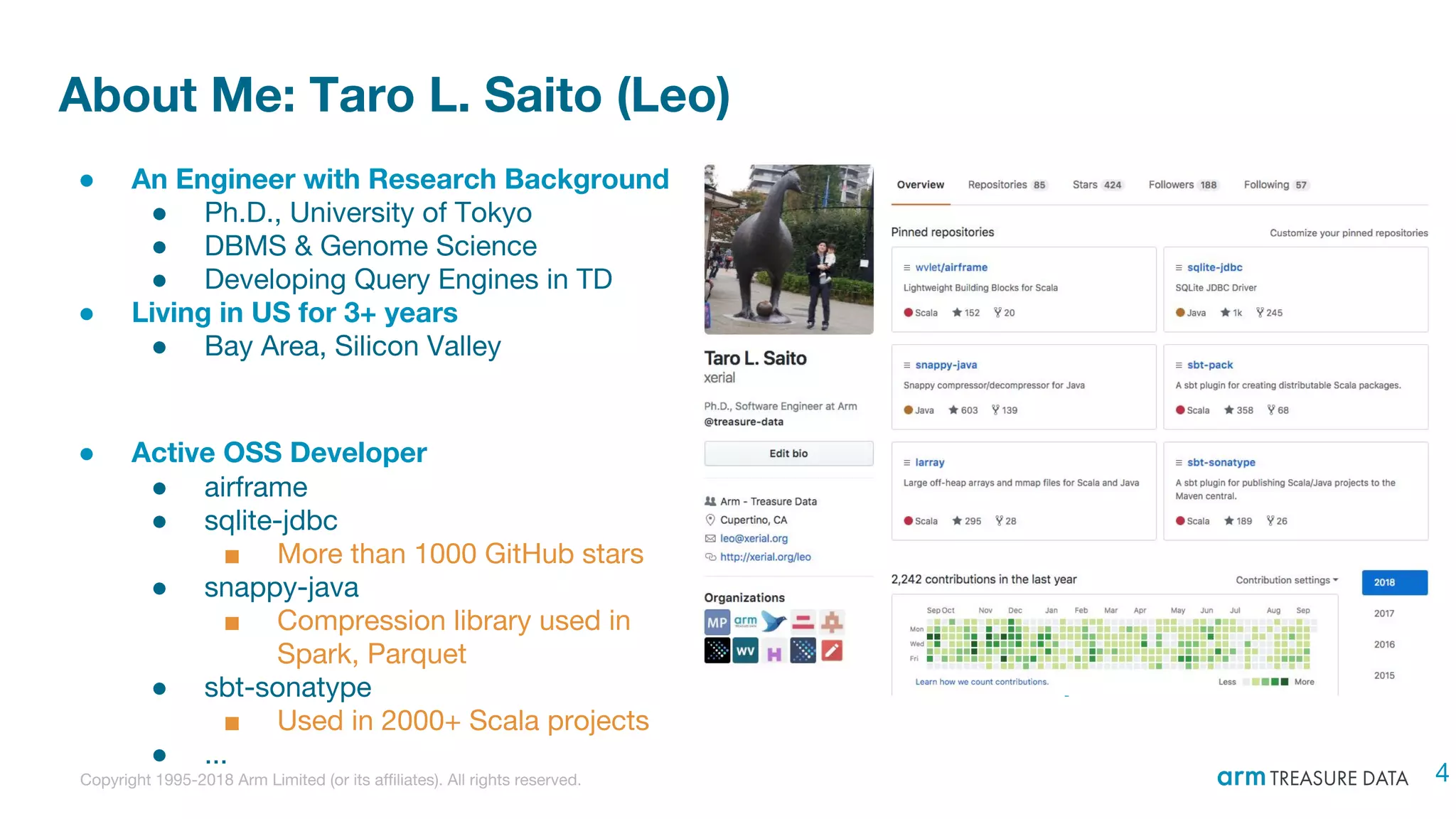

About Me: Taro L. Saito (Leo)
● An Engineer with Research Background
● Ph.D., University of Tokyo
● DBMS & Genome Science
● Developing Query Engines in TD
● Living in US for 3+ years
● Bay Area, Silicon Valley
● Active OSS Developer
● airframe
● sqlite-jdbc
■ More than 1000 GitHub stars
● snappy-java
■ Compression library used in
Spark, Parquet
● sbt-sonatype
■ Used in 2000+ Scala projects
● ...
4

5. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

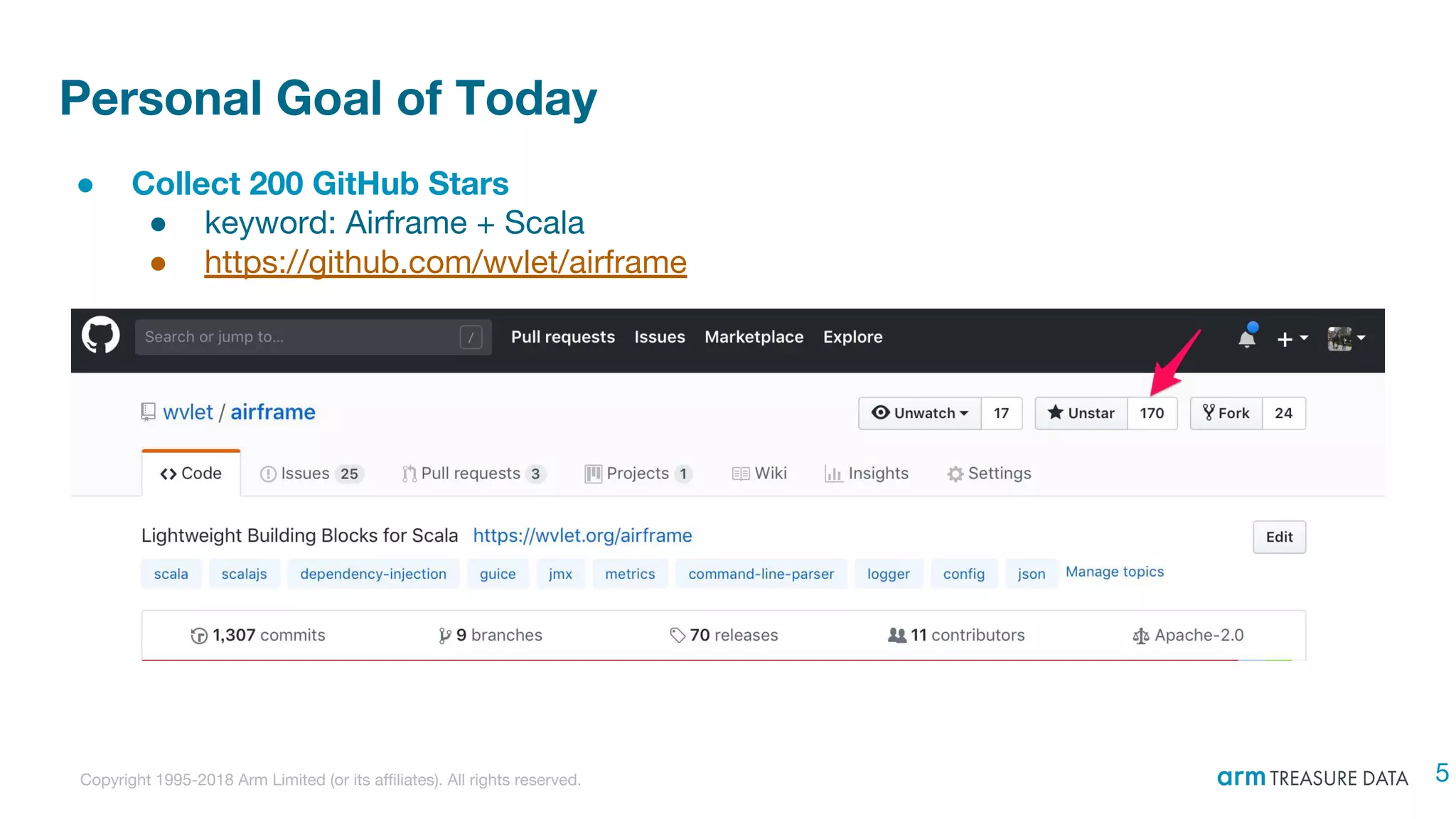

Personal Goal of Today
● Collect 200 GitHub Stars
● keyword: Airframe + Scala
● https://github.com/wvlet/airframe
5

6. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Major Goals
● Providing A Standard Toolkit For Building Reliable Services
● Removing Complexities In Application Development
● Providing Simplicity By Design
6

7. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

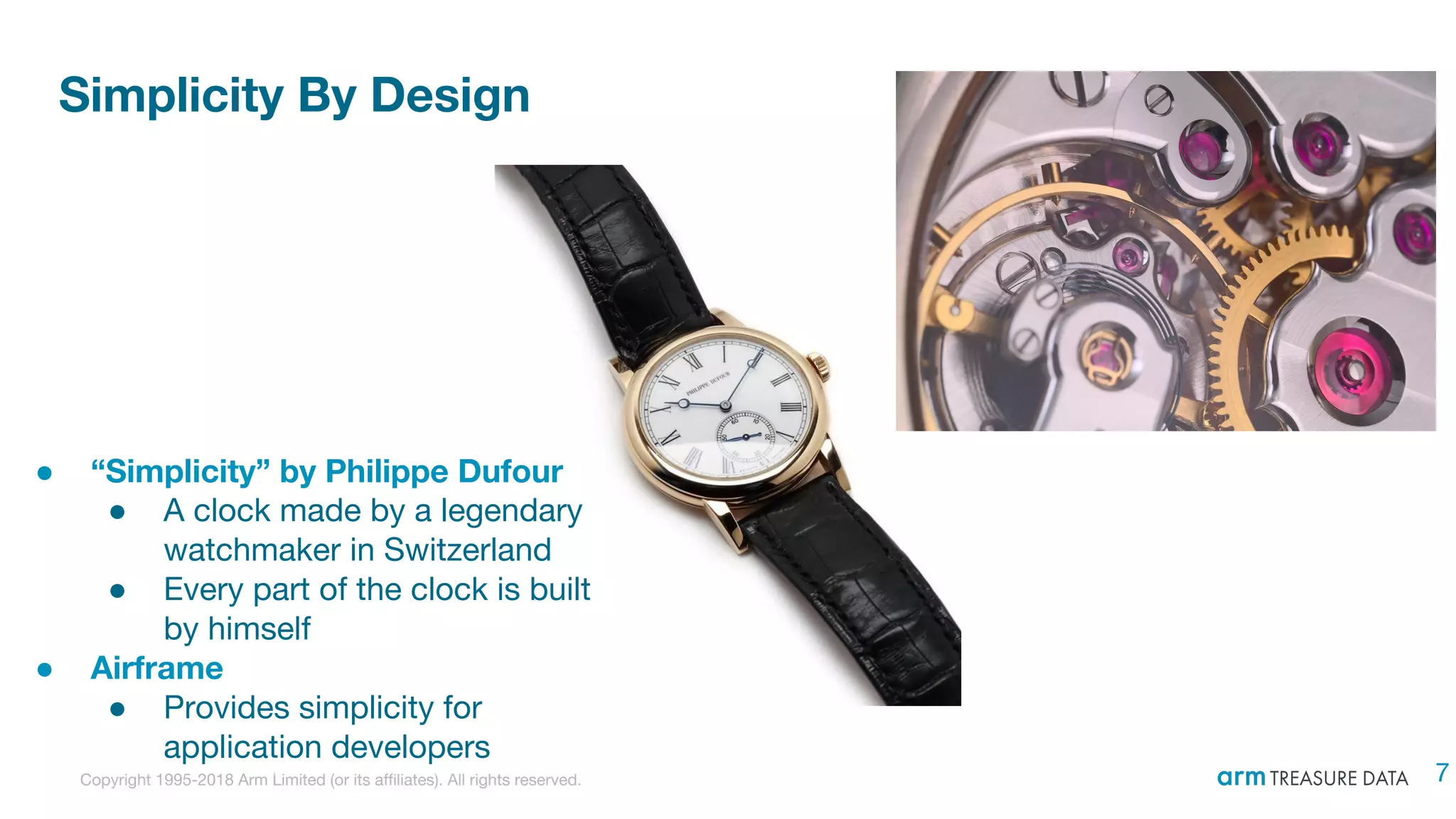

Simplicity By Design
● “Simplicity” by Philippe Dufour
● A clock made by a legendary
watchmaker in Switzerland
● Every part of the clock is built
by himself
● Airframe
● Provides simplicity for
application developers
7

8. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

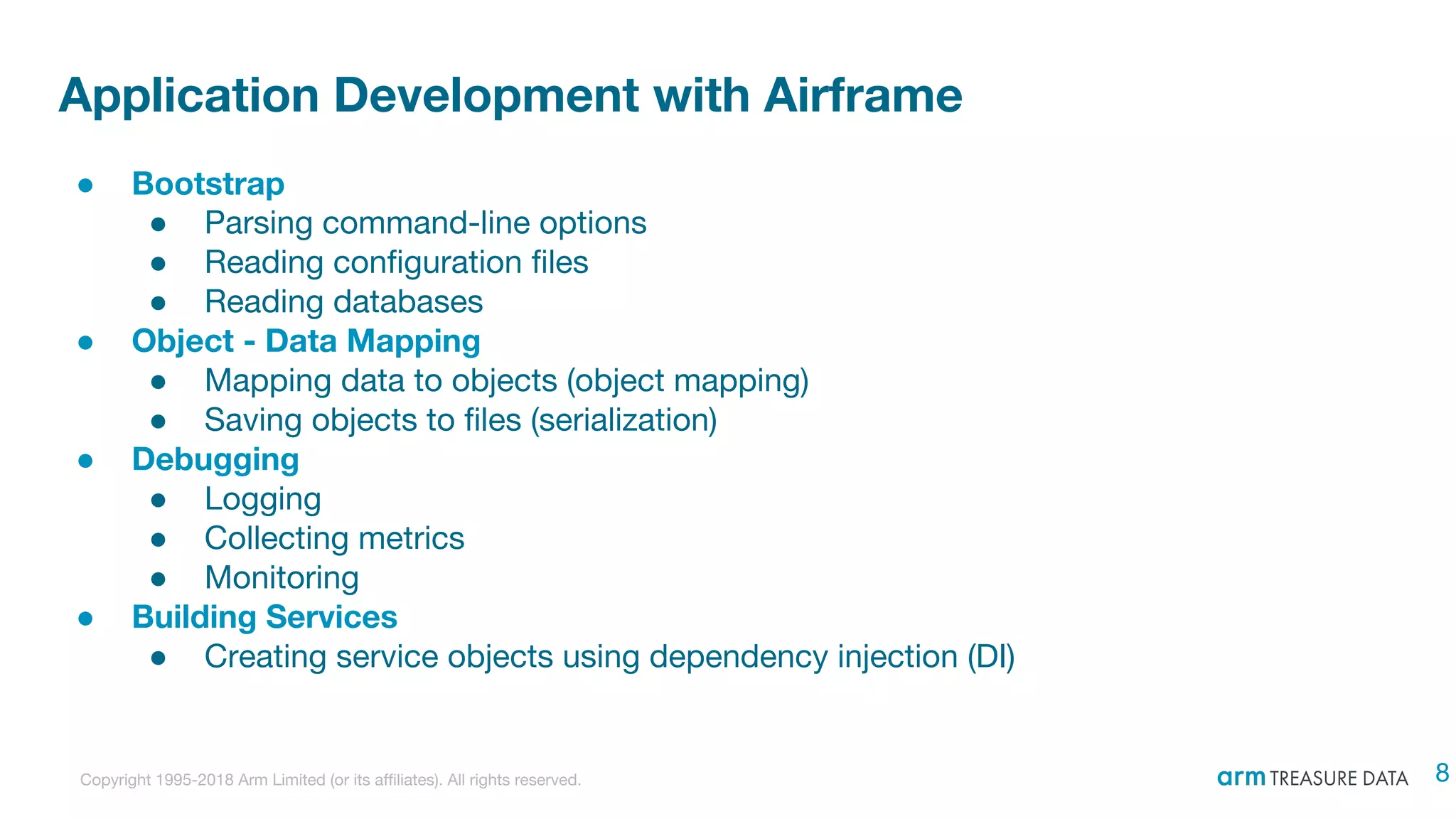

Application Development with Airframe
● Bootstrap
● Parsing command-line options
● Reading configuration files
● Reading databases
● Object - Data Mapping
● Mapping data to objects (object mapping)
● Saving objects to files (serialization)
● Debugging
● Logging
● Collecting metrics
● Monitoring
● Building Services
● Creating service objects using dependency injection (DI)
8

9. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

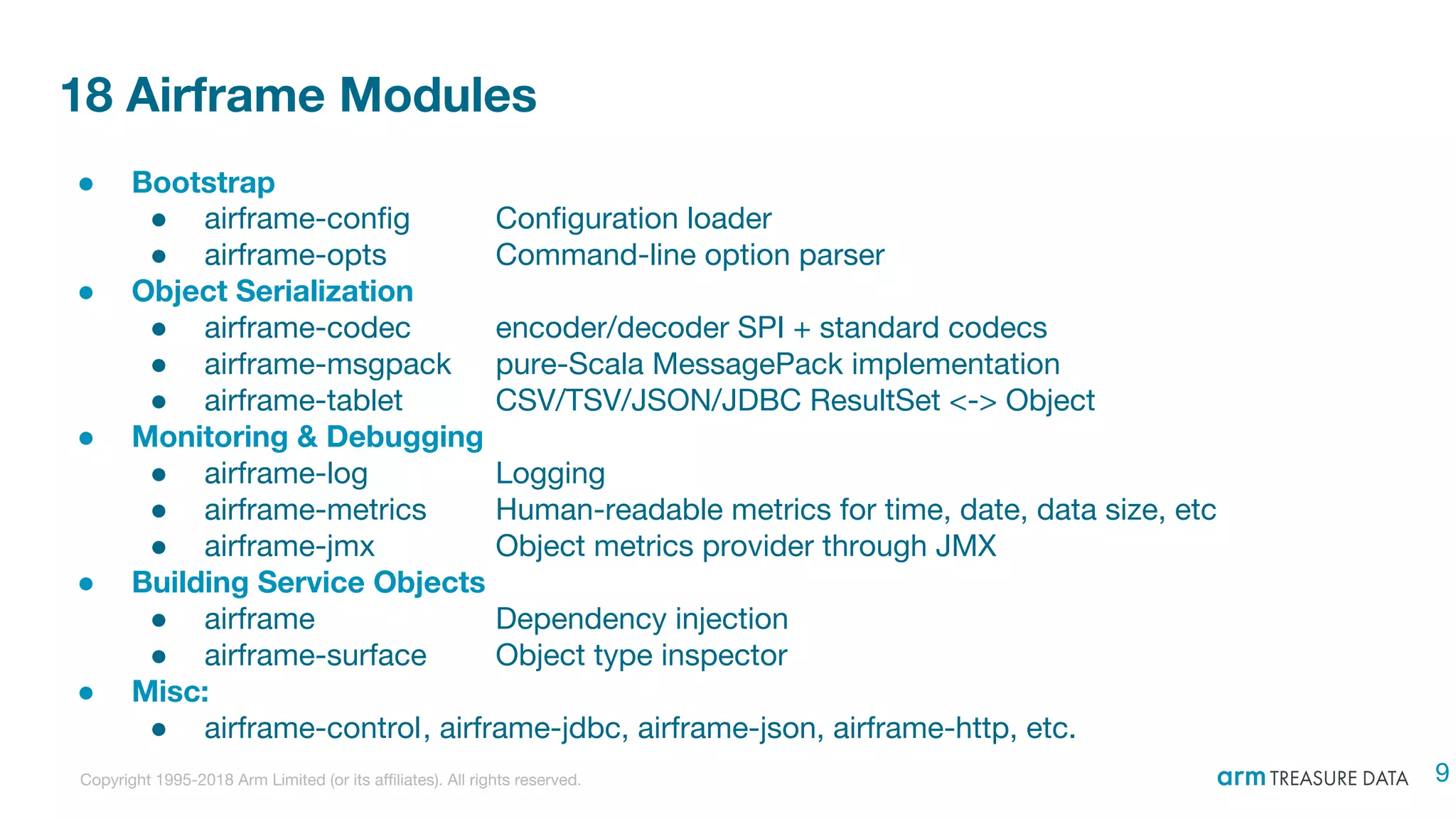

18 Airframe Modules
● Bootstrap
● airframe-config Configuration loader
● airframe-opts Command-line option parser
● Object Serialization
● airframe-codec encoder/decoder SPI + standard codecs
● airframe-msgpack pure-Scala MessagePack implementation
● airframe-tablet CSV/TSV/JSON/JDBC ResultSet <-> Object
● Monitoring & Debugging
● airframe-log Logging
● airframe-metrics Human-readable metrics for time, date, data size, etc
● airframe-jmx Object metrics provider through JMX
● Building Service Objects
● airframe Dependency injection
● airframe-surface Object type inspector
● Misc:
● airframe-control, airframe-jdbc, airframe-json, airframe-http, etc.
9

10. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

11. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

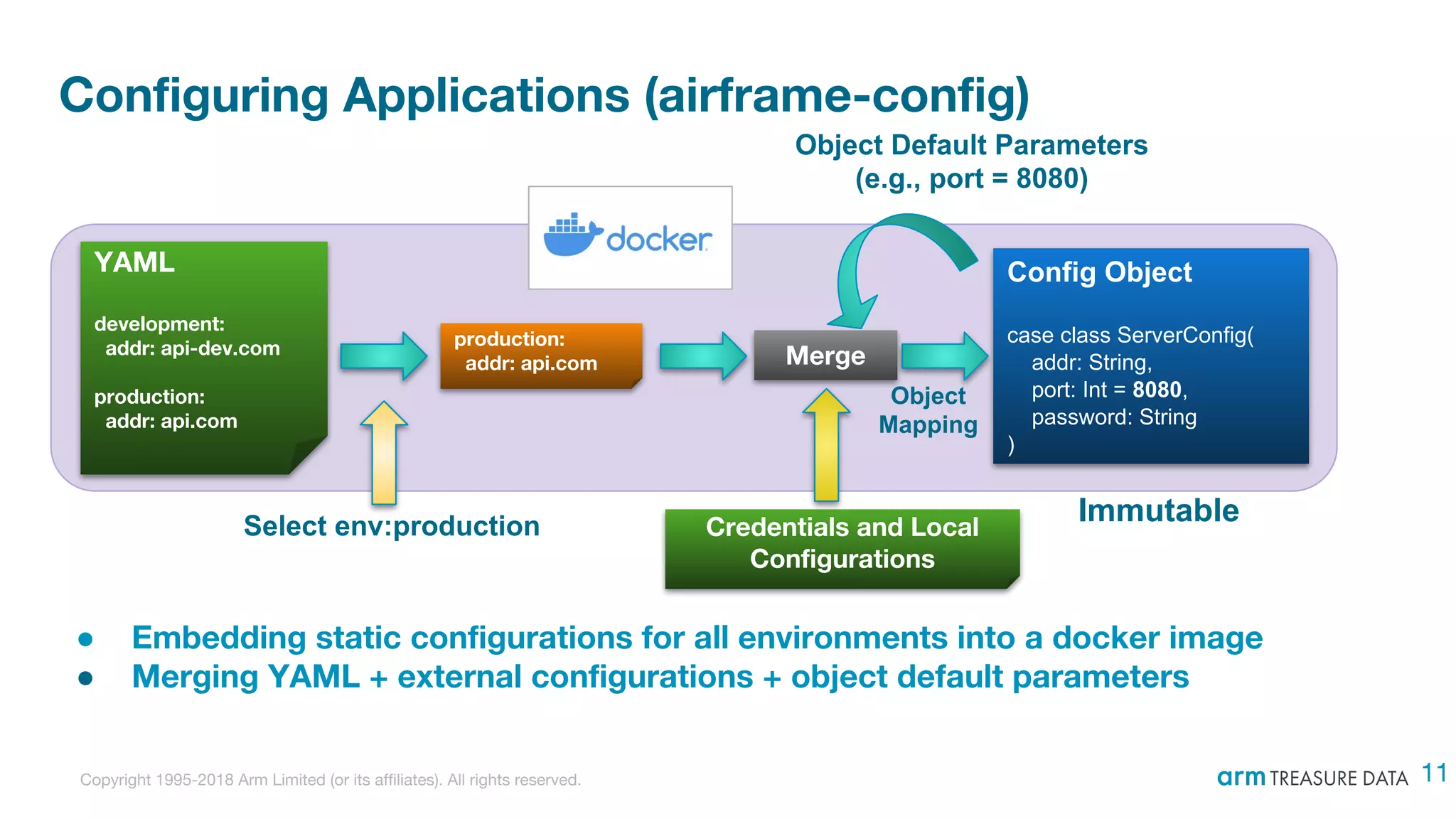

Configuring Applications (airframe-config)
● Embedding static configurations for all environments into a docker image
● Merging YAML + external configurations + object default parameters
YAML
development:
addr: api-dev.com
production:
addr: api.com
Config Object
case class ServerConfig(
addr: String,
port: Int = 8080,
password: String
)
production:
addr: api.com
Select env:production Credentials and Local
Configurations
Merge
Immutable
Object Default Parameters
(e.g., port = 8080)
Object
Mapping
11

12. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

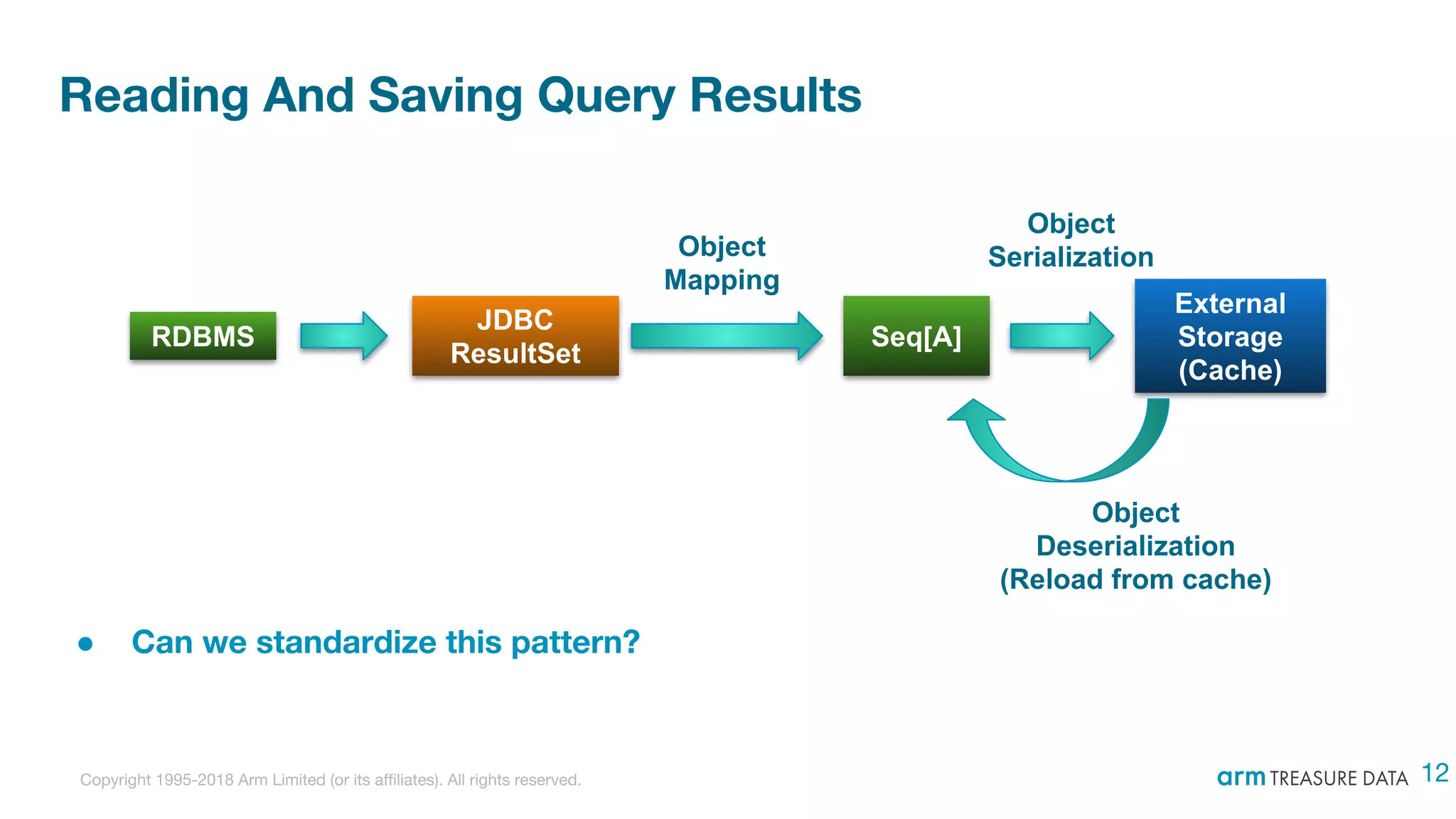

Reading And Saving Query Results
● Can we standardize this pattern?
RDBMS
JDBC
ResultSet
Seq[A]
Object
Mapping
External
Storage
(Cache)
Object
Serialization
Object
Deserialization
(Reload from cache)
12

13. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

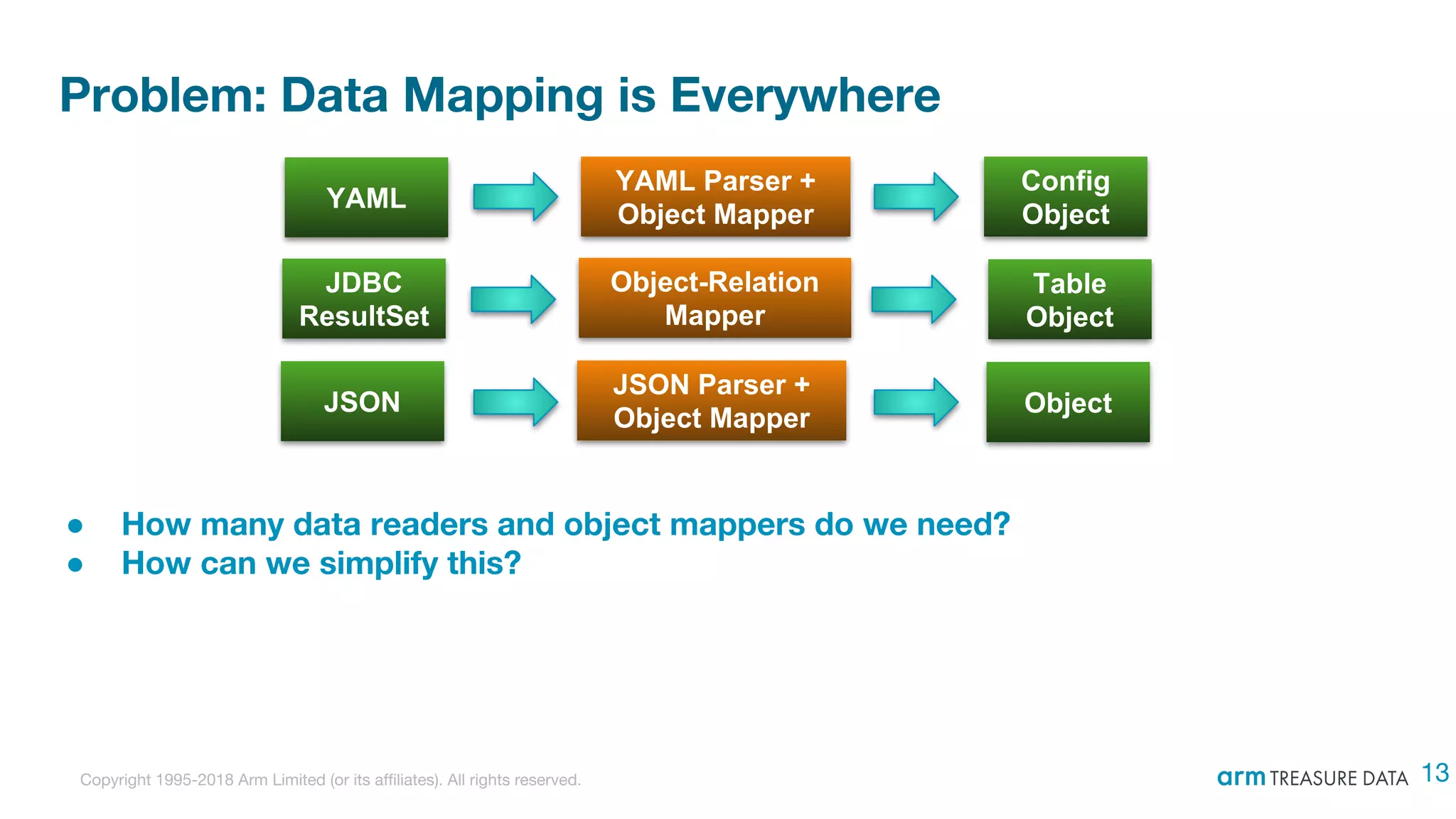

Problem: Data Mapping is Everywhere
● How many data readers and object mappers do we need?
● How can we simplify this?
YAML
JDBC
ResultSet
YAML Parser +
Object Mapper
Config
Object
Table
Object
Object-Relation
Mapper
JSON
JSON Parser +
Object Mapper
Object
13

14. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Using MessagePack As An Intermediate Data Format
● Why MessagePack?
● Flexible to support conversions from various types of data format
● Compact and efficient compared to JSON
● Easy to create schema-on-read object mapper
JDBC
ResultSet
MessagePack Object
Pack/Unpack
Unpack
Pack
YAML
JSON
14

15. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

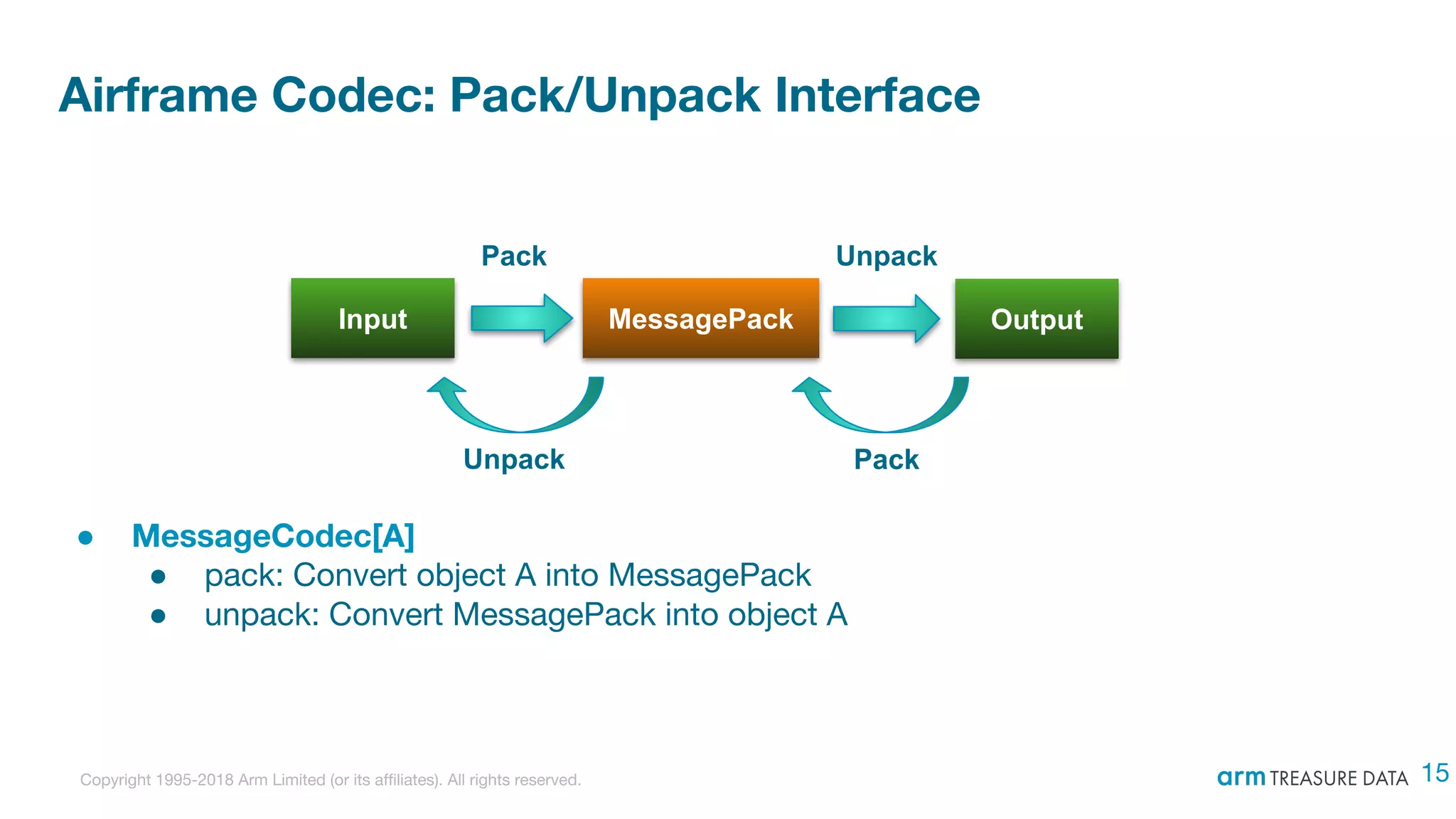

Airframe Codec: Pack/Unpack Interface
● MessageCodec[A]
● pack: Convert object A into MessagePack
● unpack: Convert MessagePack into object A
Input MessagePack Output
Pack Unpack
PackUnpack
15

16. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Pre-defined Codecs in airframe-codec
● Primitive Codecs
● ByteCodec, CharCodec, ShortCodec, IntCodec, LongCodec
● FloatCodec, DoubleCodec
● StringCodec
● BooleanCodec
● TimeStampCodec
● Collection Codec
● ArrayCodec, SeqCodec, ListCodec, IndexSeqCodec, MapCodec, etc.
● OptionCodec
● JsonCodec
● Java-specific Codec
● FileCodec, ZonedDateTimeCodec, ResultSetCodec, etc.
● Adding Custom Codecs
● Implement MessageCodec[X] interface
16

17. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

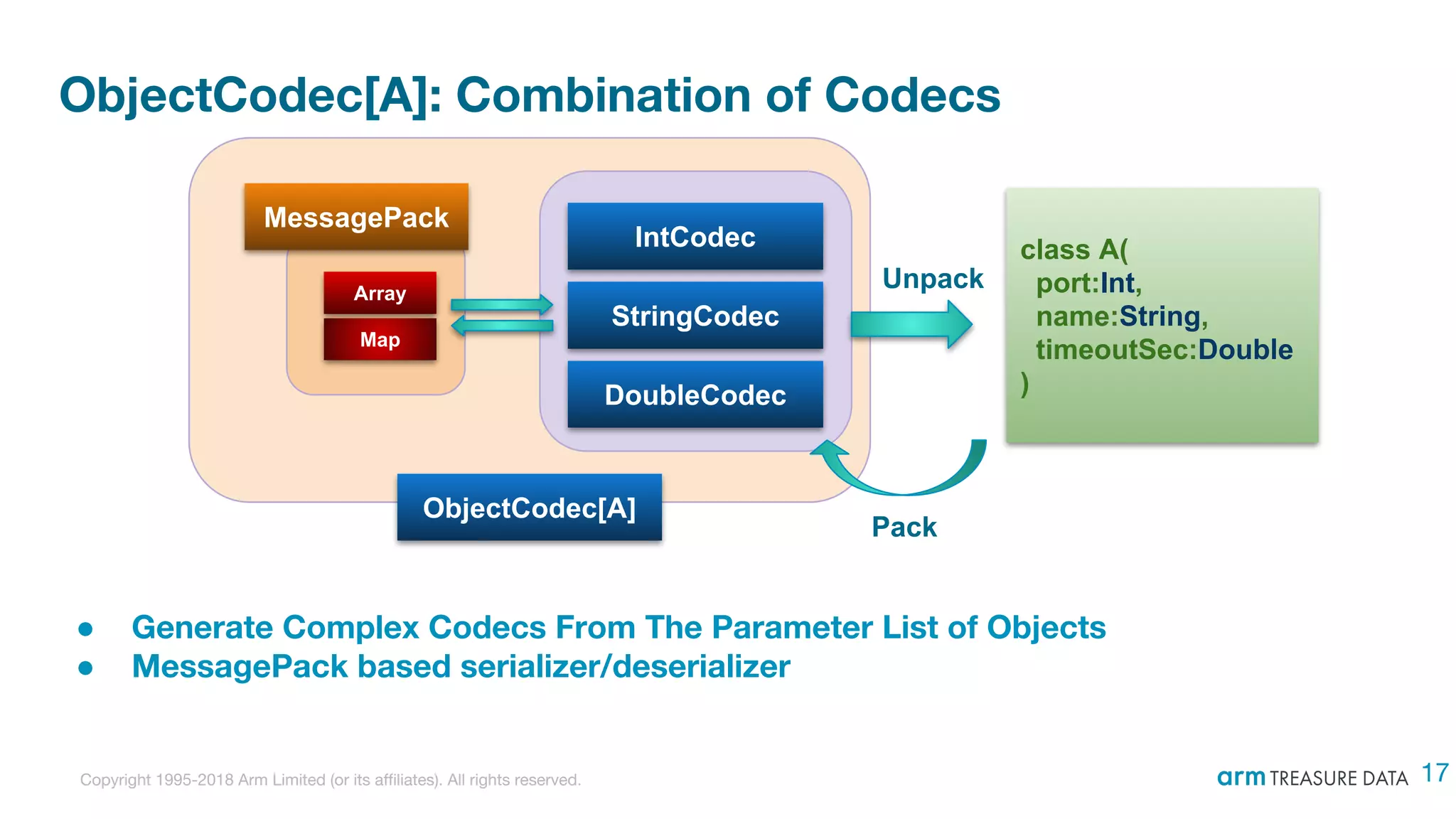

ObjectCodec[A]: Combination of Codecs
● Generate Complex Codecs From The Parameter List of Objects
● MessagePack based serializer/deserializer
class A(
port:Int,
name:String,
timeoutSec:Double
)
Unpack
Pack
IntCodec
StringCodec
DoubleCodec
MessagePack
Array
Map
ObjectCodec[A]
17

18. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Power of Schema-On-Read Codec
● MessagePack values describe their own data types (self-describing)
● How to deserialize the data can be determined based on MessagePack types
Int
Float
Boolean
String
Array
Map
Binary
CSV
MessagePack
JDBC
ResultSet
Column
Scala.Int
parseInt
toInt
0 or 1
IntCodec
Pack Unpack
Error or
Zero.of[Int]
“100”
(string)
100
(bigint)
100
(int)
18

19. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

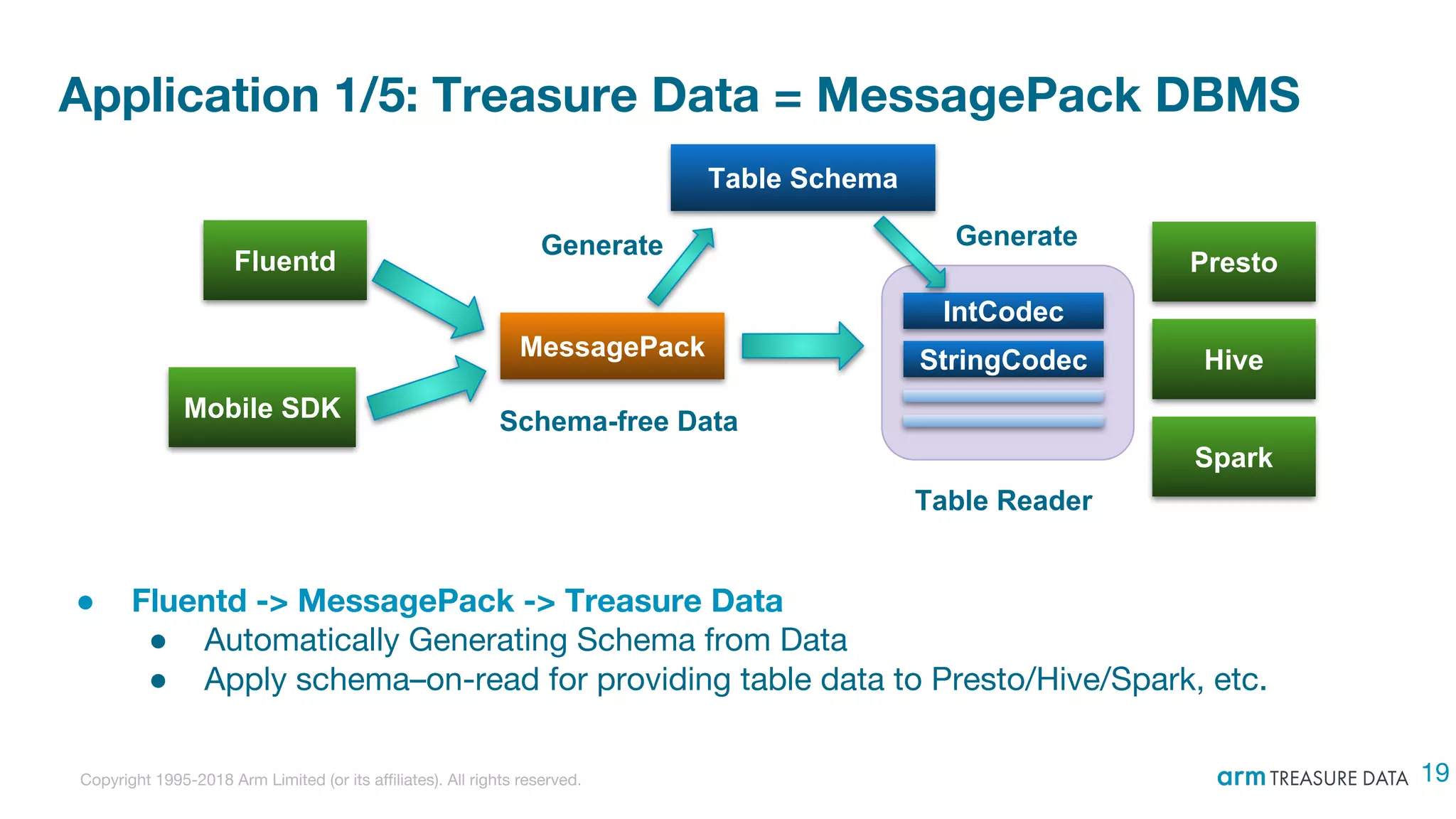

Application 1/5: Treasure Data = MessagePack DBMS
● Fluentd -> MessagePack -> Treasure Data
● Automatically Generating Schema from Data
● Apply schema–on-read for providing table data to Presto/Hive/Spark, etc.
MessagePack
Fluentd
Mobile SDK
Table Schema
IntCodec
StringCodec
Generate Generate
Table Reader
Presto
Hive
Spark
Schema-free Data
19

20. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

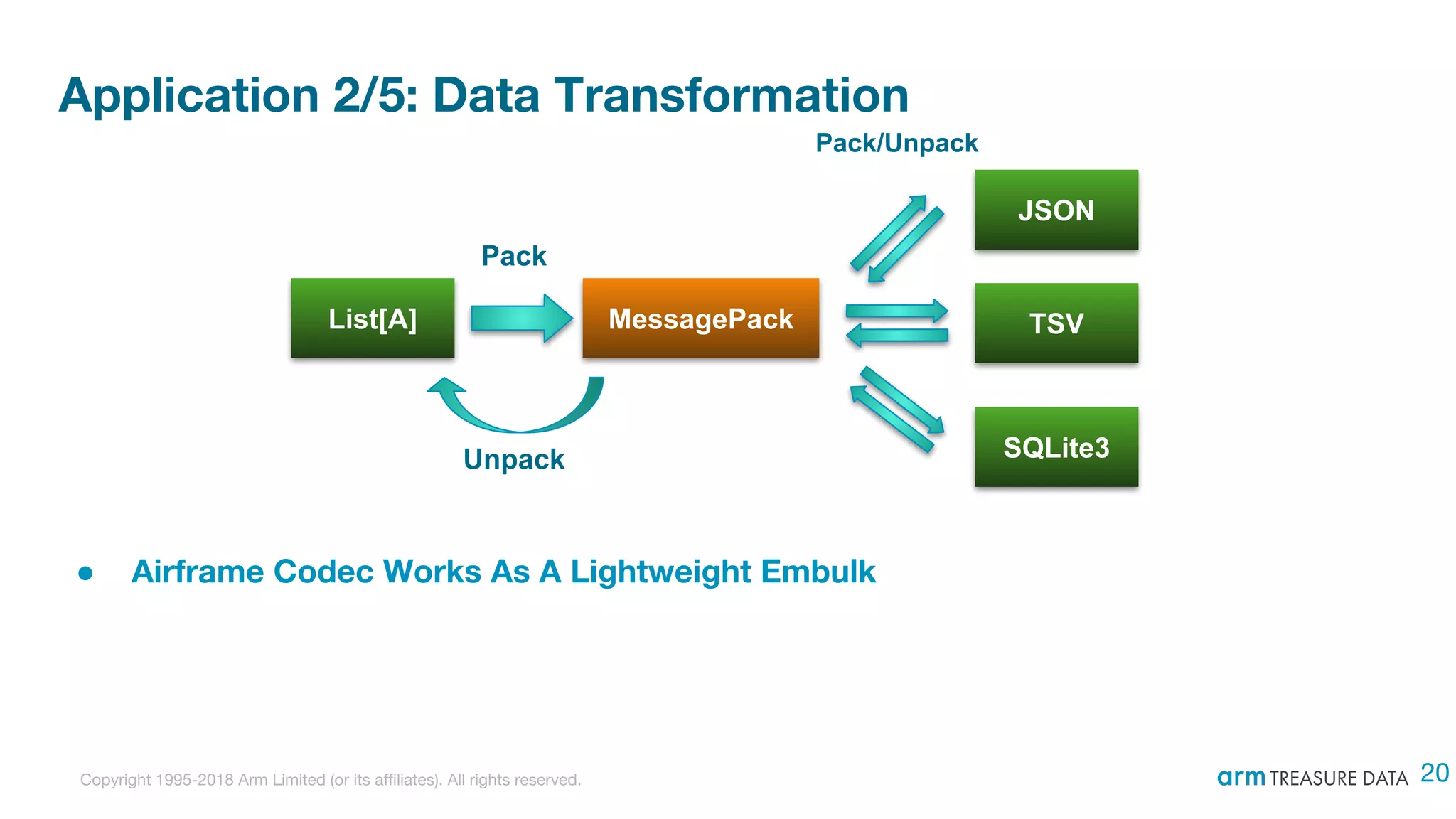

Application 2/5: Data Transformation
● Airframe Codec Works As A Lightweight Embulk
List[A] MessagePack
Pack
Unpack
TSV
Pack/Unpack
JSON
SQLite3
20

21. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

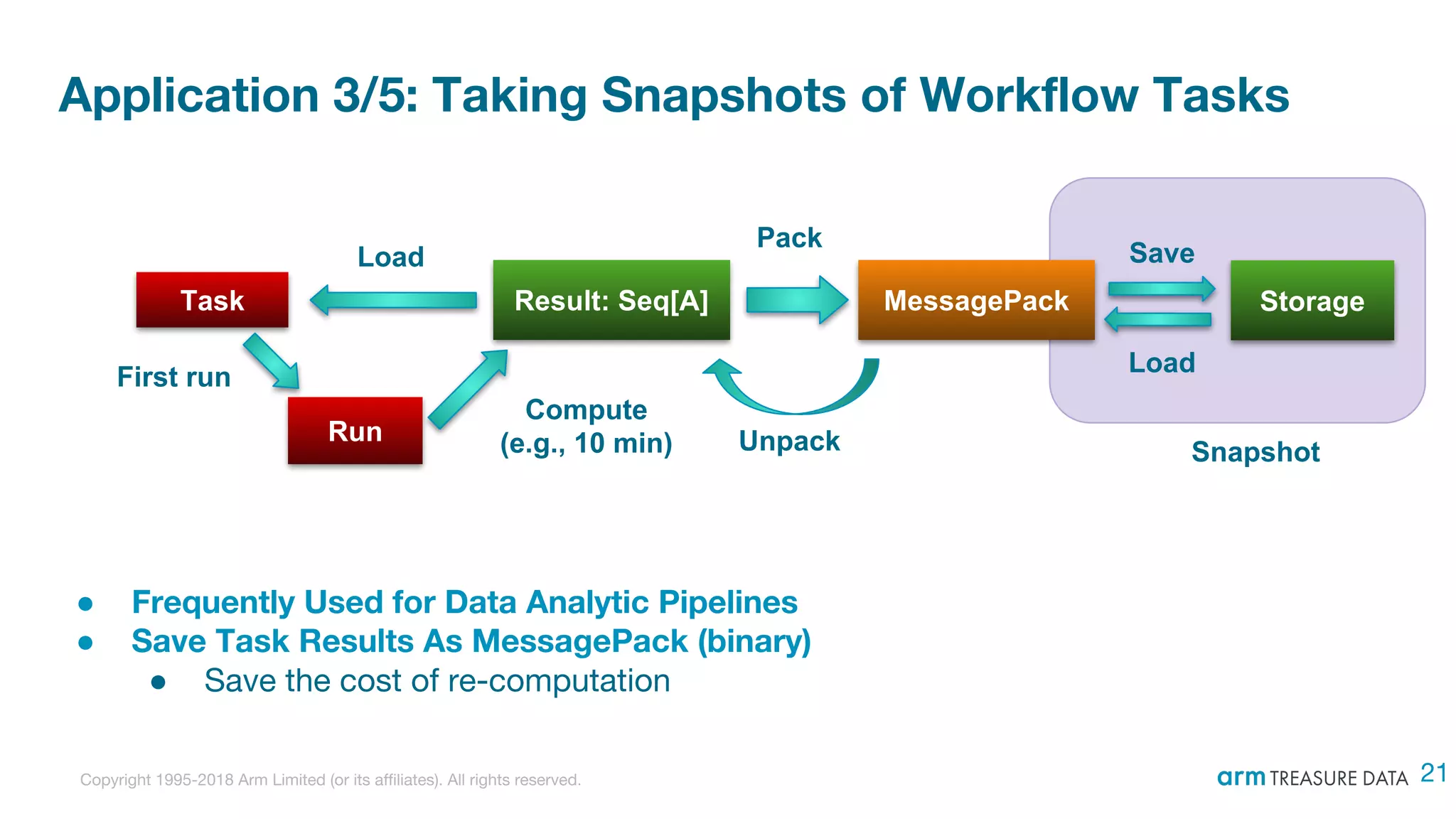

Application 3/5: Taking Snapshots of Workflow Tasks
● Frequently Used for Data Analytic Pipelines
● Save Task Results As MessagePack (binary)
● Save the cost of re-computation
Result: Seq[A] MessagePack Storage
Pack
Save
Unpack
Task
Run
Load
Load
Compute
(e.g., 10 min)
First run
Snapshot
21

22. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
Application 4/5: Scala.js RPC
● Scala.js
● Compiling Scala code into JavaScript for Web Browsers
● Model classes can be shared between Scala and Scala.js
● airframe-msgpack
● Added pure-Scala MessagePack implementation for supporting Scala.js
UserInfo MessagePack UserInfo
Pack Unpack
PackUnpack
Scala
Server Side
Scala.js
Client Side
XML RPC
22

23. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

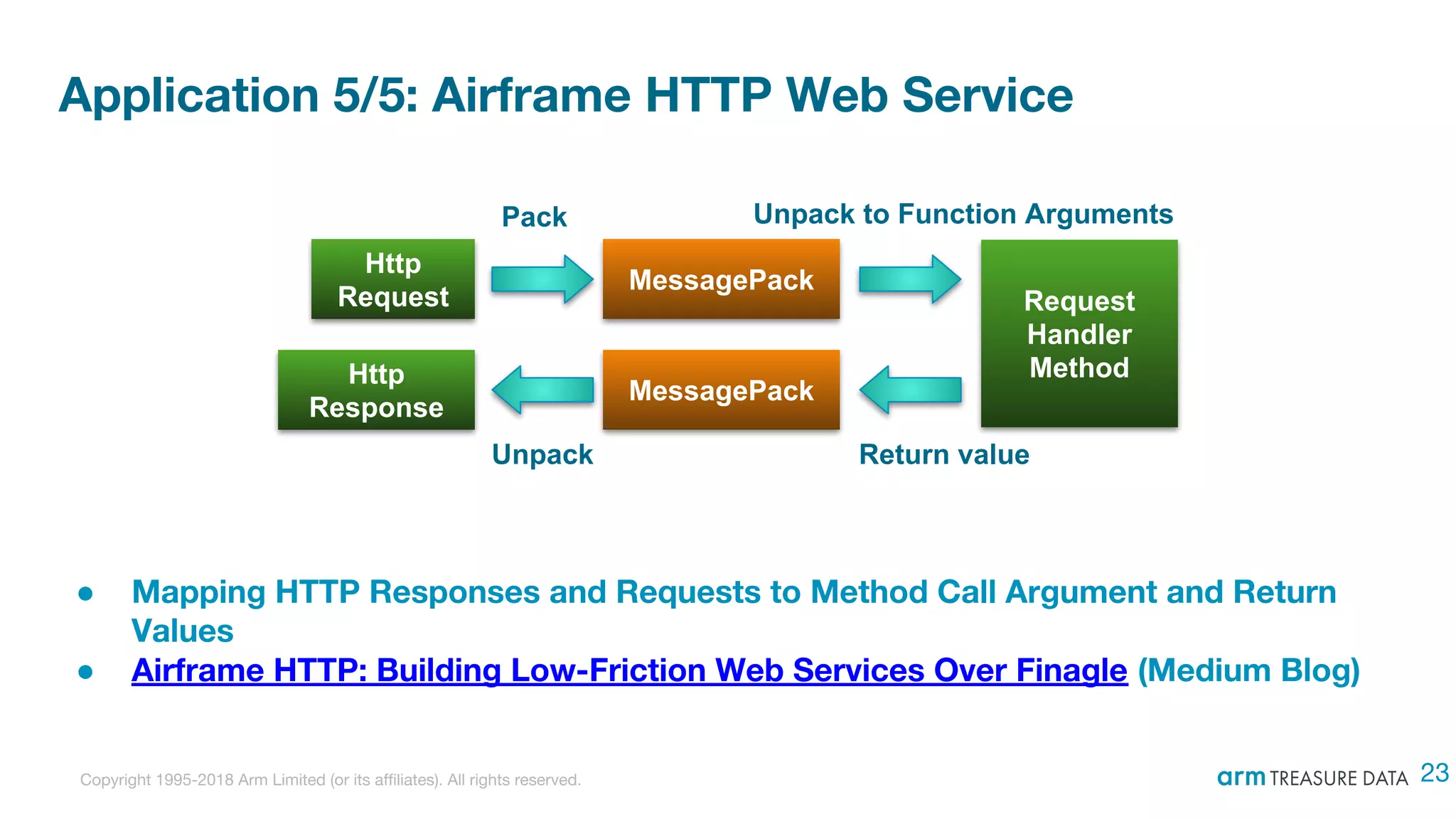

Application 5/5: Airframe HTTP Web Service
● Mapping HTTP Responses and Requests to Method Call Argument and Return
Values
● Airframe HTTP: Building Low-Friction Web Services Over Finagle (Medium Blog)
Http
Request
MessagePack
Pack
Request
Handler
Method
Unpack to Function Arguments
Http
Response
MessagePack
Unpack Return value
23

24. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
A Challenge: Type Erasure in Java Compiler (javac)
● Java class files (byte code) removes generic type information (type erasure)
class A (data:List[B])
class A
data: List[java.lang.Object]
javac
compiler
Class Parameter Type List ObjectCodec
Generate
???
Type Erasure
24

25. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

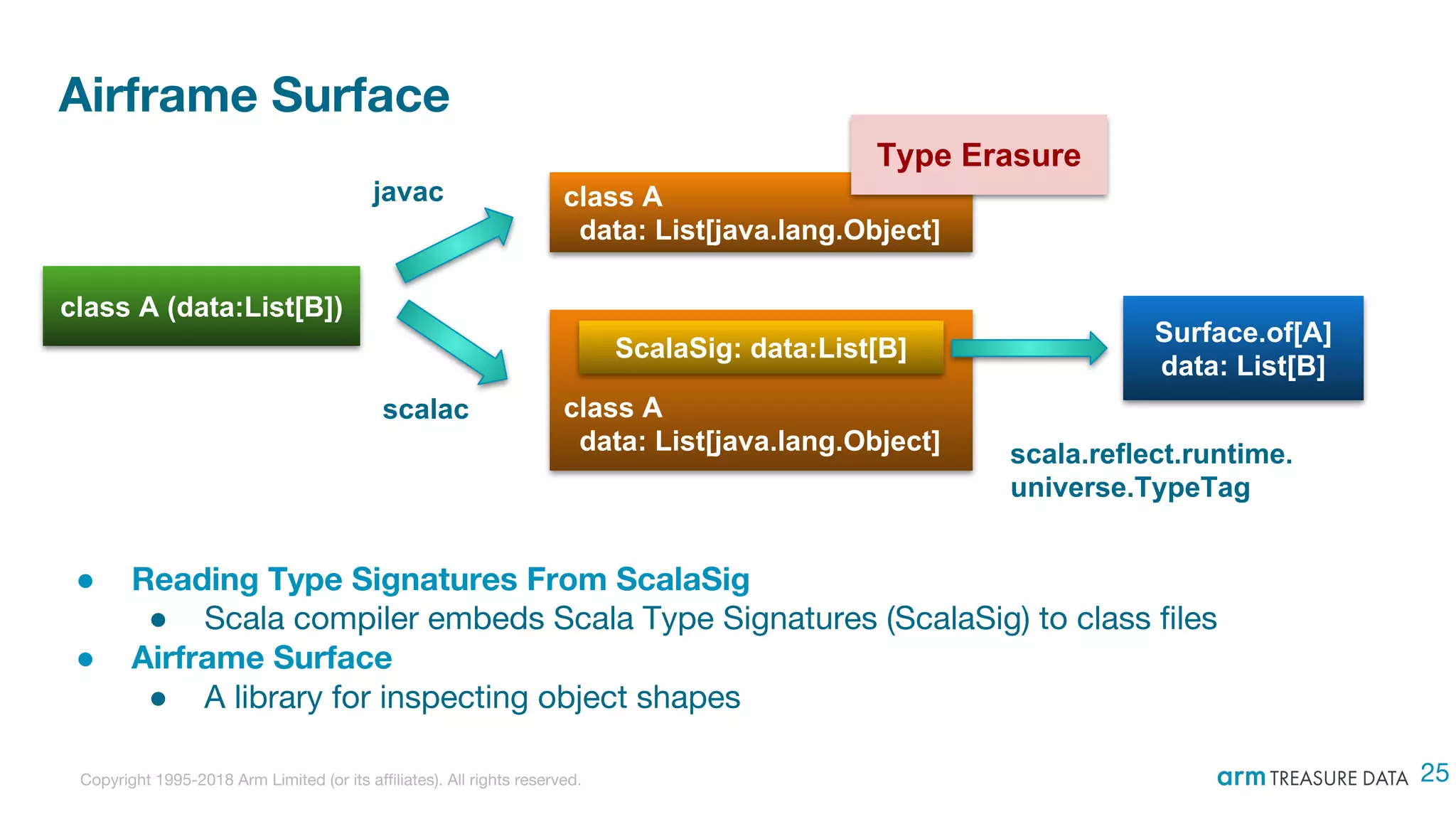

Airframe Surface
● Reading Type Signatures From ScalaSig
● Scala compiler embeds Scala Type Signatures (ScalaSig) to class files
● Airframe Surface
● A library for inspecting object shapes
class A (data:List[B])
class A
data: List[java.lang.Object]
class A
data: List[java.lang.Object]
ScalaSig: data:List[B]
javac
scalac
Surface.of[A]
data: List[B]
scala.reflect.runtime.
universe.TypeTag
Type Erasure
25

26. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

27. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
What is Dependency Injection (DI)?
● Many Confusing Articles
● Inversion of Control Containers and the Dependency Injection pattern. Martin
Fowler (2004)
● StackOverflow, Wikipedia, …
● Many Frameworks
● Spring, Google Guice, Scaldi, Macwire, Grafter, Weld, etc.
● No framework approaches do exists (Pure-Scala DI)
● Recent Definition:
● Dependency Injection is the process of creating the static, stateless graph of
service objects, where each service is parameterised by its dependencies.
■ What is Dependency Injection? by Adam Warski (2018)
● However, it’s still difficult to understand what is DI
27

28. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

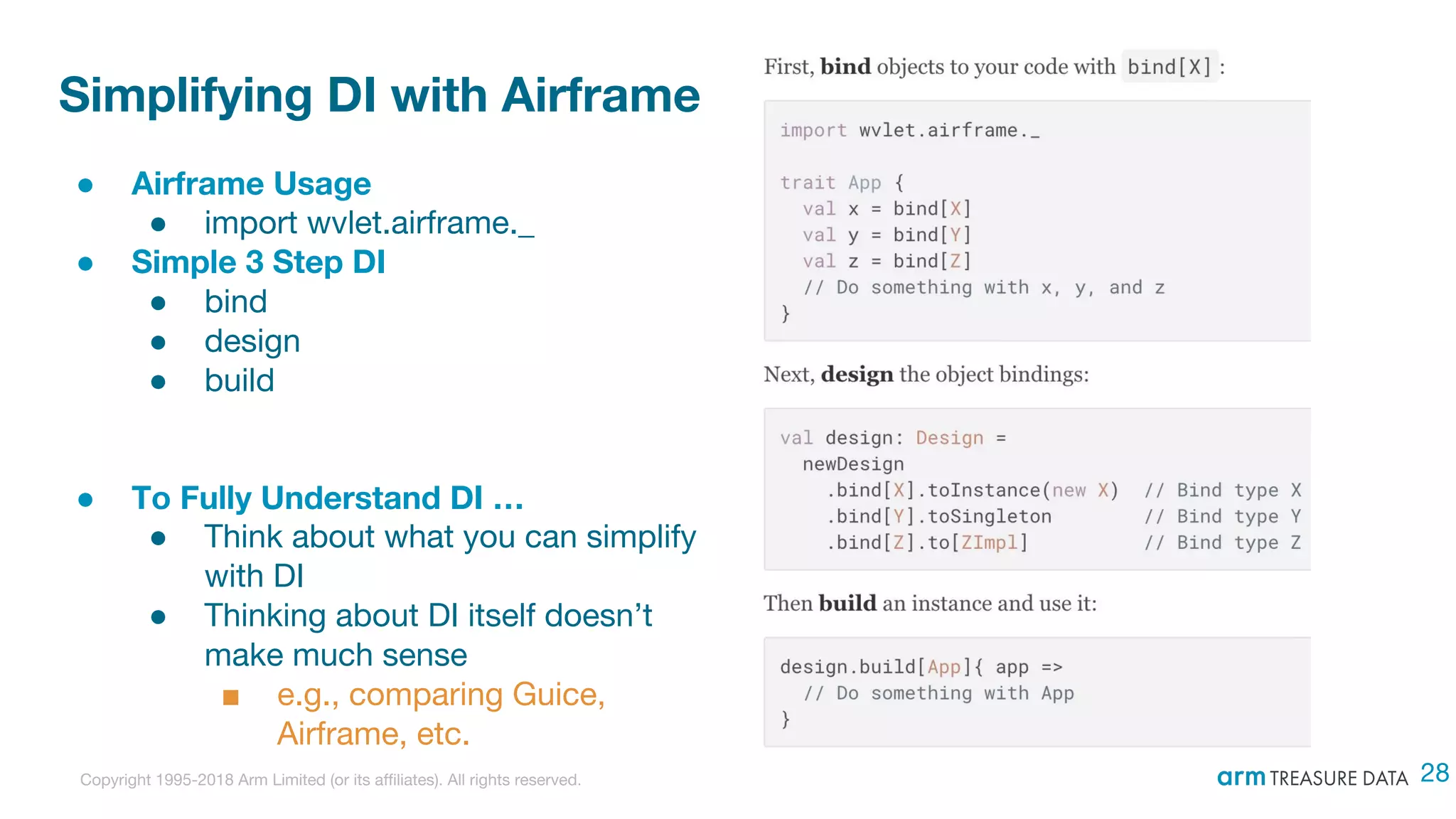

Simplifying DI with Airframe
● Airframe Usage
● import wvlet.airframe._
● Simple 3 Step DI
● bind
● design
● build
● To Fully Understand DI …
● Think about what you can simplify
with DI
● Thinking about DI itself doesn’t
make much sense
■ e.g., comparing Guice,
Airframe, etc.
28

29. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

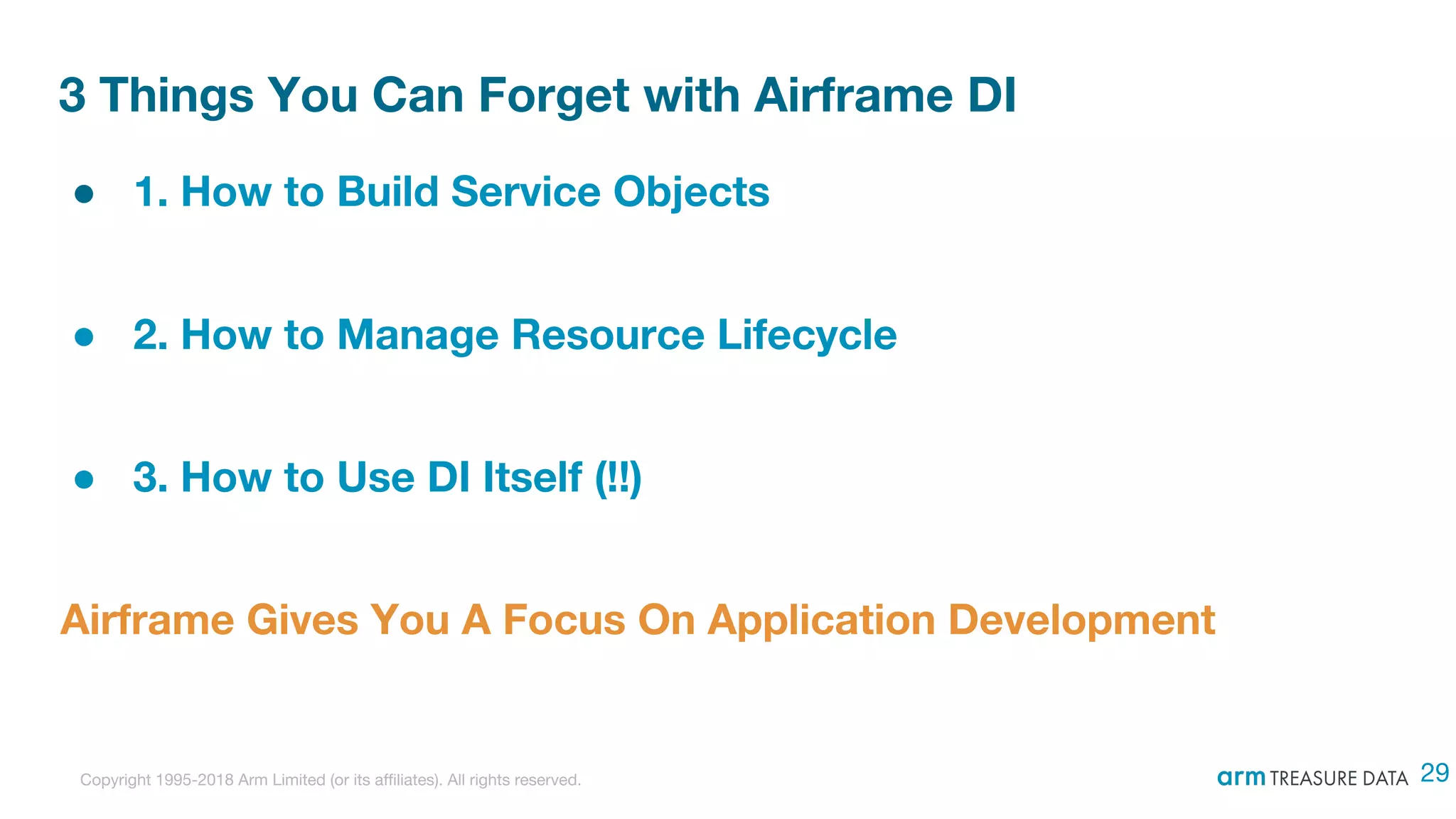

3 Things You Can Forget with Airframe DI
● 1. How to Build Service Objects
● 2. How to Manage Resource Lifecycle
● 3. How to Use DI Itself (!!)
Airframe Gives You A Focus On Application Development
29

30. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

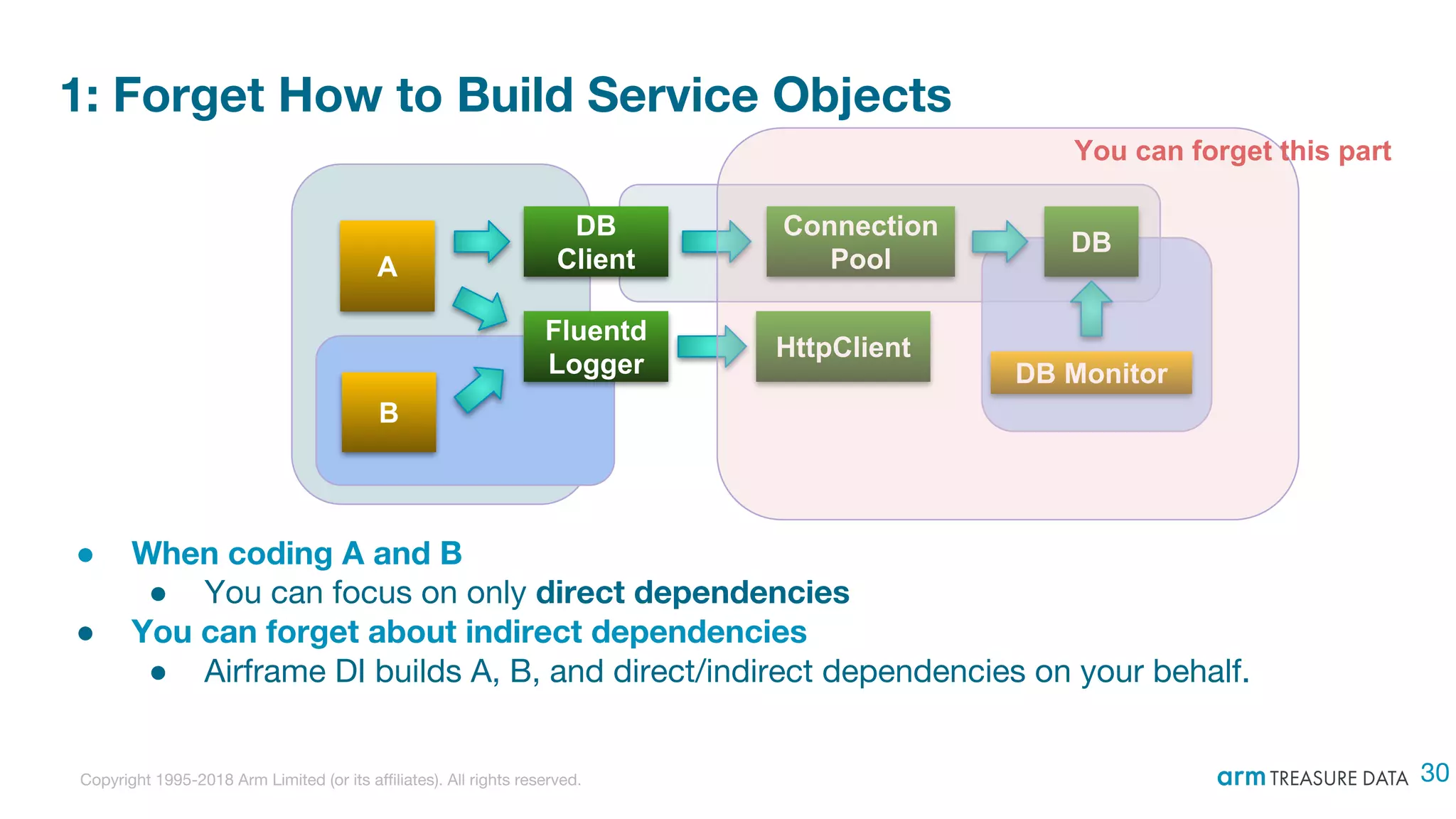

1: Forget How to Build Service Objects
● When coding A and B
● You can focus on only direct dependencies
● You can forget about indirect dependencies
● Airframe DI builds A, B, and direct/indirect dependencies on your behalf.
A
DB
Connection
Pool
DB
Client
DB Monitor
Fluentd
Logger
HttpClient
B
30
You can forget this part

31. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

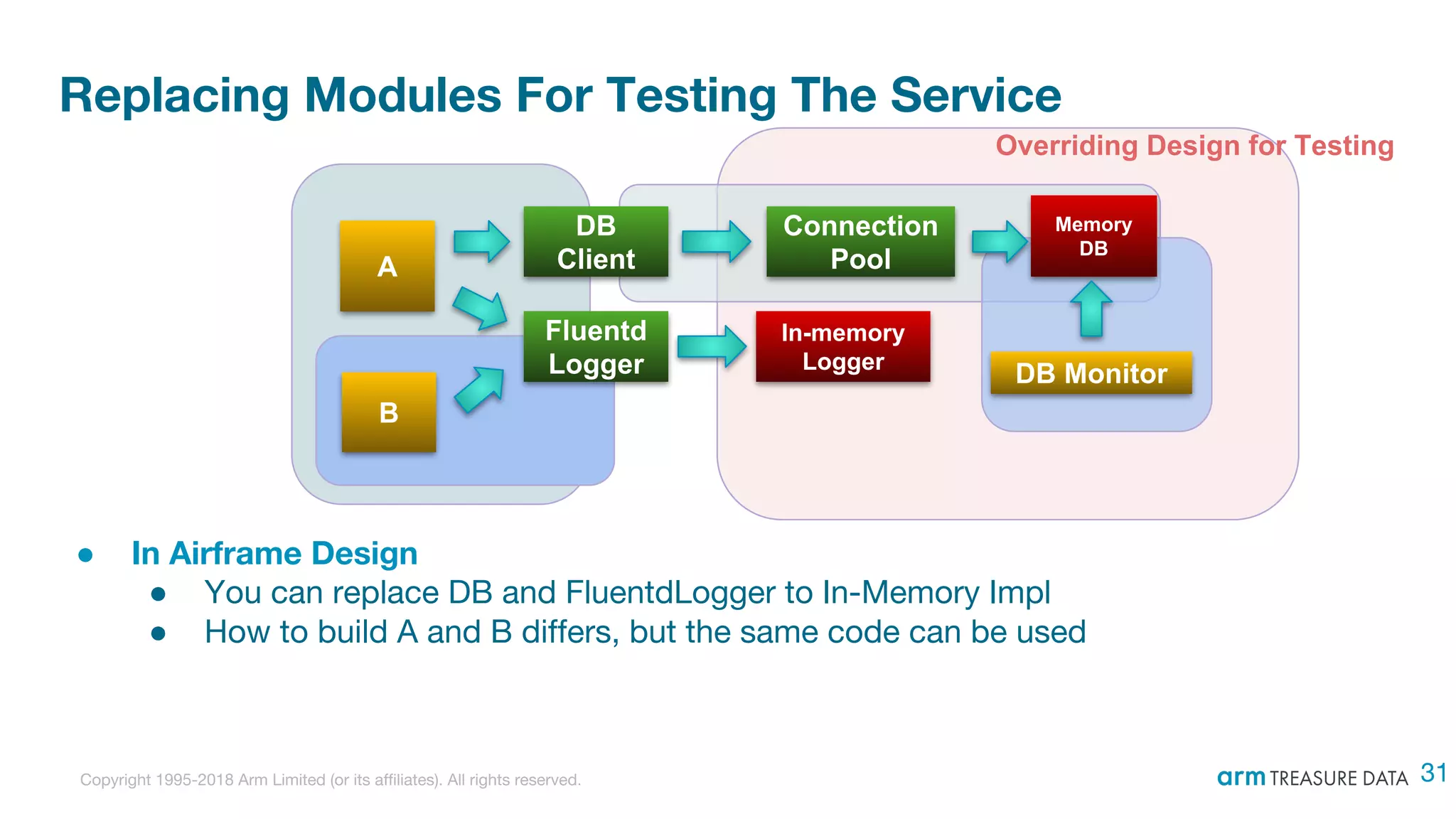

Replacing Modules For Testing The Service
● In Airframe Design
● You can replace DB and FluentdLogger to In-Memory Impl
● How to build A and B differs, but the same code can be used
A
Memory
DB
Connection
Pool
DB
Client
DB Monitor
Fluentd
Logger
In-memory
Logger
B
31
Overriding Design for Testing

32. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.
2: Forget How to Manage Resource Lifecycle
● FILO := First-In Last-Out
● Airframe can add onStart and onShutdown lifecycle hooks when creating
instances
● When closing sessions, onShutdown will be called in the reverse order
● Dependencies forms DAG
● Dependencies will be generated when creating new service objects
A
DB
Connection
Pool
DB
Client
DB Monitor
Fluentd
Logger
HttpClient
B
134
56
7
2
8
Shared
Resource
32

33. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

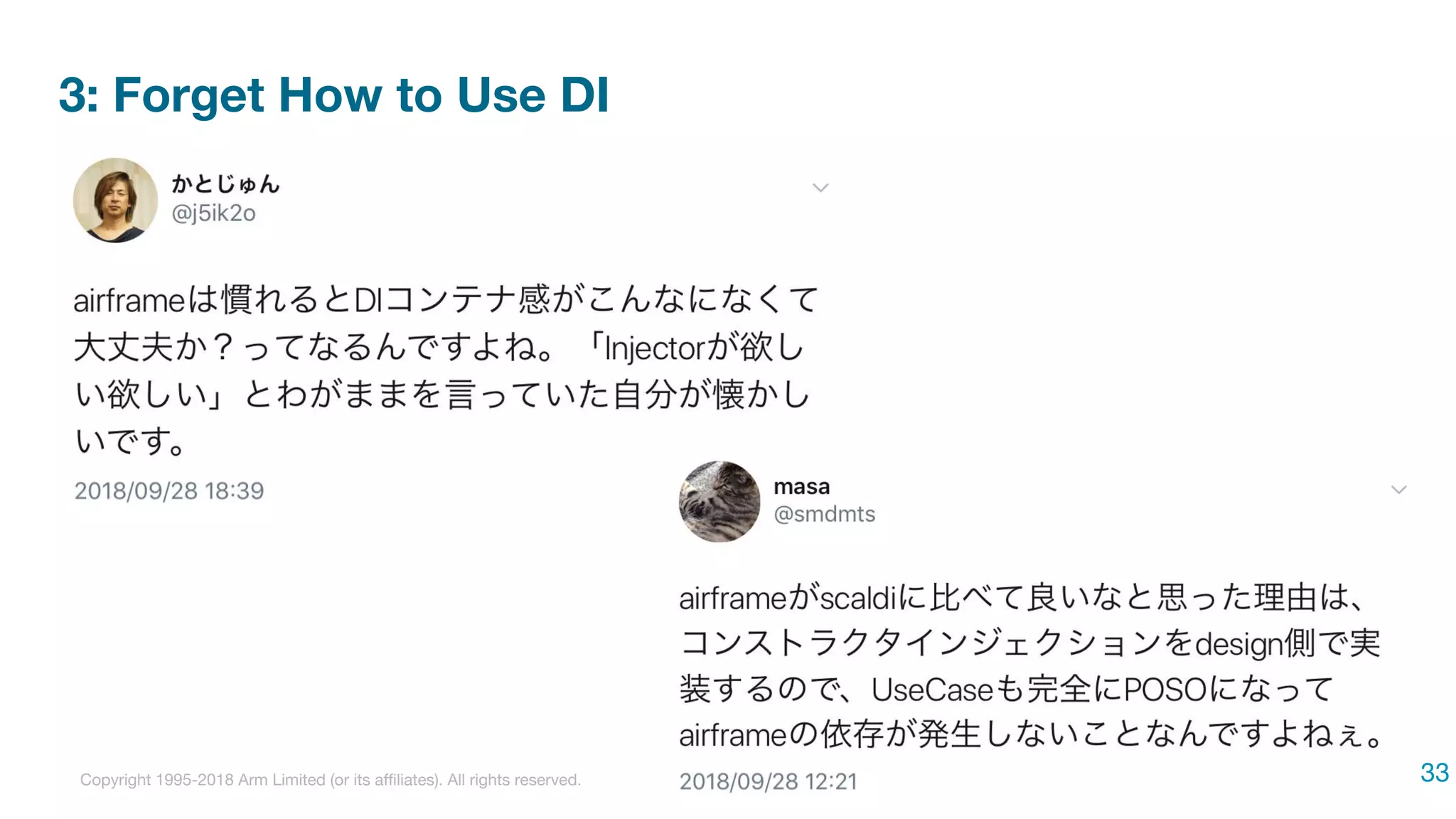

3: Forget How to Use DI
33

34. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

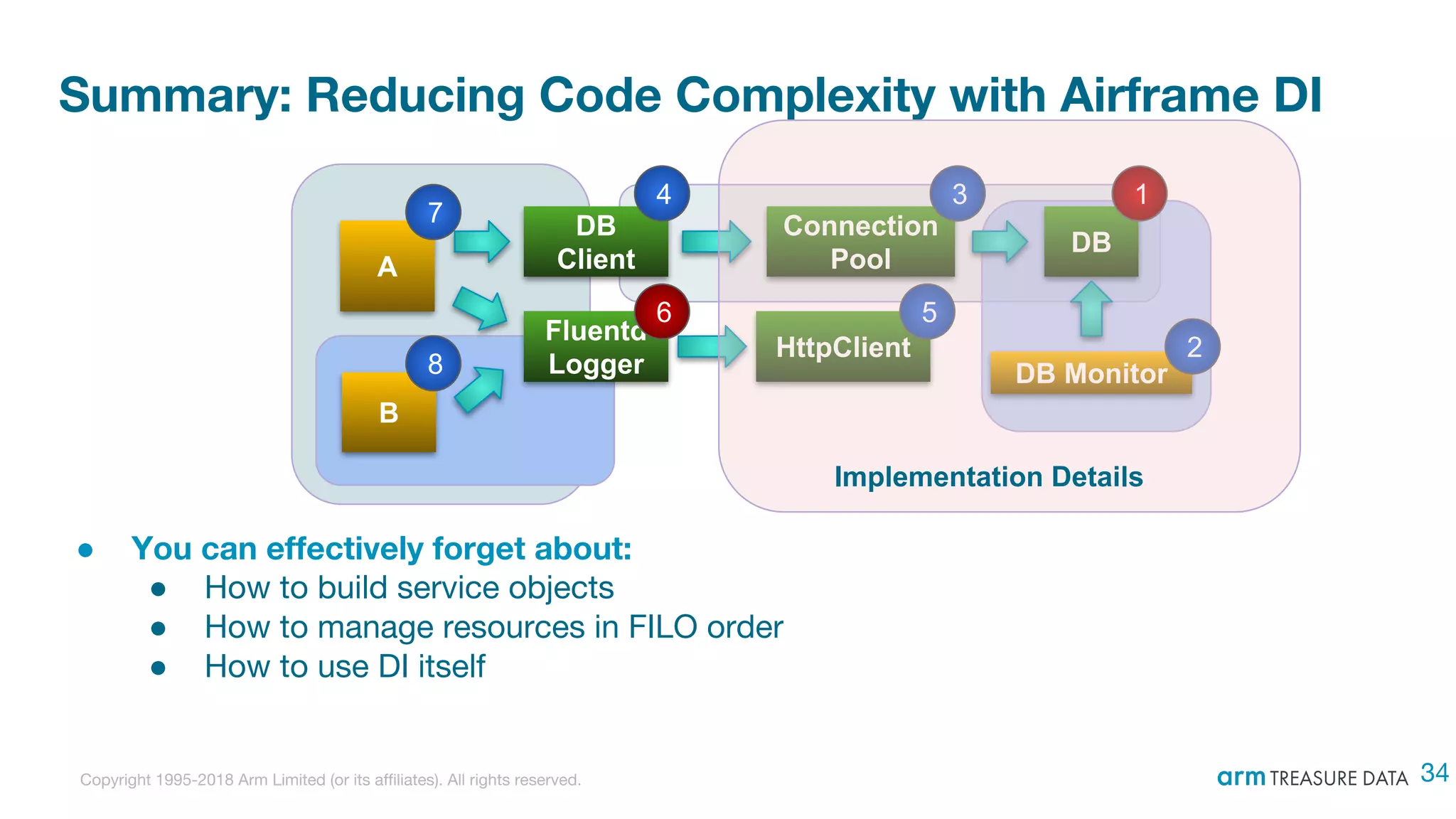

Summary: Reducing Code Complexity with Airframe DI
● You can effectively forget about:
● How to build service objects
● How to manage resources in FILO order
● How to use DI itself
A
DB
Connection
Pool
DB
Client
DB Monitor
Fluentd
Logger
HttpClient
B
134
56
7
2
8
34
Implementation Details

35. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

36. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

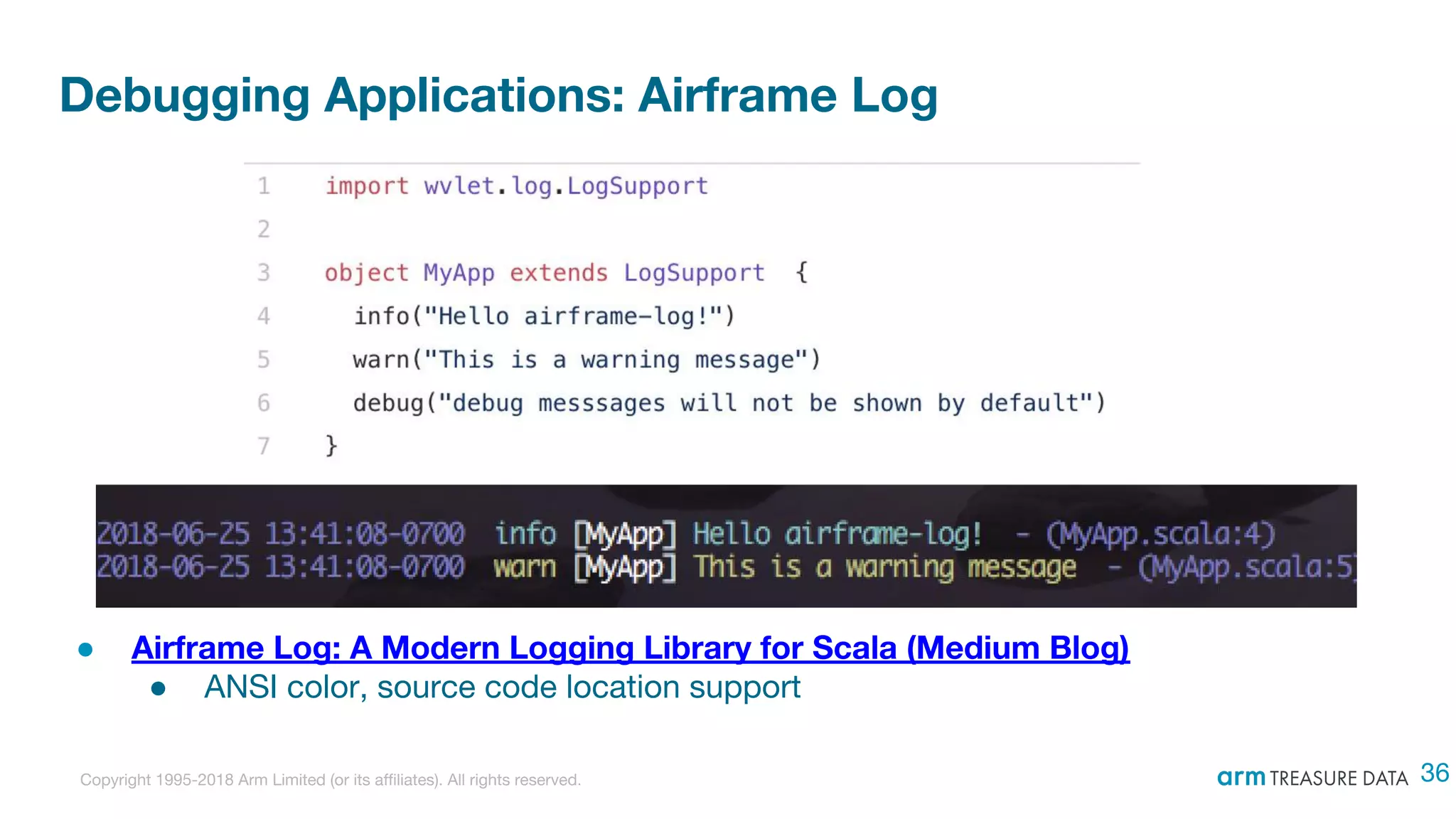

Debugging Applications: Airframe Log
● Airframe Log: A Modern Logging Library for Scala (Medium Blog)
● ANSI color, source code location support
36

37. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

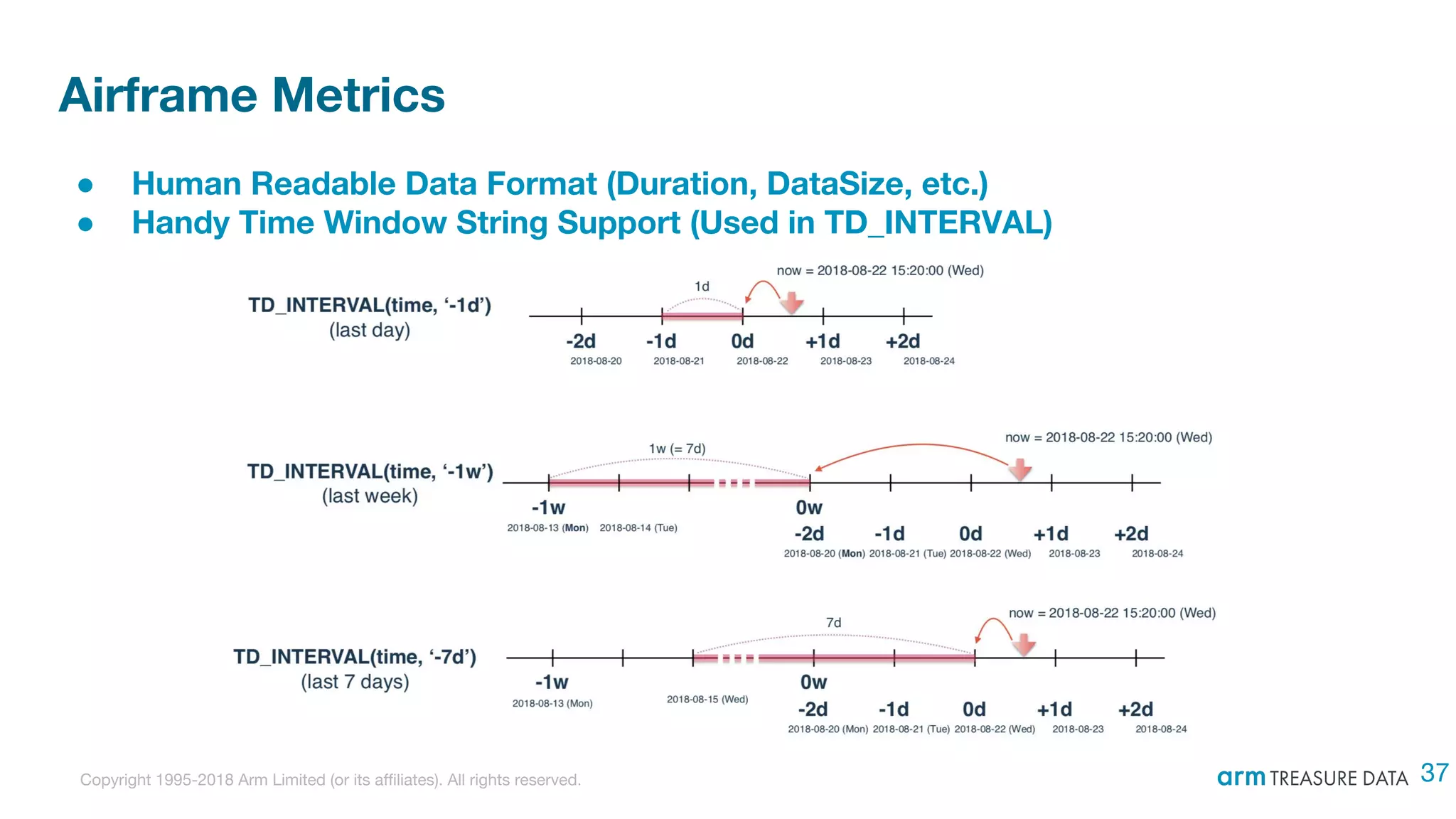

Airframe Metrics
● Human Readable Data Format (Duration, DataSize, etc.)
● Handy Time Window String Support (Used in TD_INTERVAL)
37

38. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

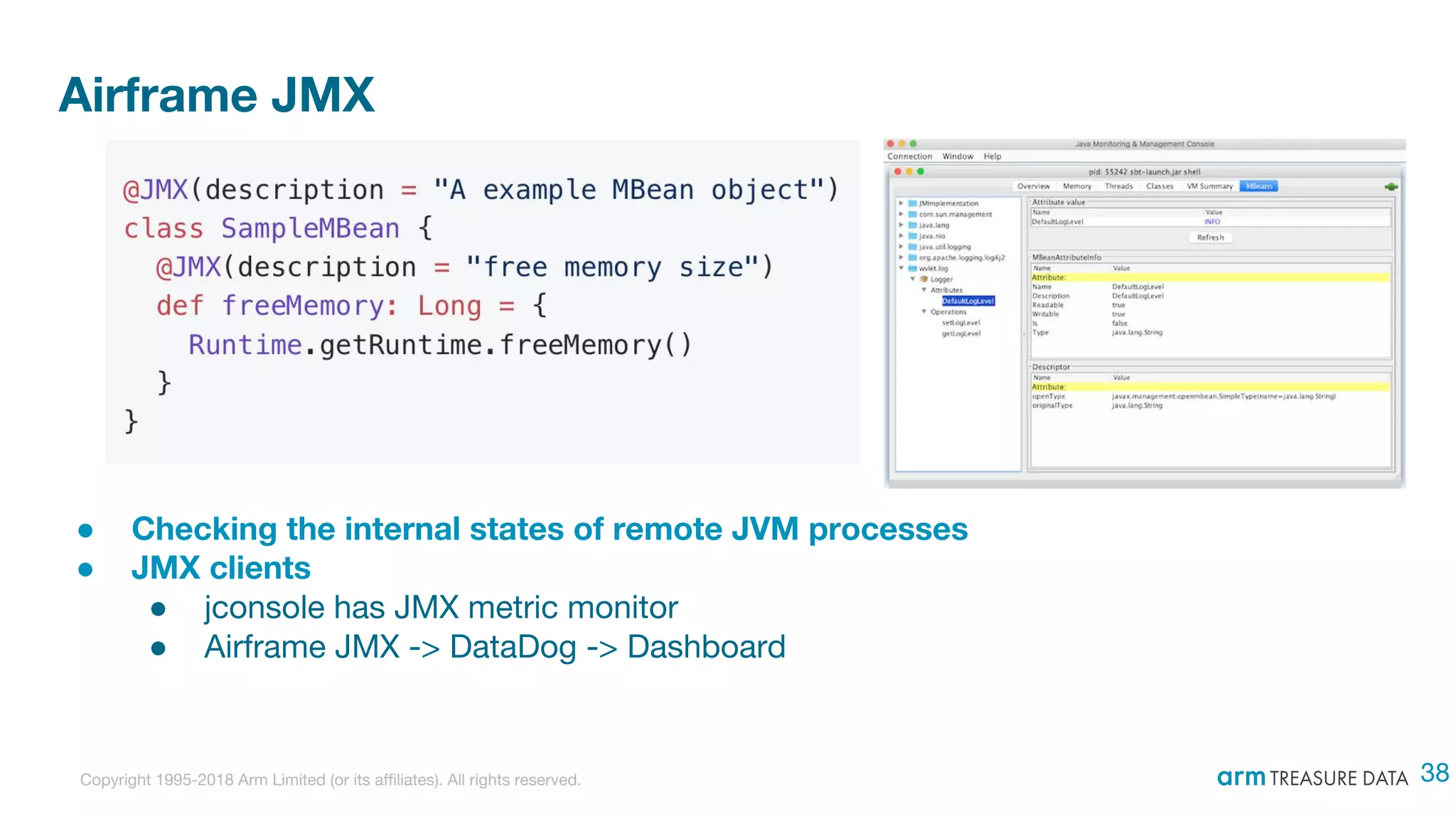

Airframe JMX
● Checking the internal states of remote JVM processes
● JMX clients
● jconsole has JMX metric monitor
● Airframe JMX -> DataDog -> Dashboard
38

39. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

40. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

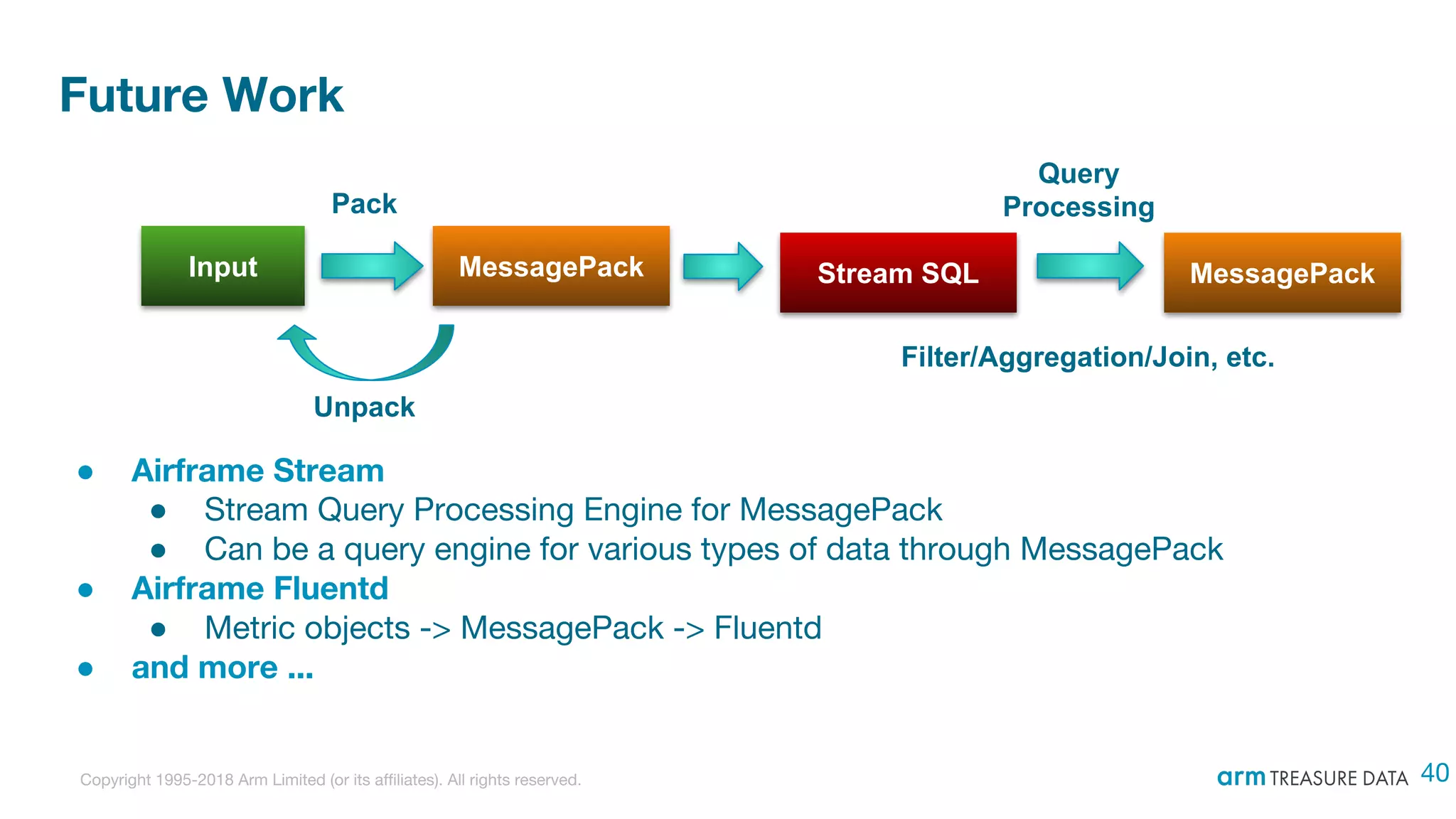

Future Work
● Airframe Stream
● Stream Query Processing Engine for MessagePack
● Can be a query engine for various types of data through MessagePack
● Airframe Fluentd
● Metric objects -> MessagePack -> Fluentd
● and more ...
Input MessagePack
Pack
Unpack
Stream SQL MessagePack
Query
Processing
Filter/Aggregation/Join, etc.
40

41. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

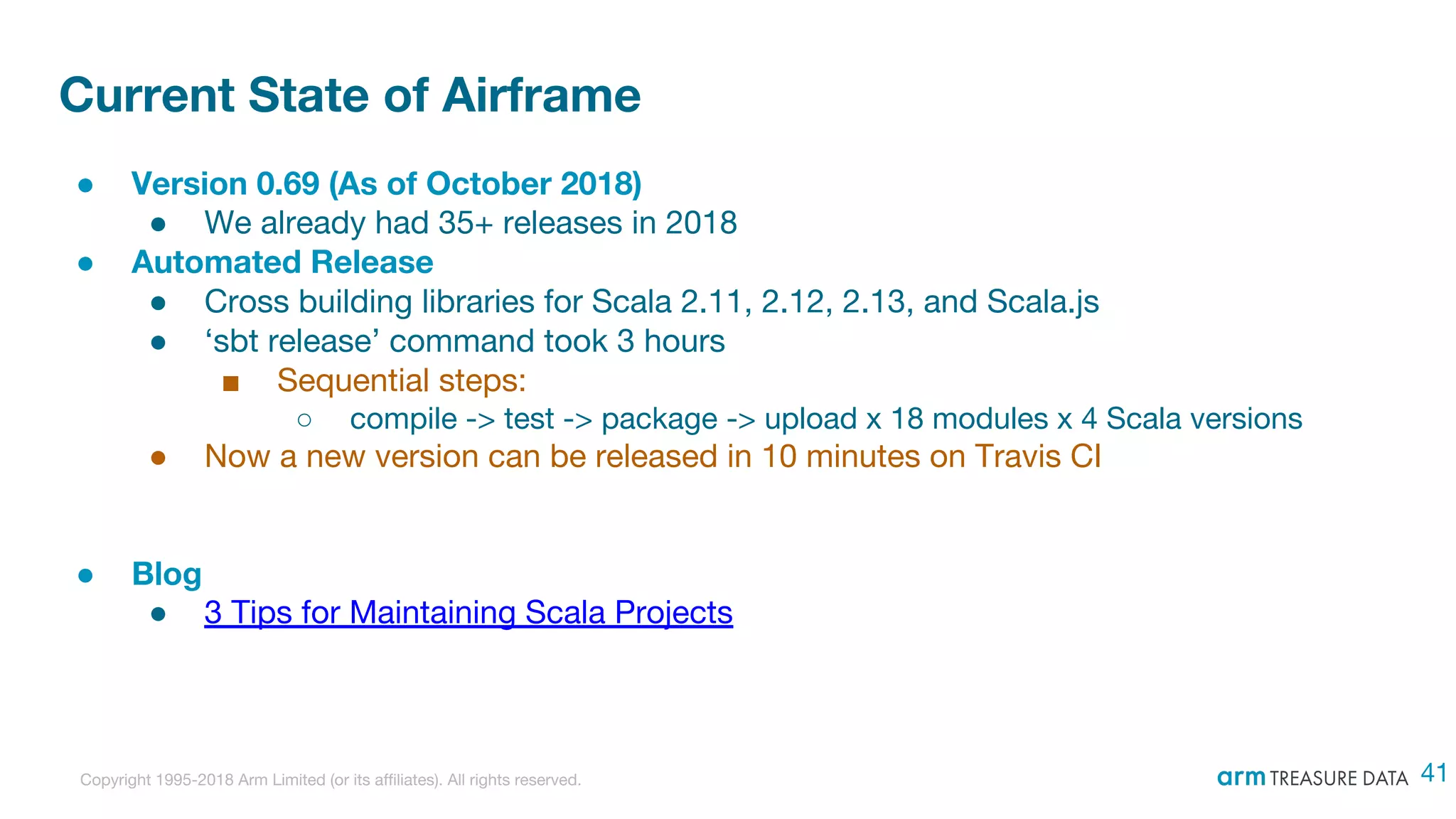

Current State of Airframe
● Version 0.69 (As of October 2018)
● We already had 35+ releases in 2018
● Automated Release
● Cross building libraries for Scala 2.11, 2.12, 2.13, and Scala.js
● ‘sbt release’ command took 3 hours
■ Sequential steps:
○ compile -> test -> package -> upload x 18 modules x 4 Scala versions
● Now a new version can be released in 10 minutes on Travis CI
● Blog
● 3 Tips for Maintaining Scala Projects
41

42. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved.

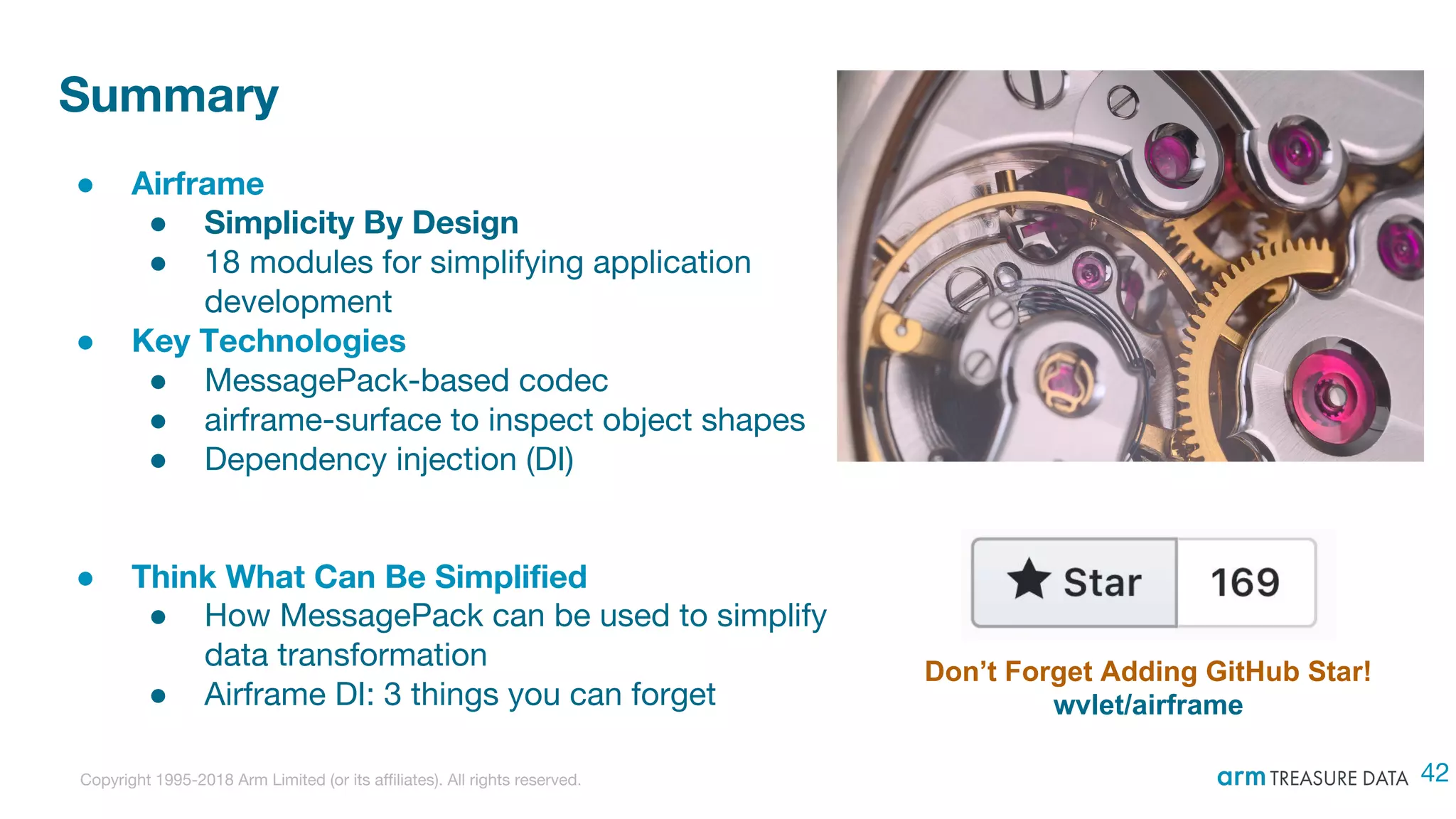

Summary
● Airframe
● Simplicity By Design
● 18 modules for simplifying application
development
● Key Technologies
● MessagePack-based codec
● airframe-surface to inspect object shapes
● Dependency injection (DI)
● Think What Can Be Simplified
● How MessagePack can be used to simplify
data transformation
● Airframe DI: 3 things you can forget
Don’t Forget Adding GitHub Star!
wvlet/airframe
42

43. Confidential © Arm 2017Confidential © Arm 2017Confidential © Arm 2017
Thank You!
Danke!
Merci!
谢谢!
ありがとう!
Gracias!
Kiitos!
