High Performance Cloud Native APIs Using Apache Geode

High Performance Cloud Native APIs
Using Apache Geode
Anna Jung Paul Vermeulen
1
@antheajung pvermeulen@pivotal.io

Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-
NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

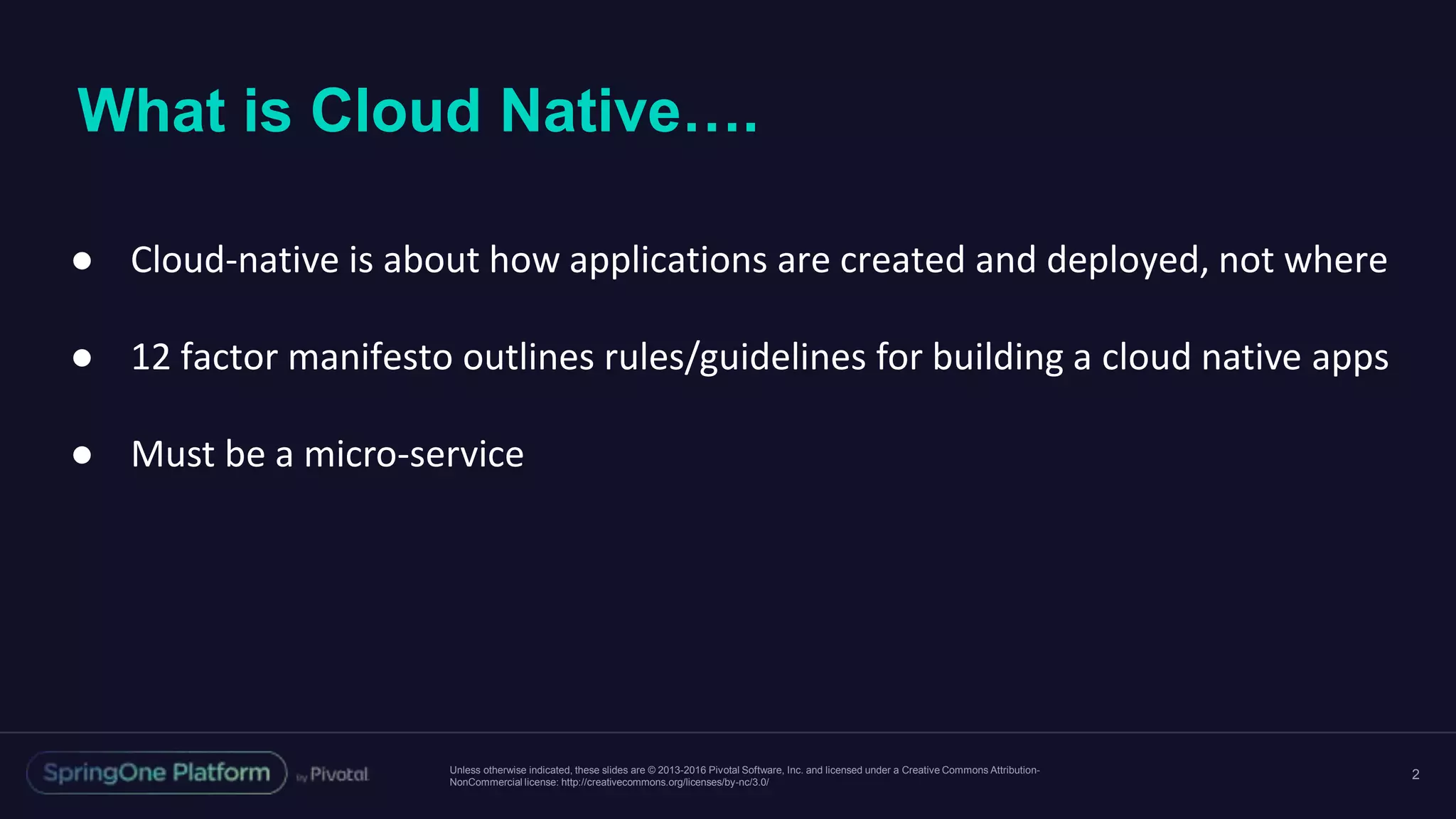

What is Cloud Native….
2
● Cloud-native is about how applications are created and deployed, not where
● 12 factor manifesto outlines rules/guidelines for building a cloud native apps
● Must be a micro-service

Health Care Service Corporation
3
#6on Diversity MBA’s
50 Out Front for Diversity
Leadership Best Places to Work for Women
& Diverse Managers
Operating Blue Cross
and Blue Shield plans in
FIVE states: IL, MT,
NM, OK, TX
OUR PURPOSE
To do everything in our power to stand
with our members in sickness and in
health®
1936
year founded
+$1
billion
in IT
spend
Over
21,000
employees
15 million
members
2,100
IT employees
208.3million
claims processed
annually
LARGESTcustomer-
owned
health insurer in the U.S. and
4th largest overall

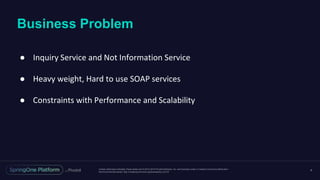

Business Problem
4
● Inquiry Service and Not Information Service
● Heavy weight, Hard to use SOAP services
● Constraints with Performance and Scalability

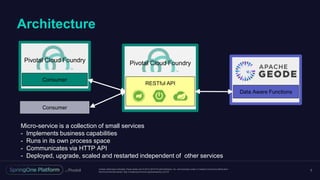

Architecture
5
Consumer
Consumer
Pivotal Cloud Foundry
Data Aware Functions
RESTful API
Pivotal Cloud Foundry
Micro-service is a collection of small services
- Implements business capabilities
- Runs in its own process space
- Communicates via HTTP API
- Deployed, upgrade, scaled and restarted independent of other services

Why Pivotal Cloud Foundry?
6
Cloud Foundry’s architectural structure includes components and
a high-enough level of interoperability to permit
● Fast application development and deployment
● Continuous integration
● DevOps-friendly workflows
● Integration with various cloud providers
● Integration with Spring frameworks for developer productivity

Why Apache Geode?
7
Apache Geode architecture provides low latency performance
and scalability at all levels
● Scalability of Geode cache
● Continuous availability of Geode
● High performance reads
● Caching patterns
● Supports cloning of micro-services for performance and scalability
● Provided isolation layer for making backing store changes
● Integration with Spring framework for developer productivity

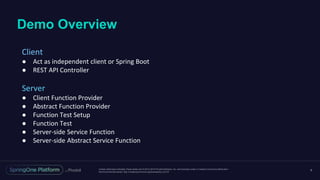

Demo Overview
9
Client
● Act as independent client or Spring Boot
● REST API Controller
Server
● Client Function Provider
● Abstract Function Provider
● Function Test Setup
● Function Test
● Server-side Service Function
● Server-side Abstract Service Function

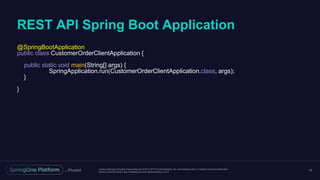

REST API Spring Boot Application
10
@SpringBootApplication
public class CustomerOrderClientApplication {
public static void main(String[] args) {
SpringApplication.run(CustomerOrderClientApplication.class, args);
}
}

REST API Controller
11
@RestController
public class CustomerOrderController {
@Autowired
private CustomerListProvider customerListProvider;
. . .
@GetMapping(value = "/customers")
public List<CustomerIO> customers() throws IOException {
return customerListProvider.execute();
}
}

Client Function Provider
12
public class CustomerListProvider
extends AbstractProvider<String, CustomerIO> {
private static final String FUNCTION_NAME = "CustomerListFunction";
private static final String REGION_NAME = "customer";
public CustomerListProvider(GemFireCache cache) { super(cache); }
public Set<?> getFilters(String request) { return emptySet(); }
public String getRegionName() { return REGION_NAME; }
public String getFunctionId() { return FUNCTION_NAME; }
}

Abstract Function Provider
13
public abstract class AbstractProvider<V, R> implements ServiceProvider<V, R> {
private GemFireCache cache;
private Provider provider;
AbstractProvider(GemFireCache cache, Provider provider) { . . . }
public Collection<R> execute() { . . . }
private Provider getProvider() { return this.provider; }
static class Provider {
Provider() { }
Execution getExecution(Region<?, ?> region) {
return FunctionService.onRegion(region);
}
}
}

Function Test Setup
14
@RunWith(SpringRunner.class)
public class CustomerListFunctionTest {
@MockBean private GemFireCache cache;
@MockBean(name = "customer")
private Region<CustomerKey, Customer> customerRegion;
@Mock private RegionFunctionContext regionFunctionContext;
@Mock private QueryService queryService;
@Mock private Query query;
@Mock private SelectResults<Entry<CustomerKey, Customer>> results;
@Autowired private CustomerListFunction customerListFunction;
@Before public void setUp() throws Exception {
when(cache.getQueryService()).thenReturn(queryService);
when(queryService.newQuery(any())).thenReturn(query);
when(query.execute(regionFunctionContext)).thenReturn(results);
}
. . .
}

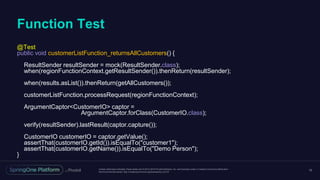

Function Test
15
@Test
public void customerListFunction_returnsAllCustomers() {
ResultSender resultSender = mock(ResultSender.class);
when(regionFunctionContext.getResultSender()).thenReturn(resultSender);
when(results.asList()).thenReturn(getAllCustomers());
customerListFunction.processRequest(regionFunctionContext);
ArgumentCaptor<CustomerIO> captor =
ArgumentCaptor.forClass(CustomerIO.class);
verify(resultSender).lastResult(captor.capture());
CustomerIO customerIO = captor.getValue();
assertThat(customerIO.getId()).isEqualTo("customer1");
assertThat(customerIO.getName()).isEqualTo("Demo Person");
}

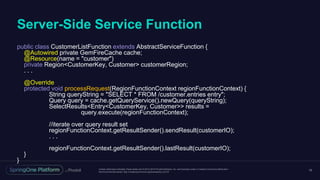

Server-Side Service Function
16
public class CustomerListFunction extends AbstractServiceFunction {
@Autowired private GemFireCache cache;
@Resource(name = "customer")
private Region<CustomerKey, Customer> customerRegion;
. . .
@Override
protected void processRequest(RegionFunctionContext regionFunctionContext) {
String queryString = "SELECT * FROM /customer.entries entry";
Query query = cache.getQueryService().newQuery(queryString);
SelectResults<Entry<CustomerKey, Customer>> results =
query.execute(regionFunctionContext);
//iterate over query result set
regionFunctionContext.getResultSender().sendResult(customerIO);
. . .
regionFunctionContext.getResultSender().lastResult(customerIO);
}
}

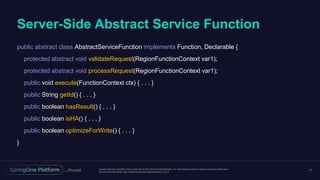

Server-Side Abstract Service Function
17
public abstract class AbstractServiceFunction implements Function, Declarable {
protected abstract void validateRequest(RegionFunctionContext var1);
protected abstract void processRequest(RegionFunctionContext var1);
public void execute(FunctionContext ctx) { . . . }
public String getId() { . . . }
public boolean hasResult() { . . . }
public boolean isHA() { . . . }
public boolean optimizeForWrite() { . . . }
}

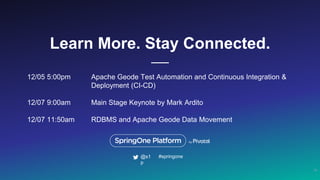

Learn More. Stay Connected.
12/05 5:00pm Apache Geode Test Automation and Continuous Integration &
Deployment (CI-CD)
12/07 9:00am Main Stage Keynote by Mark Ardito
12/07 11:50am RDBMS and Apache Geode Data Movement
19
