This document discusses building resilient microservices with Spring Cloud. It defines criteria for cloud native, cloud resilient, cloud friendly, and cloud ready applications. It also describes Spring Cloud features for service discovery, circuit breakers, and gateway routing that help meet these criteria. The presentation includes demos of Spring Cloud service discovery and circuit breakers, and a Kubernetes demo using Spring Cloud Kubernetes.

1. © Copyright 2018 Pivotal Software, Inc. All rights Reserved.
Abhinav Rau
Senior Platform Architect @ Pivotal
@abhinavrau
https://github.com/abhinavrau
Resilient Microservices with
Spring Cloud

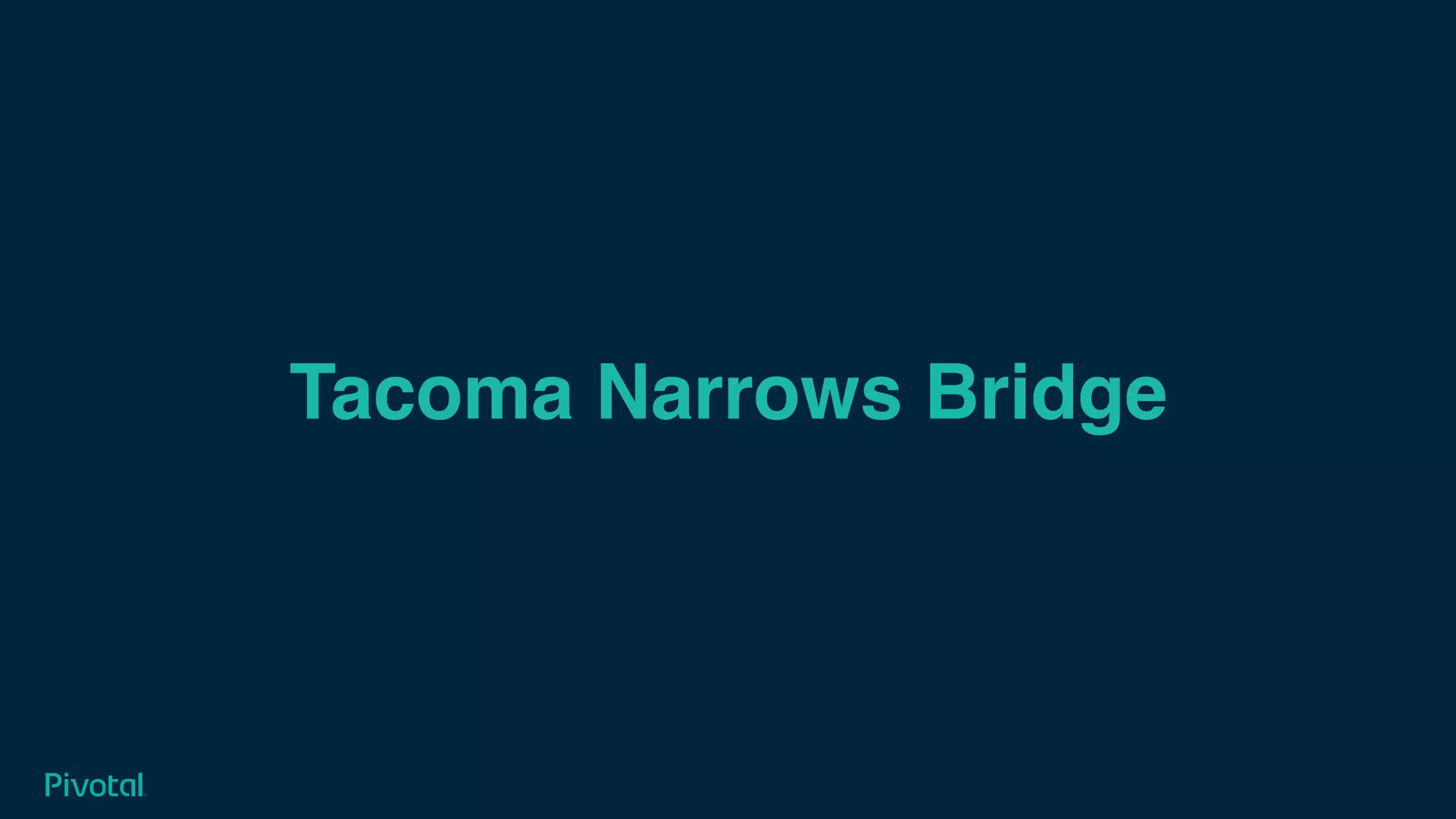

2. Tacoma Narrows Bridge

9. Cover w/ ImageCloud Native ?

10. Cloud Native
Cloud Resilient
Cloud Friendly
Cloud Ready
Cloud Native Criteria

11. Cloud Ready
! No file system requirements
! Containerized
! Platform managed addresses and ports
! Consume Platform services

12. Cloud Friendly
! 12 Factor apps
! Horizontally scalable
! Leverage platform for HA

13. Cloud Resilient
! Design for failure
! Apps are unaffected by dependent service failure
! Proactive testing for failure
! Metrics and monitoring baked in
! Cloud agnostic runtime implementation

14. Cloud Native
! Microservice Architecture
! API first design

15. Cloud Native
Cloud Resilient
Cloud Friendly
Cloud Ready
! Microservice Architecture
! API first design
! Design for failure
! Apps are unaffected by dependent service failure
! Proactive testing for failure
! Metrics and monitoring baked in
! Cloud agnostic runtime implementation
! 12 Factor apps
! Horizontally scalable
! Leverage platform for HA
! No file system requirements
! Containerized
! Platform managed addresses and ports
! Consume Platform services
Cloud Native Criteria

16. Cloud Resilient

17. Spring Cloud
Simple and accessible programming
model for the most common
distributed systems and microservice
patterns
! Service Discovery
! Config Management
! Circuit Breakers
! Gateways, Tracing
! AWS, GCP, AZure, K8s
! And more...
Spring & Spring Boot
The world’s #1 enterprise Java
application development framework
and the leading quickstart
microservices engine
! IoC / Dependency Injection
! AOP, Data, Transactions
! HTTP, REST, Reactive,
Sockets
! Build, Test, Integrate, Run
! Instrumentation, Scheduling
! And more...
Build Anything Coordinate Anything
INCLUDES INCLUDES
Spring Cloud Data Flow
Cloud native connectors and data
orchestration pipelines for the most
common integration scenarios
! Many, many connectors
! Stream & batch processing
! Host on PCF (PAS & PKS) &
K8s
! Simple Spring Flow UI
! Metrics, Health, Insights
! And more...
Connect Anything
INCLUDES

18. Demo

19. Recap

20. Spring Cloud Service Discovery

21. Spring Cloud Service Discovery

22. Cover w/ Image
Spring Cloud Service Discovery
■ Key tenets of microservice
based architecture
■ Provides HTTP interface + client
libs for client registry and
discovery
■ Different implementations based
on the underlying platform.
■ Support for Netflix Eureka and
K8s

23. 1. Register
2. Discover
3. Connect
Service Discovery

24. @SpringBootApplication
@EnableDiscoveryClient
public class MyClientApp{
public static void main(String[] args) {
SpringApplication.run(MyClientApp.class, args);
}
}
Service Discovery

25. public Portfolio accountLookup(String acctId) {
Portfolio p = restTemplate.getForObject(
“http://portfolio-service/portfolio/{accId}”,
Portfolio.class
acctId);
return p;
}
Service Discovery

26. Spring Cloud Circuit Breaker

27. Cover w/ Image
■ Stop cascading failures in a
Distributed System
■ Fail fast and Rapidly
recoverLoad shedding and
failing fast
■ Near realtime monitoring,
alerting and operational control
■ Fallback and gracefully degrade
when possible
Spring Cloud Circuit Breaker

28. Spring Cloud Circuit Breaker

29. @SpringBootApplication
@EnableDiscoveryClient
@EnableCircuitBreaker
public class MyClientApp{
public static void main(String[] args) {
SpringApplication.run(MyClientApp.class, args);
}
}
Spring Cloud Circuit Breaker

30. Spring Cloud Circuit Breaker

31. Spring Cloud Gateway

32. Microservices without gateway

33. Microservices without gateway

34. Microservices without gateway

35. Microservices without gateway

36. Spring Cloud Gateway

37. Cover w/ Image
■ Routing
■ Resiliency
■ Security
■ Monitoring
■ Rate Limiting
■ Path Rewriting
Spring Cloud Gateway Use Cases

38. Cover w/ Image
■ Spring Cloud Discovery Client
Integration
■ Circuit Breaker Integration
■ Built on Reactor, Spring Boot
■ Supports
■ YAML based Config
■ Java Fluent API
Spring Cloud Gateway Features

42. K8s Demo

43. Spring Cloud Kubernetes

44. Cover w/ Image
■ Hot reload of ConfigMap/Secrets
■ Map Spring config support with ConfigMap:
@Values, @ConfigurationProperties
■ Native Service Discovery without using an
Eureka instance
■ DiscoveryClient uses Kubernetes DNS
resolver and cluster events
■ Use @LoadBalanced and
LoadBalancerClient for client-side load
balancing across running pods
■ Spring Cloud Circuit breaker support (Hystrix
and Resilience4j)
Spring Cloud Kubernetes

45. Under the Covers

46. Cover w/ Image
Use it
Existing Spring Cloud apps
Uses client side load balancing
Uses Discovery Client
Is OK to use the Kubernetes API server directly
Maybe not for you (coz I like writing YAML!)
Just planning on running only on Kubernetes
Familiar with Kubernetes
Should I use Spring Cloud K8s?

47. Cover w/ Image
■ Spring Cloud Gateway
■ Spring Cloud Service Discovery
■ Spring Cloud Circuit Breaker
■ Spring Cloud Kubernetes
What we covered

48. Cloud Resilient
! Design for failure
! Apps are unaffected by dependent service failure
! Proactive testing for failure
! Metrics and monitoring baked in
! Cloud agnostic runtime implementation

50. Cover w/ Image
■ Revolutionized design of
bridges by using reinforced
concrete and arches
■ Always validated his design by
conducting Full-Scale Load
Tests
■ Emphasized learning from past
Designs
https://en.wikipedia.org/wiki/Robert_Maillart
Robert Maillart

51. Learn
Build
Measure

53. ■ Code based on S1P presentation by Ryan Baxter and Alex Roman
■ Code for Demo https://github.com/abhinavrau/spring-cloud-k8s-demo
■ Neal Ford presentation of “Stories every developer should know
■ Spring Cloud Projects: https://spring.io/projects/spring-cloud
