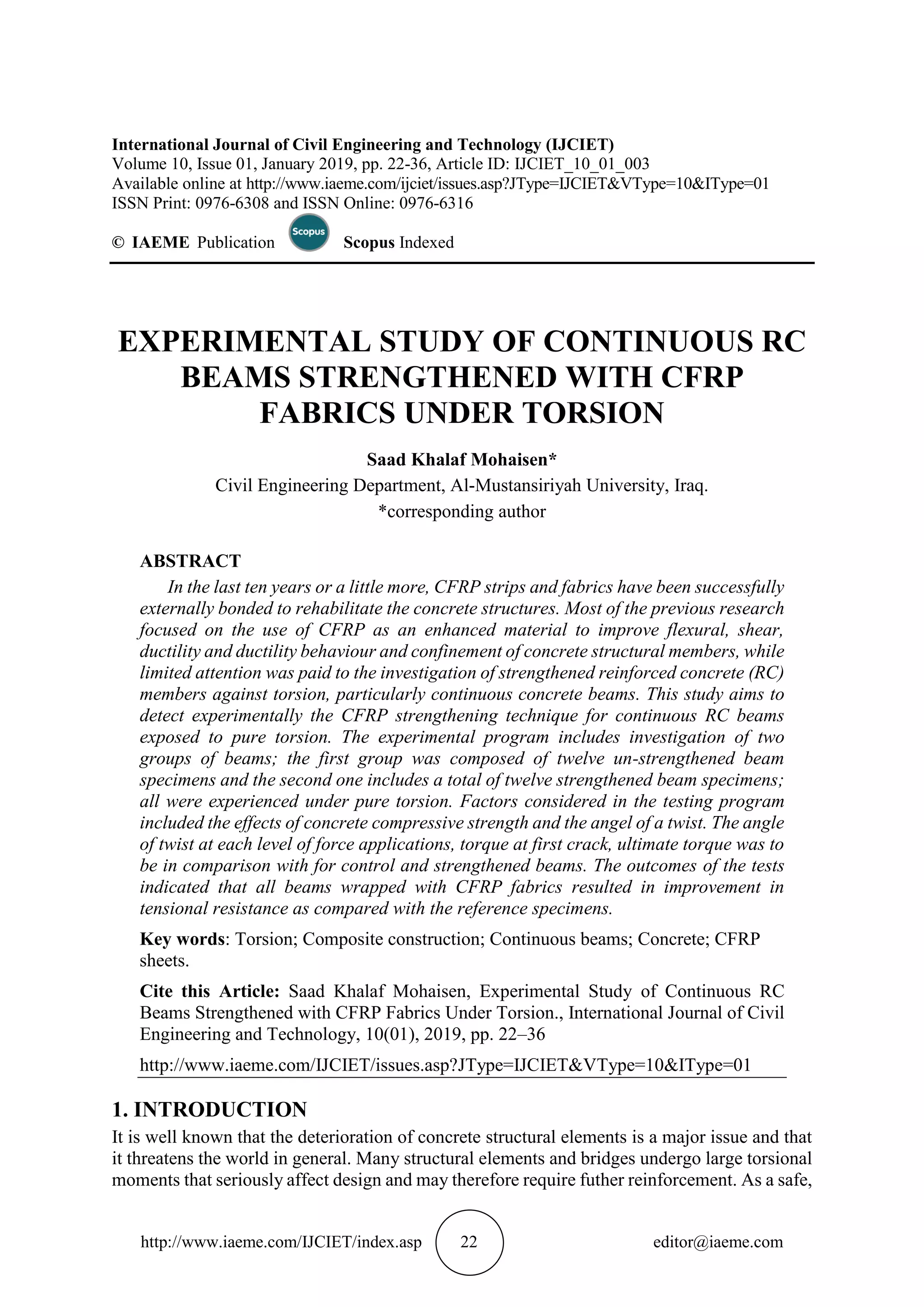

Ijciet 10 01_003

http://www.iaeme.com/IJCIET/index.asp 22 editor@iaeme.com
International Journal of Civil Engineering and Technology (IJCIET)
Volume 10, Issue 01, January 2019, pp. 22-36, Article ID: IJCIET_10_01_003
Available online at http://www.iaeme.com/ijciet/issues.asp?JType=IJCIET&VType=10&IType=01
ISSN Print: 0976-6308 and ISSN Online: 0976-6316
© IAEME Publication Scopus Indexed
EXPERIMENTAL STUDY OF CONTINUOUS RC
BEAMS STRENGTHENED WITH CFRP
FABRICS UNDER TORSION
Saad Khalaf Mohaisen*
Civil Engineering Department, Al-Mustansiriyah University, Iraq.
*corresponding author
ABSTRACT
In the last ten years or a little more, CFRP strips and fabrics have been successfully
externally bonded to rehabilitate the concrete structures. Most of the previous research
focused on the use of CFRP as an enhanced material to improve flexural, shear,
ductility and ductility behaviour and confinement of concrete structural members, while
limited attention was paid to the investigation of strengthened reinforced concrete (RC)
members against torsion, particularly continuous concrete beams. This study aims to
detect experimentally the CFRP strengthening technique for continuous RC beams
exposed to pure torsion. The experimental program includes investigation of two
groups of beams; the first group was composed of twelve un-strengthened beam
specimens and the second one includes a total of twelve strengthened beam specimens;
all were experienced under pure torsion. Factors considered in the testing program
included the effects of concrete compressive strength and the angel of a twist. The angle
of twist at each level of force applications, torque at first crack, ultimate torque was to
be in comparison with for control and strengthened beams. The outcomes of the tests
indicated that all beams wrapped with CFRP fabrics resulted in improvement in
tensional resistance as compared with the reference specimens.
Key words: Torsion; Composite construction; Continuous beams; Concrete; CFRP
sheets.
Cite this Article: Saad Khalaf Mohaisen, Experimental Study of Continuous RC
Beams Strengthened with CFRP Fabrics Under Torsion., International Journal of Civil
Engineering and Technology, 10(01), 2019, pp. 22–36
http://www.iaeme.com/IJCIET/issues.asp?JType=IJCIET&VType=10&IType=01
1. INTRODUCTION
It is well known that the deterioration of concrete structural elements is a major issue and that
it threatens the world in general. Many structural elements and bridges undergo large torsional
moments that seriously affect design and may therefore require futher reinforcement. As a safe,

Saad Khalaf Mohaisen
economical and reasonable concept, it is appropriate to make some repairing and strengthening
the existing reinforced concrete structures with fiber reinforced polymer (FRP) which is better
than other processes, like reinforcing by steel plates. Such a rehabilitation method also proved
previously to be useful in gaining and upgrading the capacity of carrying load carrying for the
existing members of reinforced concrete (RC). Most of the structures that already existing were
designed under older code provisions which inopportunely do not obey the requirements of
recent periods. There is therefore a necessity to find a modern way to increase the capacity of
these structures in order to satisfy the new requirement. This reinforcement and repair are
usually conducted by FRP bonded sheets for reinforced concrete members.
These FRP sheets can be made of carbon, glass or other materials with a similar fiber
characteristic. Enhancement with these materials provides many advantages due to its excellent
properties, a high tensile strength of high hardness ratio, corrosion resistance, excellent fatigue
behavior, and durable. In addition to these unique features, FRP fabrics can be easily installed
and applied in situ without specialized equipment. There is a lack of research on the promotion
of RC members who are subject to sprains with FRP compounds. Unfortunately, design
guidelines are rarely available in [1, 2, 3, and 4]. This absence of experimental testing and
studies combined with full interest in the use of FRP materials in the retrofit of the concrete
structure that failed to sprain was directed through this study of continuous RC beams subject
to twisting and reinforcement with CFRP fabrics.
Retrofitting of RC elements against torsional moments using FRP was less of a concern
than researchers [5, 6, 7]. Reinforcing RC members with FRP increases load capacity in
bending, shear, and succession as well as changing failure patterns [8]. In practice, it is rarely
able to wrap the cross section of the RC beams completely because of the presence of
floorboards or edges. Therefore, most researches conducted on FRP had reinforced RC
members studying rectangular sections completely wrapping by FRP [2, 8, 9, and 10] and only
a few studies have studied T-beams with U jackets [11]. The research tool pointed out that the
deformation of the RC beams strengthened against torsion is similar to that which has not been
strengthened; however, the external bonding inhibits the formation of cracks, reproduction, and
expansion to limit the gap between the cracks [10, 11].
The few studies related to the enhancement of FRP sprain have shown that continuous
rounding is more effective than tape use [12, 13, 14 and 15]. A spiral wrap at an angle of 45 °
is more effective than a vertical wrap [13, 16]. The final resistance strength of the package is
supported by full-length fabrics higher than the strength of the three-sided beam, also called
U-wrap [14, 16]. In addition, the use of anchors greatly increases the torsional capacity of RC
members [16]. However, FRP bonded externally limited the spread of cracks and widened the
gap between the cracks, as well as increased concrete involvement to resist sprains [15-19].
The structural members under torsional forces may be cracked if they are not steel
reinforcement distributed correctly. Furthermore, the changes in loading values, loading
distribution or deterioration of the overall structural members cause defects in resistance to
torsion. Also, in the last earthquake, it was seen that incorrect designed structural members
were failed or severely damaged and even collapse in some cases. Such behavior that may
cause disasters that indicate the need for retrofitting of poor structures due to seismic effects.
Reinforcement of structural elements allowed to give resistance for the strength increases
demands which predicted by the structural analysis, without recognizable changing in the
overall behavior of the structure under loadings. Fiber reinforced polymers composites can
effectively be used as an additional external reinforcement for increasing loads carrying
capacity of deficient reinforced concrete structures [20]. Ghobarah, et.al. [14] studied the
efficiency of FRP supporting for both of columns and beams exposed to torsional forces. They

Experimental Study of Continuous RC Beams Strengthened with CFRP Fabrics Under Torsion
have tested 11 beams wrapped with a different angle of orientations of carbon fiber
reinforcements polymers (CFRP) and glass fiber reinforcement polymers (GFRP). Fully
wrapping the zone of torsion forces of RC beams was found to have considerable positive
effects. FRP fibers oriented by 45° showed the further efficacy of the material.
Santhakumar, et.al. [20] Prepared a numerical research on unstrengthened and strengthened
concrete beams under both effects of torsion and bending and by the finite element method
(FEM). They stated the enhancement in the behavior by applying of CFRP laminates being
very efficient only after the first cracking of the RC beams, but there is no considerable
influence on the unstrengthened stiffness of the beam. The laminates oriented with an angle
±45 degree were more efficient for higher twisting magnitudes to bending moment proportion.
Performance and strengthened concrete element behavior that strengthened with externa GFRP
sheets bond exposed to pure torsion were studied by Panchacharam and Belarbi [15]. Eight
beams were tested and investigated in the study, and various GFRP orientations were used. The
involvement of FRP sheets in both of the longitudinal direction of the beam and accompanied
with fully wrapped laminates displayed an enhancement in both the ultimate load carrying
capacity and ductility of the strengthened beam.
An experimental and numerical study was carried by Ameli, et.al. [18] on a twelve
rectangular RC beams reinforced by CFRP fabrics / GFRP fabrics fully wrapping with various
orientations and configurations. The strengthened beam with FRP was modeled numerically
by ANSYS software. Considerable enhancement in the ductility of RC beams was spotted
wrapping with GFRP fabrics as comparison with CFRP fabrics. An analytical technique for
assessing the torsional capacity for carrying FRP supported RC beams was mentioned by Ameli
and Ronagh [21] by taking the concrete interaction with steel and FRP composite. The
technique developed by them was in close agreement with experimental results of fully
wrapped RC rectangular beams. Chalioris [16] assessed the effectiveness applying epoxy-
bonded CFRP fabrics as an external transverse supporting reinforcement to an under-reinforced
beam with rectangular cross-section have flanges exposed to pure torsional forces. A total of
14 RC rectangular cross-sections and T-section experimental models with 1.6m span length
were tested under external torsion forces only.
A considerable number of studies were conducted on the shear and bending strengthening
of RC rectangular beams with outwardly bonded reinforcement (EBR) using CFRP
composites. However, in reference to shear and bending, still there are several enquiries
concerning the difficulty and the nature of mechanism failure for RC beams supported in
torsion by CFRP fabrics, especially for continuous RC beams. Accordingly, the current study
aims to discover the development in the resistance of continuous RC beams against torsion
force with various angles of a twist, experimentally. The behavior and performance of RC
members that supported with EBR CFRP sheets exposed to torsion is existing in the current
paper.
A total of 16 datasets of continuous concrete beams (8 as references and 8 CFRP-
strengthened beams) were calmed from this study to discover the performance of RC
continuous beams under pure torsion. Developing the resistance of RC beams against torsion
force by using EBR CFRP fabrics was illustrated to be effective. The results indicated that an
enhancement in the torsional capacity carrying CFRP-strengthened beams comparison with the
reference beams.
2. THE SIGNIFICANCE OF THE PRESENT INVESTIGATION
Research into the use of EBR CFRP composites is very advanced developed in flexural, and
shear reinforce as an external bonded reinforcement. On the other hand, a literature survey

carried out by the author who observed that there are a limited experiments and researches on
torsional concrete beams reinforced with CFRP sheets, especially for continuous concrete
beams. Thus, this study tries to bridge this mentioned gap in the literature by studying the
performance of continuous concrete beams reinforced by CFRP sheets under pure torsion.
3. LIMITATIONS
The present study has been conducted on rectangular beams. Only four groups of beam-
specimens have been studied. These groups differ from each other regarding the concrete
compressive strength and the eccentricities. The longitudinal and shear reinforcements are kept
constant for all types of beams. Similarly, the results are limited to the pure torque applied and
no effect of shear force and bending moment has been considered.
4. AN EXPERIMENTAL PROGRAM
4.1. RC beams details and material characteristics
Sixteen concrete test beam samples (sorted into four groups) were cast and evaluated in the
present study. Eight of them were strengthened with CFRP sheets. Each of those samples has
a clear span of 2000 mm and has a rectangular cross sectional with (width and depth) which
(100 and 200)mm respectively. Four deformed steel bars of D10 mm were using as longitudinal
reinforcement, while for the web reinforcement D8 mm deformed steel bars spaced 100 mm

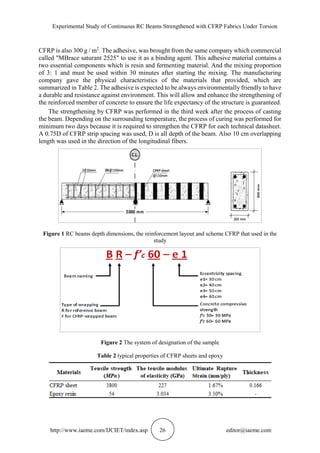

were utilized. Beams cross-sectional dimensions, rebar layouts, and the preparation of the
CFRP fabrics are shown in Figure 1. The sample beam designation system is shown in Figure
2 which considers codes for concrete compressive strengths and eccentricities.
For the case of longitudinal reinforcements, a ratio of 0.08 was used for all specimens. The
layout of reinforcement was designed to be a little bit under the lowest torsional carrying
required capacity in present design standards. This was to simulate RC beams that were
deficient under torsional forces. Uniform level (20 mm) of the cover of concrete that used for
all specimens. The specimens were casting by a ready concrete mix. The compressive strength
of concrete mix was 30 MPa and 60 MPa, when using 2 cm of coarse aggregate as a maximum
size for all specimens. The concrete compressive strength is done with the aid of concrete
cylinders (height of the cylinder 300mm and its diameter is 150 mm). Cylinders of concrete
were casting with the same specimens batch of concrete mixture, and all of them were
undergone to the ame curing conditions. Standard CFRP coupon tensile tests were applied to
find the mechanical features of the steel reinforcing. The longitudinal shear reinforcements and
yield strengths were tested and they were 430 and 484 MPa respectively. Details of concrete
mixes are given in Table 1 showing their properties.
Table 1 Features of concrete mixture.
The CFRP fabrics used in this experimental work were supplied from the Chemical
Company (BASF) by commercial name "MBrace CF 130". The sheet of CFRP has a one-way
arrangement of fibers, with a thickness of 0.166 mm/ply for every layer. The weight of the

CFRP is also 300 g / m2
. The adhesive, was brought from the same company which commercial
called "MBrace saturant 2525" to use it as a binding agent. This adhesive material contains a
two essential components which is resin and fermenting material. And the mixing proportion
of 3: 1 and must be used within 30 minutes after starting the mixing. The manufacturing
company gave the physical characteristics of the materials that provided, which are
summarized in Table 2. The adhesive is expected to be always environmentally friendly to have
a durable and resistance against environment. This will allow and enhance the strengthening of
the reinforced member of concrete to ensure the life expectancy of the structure is guaranteed.
The strengthening by CFRP was performed in the third week after the process of casting
the beam. Depending on the surrounding temperature, the process of curing was performed for
minimum two days because it is required to strengthen the CFRP for each technical datasheet.
A 0.75D of CFRP strip spacing was used, D is all depth of the beam. Also 10 cm overlapping
length was used in the direction of the longitudinal fibers.
Figure 1 RC beams depth dimensions, the reinforcement layout and scheme CFRP that used in the
study
Figure 2 The system of designation of the sample
Table 2 typical properties of CFRP sheets and epoxy

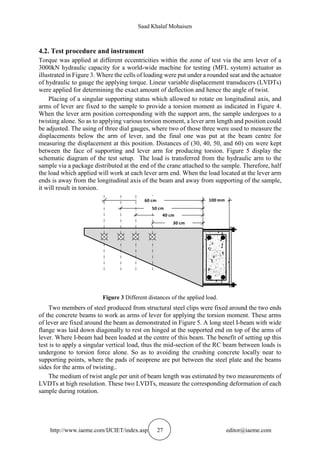

4.2. Test procedure and instrument
Torque was applied at different eccentricities within the zone of test via the arm lever of a
3000kN hydraulic capacity for a world-wide machine for testing (MFL system) actuator as
illustrated in Figure 3. Where the cells of loading were put under a rounded seat and the actuator
of hydraulic to gauge the applying torque. Linear variable displacement transducers (LVDTs)
were applied for determining the exact amount of deflection and hence the angle of twist.
Placing of a singular supporting status which allowed to rotate on longitudinal axis, and
arms of lever are fixed to the sample to provide a torsion moment as indicated in Figure 4.
When the lever arm position corresponding with the support arm, the sample undergoes to a
twisting alone. So as to applying various torsion moment, a lever arm length and position could
be adjusted. The using of three dial gauges, where two of those three were used to measure the
displacements below the arm of lever, and the final one was put at the beam centre for
measuring the displacement at this position. Distances of (30, 40, 50, and 60) cm were kept
between the face of supporting and lever arm for producing torsion. Figure 5 display the
schematic diagram of the test setup. The load is transferred from the hydraulic arm to the
sample via a package distributed at the end of the crane attached to the sample. Therefore, half
the load which applied will work at each lever arm end. When the load located at the lever arm
ends is away from the longitudinal axis of the beam and away from supporting of the sample,
it will result in torsion.
30 cm
40 cm
50 cm
60 cm 100 mm
Figure 3 Different distances of the applied load.
Two members of steel produced from structural steel clips were fixed around the two ends
of the concrete beams to work as arms of lever for applying the torsion moment. These arms
of lever are fixed around the beam as demonstrated in Figure 5. A long steel I-beam with wide
flange was laid down diagonally to rest on hinged at the supported end on top of the arms of
lever. Where I-beam had been loaded at the centre of this beam. The benefit of setting up this
test is to apply a singular vertical load, thus the mid-section of the RC beam between loads is
undergone to torsion force alone. So as to avoiding the crushing concrete locally near to
supporting points, where the pads of neoprene are put between the steel plate and the beams
sides for the arms of twisting..
The medium of twist angle per unit of beam length was estimated by two measurements of
LVDTs at high resolution. These two LVDTs, measure the corresponding deformation of each
sample during rotation.

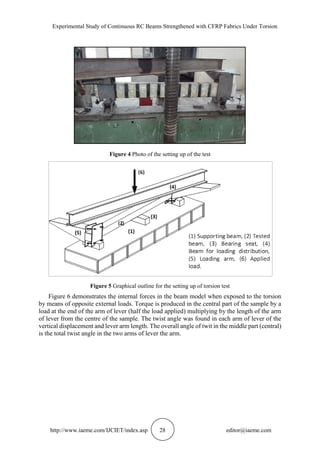

Figure 4 Photo of the setting up of the test
Figure 5 Graphical outline for the setting up of torsion test
Figure 6 demonstrates the internal forces in the beam model when exposed to the torsion
by means of opposite external loads. Torque is produced in the central part of the sample by a
load at the end of the arm of lever (half the load applied) multiplying by the length of the arm
of lever from the centre of the sample. The twist angle was found in each arm of lever of the
vertical displacement and lever arm length. The overall angle of twit in the middle part (central)
is the total twist angle in the two arms of lever the arm.

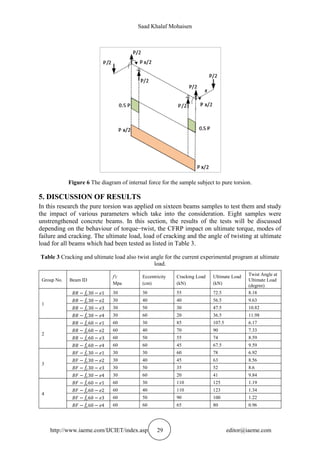

Figure 6 The diagram of internal force for the sample subject to pure torsion.
5. DISCUSSION OF RESULTS
In this research the pure torsion was applied on sixteen beams samples to test them and study
the impact of various parameters which take into the consideration. Eight samples were
unstrengthened concrete beams. In this section, the results of the tests will be discussed
depending on the behaviour of torque−twist, the CFRP impact on ultimate torque, modes of
failure and cracking. The ultimate load, load of cracking and the angle of twisting at ultimate
load for all beams which had been tested as listed in Table 3.
Table 3 Cracking and ultimate load also twist angle for the current experimental program at ultimate
load.
Group No. Beam ID
f'c
Mpa
Eccentricity
(cm)
Cracking Load
(kN)
Ultimate Load
(kN)
Twist Angle at
Ultimate Load
(degree)
1
𝐵𝑅 − 𝑓𝑐
́ 30 − 𝑒1 30 30 55 72.5 8.18
́ 30 − 𝑒2 30 40 40 56.5 9.63
́ 30 − 𝑒3 30 50 30 47.5 10.82
́ 30 − 𝑒4 30 60 20 36.5 11.98
2
́ 60 − 𝑒1 60 30 85 107.5 6.17
́ 60 − 𝑒2 60 40 70 90 7.33
́ 60 − 𝑒3 60 50 55 74 8.59
́ 60 − 𝑒4 60 60 45 67.5 9.59
3
𝐵𝐹 − 𝑓𝑐
́ 30 − 𝑒1 30 30 60 78 6.92
́ 30 − 𝑒2 30 40 45 63 8.56
́ 30 − 𝑒3 30 50 35 52 8.6
́ 30 − 𝑒4 30 60 20 41 9.84
4
́ 60 − 𝑒1 60 30 110 125 1.19
́ 60 − 𝑒2 60 40 110 123 1.34
́ 60 − 𝑒3 60 50 90 100 1.22
́ 60 − 𝑒4 60 60 65 80 0.96

5.1. Crack Behaviour and Modes of Failure
The modes of failure for unstrengthening and CFRP-strengthened reinforced concrete beam
specimens exposed to torsion are presented in Figure7. However, the appearing of the first
vertical cracks of the unstrengthening beams was at mid of the vertical forces. Where the
initiation of the tension cracks which diagonally inclined and propagated in spiral patterns
shape. Then the cracks are gradually enlarged with increasing of the load for the segments of
the two beams that rotating relatively one to another one on the RC beams centroid axis.
In some strengthened beam specimens, debonding failure of CFRP sheets is noticed at
different places, as seen in Figure 7. Initially, vertical cracks were noticed at the bottom of
specimen side faces. The cracks of torsion that take a diagonal shape were taken placed and
expanded in the concrete parts that unwrapped and between the strips of the four sides of the
tested beams. The failure is partially delayed comparison with unstrengthening samples.
Failure of CFRP fabric started by tearing off the bottom corner longitudinal strip as
demonstrated in Figure 7.
Figure 7. The failure shape of the tested samples under torsion.
5.2. A comparison of Cracking and Ultimate Torque
Figure 8 demonstrated a comparison with moment at the ultimate torque and first crack for
unstrengthened beam specimens and beams strengthened with CFRP strips tested in torsion.
For 30 MPa tested beams with eccentricity (30, 40, 50, and 60) cm exhibited maxima of (10.9,
17.5, 20, and 20) % increase in cracking torque and maxima of (7.6, 11.5, 9.5, 12.3) %
increasing in ultimate torque amongst all the tested strengthened beams. Moreover, compared
to unstrengthened beam specimens, there were increases in cracking and ultimate torque of
(29.4, 57.1, 63.6, and 44.4) % and (16.3, 36.7, 35.1, and 18.5) %, for 60 MPa concrete
compressive strength. To conclude, the torsional RC beams wrapped with CFRP sheets
displayed a great increasing in the crack, ultimate deformations of twist and ultimate strength
for all wrapped beams by CFRP sheet. It could be concluded by that wrapped beams have
generally an improving in the capacity of the torsional moment significantly by up to 64%.

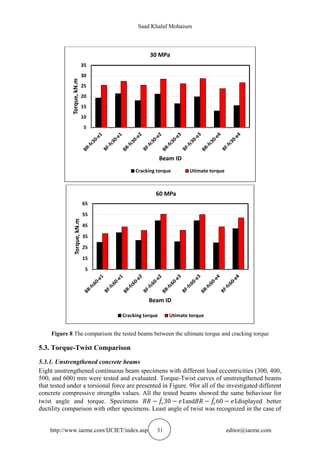

Figure 8 The comparison the tested beams between the ultimate torque and cracking torque
5.3. Torque-Twist Comparison
5.3.1. Unstrengthened concrete beams
Eight unstrengthened continuous beam specimens with different load eccentricities (300, 400,
500, and 600) mm were tested and evaluated. Torque-Twist curves of unstrengthened beams
that tested under a torsional force are presented in Figure. 9for all of the investigated different
concrete compressive strengths values. All the tested beams showed the same behaviour for
twist angle and torque. Specimens 𝐵𝑅 − 𝑓𝑐
́ 30 − 𝑒1and𝐵𝑅 − 𝑓𝑐
́ 60 − 𝑒1displayed better
ductility comparison with other specimens. Least angle of twist was recognized in the case of
5
10
15
20
25
30
35
Torque,kN.m
Beam ID
30 MPa
Cracking torque Utimate torque
5
15
25
35
45
55
65
Torque,kN.m
Beam ID
60 MPa
Cracking torque Utimate torque

the unstrengthened specimen. For different concrete compressive strengths, the results showed
considerable increment in torque of specimens for all the eccentricities. The ultimate torque
capacity increased by approximately (86.9%and133%) for 30 and 60 MPa, as shown in Figure
9. Moreover, the angle of twist increased (46% and 55.6%) for the different concrete
compressive strengths.
(a) 30 MPa
(b) 60 MPa

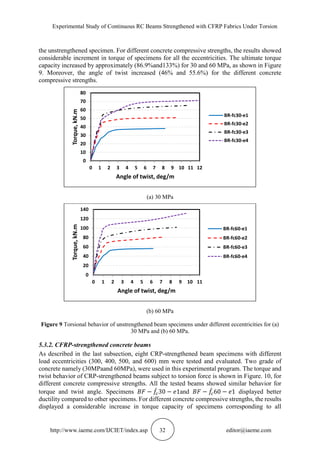

Figure 9 Torsional behavior of unstrengthened beam specimens under different eccentricities for (a)
30 MPa and (b) 60 MPa.
5.3.2. CFRP-strengthened concrete beams
As described in the last subsection, eight CRP-strengthened beam specimens with different
load eccentricities (300, 400, 500, and 600) mm were tested and evaluated. Two grade of
concrete namely (30MPaand 60MPa), were used in this experimental program. The torque and
twist behavior of CRP-strengthened beams subject to torsion force is shown in Figure. 10, for
different concrete compressive strengths. All the tested beams showed similar behavior for
torque and twist angle. Specimens 𝐵𝐹 − 𝑓𝑐
́ 30 − 𝑒1and 𝐵𝐹 − 𝑓𝑐
́ 60 − 𝑒1 displayed better
ductility compared to other specimens. For different concrete compressive strengths, the results
displayed a considerable increase in torque capacity of specimens corresponding to all
0
10
20
30
40
50
60
70
80
0 1 2 3 4 5 6 7 8 9 10 11 12
Torque,kN.m
Angle of twist, deg/m
BR-fc30-e1
BR-fc30-e2
BR-fc30-e3
BR-fc30-e4
0
20
40
60
80
100
120
140
0 1 2 3 4 5 6 7 8 9 10 11
Torque,kN.m
BR-fc60-e1
BR-fc60-e2
BR-fc60-e3
BR-fc60-e4

eccentricities. The ultimate torque capacity increased by approximately 7.3% and26.5% for 30
and 60 MPa, respectively. This was shown in Figure 10. Moreover, the angle of twist increased
by42.2% and 246%for the different concrete compressive strength.

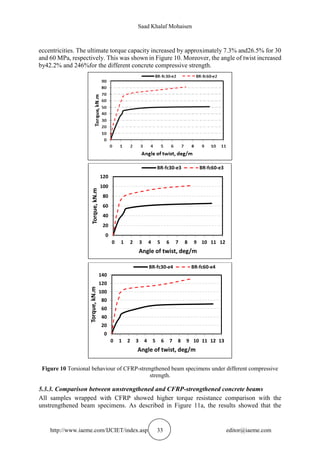

Figure 10 Torsional behaviour of CFRP-strengthened beam specimens under different compressive
strength.
5.3.3. Comparison between unstrengthened and CFRP-strengthened concrete beams
All samples wrapped with CFRP showed higher torque resistance comparison with the
unstrengthened beam specimens. As described in Figure 11a, the results showed that the
0
20
40
60
80
100
120
0 1 2 3 4 5 6 7 8 9 10 11 12
Torque,kN.m
BR-fc30-e3 BR-fc60-e3
0
20
40
60
80
100
120
140
0 1 2 3 4 5 6 7 8 9 10 11 12 13
Torque,kN.m
BR-fc30-e4 BR-fc60-e4

cracking torque capacity increased by approximately (11% - 20%) for 30 and (29.4% - 64%)
for 60 MPa. Moreover, the ultimate torque capacity increased by (7% -11%) and (14% -27%)
for (30MPa and 60MPa) concrete compressive strength.
(a)
(b)

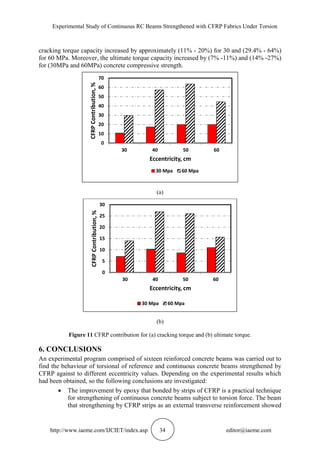

Figure 11 CFRP contribution for (a) cracking torque and (b) ultimate torque.
6. CONCLUSIONS
An experimental program comprised of sixteen reinforced concrete beams was carried out to
find the behaviour of torsional of reference and continuous concrete beams strengthened by
CFRP against to different eccentricity values. Depending on the experimental results which
had been obtained, so the following conclusions are investigated:
 The improvement by epoxy that bonded by strips of CFRP is a practical technique
for strengthening of continuous concrete beams subject to torsion force. The beam
that strengthening by CFRP strips as an external transverse reinforcement showed
0
10
20
30
40
50
60
70
30 40 50 60
CFRPContribution,%
Eccentricity, cm
30 Mpa 60 Mpa
0
5
10
15
20
25
30
30 40 50 60
CFRPContribution,%
Eccentricity, cm
30 Mpa 60 Mpa

overall a better performance for torsional comparison with unstrengthen beams by
up to 64%, as indicated in BR-fc60-e3.
 The results which had been obtained indicated an increasing in the ultimate capacity
of torque by approximately 7.3% and26.5%for 30 and 60 MPa, respectively.
Moreover, an increase in the angle of twist of 42.2% and 246% was observed
corresponding to the different concrete compressive strength.
 The beams that wrapped by CFRP strips had been delayed the failure partially
comparison with the failure of the reference samples which is due to the existence
of CFRP which prevent the initial cracking. However, eventually the diagonal
torsional cracks appeared and widened in the beams of concrete that unwrapped
while fiber deboning has been noticed for some specimens.
 All the tested beams had the same torque behaviour and twist angle. Specimens
(𝐵𝑅 − 𝑓𝑐
́ 30 − 𝑒1 𝑎𝑛𝑑 𝐵𝑅 − 𝑓𝑐
́ 60 − 𝑒1) for unstrengthening and (𝐵𝐹 − 𝑓𝑐
́ 30 −
𝑒1and𝐵𝐹 − 𝑓𝑐
́ 60 − 𝑒1) for beams strengthened with CFRP strips displayed better
ductility compared to other specimens.
7. AREA OF FUTURE STUDIES
For this work the following recommendations had been summarized to help in the future works:
 The person needs to realise the results limitations which related to each parameter
like (1) CFRP layers number, (2) geometry and type of the device of anchoring, (3)
complexity and scale of the samples of spandrel-beam. As well as more researches
are required to identify the effect of these parameters.
 The current research was answered the questions and problems of the behavior of
pure torsion for the concrete continuous beams that strengthened by strips of CFRP.
However, there are other issues for detailing which need an addressing that relating
to the rate of the longitudinal reinforcement, and the influence of the combination
of loading (bending, torsion and shear).
 The improvement of the analytical model of rigorous for analysing the RC beam
that strengthened by different CFRP failure modes.
REFERENCES
[1] P.R. Salom, J. Gergely, D.T. Young, Torsional strengthening of spandrel beams with
composite laminates, J. Compos. Constr. 8 (2) (2004) 157–162.
[2] A.K.Y. Hii, R. Al-Mahaidi, An Experimental Investigation on Torsional Behavior of Solid
and Box-Section RC Beams Strengthened with CFRP Using Photogrammetry, Department
of Civil Engineering, Monash University, Victoria, Australia, 2005 Manuscript No.
CC/2005/022635.
[3] Hanoon A. N. , M.S. Jaafar, Salah R. Al Zaidee, Farzad Hejazi, F.N.A. Abd Aziz.
Effectiveness factor of the strut-and-tie model for reinforced concrete deep beams
strengthened with CFRP sheet. Journal of Building Engineering Volume 12, July 2017,
Pages 8-16. https://doi.org/10.1016/j.jobe.2017.05.001
[4] Hanoon, A. N., Jaafar, M. S., Hejazi, F., & Aziz, F. N. A. (2017). Strut-and-tie model for
externally bonded CFRP-strengthened reinforced concrete deep beams based on particle
swarm optimization algorithm: CFRP debonding and rupture. Construction and Building
Materials, 147, 428-447.

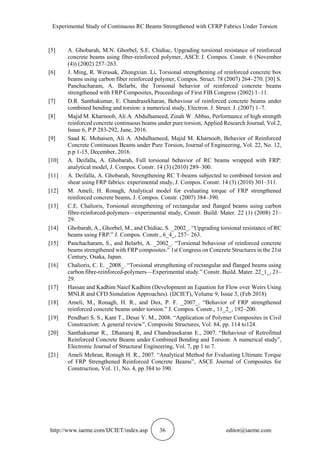

[5] A. Ghobarah, M.N. Ghorbel, S.E. Chidiac, Upgrading torsional resistance of reinforced
concrete beams using fiber-reinforced polymer, ASCE J. Compos. Constr. 6 (November
(4)) (2002) 257–263.
[6] J. Ming, R. Werasak, Zhongxian. Li, Torsional strengthening of reinforced concrete box
beams using carbon fiber reinforced polymer, Compos. Struct. 78 (2007) 264–270. [30] S.
Panchacharam, A. Belarbi, the Torsional behavior of reinforced concrete beams
strengthened with FRP Composites, Proceedings of First FIB Congress (2002) 1–11.
[7] D.R. Santhakumar, E. Chandrasekharan, Behaviour of reinforced concrete beams under
combined bending and torsion: a numerical study, Electron. J. Struct. J. (2007) 1–7.
[8] Majid M. Kharnoob, Ali A. Abdulhameed, Zinah W. Abbas, Performance of high strength
reinforced concrete continuous beams under pure torsion, Applied Research Journal, Vol.2,
Isuue 6, P.P 283-292, June, 2016.
[9] Saad K. Mohaisen, Ali A. Abdulhameed, Majid M. Kharnoob, Behavior of Reinforced
Concrete Continuous Beams under Pure Torsion, Journal of Engineering, Vol. 22, No. 12,
p.p 1-15, December, 2016.
[10] A. Deifalla, A. Ghobarah, Full torsional behavior of RC beams wrapped with FRP:
analytical model, J. Compos. Constr. 14 (3) (2010) 289–300.
[11] A. Deifalla, A. Ghobarah, Strengthening RC T-beams subjected to combined torsion and
shear using FRP fabrics: experimental study, J. Compos. Constr. 14 (3) (2010) 301–311.
[12] M. Ameli, H. Ronagh, Analytical model for evaluating torque of FRP strengthened
reinforced concrete beams, J. Compos. Constr. (2007) 384–390.
[13] C.E. Chalioris, Torsional strengthening of rectangular and flanged beams using carbon
fibre-reinforced-polymers—experimental study, Constr. Build. Mater. 22 (1) (2008) 21–
29.
[14] Ghobarah, A., Ghorbel, M., and Chidiac, S. _2002_. “Upgrading torsional resistance of RC
beams using FRP.” J. Compos. Constr., 6_4_, 257– 263.
[15] Panchacharam, S., and Belarbi, A. _2002_. “Torsional behaviour of reinforced concrete
beams strengthened with FRP composites.” 1st Congress on Concrete Structures in the 21st
Century, Osaka, Japan.
[16] Chalioris, C. E. _2008_. “Torsional strengthening of rectangular and flanged beams using
carbon fibre-reinforced-polymers—Experimental study.” Constr. Build. Mater. 22_1_, 21–
29.
[17] Hassan and Kadhim Naief Kadhim (Development an Equation for Flow over Weirs Using
MNLR and CFD Simulation Approaches). (IJCIET), Volume 9, Issue 3, (Feb 2018)
[18] Ameli, M., Ronagh, H. R., and Dux, P. F. _2007_. “Behavior of FRP strengthened
reinforced concrete beams under torsion.” J. Compos. Constr., 11_2_, 192–200.
[19] Pendhari S. S., Kant T., Desai Y. M., 2008. “Application of Polymer Composites in Civil
Construction: A general review”, Composite Structures, Vol. 84, pp. 114 to124.
[20] Santhakumar R., .Dhanaraj R, and Chandrasekaran E., 2007. “Behaviour of Retrofitted
Reinforced Concrete Beams under Combined Bending and Torsion: A numerical study”,
Electronic Journal of Structural Engineering, Vol. 7, pp 1 to 7.
[21] Ameli Mehran, Ronagh H. R., 2007. “Analytical Method for Evaluating Ultimate Torque
of FRP Strengthened Reinforced Concrete Beams”, ASCE Journal of Composites for
Construction, Vol. 11, No. 4, pp 384 to 390.

Ijciet 10 01_003

More Related Content

What's hot

Similar to Ijciet 10 01_003

More from IAEME Publication

Recently uploaded

Ijciet 10 01_003
