IGT-2205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with two 10/100/1000BASE-T RJ45 copper port and two 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-2205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C Contact us Tel: +91-7875432180 Email: sales@bbcpl.in Website: https://www.bbcpl.in​

1. 1

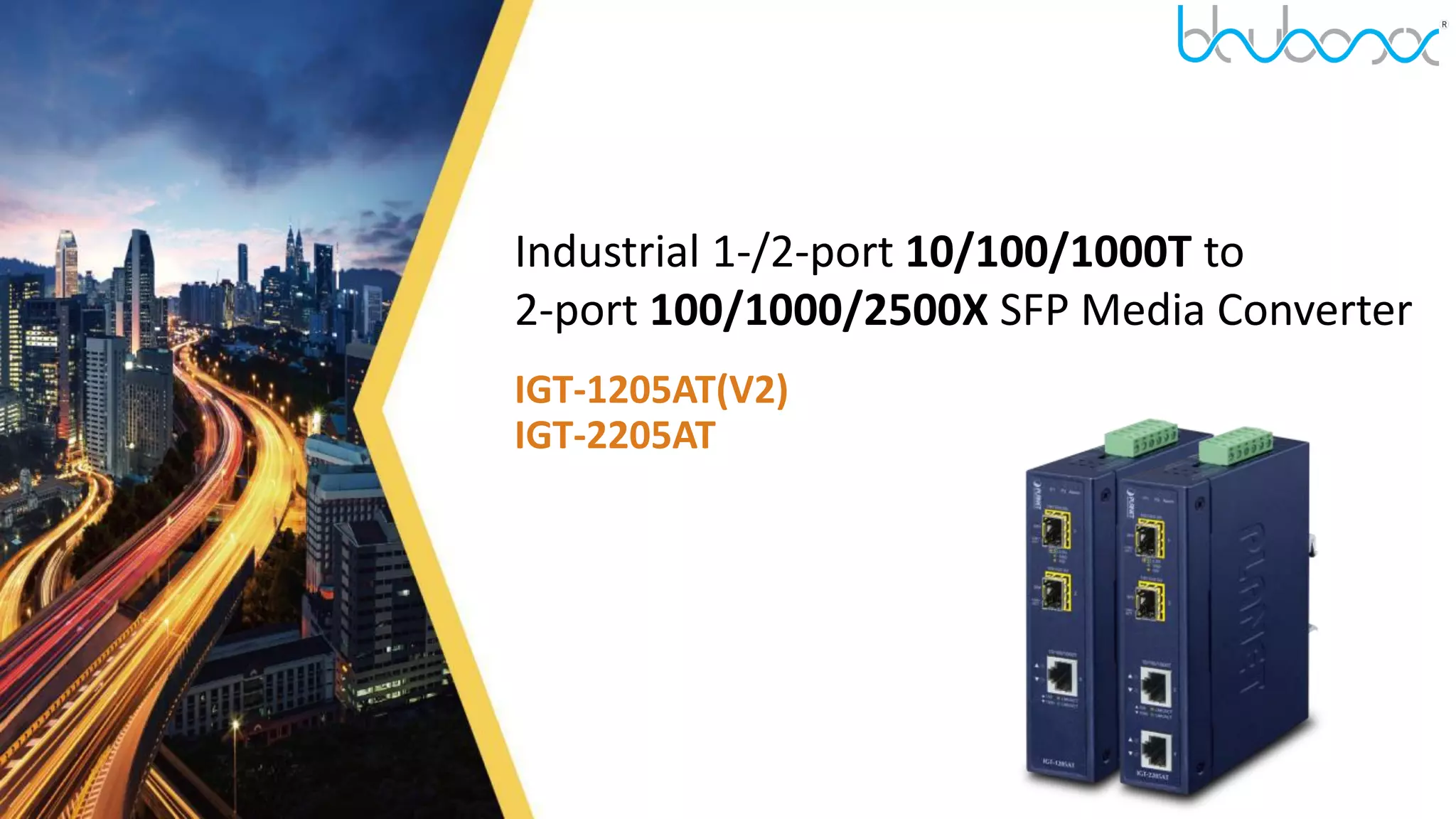

Industrial 1-/2-port 10/100/1000T to
2-port 100/1000/2500X SFP Media Converter
IGT-1205AT(V2)
IGT-2205AT

2. 2
Presentation Outlines

3. 3
Presentation Outlines
PRODUCT
POSITIONING
PRODUCT
OVERVIEW
PRODUCT
FEATURES
PRODUCT
BENEFITS
APPLICATIONS

4. 4

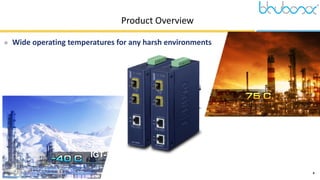

Product Overview
 Wide operating temperatures for any harsh environments
IGT-1205/2205AT

5. 5

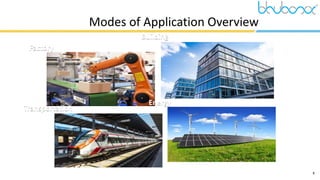

Factory
Building
Transportation
Energy
Modes of Application Overview

6. 6

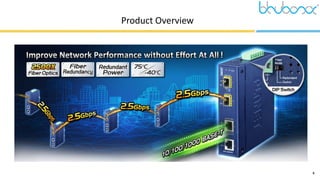

Product Overview

7. 7
Product Positioning

8. 8
Gigabit
Ethernet
Fast
Ethernet
Unmanaged Managed

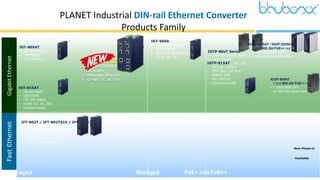

PLANET Industrial DIN-rail Ethernet Converter
Products Family
IGT-805AT
• 10/100/1000T
• 100/1000X
• 12 to 48V DC
New Phase-in
Available
IFT-802T / IFT-802TS15 / IFT-805AT
• 1 10/100BASE-T RJ45
• 1 100BASE-FX SC interface for IFT-802T
• 1 100BASE-FX SC interface for IFT-802TS15
• 1 SFP port for IFT-805AT
• -40 to 75 degrees C
IGT-815AT
• 10/100/1000T
• 100/1000X
• LFP DIP switch
• 9~48V DC, AC 24V
• Compact-sized
IGT-1205AT / IGT-2205AT
• 10/100/1000T to 100/1000/2500X
• DIP switch
• Redundant fiber port
• 12~48V DC, AC 24V
PoE+ and PoE++
IGTP-80xT Series
• 10/100/1000T PoE+
to 100/1000X
• 12~48V DC, AC 24V
IGTP-815AT
• 10/100/1000T
• 30W 802.3at PoE+
• 1000X SFP
• 48~56V DC
• Compact-sized
IGT-905A
• 10/100/1000T
• 1000X SFP
• Web and SNMP Managed
• 12 to 48V DC
IGUP-1205AT / IGUP-2205AT
• 2 port 802.3bt PoE++ out
• 2 100/1000X SFP
• 12~56V DC power booster
IGUP-805AT
• 1 port 802.3bt PoE++ out
• 1 100/1000X SFP
• 12~56V DC power booster

9. 9
Model IGT-1205AT (v1) IGT-1205AT (v2)
Hardware Specifications
RJ45 Port 1 x 10/100/1000BASE-T Port 1 x 10/100/1000BASE-T Port
SFP Port 2 x 100/1000BASE-X Ports 2 x 100/1000/2500BASE-X Ports
DIP Switch
DIP-1: SFP Port 5 1000BASE-X (default) / 100BASE-FX
DIP-2: SFP Port 6 1000BASE-X (default) / 100BASE-FX
DIP-3: Switch mode / Fiber Redundancy mode
DIP-On: Fiber Redundancy mode
DIP-Off (default): Switch mode
Dimensions 32 x 87 x 135mm
Power Requirement DC 12~48V or AC 24V, Redundant power
Installation DIN-rail kit and wall-mount ear
Case IP30 metal case
Protection 6KV ESD
Temperature -40~75 degrees C
Comparison Table

10. 10

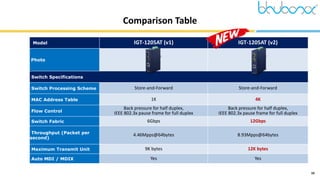

Comparison Table
Model IGT-1205AT (v1) IGT-1205AT (v2)
Switch Specifications
Switch Processing Scheme Store-and-Forward Store-and-Forward
MAC Address Table 1K 4K
Flow Control
Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Switch Fabric 6Gbps 12Gbps
Throughput (Packet per
second)
4.46Mpps@64bytes 8.93Mpps@64bytes
Maximum Transmit Unit 9K bytes 12K bytes
Auto MDI / MDIX Yes Yes

11. 11
Product Overview

12. 12
Product Overview
LEDs
• Power 1/2 and Alarm
2 x 100/1000/2500BASE-X
SFP ports
1 or 2 x 10/100/1000BASET
RJ45 port
★ Although 2.5G LED is a bi-color light,
the actual color is close to Amber.

13. 13

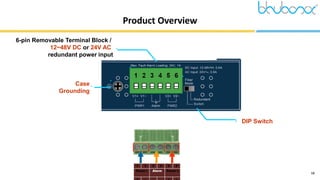

Product Overview
6-pin Removable Terminal Block /
12~48V DC or 24V AC
redundant power input
DIP Switch
Case
Grounding
1 2 3 4 5 6
Power 1 Alarm Power 2

14. 14

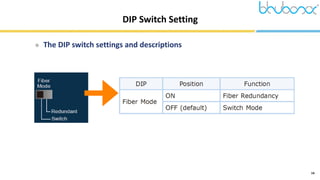

DIP Switch Setting
 The DIP switch settings and descriptions

15. 15

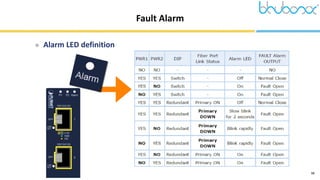

Fault Alarm
 Alarm LED definition

16. 16
Dimensions – IGT-1205AT

17. 17

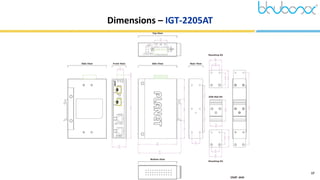

Dimensions – IGT-2205AT

18. 18
Product Benefits

19. 19

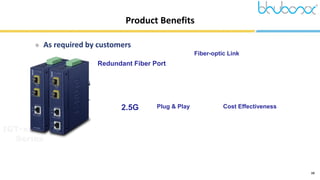

Product Benefits
 As required by customers
Up to
2.5G
Increased Bandwidth
Fiber-optic Link
Extends the Range of Network Deployment
Plug & Play Cost Effectiveness
DIP Switch
Redundant Fiber Port
IGT-x205AT
Series

20. 20
Product Features

21. 21
Key Features
Redundant Fiber
Port
12-48V DC, 24V
AC Input
-40 to 75
degrees C
Full Ports
Gigabit
Wall-mount/
DIN-rail Kit
100/1000/2500X
SFP
IP30
Rugged Case
IGT-x205AT
Series

22. 22
Product Features
- Fiber Redundancy -

23. 23

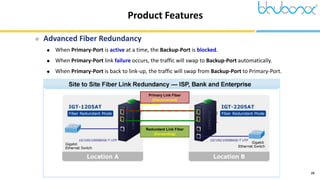

Redundant Link Fiber
(Disable)
Product Features
 Advanced Fiber Redundancy
 When Primary-Port is active at a time, the Backup-Port is blocked.
 When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically.
 When Primary-Port is back to link-up, the traffic will swap from Backup-Port to Primary-Port.
Rapid Fiber Redundancy
Link Fail
Primary Link Fiber
(Forwarding)
Redundant Link Fiber
(Forwarding)
Primary Link Fiber
(Disconnected)

24. 24
 Extends the Range of Network Deployment
Distance extends up to 240km
Cascaded Fiber Optic Link
120km
120km

25. 25

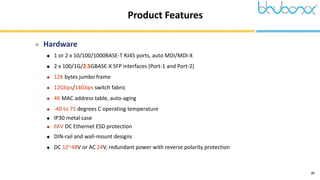

Product Features
 Hardware
 1 or 2 x 10/100/1000BASE-T RJ45 ports, auto MDI/MDI-X
 2 x 100/1G/2.5GBASE-X SFP interfaces (Port-1 and Port-2)
 12K bytes jumbo frame
 12Gbps/14Gbps switch fabric
 4K MAC address table, auto-aging
 -40 to 75 degrees C operating temperature
 IP30 metal case
 6KV DC Ethernet ESD protection
 DIN-rail and wall-mount designs
 DC 12~48V or AC 24V, redundant power with reverse polarity protection

26. 26
Applications

27. 27
 Public Construction Long-distance Fiber Uplink
Outdoor Camera
Applications

28. 28

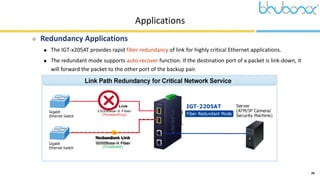

Applications
 Redundancy Applications
 The IGT-x205AT provides rapid fiber redundancy of link for highly critical Ethernet applications.
 The redundant mode supports auto-recover function. If the destination port of a packet is link-down, it
will forward the packet to the other port of the backup pair.
Rapid Fiber Redundancy

29. 29
