IGS-10020MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 8 10/100/1000BASE-T copper ports, 2 100/1000/2500BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. Within such favorable enclosure, it provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. Contact us Tel: +91-7875432180 Email: sales@bbcpl.in Website: https://bbcpl.in

1. 1 / 46
 Product Positioning
 Product Overview
 Product Benefits
 Product Features
 Applications

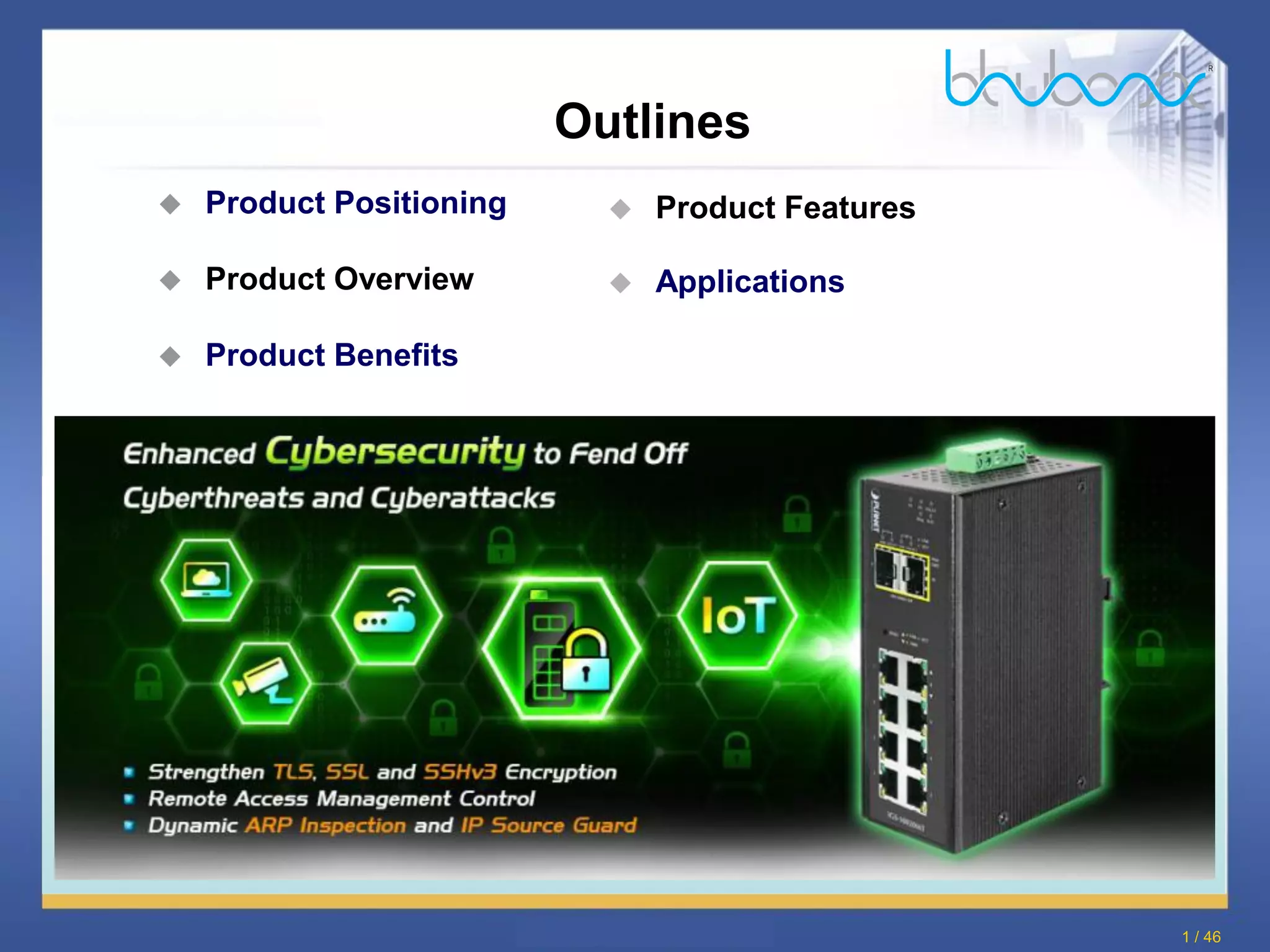

Outlines

2. Product Positioning

3. 3 / 46
Factory
Transportation
Modes of Application Overview
Building
Energy

4. 4 / 46

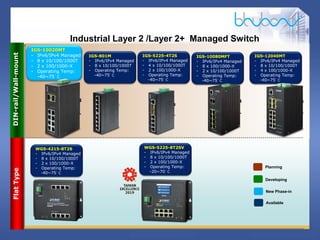

Industrial Layer 2 /Layer 2+ Managed Switch
DIN-rail/Wall-mount
Flat
Type
Developing
Planning
New Phase-in
Available
WGS-4215-8T2S
- IPv6/IPv4 Managed
- 8 x 10/100/1000T
- 2 x 100/1000-X
- Operating Temp:
-40~75° C
WGS-5225-8T2SV
- IPv6/IPv4 Managed
- 8 x 10/100/1000T
- 2 x 100/1000-X
- Operating Temp:
-20~70° C
IGS-801M
- IPv6/IPv4 Managed
- 8 x 10/100/1000T
- Operating Temp:
-40~75° C
IGS-5225-4T2S
- IPv6/IPv4 Managed
- 4 x 10/100/1000T
- 2 x 100/1000-X
- Operating Temp:
-40~75° C
IGS-10080MFT
- IPv6/IPv4 Managed
- 8 x 100/1000-X
- 2 x 10/100/1000T
- Operating Temp:
-40~75° C
IGS-12040MT
- IPv6/IPv4 Managed
- 8 x 10/100/1000T
- 4 x 100/1000-X
- Operating Temp:
-40~75° C
IGS-10020MT
- IPv6/IPv4 Managed
- 8 x 10/100/1000T
- 2 x 100/1000-X
- Operating Temp:
-40~75° C

5. 5 / 46

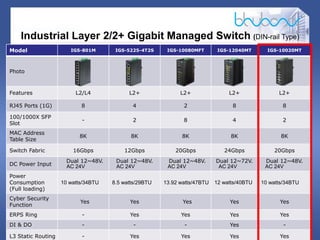

Industrial Layer 2/2+ Gigabit Managed Switch (DIN-rail Type)
Model IGS-801M IGS-5225-4T2S IGS-10080MFT IGS-12040MT IGS-10020MT
Features L2/L4 L2+ L2+ L2+ L2+
RJ45 Ports (1G) 8 4 2 8 8
100/1000X SFP
Slot
- 2 8 4 2
MAC Address
Table Size
8K 8K 8K 8K 8K
Switch Fabric 16Gbps 12Gbps 20Gbps 24Gbps 20Gbps
DC Power Input
Dual 12~48V.
AC 24V
Dual 12~48V.
AC 24V
Dual 12~48V.
AC 24V
Dual 12~72V.
AC 24V
Dual 12~48V.
AC 24V
Power
Consumption
(Full loading)
10 watts/34BTU 8.5 watts/29BTU 13.92 watts/47BTU 12 watts/40BTU 10 watts/34BTU
Cyber Security
Function
Yes Yes Yes Yes Yes
ERPS Ring - Yes Yes Yes Yes
DI & DO - - - Yes -
L3 Static Routing - Yes Yes Yes Yes

6. Product Overview

7. 7 / 46
Product Overview

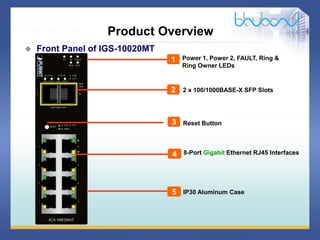

 Front Panel of IGS-10020MT
1 Power 1, Power 2, FAULT, Ring &
Ring Owner LEDs
2 x 100/1000BASE-X SFP Slots
2
IP30 Aluminum Case
5
Reset Button
3
8-Port Gigabit Ethernet RJ45 Interfaces
4

8. 8 / 46
Product Overview

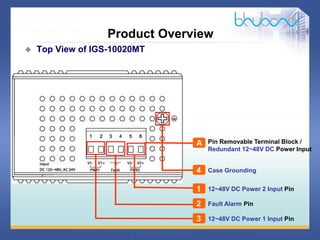

 Top View of IGS-10020MT
A Pin Removable Terminal Block /
Redundant 12~48V DC Power Input
1 12~48V DC Power 2 Input Pin
2 Fault Alarm Pin
3 12~48V DC Power 1 Input Pin
4 Case Grounding
8 / 41

9. 9 / 62
 Mounting Kit
 DIN-rail Kit
IGS-10020MT
Product Overview

10. Product Benefits

11. 11 / 46
 Industrial Conformance
 12~48V DC redundant power
 24V AC power adapter
 -40 to 75 degrees C operating temperature
 IP30-rated aluminum case
 Full/Secure Management
 SSH, TLS and SNMPv3 protocols ensure security management
 SNMP, RMON and Trap Alarm for Centralized Network Management
 Industrial Protocol
 Modbus TCP for real-time monitoring in SCADA system
 IEEE 1588v2 PTP (Precision Time Protocol)
 Redundant Ring with Fast Recovery Capability
 ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
 IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Product Benefits

12. Product Features

13. 13 / 46
IPv4/IPv6
Static Routing
12~48V DC
Redundant
Power Input
2 100/1000X
SFP
Interfaces
Cyber Security
-40~75
degrees C
Eight
10/100/1000T
Ports
ITU-T G.8032
ERPS
Ring

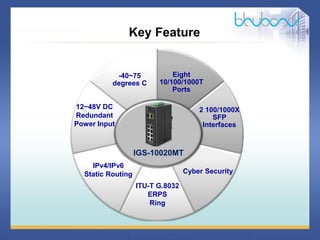

Key Feature
IGS-10020MT

14. Product Features
- Smart Event Management -

15. 15 / 46

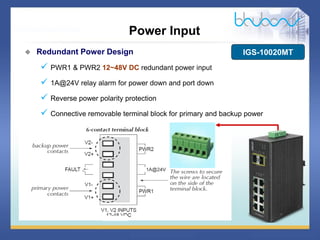

 Redundant Power Design
 PWR1 & PWR2 12~48V DC redundant power input
 1A@24V relay alarm for power down and port down
 Reverse power polarity protection
 Connective removable terminal block for primary and backup power
Power Input
IGS-10020MT

16. 16 / 46

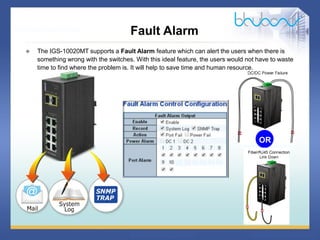

Fault Alarm
 The IGS-10020MT supports a Fault Alarm feature which can alert the users when there is
something wrong with the switches. With this ideal feature, the users would not have to waste
time to find where the problem is. It will help to save time and human resource.
OR

17. 17 / 46

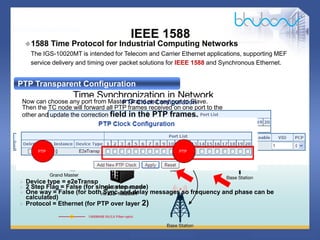

IEEE 1588
1588 Time Protocol for Industrial Computing Networks
The IGS-10020MT is intended for Telecom and Carrier Ethernet applications, supporting MEF
service delivery and timing over packet solutions for IEEE 1588 and Synchronous Ethernet.
PTP Transparent Configuration
 Device type = e2eTransp
 2 Step Flag = False (for single step mode)
 One way = False (for both Sync and delay messages so frequency and phase can be
calculated)
 Protocol = Ethernet (for PTP over layer 2)
Now can choose any port from Master Grand and any port to Slave.
Then the TC node will forward all PTP frames received on one port to the
other and update the correction field in the PTP frames.
PTP PTP
PTP
PTP

18. 18 / 46

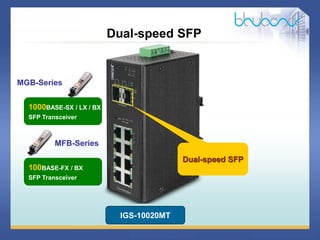

Dual-speed SFP
MFB-Series
MGB-Series
Dual-speed SFP
1000BASE-SX / LX / BX
SFP Transceiver
100BASE-FX / BX
SFP Transceiver
IGS-10020MT

19. 19 / 62

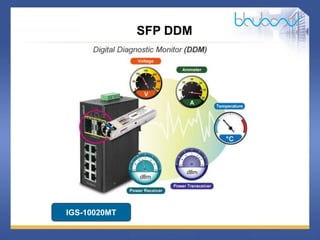

SFP DDM
IGS-10020MT

20. Product Features
- Cybersecurity -

21. 21 / 46
Industrial Cybersecurity Switch
 Build Cybersecurity Network to Minimize Security Risks
 The IGS-10020MT comes with enhanced cybersecurity to fend off cyberthreats
and cyberattacks.
 The new reborn IGS-10020MT expands its memory on hardware and upgrades the
kernel of SSHv3, TLS and SSL protocols to provide strong protection against
advanced threats.

22. Product Features
- ERPS Ring -

23. 23 / 46

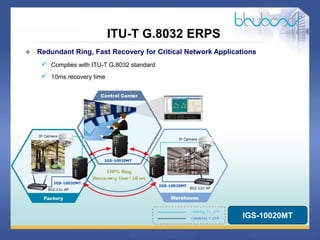

ITU-T G.8032 ERPS
 Redundant Ring, Fast Recovery for Critical Network Applications
 Complies with ITU-T G.8032 standard
 10ms recovery time
IGS-10020MT

24. Product Features
- Layer 3 Routing -

25. 25 / 46
 Layer 3 Routing
 Supports maximum 8 VLAN interfaces
 Supports maximum 32 routing entries
 IPv4/IPv6 software static routing
IP Domain A
192.168.1.x
IP Domain B
192.168.2.x
Data
Data
Product Features

26. Product Features
- Management and L2+ Switching -

27. 27 / 46
 Console command is Cisco-like, which allows users to make it work more
easily.
CLI Benefits
IGS-10020MT

28. 28 / 46

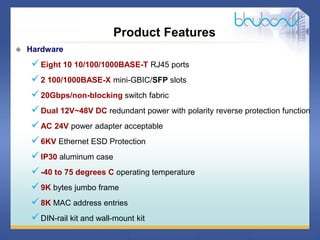

 Hardware
Eight 10 10/100/1000BASE-T RJ45 ports
2 100/1000BASE-X mini-GBIC/SFP slots
20Gbps/non-blocking switch fabric
Dual 12V~48V DC redundant power with polarity reverse protection function
AC 24V power adapter acceptable
6KV Ethernet ESD Protection
IP30 aluminum case
-40 to 75 degrees C operating temperature
9K bytes jumbo frame
8K MAC address entries
DIN-rail kit and wall-mount kit
Product Features

29. 29 / 46

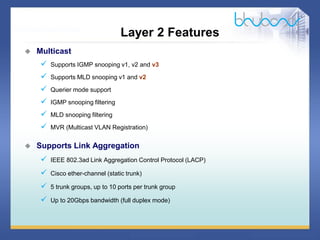

 Multicast
 Supports IGMP snooping v1, v2 and v3
 Supports MLD snooping v1 and v2
 Querier mode support
 IGMP snooping filtering
 MLD snooping filtering
 MVR (Multicast VLAN Registration)
 Supports Link Aggregation
 IEEE 802.3ad Link Aggregation Control Protocol (LACP)
 Cisco ether-channel (static trunk)
 5 trunk groups, up to 10 ports per trunk group
 Up to 20Gbps bandwidth (full duplex mode)
Layer 2 Features

30. 30 / 46

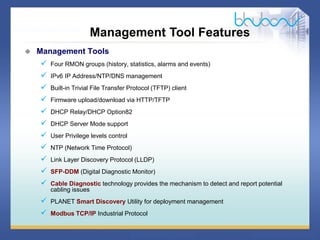

 Management Tools
 Four RMON groups (history, statistics, alarms and events)
 IPv6 IP Address/NTP/DNS management
 Built-in Trivial File Transfer Protocol (TFTP) client
 Firmware upload/download via HTTP/TFTP
 DHCP Relay/DHCP Option82
 DHCP Server Mode support
 User Privilege levels control
 NTP (Network Time Protocol)
 Link Layer Discovery Protocol (LLDP)
 SFP-DDM (Digital Diagnostic Monitor)
 Cable Diagnostic technology provides the mechanism to detect and report potential
cabling issues
 PLANET Smart Discovery Utility for deployment management
 Modbus TCP/IP Industrial Protocol
Management Tool Features

31. Applications

32. 32 / 46
Applications

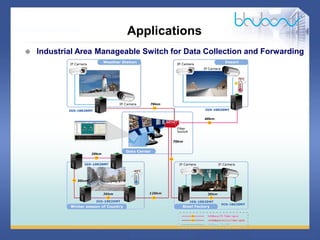

 Industrial Area Manageable Switch for Data Collection and Forwarding

33. 33 / 46
Applications

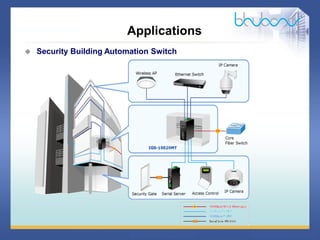

 Security Building Automation Switch

34. 34 / 46
Applications

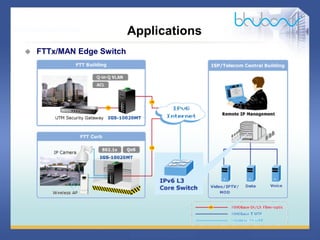

 FTTx/MAN Edge Switch
