WirelessHART is the first open wireless standard for the process control industry. It provides high reliability, security and real-time communication. This presentation introduces some main features of WirelessHART standard. E-AWARE Technologies is a company specialized in wireless network solutions for monitoring and control in industrial environments. Our product offering consists of end-to-end wireless communications product lines and solutions for fast wireless standard integration.

1. WirelessHART
An overview

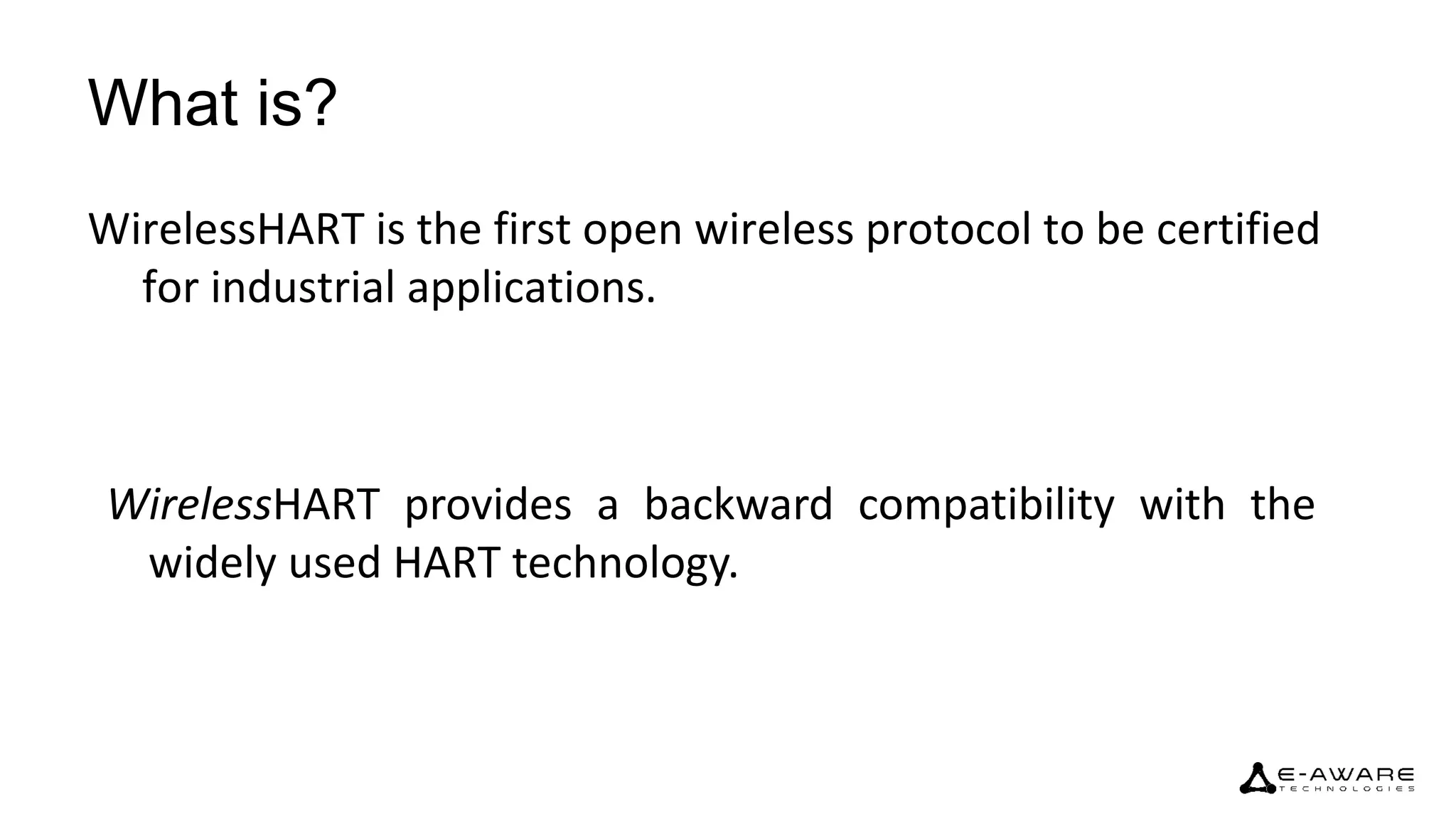

2. What is?
WirelessHART is the first open wireless protocol to be certified
for industrial applications.
WirelessHART provides a backward compatibility with the
widely used HART technology.

3. WirelessHART Evolution
HART Evolution (HCF)
2010
IEC 62591
2014
Chinese National
Standard
GB/T 29910.1-6-2013

4. WirelessHART and OSI model
OSI Layer WirelessHART
Application Command Oriented. Application Procedures
Presentation
Session
Transport Auto-segmented transfer of large data sets. Reliable strem transport.
Negotiated Segment sizes
Network Power-Optimized. Redundant Path. Mesh Network
Data Link Secure. Time Synched TDMA/CSMA, Frequency Agile with ARQ
Physical IEEE 802.15.4 based radios. Up to 10dBm Tx Power. 2.4GHz Wireless

5. WirelessHART Network Infraestructure
•Modbus
•Ethernet
•485 interface
•OPC

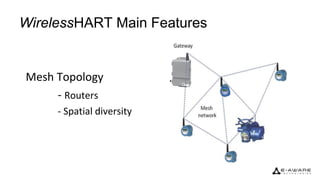

6. WirelessHART Main Features
Mesh Topology
- Routers
- Spatial diversity

7. WirelessHART Main Features
Channel hopping
- Frequency diversity
- Only nodes in the network
know next channel

8. WirelessHART Main Features
Acknowledgment
- Synchronous
operation
Non broadcast messages have ACK which also is use as a sync
mechanism among the nodes in the network.

9. WirelessHART
It is a simple, reliable and secure protocol!
 Built on proven industry standards
 Created by industry and technology experts
 Multi-vendor support and interoperable devices
 Uses existing devices, tools and knowledge
 Process monitoring, control and asset management
 Health, safety and environmental compliance monitoring

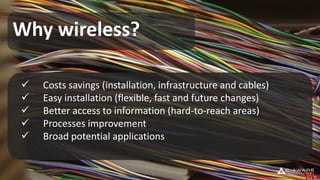

10. Why wireless?

11. Why wireless?
 Costs savings (installation, infrastructure and cables)
 Easy installation (flexible, fast and future changes)
 Better access to information (hard-to-reach areas)
 Processes improvement
 Broad potential applications

13. Making Processes Better
