IGS-6325 Industrial Layer 3 Managed Non-PoE Switch series features 8 10/100/1000BASE-T Copper ports, 8 extra 100/1000/2500BASE-X SFP fiber ports, 4 10GBASE-SR/LR SFP+ ports and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. With 10Gbps uplink, the IGS-6325-8T8S4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-8T8S4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 136Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Contact us Tel: +91-7875432180 Email: sales@bbcpl.in Website: https://www.bbcpl.in​

1. Industriel Layer 3 Multi-Port Managed Switch
IGS-6325-8T8S4X/IGS-6325-8T8S/
IGS-6325-8T4X/IGS-6325-16T4S

2. 2
Presentation Outlines

3. 3
Presentation Outlines
PRODUCT
POSITIONING
PRODUCT
OVERVIEW
PRODUCT
FEATURES
PRODUCT
BENEFITS
APPLICATIONS

4. 4
Product Positioning

5. 5
Modes of Application Overview
Product Positioning
Factory
Transportation
Building
Energy

6. 6
The PLANET DIN-rail Managed Switch Family
Product Positioning
L2+
w/Ring
IGS-5225
series
L2
/
L4
IGS-4215
series
L3
w/Ring
IGS-6325
series
Full Gigabit Gigabit + 10G
IGS-801M(v2)
8 x 10/100/1000T
DC 12~48V; AC 24V
IGS-5225-8T2S2X
8 x 10/100/1000T
2 x 100/1000X SFP
2 x 10G SFP+
2 DI + 2 DO
DC 12~48V; AC 24V
IGS-6325-8T8S4X
8 x 10/100/1000T
8 x 100/1000X SFP
4 x 10G SFP+
2 DI + 2 DO
DC 12~48V; AC 24V
IGS-6325-8T4X
8 x 10/100/1000T
4 x 10G SFP+
2 DI + 2 DO
DC 12~48V; AC 24V
IGS-6325-8T8S
8 x 10/100/1000T
8 x 100/1000X SFP
2 DI + 2 DO
DC 12~48V; AC 24V
IGS-10020MT
8 x 10/100/1000T
2 x 100/1000X SFP
DC 12~48V; AC 24V
IGS-5225-4T2S
4 x 10/100/1000T
2 x 100/1000X SFP
DC 12~48V; AC 24V
IGS-10080MFT
2 x 10/100/1000T
8 x 100/1000X SFP
DC 12~48V; AC 24V
IGS-12040MT
8 x 10/100/1000T
4 x 100/1000X SFP
2 DI + 2 DO
DC 12~72V; AC 24V
IGS-20040MT
16 x 10/100/1000T
4 x 100/1000X SFP
2 DI + 2 DO
DC 9~48V; AC 24V
IGS-4215-16T2S
16 x 10/100/1000T
2 x 100/1000X SFP
DC 12~48V; AC 24V
IGS-6325-16T4S
16 x 10/100/1000T
4 x 100/1000X SFP
2 DI + 2 DO
DC 9~48V; AC 24V
New Phase-in
Available

7. 7

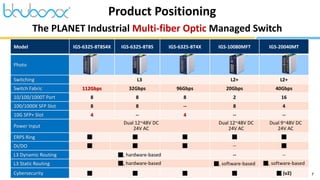

The PLANET Industrial Multi-fiber Optic Managed Switch
Product Positioning
Model IGS-6325-8T8S4X IGS-6325-8T8S IGS-6325-8T4X IGS-10080MFT IGS-20040MT
Switching L3 L2+ L2+
Switch Fabric 112Gbps 32Gbps 96Gbps 20Gbps 40Gbps
10/100/1000T Port 8 8 8 2 16
100/1000X SFP Slot 8 8 -- 8 4
10G SFP+ Slot 4 -- 4 -- --
Power Input
Dual 12~48V DC
24V AC
Dual 12~48V DC
24V AC
Dual 9~48V DC
24V AC
ERPS Ring ■ ■ ■ ■ ■
DI/DO ■ ■ ■ -- ■
L3 Dynamic Routing ■, hardware-based -- --
L3 Static Routing ■, hardware-based ■, software-based ■, software-based
Cybersecurity ■ ■ ■ ■ ■ (v2)

8. 8

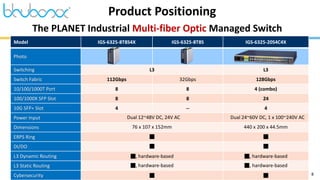

The PLANET Industrial Multi-fiber Optic Managed Switch
Product Positioning
Model IGS-6325-8T8S4X IGS-6325-8T8S IGS-6325-20S4C4X
Switching L3 L3
Switch Fabric 112Gbps 32Gbps 128Gbps
10/100/1000T Port 8 8 4 (combo)
100/1000X SFP Slot 8 8 24
10G SFP+ Slot 4 -- 4
Power Input Dual 12~48V DC, 24V AC Dual 24~60V DC, 1 x 100~240V AC
Dimensions 76 x 107 x 152mm 440 x 200 x 44.5mm
ERPS Ring ■ ■
DI/DO ■ ■
L3 Dynamic Routing ■, hardware-based ■, hardware-based
L3 Static Routing ■, hardware-based ■, hardware-based
Cybersecurity ■ ■

9. 9

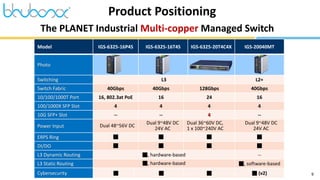

The PLANET Industrial Multi-copper Managed Switch
Product Positioning
Model IGS-6325-16P4S IGS-6325-16T4S IGS-6325-20T4C4X IGS-20040MT
Switching L3 L2+
Switch Fabric 40Gbps 40Gbps 128Gbps 40Gbps
10/100/1000T Port 16, 802.3at PoE 16 24 16
100/1000X SFP Slot 4 4 4 4
10G SFP+ Slot -- -- 4 --
Power Input Dual 48~56V DC
Dual 9~48V DC
24V AC
Dual 36~60V DC,
1 x 100~240V AC
Dual 9~48V DC
24V AC
ERPS Ring ■ ■ ■ ■
DI/DO ■ ■ ■ ■
L3 Dynamic Routing ■, hardware-based --
L3 Static Routing ■, hardware-based ■, software-based
Cybersecurity ■ ■ ■ ■ (v2)

10. 10

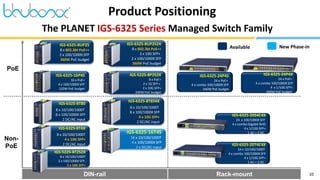

Product Positioning
Non-
PoE
PoE
IGS-6325-16T4S
16 x 10/100/1000T
4 x 100/1000X SFP
2 x DC/AC input
DIN-rail Rack-mount
IGS-6325-24P4X
24 x PoE+
4 x combo 100/1000X SFP
4 x 1/10G SFP+
440W PoE budget
IGS-6325-24P4S
24 x PoE+
4 x combo 100/1000X SFP
440W PoE budget
IGS-5225-8P2S2X
8 x PoE+
2 x 1G SFP +
2 x 10G SFP+
240W PoE budget
IGS-6325-16P4S
16 x PoE+
4 x 100/1000X SFP
320W PoE budget
IGS-6325-8UP2S
8 x 802.3bt PoE++
2 x 100/1000X SFP
360W PoE budget
IGS-6325-8UP2S2X
8 x 802.3bt PoE++
2 x 10G SFP+
2 x 100/1000X SFP
360W PoE budget
IGS-6325-8T8S4X
8 x 10/100/1000T
8 x 100/1000X SFP
4 x 10G SFP+
2 DC/AC input
IGS-6325-8T8S
8 x 10/100/1000T
8 x 100/1000X SFP
2 DC/AC input
IGS-6325-8T4X
8 x 10/100/1000T
4 x 10G SFP+
2 DC/AC input
New Phase-in
Available
The PLANET IGS-6325 Series Managed Switch Family
IGS-6325-20S4C4X
24 x 100/1000X SFP
4 x combo Gigabit RJ45
4 x 1/10G SFP+
1 AC + 2 DC
IGS-6325-20T4C4X
24 x 10/100/1000T
- 4 x combo 100/1000X SFP
4 x 1/10G SFP+
1 AC + 2 DC
IGS-5225-8T2S2X
8 x 10/100/1000T
2 x 100/1000X SFP,
2 x 10G SFP+

11. 11
Product Overview

12. 12

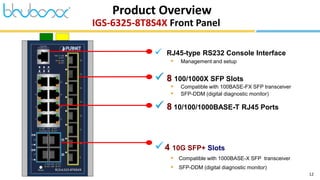

IGS-6325-8T8S4X Front Panel
Product Overview
 RJ45-type RS232 Console Interface
• Management and setup
 8 100/1000X SFP Slots
• Compatible with 100BASE-FX SFP transceiver
• SFP-DDM (digital diagnostic monitor)
 8 10/100/1000BASE-T RJ45 Ports
4 10G SFP+ Slots
• Compatible with 1000BASE-X SFP transceiver
• SFP-DDM (digital diagnostic monitor)

13. 13

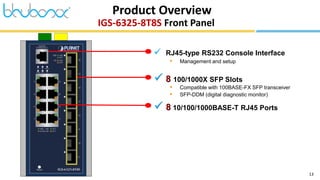

IGS-6325-8T8S Front Panel
Product Overview
 RJ45-type RS232 Console Interface
• Management and setup
 8 100/1000X SFP Slots
• Compatible with 100BASE-FX SFP transceiver
• SFP-DDM (digital diagnostic monitor)
 8 10/100/1000BASE-T RJ45 Ports

14. 14

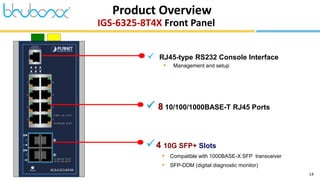

IGS-6325-8T4X Front Panel
Product Overview
 RJ45-type RS232 Console Interface
• Management and setup
 8 10/100/1000BASE-T RJ45 Ports
4 10G SFP+ Slots
• Compatible with 1000BASE-X SFP transceiver
• SFP-DDM (digital diagnostic monitor)

15. 15

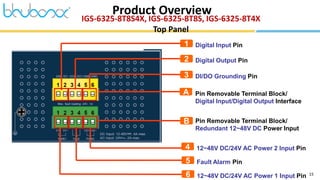

IGS-6325-8T8S4X, IGS-6325-8T8S, IGS-6325-8T4X
Top Panel
Product Overview
B Pin Removable Terminal Block/
Redundant 12~48V DC Power Input
A Pin Removable Terminal Block/
Digital Input/Digital Output Interface
1 Digital Input Pin
2 Digital Output Pin
3 DI/DO Grounding Pin
4 12~48V DC/24V AC Power 2 Input Pin
Fault Alarm Pin
5
12~48V DC/24V AC Power 1 Input Pin
6

16. 16

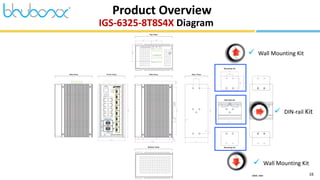

IGS-6325-8T8S4X Diagram
Product Overview
 Wall Mounting Kit
 DIN-rail Kit
 Wall Mounting Kit

17. 17

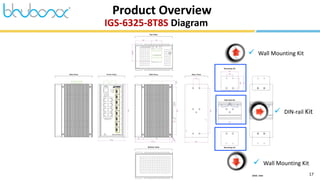

IGS-6325-8T8S Diagram
Product Overview
 Wall Mounting Kit
 DIN-rail Kit
 Wall Mounting Kit

18. 18

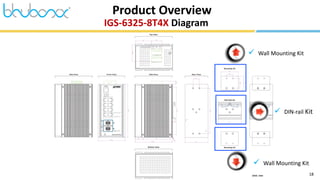

IGS-6325-8T4X Diagram
Product Overview
 Wall Mounting Kit
 DIN-rail Kit
 Wall Mounting Kit

19. 19

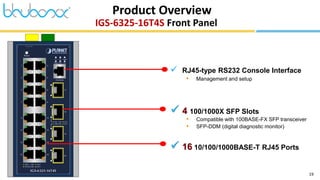

IGS-6325-16T4S Front Panel
Product Overview
 RJ45-type RS232 Console Interface
• Management and setup
 4 100/1000X SFP Slots
• Compatible with 100BASE-FX SFP transceiver
• SFP-DDM (digital diagnostic monitor)
 16 10/100/1000BASE-T RJ45 Ports

20. 20

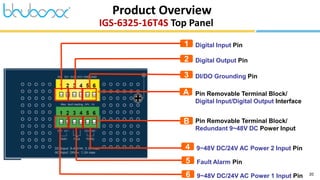

Product Overview
B Pin Removable Terminal Block/
Redundant 9~48V DC Power Input
A Pin Removable Terminal Block/
Digital Input/Digital Output Interface
1 Digital Input Pin
2 Digital Output Pin
3 DI/DO Grounding Pin
4 9~48V DC/24V AC Power 2 Input Pin
Fault Alarm Pin
5
9~48V DC/24V AC Power 1 Input Pin
6
IGS-6325-16T4S Top Panel

21. 21
IGS-6325-16T4S Diagram
Product Overview
 Wall Mounting Kit
 DIN-rail Kit
 Wall Mounting Kit

22. 22
Product Benefits

23. 23
Product Benefits

24. 24
Product Benefits

25. 25
Product Benefits
Highly-secure and Flexible
Traffic Management
IP Routing
Multi 1/10G for Long-reach
Networking
Ultra-high Speed Solution
Eliminates Bottlenecks
Great for Installing in Any
Space-limited Cabinets
10Gbps
Uplink
Compact
Design
High-density
Fiber Switch

26. 26
Product Features

27. 27

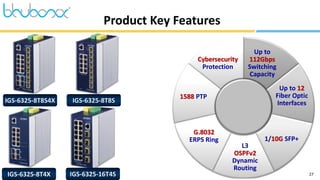

1/10G SFP+
Cybersecurity
Protection
G.8032
ERPS Ring
L3
OSPFv2
Dynamic
Routing
Up to 12
Fiber Optic
Interfaces
Up to
112Gbps
Switching
Capacity
1588 PTP
Product Key Features
IGS-6325-8T8S4X IGS-6325-8T8S
IGS-6325-8T4X IGS-6325-16T4S

28. 28
Product Features
- Layer 3 Dynamic Routing -

29. 29

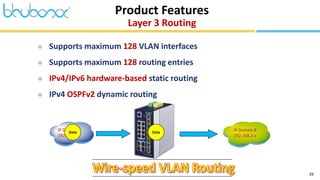

 Supports maximum 128 VLAN interfaces
 Supports maximum 128 routing entries
 IPv4/IPv6 hardware-based static routing
 IPv4 OSPFv2 dynamic routing
IP Domain A
192.168.1.x
IP Domain B
192.168.2.x
Data
Data
Layer 3 Routing
Product Features

30. 30

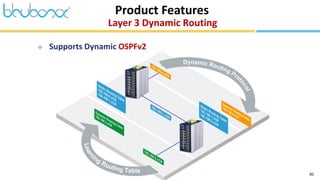

 Supports Dynamic OSPFv2
Layer 3 Dynamic Routing
Product Features

31. 31
Product Features
- Cybersecurity -

32. 32

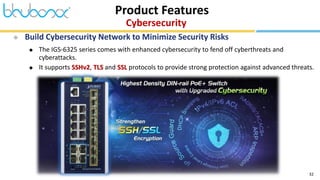

Cybersecurity
Product Features
 Build Cybersecurity Network to Minimize Security Risks
 The IGS-6325 series comes with enhanced cybersecurity to fend off cyberthreats and
cyberattacks.
 It supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats.

33. 33
Product Features
- Smart Event Management -

34. 34
Product Features

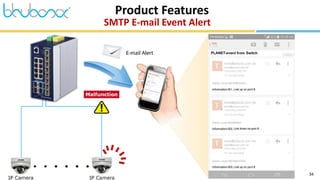

SMTP E-mail Event Alert

35. 35
Product Features
Fault Alarm Alert
 The Fault Alarm feature which can alert the users when there is something
wrong with the switch helps to save time and human resource.
OR

36. 36
Product Features

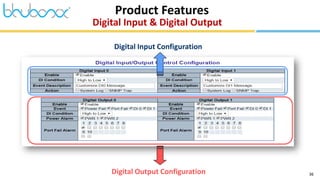

Digital Input & Digital Output
Digital Input Configuration
Digital Output Configuration

37. 37
Product Features

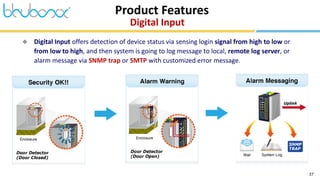

Digital Input
 Digital Input offers detection of device status via sensing login signal from high to low or
from low to high, and then system is going to log message to local, remote log server, or
alarm message via SNMP trap or SMTP with customized error message.

38. 38
Product Features
Digital Output
 Digital Output offers detection of digital input, power failure or port failure, and then
output logic signal to trigger the performance of the external device.
Power Failure Trigger
Alarm Port Failure
Trigger
Alarm

39. 39
SFP DDM
Product Features
 Intelligent SFP/SFP+ Diagnosis Mechanism
 The SFP-DDM (digital diagnostic monitor) function that greatly helps network
administrator to easily monitor real-time optical output power, optical input power,
temperature, laser bias current, and transceiver supply voltage.

40. 40
Product Features
- Industrial Protocols -

41. 41

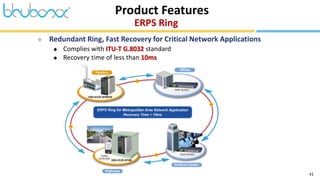

 Redundant Ring, Fast Recovery for Critical Network Applications
 Complies with ITU-T G.8032 standard
 Recovery time of less than 10ms
ERPS Ring
Product Features

42. 42

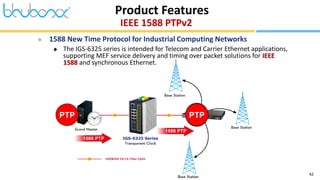

 1588 New Time Protocol for Industrial Computing Networks
 The IGS-6325 series is intended for Telecom and Carrier Ethernet applications,
supporting MEF service delivery and timing over packet solutions for IEEE
1588 and synchronous Ethernet.
IEEE 1588 PTPv2
Product Features
PTP PTP
PTP
PTP

43. 43
Product Features
- Management and L2/L4 Switching -

44. 44

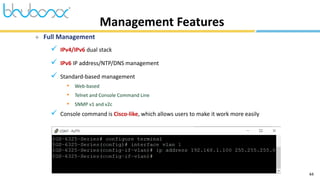

 Full Management
 IPv4/IPv6 dual stack
 IPv6 IP address/NTP/DNS management
 Standard-based management
• Web-based
• Telnet and Console Command Line
• SNMP v1 and v2c
 Console command is Cisco-like, which allows users to make it work more easily
Management Features

45. 45

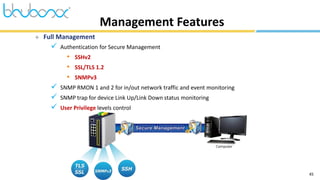

Management Features
 Full Management
 Authentication for Secure Management
• SSHv2
• SSL/TLS 1.2
• SNMPv3
 SNMP RMON 1 and 2 for in/out network traffic and event monitoring
 SNMP trap for device Link Up/Link Down status monitoring
 User Privilege levels control

46. 46
 VLAN
 IEEE 802.1Q VLAN tagging
 Up to 255 VLAN groups, out of 4095 VLAN IDs
 Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
 Private VLAN Edge (PVE)
 The MAC-based VLAN/Protocol-based VLAN/Voice VLAN/GVRP
 Layer 3 IP Routing
 IPv4/IPv6 128 static routes and route summarization
 IPv4/IPv6 hardware-based static routing
 IPv4 OSPFv2 (Open Shortest Path First)
L2/L3/L4 Features

47. 47
 ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
 Supports multiple ring and ladder topologies
 Offers a rapid detection and recovery time if a link or node fails.
 Spanning Tree Protocol
 IEEE 802.1D Spanning Tree Protocol
 IEEE 802.1w Rapid Spanning Tree Protocol
 IEEE 802.1s Multiple Spanning Tree Protocol
 BPDU Guard and BPDU Filtering enhances switch network reliability, manageability
and security
ITU-T G.8032 & Spanning Tree
Features

48. 48

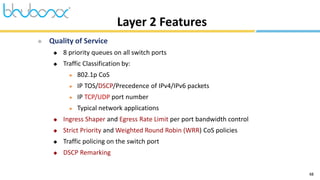

 Quality of Service
 8 priority queues on all switch ports
 Traffic Classification by:
 802.1p CoS
 IP TOS/DSCP/Precedence of IPv4/IPv6 packets
 IP TCP/UDP port number
 Typical network applications
 Ingress Shaper and Egress Rate Limit per port bandwidth control
 Strict Priority and Weighted Round Robin (WRR) CoS policies
 Traffic policing on the switch port
 DSCP Remarking
Layer 2 Features

49. 49

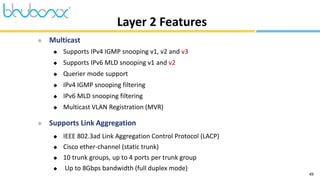

 Multicast
 Supports IPv4 IGMP snooping v1, v2 and v3
 Supports IPv6 MLD snooping v1 and v2
 Querier mode support
 IPv4 IGMP snooping filtering
 IPv6 MLD snooping filtering
 Multicast VLAN Registration (MVR)
 Supports Link Aggregation
 IEEE 802.3ad Link Aggregation Control Protocol (LACP)
 Cisco ether-channel (static trunk)
 10 trunk groups, up to 4 ports per trunk group
 Up to 8Gbps bandwidth (full duplex mode)
Layer 2 Features

50. 50
 Security
 Network Access Authentication Mechanism
 IEEE 802.1x Port-based authentication for user identity control
 MAC-based authentication for easy deployment
 RADIUS/TACACS+/Local profile
 Access Control List (ACL)
 IP-based filtering to permit or deny traffic
 MAC-based filtering to permit or deny traffic
 Management Source MAC/IP address binding to prevent unauthorized
intruder
 DHCP Snooping to filter untrusted DHCP messages
 Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP
address binding
 IP Source Guard prevents IP spoofing attacks
Security Features

51. 51

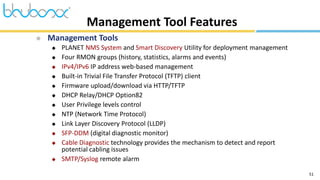

 Management Tools
 PLANET NMS System and Smart Discovery Utility for deployment management
 Four RMON groups (history, statistics, alarms and events)
 IPv4/IPv6 IP address web-based management
 Built-in Trivial File Transfer Protocol (TFTP) client
 Firmware upload/download via HTTP/TFTP
 DHCP Relay/DHCP Option82
 User Privilege levels control
 NTP (Network Time Protocol)
 Link Layer Discovery Protocol (LLDP)
 SFP-DDM (digital diagnostic monitor)
 Cable Diagnostic technology provides the mechanism to detect and report
potential cabling issues
 SMTP/Syslog remote alarm
Management Tool Features

52. 52
Applications

53. 53

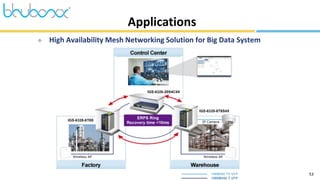

 High Availability Mesh Networking Solution for Big Data System
Applications

54. 54
BluBoxx Communication Pvt. Ltd.
102/B, Surekha Apartment, Pune Satara Road,
Pune-411037. Maharashtra, India.
Tel: +91-7875432180, Email: sales@bbcpl.in
www.bbcpl.in
