1. 1
24-Port 10/100/1000T 802.3at PoE + 2-
Port 10/100/1000T + 2-Port Gigabit TP/SFP
Combo Ethernet Switch
GSW-2824P

2. 2
Presentation Outlines

3. 3

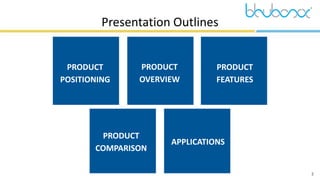

Presentation Outlines
PRODUCT
POSITIONING
PRODUCT
OVERVIEW
PRODUCT
FEATURES
PRODUCT
COMPARISON
APPLICATIONS

4. 4
Product Positioning

5. 5
16
PoE+
Ports
4/8/10
PoE+
Ports
24
PoE+
Ports
GSW-2620HP
-- 24 10/100/1000T PoE+
-- 2 1000X SFP
-- 220W budget
FGSW-2622VHP
- Color LCD
- 24 10/100TX PoE+
- 2 Gigabit TP/SFP combo
- 300W budget
LCD
GSW-2620VHP
- Color LCD
- 24 10/100/1000T PoE+
- 2 1000X SFP
- 300W budget
LCD
FGSW-2511P
- 24 10/100TX PoE+
- 1 Gigabit TP/SFP combo
- 190W budget
GSD-1121XP
•8 10/100/1000T PoE+
•2 100/1000/2500T TP
•1 10GBASE-X SFP+
•120W budget
GSD-804P(v2)
- 4 10/100/1000T PoE+
- 4 10/100/1000T
- 60W budget
- 7” desktop
FGSD-1011HP
- 8 10/100TX PoE+
- 1 10/100/1000T
- 1 1000X SFP
- 120W budget
- 7” desktop
GSD-1008HP
- 8 10/100/1000T PoE+
- 2 10/100/1000T
- 120W budget
- 7” desktop
FGSD-1022VHP
- Color LCD
- 8 10/100TX PoE+
- 2 Gigabit TP/SFP combo
- 120W budget
LCD
GSD-1222VHP
- 8 10/100/1000T PoE+
- 2 10/100/1000T TP
- 2 1000X SFP
- 120W budget
- 12” desktop
LCD
FSD-1008HP
- 8 10/100TX PoE+
- 2 10/100TX
- 120W budget
- 7” desktop
New Phase-in
Available
Fast Ethernet FE + GbE Uplink All-Port Gigabit GbE + 10G Uplink
FGSW-1822VHP
- Color LCD
- 16 10/100TX PoE+
- 2 Gigabit TP/SFP combo
- 300W budget
LCD
GSW-1820VHP
- Color LCD
- 16 10/100/1000T PoE+
- 2 1000X SFP
- 300W budget
LCD
GSW-1820HP
- 16 10/100/1000T PoE+
- 2 1000X SFP
- 240W budget
GSD-2022P
- 16 10/100/1000T PoE+
- 2 10/100/1000T
- 2 1000X SFP
-185W budget
FGSD-1821P
- 16 10/100TX PoE+
- 2 100/1000T combo TP
- 1 1GBASE-X SFP
- 185W budget
GSW-2824P
- 24 10/100/1000T PoE+
- 2 10/100/1000T TP
- 2 Gigabit TP/SFP combo
- 250W budget
- 19” desktop
The Unmanaged PoE Switch Family

6. 6

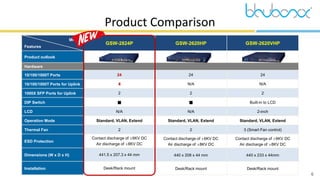

Product Comparison
Model
Features
GSW-2824P GSW-2620HP GSW-2620VHP
Product outlook
Hardware
10/100/1000T Ports 24 24 24
10/100/1000T Ports for Uplink 4 N/A N/A
1000X SFP Ports for Uplink 2 2 2
DIP Switch ■ ■ Built-in to LCD
LCD N/A N/A 2-inch
Operation Mode Standard, VLAN, Extend Standard, VLAN, Extend Standard, VLAN, Extend
Thermal Fan 2 2 3 (Smart Fan control)
ESD Protection
Contact discharge of ±6KV DC
Air discharge of ±8KV DC
Contact discharge of ±6KV DC
Air discharge of ±8KV DC
Contact discharge of ±6KV DC
Air discharge of ±8KV DC
Dimensions (W x D x H) 441.5 x 207.3 x 44 mm 440 x 208 x 44 mm 440 x 233 x 44mm
Installation Desk/Rack mount Desk/Rack mount Desk/Rack mount

7. 7

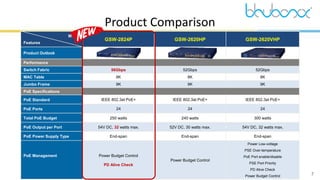

Product Comparison
Model
Features
GSW-2824P GSW-2620HP GSW-2620VHP
Product Outlook
Performance
Switch Fabric 56Gbps 52Gbps 52Gbps
MAC Table 8K 8K 8K
Jumbo Frame 9K 9K 9K
PoE Specifications
PoE Standard IEEE 802.3at PoE+ IEEE 802.3at PoE+ IEEE 802.3at PoE+
PoE Ports 24 24 24
Total PoE Budget 250 watts 240 watts 300 watts
PoE Output per Port 54V DC, 32 watts max. 52V DC, 30 watts max. 54V DC, 32 watts max.
PoE Power Supply Type End-span End-span End-span
PoE Management Power Budget Control
PD Alive Check
Power Budget Control
Power Low-voltage
PSE Over-temperature
PoE Port enable/disable
PSE Port Priority
PD Alive Check
Power Budget Control

8. 8
Product Overview

9. 9

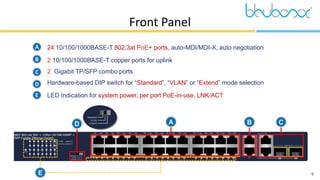

Front Panel
 24 10/100/1000BASE-T 802.3at PoE+ ports, auto-MDI/MDI-X, auto negotiation
 2 10/100/1000BASE-T copper ports for uplink
 2 Gigabit TP/SFP combo ports
 Hardware-based DIP switch for “Standard”, “VLAN” or “Extend” mode selection
 LED Indication for system power, per port PoE-in-use, LNK/ACT
A
B
C
D
C
D A B
E
E

10. 10

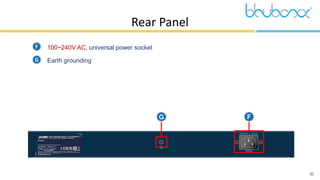

Rear Panel
 100~240V AC, universal power socket
 Earth grounding
G F
F
G

11. 11
Product Benefits

12. 12

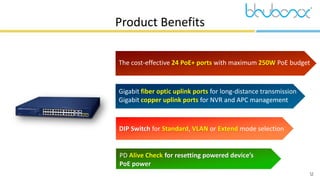

Product Benefits
DIP Switch for Standard, VLAN or Extend mode selection
PD Alive Check for resetting powered device’s
PoE power
Gigabit fiber optic uplink ports for long-distance transmission
Gigabit copper uplink ports for NVR and APC management
The cost-effective 24 PoE+ ports with maximum 250W PoE budget

13. 13
Product Features

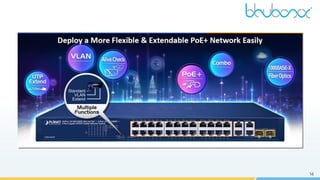

14. 14

15. 15

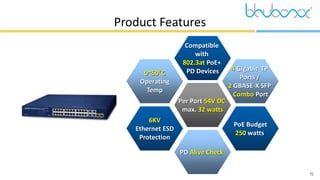

Product Features
Per Port 54V DC
max. 32 watts
6KV
Ethernet ESD
Protection
PD Alive Check
PoE Budget
250 watts
4 Gigabit TP
Ports /
2 GBASE-X SFP
Combo Port
Compatible
with
802.3at PoE+
PD Devices
0~50°C
Operating
Temp

16. 16

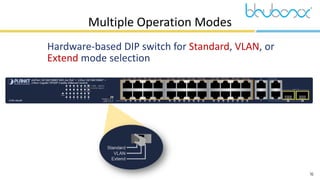

Multiple Operation Modes
 Hardware-based DIP switch for Standard, VLAN, or
Extend mode selection

17. 17
Product Features

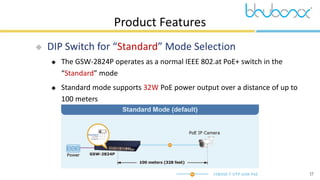

 DIP Switch for “Standard” Mode Selection
 The GSW-2824P operates as a normal IEEE 802.at PoE+ switch in the
“Standard” mode
 Standard mode supports 32W PoE power output over a distance of up to
100 meters

18. 18
Product Features

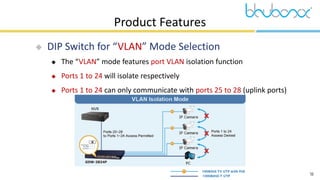

 DIP Switch for “VLAN” Mode Selection
 The “VLAN” mode features port VLAN isolation function
 Ports 1 to 24 will isolate respectively
 Ports 1 to 24 can only communicate with ports 25 to 28 (uplink ports)

19. 19
Product Features

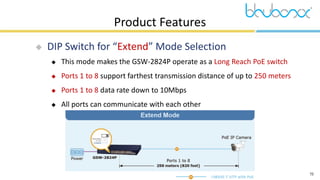

 DIP Switch for “Extend” Mode Selection
 This mode makes the GSW-2824P operate as a Long Reach PoE switch
 Ports 1 to 8 support farthest transmission distance of up to 250 meters
 Ports 1 to 8 data rate down to 10Mbps
 All ports can communicate with each other

20. 20

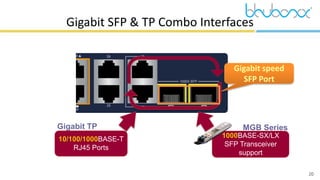

Gigabit SFP & TP Combo Interfaces
Gigabit TP
Gigabit speed
SFP Port
10/100/1000BASE-T
RJ45 Ports
1000BASE-SX/LX
SFP Transceiver
support
MGB Series

21. 21
DATA
TIME
Product Features

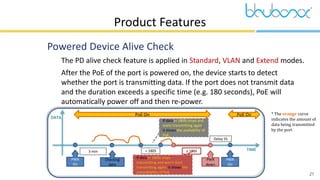

 Powered Device Alive Check
 The PD alive check feature is applied in Standard, VLAN and Extend modes.
 After the PoE of the port is powered on, the device starts to detect
whether the port is transmitting data. If the port does not transmit data
and the duration exceeds a specific time (e.g. 180 seconds), PoE will
automatically power off and then re-power.
* The orange curve
indicates the amount of
data being transmitted
by the port
PoE On PoE On
PWR
On
3 min
Checking
data
PWR
down
PWR
On
< 180S ≥ 180S
Delay 5S
If data (< 180S) stops and
starts transmitting again,
it shows the availability of
PoE.
If data (> 180S) stops
transmitting and won’t start
transmitting again, it shows the
unavailability of PoE.

22. 22

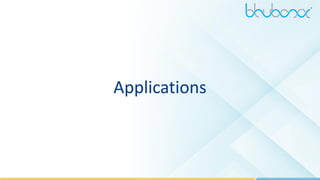

Applications

23. 23

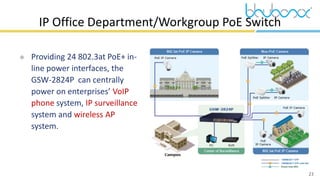

 Providing 24 802.3at PoE+ in-
line power interfaces, the
GSW-2824P can centrally
power on enterprises’ VoIP
phone system, IP surveillance
system and wireless AP
system.
IP Office Department/Workgroup PoE Switch

24. 24

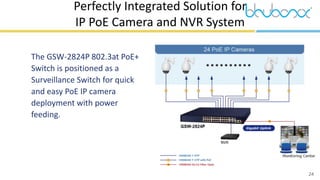

 The GSW-2824P 802.3at PoE+
Switch is positioned as a
Surveillance Switch for quick
and easy PoE IP camera
deployment with power
feeding.
Perfectly Integrated Solution for
IP PoE Camera and NVR System

25. 25

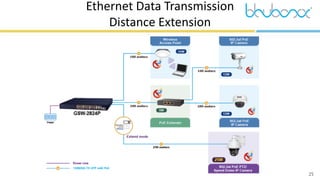

Ethernet Data Transmission
Distance Extension

26. 26
