1. Industrial L2+
4-Port 10/100/1000T + 2-Port 100 /1000X SFP
Managed Switch
IGS-5225-4T2S

2. 2 / 46

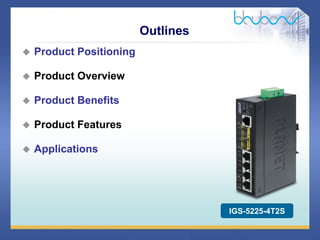

Outlines
 Product Positioning
 Product Overview
 Product Benefits
 Product Features
 Applications
IGS-5225-4T2S

3. Product Positioning

4. 4 / 46
Factory
Transportation
Modes of Application Overview
Building
Energy

5. 5 / 46

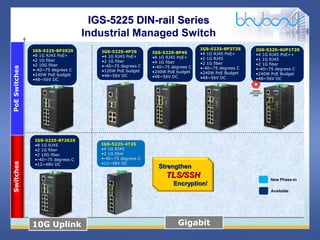

IGS-5225 DIN-rail Series
Industrial Managed Switch
PoE
Switches
Switches
New Phase-in
Available
IGS-5225-8P2S2X
•8 1G RJ45 PoE+
•2 1G fiber
•2 10G fiber
•-40~75 degrees C
•240W PoE budget
•48~56V DC
IGS-5225-8T2S2X
•8 1G RJ45
•2 1G fiber
•2 10G fiber
•-40~75 degrees C
•12~48V DC
IGS-5225-4T2S
•4 1G RJ45
•2 1G fiber
•-40~75 degrees C
•12~48V DC
IGS-5225-8P4S
•8 1G RJ45 PoE+
•4 1G fiber
•-40~75 degrees C
•240W PoE budget
•48~56V DC
IGS-5225-4P2S
•4 1G RJ45 PoE+
•2 1G fiber
•-40~75 degrees C
•120W PoE budget
•48~56V DC
IGS-5225-8P2T2S
•4 1G RJ45 PoE+
•2 1G RJ45
•2 1G fiber
•-40~75 degrees C
•240W PoE Budget
•48~56V DC
IGS-5225-4UP1T2S
•4 1G RJ45 PoE++
•1 1G RJ45
•2 1G fiber
•-40~75 degrees C
•240W PoE Budget
•48~56V DC
10G Uplink Gigabit
Strengthen
TLS/SSH
Encryption!

6. 6 / 46

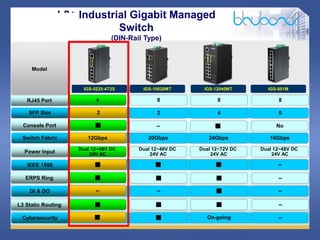

Model
RJ45 Port
SFP Slot
Console Port
Switch Fabric
Power Input
ERPS Ring
IEEE 1588
DI & DO
L3 Static Routing
4
2
■
12Gbps
Dual 12~48V DC
24V AC
■
■
--
■
IGS-5225-4T2S
8 8 8
2 4 0
-- ■ No
20Gbps 24Gbps 16Gbps
Dual 12~48V DC
24V AC
Dual 12~72V DC
24V AC
Dual 12~48V DC
24V AC
■ ■ --
■ ■ --
-- ■ --
■ ■ --
IGS-12040MT
IGS-10020MT
L2+ Industrial Gigabit Managed
Switch
(DIN-Rail Type)
IGS-801M
Cybersecurity ■ ■ On-going --

7. 7 / 46

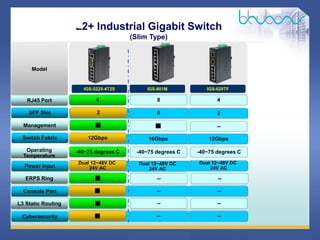

Model
RJ45 Port
SFP Slot
Management
Switch Fabric
Operating
Temperature
ERPS Ring
Power Input
Console Port
L3 Static Routing
4
2
■
12Gbps
-40~75 degrees C
Dual 12~48V DC
24V AC
■
■
■
IGS-801M
IGS-5225-4T2S
8 4
0 2
■ --
16Gbps 12Gbps
-40~75 degrees C -40~75 degrees C
Dual 12~48V DC
24V AC
Dual 12~48V DC
24V AC
-- --
-- --
-- --
IGS-620TF
L2+ Industrial Gigabit Switch
(Slim Type)
Cybersecurity ■ -- --

8. Product Overview

9. 9 / 46
Overview

10. 10 / 46

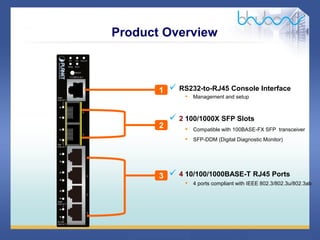

 2 100/1000X SFP Slots
• Compatible with 100BASE-FX SFP transceiver
• SFP-DDM (Digital Diagnostic Monitor)
 RS232-to-RJ45 Console Interface
• Management and setup
Product Overview
 4 10/100/1000BASE-T RJ45 Ports
• 4 ports compliant with IEEE 802.3/802.3u/802.3ab
1
2
3

11. 11 / 46
 Top View of IGS-5225-4T2S
1 12~48V DC, 24V AC Power 2 Input Pin
2 Fault Alarm Pin
3 12~48V DC, 24V AV Power 1 Input Pin
Product Overview
Pin Removable Terminal Block/
Redundant 12~48V DC, 24V AC
Power Input
A

12. 12 / 46

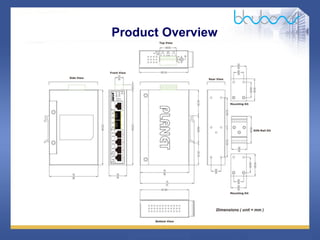

Product Overview

13. Product Benefits

14. 14 / 46
Product Benefits
Modbus TCP/IP
protocol
Integrated with Industrial
Automation
Cybersecurity
with SSH, TLS, SSL &
SNMPv3
For secure industrial
management
Smallest industrial
switch
with full management
2 SFP/mini GBIC Slots
With
ERPS Ring
 As required by customers
IGS-5225-4T2S

15. 15 / 46
Product Benefits

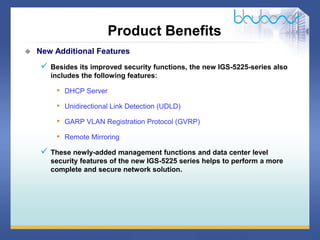

 New Additional Features
 Besides its improved security functions, the new IGS-5225-series also
includes the following features:
• DHCP Server
• Unidirectional Link Detection (UDLD)
• GARP VLAN Registration Protocol (GVRP)
• Remote Mirroring
 These newly-added management functions and data center level
security features of the new IGS-5225 series helps to perform a more
complete and secure network solution.

16. Product Features

17. 17 / 46

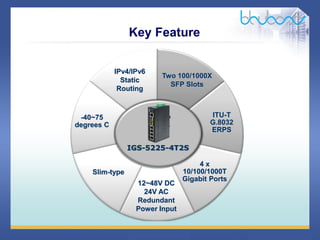

12~48V DC
24V AC
Redundant
Power Input
IPv4/IPv6
Static
Routing
ITU-T
G.8032
ERPS
Slim-type
-40~75
degrees C
4 x
10/100/1000T
Gigabit Ports
Two 100/1000X
SFP Slots
Key Feature
IGS-5225-4T2S

18. Product Features
- Cybersecurity -

19. 19 / 46

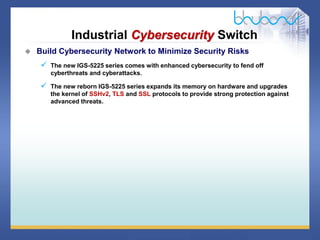

Industrial Cybersecurity Switch
 Build Cybersecurity Network to Minimize Security Risks
 The new IGS-5225 series comes with enhanced cybersecurity to fend off
cyberthreats and cyberattacks.
 The new reborn IGS-5225 series expands its memory on hardware and upgrades
the kernel of SSHv2, TLS and SSL protocols to provide strong protection against
advanced threats.

20. Product Features
- Hardware -

21. 21 / 46

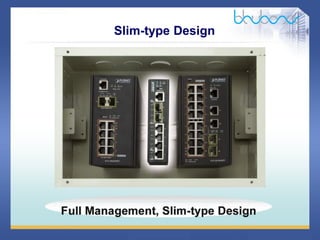

Slim-type Design

22. 22 / 46

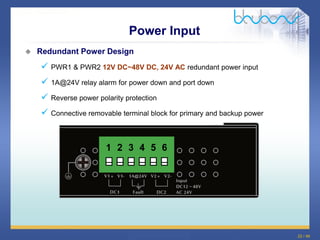

 Redundant Power Design
 PWR1 & PWR2 12V DC~48V DC, 24V AC redundant power input
 1A@24V relay alarm for power down and port down
 Reverse power polarity protection
 Connective removable terminal block for primary and backup power
Power Input

23. 23 / 46
Dual-speed SFP

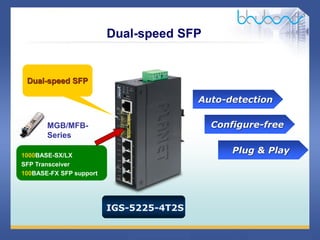

MGB/MFB-
Series
1000BASE-SX/LX
SFP Transceiver
100BASE-FX SFP support
IGS-5225-4T2S
Dual-speed SFP
Auto-detection
Configure-free
Plug & Play

24. Product Features
- Smart Event Management -

25. 25 / 46
Fault Alarm

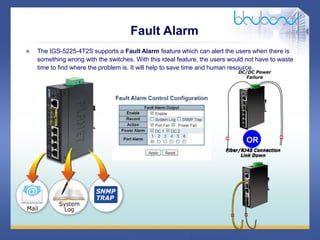

 The IGS-5225-4T2S supports a Fault Alarm feature which can alert the users when there is
something wrong with the switches. With this ideal feature, the users would not have to waste
time to find where the problem is. It will help to save time and human resource.
OR

26. 26 / 46

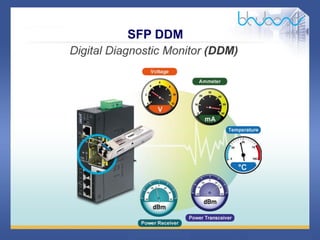

SFP DDM

27. Product Features
- Industrial Protocols -

28. 28 / 46

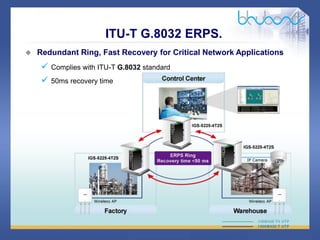

ITU-T G.8032 ERPS.
 Redundant Ring, Fast Recovery for Critical Network Applications
 Complies with ITU-T G.8032 standard
 50ms recovery time

29. 29 / 46

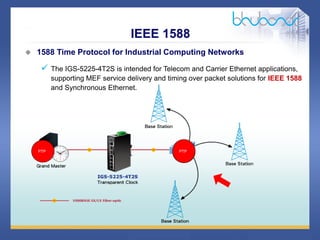

IEEE 1588
PTP PTP
PTP
PTP
 1588 Time Protocol for Industrial Computing Networks
 The IGS-5225-4T2S is intended for Telecom and Carrier Ethernet applications,
supporting MEF service delivery and timing over packet solutions for IEEE 1588
and Synchronous Ethernet.

30. Product Features
- Management and L2/L4 Switching -

31. 31 / 46

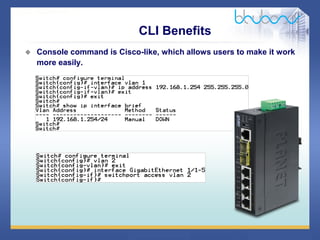

 Console command is Cisco-like, which allows users to make it work
more easily.
CLI Benefits

32. 32 / 46
 Full Management
 IPv4/IPv6 dual stack
 IPv6 IP address/NTP/DNS management
 Standard-based management
• Web-based
• Telnet
• SNMP v1 and v2c
• Console Command Line
 Security Authentication for Secure Management
• SSH
• TLS and SSL
• SNMPv3
 SNMP RMON 1 and 2 for in/out network traffic and event monitoring
 SNMP trap for device Link Up/Link Down status monitoring
 User Privilege levels control
Management Features

33. 33 / 46

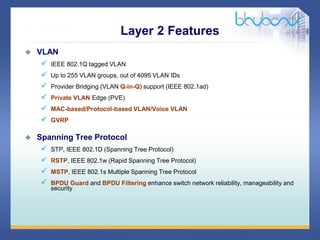

 VLAN
 IEEE 802.1Q tagged VLAN
 Up to 255 VLAN groups, out of 4095 VLAN IDs
 Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
 Private VLAN Edge (PVE)
 MAC-based/Protocol-based VLAN/Voice VLAN
 GVRP
 Spanning Tree Protocol
 STP, IEEE 802.1D (Spanning Tree Protocol)
 RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
 MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
 BPDU Guard and BPDU Filtering enhance switch network reliability, manageability and
security
Layer 2 Features

34. 34 / 46

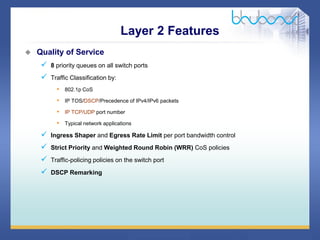

 Quality of Service
 8 priority queues on all switch ports
 Traffic Classification by:
• 802.1p CoS
• IP TOS/DSCP/Precedence of IPv4/IPv6 packets
• IP TCP/UDP port number
• Typical network applications
 Ingress Shaper and Egress Rate Limit per port bandwidth control
 Strict Priority and Weighted Round Robin (WRR) CoS policies
 Traffic-policing policies on the switch port
 DSCP Remarking
Layer 2 Features

35. 35 / 46

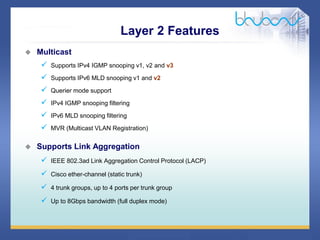

 Multicast
 Supports IPv4 IGMP snooping v1, v2 and v3
 Supports IPv6 MLD snooping v1 and v2
 Querier mode support
 IPv4 IGMP snooping filtering
 IPv6 MLD snooping filtering
 MVR (Multicast VLAN Registration)
 Supports Link Aggregation
 IEEE 802.3ad Link Aggregation Control Protocol (LACP)
 Cisco ether-channel (static trunk)
 4 trunk groups, up to 4 ports per trunk group
 Up to 8Gbps bandwidth (full duplex mode)
Layer 2 Features

36. 36 / 46

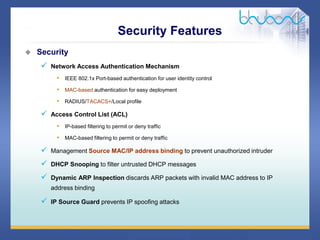

 Security
 Network Access Authentication Mechanism
• IEEE 802.1x Port-based authentication for user identity control
• MAC-based authentication for easy deployment
• RADIUS/TACACS+/Local profile
 Access Control List (ACL)
• IP-based filtering to permit or deny traffic
• MAC-based filtering to permit or deny traffic
 Management Source MAC/IP address binding to prevent unauthorized intruder
 DHCP Snooping to filter untrusted DHCP messages
 Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP
address binding
 IP Source Guard prevents IP spoofing attacks
Security Features

37. 37 / 46

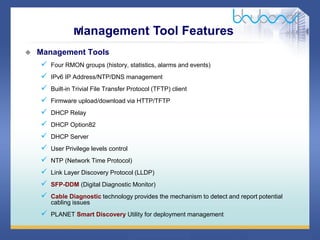

 Management Tools
 Four RMON groups (history, statistics, alarms and events)
 IPv6 IP Address/NTP/DNS management
 Built-in Trivial File Transfer Protocol (TFTP) client
 Firmware upload/download via HTTP/TFTP
 DHCP Relay
 DHCP Option82
 DHCP Server
 User Privilege levels control
 NTP (Network Time Protocol)
 Link Layer Discovery Protocol (LLDP)
 SFP-DDM (Digital Diagnostic Monitor)
 Cable Diagnostic technology provides the mechanism to detect and report potential
cabling issues
 PLANET Smart Discovery Utility for deployment management
Management Tool Features

38. Applications

39. 39 / 46
Applications

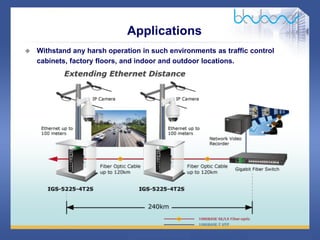

 Withstand any harsh operation in such environments as traffic control
cabinets, factory floors, and indoor and outdoor locations.
