The document provides an overview of the WGS-803, an 8-port unmanaged gigabit Ethernet switch designed for wall-mounting, suitable for a variety of environments including control cabinets and automation panels. It features a fanless design, operates within -10 to 60°C, and supports dual power inputs for high availability. The WGS-803's innovative installation options and compact design make it ideal for small Ethernet networking and industrial applications.

1. WGS-803
8-Port 10/100/1000T Wall-mounted
Gigabit Ethernet Switch

2. 2 / 29
Presentation Outlines
 Product Overview
 Product Benefits
 Product Features
 Applications
 Comparison

3. 3 / 29
Product Overview

4. 4 / 29
Product Overview

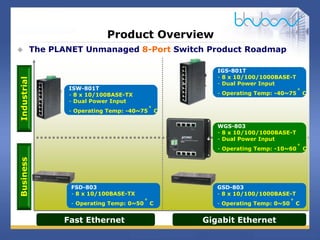

 The PLANET Unmanaged 8-Port Switch Product Roadmap
Fast Ethernet
Industrial
Business
Gigabit Ethernet
WGS-803
- 8 x 10/100/1000BASE-T
- Dual Power Input
- Operating Temp: -10~60° C
IGS-801T
- 8 x 10/100/1000BASE-T
- Dual Power Input
- Operating Temp: -40~75° C
ISW-801T
- 8 x 10/100BASE-TX
- Dual Power Input
- Operating Temp: -40~75° C
FSD-803
- 8 x 10/100BASE-TX
- Operating Temp: 0~50° C
GSD-803
- 8 x 10/100/1000BASE-T
- Operating Temp: 0~50° C

5. 5 / 29
Non-PoE
Managed
Unmanaged
PoE
WGS-804HP
- 4 x PoE+ 10/100/1000BASE-T
- 4 x 10/100/1000BASE-T
- 120-watt PoE budget
- Operating Temp: -10~60° C
WGS-804HPT
- IPv6/IPv4 Managed
- 4 x PoE+ 10/100/1000BASE-T
- 4 x 10/100/1000BASE-T
- 120-watt PoE budget
- Operating Temp: -40~75° C
WGS-803
- 8 x 10/100/1000BASE-T
- Operating Temp: -10~60° C
WGS-4215-8T2S
- IPv6/IPv4 Managed
- 8 x 10/100/1000BASE-T
- 2 x 100/1000BASE-X
- Operating Temp: -40~75° C
WGS-4215-8T
- IPv6/IPv4 Managed
- 8 x 10/100/1000BASE-T
- Operating Temp: -40~75° C
Product Overview

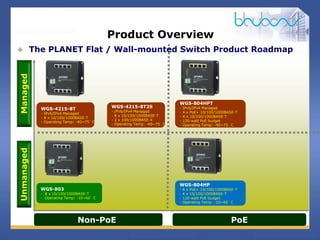

 The PLANET Flat / Wall-mounted Switch Product Roadmap

6. 6 / 29

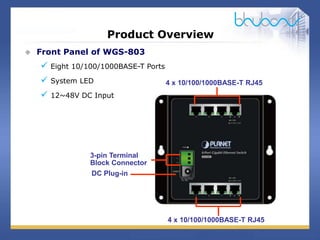

 Front Panel of WGS-803
 Eight 10/100/1000BASE-T Ports
 System LED
 12~48V DC Input
Product Overview
4 x 10/100/1000BASE-T RJ45
4 x 10/100/1000BASE-T RJ45
3-pin Terminal
Block Connector
DC Plug-in

7. 7 / 29
Product Overview

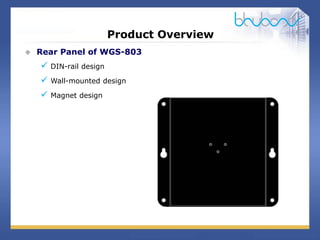

 Rear Panel of WGS-803
 DIN-rail design
 Wall-mounted design
 Magnet design

8. 8 / 29

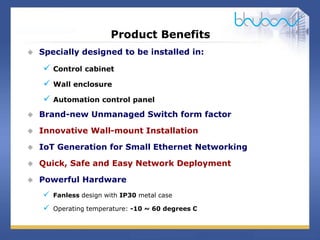

Product Benefits
 Specially designed to be installed in:
 Control cabinet
 Wall enclosure
 Automation control panel
 Brand-new Unmanaged Switch form factor
 Innovative Wall-mount Installation
 IoT Generation for Small Ethernet Networking
 Quick, Safe and Easy Network Deployment
 Powerful Hardware
 Fanless design with IP30 metal case
 Operating temperature: -10 ~ 60 degrees C

9. 9 / 29
Product Benefits
 Brand-new Unmanaged Switch Form Factor
 The WGS-803 is specially designed to be installed in a narrow environment,
such as wall enclosure or weak electric box.

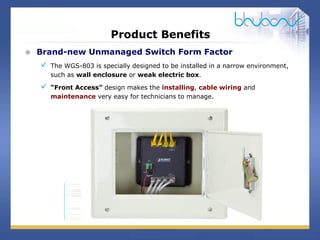

 “Front Access” design makes the installing, cable wiring and
maintenance very easy for technicians to manage.

10. 10 / 29
Product Benefits
 IoT Generation for Small Ethernet Networking

11. 11 / 29
Product Benefits

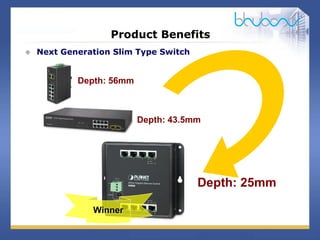

 Next Generation Slim Type Switch
Depth: 43.5mm
Depth: 56mm
Depth: 25mm
Winner

12. 12 / 29
Product Benefits

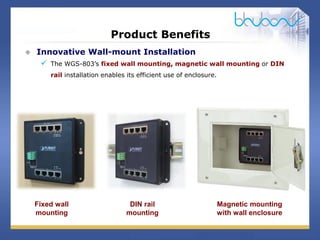

 Innovative Wall-mount Installation
 The WGS-803’s fixed wall mounting, magnetic wall mounting or DIN
rail installation enables its efficient use of enclosure.
Fixed wall
mounting
DIN rail
mounting
Magnetic mounting
with wall enclosure

13. 13 / 29
Product Benefits

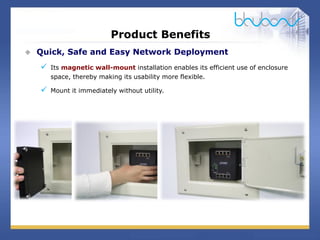

 Quick, Safe and Easy Network Deployment
 Its magnetic wall-mount installation enables its efficient use of enclosure
space, thereby making its usability more flexible.
 Mount it immediately without utility.

14. 14 / 29
Product Benefits

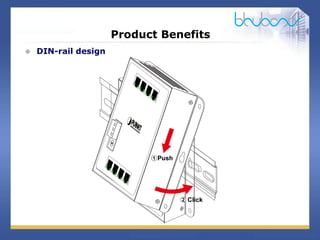

 DIN-rail design

15. 15 / 29
Product Benefits

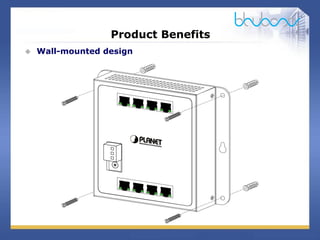

 Wall-mounted design

16. 16 / 29
Product Benefits
 Magnet design

17. 17 / 29
Product Key Features
WGS-803
Operating Temp
-10~60°C
Fanless
IP30
Design
12V~48V DC
Wide Power Input
Magnet Design
Wall-mounted
Design
8-Port
10/100/1000
BASE-T
Dual Power
Input

18. 18 / 29

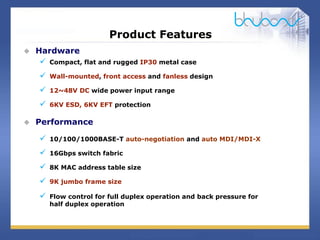

Product Features
 Hardware
 Compact, flat and rugged IP30 metal case
 Wall-mounted, front access and fanless design
 12~48V DC wide power input range
 6KV ESD, 6KV EFT protection
 Performance
 10/100/1000BASE-T auto-negotiation and auto MDI/MDI-X
 16Gbps switch fabric
 8K MAC address table size
 9K jumbo frame size
 Flow control for full duplex operation and back pressure for
half duplex operation

19. 19 / 29
Product Features

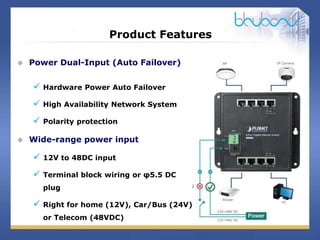

 Power Dual-Input (Auto Failover)
 Hardware Power Auto Failover
 High Availability Network System
 Polarity protection
 Wide-range power input
 12V to 48DC input
 Terminal block wiring or φ5.5 DC
plug
 Right for home (12V), Car/Bus (24V)
or Telecom (48VDC)

20. 20 / 29
Applications

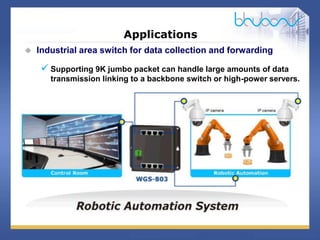

 Industrial area switch for data collection and forwarding
 Supporting 9K jumbo packet can handle large amounts of data
transmission linking to a backbone switch or high-power servers.

21. 21 / 29
Applications

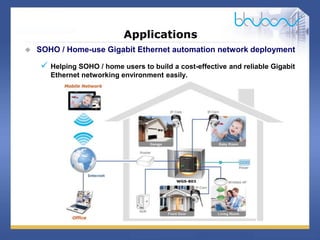

 SOHO / Home-use Gigabit Ethernet automation network deployment
 Helping SOHO / home users to build a cost-effective and reliable Gigabit
Ethernet networking environment easily.
