1. Industrial Layer 3
8-Port 10/100/1000T 802.3bt PoE++
Managed Switch Series
IGS-6325-8UP2S

2. 2 68
Presentation Outlines

3. 3 68
Factory
Transportation
Modes of Application
Overview
Building
Energy

4. 4 68
DIN-rail PoE+/PoE++ Managed Switches
Developing
New Phase-in
Available
L2+
w/Ring
IGS-5225
series
L2
/
L4
IGS-4215
series
L3
w/Ring
IGS-6325
series
IGS-4215-4P4T2S
4 x PoE+
2 x 100//1000X SFP
4 x 10/100/1000T
120W PoE Budget
IGS-4215-4P4T
4 x PoE+
4 x 10/100/1000T
120W PoE Budget
IGS-4215-8P2T2S
8 x PoE+
2 x 10/100/0000T
2 x 100/1000X SFP
IGS-10020PT
8 x PoE+
2 x 100/1000X SFP
2 DI + 2 DO
240W PoE Budget
IGS-10020HPT
8 x PoE+
2 x 100/1000X SFP
2 DI + 2 DO
240W PoE Budget
12~48V Booster
E-Mark
IGS-5225-8P4S
8 x PoE+
4 x 100/1000X SFP
2 DI + 2 DO
240W PoE Budget
IGS-5225-4UP1T2S
4 x 802.3bt PoE++
1 x 10/100/1000T
2 x 100/1000X SFP
2 DI + 2 DO
240W PoE Budget
IGS-5225-8P2T2S
8 x PoE+
2 x 10/100/1000T
2 x 100/1000X SFP
2 DI + 2 DO
240W PoE Budget
IGS-5225-4P2S
4 x PoE+
2 x 100/1000X SFP
120W PoE Budget
IGS-20160HPT
16G PoE+
2 x 10/100/1000T
2 x 100/1000X SFP
2 DI + 2 DO
320W PoE Budget
IGS-5225-8P2S2X
8 x PoE+
2 x 1G SFP +
2 x 10G SFP+
240W PoE Budget
IGS-6325-16P4S
16 x PoE+
4 x 100/1000X SFP
2 DI + 2 DO
320W PoE Budget
4-Port PoE 8-Port PoE 16-Port PoE
IGS-6325-8UP2S2X
8 x 802.3bt PoE++
2 x 10G SFP+
2 x 100/1000X SFP
360W PoE Budget
2 DI + 2 DO
IGS-6325-8UP2S
8 x 802.3bt PoE++
2 x 100/1000X SFP
360W PoE Budget
2 DI + 2 DO
1588
PTP
TC
ERPS
Ring
L3
OSPF
Routing
Modbus
TCP
1588
PTP
TC
ERPS
Ring
L3
Static
Routing
Modbus
TCP

5. 5 68

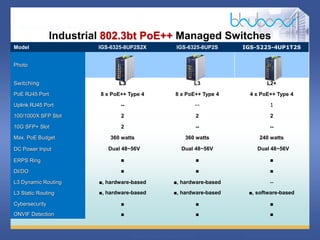

Industrial 802.3bt PoE++ Managed Switches
Model IGS-6325-8UP2S2X IGS-6325-8UP2S IGS-5225-4UP1T2S
Switching L3 L3 L2+
PoE RJ45 Port 8 x PoE++ Type 4 8 x PoE++ Type 4 4 x PoE++ Type 4
Uplink RJ45 Port -- -- 1
100/1000X SFP Slot 2 2 2
10G SFP+ Slot 2 -- --
Max. PoE Budget 360 watts 360 watts 240 watts
DC Power Input Dual 48~56V Dual 48~56V Dual 48~56V
ERPS Ring ■ ■ ■
DI/DO ■ ■ ■
L3 Dynamic Routing ■, hardware-based ■, hardware-based --
L3 Static Routing ■, hardware-based ■, hardware-based ■, software-based
Cybersecurity ■ ■ ■
ONVIF Detection ■ ■ ■

6. 6 / 49
PLANET IGS-6325 Series Managed Switch Family
Non-
PoE
PoE
IGS-6325-20S4C4X
24 x 100/1000X SFP
4 x combo Gigabit RJ45
4 x 1/10G SFP+
1 AC + 2 DC
IGS-6325-20T4C4X
24 x 10/100/1000T
- 4 x combo 100/1000X SFP
4 x 1/10G SFP+
1 AC + 2 DC
IGS-5225-8T2S2X
8 x 10/100/100T
2 x 100/100X SFP
2 x 10G SFP+
DIN-rail Rack-mount
IGS-6325-24P4X
24 x PoE+
4 x combo 100/1000X SFP
4 x 1/10G SFP+
440W PoE Budget
IGS-6325-24P4S
24 x PoE+
4 x combo 100/1000X SFP
440W PoE Budget
IGS-5225-8P2S2X
8 x PoE+
2 x 1G SFP +
2 x 10G SFP+
240W PoE Budget
IGS-6325-16P4S
16 x PoE+
4 x 100/1000X SFP
320W PoE Budget
IGS-6325-8UP2S
8 x 802.3bt PoE++
2 x 100/1000X SFP
360W PoE Budget
IGS-6325-8UP2S2X
8 x 802.3bt PoE++
2 x 10G SFP+
2 x 100/1000X SFP
360W PoE Budget
IGS-6325-8T8S4X
8 x 10/100/1000T
8 x 100/1000X SFP
4 x 10G SFP+
2 DC/AC input
IGS-6325-8T8S
8 x 10/100/1000T
8 x 100/1000X SFP
2 DC/AC input
Developing
New Phase-in
Available

7. 7 68

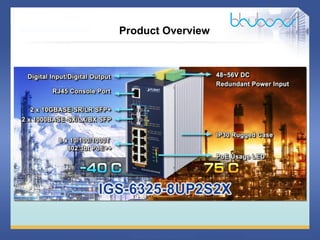

Product Overview

8. 8 68

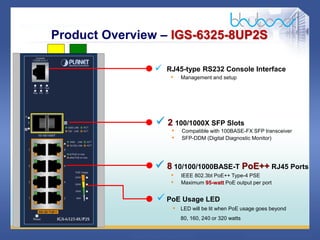

 RJ45-type RS232 Console Interface
• Management and setup
Product Overview – IGS-6325-8UP2S
 2 100/1000X SFP Slots
• Compatible with 100BASE-FX SFP transceiver
• SFP-DDM (Digital Diagnostic Monitor)
 8 10/100/1000BASE-T PoE++ RJ45 Ports
• IEEE 802.3bt PoE++ Type-4 PSE
• Maximum 95-watt PoE output per port
 PoE Usage LED
• LED will be lit when PoE usage goes beyond
80, 160, 240 or 320 watts

9. 9 68

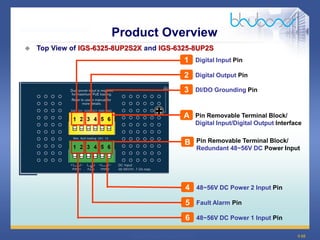

 Top View of IGS-6325-8UP2S2X and IGS-6325-8UP2S
B Pin Removable Terminal Block/
Redundant 48~56V DC Power Input
A Pin Removable Terminal Block/
Digital Input/Digital Output Interface
1 Digital Input Pin
2 Digital Output Pin
3 DI/DO Grounding Pin
4 48~56V DC Power 2 Input Pin
Fault Alarm Pin
5
48~56V DC Power 1 Input Pin
6
Product Overview

10. 10 68

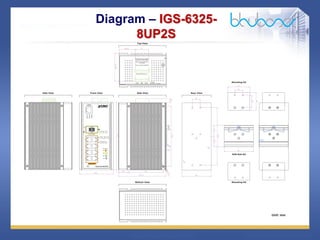

Diagram – IGS-6325-
8UP2S

11. 11 68

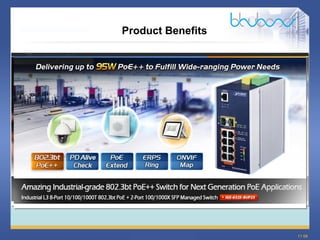

Product Benefits

12. 12 68
Highly-secure and Flexible
Traffic Management
Product Advantages
IP Routing
Latest PoE Standard for Varied
High-power Applications
Great Solution for High-speed
Transmission
Improve PoE Compatibility with
standard and non-standard PDs
10Gbps
Uplink
Multiple
PoE Modes
802.3bt
PoE++

13. 13 68

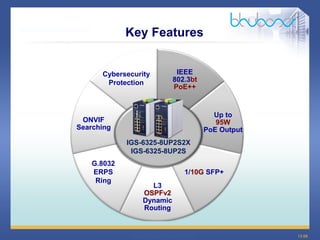

IGS-6325-8UP2S2X
IGS-6325-8UP2S
1/10G SFP+
Up to
95W
PoE Output
L3
OSPFv2
Dynamic
Routing
IEEE
802.3bt
PoE++
Key Features
G.8032
ERPS
Ring
Cybersecurity
Protection
ONVIF
Searching

14. 14 68

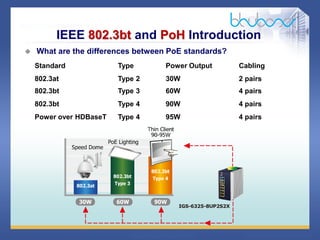

IEEE 802.3bt and PoH Introduction
 What are the differences between PoE standards?
Standard Type Power Output Cabling
802.3at Type 2 30W 2 pairs
802.3bt Type 3 60W 4 pairs
802.3bt Type 4 90W 4 pairs
Power over HDBaseT Type 4 95W 4 pairs

15. 15 68

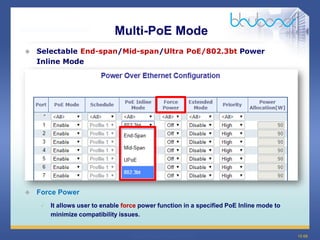

 Selectable End-span/Mid-span/Ultra PoE/802.3bt Power
Inline Mode
 Force Power
 It allows user to enable force power function in a specified PoE Inline mode to
minimize compatibility issues.
Multi-PoE Mode

16. 16 68

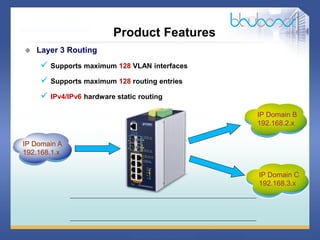

 Layer 3 Routing
 Supports maximum 128 VLAN interfaces
 Supports maximum 128 routing entries
 IPv4/IPv6 hardware static routing
IP Domain A
192.168.1.x
IP Domain B
192.168.2.x
Product Features
IP Domain C
192.168.3.x

17. 17 68

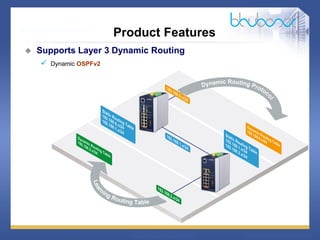

Product Features
 Supports Layer 3 Dynamic Routing
 Dynamic OSPFv2

18. 18 68

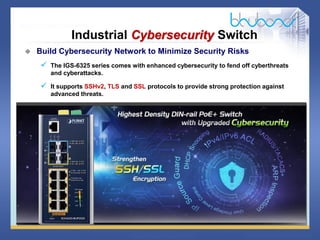

Industrial Cybersecurity Switch
 Build Cybersecurity Network to Minimize Security Risks
 The IGS-6325 series comes with enhanced cybersecurity to fend off cyberthreats
and cyberattacks.
 It supports SSHv2, TLS and SSL protocols to provide strong protection against
advanced threats.

19. 19 68

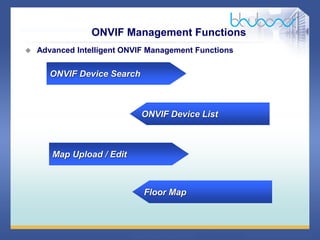

 Advanced Intelligent ONVIF Management Functions
ONVIF Device Search
Map Upload / Edit
ONVIF Device List
Floor Map
ONVIF Management Functions

20. 20 68

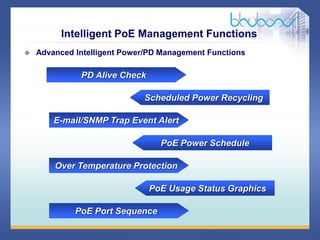

 Advanced Intelligent Power/PD Management Functions
PD Alive Check
E-mail/SNMP Trap Event Alert
Over Temperature Protection
Scheduled Power Recycling
PoE Power Schedule
PoE Usage Status Graphics
PoE Port Sequence
Intelligent PoE Management Functions

21. 21 68

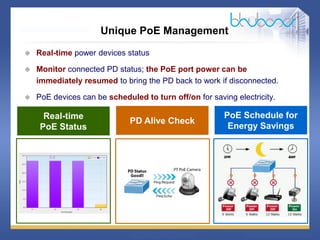

 Real-time power devices status
 Monitor connected PD status; the PoE port power can be
immediately resumed to bring the PD back to work if disconnected.
 PoE devices can be scheduled to turn off/on for saving electricity.
Unique PoE Management
Real-time
PoE Status
PoE Schedule for
Energy Savings
PD Alive Check

22. 22 68

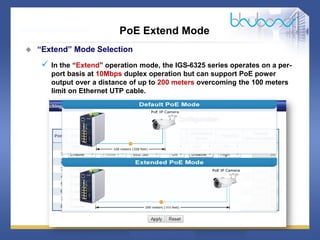

PoE Extend Mode
 “Extend” Mode Selection
 In the “Extend” operation mode, the IGS-6325 series operates on a per-
port basis at 10Mbps duplex operation but can support PoE power
output over a distance of up to 200 meters overcoming the 100 meters
limit on Ethernet UTP cable.

23. 23 68

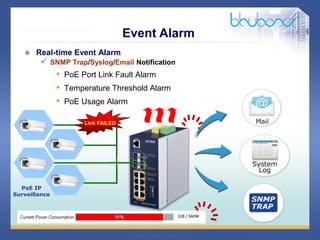

 Real-time Event Alarm
 SNMP Trap/Syslog/Email Notification
• PoE Port Link Fault Alarm
• Temperature Threshold Alarm
• PoE Usage Alarm
PoE IP
Surveillance
Link FAILED
Event Alarm

24. 24 68

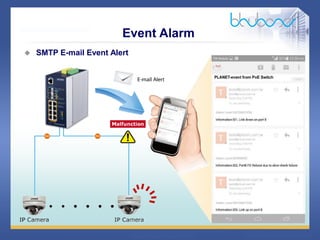

 SMTP E-mail Event Alert
Event Alarm

25. 25 68

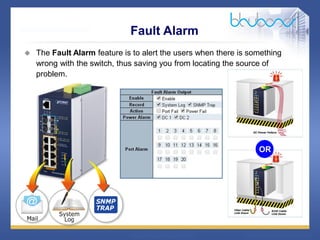

Fault Alarm
 The Fault Alarm feature is to alert the users when there is something
wrong with the switch, thus saving you from locating the source of
problem.
OR

26. 26 68
Digital Input Configuration
Digital Output Configuration
Digital Input & Digital Output

27. 27 68

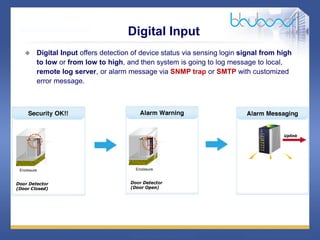

Digital Input
 Digital Input offers detection of device status via sensing login signal from high
to low or from low to high, and then system is going to log message to local,
remote log server, or alarm message via SNMP trap or SMTP with customized
error message.

28. 28 68

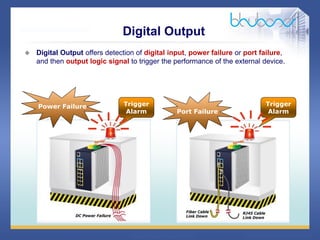

Power Failure Trigger
Alarm Port Failure
Trigger
Alarm
Digital Output
 Digital Output offers detection of digital input, power failure or port failure,
and then output logic signal to trigger the performance of the external device.

29. 29 68

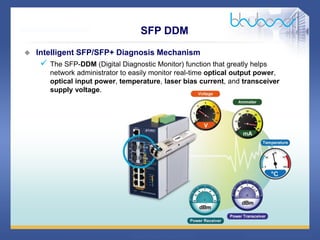

SFP DDM
 Intelligent SFP/SFP+ Diagnosis Mechanism
 The SFP-DDM (Digital Diagnostic Monitor) function that greatly helps
network administrator to easily monitor real-time optical output power,
optical input power, temperature, laser bias current, and transceiver
supply voltage.

30. 30 68
ITU-T G.8032 ERPS
 Redundant Ring, Fast Recovery for Critical Network Applications
 Complies with ITU-T G.8032 standard
 Recovery time of 10ms

31. 31 68

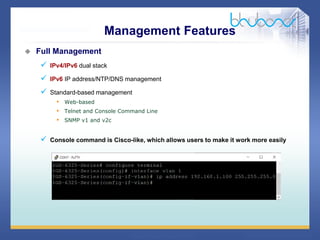

 Full Management
 IPv4/IPv6 dual stack
 IPv6 IP address/NTP/DNS management
 Standard-based management
• Web-based
• Telnet and Console Command Line
• SNMP v1 and v2c
 Console command is Cisco-like, which allows users to make it work more easily
Management Features

32. 32 68

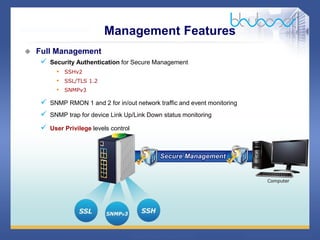

 Full Management
 Security Authentication for Secure Management
• SSHv2
• SSL/TLS 1.2
• SNMPv3
 SNMP RMON 1 and 2 for in/out network traffic and event monitoring
 SNMP trap for device Link Up/Link Down status monitoring
 User Privilege levels control
Management Features

33. 33 68

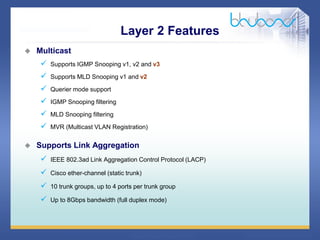

 Multicast
 Supports IGMP Snooping v1, v2 and v3
 Supports MLD Snooping v1 and v2
 Querier mode support
 IGMP Snooping filtering
 MLD Snooping filtering
 MVR (Multicast VLAN Registration)
 Supports Link Aggregation
 IEEE 802.3ad Link Aggregation Control Protocol (LACP)
 Cisco ether-channel (static trunk)
 10 trunk groups, up to 4 ports per trunk group
 Up to 8Gbps bandwidth (full duplex mode)
Layer 2 Features

34. 34 68

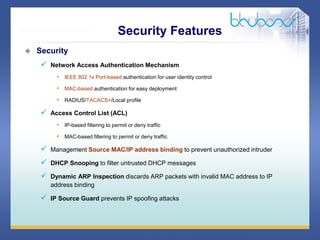

 Security
 Network Access Authentication Mechanism
• IEEE 802.1x Port-based authentication for user identity control
• MAC-based authentication for easy deployment
• RADIUS/TACACS+/Local profile
 Access Control List (ACL)
• IP-based filtering to permit or deny traffic
• MAC-based filtering to permit or deny traffic
 Management Source MAC/IP address binding to prevent unauthorized intruder
 DHCP Snooping to filter untrusted DHCP messages
 Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP
address binding
 IP Source Guard prevents IP spoofing attacks
Security Features

35. 35 68

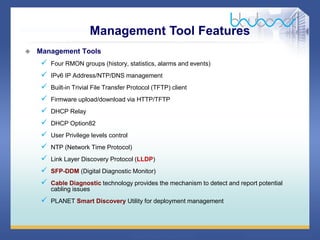

 Management Tools
 Four RMON groups (history, statistics, alarms and events)
 IPv6 IP Address/NTP/DNS management
 Built-in Trivial File Transfer Protocol (TFTP) client
 Firmware upload/download via HTTP/TFTP
 DHCP Relay
 DHCP Option82
 User Privilege levels control
 NTP (Network Time Protocol)
 Link Layer Discovery Protocol (LLDP)
 SFP-DDM (Digital Diagnostic Monitor)
 Cable Diagnostic technology provides the mechanism to detect and report potential
cabling issues
 PLANET Smart Discovery Utility for deployment management
Management Tool Features

36. 36 68

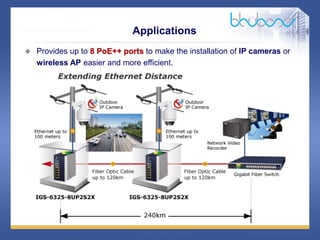

Applications
 Provides up to 8 PoE++ ports to make the installation of IP cameras or
wireless AP easier and more efficient.

37. BluBoxx Communication Pvt. Ltd.
102/B, Surekha Apartment, Pune Satara Road,
Pune-411037. Maharashtra, India.
Tel: +91-7875432180, Email: sales@bbcpl.in
www.bbcpl.in
