1. 1
SGS-5240 series
L2+ Stackable Managed Switch
SGS-5240-48T4X

2. 2
Presentation Outlines

3. 3
Presentation Outlines
PRODUCT
POSITIONING
PRODUCT
OVERVIEW
PRODUCT
FEATURES
APPENDIX
APPLICATIONS

4. 4
Product Positioning

5. 5
Standard PoE
Fiber Optics
The PLANET Stackable Managed
Switches
Layer
2+
Layer
3
Enterprise
Layer
3
Telecom
SGS-6341-48T4X
- 48 10/100/1000 RJ45
- 4 1/10G SFP+
SGS-6341-24T4X
- 24 10/100/1000 RJ45
- 4 1/10G SFP+
SGS-6341-24P4X
- 24 10/100/1000 RJ45 PoE
- 4 1/10G SFP+
- 370W PoE budget
SGS-6341-16S8C4XR
- 16 100/1000X SFP
- 8G TP/SFP combo
- 4 1/10G SFP+
- AC + DC power
XGS3-24042
- 24 10/100/1000 RJ45
- 4 shared 100/1000X SFP
- 4 1/10G SFP+
- Dual AC power
XGS3-24242
- 16G TP/SFP combo
- 8 100/1000X SFP
- 4 1/10G SFP+
- AC + DC power
XGS-6350-24X4C
- 24 1G/10G SFP+
- 4 100G QSFP28
- AC + optional power slot
XGS-6350-12X8TR
- 12 1G/10G SFP+
- 8 10/100/1000 RJ45
- Dual AC
SGS-5240-48T4X
- 48 10/100/1000 RJ45
- 4 1/10G SFP+
SGS-5240-20S4C4XR
- 20 100/1000X SFP
- 4 shared 10/100/1000T
- 4 1/10G SFP+
- AC + DC power
SGS-5240-24T4X
- 24 10/100/1000 RJ45
- 4 1/10G SFP+
SGS-5220-24S2XR
- 24 100/1000X SFP
- 8 shared 10/100/1000T
- 2 1/10G SFP+
- 2 stacking ports
- AC + DC power
SGS-5220-24T2X
- 24 10/100/1000 RJ45
- 2 1/10G SFP+
- 2 stacking ports
SGS-5220-24P4X
- 24 10/100/1000 RJ45 PoE
- 4 1/10G SFP+
- 400W PoE budget
SGS-5240-24P4X
- 24 10/100/1000 RJ45 PoE
- 4 1/10G SFP+
- 370W PoE budget
New Phase-in
Available

6. 6
Model SGS-5220 series SGS-5240 series SGS-6341 series
SGS-5220-24T2X
SGS-5220-24P2X
SGS-5220-24S2XR
SGS-5240-24T4X
SGS-5240-24P4X
SGS-5240-20S4C4XR
SGS-5240-48T4X
SGS-6341-24T4X
SGS-6341-24P4X
SGS-6341-16S8C4XR
SGS-6341-48T4X
Features L2+ Stackable Switch L2+ Stackable Switch L3 Stackable Switch
Specifications
Layer 3 Routing Protocol - -
RIP, OSPF, BGP, VRRP,
IGMP, DVMRP, PIM-DM/SM
Layer 3 Static Routing IPv4 and IPv6 IPv4 and IPv6 IPv4 and IPv6
G.8032 ERPS Ring - ■ ■
Switch Stacking
(Hardware Stacking)
Up to 16 units Up to 6 units Up to 4 units
2 dedicated 10G SFP+ ports 2 dedicated 10G SFP+ ports
(Optional standalone/stacking)
Any configurable interfaces
(Optional standalone/stacking)
Switch Clustering
(IP Stacking)
- Up to 16 units Up to 24 units
- Any interfaces Any interfaces
Max. 10G Ports per Switch 2 4 4
PLANET Stackable Managed Switches

7. 7
Product Overview

8. 8
 Front Panel
 48 10/100/1000BASE-T RJ45 ports
 4 1G/10GBASE-X SFP+ slots
 1 RJ45 management port
 1 RJ45 console interface
Product Overview
SGS-5240-48T4X
A
A
B
B
C
D
C D

9. 9

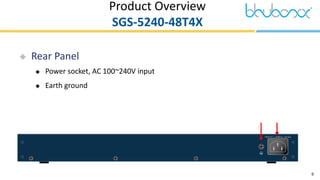

 Rear Panel
 Power socket, AC 100~240V input
 Earth ground
Product Overview
SGS-5240-48T4X
E
E
F
F

10. 10

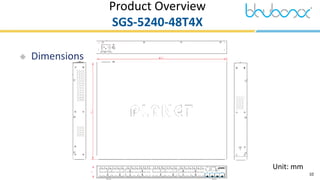

 Dimensions
Product Overview
SGS-5240-48T4X
Unit: mm

11. 11
Product Features

12. 12

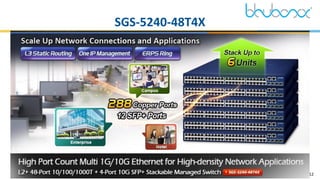

SGS-5240-48T4X

13. 13
Layer 3 Routing Capability
 Hardware-based IPv6/IPv4 Static Layer 3 Routing
and Flexible Traffic Management
IP Domain A
192.168.1.x
IP Domain C
192.168.3.x
1G/
10G
IP Domain B
192.168.2.x
1G/
10G

14. 14
Flexible Operation Mode
 3 switch operation modes: Standalone
Switch
Stacking
Switch Clustering
Operation Mode Available 10G Interface
Standalone Switch Four 10G SFP+ ports for uplink
Clustering Switch Four 10G SFP+ ports for uplink
Stacking Switch
Two 10G SFP+ ports for uplink
Two 10G SFP+ ports for stacking

15. 15
 Using two specified SFP+ ports to connect up to 6 switches in the same model and build a
virtually logical facility, the SGS-5240 series gives the enterprises and service providers
flexible control over port density, uplinks and switch stack performance.
High Reliability Switch Stacking
Stacking Up
10Gbps
Stacking Down
10Gbps
Single IP Management,
up to 6 units

16. 16

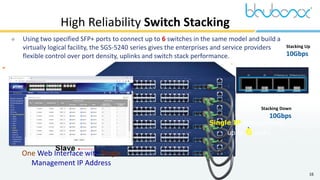

High Reliability Switch Stacking
 Using two specified SFP+ ports to connect up to 6 switches in the same model and build a
virtually logical facility, the SGS-5240 series gives the enterprises and service providers
flexible control over port density, uplinks and switch stack performance.
Single IP Management,
up to 6 units
Stacking Up
10Gbps
Stacking Down
10Gbps
One Web Interface with Single
Management IP Address

17. 17
Central IP Stacking Management
 Switch Clustering
Commander
Member 1
Candidate
Switch Clustering
Add
Member 2 Any interfaces
Any distance
Single IP Management,
up to 16 units

18. 18
ITU G.8032 ERPS Ring
 Redundant Ring, Fast Recovery for Critical Network
Applications

19. 19
Efficient and Secure Management
 With the built-in Web-based management interface, the
SGS-5240 series offers an easy-to-use, platform-
independent management and configuration facility.

20. 20
Standalone/Hi-density PoE+ Switch

21. 21
Energy Savings with PoE Schedule
 PoE device is scheduled to turn on or turn off, thus saving
electricity rate.
Daily Work
Power Consumption Off-Business Power Savings
Off-Business
Hours
Daily Work

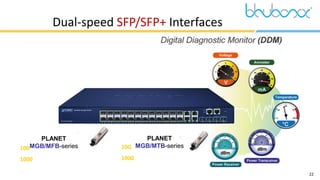

22. 22
Dual-speed SFP/SFP+ Interfaces
100BASE-FX SFP support
1000BASE-X SFP support
PLANET
MGB/MFB-series 10GBASE-X SFP+ support
1000BASE-X SFP support
PLANET
MGB/MTB-series

23. 23
10GBASE-X SFP+ support
1000BASE-X SFP support
PLANET
MGB/MTB-series
100BASE-FX SFP support
1000BASE-X SFP support
PLANET
MGB/MFB-series
High-density SFP/SFP+ Fiber Switch
ts
Switch Stacking

24. 24
Common Product Features

25. 25
Product Features -- Switching
 Supports VLAN
 IEEE 802.1Q tagged VLAN
 Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
 Private VLAN Edge (PVE)
 GVRP – Dynamic VLAN learning
 Protocol-based VLAN
 MAC-based VLAN
 IP subnet VLAN

26. 26
Product Features -- Switching
 Supports Spanning Tree Protocol
 STP, IEEE 802.1d (Spanning Tree Protocol)
 RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
 MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by
VLAN)
 BPDU and Port Guard enhance switch network reliability, manageability
and security

27. 27

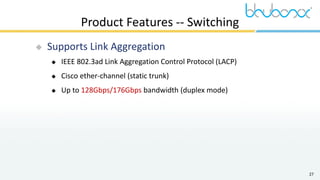

Product Features -- Switching
 Supports Link Aggregation
 IEEE 802.3ad Link Aggregation Control Protocol (LACP)
 Cisco ether-channel (static trunk)
 Up to 128Gbps/176Gbps bandwidth (duplex mode)

28. 28

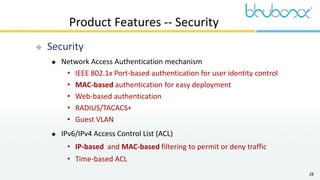

Product Features -- Security
 Security
 Network Access Authentication mechanism
• IEEE 802.1x Port-based authentication for user identity control
• MAC-based authentication for easy deployment
• Web-based authentication
• RADIUS/TACACS+
• Guest VLAN
 IPv6/IPv4 Access Control List (ACL)
• IP-based and MAC-based filtering to permit or deny traffic
• Time-based ACL

29. 29

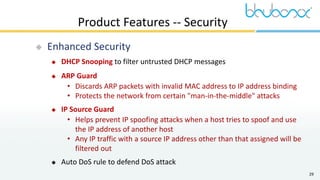

Product Features -- Security
 Enhanced Security
 DHCP Snooping to filter untrusted DHCP messages
 ARP Guard
• Discards ARP packets with invalid MAC address to IP address binding
• Protects the network from certain "man-in-the-middle" attacks
 IP Source Guard
• Helps prevent IP spoofing attacks when a host tries to spoof and use
the IP address of another host
• Any IP traffic with a source IP address other than that assigned will be
filtered out
 Auto DoS rule to defend DoS attack

30. 30

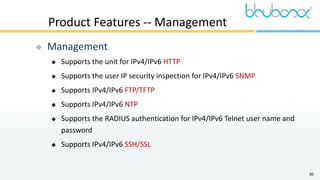

Product Features -- Management
 Management
 Supports the unit for IPv4/IPv6 HTTP
 Supports the user IP security inspection for IPv4/IPv6 SNMP
 Supports IPv4/IPv6 FTP/TFTP
 Supports IPv4/IPv6 NTP
 Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and
password
 Supports IPv4/IPv6 SSH/SSL

31. 31

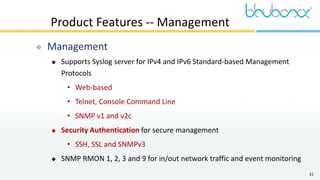

Product Features -- Management
 Management
 Supports Syslog server for IPv4 and IPv6 Standard-based Management
Protocols
• Web-based
• Telnet, Console Command Line
• SNMP v1 and v2c
 Security Authentication for secure management
• SSH, SSL and SNMPv3
 SNMP RMON 1, 2, 3 and 9 for in/out network traffic and event monitoring

32. 32
Applications

33. 33

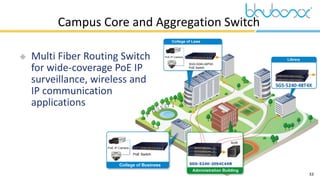

 Multi Fiber Routing Switch
for wide-coverage PoE IP
surveillance, wireless and
IP communication
applications
Campus Core and Aggregation Switch
SGS-5240-48T4X

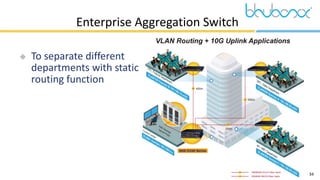

34. 34
 To separate different
departments with static
routing function
Enterprise Aggregation Switch

35. 35
