1. PRESENTATION
ON
HYDRO POWER PLANT
1
MAYANK RATHI
|
100106185

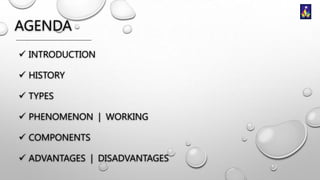

2. AGENDA
 INTRODUCTION
 HISTORY
 TYPES
 PHENOMENON | WORKING
 COMPONENTS
 ADVANTAGES | DISADVANTAGES

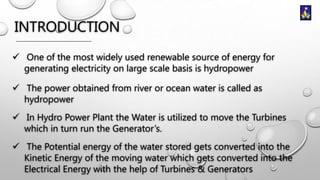

3. INTRODUCTION
 One of the most widely used renewable source of energy for
generating electricity on large scale basis is hydropower
 The power obtained from river or ocean water is called as
hydropower
 In Hydro Power Plant the Water is utilized to move the Turbines
which in turn run the Generator’s.
 The Potential energy of the water stored gets converted into the
Kinetic Energy of the moving water which gets converted into the
Electrical Energy with the help of Turbines & Generators

4. HISTORY
 Nearly 2000 years ago the Greeks used water wheels to grind
wheat into flour
 Appleton, Wisconsin became the first operational hydroelectric
generating station in the United States, in 1882, producing 12.5
kilowatts (kW) of power .
 In India, First Hydro Power Plant was constructed at Darjeeling in
1898 named as “ SINDRAPONG ” having capacity 130kW.

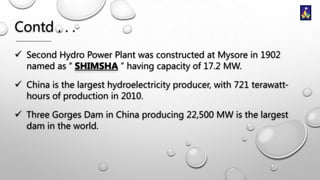

5. Contd . . .
 Second Hydro Power Plant was constructed at Mysore in 1902
named as “ SHIMSHA ” having capacity of 17.2 MW.
 China is the largest hydroelectricity producer, with 721 terawatthours of production in 2010.
 Three Gorges Dam in China producing 22,500 MW is the largest
dam in the world.

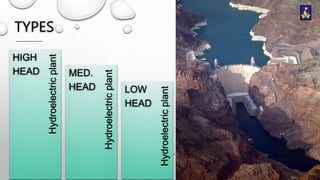

6. HIGH
HEAD
Hydroelectric plant
MED.
HEAD
Hydroelectric plant
LOW
HEAD
Hydroelectric plant
TYPES

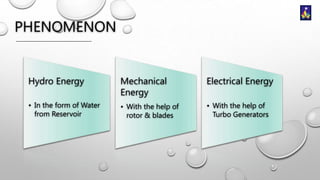

7. PHENOMENON
Hydro Energy
Mechanical
Energy
Electrical Energy
• In the form of Water
from Reservoir
• With the help of
rotor & blades
• With the help of
Turbo Generators

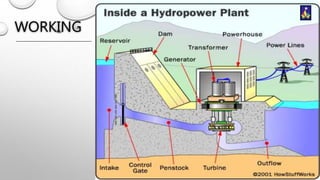

8. WORKING

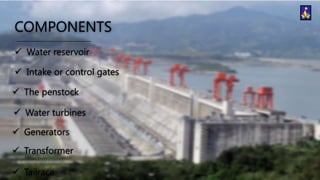

9. COMPONENTS
 Water reservoir
 Intake or control gates
 The penstock
 Water turbines
 Generators
 Transformer
 Tailrace

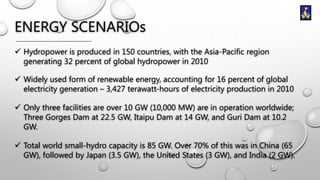

10. ENERGY SCENARIOs
 Hydropower is produced in 150 countries, with the Asia-Pacific region
generating 32 percent of global hydropower in 2010
 Widely used form of renewable energy, accounting for 16 percent of global
electricity generation – 3,427 terawatt-hours of electricity production in 2010
 Only three facilities are over 10 GW (10,000 MW) are in operation worldwide;
Three Gorges Dam at 22.5 GW, Itaipu Dam at 14 GW, and Guri Dam at 10.2
GW.
 Total world small-hydro capacity is 85 GW. Over 70% of this was in China (65
GW), followed by Japan (3.5 GW), the United States (3 GW), and India (2 GW).

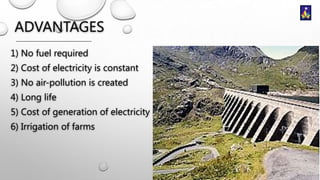

11. ADVANTAGES
1) No fuel required
2) Cost of electricity is constant
3) No air-pollution is created
4) Long life
5) Cost of generation of electricity
6) Irrigation of farms

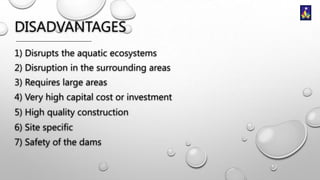

12. DISADVANTAGES
1) Disrupts the aquatic ecosystems
2) Disruption in the surrounding areas
3) Requires large areas
4) Very high capital cost or investment
5) High quality construction
6) Site specific
7) Safety of the dams
