1. Presentation
Topic Hydraulic Press
Presented To Engr. Umar Khalidoon
Presented By Muhammd Hasnain
2016-BT-Mech-714
Umar Farooq
2016-BT-Mech-726
M.N.S U.E.T Multan

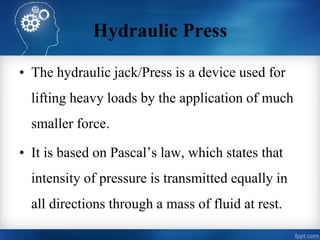

2. Hydraulic Press
• The hydraulic jack/Press is a device used for
lifting heavy loads by the application of much
smaller force.
• It is based on Pascal’s law, which states that
intensity of pressure is transmitted equally in
all directions through a mass of fluid at rest.

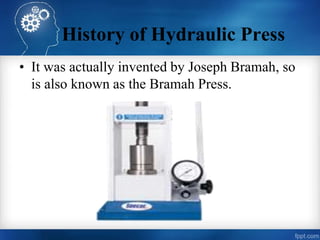

3. History of Hydraulic Press
• It was actually invented by Joseph Bramah, so
is also known as the Bramah Press.

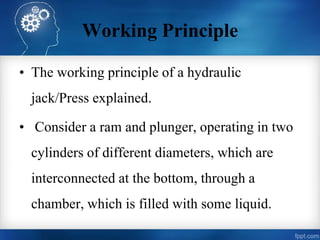

4. Working Principle
• The working principle of a hydraulic
jack/Press explained.
• Consider a ram and plunger, operating in two
cylinders of different diameters, which are
interconnected at the bottom, through a
chamber, which is filled with some liquid.

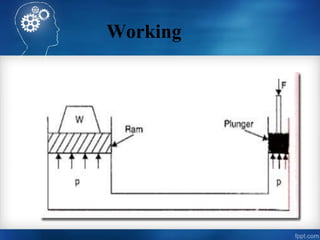

5. Working

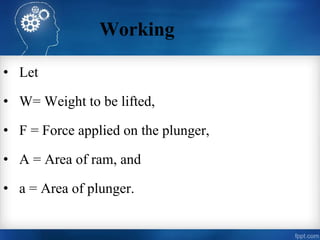

6. Working
• Let
• W= Weight to be lifted,
• F = Force applied on the plunger,
• A = Area of ram, and
• a = Area of plunger.

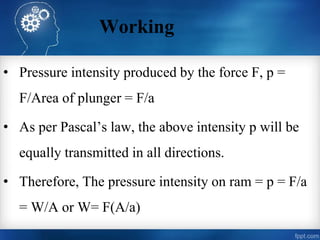

7. Working
• Pressure intensity produced by the force F, p =
F/Area of plunger = F/a
• As per Pascal’s law, the above intensity p will be
equally transmitted in all directions.
• Therefore, The pressure intensity on ram = p = F/a
= W/A or W= F(A/a)

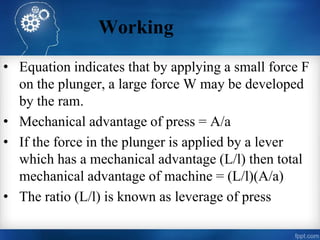

8. Working
• Equation indicates that by applying a small force F
on the plunger, a large force W may be developed
by the ram.
• Mechanical advantage of press = A/a
• If the force in the plunger is applied by a lever
which has a mechanical advantage (L/l) then total
mechanical advantage of machine = (L/l)(A/a)
• The ratio (L/l) is known as leverage of press

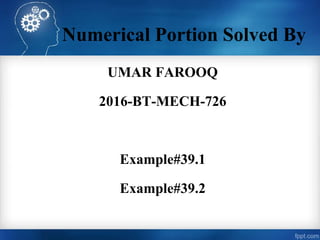

9. Numerical Portion Solved By
UMAR FAROOQ
2016-BT-MECH-726
Example#39.1
Example#39.2
