1. Understanding
Microservices
Lego building for your platform

2. About Me
M A Hossain Tonu
@Vantage Labs Dhaka
mahtonu@vantage.com
Authored the title “PHP Application
Development with NetBeans:
Beginner's Guide”
mahtonu.wordpress.com

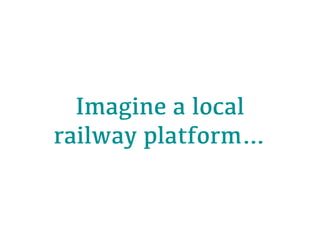

3. Imagine a local
railway platform…

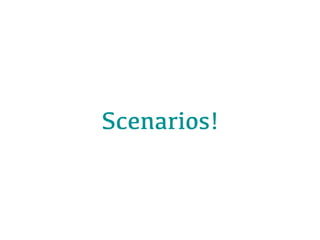

5. Scenarios!

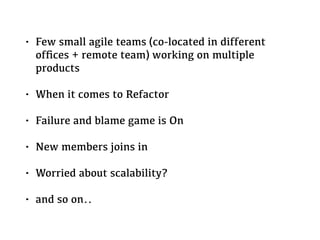

6. • Few small agile teams (co-located in different
offices + remote team) working on multiple
products
• When it comes to Refactor
• Failure and blame game is On
• New members joins in
• Worried about scalability?
• and so on..

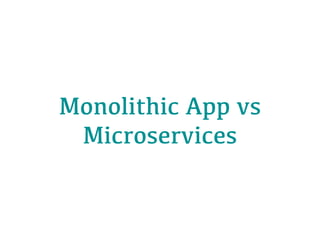

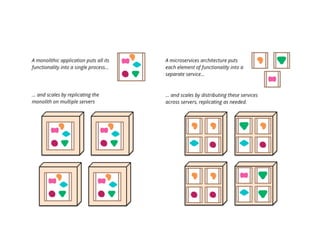

7. Monolithic App vs
Microservices

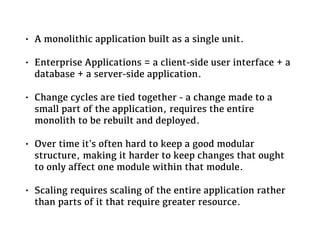

9. • A monolithic application built as a single unit.
• Enterprise Applications = a client-side user interface + a
database + a server-side application.
• Change cycles are tied together - a change made to a
small part of the application, requires the entire
monolith to be rebuilt and deployed.
• Over time it's often hard to keep a good modular
structure, making it harder to keep changes that ought
to only affect one module within that module.
• Scaling requires scaling of the entire application rather
than parts of it that require greater resource.

10. Microservice?

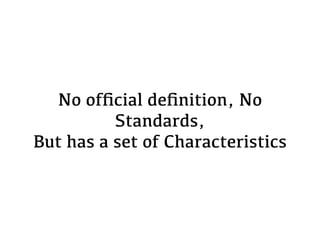

11. No official definition, No
Standards,
But has a set of Characteristics

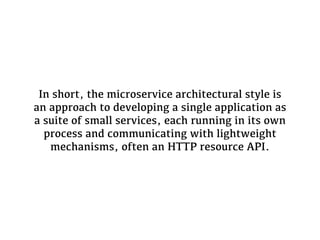

12. In short, the microservice architectural style is
an approach to developing a single application as
a suite of small services, each running in its own
process and communicating with lightweight
mechanisms, often an HTTP resource API.

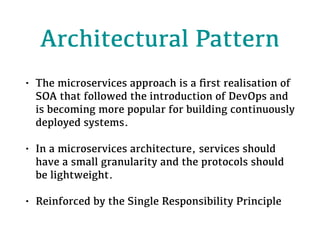

13. Architectural Pattern
• The microservices approach is a first realisation of
SOA that followed the introduction of DevOps and
is becoming more popular for building continuously
deployed systems.
• In a microservices architecture, services should
have a small granularity and the protocols should
be lightweight.
• Reinforced by the Single Responsibility Principle

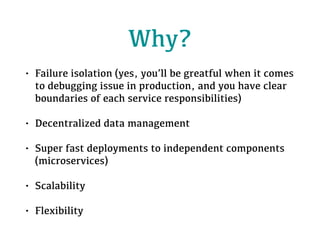

14. Why?
• Failure isolation (yes, you’ll be greatful when it comes
to debugging issue in production, and you have clear
boundaries of each service responsibilities)

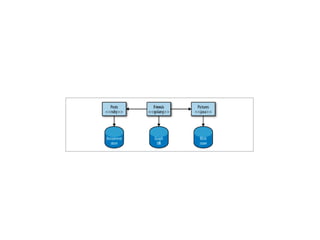

• Decentralized data management
• Super fast deployments to independent components
(microservices)
• Scalability
• Flexibility

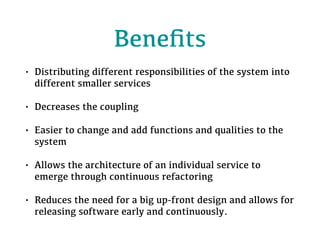

15. Benefits
• Distributing different responsibilities of the system into
different smaller services
• Decreases the coupling
• Easier to change and add functions and qualities to the
system
• Allows the architecture of an individual service to
emerge through continuous refactoring
• Reduces the need for a big up-front design and allows for
releasing software early and continuously.

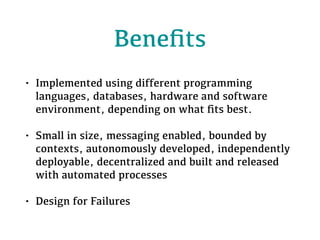

16. Benefits
• Implemented using different programming
languages, databases, hardware and software
environment, depending on what fits best.
• Small in size, messaging enabled, bounded by
contexts, autonomously developed, independently
deployable, decentralized and built and released
with automated processes
• Design for Failures

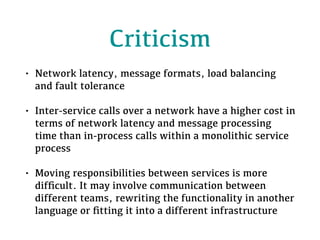

19. Criticism
• Network latency, message formats, load balancing
and fault tolerance
• Inter-service calls over a network have a higher cost in
terms of network latency and message processing
time than in-process calls within a monolithic service
process
• Moving responsibilities between services is more
difficult. It may involve communication between
different teams, rewriting the functionality in another
language or fitting it into a different infrastructure

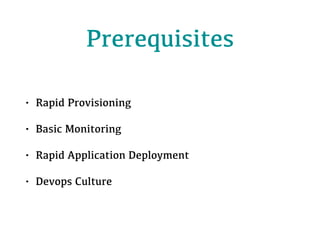

20. Prerequisites
• Rapid Provisioning
• Basic Monitoring
• Rapid Application Deployment
• Devops Culture

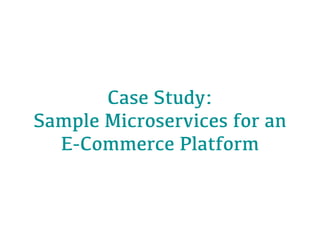

22. Case Study:
Sample Microservices for an
E-Commerce Platform

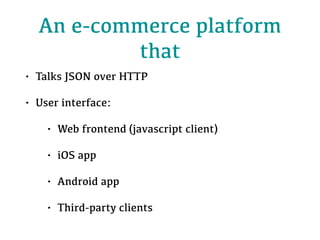

23. An e-commerce platform
that
• Talks JSON over HTTP
• User interface:
• Web frontend (javascript client)
• iOS app
• Android app
• Third-party clients

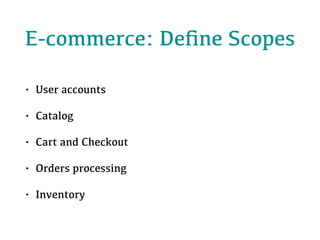

24. E-commerce: Define Scopes
• User accounts
• Catalog
• Cart and Checkout
• Orders processing
• Inventory

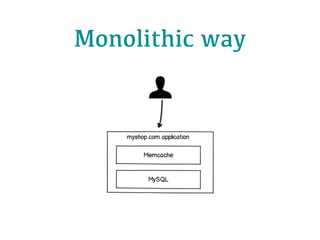

25. Monolithic way

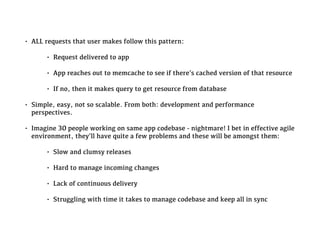

26. • ALL requests that user makes follow this pattern:
• Request delivered to app
• App reaches out to memcache to see if there’s cached version of that resource
• If no, then it makes query to get resource from database
• Simple, easy, not so scalable. From both: development and performance
perspectives.
• Imagine 30 people working on same app codebase - nightmare! I bet in effective agile
environment, they’ll have quite a few problems and these will be amongst them:
• Slow and clumsy releases
• Hard to manage incoming changes
• Lack of continuous delivery
• Struggling with time it takes to manage codebase and keep all in sync

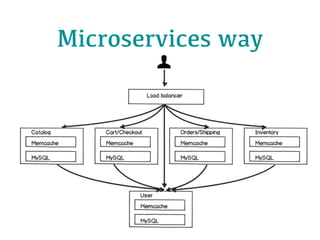

27. Microservices way

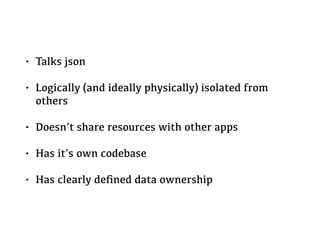

28. • Talks json
• Logically (and ideally physically) isolated from
others
• Doesn’t share resources with other apps
• Has it’s own codebase
• Has clearly defined data ownership

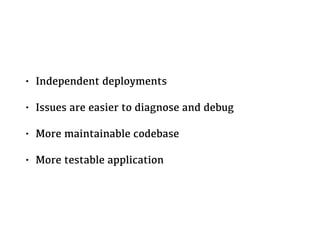

29. • Independent deployments
• Issues are easier to diagnose and debug
• More maintainable codebase
• More testable application

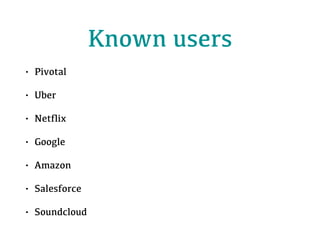

30. Known users
• Pivotal
• Uber
• Netflix
• Google
• Amazon
• Salesforce
• Soundcloud

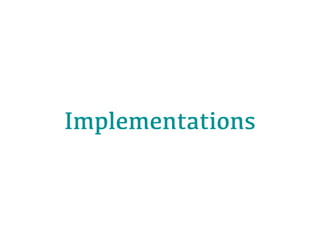

31. Implementations

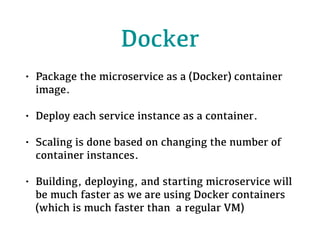

33. Docker
• Package the microservice as a (Docker) container
image.
• Deploy each service instance as a container.
• Scaling is done based on changing the number of
container instances.
• Building, deploying, and starting microservice will
be much faster as we are using Docker containers
(which is much faster than a regular VM)

34. References
• Martin Fowler’s Microservices: https://
martinfowler.com/articles/microservices.html
• Photo courtesy: martinfowler.com
