PLANNING AND ORGANIZING: HOSPITAL, UNIT AND ANCILLARY SERVICES

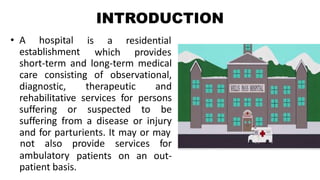

INTRODUCTION • A hospital establishment is a residential which provides short-term and long-term medical care consisting of observational, diagnostic, therapeutic and rehabilitative services for persons suffering or suspected to be suffering from a disease or injury and for parturients. It may or may ambulatory not also provide services for patients on an out- patient basis.

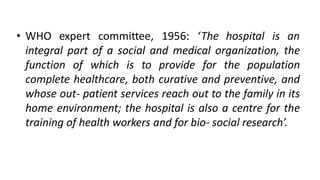

• WHO expert committee, 1956: ‘The hospital is an integral part of a social and medical organization, the function of which is to provide for the population complete healthcare, both curative and preventive, and whose out- patient services reach out to the family in its home environment; the hospital is also a centre for the training of health workers and for bio- social research’.

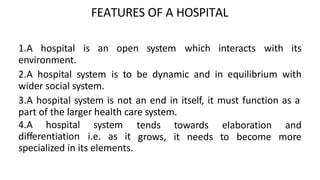

FEATURES OF A HOSPITAL 1.A hospital is an open system which interacts with its environment. 2.A hospital system is to be dynamic and in equilibrium with wider social system. 3.A hospital system is not an end in itself, it must function as a part of the larger health care system. 4.A hospital system tends grows, towards elaboration and it needs to become more differentiation i.e. as it specialized in its elements.

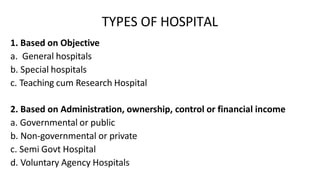

TYPES OF HOSPITAL 1. Based on Objective a. General hospitals b. Special hospitals c. Teaching cum Research Hospital 2. Based on Administration, ownership, control or financial income a. Governmental or public b. Non-governmental or private c. Semi Govt Hospital d. Voluntary Agency Hospitals

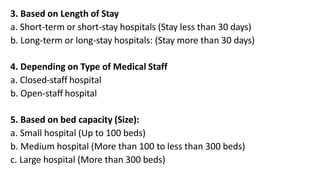

3. Based on Length of Stay a. Short-term or short-stay hospitals (Stay less than 30 days) b. Long-term or long-stay hospitals: (Stay more than 30 days) 4. Depending on Type of Medical Staff a. Closed-staff hospital b. Open-staff hospital 5. Based on bed capacity (Size): a. Small hospital (Up to 100 beds) b. Medium hospital (More than 100 to less than 300 beds) c. Large hospital (More than 300 beds)

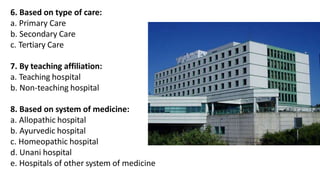

6. Based on type of care: a. Primary Care b. Secondary Care c. Tertiary Care 7. By teaching affiliation: a. Teaching hospital b. Non-teaching hospital 8. Based on system of medicine: a. Allopathic hospital b. Ayurvedic hospital c. Homeopathic hospital d. Unani hospital e. Hospitals of other system of medicine

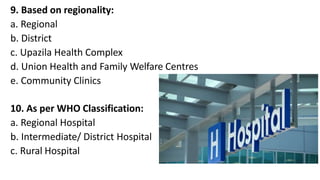

9. Based on regionality: a. Regional b. District c. Upazila Health Complex d. Union Health and Family Welfare Centres e. Community Clinics 10. As per WHO Classification: a. Regional Hospital b. Intermediate/ District Hospital c. Rural Hospital

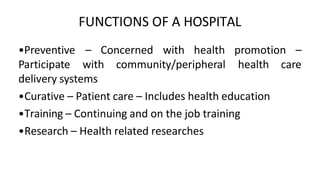

FUNCTIONS OF A HOSPITAL – Concerned with health promotion – •Preventive Participate with community/peripheral health care delivery systems •Curative – Patient care – Includes health education •Training – Continuing and on the job training •Research – Health related researches
AIMS OF HOSPITAL PLANNING •To increase utilization of hospital facilities. •To increase population coverage. •To enlarge the existing hospital by introducing new facilities. •To increase productivity of hospital. •Modernization of the already existing facilities. •To reduce the cost of operations and maximize efficiency of services.

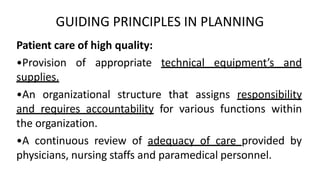

GUIDING PRINCIPLES IN PLANNING Patient care of high quality: •Provision of appropriate technical equipment’s and supplies. •An organizational structure that assigns responsibility and requires accountability for various functions within the organization. •A continuous review of adequacy of care provided by physicians, nursing staffs and paramedical personnel.

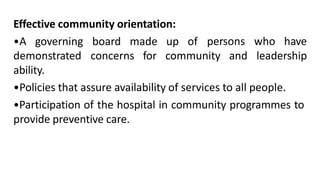

Effective community orientation: •A governing board made up of persons who have leadership demonstrated concerns for community and ability. •Policies that assure availability of services to all people. •Participation of the hospital in community programmes to provide preventive care.

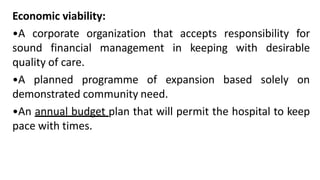

Economic viability: •A corporate organization that accepts responsibility for sound financial management in keeping with desirable quality of care. •A planned programme of expansion based solely on demonstrated community need. •An annual budget plan that will permit the hospital to keep pace with times.

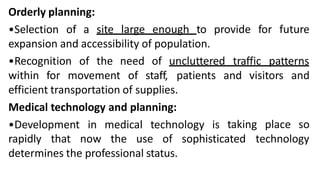

Orderly planning: •Selection of a site large enough to provide for future expansion and accessibility of population. •Recognition of the need of uncluttered traffic patterns and visitors and within for movement of staff, patients efficient transportation of supplies. Medical technology and planning: •Development in medical technology is taking place so sophisticated technology rapidly that now the use of determines the professional status.

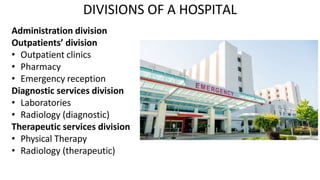

DIVISIONS OF A HOSPITAL Administration division Outpatients’ division • Outpatient clinics • Pharmacy • Emergency reception Diagnostic services division • Laboratories • Radiology (diagnostic) Therapeutic services division • Physical Therapy • Radiology (therapeutic)

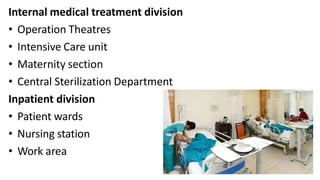

Internal medical treatment division • Operation Theatres • Intensive Care unit • Maternity section • Central Sterilization Department Inpatient division • Patient wards • Nursing station • Work area
General service division • Kitchen • Laundry • Storages • Workshops • Mechanical services • Mortuary • Security • Parking • Landscaping

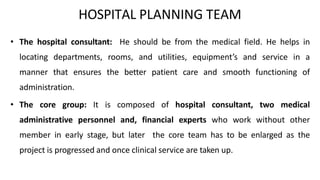

HOSPITAL PLANNING TEAM • The hospital consultant: He should be from the medical field. He helps in locating departments, rooms, and utilities, equipment’s and service in a manner that ensures the better patient care and smooth functioning of administration. • The core group: It is composed of hospital consultant, two medical administrative personnel and, financial experts who work without other member in early stage, but later the core team has to be enlarged as the project is progressed and once clinical service are taken up.

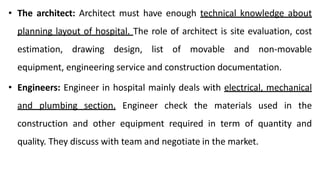

• The architect: Architect must have enough technical knowledge about planning layout of hospital. The role of architect is site evaluation, cost estimation, drawing design, list of movable and non-movable equipment, engineering service and construction documentation. • Engineers: Engineer in hospital mainly deals with electrical, mechanical and plumbing section. Engineer check the materials used in the construction and other equipment required in term of quantity and quality. They discuss with team and negotiate in the market.

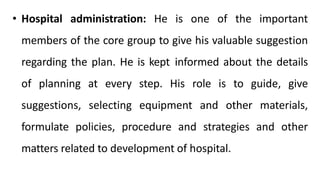

• Hospital administration: He is one of the important members of the core group to give his valuable suggestion regarding the plan. He is kept informed about the details of planning at every step. His role is to guide, give suggestions, selecting equipment and other materials, formulate policies, procedure and strategies and other matters related to development of hospital.

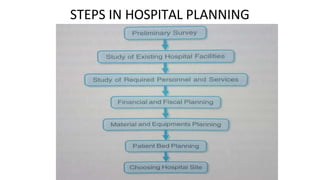

STEPS IN HOSPITAL PLANNING

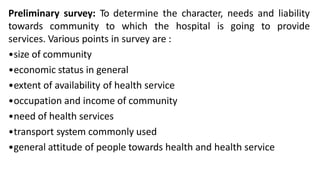

Preliminary survey: To determine the character, needs and liability towards community to which the hospital is going to provide services. Various points in survey are : •size of community •economic status in general •extent of availability of health service •occupation and income of community •need of health services •transport system commonly used •general attitude of people towards health and health service

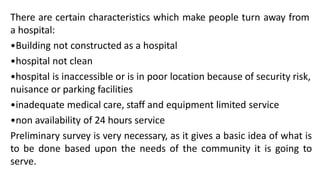

There are certain characteristics which make people turn away from a hospital: •Building not constructed as a hospital •hospital not clean •hospital is inaccessible or is in poor location because of security risk, nuisance or parking facilities •inadequate medical care, staff and equipment limited service •non availability of 24 hours service Preliminary survey is very necessary, as it gives a basic idea of what is to be done based upon the needs of the community it is going to serve.

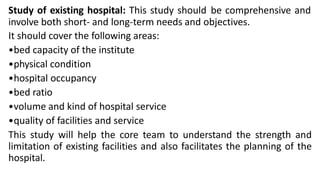

Study of existing hospital: This study should be comprehensive and involve both short- and long-term needs and objectives. It should cover the following areas: •bed capacity of the institute •physical condition •hospital occupancy •bed ratio •volume and kind of hospital service •quality of facilities and service This study will help the core team to understand the strength and limitation of existing facilities and also facilitates the planning of the hospital.

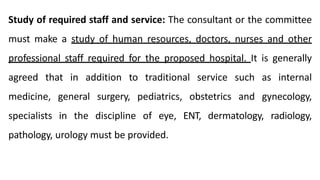

Study of required staff and service: The consultant or the committee must make a study of human resources, doctors, nurses and other professional staff required for the proposed hospital. It is generally agreed that in addition to traditional service such as internal medicine, general surgery, pediatrics, obstetrics and gynecology, specialists in the discipline of eye, ENT, dermatology, radiology, pathology, urology must be provided.

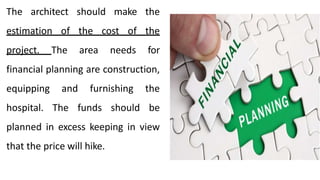

The architect should make the estimation of the cost of the project. The area needs for financial planning are construction, equipping and furnishing the hospital. The funds should be planned in excess keeping in view that the price will hike.

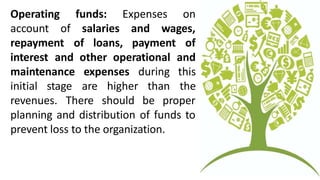

Expenses on funds: salaries and wages, Operating account of repayment of loans, payment of interest and other operational and maintenance expenses initial stage are during this the revenues. There higher than should be proper planning and distribution of funds to prevent loss to the organization.

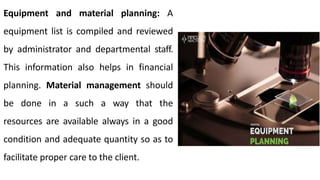

Equipment and material planning: A equipment list is compiled and reviewed by administrator and departmental staff. This information also helps in financial planning. Material management should be done in a such a way that the resources are available always in a good condition and adequate quantity so as to facilitate proper care to the client.

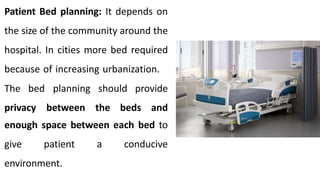

Patient Bed planning: It depends on the size of the community around the hospital. In cities more bed required because of increasing urbanization. The bed privacy planning should provide between the beds and enough space between each bed to give patient a conducive environment.

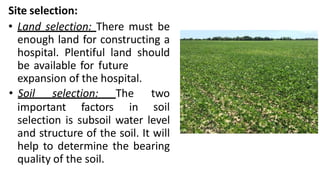

Site selection: • Land selection: There must be enough land for constructing a hospital. Plentiful land should be available for future important factors in expansion of the hospital. • Soil selection: The two soil selection is subsoil water level and structure of the soil. It will help to determine the bearing quality of the soil.

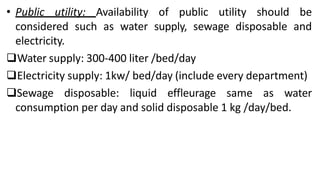

• Public utility: Availability of public utility should be considered such as water supply, sewage disposable and electricity. Water supply: 300-400 liter /bed/day Electricity supply: 1kw/ bed/day (include every department) Sewage disposable: liquid effleurage same as water consumption per day and solid disposable 1 kg /day/bed.

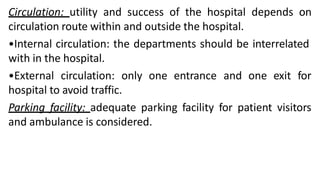

Circulation: utility and success of the hospital depends on circulation route within and outside the hospital. •Internal circulation: the departments should be interrelated with in the hospital. •External circulation: only one entrance and one exit for hospital to avoid traffic. Parking facility: adequate parking facility for patient visitors and ambulance is considered.
PATIENT CARE UNITS Planning a Patient Care Unit • Patient care unit is defined as a part of the hospital which is designed in a specific manner to provide care to specific types of patients. e.g., General wards, Intensive Care Unit, Coronary Care Unit, Burn Unit, Paediatric Unit, Causality, Neurosciences Unit etc.

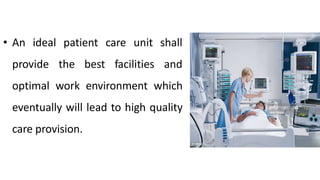

• An ideal patient provide the best care unit facilities shall and optimal work environment which eventually will lead to high quality care provision.

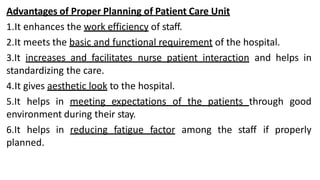

Advantages of Proper Planning of Patient Care Unit 1.It enhances the work efficiency of staff. 2.It meets the basic and functional requirement of the hospital. 3.It increases and facilitates nurse patient interaction and helps in standardizing the care. 4.It gives aesthetic look to the hospital. 5.It helps in meeting expectations of the patients through good environment during their stay. 6.It helps in reducing fatigue factor among the staff if properly planned.

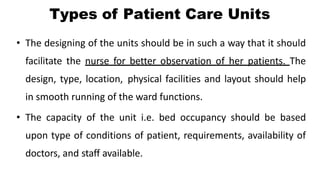

Types of Patient Care Units • The designing of the units should be in such a way that it should facilitate the nurse for better observation of her patients. The design, type, location, physical facilities and layout should help in smooth running of the ward functions. • The capacity of the unit i.e. bed occupancy should be based upon type of conditions of patient, requirements, availability of doctors, and staff available.

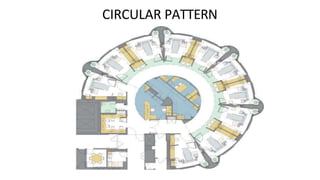

CIRCULAR PATTERN

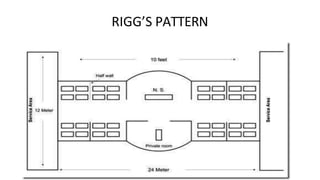

RIGG’S PATTERN
CROSS PATTERN

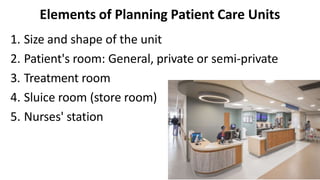

Elements of Planning Patient Care Units 1. Size and shape of the unit 2. Patient's room: General, private or semi-private 3. Treatment room 4. Sluice room (store room) 5. Nurses' station
Requirements in Patient Care Units • Medication trolley having an ampoule cutter, syringes, needle burner, water for injection, nebulizer machine, kidney dish etc. • Crash cart for the emergency management with all the articles like oxygen catheters, suction catheters, emergency drugs, laryngoscopes, endo-tracheal tubes, defibrillator along with pads, E.C.G. electrodes, water soluble jelly, ties, syringes, kidney dish etc. • Various containers having different identification for proper waste segregation and disposal as per the hospital policy.

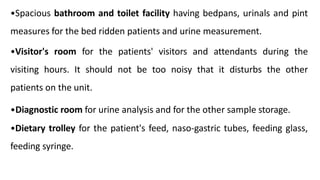

•Spacious bathroom and toilet facility having bedpans, urinals and pint measures for the bed ridden patients and urine measurement. •Visitor's room for the patients' visitors and attendants during the visiting hours. It should not be too noisy that it disturbs the other patients on the unit. •Diagnostic room for urine analysis and for the other sample storage. •Dietary trolley for the patient's feed, naso-gastric tubes, feeding glass, feeding syringe.

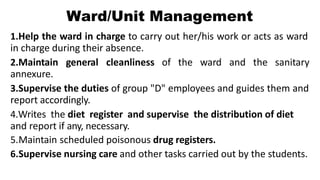

Ward/Unit Management 1.Help the ward in charge to carry out her/his work or acts as ward in charge during their absence. 2.Maintain general cleanliness of the ward and the sanitary annexure. 3.Supervise the duties of group "D" employees and guides them and report accordingly. 4.Writes the diet register and supervise the distribution of diet and report if any, necessary. 5.Maintain scheduled poisonous drug registers. 6.Supervise nursing care and other tasks carried out by the students.

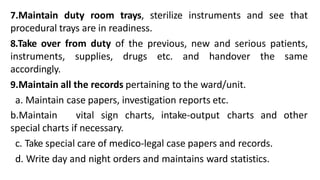

7.Maintain duty room trays, sterilize instruments and see that procedural trays are in readiness. 8.Take over from duty of the previous, new and serious patients, instruments, supplies, drugs etc. and handover the same accordingly. 9.Maintain all the records pertaining to the ward/unit. a. Maintain case papers, investigation reports etc. b.Maintain vital sign charts, intake-output charts and special charts if necessary. c. Take special care of medico-legal case papers and records. d. Write day and night orders and maintains ward statistics. other

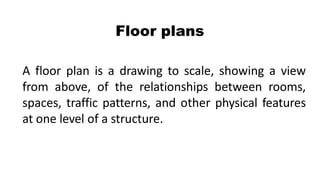

Floor plans A floor plan is a drawing to scale, showing a view from above, of the relationships between rooms, spaces, traffic patterns, and other physical features at one level of a structure.

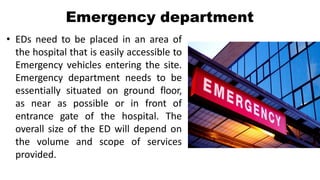

Emergency department • EDs need to be placed in an area of the hospital that is easily accessible to Emergency vehicles entering the site. Emergency department needs to be essentially situated on ground floor, as near as possible or in front of entrance gate of the hospital. The overall size of the ED will depend on the volume and scope of services provided.

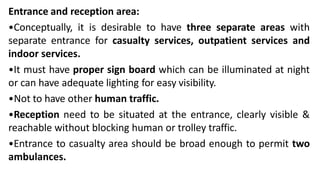

Entrance and reception area: •Conceptually, it is desirable to have three separate areas with separate entrance for casualty services, outpatient services and indoor services. •It must have proper sign board which can be illuminated at night or can have adequate lighting for easy visibility. •Not to have other human traffic. •Reception need to be situated at the entrance, clearly visible & reachable without blocking human or trolley traffic. •Entrance to casualty area should be broad enough to permit two ambulances.

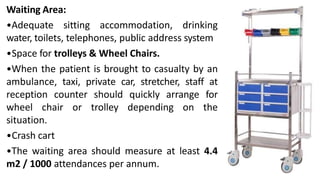

Waiting Area: •Adequate sitting accommodation, drinking water, toilets, telephones, public address system •Space for trolleys & Wheel Chairs. •When the patient is brought to casualty by an ambulance, taxi, private car, stretcher, staff at reception counter should quickly arrange for wheel chair or trolley depending on the situation. •Crash cart •The waiting area should measure at least 4.4 m2 / 1000 attendances per annum.

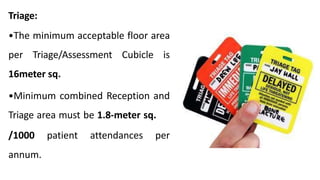

Triage: •The minimum acceptable floor area per Triage/Assessment Cubicle is 16meter sq. •Minimum combined Reception and Triage area must be 1.8-meter sq. /1000 patient attendances per annum.

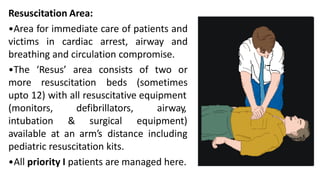

Resuscitation Area: •Area for immediate care of patients and victims in cardiac arrest, airway and breathing and circulation compromise. area consists of two or •The ‘Resus’ more resuscitation beds (sometimes upto 12) with all resuscitative equipment (monitors, intubation & defibrillators, surgical airway, equipment) available at an arm’s distance including pediatric resuscitation kits. •All priority I patients are managed here.

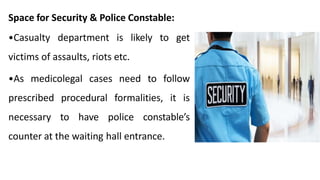

Space for Security & Police Constable: •Casualty department is likely to get victims of assaults, riots etc. •As medicolegal cases need to follow prescribed procedural formalities, it is necessary to have police constable’s counter at the waiting hall entrance.
Space for patient brought dead: Keep the body at a place which is not visible to other incoming patients & persons waiting in the waiting hall. In the event of disaster, number of dead bodies is likely to be more. After labelling the bodies, they may be sent to mortuary & handed over relatives or police after completing procedural formalities.

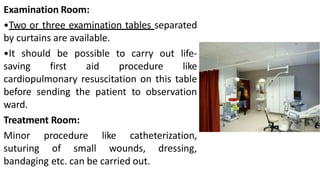

Examination Room: •Two or three examination tables separated by curtains are available. •It should be possible to carry out life- saving first aid procedure like cardiopulmonary resuscitation on this table before sending the patient to observation ward. Treatment Room: Minor procedure like catheterization, suturing of small wounds, dressing, bandaging etc. can be carried out.

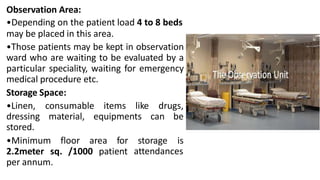

Observation Area: •Depending on the patient load 4 to 8 beds may be placed in this area. •Those patients may be kept in observation ward who are waiting to be evaluated by a particular speciality, waiting for emergency medical procedure etc. Storage Space: •Linen, dressing stored. consumable items like drugs, material, equipments can be •Minimum floor area for storage is attendances 2.2meter sq. /1000 patient per annum.

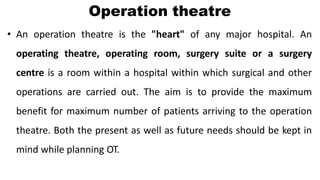

Operation theatre • An operation theatre is the "heart" of any major hospital. An operating theatre, operating room, surgery suite or a surgery centre is a room within a hospital within which surgical and other operations are carried out. The aim is to provide the maximum benefit for maximum number of patients arriving to the operation theatre. Both the present as well as future needs should be kept in mind while planning OT.

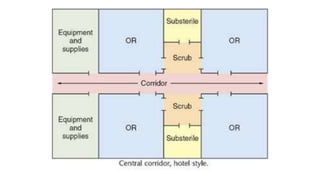

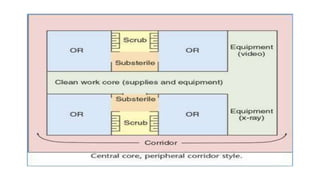

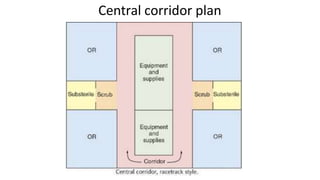

Central corridor plan

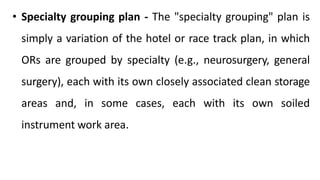

• Specialty grouping plan - The "specialty grouping" plan is simply a variation of the hotel or race track plan, in which ORs are grouped by specialty (e.g., neurosurgery, general surgery), each with its own closely associated clean storage areas and, in some cases, each with its own soiled instrument work area.

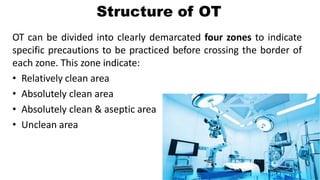

Structure of OT OT can be divided into clearly demarcated four zones to indicate specific precautions to be practiced before crossing the border of each zone. This zone indicate: • Relatively clean area • Absolutely clean area • Absolutely clean & aseptic area • Unclean area

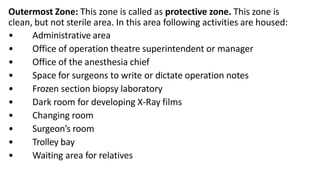

Outermost Zone: This zone is called as protective zone. This zone is clean, but not sterile area. In this area following activities are housed: • Administrative area • Office of operation theatre superintendent or manager • Office of the anesthesia chief • Space for surgeons to write or dictate operation notes • Frozen section biopsy laboratory • Dark room for developing X-Ray films • Changing room • Surgeon’s room • Trolley bay • Waiting area for relatives
Intermediate Zone: This zone is clear, but not sterile. Entry for people bringing supplies, patients etc. can be permitted after changing foot- wear. It includes following: •Storage area for equipment's & instruments •Supply received from central sterilization & supply department •Medicines, intravenous fluids, other consumable items and linen •Post-operative recovery room having 1 to 2 beds per operating table •Preoperative waiting patients

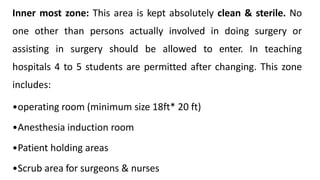

Inner most zone: This area is kept absolutely clean & sterile. No one other than persons actually involved in doing surgery or assisting in surgery should be allowed to enter. In teaching hospitals 4 to 5 students are permitted after changing. This zone includes: •operating room (minimum size 18ft* 20 ft) •Anesthesia induction room •Patient holding areas •Scrub area for surgeons & nurses

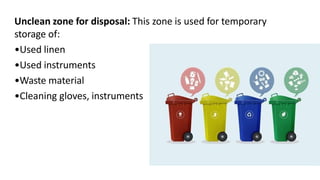

Unclean zone for disposal: This zone is used for temporary storage of: •Used linen •Used instruments •Waste material •Cleaning gloves, instruments

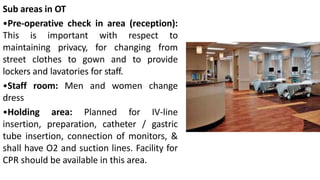

Sub areas in OT •Pre-operative check in area (reception): This is important with respect to maintaining privacy, for changing from street clothes to gown and to provide lockers and lavatories for staff. •Staff room: Men and women change dress •Holding area: Planned for IV-line insertion, preparation, catheter / gastric tube insertion, connection of monitors, & shall have O2 and suction lines. Facility for CPR should be available in this area.

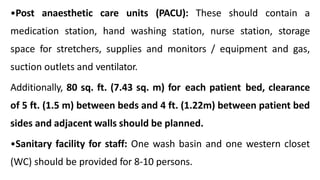

•Post anaesthetic care units (PACU): These should contain a medication station, hand washing station, nurse station, storage space for stretchers, supplies and monitors / equipment and gas, suction outlets and ventilator. Additionally, 80 sq. ft. (7.43 sq. m) for each patient bed, clearance of 5 ft. (1.5 m) between beds and 4 ft. (1.22m) between patient bed sides and adjacent walls should be planned. •Sanitary facility for staff: One wash basin and one western closet (WC) should be provided for 8-10 persons.

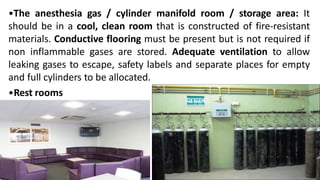

•The anesthesia gas / cylinder manifold room / storage area: It should be in a cool, clean room that is constructed of fire-resistant materials. Conductive flooring must be present but is not required if non inflammable gases are stored. Adequate ventilation to allow leaking gases to escape, safety labels and separate places for empty and full cylinders to be allocated. •Rest rooms

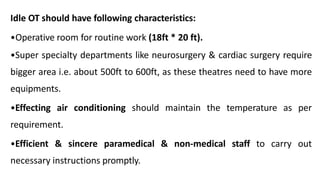

Idle OT should have following characteristics: •Operative room for routine work (18ft * 20 ft). •Super specialty departments like neurosurgery & cardiac surgery require bigger area i.e. about 500ft to 600ft, as these theatres need to have more equipments. •Effecting air conditioning should maintain the temperature as per requirement. •Efficient & sincere paramedical & non-medical staff to carry out necessary instructions promptly.

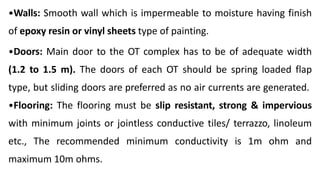

•Walls: Smooth wall which is impermeable to moisture having finish of epoxy resin or vinyl sheets type of painting. •Doors: Main door to the OT complex has to be of adequate width (1.2 to 1.5 m). The doors of each OT should be spring loaded flap type, but sliding doors are preferred as no air currents are generated. •Flooring: The flooring must be slip resistant, strong & impervious with minimum joints or jointless conductive tiles/ terrazzo, linoleum etc., The recommended minimum conductivity is 1m ohm and maximum 10m ohms.
Isolation ward • An isolation facility aims to control the airflow in the room so that the number of airborne infectious particles is reduced to a level that ensures cross- infection of other people within a healthcare facility is highly unlikely.

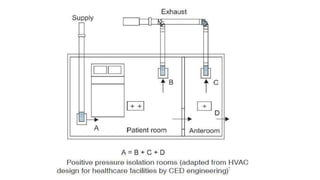

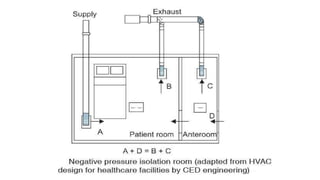

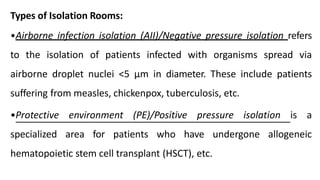

Types of Isolation Rooms: •Airborne infection isolation (AII)/Negative pressure isolation refers to the isolation of patients infected with organisms spread via airborne droplet nuclei <5 μm in diameter. These include patients suffering from measles, chickenpox, tuberculosis, etc. •Protective environment (PE)/Positive pressure isolation is a specialized area for patients who have undergone allogeneic hematopoietic stem cell transplant (HSCT), etc.
Planning Premises of Isolation Rooms • Location: The isolation rooms should be located at one end of ward. Isolation wards for infectious cases to be kept out of routine circulation. • Number of beds for isolation beds: About 2.5% of the beds of a large hospital in a special unit would probably be adequate except during periods of unusually high demand.
•Space: An isolation room has to provide uncluttered space around the bed for equipment and the increased number of personnel involved in emergency care. A room area of about 22 m2 is adequate within an isolation unit. •Adequate number of wash hand basins should be provided within the patient care areas and nursing stations with a view to facilitate hand washing practice. •Separate arrangements for garbage and infectious waste removal from wards and departments in the form of separate staircases and lifts.

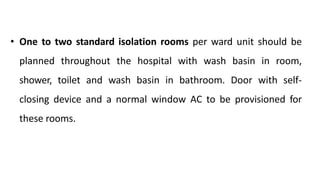

• One to two standard isolation rooms per ward unit should be planned throughout the hospital with wash basin in room, shower, toilet and wash basin in bathroom. Door with self- closing device and a normal window AC to be provisioned for these rooms.

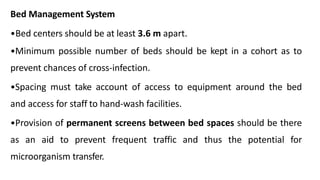

Bed Management System •Bed centers should be at least 3.6 m apart. •Minimum possible number of beds should be kept in a cohort as to prevent chances of cross-infection. •Spacing must take account of access to equipment around the bed and access for staff to hand-wash facilities. •Provision of permanent screens between bed spaces should be there as an aid to prevent frequent traffic and thus the potential for microorganism transfer.

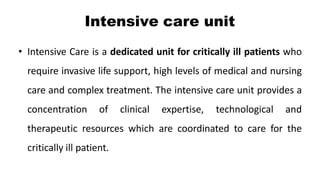

Intensive care unit • Intensive Care is a dedicated unit for critically ill patients who require invasive life support, high levels of medical and nursing care and complex treatment. The intensive care unit provides a concentration of clinical expertise, technological and therapeutic resources which are coordinated to care for the critically ill patient.

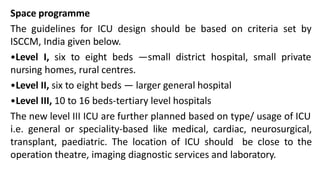

Space programme The guidelines for ICU design should be based on criteria set by ISCCM, India given below. •Level I, six to eight beds —small district hospital, small private nursing homes, rural centres. •Level II, six to eight beds — larger general hospital •Level III, 10 to 16 beds-tertiary level hospitals The new level III ICU are further planned based on type/ usage of ICU i.e. general or speciality-based like medical, cardiac, neurosurgical, transplant, paediatric. The location of ICU should be close to the operation theatre, imaging diagnostic services and laboratory.

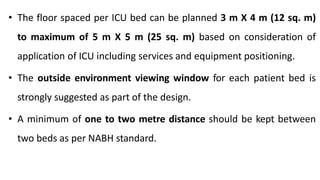

• The floor spaced per ICU bed can be planned 3 m X 4 m (12 sq. m) to maximum of 5 m X 5 m (25 sq. m) based on consideration of application of ICU including services and equipment positioning. • The outside environment viewing window for each patient bed is strongly suggested as part of the design. • A minimum of one to two metre distance should be kept between two beds as per NABH standard.

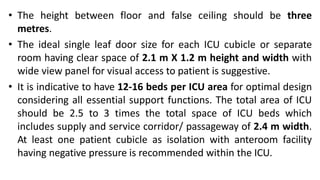

• The height between floor and false ceiling should be three metres. • The ideal single leaf door size for each ICU cubicle or separate room having clear space of 2.1 m X 1.2 m height and width with wide view panel for visual access to patient is suggestive. • It is indicative to have 12-16 beds per ICU area for optimal design considering all essential support functions. The total area of ICU should be 2.5 to 3 times the total space of ICU beds which includes supply and service corridor/ passageway of 2.4 m width. At least one patient cubicle as isolation with anteroom facility having negative pressure is recommended within the ICU.

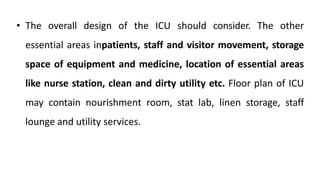

• The overall design of the ICU should consider. The other essential areas inpatients, staff and visitor movement, storage space of equipment and medicine, location of essential areas like nurse station, clean and dirty utility etc. Floor plan of ICU may contain nourishment room, stat lab, linen storage, staff lounge and utility services.

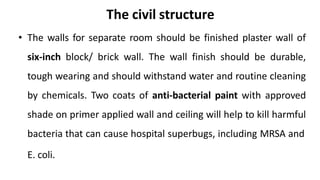

The civil structure • The walls for separate room should be finished plaster wall of six-inch block/ brick wall. The wall finish should be durable, tough wearing and should withstand water and routine cleaning by chemicals. Two coats of anti-bacterial paint with approved shade on primer applied wall and ceiling will help to kill harmful bacteria that can cause hospital superbugs, including MRSA and E. coli.
• Imperforated false ceiling with good acoustics and monolithic finish need to be installed in ICU area. The flooring of ICU should be smooth, seamless and durable as there will be heavy movement of patient beds and medical equipment like portable X-Ray. • The flooring should be able to sustain wet things like water, chemical solutions without losing its characteristics. As per International Noise Council, the noise level in an ICU should be under 45 dB in the daytime, 40 dB in the evening and 20 dB at night.

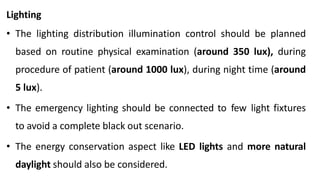

Lighting • The lighting distribution illumination control should be planned based on routine physical examination (around 350 lux), during procedure of patient (around 1000 lux), during night time (around 5 lux). • The emergency lighting should be connected to few light fixtures to avoid a complete black out scenario. • The energy conservation aspect like LED lights and more natural daylight should also be considered.

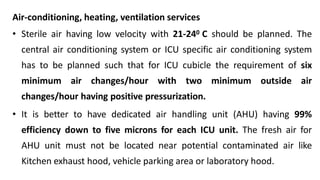

Air-conditioning, heating, ventilation services • Sterile air having low velocity with 21-240 C should be planned. The central air conditioning system or ICU specific air conditioning system has to be planned such that for ICU cubicle the requirement of six minimum air changes/hour with two minimum outside air changes/hour having positive pressurization. • It is better to have dedicated air handling unit (AHU) having 99% efficiency down to five microns for each ICU unit. The fresh air for AHU unit must not be located near potential contaminated air like Kitchen exhaust hood, vehicle parking area or laboratory hood.

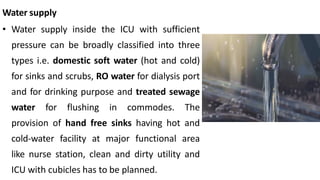

Water supply • Water supply inside the ICU with sufficient pressure can be broadly classified into three types i.e. domestic soft water (hot and cold) for sinks and scrubs, RO water for dialysis port and for drinking purpose and treated sewage water for flushing in commodes. The provision of hand free sinks having hot and cold-water facility at major functional area like nurse station, clean and dirty utility and ICU with cubicles has to be planned.

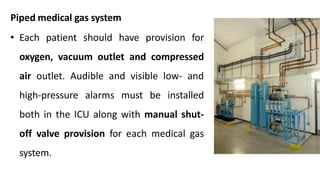

Piped medical gas system • Each patient should have provision for oxygen, vacuum outlet and compressed air outlet. Audible and visible low- and high-pressure alarms must be installed both in the ICU along with manual shut- off valve provision for each medical gas system.

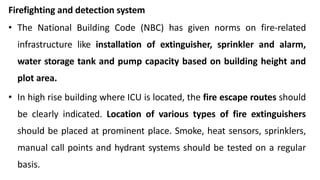

Firefighting and detection system • The National Building Code (NBC) has given norms on fire-related infrastructure like installation of extinguisher, sprinkler and alarm, water storage tank and pump capacity based on building height and plot area. • In high rise building where ICU is located, the fire escape routes should be clearly indicated. Location of various types of fire extinguishers should be placed at prominent place. Smoke, heat sensors, sprinklers, manual call points and hydrant systems should be tested on a regular basis.

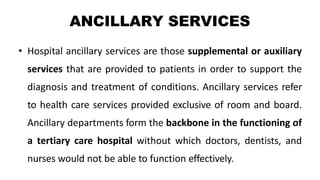

ANCILLARY SERVICES • Hospital ancillary services are those supplemental or auxiliary services that are provided to patients in order to support the diagnosis and treatment of conditions. Ancillary services refer to health care services provided exclusive of room and board. Ancillary departments form the backbone in the functioning of a tertiary care hospital without which doctors, dentists, and nurses would not be able to function effectively.

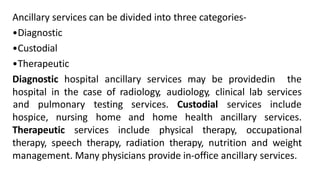

Ancillary services can be divided into three categories- •Diagnostic •Custodial •Therapeutic Diagnostic hospital ancillary services may be providedin the hospital in the case of radiology, audiology, clinical lab services services. Custodial hospice, nursing and pulmonary testing home services and home health ancillary include services. Therapeutic services include physical therapy, occupational therapy, speech therapy, radiation therapy, nutrition and weight management. Many physicians provide in-office ancillary services.

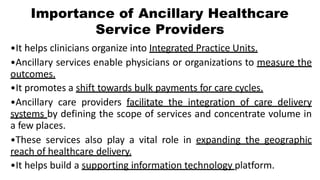

Importance of Ancillary Healthcare Service Providers •It helps clinicians organize into Integrated Practice Units. •Ancillary services enable physicians or organizations to measure the outcomes. •It promotes a shift towards bulk payments for care cycles. •Ancillary care providers facilitate the integration of care delivery systems by defining the scope of services and concentrate volume in a few places. •These services also play a vital role in expanding the geographic reach of healthcare delivery. •It helps build a supporting information technology platform.

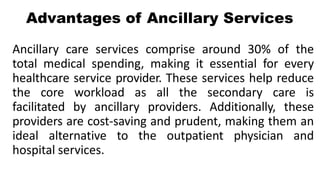

Advantages of Ancillary Services Ancillary care services comprise around 30% of the total medical spending, making it essential for every healthcare service provider. These services help reduce the core workload as all the secondary care is facilitated by ancillary providers. Additionally, these providers are cost-saving and prudent, making them an ideal alternative to the outpatient physician and hospital services.
1. Administrative Resources Ancillary services for primary care play a vital role in costs. saving time and The providers, independently, and receive operational instead of work for payment operating hospitals processing, collections, resolution management, and appeals from hospitals.

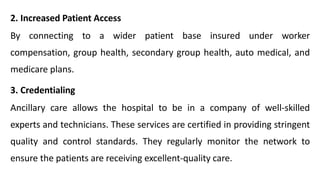

2. Increased Patient Access By connecting to a wider patient base insured under worker compensation, group health, secondary group health, auto medical, and medicare plans. 3. Credentialing Ancillary care allows the hospital to be in a company of well-skilled experts and technicians. These services are certified in providing stringent quality and control standards. They regularly monitor the network to ensure the patients are receiving excellent-quality care.

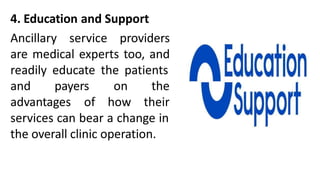

4. Education and Support Ancillary service providers are medical experts too, and readily educate the patients and payers advantages of on the how their services can bear a change in the overall clinic operation.

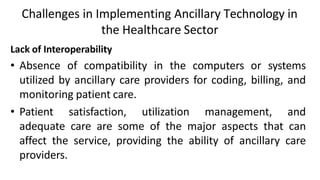

Challenges in Implementing Ancillary Technology in the Healthcare Sector Lack of Interoperability • Absence of compatibility in the computers or systems utilized by ancillary care providers for coding, billing, and monitoring patient care. • Patient satisfaction, utilization management, and adequate care are some of the major aspects that can affect the service, providing the ability of ancillary care providers.

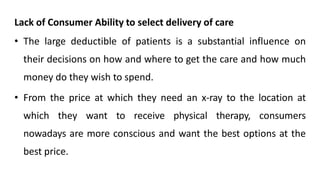

Lack of Consumer Ability to select delivery of care • The large deductible of patients is a substantial influence on their decisions on how and where to get the care and how much money do they wish to spend. • From the price at which they need an x-ray to the location at which they want to receive physical therapy, consumers nowadays are more conscious and want the best options at the best price.
Limited Leverages • If ancillary providers operate as independent businesses, they will have to face limited leverages. • Healthcare providers want to pay less for materials and better business solutions, which is possible only if ancillary providers agree on sharing the same goals and increased authority.

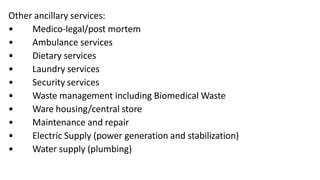

Other ancillary services: • Medico-legal/post mortem • Ambulance services • Dietary services • Laundry services • Security services • Waste management including Biomedical Waste • Ware housing/central store • Maintenance and repair • Electric Supply (power generation and stabilization) • Water supply (plumbing)

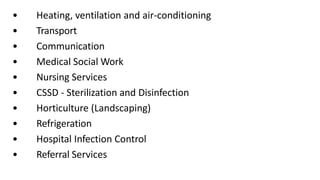

• Heating, ventilation and air-conditioning • Transport • Communication • Medical Social Work • Nursing Services • CSSD - Sterilization and Disinfection • Horticulture (Landscaping) • Refrigeration • Hospital Infection Control • Referral Services

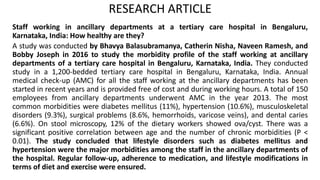

RESEARCH ARTICLE Staff working in ancillary departments at a tertiary care hospital in Bengaluru, Karnataka, India: How healthy are they? A study was conducted by Bhavya Balasubramanya, Catherin Nisha, Naveen Ramesh, and Bobby Joseph in 2016 to study the morbidity profile of the staff working at ancillary departments of a tertiary care hospital in Bengaluru, Karnataka, India. They conducted study in a 1,200-bedded tertiary care hospital in Bengaluru, Karnataka, India. Annual medical check-up (AMC) for all the staff working at the ancillary departments has been started in recent years and is provided free of cost and during working hours. A total of 150 employees from ancillary departments underwent AMC in the year 2013. The most common morbidities were diabetes mellitus (11%), hypertension (10.6%), musculoskeletal disorders (9.3%), surgical problems (8.6%, hemorrhoids, varicose veins), and dental caries (6.6%). On stool microscopy, 12% of the dietary workers showed ova/cyst. There was a significant positive correlation between age and the number of chronic morbidities (P < 0.01). The study concluded that lifestyle disorders such as diabetes mellitus and hypertension were the major morbidities among the staff in the ancillary departments of the hospital. Regular follow-up, adherence to medication, and lifestyle modifications in terms of diet and exercise were ensured.

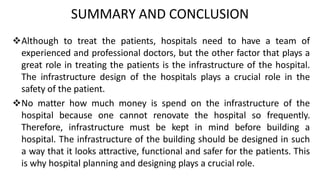

SUMMARY AND CONCLUSION Although to treat the patients, hospitals need to have a team of experienced and professional doctors, but the other factor that plays a great role in treating the patients is the infrastructure of the hospital. The infrastructure design of the hospitals plays a crucial role in the safety of the patient. No matter how much money is spend on the infrastructure of the hospital because one cannot renovate the hospital so frequently. Therefore, infrastructure must be kept in mind before building a hospital. The infrastructure of the building should be designed in such a way that it looks attractive, functional and safer for the patients. This is why hospital planning and designing plays a crucial role.

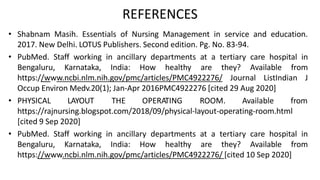

REFERENCES • Shabnam Masih. Essentials of Nursing Management in service and education. 2017. New Delhi. LOTUS Publishers. Second edition. Pg. No. 83-94. • PubMed. Staff working in ancillary departments at a tertiary care hospital in Bengaluru, Karnataka, India: How healthy are they? Available from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4922276/ Journal ListIndian J Occup Environ Medv.20(1); Jan-Apr 2016PMC4922276 [cited 29 Aug 2020] • PHYSICAL LAYOUT THE OPERATING ROOM. Available from https://rajnursing.blogspot.com/2018/09/physical-layout-operating-room.html [cited 9 Sep 2020] • PubMed. Staff working in ancillary departments at a tertiary care hospital in Bengaluru, Karnataka, India: How healthy are they? Available from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4922276/ [cited 10 Sep 2020]
hospital planning.pptx
hospital planning.pptx

More Related Content

PPTX
HOSPITAL PLANNING .ppt
byGORAKHNATHJADHAV3

PPT
Commissioning of New Hospital
byMusa Abu Sbeih

DOC
Organizational Structure Of A Hospital[1]
byjawadorak

PPTX
Plan & organiz hospital.pptx
byKalinga institute of nursing sciences

PPTX
Hospital administration role in quality patient care
byShaharul Sohan

PPTX
Copy of Principles of Hospital Administration.pptx
byAnonymousibmeej9

PDF
124970838 hospital-planning-and-project-management-1
byDinesh Kumar

PPTX
Opd & ipd
byawantika diwan

HOSPITAL PLANNING .ppt
byGORAKHNATHJADHAV3

Commissioning of New Hospital
byMusa Abu Sbeih

Organizational Structure Of A Hospital[1]
byjawadorak

Plan & organiz hospital.pptx
byKalinga institute of nursing sciences

Hospital administration role in quality patient care
byShaharul Sohan

Copy of Principles of Hospital Administration.pptx
byAnonymousibmeej9

124970838 hospital-planning-and-project-management-1
byDinesh Kumar

Opd & ipd
byawantika diwan


What's hot

PPTX
Hospital Planning
byZulfiquer Ahmed Amin

PPTX
Planning and organizing: Hospital, unit and ancillary services
byShweta Sharma

PPTX
Final hospital planning and layout ppt
bySandeep Singh

PPTX
IPD DEPARTMENT OF HOSPITAL.pptx
byDRTRUPTISONTHALIA

PPTX
Hospital planning
byawantika diwan

PPTX
HOSPITAL PLANNING
byDr.Salil Choudhary

PPTX
Engineering Services in Hospital
byVaibhav Saxena

PPT
Hospital Administration
byFaseela Jaleel

PPTX
Hospital Planning
byZulfiquer Ahmed Amin

PPTX
Hospital, types, organization &amp; function
bySaili Gaude

PPTX
Planning hospital service
byMental Health Center

PPTX
Hospital planning and designing
byDr. Priyanka Srivastava

DOC
Intensive care unit design
byMahmoud Shaqria

PPTX
Hospital Policies & SOPs
byTechnecon Healthcare Pvt Ltd

DOCX
Role of hospitals
byWael Mohammed

PPT
Hosp. transport services
byNc Das

PPT
Planning for New Hospital
byNc Das

PPTX
Inpatient Services- Introduction, Planning and Designing
byDr.Sharad H. Gajuryal

PPTX
Out patient services
byNc Das

PPTX
Ward management
byBHANU DIXIT

Hospital Planning
byZulfiquer Ahmed Amin

Planning and organizing: Hospital, unit and ancillary services
byShweta Sharma

Final hospital planning and layout ppt
bySandeep Singh

IPD DEPARTMENT OF HOSPITAL.pptx
byDRTRUPTISONTHALIA

Hospital planning
byawantika diwan

HOSPITAL PLANNING
byDr.Salil Choudhary

Engineering Services in Hospital
byVaibhav Saxena

Hospital Administration
byFaseela Jaleel

Hospital Planning
byZulfiquer Ahmed Amin

Hospital, types, organization &amp; function
bySaili Gaude

Planning hospital service
byMental Health Center

Hospital planning and designing
byDr. Priyanka Srivastava

Intensive care unit design
byMahmoud Shaqria

Hospital Policies & SOPs
byTechnecon Healthcare Pvt Ltd

Role of hospitals
byWael Mohammed

Hosp. transport services
byNc Das

Planning for New Hospital
byNc Das

Inpatient Services- Introduction, Planning and Designing
byDr.Sharad H. Gajuryal

Out patient services
byNc Das

Ward management
byBHANU DIXIT


Similar to hospital planning.pptx

PPTX
hospitalplanning-130528040750-phpapp02 (2).pptx
byShashidharaTV2

PPTX
hospitalplanning1111111111111111111.pptx
byhali086

PDF
Health care management- a young challenge
bySunil Joshi

PPTX
Principles of Hospital planning.pptx
byPallavi Dongre

PPTX
Hospital Planning and Designing- Green Hospitals
bysyedsalman531294

PPT
C6_Principles of Planning (1).ppt planning concepts
byprimcejames

PPTX
Set Up Of New Hospital [Autosaved].pptx
byhiteshvri

PPTX
nursing administration planning and organising hospital and auxillary services
bybismithahaneefa

PPTX
CASE STUDY INTERNATIONAL HOSPITAL FINAL ALI.pptx
byAliAzharRajput

PPTX
Organisation
byNaveenJyothi

PPTX
case studies with complete guide to design a hospital ptx
byAliAzharRajput

PPTX
Hospital.pptx
byAnju Kumawat

PDF
48673972-Nursing-management-planning.pdf
byGunreetKaur2

DOC
47675728-Hospital-Business-Plan.doc
byLotusPublicLtd

PPTX
Mata ppt
by(FB Team) Somnath Laha

PPTX
Hospital planning (1) hospital management
byharini401426

PPTX
Hospital
bySaluSunny2

PDF
“Process and Importance of Hospital Planning”
bySutirthaMandal

PPTX
first session - medical planning -MOHAMED ALAZAB .pptx
byMohamedAli242496

PPTX
Planning and Designing a Hospital- aathe.pptx
byAatheR1

hospitalplanning-130528040750-phpapp02 (2).pptx
byShashidharaTV2

hospitalplanning1111111111111111111.pptx
byhali086

Health care management- a young challenge
bySunil Joshi

Principles of Hospital planning.pptx
byPallavi Dongre

Hospital Planning and Designing- Green Hospitals
bysyedsalman531294

C6_Principles of Planning (1).ppt planning concepts
byprimcejames

Set Up Of New Hospital [Autosaved].pptx
byhiteshvri

nursing administration planning and organising hospital and auxillary services
bybismithahaneefa

CASE STUDY INTERNATIONAL HOSPITAL FINAL ALI.pptx
byAliAzharRajput

Organisation
byNaveenJyothi

case studies with complete guide to design a hospital ptx
byAliAzharRajput

Hospital.pptx
byAnju Kumawat

48673972-Nursing-management-planning.pdf
byGunreetKaur2

47675728-Hospital-Business-Plan.doc
byLotusPublicLtd

Mata ppt
by(FB Team) Somnath Laha

Hospital planning (1) hospital management
byharini401426

Hospital
bySaluSunny2

“Process and Importance of Hospital Planning”
bySutirthaMandal

first session - medical planning -MOHAMED ALAZAB .pptx
byMohamedAli242496

Planning and Designing a Hospital- aathe.pptx
byAatheR1


More from steffyjohn7

PPTX
hospital , functions., Classification pptx
bysteffyjohn7

PPTX
professionalism.pptx, introduction, criteria of a profession
bysteffyjohn7

PPTX
issues related to psychiatric care.pptx
bysteffyjohn7

PPTX
environmental sciences.pptx
bysteffyjohn7

PPTX
Radiation and its types.pptx
bysteffyjohn7

PPTX
Isotopes.pptx
bysteffyjohn7

PPTX
CT scan.pptx
bysteffyjohn7

PPTX
MRI.pptx
bysteffyjohn7

PPTX
Eugenics.pptx
bysteffyjohn7

PPTX
electricity and human body.pptx
bysteffyjohn7

PPTX
Flow in solid, liquid,electrolytes of electricity.pptx
bysteffyjohn7

PPTX
determinants of health.pptx
bysteffyjohn7

PPTX
inversion of the uterus.pptx
bysteffyjohn7

PPTX
complications- third stage.pptx
bysteffyjohn7

PPTX
charecteristics of a professional nurse.pptx
bysteffyjohn7

PPTX
professionalism.pptx
bysteffyjohn7

PPTX
HOSPITAL.pptx
bysteffyjohn7

PPTX
breast feeding quiz.pptx
bysteffyjohn7

PPTX
ward design.pptx
bysteffyjohn7

PPTX
he alth education.pptx
bysteffyjohn7

hospital , functions., Classification pptx
bysteffyjohn7

professionalism.pptx, introduction, criteria of a profession
bysteffyjohn7

issues related to psychiatric care.pptx
bysteffyjohn7

environmental sciences.pptx
bysteffyjohn7

Radiation and its types.pptx
bysteffyjohn7

Isotopes.pptx
bysteffyjohn7

CT scan.pptx
bysteffyjohn7

MRI.pptx
bysteffyjohn7

Eugenics.pptx
bysteffyjohn7

electricity and human body.pptx
bysteffyjohn7

Flow in solid, liquid,electrolytes of electricity.pptx
bysteffyjohn7

determinants of health.pptx
bysteffyjohn7

inversion of the uterus.pptx
bysteffyjohn7

complications- third stage.pptx
bysteffyjohn7

charecteristics of a professional nurse.pptx
bysteffyjohn7

professionalism.pptx
bysteffyjohn7

HOSPITAL.pptx
bysteffyjohn7

breast feeding quiz.pptx
bysteffyjohn7

ward design.pptx
bysteffyjohn7

he alth education.pptx
bysteffyjohn7


Recently uploaded

PPTX
LESSON-1-LESSON-4.pptxhhhhjhygghjgddgghhh
bylabarosaleonard18

PPTX
Arrthymias in cardiology for Physician assistant
byMass Mahesh medico

PPTX
Vesico-vaginal fistula & Recto-vaginal fistula
byKeertis1

PPTX
DRUG ESTROGEN FOR NURSING STUDENTS.pptx
bySUDHA GAUTAM

PPTX
From productivity to performance, Ola Elgaddar, 11022026.pptx
byOla Elgaddar

PPTX
Cardiovascular health.pptx for cardiovascular health
byscionhealthcare

PPTX
Relaxation technique in physiotherapy.pptx
byShilpasree Saha

PPTX
PPT presentation on Gairikadya malaahara
byShreeyashSalunke1

PPTX
Where to Find Medical Schools That Accept International Students
bymedhead62

PPTX
Acute Management in patients with Burn at presentation
by12me23dha

PDF
Best Nonprofit Medical Cost Sharing for Preventive Services
byZion HealthShare

PDF
Why Massages from Rangeela Massage Center Ajman is Essential in 2026
byRangeela Spa Ajman

PPTX
50 Hrs - Yoga for Addiction & Mental Health (YAMT) Teacher Training Certifica...
byKaruna Yoga Vidya Peetham

PPTX
Chronic Reproductive Health Condition (2).pptx
byBaljinder Singh

PPTX
Physiology of Micturition, Unit 9 Renal System
byKeertis1

PPTX
TB_Prevalevvvbbbbbnn. nnnnnnnnnnnnnnnnpptx
bychandankr9496

PPTX
Seniors Chair Yoga Teacher Training Certificate Course.pptx
byKaruna Yoga Vidya Peetham

PPTX
Unit-5 Introduction To Rational Drug Use
byDr Aman Suresh Tharayil

PDF
BMT363
bybat man

PDF
KARUNA YOGA - YOGA PROJECT WORK - THE SCIENCE OF YOGA A HOLISTIC APPROACH TO ...
byKaruna Yoga Vidya Peetham

LESSON-1-LESSON-4.pptxhhhhjhygghjgddgghhh
bylabarosaleonard18

Arrthymias in cardiology for Physician assistant
byMass Mahesh medico

Vesico-vaginal fistula & Recto-vaginal fistula
byKeertis1

DRUG ESTROGEN FOR NURSING STUDENTS.pptx
bySUDHA GAUTAM

From productivity to performance, Ola Elgaddar, 11022026.pptx
byOla Elgaddar

Cardiovascular health.pptx for cardiovascular health
byscionhealthcare

Relaxation technique in physiotherapy.pptx
byShilpasree Saha

PPT presentation on Gairikadya malaahara
byShreeyashSalunke1

Where to Find Medical Schools That Accept International Students
bymedhead62

Acute Management in patients with Burn at presentation
by12me23dha

Best Nonprofit Medical Cost Sharing for Preventive Services
byZion HealthShare

Why Massages from Rangeela Massage Center Ajman is Essential in 2026
byRangeela Spa Ajman

50 Hrs - Yoga for Addiction & Mental Health (YAMT) Teacher Training Certifica...
byKaruna Yoga Vidya Peetham

Chronic Reproductive Health Condition (2).pptx
byBaljinder Singh

Physiology of Micturition, Unit 9 Renal System
byKeertis1

TB_Prevalevvvbbbbbnn. nnnnnnnnnnnnnnnnpptx
bychandankr9496

Seniors Chair Yoga Teacher Training Certificate Course.pptx
byKaruna Yoga Vidya Peetham

Unit-5 Introduction To Rational Drug Use
byDr Aman Suresh Tharayil

BMT363
bybat man

KARUNA YOGA - YOGA PROJECT WORK - THE SCIENCE OF YOGA A HOLISTIC APPROACH TO ...
byKaruna Yoga Vidya Peetham


hospital planning.pptx

  • 1.
    PLANNING AND ORGANIZING: HOSPITAL,UNIT AND ANCILLARY SERVICES
  • 2.
    INTRODUCTION • A hospital establishment isa residential which provides short-term and long-term medical care consisting of observational, diagnostic, therapeutic and rehabilitative services for persons suffering or suspected to be suffering from a disease or injury and for parturients. It may or may ambulatory not also provide services for patients on an out- patient basis.
  • 3.
    • WHO expertcommittee, 1956: ‘The hospital is an integral part of a social and medical organization, the function of which is to provide for the population complete healthcare, both curative and preventive, and whose out- patient services reach out to the family in its home environment; the hospital is also a centre for the training of health workers and for bio- social research’.
  • 4.
    FEATURES OF AHOSPITAL 1.A hospital is an open system which interacts with its environment. 2.A hospital system is to be dynamic and in equilibrium with wider social system. 3.A hospital system is not an end in itself, it must function as a part of the larger health care system. 4.A hospital system tends grows, towards elaboration and it needs to become more differentiation i.e. as it specialized in its elements.
  • 5.
    TYPES OF HOSPITAL 1.Based on Objective a. General hospitals b. Special hospitals c. Teaching cum Research Hospital 2. Based on Administration, ownership, control or financial income a. Governmental or public b. Non-governmental or private c. Semi Govt Hospital d. Voluntary Agency Hospitals
  • 6.
    3. Based onLength of Stay a. Short-term or short-stay hospitals (Stay less than 30 days) b. Long-term or long-stay hospitals: (Stay more than 30 days) 4. Depending on Type of Medical Staff a. Closed-staff hospital b. Open-staff hospital 5. Based on bed capacity (Size): a. Small hospital (Up to 100 beds) b. Medium hospital (More than 100 to less than 300 beds) c. Large hospital (More than 300 beds)
  • 7.
    6. Based ontype of care: a. Primary Care b. Secondary Care c. Tertiary Care 7. By teaching affiliation: a. Teaching hospital b. Non-teaching hospital 8. Based on system of medicine: a. Allopathic hospital b. Ayurvedic hospital c. Homeopathic hospital d. Unani hospital e. Hospitals of other system of medicine
  • 8.
    9. Based onregionality: a. Regional b. District c. Upazila Health Complex d. Union Health and Family Welfare Centres e. Community Clinics 10. As per WHO Classification: a. Regional Hospital b. Intermediate/ District Hospital c. Rural Hospital
  • 9.
    FUNCTIONS OF AHOSPITAL – Concerned with health promotion – •Preventive Participate with community/peripheral health care delivery systems •Curative – Patient care – Includes health education •Training – Continuing and on the job training •Research – Health related researches
  • 10.
    AIMS OF HOSPITALPLANNING •To increase utilization of hospital facilities. •To increase population coverage. •To enlarge the existing hospital by introducing new facilities. •To increase productivity of hospital. •Modernization of the already existing facilities. •To reduce the cost of operations and maximize efficiency of services.
  • 11.
    GUIDING PRINCIPLES INPLANNING Patient care of high quality: •Provision of appropriate technical equipment’s and supplies. •An organizational structure that assigns responsibility and requires accountability for various functions within the organization. •A continuous review of adequacy of care provided by physicians, nursing staffs and paramedical personnel.
  • 12.
    Effective community orientation: •Agoverning board made up of persons who have leadership demonstrated concerns for community and ability. •Policies that assure availability of services to all people. •Participation of the hospital in community programmes to provide preventive care.
  • 13.
    Economic viability: •A corporateorganization that accepts responsibility for sound financial management in keeping with desirable quality of care. •A planned programme of expansion based solely on demonstrated community need. •An annual budget plan that will permit the hospital to keep pace with times.
  • 14.
    Orderly planning: •Selection ofa site large enough to provide for future expansion and accessibility of population. •Recognition of the need of uncluttered traffic patterns and visitors and within for movement of staff, patients efficient transportation of supplies. Medical technology and planning: •Development in medical technology is taking place so sophisticated technology rapidly that now the use of determines the professional status.
  • 15.
    DIVISIONS OF AHOSPITAL Administration division Outpatients’ division • Outpatient clinics • Pharmacy • Emergency reception Diagnostic services division • Laboratories • Radiology (diagnostic) Therapeutic services division • Physical Therapy • Radiology (therapeutic)
  • 16.
    Internal medical treatmentdivision • Operation Theatres • Intensive Care unit • Maternity section • Central Sterilization Department Inpatient division • Patient wards • Nursing station • Work area
  • 17.
    General service division •Kitchen • Laundry • Storages • Workshops • Mechanical services • Mortuary • Security • Parking • Landscaping
  • 18.
    HOSPITAL PLANNING TEAM •The hospital consultant: He should be from the medical field. He helps in locating departments, rooms, and utilities, equipment’s and service in a manner that ensures the better patient care and smooth functioning of administration. • The core group: It is composed of hospital consultant, two medical administrative personnel and, financial experts who work without other member in early stage, but later the core team has to be enlarged as the project is progressed and once clinical service are taken up.
  • 19.
    • The architect:Architect must have enough technical knowledge about planning layout of hospital. The role of architect is site evaluation, cost estimation, drawing design, list of movable and non-movable equipment, engineering service and construction documentation. • Engineers: Engineer in hospital mainly deals with electrical, mechanical and plumbing section. Engineer check the materials used in the construction and other equipment required in term of quantity and quality. They discuss with team and negotiate in the market.
  • 20.
    • Hospital administration:He is one of the important members of the core group to give his valuable suggestion regarding the plan. He is kept informed about the details of planning at every step. His role is to guide, give suggestions, selecting equipment and other materials, formulate policies, procedure and strategies and other matters related to development of hospital.
  • 21.
  • 22.
    Preliminary survey: Todetermine the character, needs and liability towards community to which the hospital is going to provide services. Various points in survey are : •size of community •economic status in general •extent of availability of health service •occupation and income of community •need of health services •transport system commonly used •general attitude of people towards health and health service
  • 23.
    There are certaincharacteristics which make people turn away from a hospital: •Building not constructed as a hospital •hospital not clean •hospital is inaccessible or is in poor location because of security risk, nuisance or parking facilities •inadequate medical care, staff and equipment limited service •non availability of 24 hours service Preliminary survey is very necessary, as it gives a basic idea of what is to be done based upon the needs of the community it is going to serve.
  • 24.
    Study of existinghospital: This study should be comprehensive and involve both short- and long-term needs and objectives. It should cover the following areas: •bed capacity of the institute •physical condition •hospital occupancy •bed ratio •volume and kind of hospital service •quality of facilities and service This study will help the core team to understand the strength and limitation of existing facilities and also facilitates the planning of the hospital.
  • 25.
    Study of requiredstaff and service: The consultant or the committee must make a study of human resources, doctors, nurses and other professional staff required for the proposed hospital. It is generally agreed that in addition to traditional service such as internal medicine, general surgery, pediatrics, obstetrics and gynecology, specialists in the discipline of eye, ENT, dermatology, radiology, pathology, urology must be provided.
  • 26.
    The architect shouldmake the estimation of the cost of the project. The area needs for financial planning are construction, equipping and furnishing the hospital. The funds should be planned in excess keeping in view that the price will hike.
  • 27.
    Expenses on funds: salaries andwages, Operating account of repayment of loans, payment of interest and other operational and maintenance expenses initial stage are during this the revenues. There higher than should be proper planning and distribution of funds to prevent loss to the organization.
  • 28.
    Equipment and materialplanning: A equipment list is compiled and reviewed by administrator and departmental staff. This information also helps in financial planning. Material management should be done in a such a way that the resources are available always in a good condition and adequate quantity so as to facilitate proper care to the client.
  • 29.
    Patient Bed planning:It depends on the size of the community around the hospital. In cities more bed required because of increasing urbanization. The bed privacy planning should provide between the beds and enough space between each bed to give patient a conducive environment.
  • 30.
    Site selection: • Landselection: There must be enough land for constructing a hospital. Plentiful land should be available for future important factors in expansion of the hospital. • Soil selection: The two soil selection is subsoil water level and structure of the soil. It will help to determine the bearing quality of the soil.
  • 31.
    • Public utility:Availability of public utility should be considered such as water supply, sewage disposable and electricity. Water supply: 300-400 liter /bed/day Electricity supply: 1kw/ bed/day (include every department) Sewage disposable: liquid effleurage same as water consumption per day and solid disposable 1 kg /day/bed.
  • 32.
    Circulation: utility andsuccess of the hospital depends on circulation route within and outside the hospital. •Internal circulation: the departments should be interrelated with in the hospital. •External circulation: only one entrance and one exit for hospital to avoid traffic. Parking facility: adequate parking facility for patient visitors and ambulance is considered.
  • 33.
    PATIENT CARE UNITS Planninga Patient Care Unit • Patient care unit is defined as a part of the hospital which is designed in a specific manner to provide care to specific types of patients. e.g., General wards, Intensive Care Unit, Coronary Care Unit, Burn Unit, Paediatric Unit, Causality, Neurosciences Unit etc.
  • 34.
    • An idealpatient provide the best care unit facilities shall and optimal work environment which eventually will lead to high quality care provision.
  • 35.
    Advantages of ProperPlanning of Patient Care Unit 1.It enhances the work efficiency of staff. 2.It meets the basic and functional requirement of the hospital. 3.It increases and facilitates nurse patient interaction and helps in standardizing the care. 4.It gives aesthetic look to the hospital. 5.It helps in meeting expectations of the patients through good environment during their stay. 6.It helps in reducing fatigue factor among the staff if properly planned.
  • 36.
    Types of PatientCare Units • The designing of the units should be in such a way that it should facilitate the nurse for better observation of her patients. The design, type, location, physical facilities and layout should help in smooth running of the ward functions. • The capacity of the unit i.e. bed occupancy should be based upon type of conditions of patient, requirements, availability of doctors, and staff available.
  • 37.
  • 38.
  • 40.
  • 41.
    Elements of PlanningPatient Care Units 1. Size and shape of the unit 2. Patient's room: General, private or semi-private 3. Treatment room 4. Sluice room (store room) 5. Nurses' station
  • 42.
    Requirements in PatientCare Units • Medication trolley having an ampoule cutter, syringes, needle burner, water for injection, nebulizer machine, kidney dish etc. • Crash cart for the emergency management with all the articles like oxygen catheters, suction catheters, emergency drugs, laryngoscopes, endo-tracheal tubes, defibrillator along with pads, E.C.G. electrodes, water soluble jelly, ties, syringes, kidney dish etc. • Various containers having different identification for proper waste segregation and disposal as per the hospital policy.
  • 43.
    •Spacious bathroom andtoilet facility having bedpans, urinals and pint measures for the bed ridden patients and urine measurement. •Visitor's room for the patients' visitors and attendants during the visiting hours. It should not be too noisy that it disturbs the other patients on the unit. •Diagnostic room for urine analysis and for the other sample storage. •Dietary trolley for the patient's feed, naso-gastric tubes, feeding glass, feeding syringe.
  • 44.
    Ward/Unit Management 1.Help theward in charge to carry out her/his work or acts as ward in charge during their absence. 2.Maintain general cleanliness of the ward and the sanitary annexure. 3.Supervise the duties of group "D" employees and guides them and report accordingly. 4.Writes the diet register and supervise the distribution of diet and report if any, necessary. 5.Maintain scheduled poisonous drug registers. 6.Supervise nursing care and other tasks carried out by the students.
  • 45.
    7.Maintain duty roomtrays, sterilize instruments and see that procedural trays are in readiness. 8.Take over from duty of the previous, new and serious patients, instruments, supplies, drugs etc. and handover the same accordingly. 9.Maintain all the records pertaining to the ward/unit. a. Maintain case papers, investigation reports etc. b.Maintain vital sign charts, intake-output charts and special charts if necessary. c. Take special care of medico-legal case papers and records. d. Write day and night orders and maintains ward statistics. other
  • 46.
    Floor plans A floorplan is a drawing to scale, showing a view from above, of the relationships between rooms, spaces, traffic patterns, and other physical features at one level of a structure.
  • 47.
    Emergency department • EDsneed to be placed in an area of the hospital that is easily accessible to Emergency vehicles entering the site. Emergency department needs to be essentially situated on ground floor, as near as possible or in front of entrance gate of the hospital. The overall size of the ED will depend on the volume and scope of services provided.
  • 48.
    Entrance and receptionarea: •Conceptually, it is desirable to have three separate areas with separate entrance for casualty services, outpatient services and indoor services. •It must have proper sign board which can be illuminated at night or can have adequate lighting for easy visibility. •Not to have other human traffic. •Reception need to be situated at the entrance, clearly visible & reachable without blocking human or trolley traffic. •Entrance to casualty area should be broad enough to permit two ambulances.
  • 49.
    Waiting Area: •Adequate sittingaccommodation, drinking water, toilets, telephones, public address system •Space for trolleys & Wheel Chairs. •When the patient is brought to casualty by an ambulance, taxi, private car, stretcher, staff at reception counter should quickly arrange for wheel chair or trolley depending on the situation. •Crash cart •The waiting area should measure at least 4.4 m2 / 1000 attendances per annum.
  • 50.
    Triage: •The minimum acceptablefloor area per Triage/Assessment Cubicle is 16meter sq. •Minimum combined Reception and Triage area must be 1.8-meter sq. /1000 patient attendances per annum.
  • 51.
    Resuscitation Area: •Area forimmediate care of patients and victims in cardiac arrest, airway and breathing and circulation compromise. area consists of two or •The ‘Resus’ more resuscitation beds (sometimes upto 12) with all resuscitative equipment (monitors, intubation & defibrillators, surgical airway, equipment) available at an arm’s distance including pediatric resuscitation kits. •All priority I patients are managed here.
  • 52.
    Space for Security& Police Constable: •Casualty department is likely to get victims of assaults, riots etc. •As medicolegal cases need to follow prescribed procedural formalities, it is necessary to have police constable’s counter at the waiting hall entrance.
  • 53.
    Space for patientbrought dead: Keep the body at a place which is not visible to other incoming patients & persons waiting in the waiting hall. In the event of disaster, number of dead bodies is likely to be more. After labelling the bodies, they may be sent to mortuary & handed over relatives or police after completing procedural formalities.
  • 54.
    Examination Room: •Two orthree examination tables separated by curtains are available. •It should be possible to carry out life- saving first aid procedure like cardiopulmonary resuscitation on this table before sending the patient to observation ward. Treatment Room: Minor procedure like catheterization, suturing of small wounds, dressing, bandaging etc. can be carried out.
  • 55.
    Observation Area: •Depending onthe patient load 4 to 8 beds may be placed in this area. •Those patients may be kept in observation ward who are waiting to be evaluated by a particular speciality, waiting for emergency medical procedure etc. Storage Space: •Linen, dressing stored. consumable items like drugs, material, equipments can be •Minimum floor area for storage is attendances 2.2meter sq. /1000 patient per annum.
  • 56.
    Operation theatre • Anoperation theatre is the "heart" of any major hospital. An operating theatre, operating room, surgery suite or a surgery centre is a room within a hospital within which surgical and other operations are carried out. The aim is to provide the maximum benefit for maximum number of patients arriving to the operation theatre. Both the present as well as future needs should be kept in mind while planning OT.
  • 57.
  • 60.
    • Specialty groupingplan - The "specialty grouping" plan is simply a variation of the hotel or race track plan, in which ORs are grouped by specialty (e.g., neurosurgery, general surgery), each with its own closely associated clean storage areas and, in some cases, each with its own soiled instrument work area.
  • 61.
    Structure of OT OTcan be divided into clearly demarcated four zones to indicate specific precautions to be practiced before crossing the border of each zone. This zone indicate: • Relatively clean area • Absolutely clean area • Absolutely clean & aseptic area • Unclean area
  • 62.
    Outermost Zone: Thiszone is called as protective zone. This zone is clean, but not sterile area. In this area following activities are housed: • Administrative area • Office of operation theatre superintendent or manager • Office of the anesthesia chief • Space for surgeons to write or dictate operation notes • Frozen section biopsy laboratory • Dark room for developing X-Ray films • Changing room • Surgeon’s room • Trolley bay • Waiting area for relatives
  • 63.
    Intermediate Zone: Thiszone is clear, but not sterile. Entry for people bringing supplies, patients etc. can be permitted after changing foot- wear. It includes following: •Storage area for equipment's & instruments •Supply received from central sterilization & supply department •Medicines, intravenous fluids, other consumable items and linen •Post-operative recovery room having 1 to 2 beds per operating table •Preoperative waiting patients
  • 64.
    Inner most zone:This area is kept absolutely clean & sterile. No one other than persons actually involved in doing surgery or assisting in surgery should be allowed to enter. In teaching hospitals 4 to 5 students are permitted after changing. This zone includes: •operating room (minimum size 18ft* 20 ft) •Anesthesia induction room •Patient holding areas •Scrub area for surgeons & nurses
  • 65.
    Unclean zone fordisposal: This zone is used for temporary storage of: •Used linen •Used instruments •Waste material •Cleaning gloves, instruments
  • 66.
    Sub areas inOT •Pre-operative check in area (reception): This is important with respect to maintaining privacy, for changing from street clothes to gown and to provide lockers and lavatories for staff. •Staff room: Men and women change dress •Holding area: Planned for IV-line insertion, preparation, catheter / gastric tube insertion, connection of monitors, & shall have O2 and suction lines. Facility for CPR should be available in this area.
  • 67.
    •Post anaesthetic careunits (PACU): These should contain a medication station, hand washing station, nurse station, storage space for stretchers, supplies and monitors / equipment and gas, suction outlets and ventilator. Additionally, 80 sq. ft. (7.43 sq. m) for each patient bed, clearance of 5 ft. (1.5 m) between beds and 4 ft. (1.22m) between patient bed sides and adjacent walls should be planned. •Sanitary facility for staff: One wash basin and one western closet (WC) should be provided for 8-10 persons.
  • 68.
    •The anesthesia gas/ cylinder manifold room / storage area: It should be in a cool, clean room that is constructed of fire-resistant materials. Conductive flooring must be present but is not required if non inflammable gases are stored. Adequate ventilation to allow leaking gases to escape, safety labels and separate places for empty and full cylinders to be allocated. •Rest rooms
  • 69.
    Idle OT shouldhave following characteristics: •Operative room for routine work (18ft * 20 ft). •Super specialty departments like neurosurgery & cardiac surgery require bigger area i.e. about 500ft to 600ft, as these theatres need to have more equipments. •Effecting air conditioning should maintain the temperature as per requirement. •Efficient & sincere paramedical & non-medical staff to carry out necessary instructions promptly.
  • 70.
    •Walls: Smooth wallwhich is impermeable to moisture having finish of epoxy resin or vinyl sheets type of painting. •Doors: Main door to the OT complex has to be of adequate width (1.2 to 1.5 m). The doors of each OT should be spring loaded flap type, but sliding doors are preferred as no air currents are generated. •Flooring: The flooring must be slip resistant, strong & impervious with minimum joints or jointless conductive tiles/ terrazzo, linoleum etc., The recommended minimum conductivity is 1m ohm and maximum 10m ohms.
  • 71.

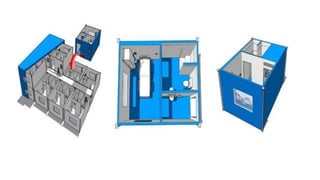

    Isolation ward • Anisolation facility aims to control the airflow in the room so that the number of airborne infectious particles is reduced to a level that ensures cross- infection of other people within a healthcare facility is highly unlikely.
  • 72.
    Types of IsolationRooms: •Airborne infection isolation (AII)/Negative pressure isolation refers to the isolation of patients infected with organisms spread via airborne droplet nuclei <5 μm in diameter. These include patients suffering from measles, chickenpox, tuberculosis, etc. •Protective environment (PE)/Positive pressure isolation is a specialized area for patients who have undergone allogeneic hematopoietic stem cell transplant (HSCT), etc.
  • 75.
    Planning Premises ofIsolation Rooms • Location: The isolation rooms should be located at one end of ward. Isolation wards for infectious cases to be kept out of routine circulation. • Number of beds for isolation beds: About 2.5% of the beds of a large hospital in a special unit would probably be adequate except during periods of unusually high demand.
  • 76.
    •Space: An isolationroom has to provide uncluttered space around the bed for equipment and the increased number of personnel involved in emergency care. A room area of about 22 m2 is adequate within an isolation unit. •Adequate number of wash hand basins should be provided within the patient care areas and nursing stations with a view to facilitate hand washing practice. •Separate arrangements for garbage and infectious waste removal from wards and departments in the form of separate staircases and lifts.
  • 77.
    • One totwo standard isolation rooms per ward unit should be planned throughout the hospital with wash basin in room, shower, toilet and wash basin in bathroom. Door with self- closing device and a normal window AC to be provisioned for these rooms.
  • 78.
    Bed Management System •Bedcenters should be at least 3.6 m apart. •Minimum possible number of beds should be kept in a cohort as to prevent chances of cross-infection. •Spacing must take account of access to equipment around the bed and access for staff to hand-wash facilities. •Provision of permanent screens between bed spaces should be there as an aid to prevent frequent traffic and thus the potential for microorganism transfer.
  • 80.

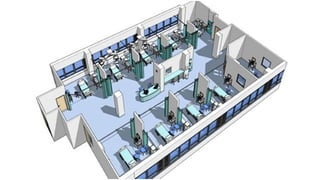

    Intensive care unit •Intensive Care is a dedicated unit for critically ill patients who require invasive life support, high levels of medical and nursing care and complex treatment. The intensive care unit provides a concentration of clinical expertise, technological and therapeutic resources which are coordinated to care for the critically ill patient.
  • 81.
    Space programme The guidelinesfor ICU design should be based on criteria set by ISCCM, India given below. •Level I, six to eight beds —small district hospital, small private nursing homes, rural centres. •Level II, six to eight beds — larger general hospital •Level III, 10 to 16 beds-tertiary level hospitals The new level III ICU are further planned based on type/ usage of ICU i.e. general or speciality-based like medical, cardiac, neurosurgical, transplant, paediatric. The location of ICU should be close to the operation theatre, imaging diagnostic services and laboratory.
  • 82.
    • The floorspaced per ICU bed can be planned 3 m X 4 m (12 sq. m) to maximum of 5 m X 5 m (25 sq. m) based on consideration of application of ICU including services and equipment positioning. • The outside environment viewing window for each patient bed is strongly suggested as part of the design. • A minimum of one to two metre distance should be kept between two beds as per NABH standard.
  • 83.
    • The heightbetween floor and false ceiling should be three metres. • The ideal single leaf door size for each ICU cubicle or separate room having clear space of 2.1 m X 1.2 m height and width with wide view panel for visual access to patient is suggestive. • It is indicative to have 12-16 beds per ICU area for optimal design considering all essential support functions. The total area of ICU should be 2.5 to 3 times the total space of ICU beds which includes supply and service corridor/ passageway of 2.4 m width. At least one patient cubicle as isolation with anteroom facility having negative pressure is recommended within the ICU.
  • 84.
    • The overalldesign of the ICU should consider. The other essential areas inpatients, staff and visitor movement, storage space of equipment and medicine, location of essential areas like nurse station, clean and dirty utility etc. Floor plan of ICU may contain nourishment room, stat lab, linen storage, staff lounge and utility services.
  • 85.
    The civil structure •The walls for separate room should be finished plaster wall of six-inch block/ brick wall. The wall finish should be durable, tough wearing and should withstand water and routine cleaning by chemicals. Two coats of anti-bacterial paint with approved shade on primer applied wall and ceiling will help to kill harmful bacteria that can cause hospital superbugs, including MRSA and E. coli.
  • 86.
    • Imperforated falseceiling with good acoustics and monolithic finish need to be installed in ICU area. The flooring of ICU should be smooth, seamless and durable as there will be heavy movement of patient beds and medical equipment like portable X-Ray. • The flooring should be able to sustain wet things like water, chemical solutions without losing its characteristics. As per International Noise Council, the noise level in an ICU should be under 45 dB in the daytime, 40 dB in the evening and 20 dB at night.
  • 87.
    Lighting • The lightingdistribution illumination control should be planned based on routine physical examination (around 350 lux), during procedure of patient (around 1000 lux), during night time (around 5 lux). • The emergency lighting should be connected to few light fixtures to avoid a complete black out scenario. • The energy conservation aspect like LED lights and more natural daylight should also be considered.
  • 88.
    Air-conditioning, heating, ventilationservices • Sterile air having low velocity with 21-240 C should be planned. The central air conditioning system or ICU specific air conditioning system has to be planned such that for ICU cubicle the requirement of six minimum air changes/hour with two minimum outside air changes/hour having positive pressurization. • It is better to have dedicated air handling unit (AHU) having 99% efficiency down to five microns for each ICU unit. The fresh air for AHU unit must not be located near potential contaminated air like Kitchen exhaust hood, vehicle parking area or laboratory hood.
  • 89.
    Water supply • Watersupply inside the ICU with sufficient pressure can be broadly classified into three types i.e. domestic soft water (hot and cold) for sinks and scrubs, RO water for dialysis port and for drinking purpose and treated sewage water for flushing in commodes. The provision of hand free sinks having hot and cold-water facility at major functional area like nurse station, clean and dirty utility and ICU with cubicles has to be planned.
  • 90.
    Piped medical gassystem • Each patient should have provision for oxygen, vacuum outlet and compressed air outlet. Audible and visible low- and high-pressure alarms must be installed both in the ICU along with manual shut- off valve provision for each medical gas system.
  • 91.
    Firefighting and detectionsystem • The National Building Code (NBC) has given norms on fire-related infrastructure like installation of extinguisher, sprinkler and alarm, water storage tank and pump capacity based on building height and plot area. • In high rise building where ICU is located, the fire escape routes should be clearly indicated. Location of various types of fire extinguishers should be placed at prominent place. Smoke, heat sensors, sprinklers, manual call points and hydrant systems should be tested on a regular basis.
  • 93.
    ANCILLARY SERVICES • Hospitalancillary services are those supplemental or auxiliary services that are provided to patients in order to support the diagnosis and treatment of conditions. Ancillary services refer to health care services provided exclusive of room and board. Ancillary departments form the backbone in the functioning of a tertiary care hospital without which doctors, dentists, and nurses would not be able to function effectively.
  • 94.
    Ancillary services canbe divided into three categories- •Diagnostic •Custodial •Therapeutic Diagnostic hospital ancillary services may be providedin the hospital in the case of radiology, audiology, clinical lab services services. Custodial hospice, nursing and pulmonary testing home services and home health ancillary include services. Therapeutic services include physical therapy, occupational therapy, speech therapy, radiation therapy, nutrition and weight management. Many physicians provide in-office ancillary services.
  • 95.
    Importance of AncillaryHealthcare Service Providers •It helps clinicians organize into Integrated Practice Units. •Ancillary services enable physicians or organizations to measure the outcomes. •It promotes a shift towards bulk payments for care cycles. •Ancillary care providers facilitate the integration of care delivery systems by defining the scope of services and concentrate volume in a few places. •These services also play a vital role in expanding the geographic reach of healthcare delivery. •It helps build a supporting information technology platform.
  • 96.
    Advantages of AncillaryServices Ancillary care services comprise around 30% of the total medical spending, making it essential for every healthcare service provider. These services help reduce the core workload as all the secondary care is facilitated by ancillary providers. Additionally, these providers are cost-saving and prudent, making them an ideal alternative to the outpatient physician and hospital services.
  • 97.
    1. Administrative Resources Ancillaryservices for primary care play a vital role in costs. saving time and The providers, independently, and receive operational instead of work for payment operating hospitals processing, collections, resolution management, and appeals from hospitals.
  • 98.
    2. Increased PatientAccess By connecting to a wider patient base insured under worker compensation, group health, secondary group health, auto medical, and medicare plans. 3. Credentialing Ancillary care allows the hospital to be in a company of well-skilled experts and technicians. These services are certified in providing stringent quality and control standards. They regularly monitor the network to ensure the patients are receiving excellent-quality care.
  • 99.
    4. Education andSupport Ancillary service providers are medical experts too, and readily educate the patients and payers advantages of on the how their services can bear a change in the overall clinic operation.
  • 100.
    Challenges in ImplementingAncillary Technology in the Healthcare Sector Lack of Interoperability • Absence of compatibility in the computers or systems utilized by ancillary care providers for coding, billing, and monitoring patient care. • Patient satisfaction, utilization management, and adequate care are some of the major aspects that can affect the service, providing the ability of ancillary care providers.
  • 101.
    Lack of ConsumerAbility to select delivery of care • The large deductible of patients is a substantial influence on their decisions on how and where to get the care and how much money do they wish to spend. • From the price at which they need an x-ray to the location at which they want to receive physical therapy, consumers nowadays are more conscious and want the best options at the best price.
  • 102.
    Limited Leverages • Ifancillary providers operate as independent businesses, they will have to face limited leverages. • Healthcare providers want to pay less for materials and better business solutions, which is possible only if ancillary providers agree on sharing the same goals and increased authority.
  • 103.
    Other ancillary services: •Medico-legal/post mortem • Ambulance services • Dietary services • Laundry services • Security services • Waste management including Biomedical Waste • Ware housing/central store • Maintenance and repair • Electric Supply (power generation and stabilization) • Water supply (plumbing)
  • 104.
    • Heating, ventilationand air-conditioning • Transport • Communication • Medical Social Work • Nursing Services • CSSD - Sterilization and Disinfection • Horticulture (Landscaping) • Refrigeration • Hospital Infection Control • Referral Services
  • 105.
    RESEARCH ARTICLE Staff workingin ancillary departments at a tertiary care hospital in Bengaluru, Karnataka, India: How healthy are they? A study was conducted by Bhavya Balasubramanya, Catherin Nisha, Naveen Ramesh, and Bobby Joseph in 2016 to study the morbidity profile of the staff working at ancillary departments of a tertiary care hospital in Bengaluru, Karnataka, India. They conducted study in a 1,200-bedded tertiary care hospital in Bengaluru, Karnataka, India. Annual medical check-up (AMC) for all the staff working at the ancillary departments has been started in recent years and is provided free of cost and during working hours. A total of 150 employees from ancillary departments underwent AMC in the year 2013. The most common morbidities were diabetes mellitus (11%), hypertension (10.6%), musculoskeletal disorders (9.3%), surgical problems (8.6%, hemorrhoids, varicose veins), and dental caries (6.6%). On stool microscopy, 12% of the dietary workers showed ova/cyst. There was a significant positive correlation between age and the number of chronic morbidities (P < 0.01). The study concluded that lifestyle disorders such as diabetes mellitus and hypertension were the major morbidities among the staff in the ancillary departments of the hospital. Regular follow-up, adherence to medication, and lifestyle modifications in terms of diet and exercise were ensured.
  • 106.
    SUMMARY AND CONCLUSION Althoughto treat the patients, hospitals need to have a team of experienced and professional doctors, but the other factor that plays a great role in treating the patients is the infrastructure of the hospital. The infrastructure design of the hospitals plays a crucial role in the safety of the patient. No matter how much money is spend on the infrastructure of the hospital because one cannot renovate the hospital so frequently. Therefore, infrastructure must be kept in mind before building a hospital. The infrastructure of the building should be designed in such a way that it looks attractive, functional and safer for the patients. This is why hospital planning and designing plays a crucial role.
  • 107.
    REFERENCES • Shabnam Masih.Essentials of Nursing Management in service and education. 2017. New Delhi. LOTUS Publishers. Second edition. Pg. No. 83-94. • PubMed. Staff working in ancillary departments at a tertiary care hospital in Bengaluru, Karnataka, India: How healthy are they? Available from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4922276/ Journal ListIndian J Occup Environ Medv.20(1); Jan-Apr 2016PMC4922276 [cited 29 Aug 2020] • PHYSICAL LAYOUT THE OPERATING ROOM. Available from https://rajnursing.blogspot.com/2018/09/physical-layout-operating-room.html [cited 9 Sep 2020] • PubMed. Staff working in ancillary departments at a tertiary care hospital in Bengaluru, Karnataka, India: How healthy are they? Available from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4922276/ [cited 10 Sep 2020]
