Here are the key points about coastal management schemes at Swanage: 1. Seawalls - To protect land and property from erosion and flooding by waves. 2. Groynes - To build up beaches by trapping sediment moving along the shore in longshore drift. 3. Beach replenishment - To replace sand lost through erosion and maintain the beach, protecting the land behind. 4. Managed realignment - To allow the shoreline to move landward naturally by breaching seawalls. This reduces costs and works with natural coastal processes. 5. Planting marram grass - To stabilise dunes and prevent/reduce blowouts. The roots bind sand particles.

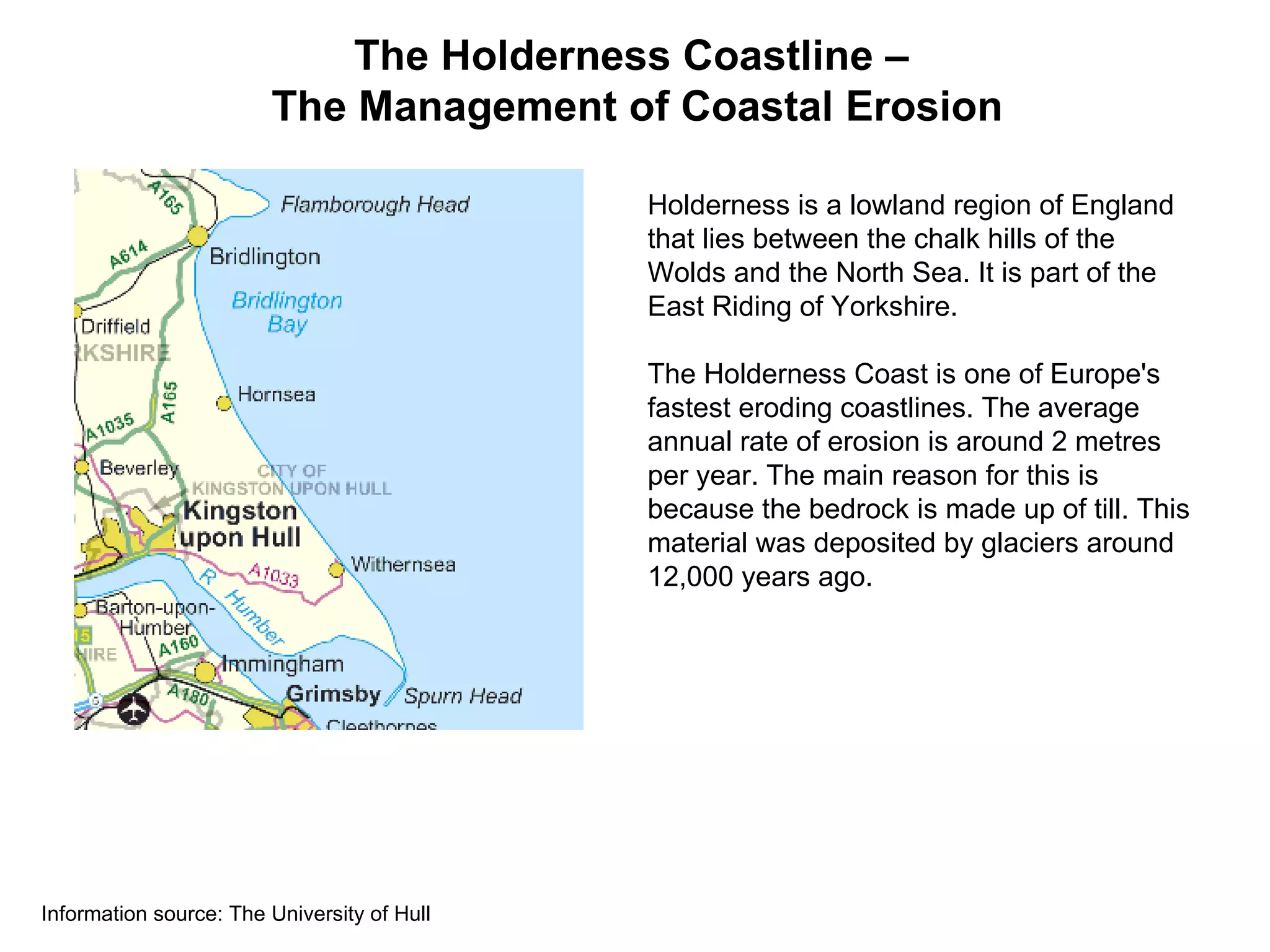

1. The Holderness Coastline –
The Management of Coastal Erosion
Holderness is a lowland region of England
that lies between the chalk hills of the
Wolds and the North Sea. It is part of the
East Riding of Yorkshire.
The Holderness Coast is one of Europe's
fastest eroding coastlines. The average
annual rate of erosion is around 2 metres
per year. The main reason for this is
because the bedrock is made up of till. This
material was deposited by glaciers around
12,000 years ago.
Information source: The University of Hull

2. What processes are acting upon this coastline?
Geology Map of Holderness
Altitude Map of Holderness
How might the geology of the area affect the shape of the
coastline?

3. What processes are acting upon this coastline?
The Holderness Coastline is made up of soft boulder clays (tills) left after the
retreat of the Devensian ice sheets about 12 000 years ago. They can be seen
on the coast, being rapidly eroded by the sea. To look at, they are a mass of
brown clay containing pieces of rock (erratics) brought here by the glaciers from
Scandinavia, Scotland, the Lake District and Northeast England. These soft,
recent deposits sit on a platform of chalk which slopes away gently to the east.
Erratics in till at Mappleton

4. What processes are acting upon this coastline?
Erosion of the Holderness cliffs is a cyclic, four stage process:
• The soft Boulder Clay cliffs become saturated with rain water and lose their
strength.
• The cliff is too steep and fails either as a block of material or as a slurry slide
• Cliff failure reduces the angle and prevents further erosion but …
• Large waves from the North East remove the debris in longshore drift to the
South and the cliff oversteepens, rain falls and the cycle begins again.

5. The order of this presentation…
1. Flamborough Head.
3. Mappleton
5. Aldbrough
7. Withernsea
9. Kilnsea
11. Spurn Head

6. 1. Flamborough Head
The chalk of Flamborough is a resistant rock that provides examples of erosion,
features such as caves, arches and stacks. The chalk has formed a headland.

7. 2. Mappleton
Situated approximately 3km south of Hornsea lies the village
of Mappleton. Supporting approximately 50 properties, the
village has been subject to intense erosion at a rate of 2.0m
per year, resulting in the access road being only 50m from
the cliff edge at its closest point.
Mappleton lies upon unconsolidated till (boulder clay). This material
was deposited by glaciers during the last ice age 12,000 years ago.

8. Mappleton
Mappleton is an excellent case study of an attempt at coastal management. In 1991 two
rock groynes and a rock revetment made from huge blocks of Scandinavian rock were
built.
As a consequence a substantial beach accumulated between the groynes halting erosion
(picture 1 below). However, further south the rate of erosion has increased significantly
(picture 2 below). This is because material which is being carried south is not being
replaced (it is trapped within the groynes). Therefore there is no beach to protect the cliffs.
Even during a neap tide ( a tide which is 30% less than the average tidal range) the sea
reaches the base of the soft cliffs and erosion occurs.
1 Cliffs to the north. Sea defences mean 2 Cliffs to the south. The sea defences
that the beach has grown and the cliffs are don’t protect this area and the land is
stable (look at the grass growing!) retreating rapidly.

9. Mappleton
Northern section Southern section
Defences = Beach build up No defences = Beach erosion

10. 3. Aldbrough
Aldbrough is a small settlement to the south of Mappleton.
Where Mappleton had substantial sea defences built,
Aldbrough has none. The cliffs here are rapidly eroding.
Some residents think that the sea defences at Mappleton has
made things worse. Why would they think this?

11. Aldbrough

12. 4. Withernsea
This settlement attracts tourists, so substantial sea
defences have been constructed to maintain the beach.
How many sea defences can you see in this picture?

13. Withernsea – how does it all work?

14. 5. Kilnsea
The old settlement of Kilnsea has now been completely
lost. Sea defences were built here in the early 1900s to
protect the Godwin Battery - a defensive gun emplacement
and the rail-head for a light railway to further military
installations on Spurn point. The sea defences are now
crumbling and erosion is progressing rapidly.

15. Kilnsea
Old map of Kilnsea Current aerial photo of Kilnsea

16. 6. Spurn Head
The area known as Spurn forms the southern extremity of the Holderness coast and includes
the unique feature of Spurn Head, a sand and shingle spit 5.5km long, reaching across the
mouth of the Humber. Spurn is made up of the material which has been transported along
the Holderness Coast. This includes sand, sediment and shingle.
Spurn Point provides evidence of
longshore drift on the Holderness
Coast. It is an excellent example of a
spit.
How would sea defences along
the coastline affect Spurn?

17. Spurn Head
1. The material eroded from the Holderness cliffs is swept southwards.
2. North easterly waves move the coarser sands and gravel down towards the mouth of the
Humber
3. The finer sands and clays are swept offshore and continue southwards towards the Wash.
4. Spurn Head ‘hangs like a rudder’ for six kilometres off the end of Holderness, built by the
sands and gravels eroded from the cliffs and transported south by longshore drift
2. In the past Spurn Head
seems to have grown and
been washed away in a
regular cycle, slowly moving
towards the east to keep
pace with the erosion of the
Holderness cliffs.
3. For over 100 years the
position of Spurn has been
fixed by artificial sea
defences. These defences
are now falling into disrepair
and the sea is starting to
erode parts of the peninsula
once again.

18. Spurn Head
Spurn Head changes position. Most of the spit has
flexible road surfaces, which are like mats that can be
picked up and moved following major storms.
There is plenty of evidence of this
movement. Former railway tracks that
were built to move building materials
along Spurn (for the building of Bull
Fort in the Humber Estuary) now
appear to lead into the sea.

19. Spurn Head
Is Spurn eroding?
The end of Spurn is fairly stable. This is due to
it’s size and the presence of deep rooted plants.
The rest of Spurn erodes and moves constantly.
There are some groynes to protect it, but these
are very old now.

20. Spurn Head
Is it important to protect access to Spurn Point?
Full time lifeboat men live here with their The Humber estuary is very busy with
families. large ships. It is one of the most
dangerous estuaries in Europe, so pilots
guide boats in and out. Their base is on
Spurn for quick access to sea. The pilots
do not live on Spurn.
Spurn is also important for birds and wildlife.

21. The future?
Many key industries, farms and homes lie within 50 meters of the
coastline.
Lifeboat Station
1. Should they Oil terminal
be saved?
3. What effects
would
saving
these have
on other
areas of the Wind turbines Humber
coastline? Pilots
5. Who should
pay?

22. How can the coastline be protected?
Hard engineering techniques aim to stop coastal processes
from occurring. Soft engineering methods try to work with
nature to protect the coast.

23. What has been done to protect Swanage?
What is the purpose of each scheme at Swanage?
Match the correct scheme to its purpose!
