Hands on with Apache Spark

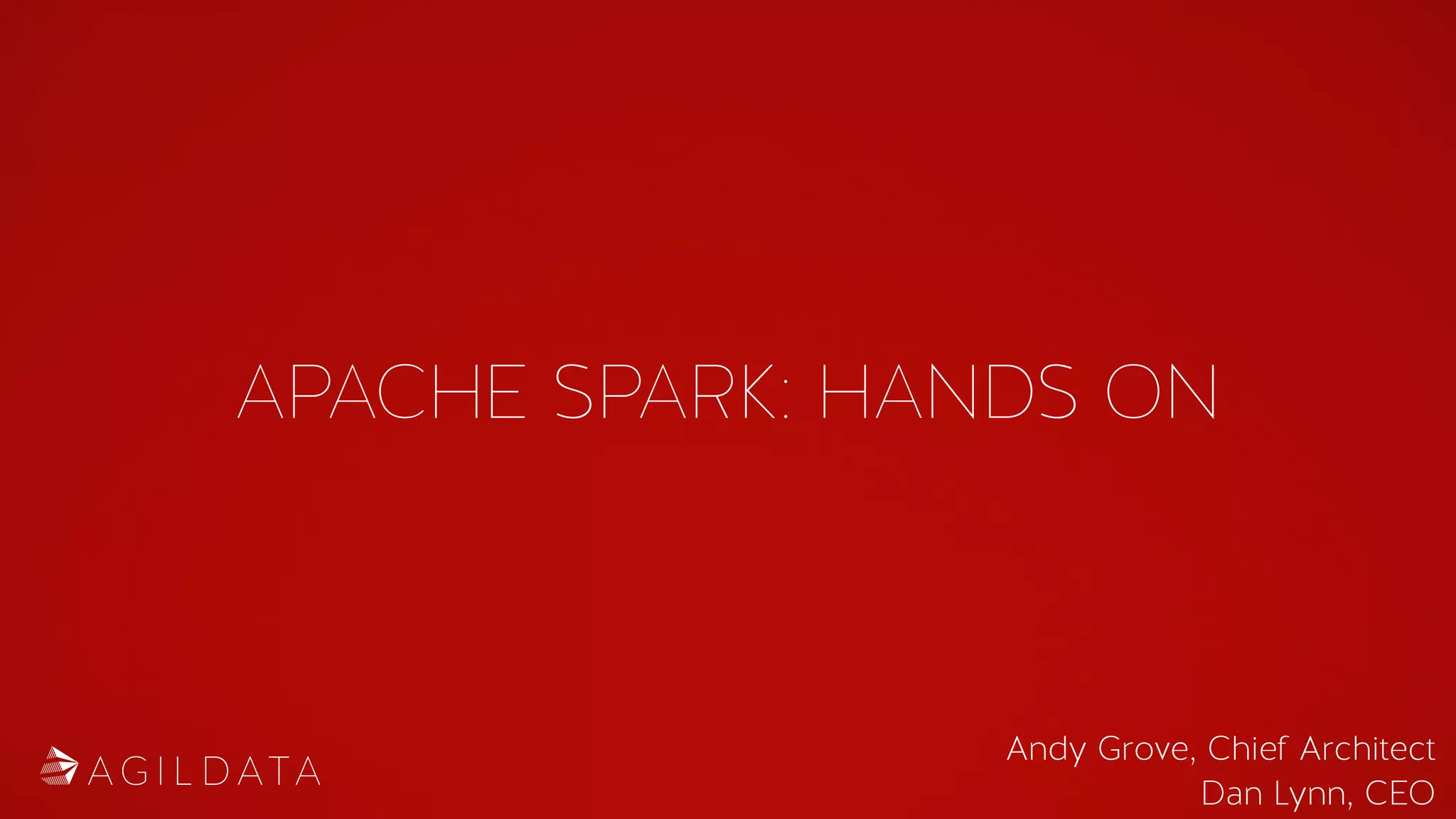

- 1. APACHE SPARK: HANDS ON Andy Grove, Chief Architect Dan Lynn, CEO

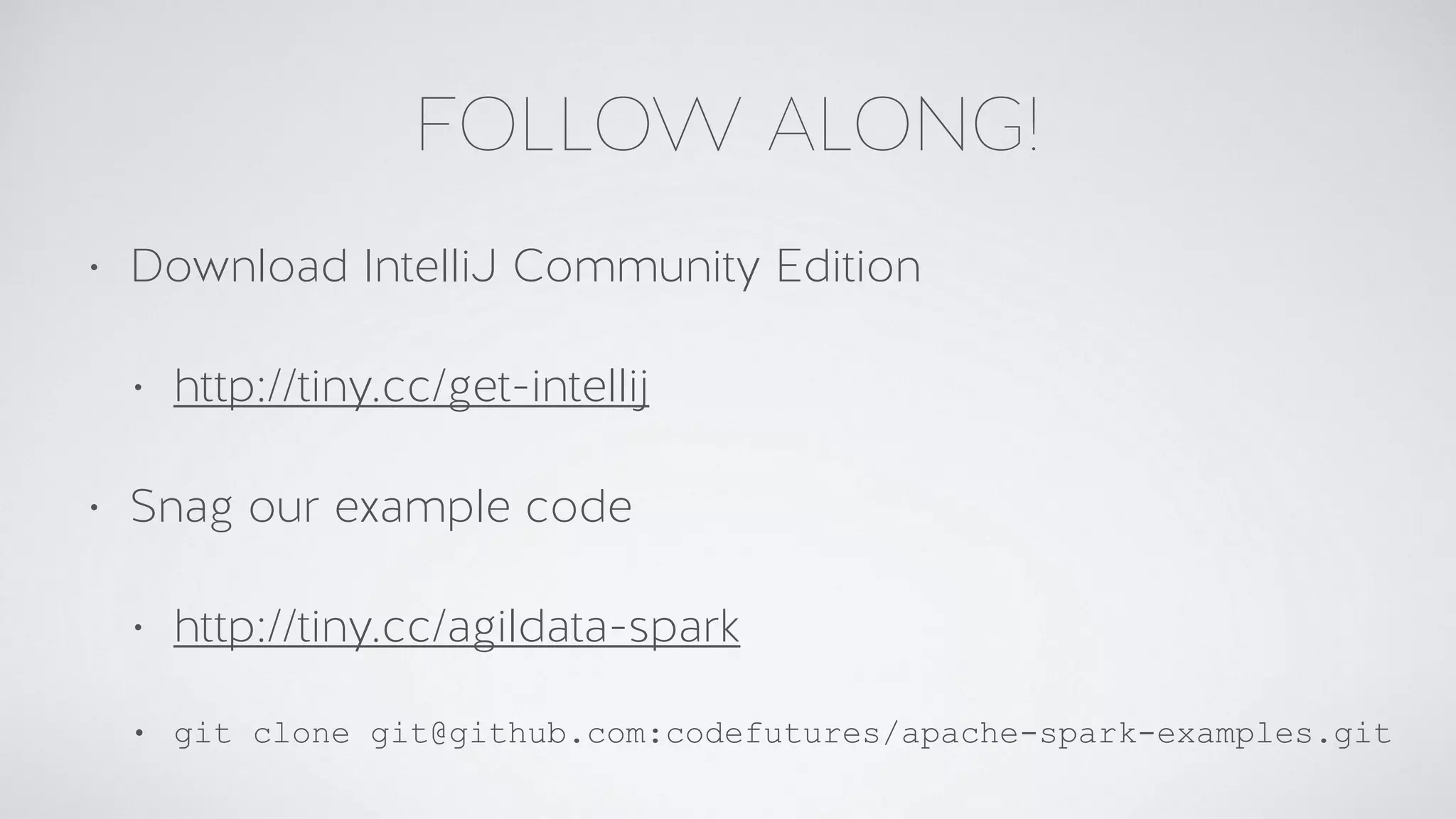

- 2. FOLLOW ALONG! • Download IntelliJ Community Edition • http://tiny.cc/get-intellij • Snag our example code • http://tiny.cc/agildata-spark • git clone git@github.com:codefutures/apache-spark-examples.git
- 3. Andy Grove Co-Founder & Chief Architect Co-Founder @ Orbware Technologies (acquired 2000) Inventor of Firestorm/DAO andy@agildata.com • Providers of dbShards • Relational Database Scaling • Big Data Consulting • Data Strategy • Data Architecture Reviews • Big Data Training • Solution Implementation • Distributed over 6 states! • Headquartered in Broomfield, CO www.agildata.com Dan Lynn CEO Co-Founder @ FullContact 15 years building software Techstars 2011 dan@agildata.com
- 4. AGENDA • Part I - Overview of Spark • Motivation, APIs, Ecosystem, Simple Example • Part 2 - Hands On • Work through a real data problem
- 5. PART 1: AN OVERVIEW OF SPARK
- 6. A BRIEF HISTORY LESSON • First there was Hadoop • Goal: Process petabytes of constantly-growing data • “Move the processing to the data” • But MapReduce was difficult to program • So they made Pig, Hive, Cascading, etc…
- 7. A BRIEF HISTORY LESSON • MapReduce was also very reliable • But it performed poorly on iterative tasks like machine learning. • So in 2009, UC Berkeley started on an new approach • Keeping data in memory as much as possible.
- 8. A BRIEF HISTORY LESSON • They called it “Spark” • After lots of community acceptance it became an Apache Project in 2013. • Since then, it has gained mainstream acceptance. • “Potentially the Most Significant Open Source Project of the Next Decade” - IBM, June 15, 2015
- 9. A BRIEF HISTORY LESSON • Huge ecosystem • Machine learning: MLlib, Mahout • Graph processing: GraphX • Read from / write to anything that Hadoop can • Tons of community contributions: spark-packages.org • Zeppelin: Python-style interactive notebooks
- 10. CONCEPTS
- 11. CONCEPTS - RDD RDD aka “Resilient Distributed Dataset” your_data f(your_data) g(f(your_data)) <— an RDD <— also an RDD <— so is this
- 12. RDD - SECRET INTERNALS!!!11 /** * Tells the Spark framework *where* the data is. */ protected Partition[] getPartitions(); /** * Iterates through the data for a given partition. */ Iterator<T> compute(Partition split, TaskContext context);
- 13. RDD - PUBLIC API • Transformations • Make new RDDs by applying transformation functions. • Actions • Write to HDFS, write to databases, yield an answer, etc… Two Options
- 14. RDD - PUBLIC API • Transformations • .map(func) .filter(func) .reduce(func) .flatMap(func) • Actions • .collect() .saveAsTextFile(path) .sample(…) .take(n)
- 15. EXECUTION MODEL
- 16. SPARK EXECUTION MODEL https://cwiki.apache.org/confluence/display/SPARK/Spark+Internals What’s this?
- 17. SPARK EXECUTION MODEL • Cluster Managers • Apache Mesos • YARN (aka Hadoop 2.0) • Spark’s native cluster manager
- 19. SPARK SQL / DATAFRAME API • New in Spark 1.3. The core engine behind Spark SQL • If RDDs are transformations that apply to JVM objects… • Schema (i.e. the class) is passed along with each datum • Serialization pain. GC pain. • …then DataFrames are transformations that apply to data • Schema is defined for the entire set • Data is transmitted independent of schema. JVM data access incurs much less GC overhead • DataFrames have more optimized execution logic. i.e. a query planner
- 20. DATASET API • New in Spark 1.6 • Addressed specific deficiencies in DataFrames • DataFrames lack compile-time type-checking. • Datasets look like RDDs, but perform like DataFrames
- 21. SPARK API CHOICES Java Scala RDD DataFrame sketchy… Spark SQL Dataset exciting, but very new exciting, but very new
- 22. QUICK EXAMPLE • Let’s count Shakespeare’s favorite words!
- 23. PART 2: HANDS ON
- 24. PART 2: HANDS ON • The problem: Rank Colorado counties by gender ratio. • The data: US census data from 2010 • The approach: • RDD API (in both Java 8 and Scala) • DataFrame API / Spark SQL • Dataset API
- 25. REFERENCES • http://spark.apache.org/research.html • http://tiny.cc/agildata-spark • http://spark-packages.org
- 26. Andy Grove Co-Founder & Chief Architect andy@agildata.com @andygrove73 www.agildata.com Dan Lynn CEO dan@agildata.com @danklynn Thanks!
