Hacking Android OS
The document outlines a workshop on hacking the Android OS, focusing on the Android Open Source Project (AOSP), device rooting, custom ROM creation, and Android's architecture. It emphasizes the reasons for hacking Android, including customization and understanding, while noting potential risks, such as voiding warranties and bricking devices. Additionally, it provides resources for customizing apps, themes, and hardware interfaces like Arduino and ADK.
More Related Content
Hacking Android OS
- 1. Hacking Android OS http://gplus.to/JimmyLIVE August 13, 2011 Room TTN1, ITSC-CMU

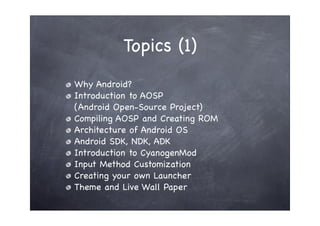

- 2. Topics (1) Why Android? Introductionto AOSP (Android Open-Source Project) Compiling AOSP and Creating ROM Architecture of Android OS Android SDK, NDK, ADK Introduction to CyanogenMod Input Method Customization Creating your own Launcher Theme and Live Wall Paper

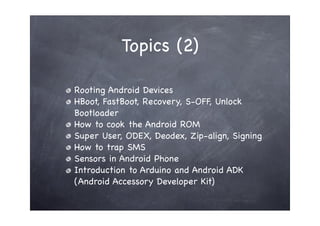

- 3. Topics (2) Rooting AndroidDevices HBoot, FastBoot, Recovery, S-OFF, Unlock Bootloader How to cook the Android ROM Super User, ODEX, Deodex, Zip-align, Signing How to trap SMS Sensors in Android Phone Introduction to Arduino and Android ADK (Android Accessory Developer Kit)
- 4.

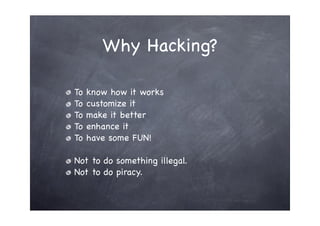

- 5. Why Hacking? To know how it works To customize it To make it better To enhance it To have some FUN! Not to do something illegal. Not to do piracy.
- 6. The first stepto Thai Android OS
- 7. What will youget from this class? You will get NOTHING from this class but many links to where to read more You will break your phone’s warrantee You may BRICK your phone You may create the best phone on earth from the bad SH*T phone in your hands You may go to jail...
- 8. In case ofEmergency
- 9.
- 10. Android Android is anopen-source software stack (OS, Middle ware, Applications) created for mobile phones and other devices. The Android Open Source Project (AOSP), led by Google, is tasked with the maintenance and further development of Android.

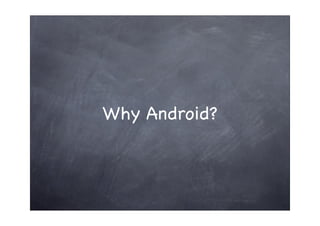

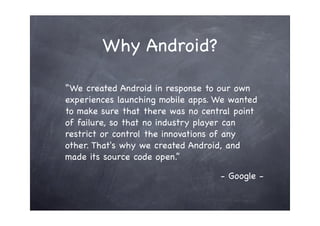

- 11. Why Android? “We createdAndroid in response to our own experiences launching mobile apps. We wanted to make sure that there was no central point of failure, so that no industry player can restrict or control the innovations of any other. That's why we created Android, and made its source code open.” - Google -
- 12. Why I loveAndroid? I hate Dumbo!

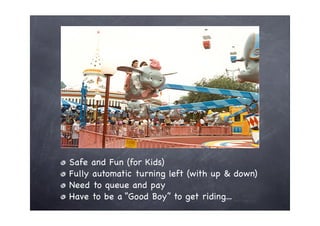

- 13. Safe and Fun(for Kids) Fully automatic turning left (with up & down) Need to queue and pay Have to be a “Good Boy” to get riding...
- 14. http://www.youtube.com/watch?v=15bQjiwzgUA Un-safe but moreFun (not for Kids) Turn left by yourself Need brave heart Have to be a “Good Boy” to buy BMW 1M
- 15. AOSP (Android Open SourceProject)

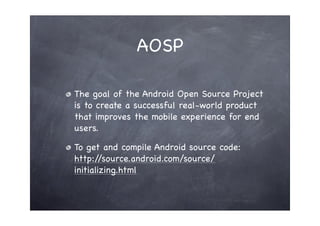

- 16. AOSP The goal ofthe Android Open Source Project is to create a successful real-world product that improves the mobile experience for end users. To get and compile Android source code: http:/ /source.android.com/source/ initializing.html

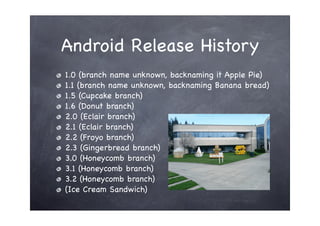

- 17. Android Release History 1.0(branch name unknown, backnaming it Apple Pie) 1.1 (branch name unknown, backnaming Banana bread) 1.5 (Cupcake branch) 1.6 (Donut branch) 2.0 (Eclair branch) 2.1 (Eclair branch) 2.2 (Froyo branch) 2.3 (Gingerbread branch) 3.0 (Honeycomb branch) 3.1 (Honeycomb branch) 3.2 (Honeycomb branch) (Ice Cream Sandwich)
- 18. To start Get AndroidSource Compile it Unlock your phone (lost your phone’s warantee) Install the result ROM to your phone (lost all of Google and Bundled apps)

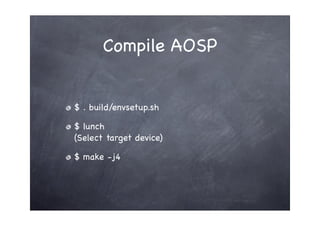

- 19. Compile AOSP $ .build/envsetup.sh $ lunch (Select target device) $ make -j4

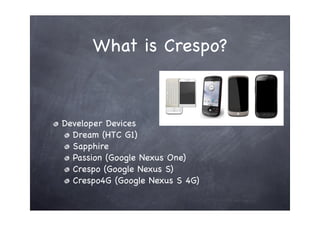

- 20. What is Crespo? DeveloperDevices Dream (HTC G1) Sapphire Passion (Google Nexus One) Crespo (Google Nexus S) Crespo4G (Google Nexus S 4G)

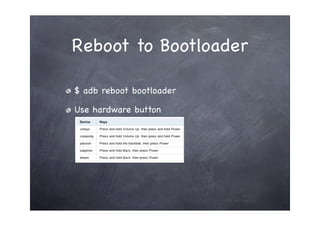

- 21. Reboot to Bootloader $adb reboot bootloader Use hardware button

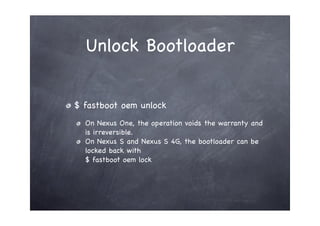

- 22. Unlock Bootloader $ fastbootoem unlock On Nexus One, the operation voids the warranty and is irreversible. On Nexus S and Nexus S 4G, the bootloader can be locked back with $ fastboot oem lock

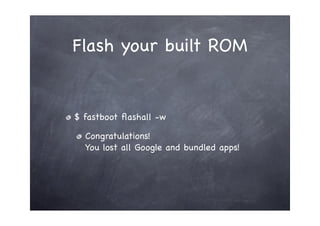

- 23. Flash your builtROM $ fastboot flashall -w Congratulations! You lost all Google and bundled apps!
- 24.
- 25.

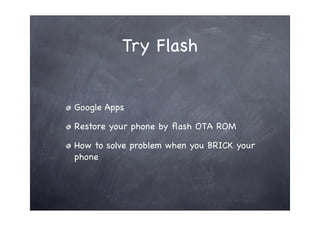

- 26. Try Flash Google Apps Restoreyour phone by flash OTA ROM How to solve problem when you BRICK your phone
- 27. HBoot, FastBoot, SPL Hbootis the init script of the device. In others words, it makes possible to the device power on and load all the "programs" Fastboot is protocol used to update the flash file system in Android devices from a host over USB The SPL, or Second Program Loader, in conjunction with the IPL comprise a device's bootloader. Aside from bootstrapping Android, the bootloader also fulfills various diagnostic functions. One of these functions is the manipulation of data in the device's internal flash ram. Depending on the SPL installed, the user can apply a signed NBH file, flash nand images, and more. Note that the SPL is installed and operates independently of the Android build that runs atop it.
- 28.

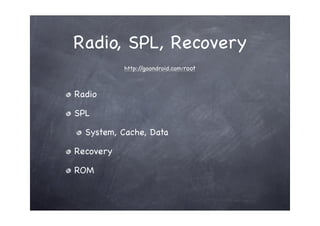

- 29. Radio, SPL, Recovery http://goondroid.com/root Radio SPL System, Cache, Data Recovery ROM
- 30. Android Boot Process http://www.androidenea.com/2009/06/android-boot-process-from-power-on.html BootROM - load first stage bootloader into system RAM Bootloader First stage bootloader - init memory Second stage bootloader - load kernel to RAM Linux Kernel The Init process Zygote and Dalvik VM The System Server Boot completed
- 31.

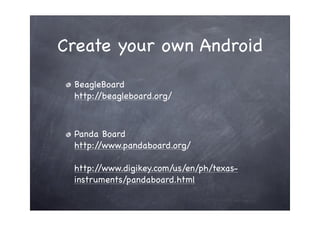

- 32. Create your ownAndroid BeagleBoard http://beagleboard.org/ Panda Board http://www.pandaboard.org/ http://www.digikey.com/us/en/ph/texas- instruments/pandaboard.html

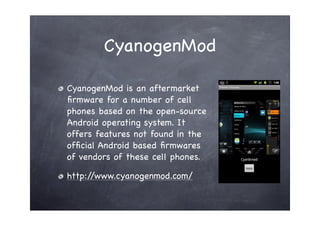

- 33. CyanogenMod CyanogenMod is anaftermarket firmware for a number of cell phones based on the open-source Android operating system. It offers features not found in the official Android based firmwares of vendors of these cell phones. http://www.cyanogenmod.com/
- 34. MIUI MIUI, Redefining Android. MIUIis one of the most popular Android ROMs in the world. It is based on Android 2.3 and has a unique UI that looks and feels great to use. MIUI is updated every Friday based on the feedback from its users, it is then translated to English by our translation team for you all to use and love. So what are you waiting for, head over to the ROMS section and download MIUI for your phone. http://miuiandroid.com/
- 35.
- 36.
- 37.
- 38. Google TV &Android The software that Google TV runs is a version of Android that has been enhanced to support video search, HDTV signaling, and a full Google Chrome browser. It current'y doesn't support certain Android features like installing third party apps.

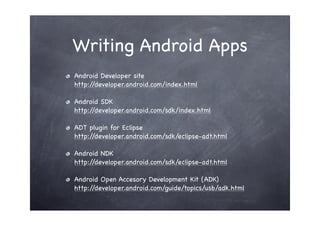

- 39. Writing Android Apps AndroidDeveloper site http://developer.android.com/index.html Android SDK http://developer.android.com/sdk/index.html ADT plugin for Eclipse http://developer.android.com/sdk/eclipse-adt.html Android NDK http://developer.android.com/sdk/eclipse-adt.html Android Open Accesory Development Kit (ADK) http://developer.android.com/guide/topics/usb/adk.html

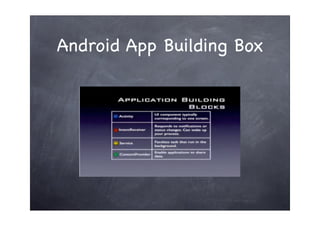

- 40.

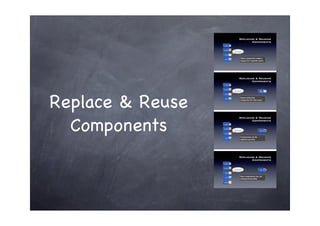

- 41. Replace & Reuse Components

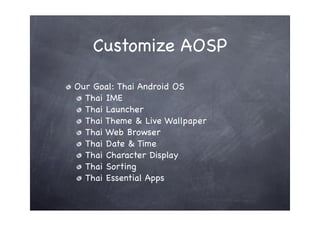

- 42. Customize AOSP Our Goal:Thai Android OS Thai IME Thai Launcher Thai Theme & Live Wallpaper Thai Web Browser Thai Date & Time Thai Character Display Thai Sorting Thai Essential Apps
- 43. Customize IME (Brief Examples) packages/inputmethods/LatinIME Add xml-th Customize Keyboard layout for THAI (and many detail to fix and add such as word suggestion vocabulary and behavior)

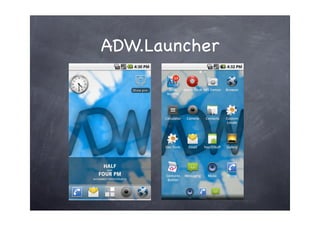

- 44. Launcher Customization ADWLauncher is a good place to start http://forum.xda-developers.com/ showthread.php?t=645550 http://code.google.com/p/adw-launcher- android/ Source code: https://github.com/AnderWeb/ android_packages_apps_Launcher
- 45.

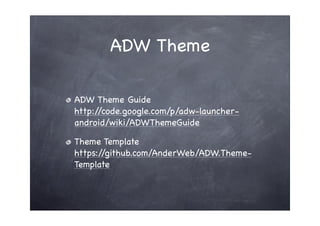

- 46. ADW Theme ADW ThemeGuide http://code.google.com/p/adw-launcher- android/wiki/ADWThemeGuide Theme Template https://github.com/AnderWeb/ADW.Theme- Template

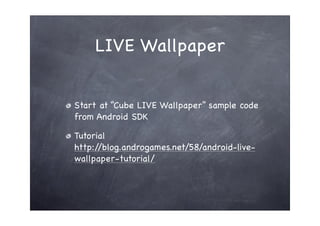

- 47. LIVE Wallpaper Start at“Cube LIVE Wallpaper” sample code from Android SDK Tutorial http://blog.androgames.net/58/android-live- wallpaper-tutorial/

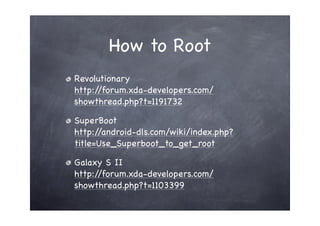

- 48. How to Root Revolutionary http://forum.xda-developers.com/ showthread.php?t=1191732 SuperBoot http://android-dls.com/wiki/index.php? title=Use_Superboot_to_get_root GalaxyS II http://forum.xda-developers.com/ showthread.php?t=1103399

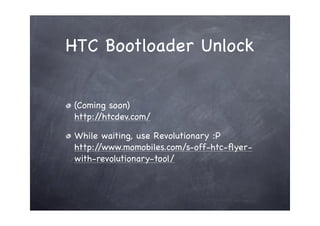

- 49. HTC Bootloader Unlock (Comingsoon) http://htcdev.com/ While waiting, use Revolutionary :P http://www.momobiles.com/s-off-htc-flyer- with-revolutionary-tool/
- 50. Cooking Android Unlock Bootloader(S-OFF) Flash Custom Recovery Cook a rooted ROM Flash ROM Have Fun!
- 51. dsixda’s Kitchen A goodstart for Android ROM Cooker “This is NOT a tool to automatically turn you into a full- fledged ROM developer. ROM development normally involves work from the ground up and involves time, research and patience. I am just giving the tools to help the average person get things done quickly from an existing base.” dsixda

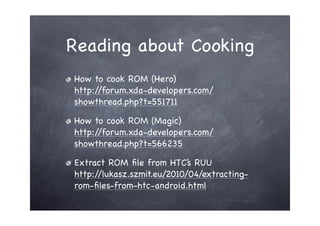

- 52. Reading about Cooking Howto cook ROM (Hero) http://forum.xda-developers.com/ showthread.php?t=551711 How to cook ROM (Magic) http://forum.xda-developers.com/ showthread.php?t=566235 Extract ROM file from HTC’s RUU http://lukasz.szmit.eu/2010/04/extracting- rom-files-from-htc-android.html
- 53. Signed Update.zip The "signedupdate" type ROM image always contains the following components: boot.img - This file is a binary representation of the root file system of the device. It contains the system kernel and all files required to start the core part of Android system - This is a directory containing all files found under /system on a running Android device. It has exactly the same layout. META-INF - This is directory containing the update manifest and script. The manifest is a file which lists all file included in the update, with their SHA1 checksums. The update script is used to apply the update on a device

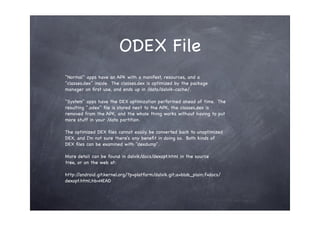

- 54. ODEX File "Normal" appshave an APK with a manifest, resources, and a "classes.dex" inside. The classes.dex is optimized by the package manager on first use, and ends up in /data/dalvik-cache/. "System" apps have the DEX optimization performed ahead of time. The resulting ".odex" file is stored next to the APK, the classes.dex is removed from the APK, and the whole thing works without having to put more stuff in your /data partition. The optimized DEX files cannot easily be converted back to unoptimized DEX, and I'm not sure there's any benefit in doing so. Both kinds of DEX files can be examined with "dexdump". More detail can be found in dalvik/docs/dexopt.html in the source tree, or on the web at: http://android.git.kernel.org/?p=platform/dalvik.git;a=blob_plain;f=docs/ dexopt.html;hb=HEAD
- 55.

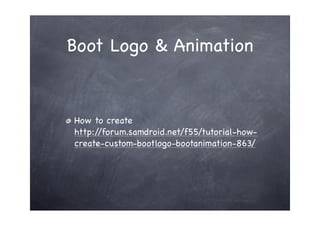

- 56. Boot Logo &Animation How to create http://forum.samdroid.net/f55/tutorial-how- create-custom-bootlogo-bootanimation-863/
- 57. Trapping SMS Broadcast Receiver SMSReceived --> Your app --> FUN!
- 58. ADK & Arduino ArduinoMega ADK http://labs.arduino.cc/ADK/Index Processing for Android http://wiki.processing.org/w/Android

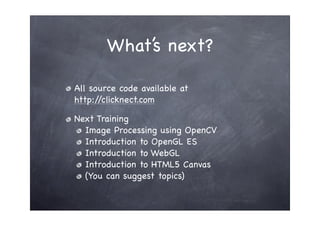

- 59. What’s next? All sourcecode available at http://clicknect.com Next Training Image Processing using OpenCV Introduction to OpenGL ES Introduction to WebGL Introduction to HTML5 Canvas (You can suggest topics)

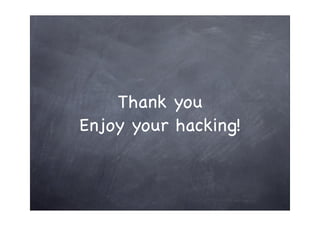

- 60. Thank you Enjoy yourhacking!
