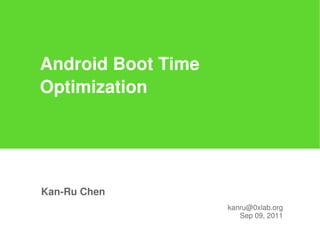

Android Boot Time
Optimization




Kan-Ru Chen
                    kanru@0xlab.org
                       Sep 09, 2011

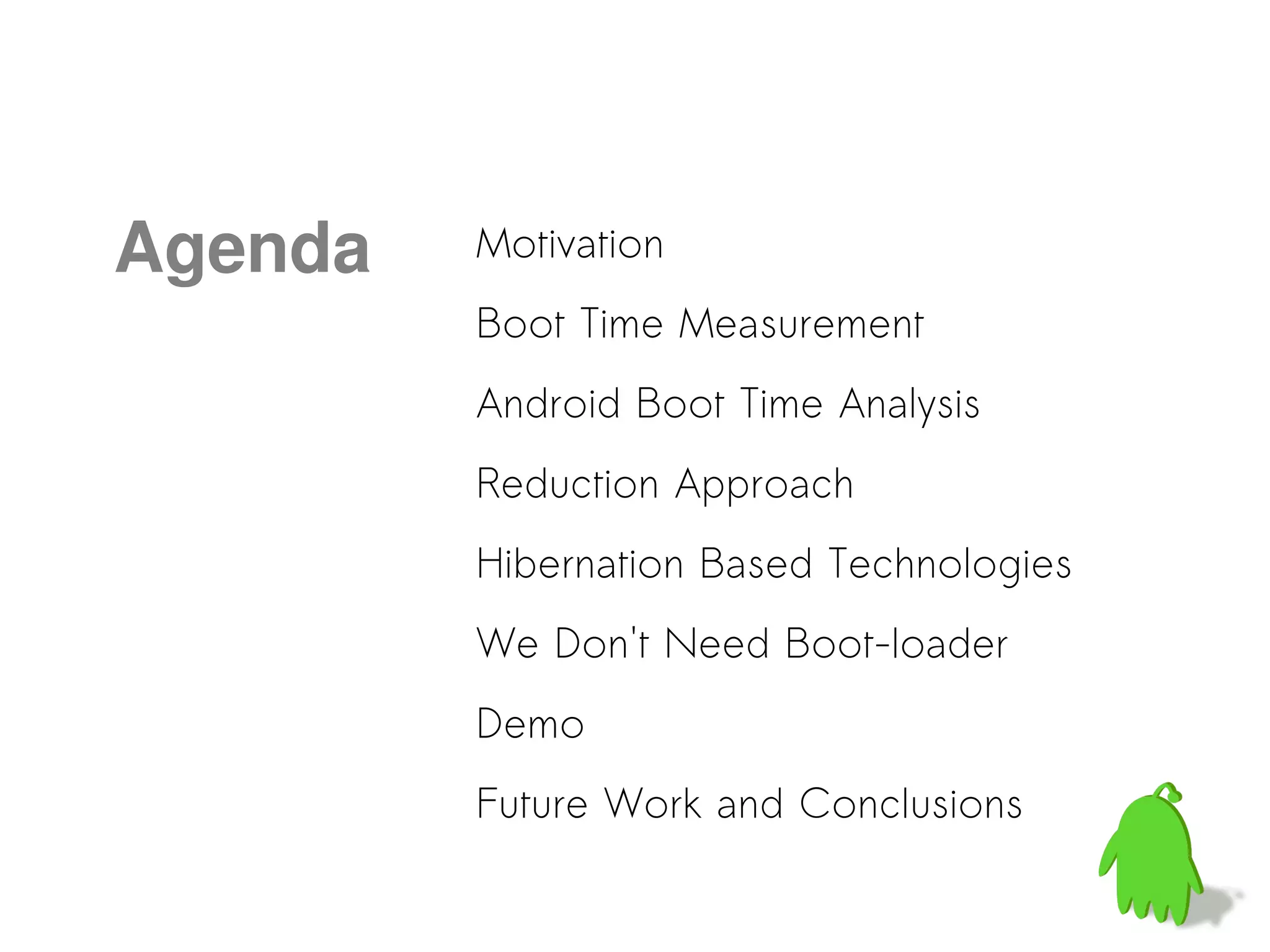

Agenda   Motivation
         Boot Time Measurement
         Android Boot Time Analysis
         Reduction Approach
         Hibernation Based Technologies
         We Don't Need Boot-loader
         Demo
         Future Work and Conclusions

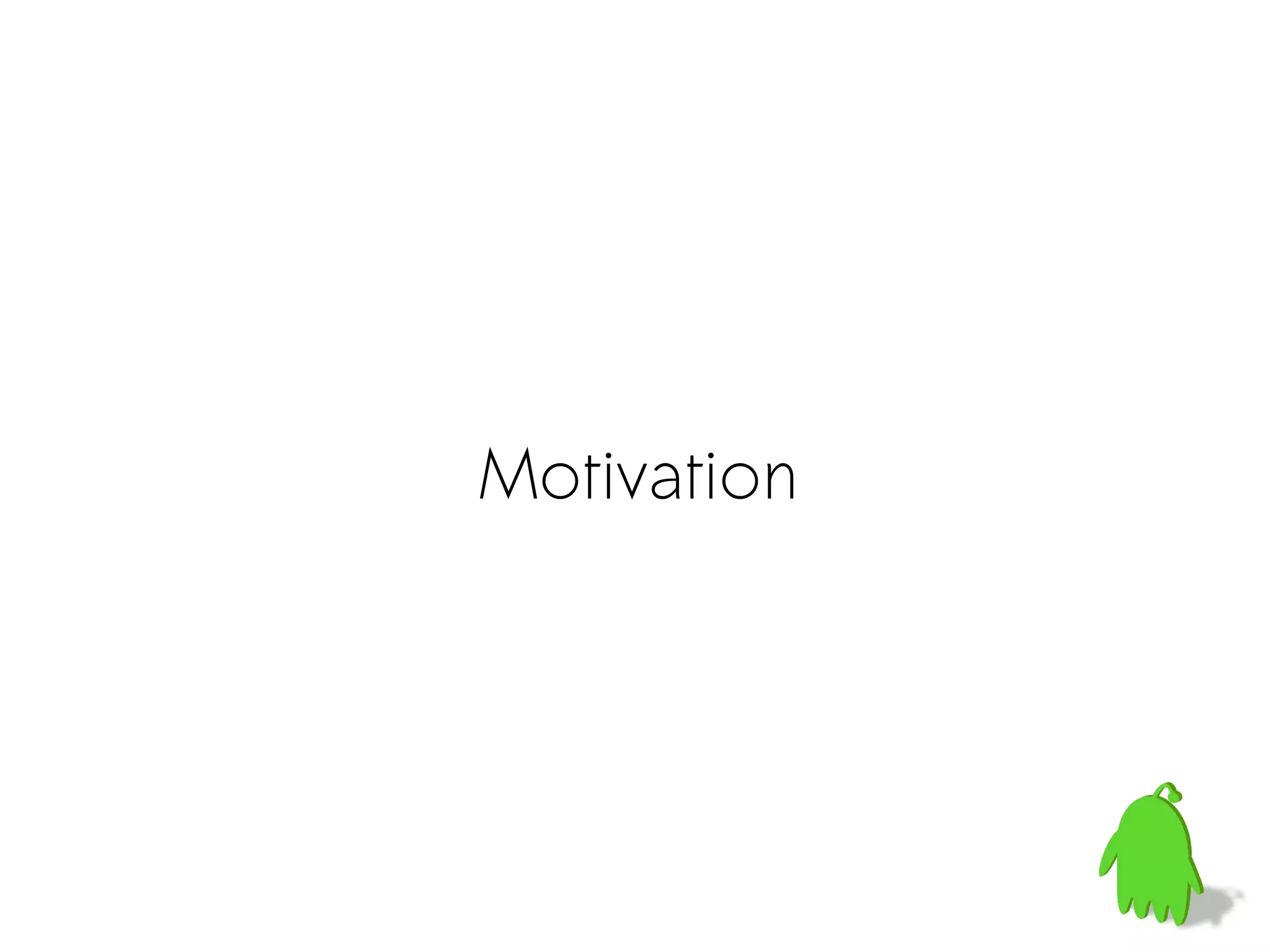

Motivation

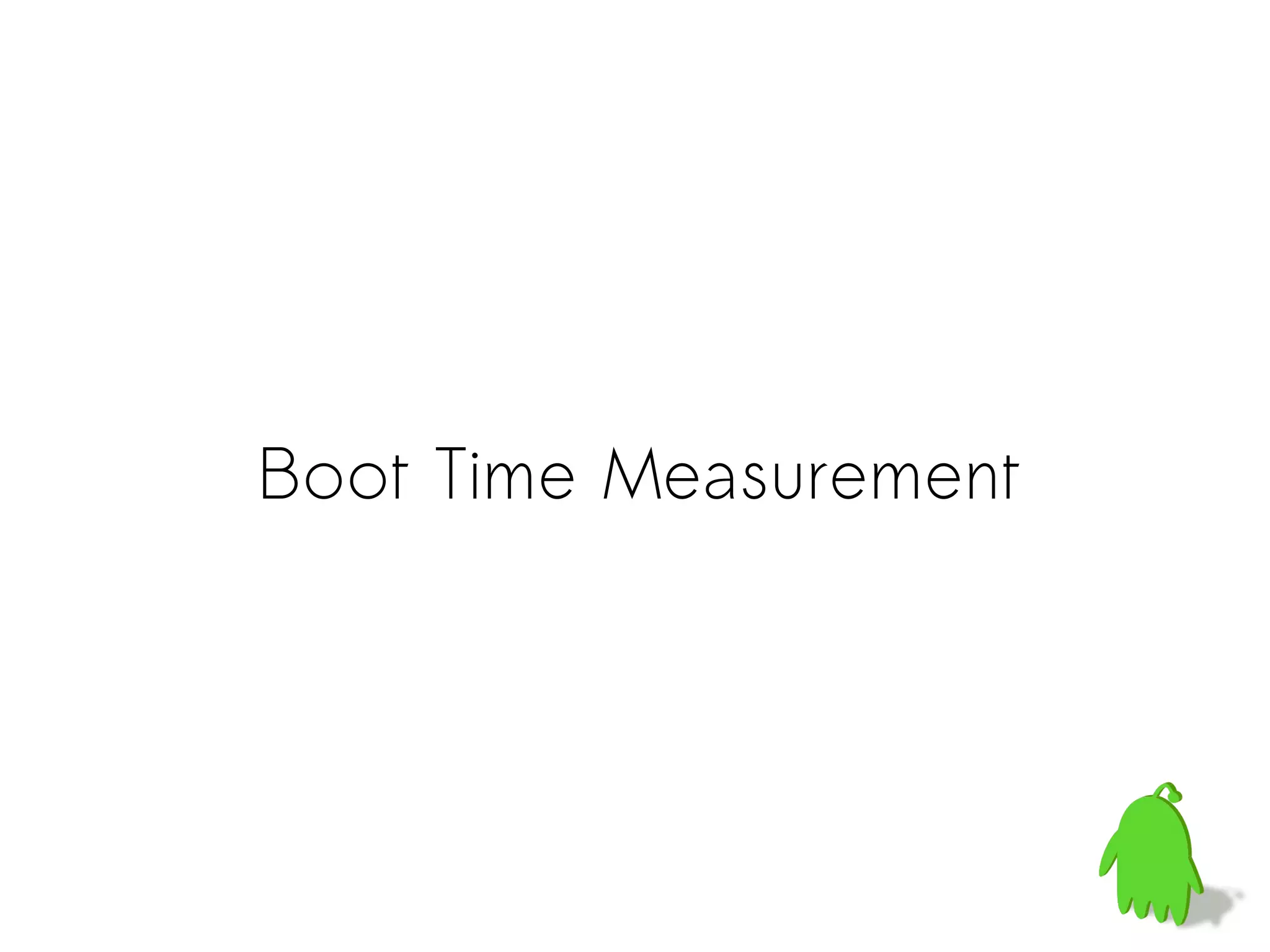

Boot Time Measurement

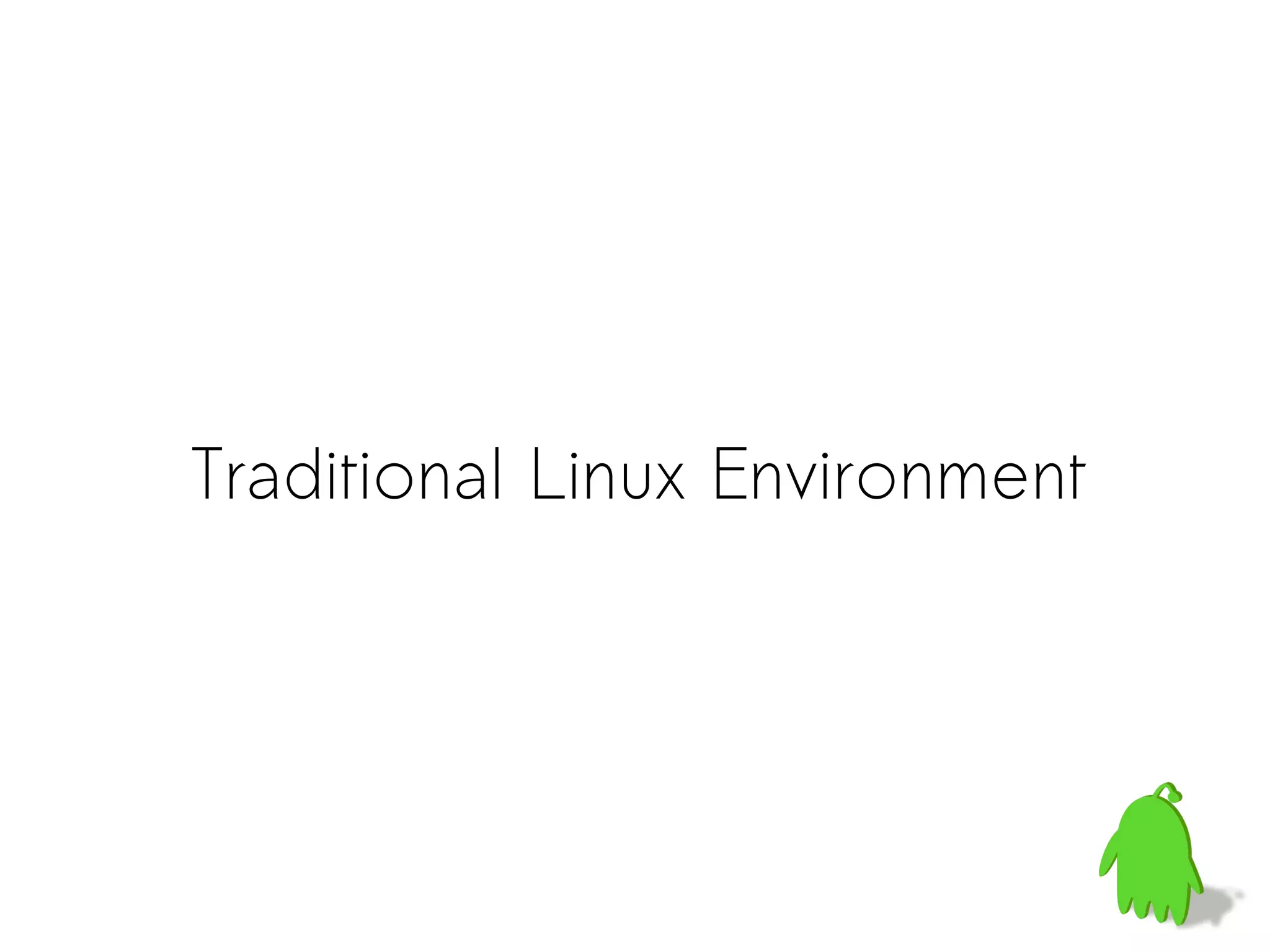

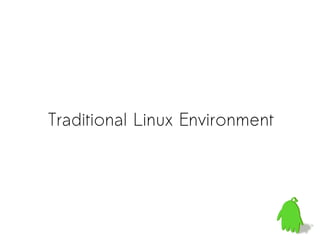

Traditional Linux Environment

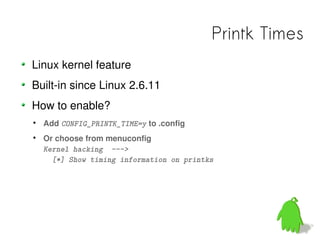

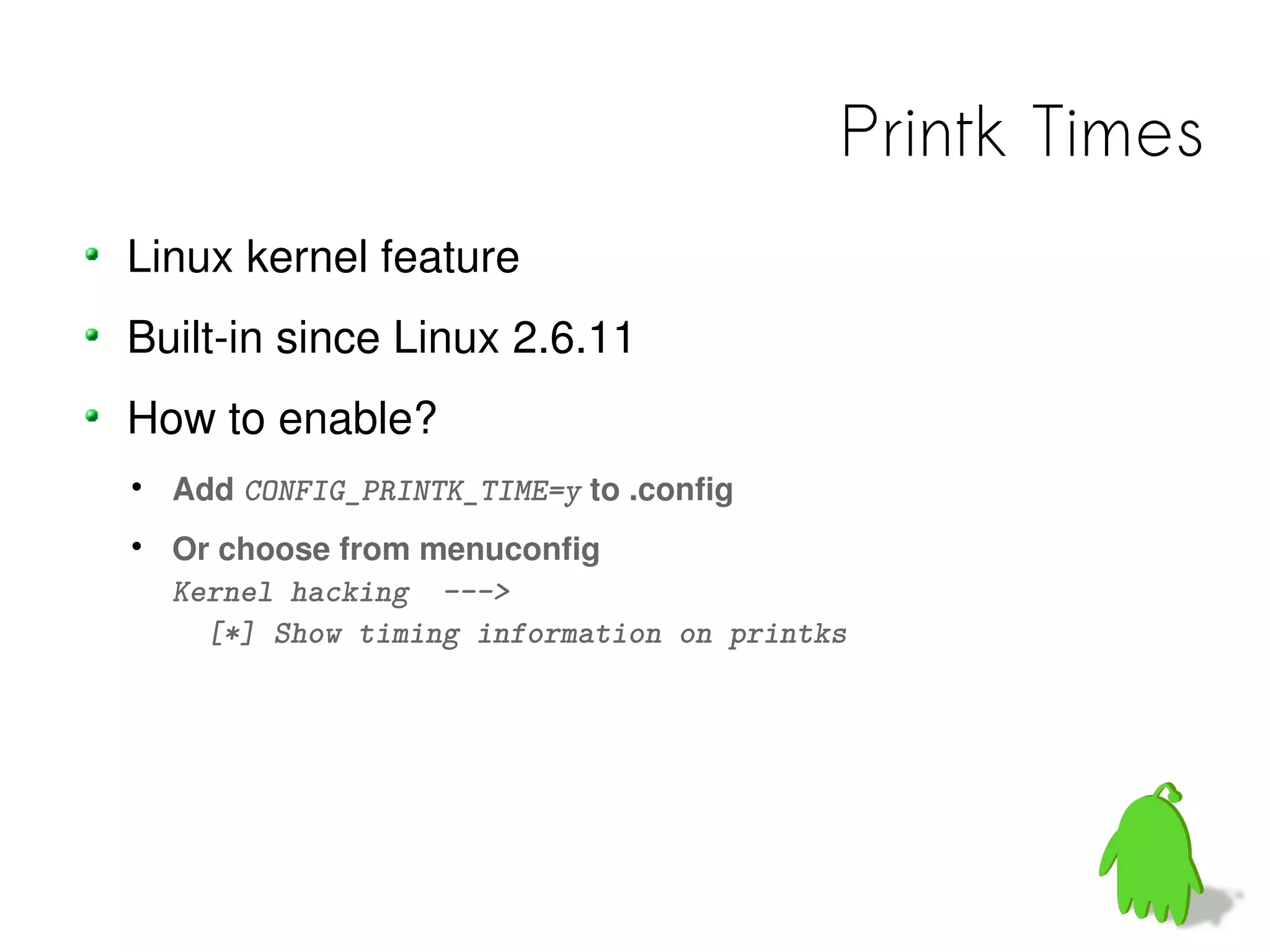

Printk Times
Linux kernel feature
Built-in since Linux 2.6.11
How to enable?

    Add CONFIG_PRINTK_TIME=y to .config

    Or choose from menuconfig
    Kernel hacking --->
      [*] Show timing information on printks

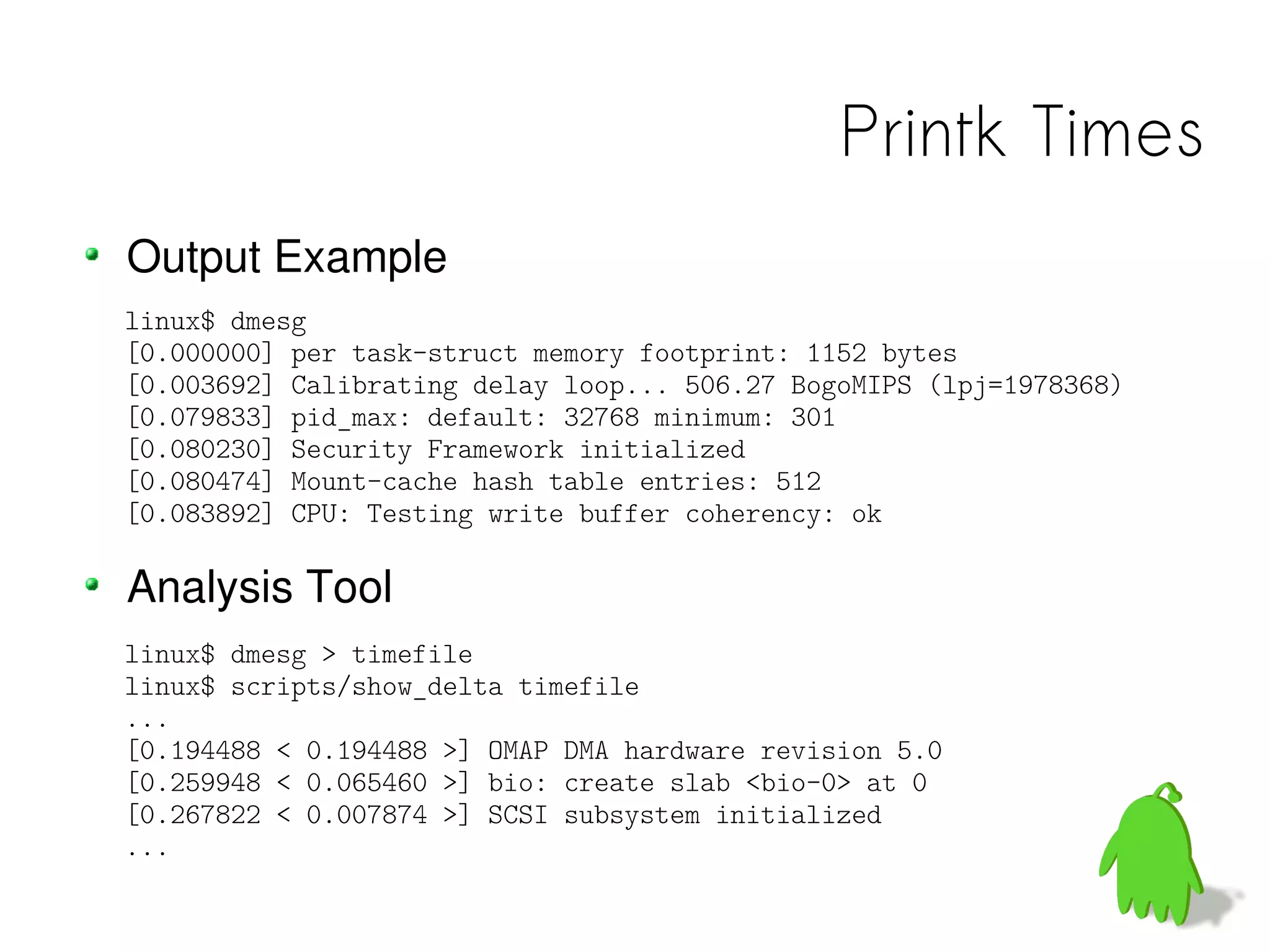

Printk Times
Output Example
linux$ dmesg
[0.000000] per task-struct memory footprint: 1152 bytes
[0.003692] Calibrating delay loop... 506.27 BogoMIPS (lpj=1978368)
[0.079833] pid_max: default: 32768 minimum: 301
[0.080230] Security Framework initialized
[0.080474] Mount-cache hash table entries: 512
[0.083892] CPU: Testing write buffer coherency: ok

Analysis Tool
linux$ dmesg > timefile
linux$ scripts/show_delta timefile
...
[0.194488 < 0.194488 >] OMAP DMA hardware revision 5.0
[0.259948 < 0.065460 >] bio: create slab <bio-0> at 0
[0.267822 < 0.007874 >] SCSI subsystem initialized
...

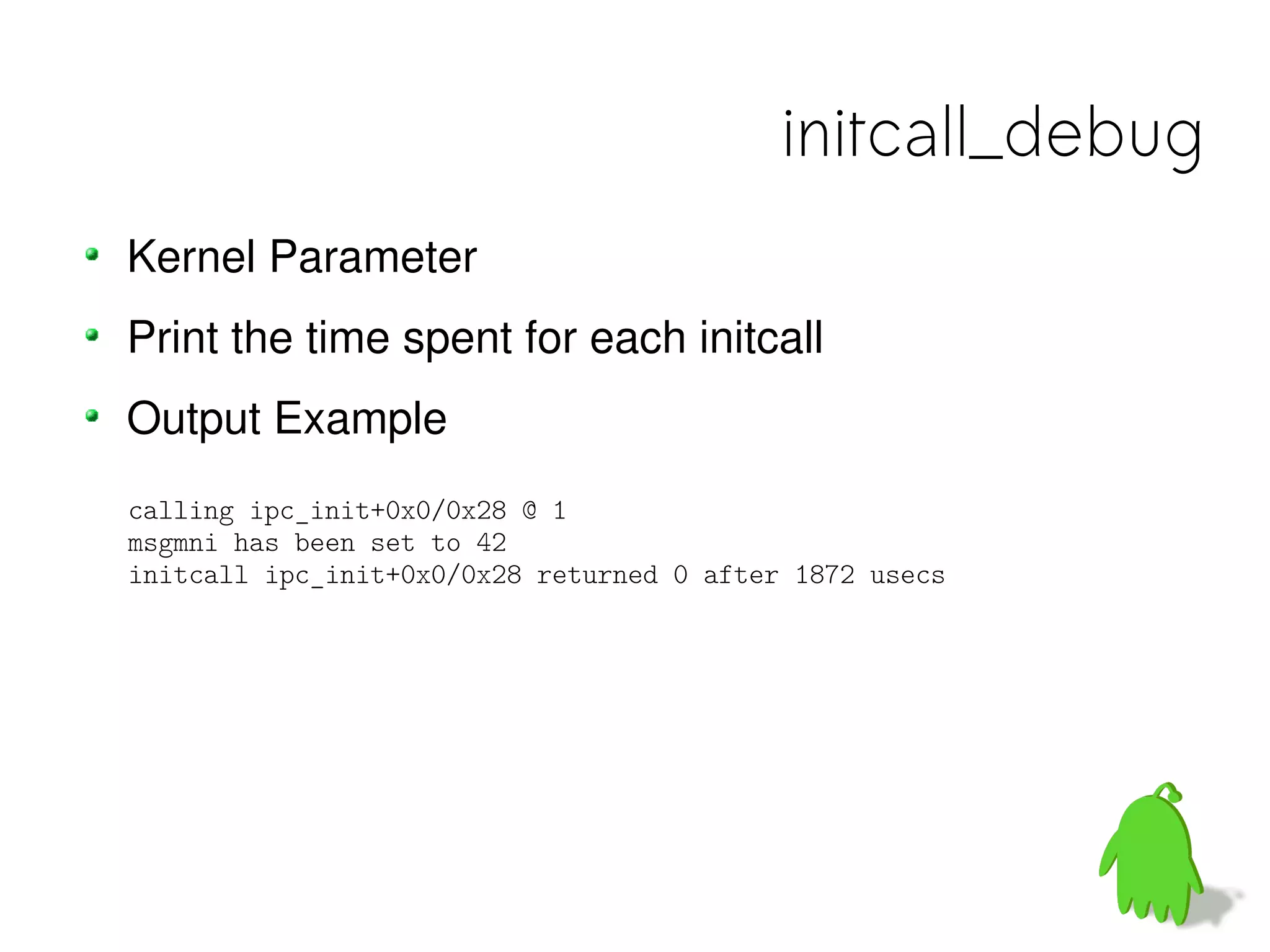

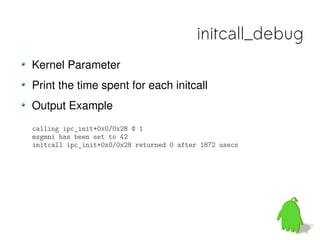

initcall_debug
Kernel Parameter
Print the time spent for each initcall
Output Example
calling ipc_init+0x0/0x28 @ 1
msgmni has been set to 42
initcall ipc_init+0x0/0x28 returned 0 after 1872 usecs

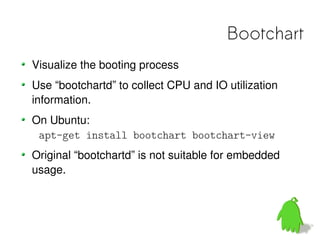

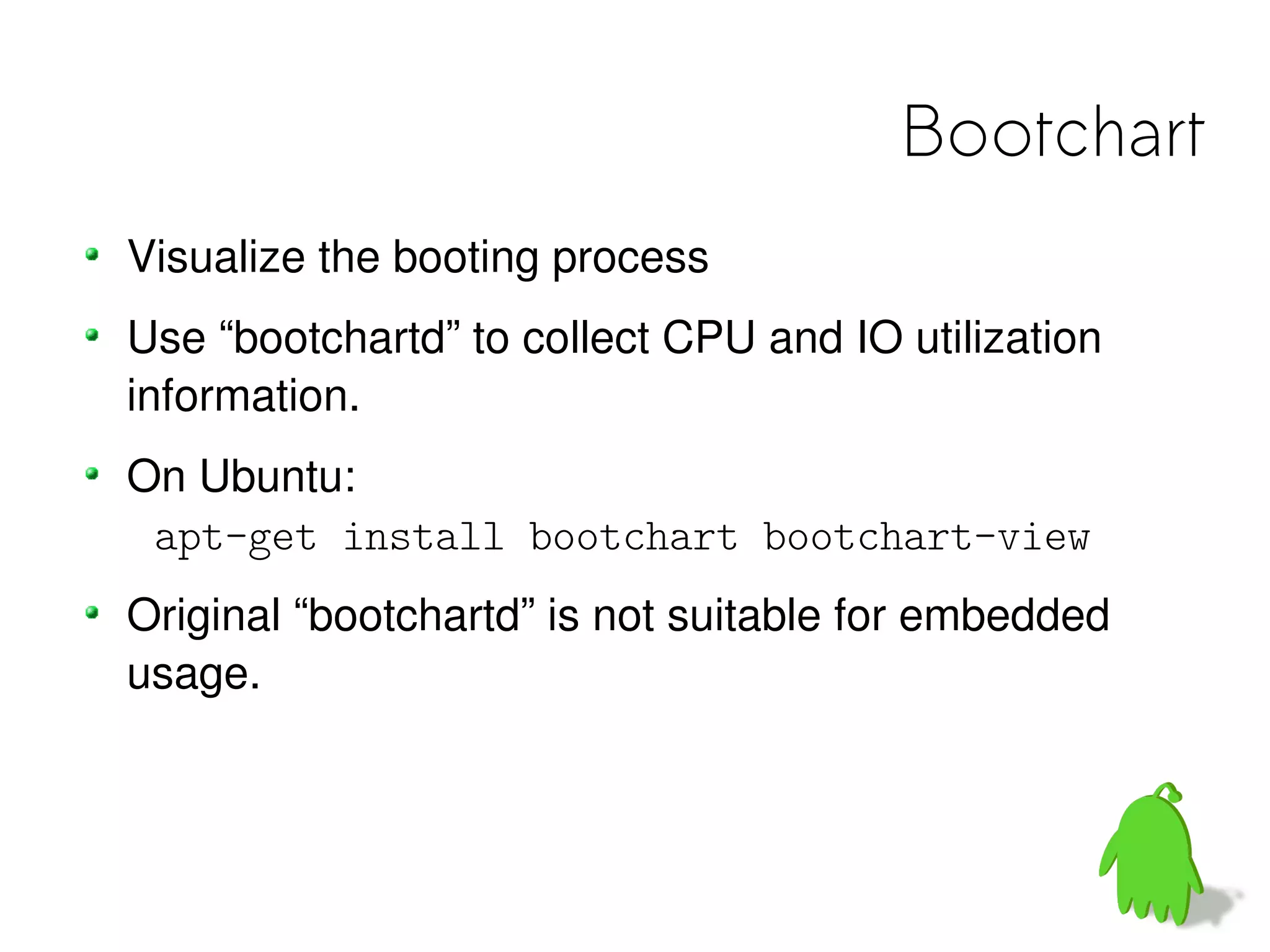

Bootchart
Visualize the booting process
Use “bootchartd” to collect CPU and IO utilization
information.
On Ubuntu:
 apt-get install bootchart bootchart-view
Original “bootchartd” is not suitable for embedded
usage.

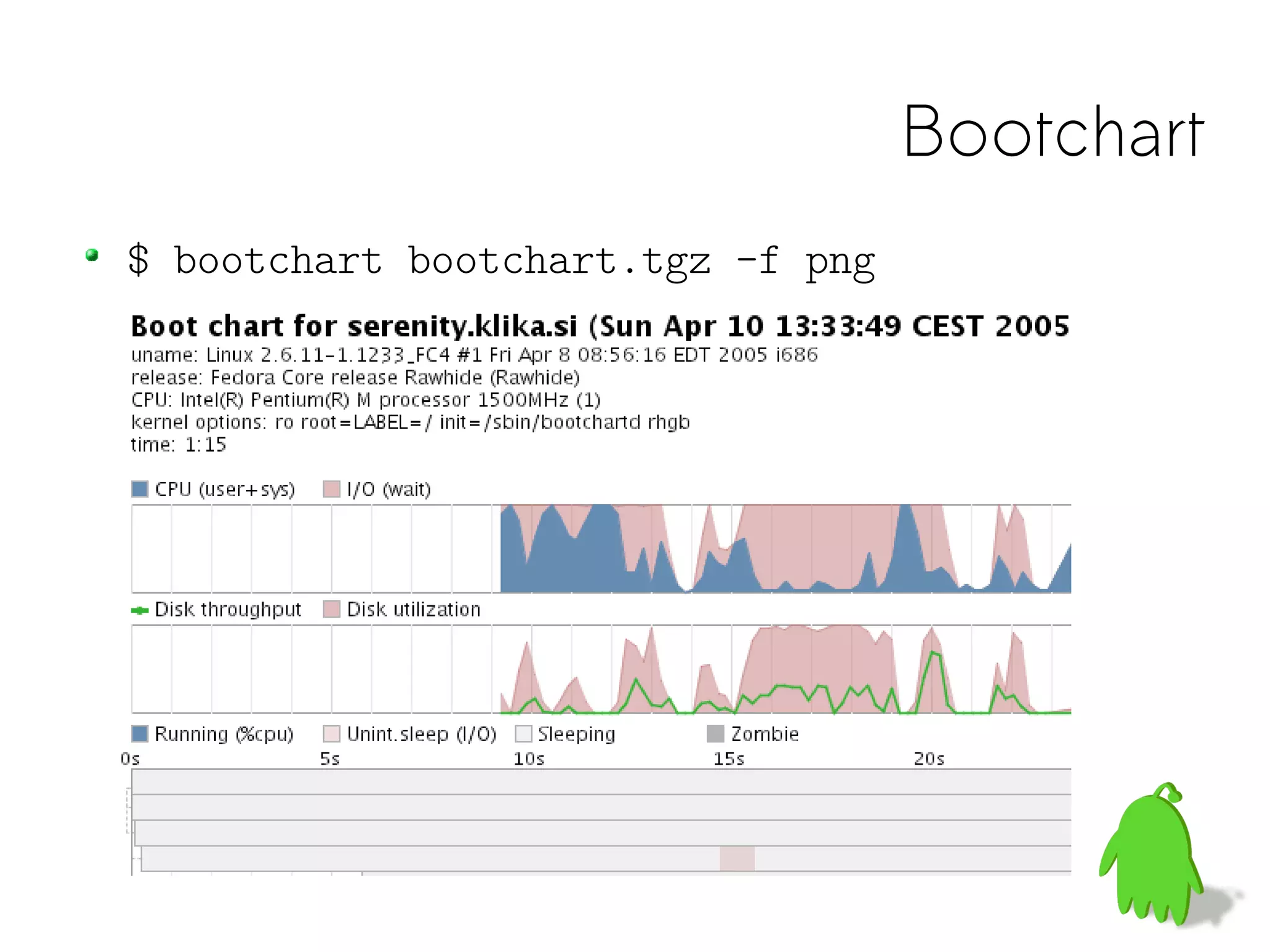

Bootchart
$ bootchart bootchart.tgz -f png

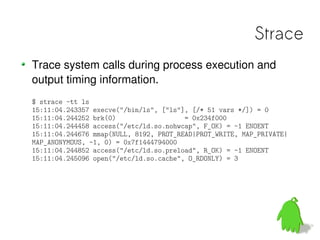

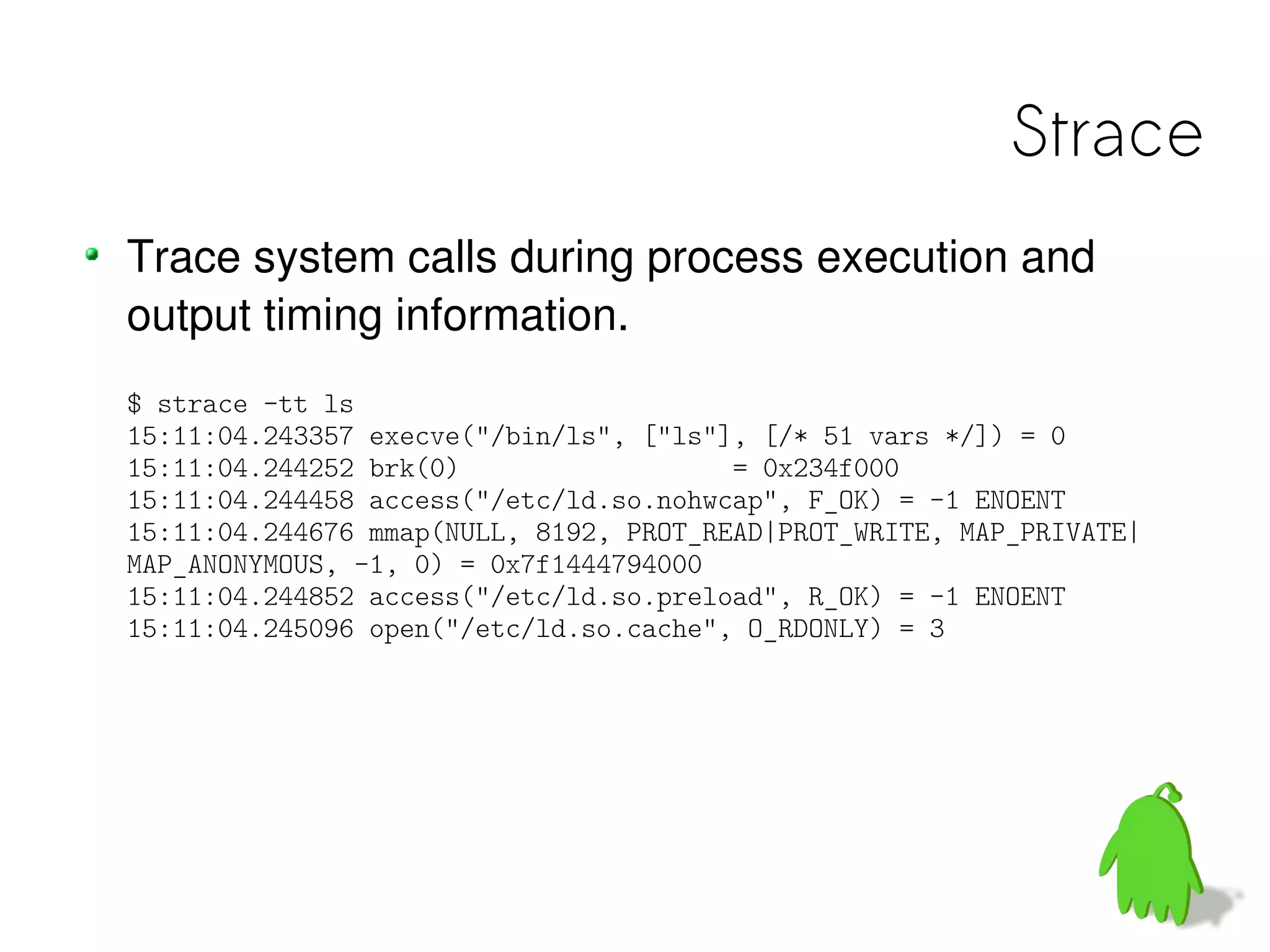

Strace
Trace system calls during process execution and
output timing information.
$ strace -tt ls
15:11:04.243357 execve("/bin/ls", ["ls"], [/* 51 vars */]) = 0
15:11:04.244252 brk(0)                  = 0x234f000
15:11:04.244458 access("/etc/ld.so.nohwcap", F_OK) = -1 ENOENT
15:11:04.244676 mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|
MAP_ANONYMOUS, -1, 0) = 0x7f1444794000
15:11:04.244852 access("/etc/ld.so.preload", R_OK) = -1 ENOENT
15:11:04.245096 open("/etc/ld.so.cache", O_RDONLY) = 3

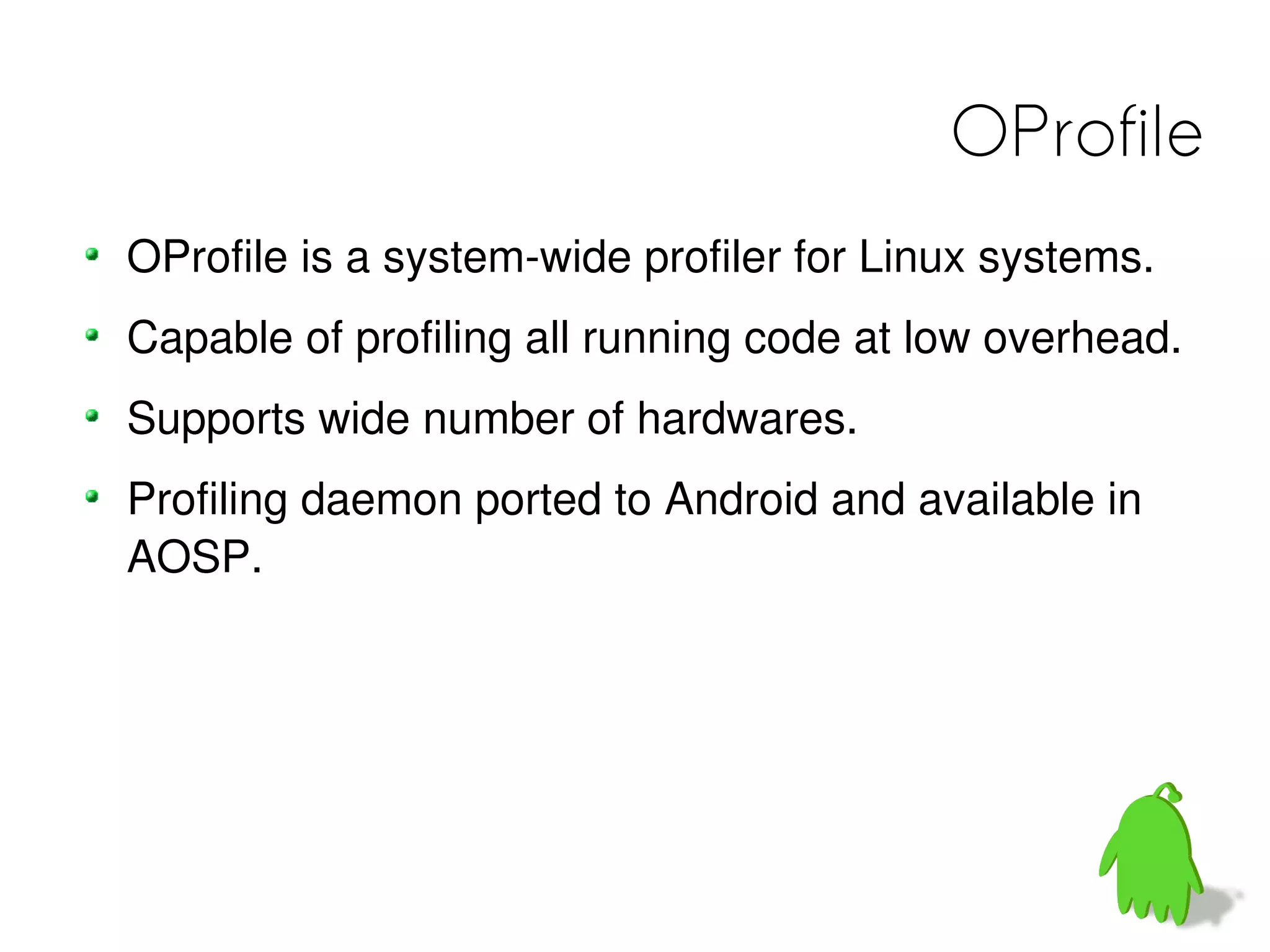

OProfile
OProfile is a system-wide profiler for Linux systems.
Capable of profiling all running code at low overhead.
Supports wide number of hardwares.
Profiling daemon ported to Android and available in
AOSP.

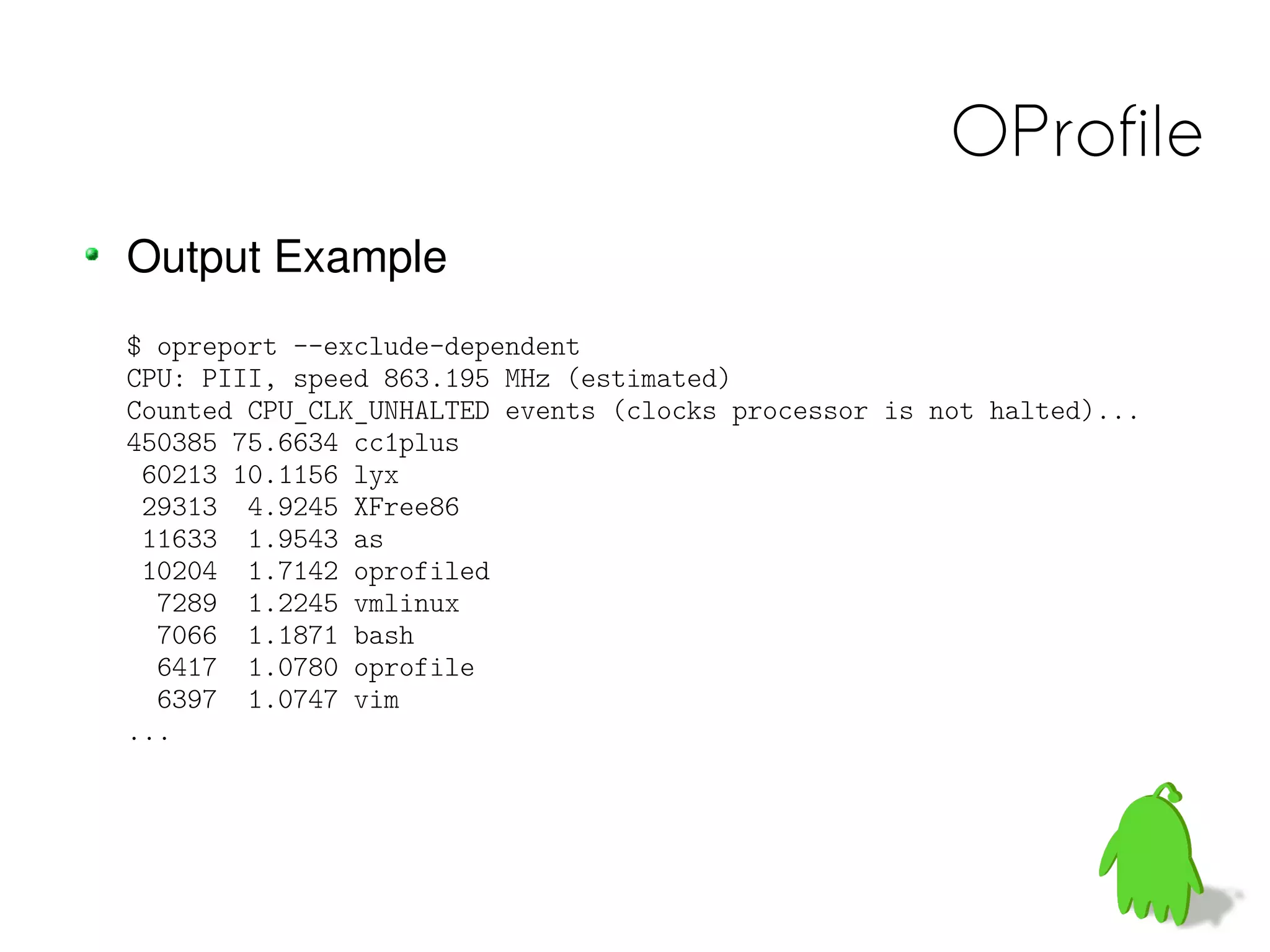

OProfile
Output Example
$ opreport --exclude-dependent
CPU: PIII, speed 863.195 MHz (estimated)
Counted CPU_CLK_UNHALTED events (clocks processor is not halted)...
450385 75.6634 cc1plus
 60213 10.1156 lyx
 29313 4.9245 XFree86
 11633 1.9543 as
 10204 1.7142 oprofiled
  7289 1.2245 vmlinux
  7066 1.1871 bash
  6417 1.0780 oprofile
  6397 1.0747 vim
...

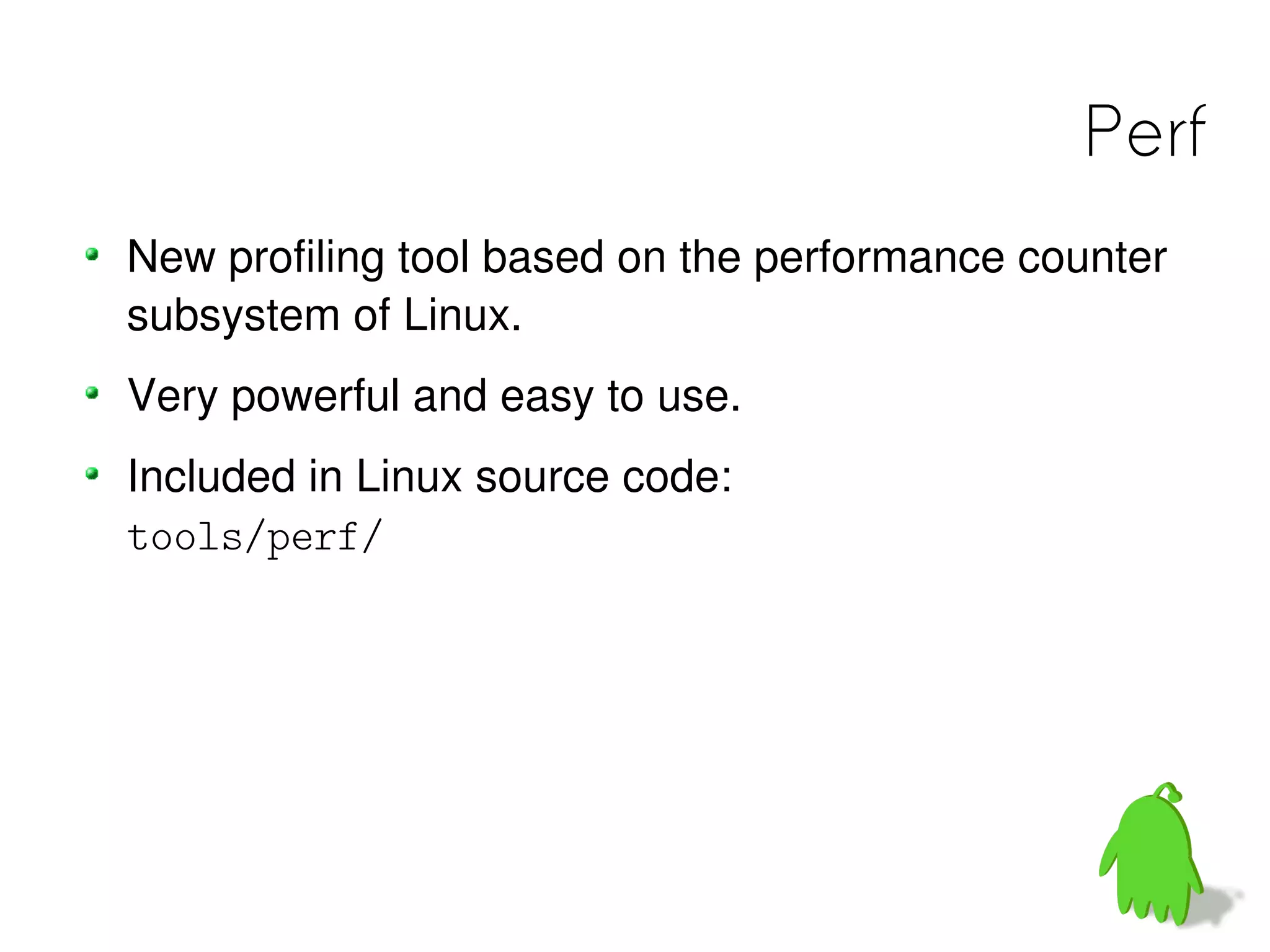

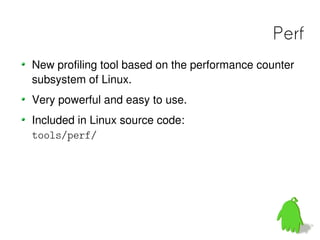

Perf
New profiling tool based on the performance counter
subsystem of Linux.
Very powerful and easy to use.
Included in Linux source code:
tools/perf/

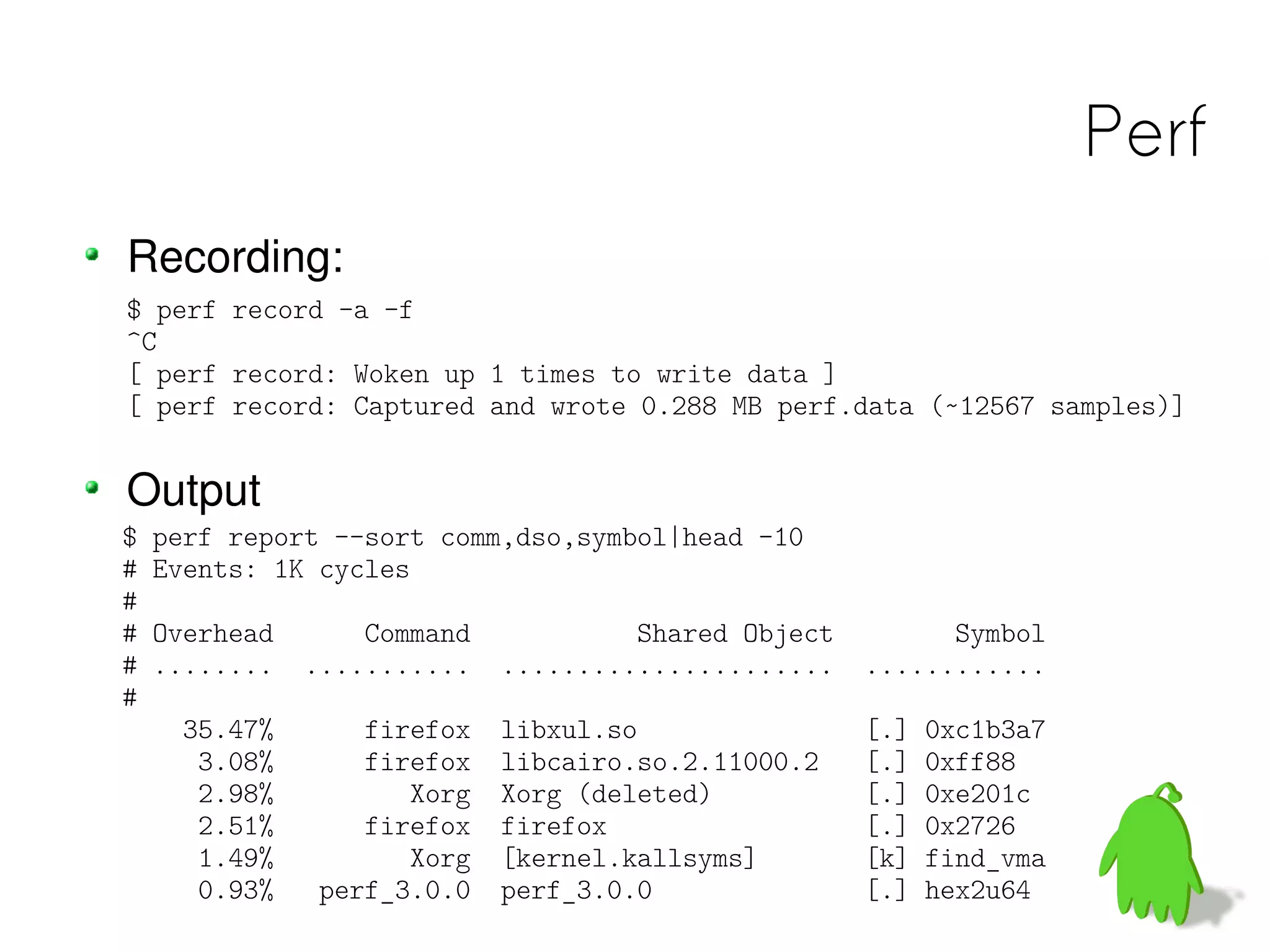

Perf
Recording:
$ perf record -a -f
^C
[ perf record: Woken up 1 times to write data ]
[ perf record: Captured and wrote 0.288 MB perf.data (~12567 samples)]


Output
$   perf report --sort comm,dso,symbol|head -10
#   Events: 1K cycles
#
#   Overhead       Command            Shared Object         Symbol
#   ........   ...........   ......................   ............
#
      35.47%      firefox    libxul.so                [.]   0xc1b3a7
       3.08%      firefox    libcairo.so.2.11000.2    [.]   0xff88
       2.98%         Xorg    Xorg (deleted)           [.]   0xe201c
       2.51%      firefox    firefox                  [.]   0x2726
       1.49%         Xorg    [kernel.kallsyms]        [k]   find_vma
       0.93%   perf_3.0.0    perf_3.0.0               [.]   hex2u64

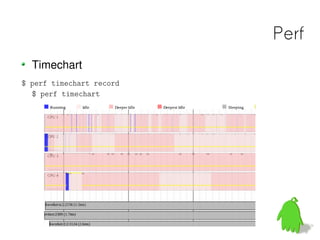

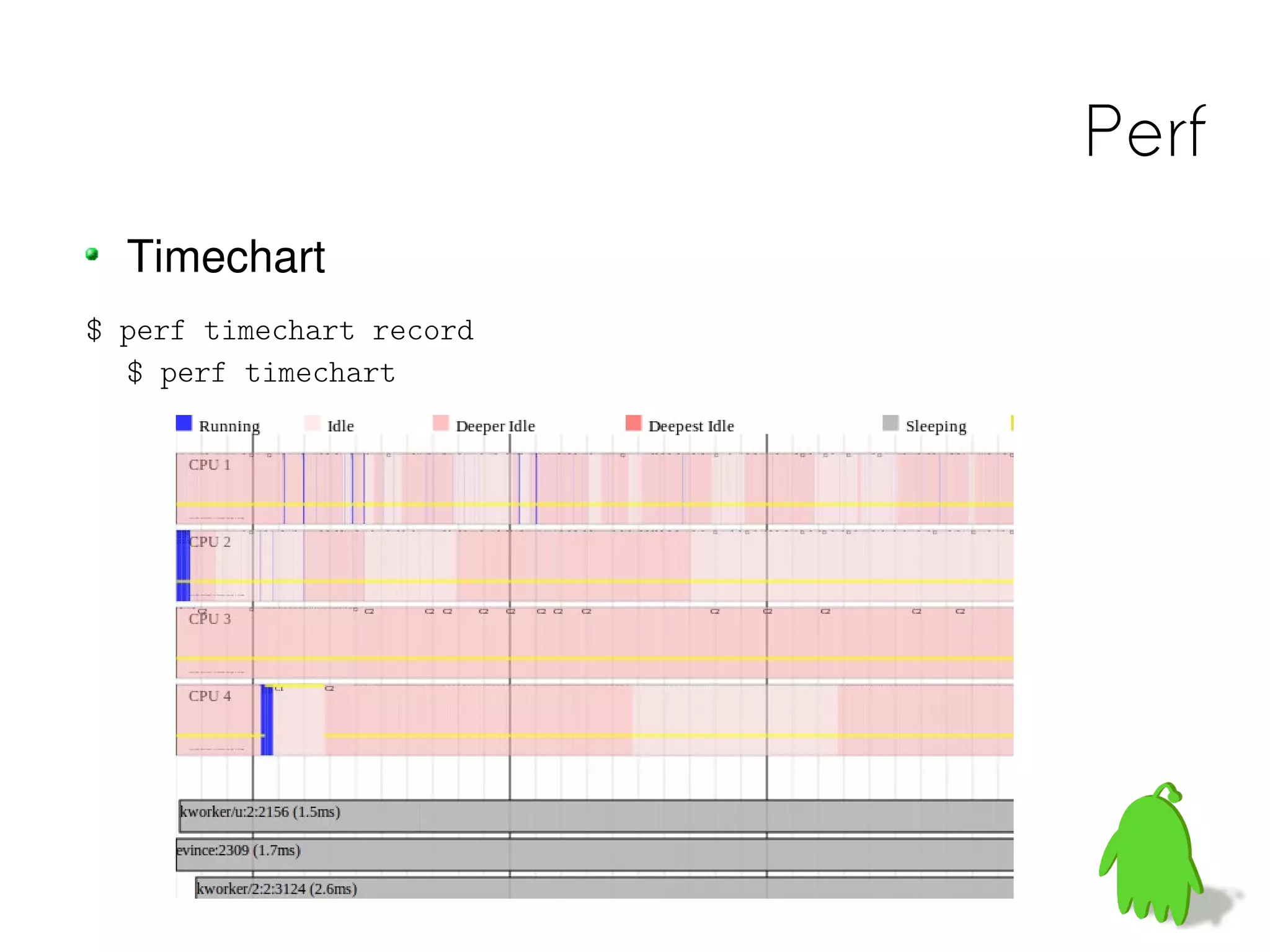

Perf
  Timechart
$ perf timechart record
  $ perf timechart

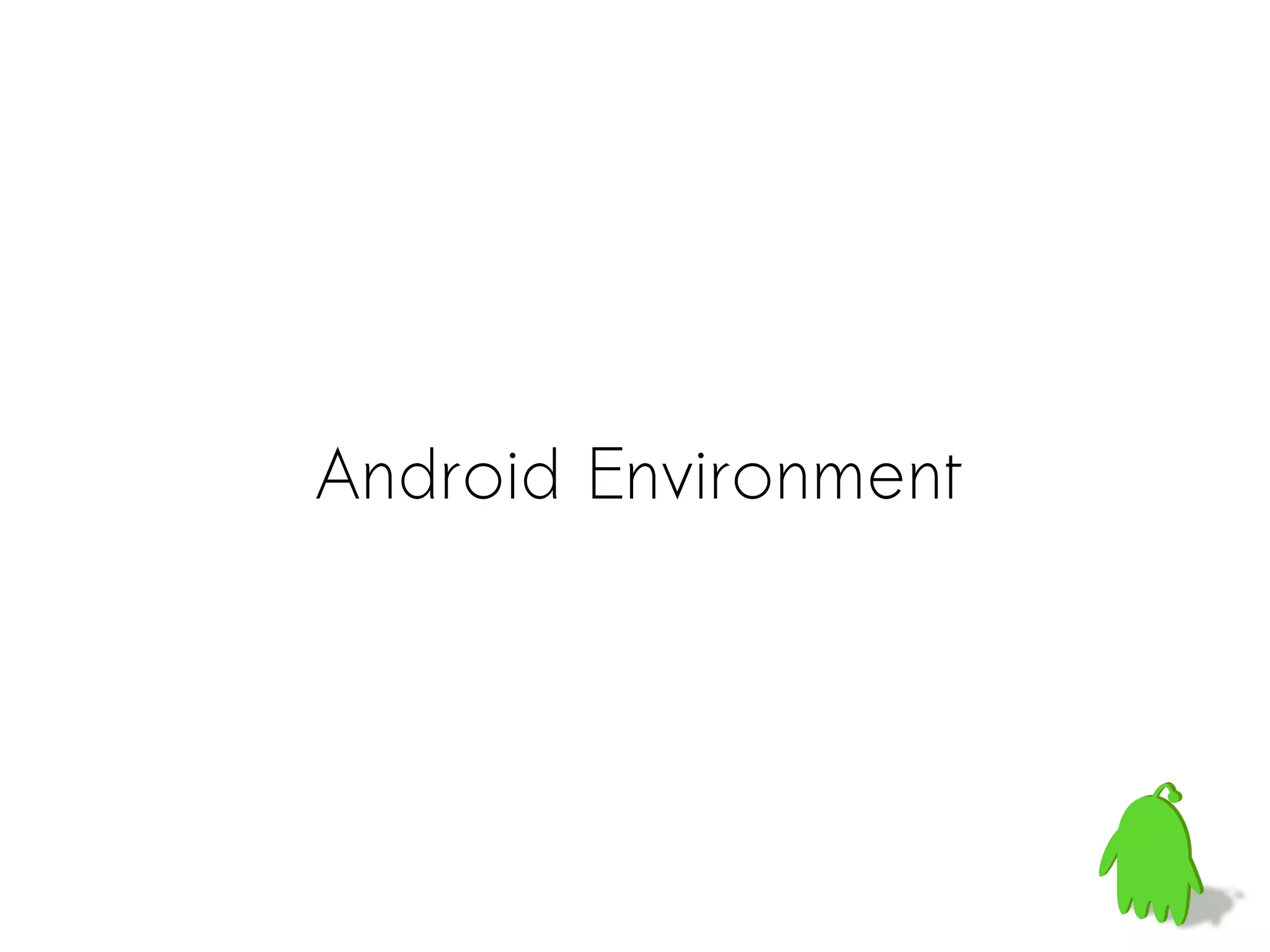

Android Environment

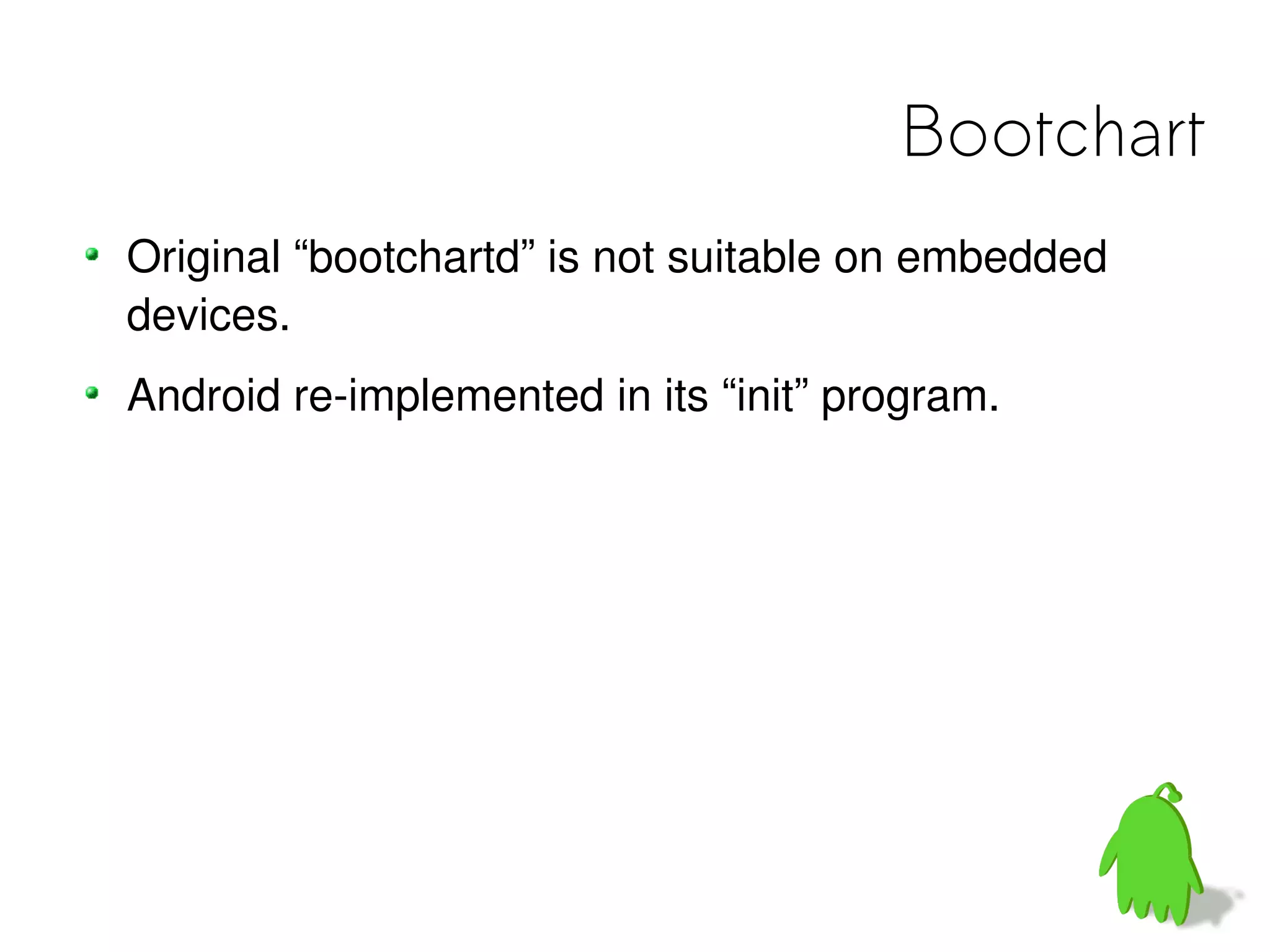

Bootchart
Original “bootchartd” is not suitable on embedded
devices.
Android re-implemented in its “init” program.

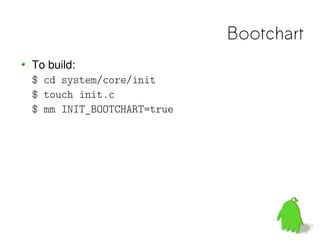

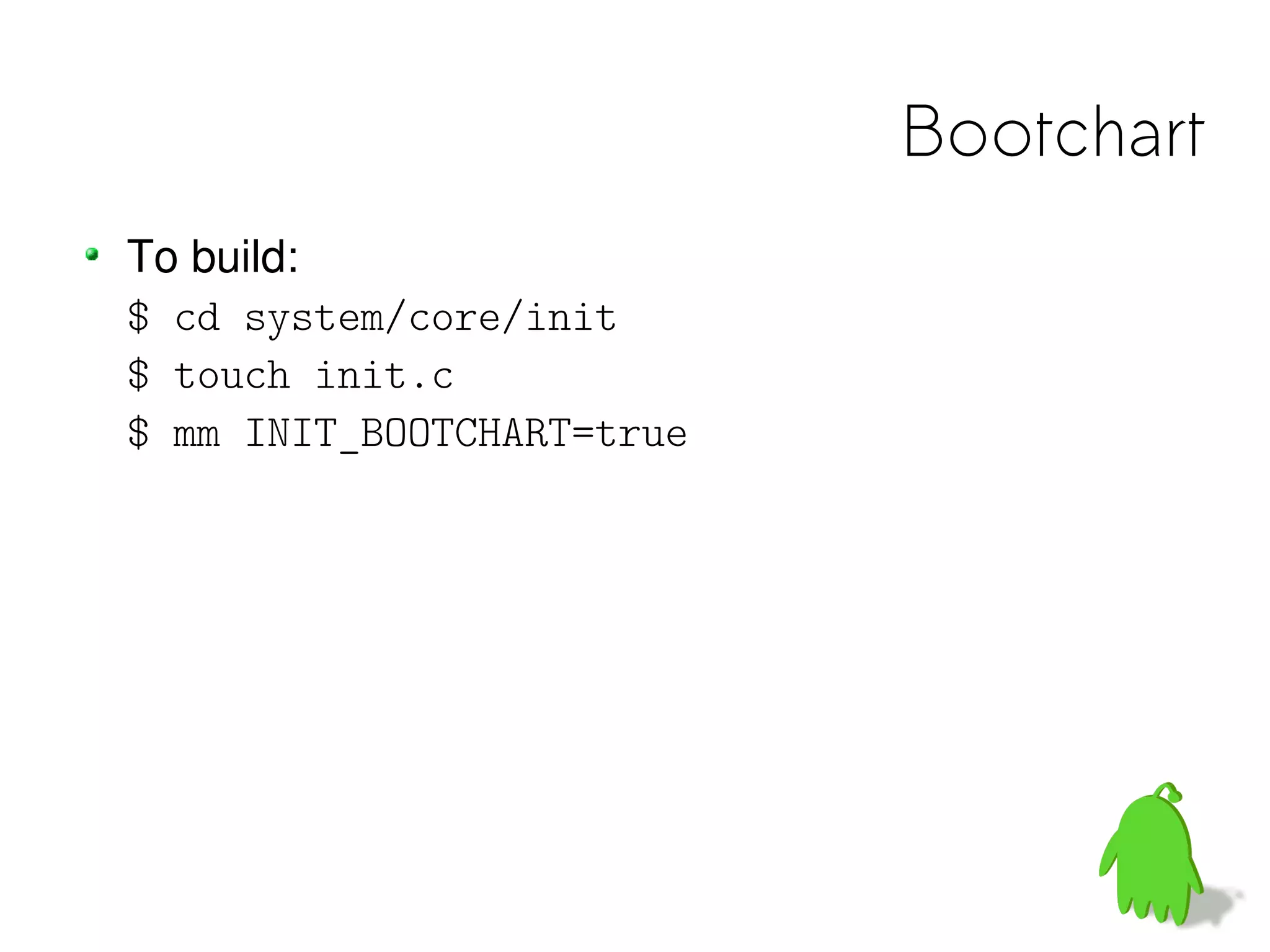

Bootchart
To build:
$ cd system/core/init
$ touch init.c
$ mm INIT_BOOTCHART=true

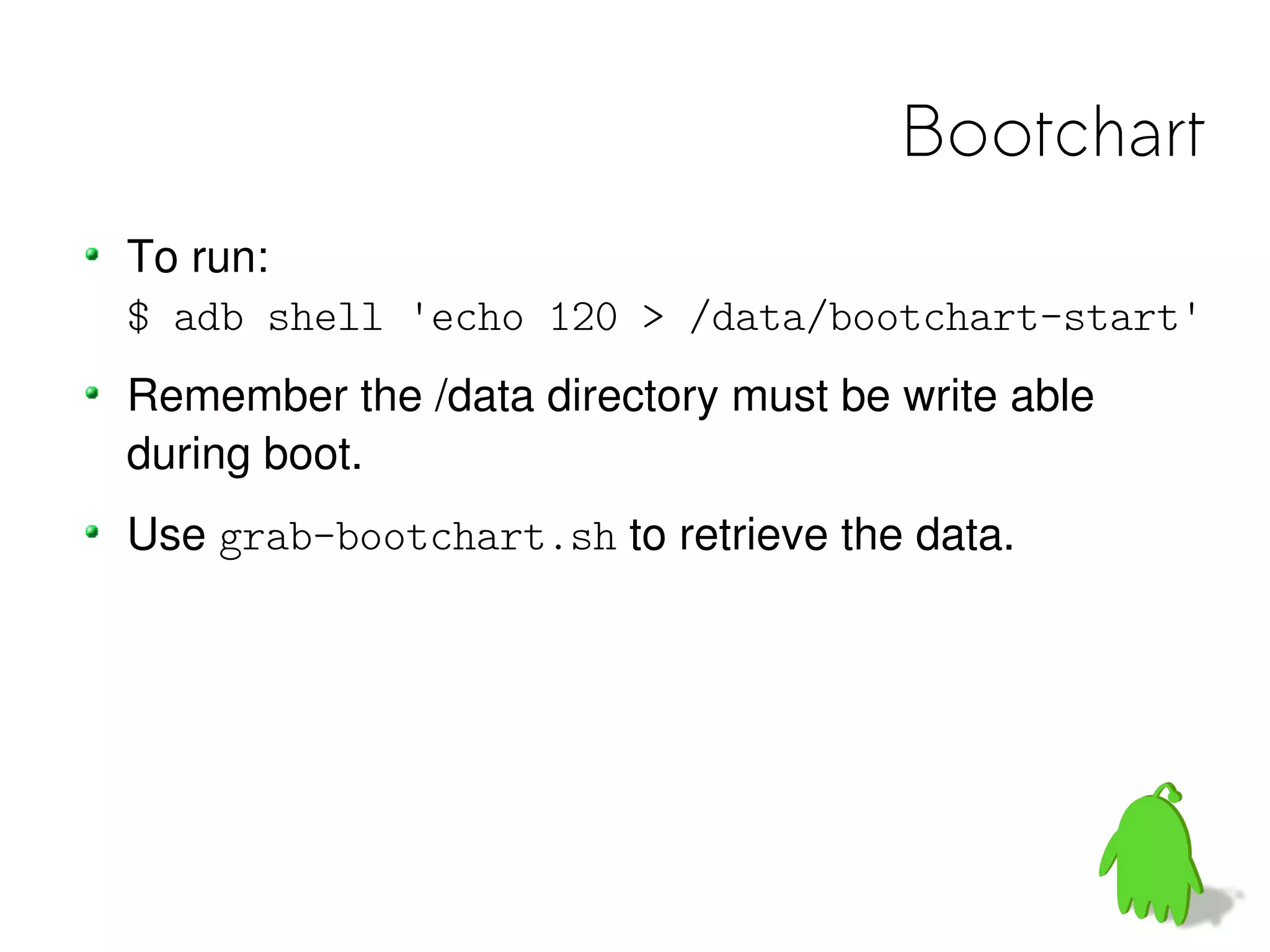

Bootchart
To run:
$ adb shell 'echo 120 > /data/bootchart-start'
Remember the /data directory must be write able
during boot.
Use grab-bootchart.sh to retrieve the data.

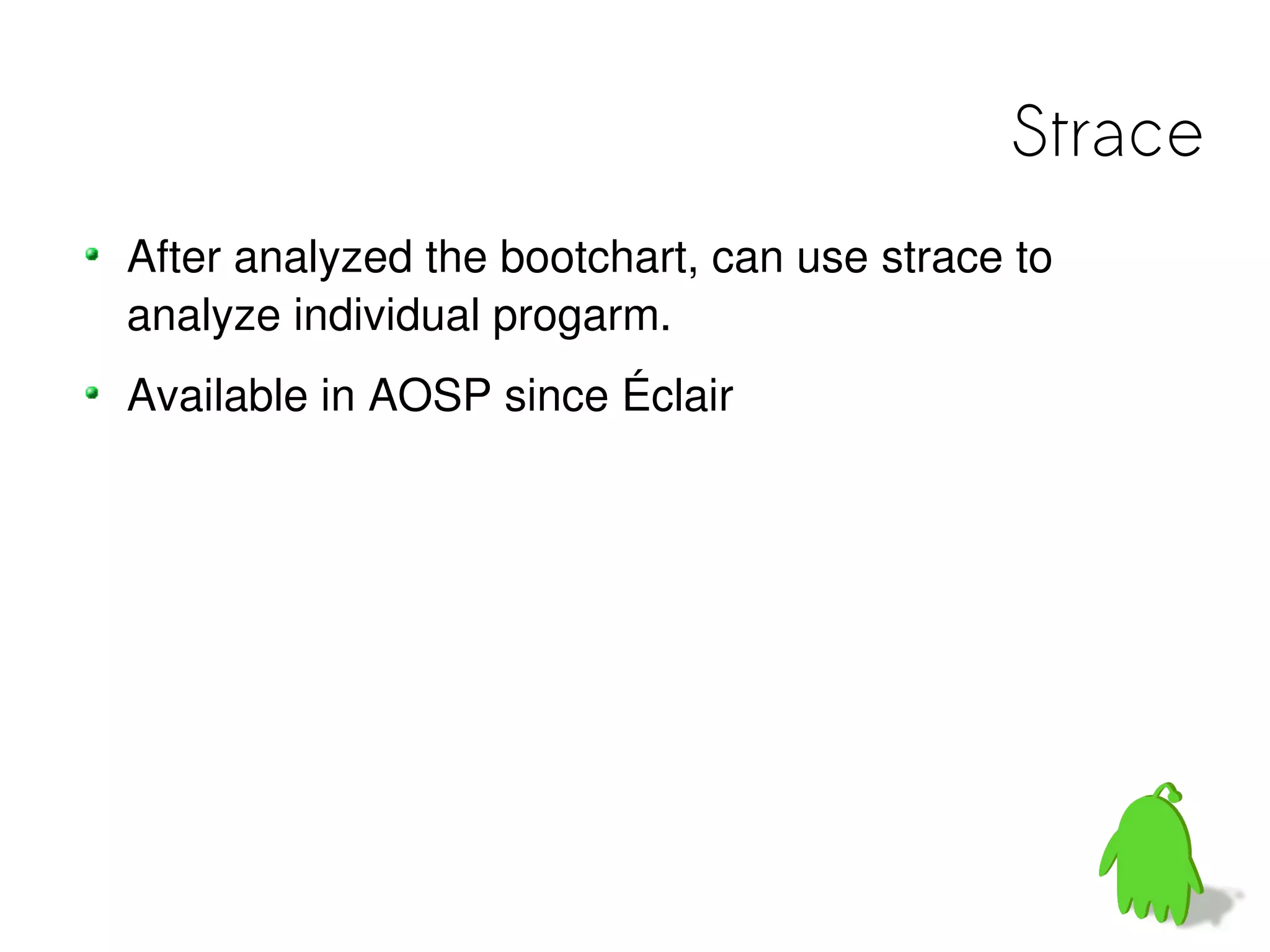

Strace
After analyzed the bootchart, can use strace to
analyze individual progarm.
Available in AOSP since Éclair

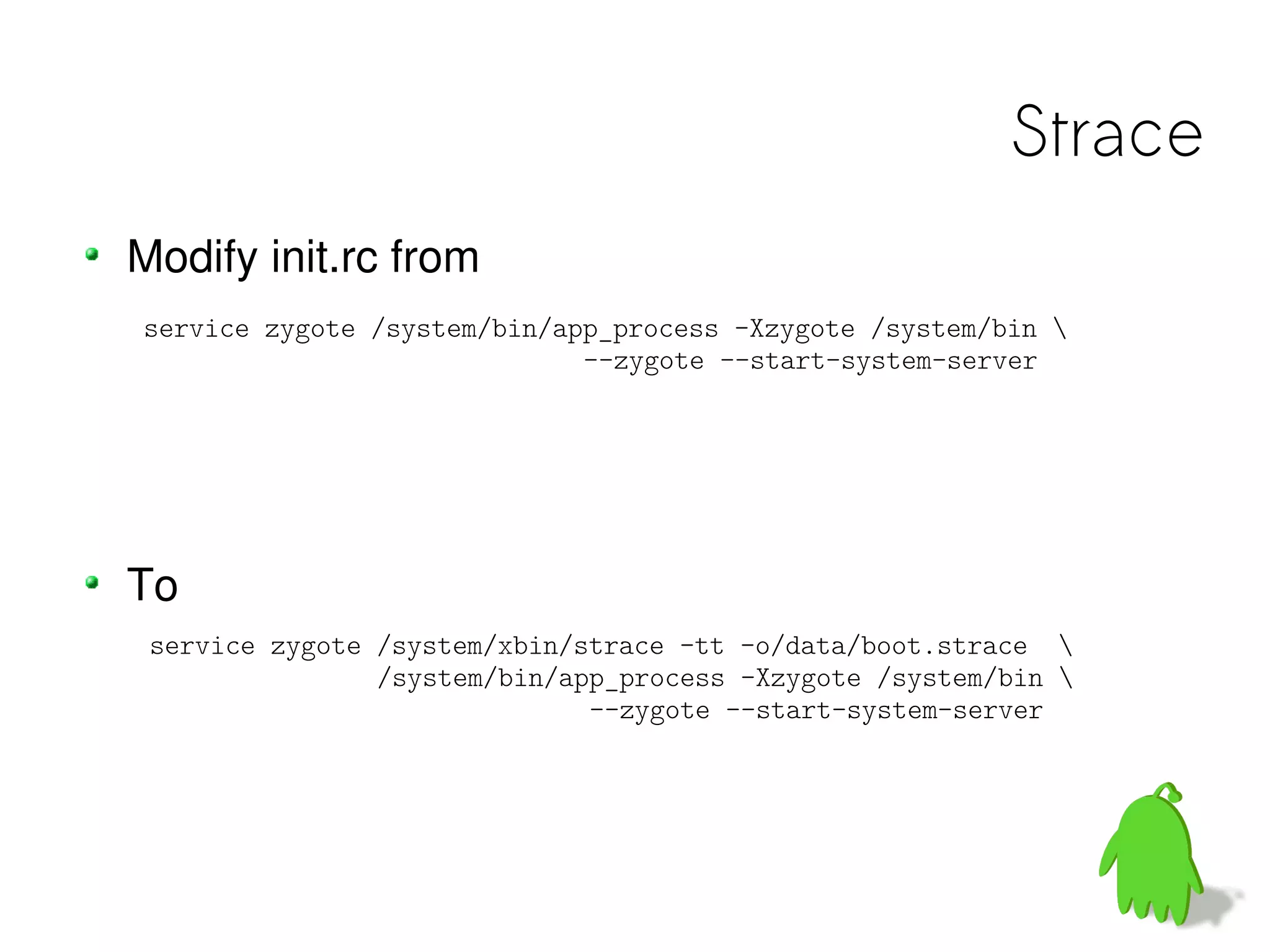

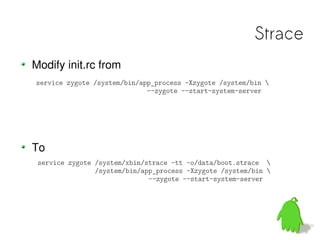

Strace
Modify init.rc from
service zygote /system/bin/app_process -Xzygote /system/bin
                             --zygote --start-system-server




To
 service zygote /system/xbin/strace -tt -o/data/boot.strace
                /system/bin/app_process -Xzygote /system/bin
                              --zygote --start-system-server

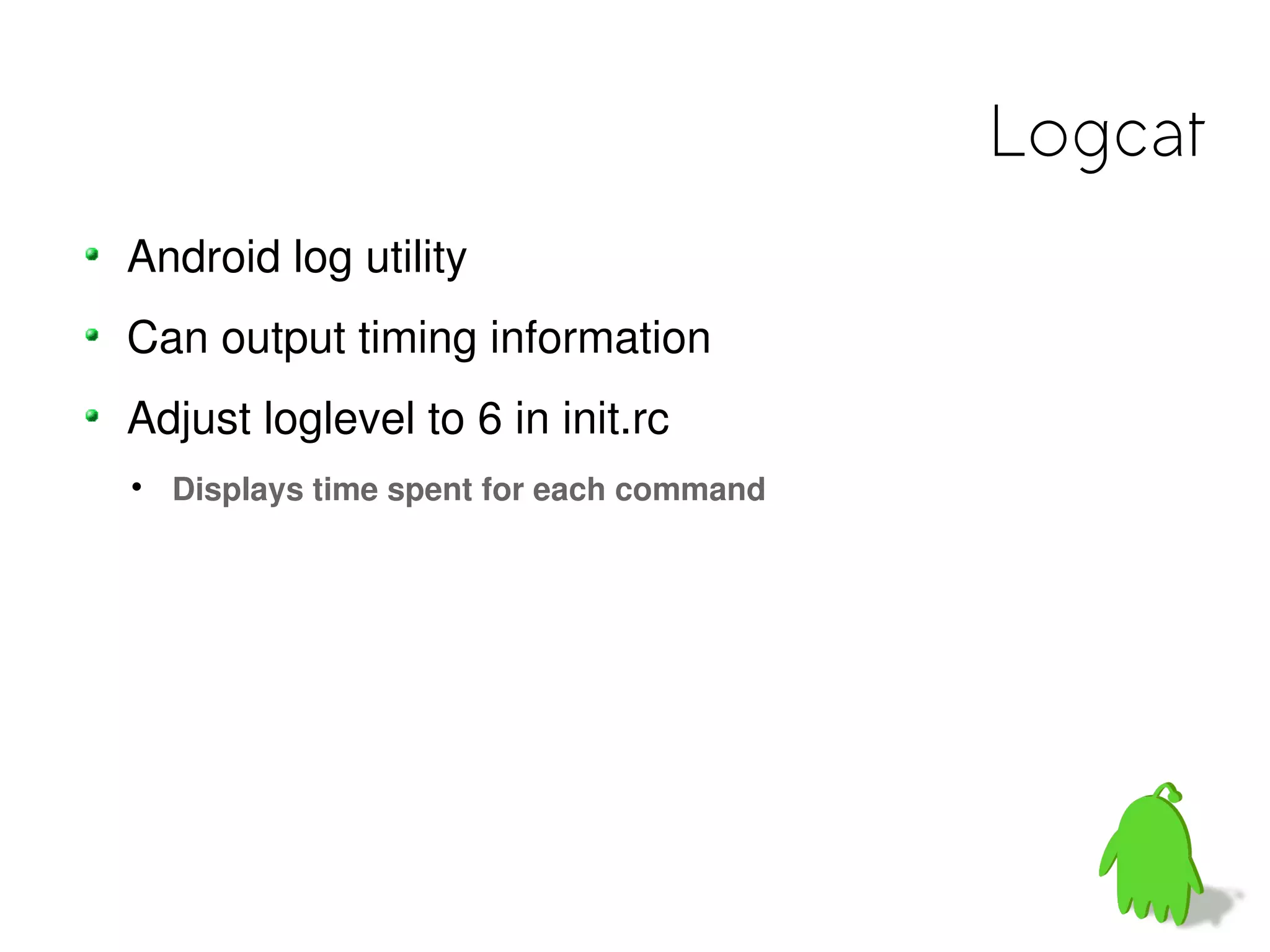

Logcat
Android log utility
Can output timing information
Adjust loglevel to 6 in init.rc

    Displays time spent for each command

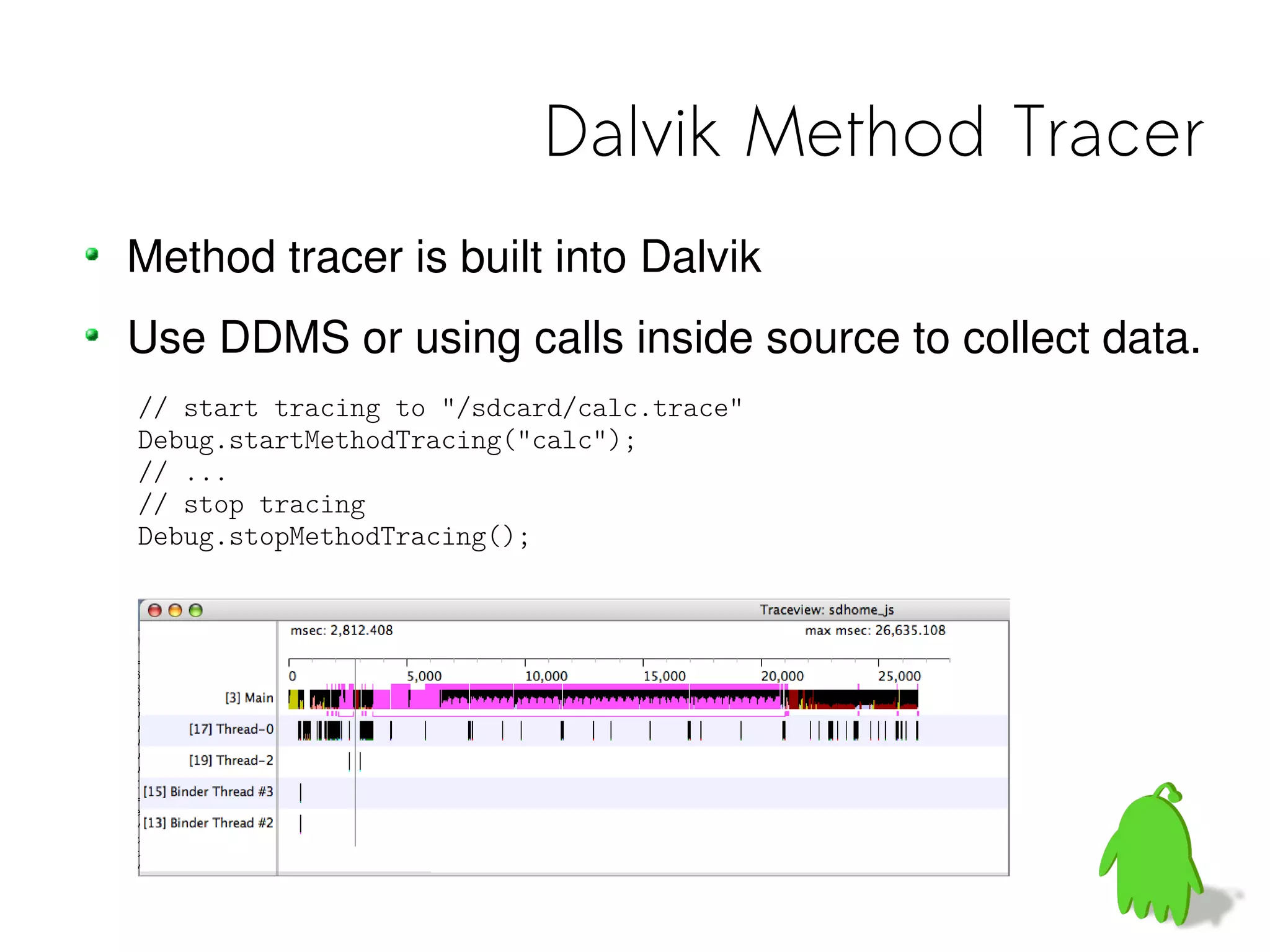

Dalvik Method Tracer
Method tracer is built into Dalvik
Use DDMS or using calls inside source to collect data.
// start tracing to "/sdcard/calc.trace"
Debug.startMethodTracing("calc");
// ...
// stop tracing
Debug.stopMethodTracing();

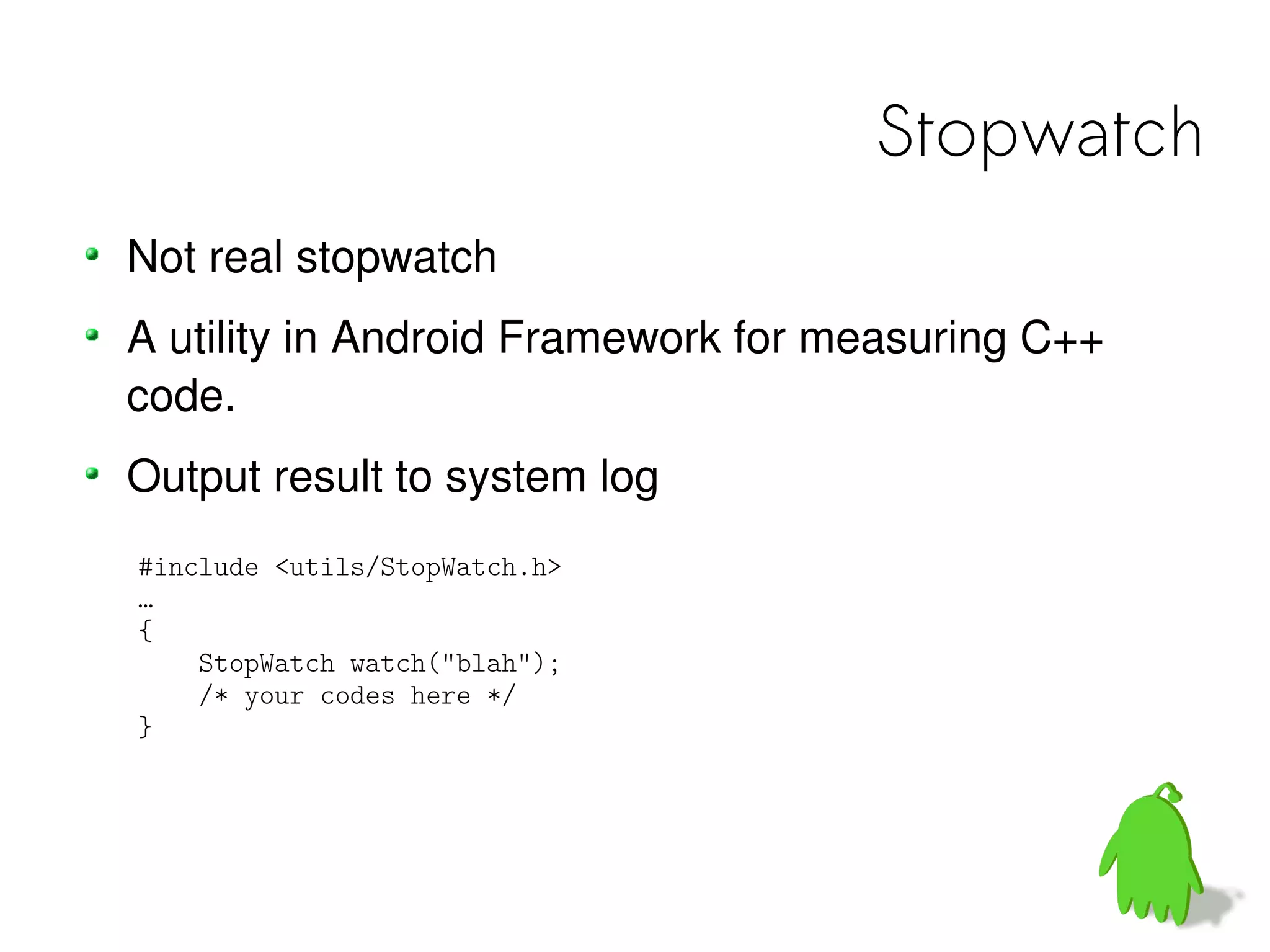

Stopwatch
Not real stopwatch
A utility in Android Framework for measuring C++
code.
Output result to system log
#include <utils/StopWatch.h>
…
{
    StopWatch watch("blah");
    /* your codes here */
}
Q&A

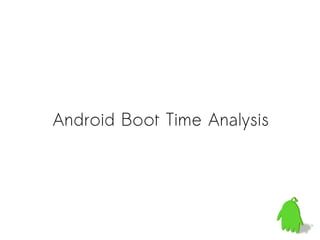

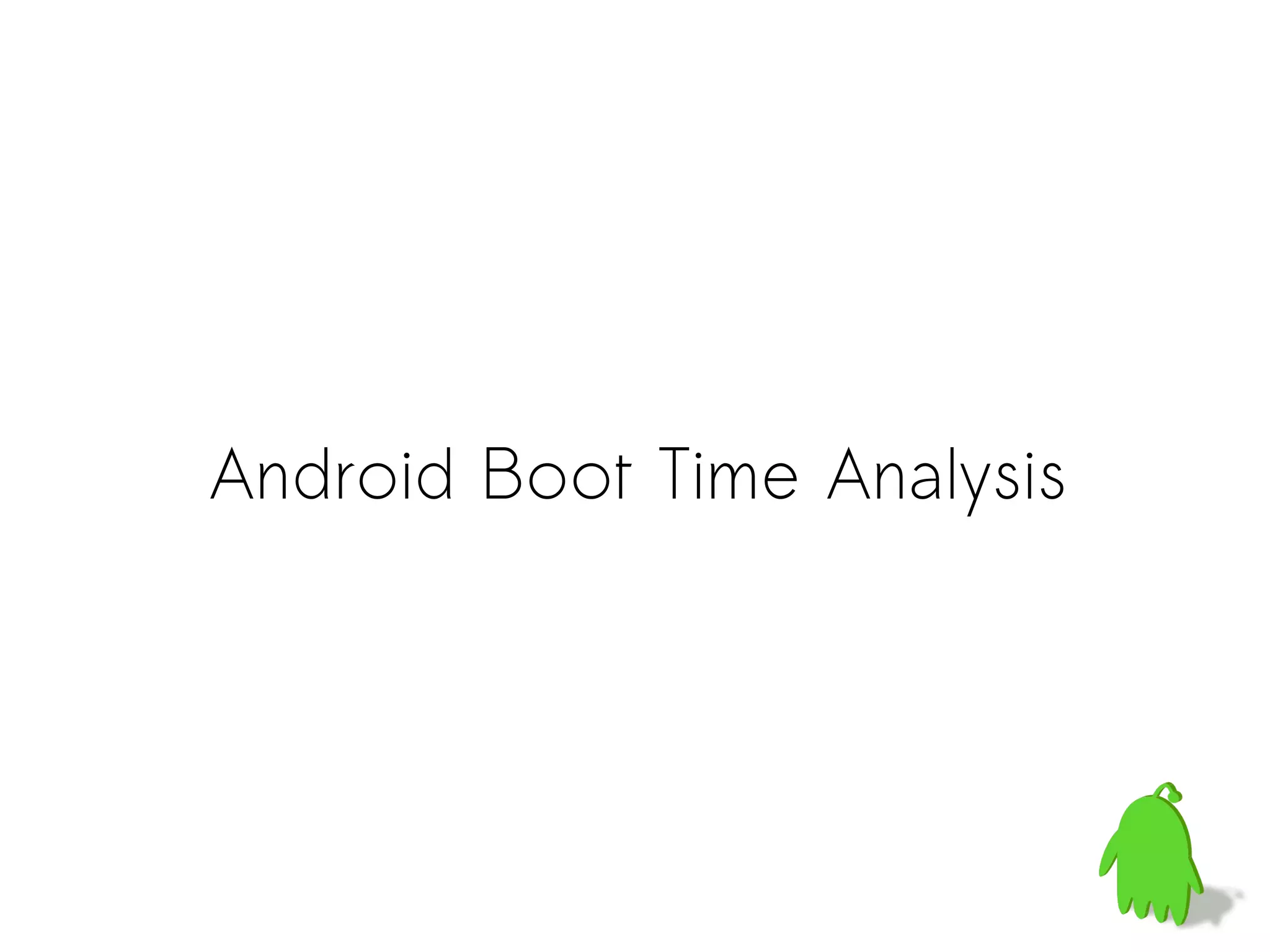

Android Boot Time Analysis

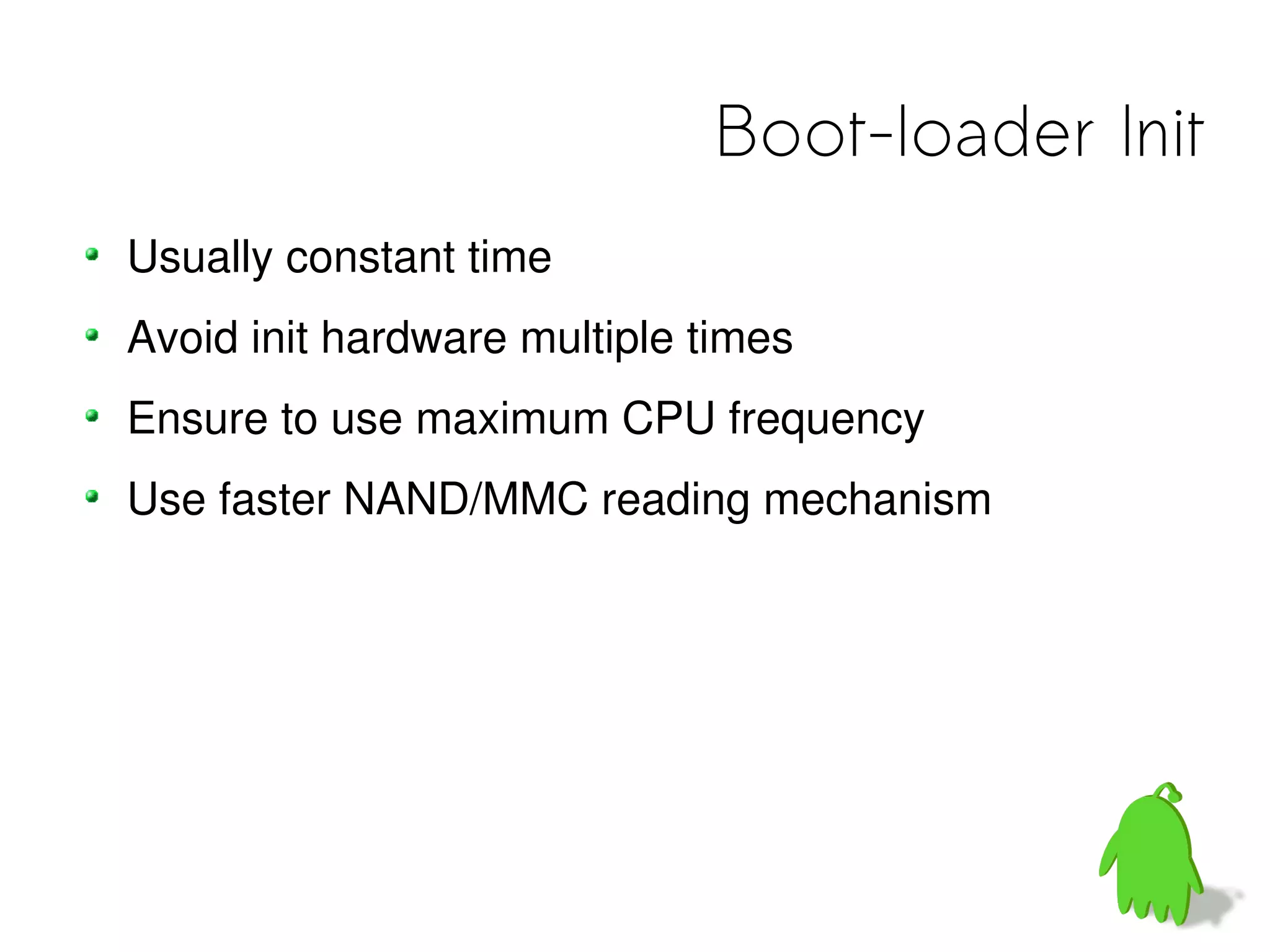

Boot-loader Init
Usually constant time
Avoid init hardware multiple times
Ensure to use maximum CPU frequency
Use faster NAND/MMC reading mechanism

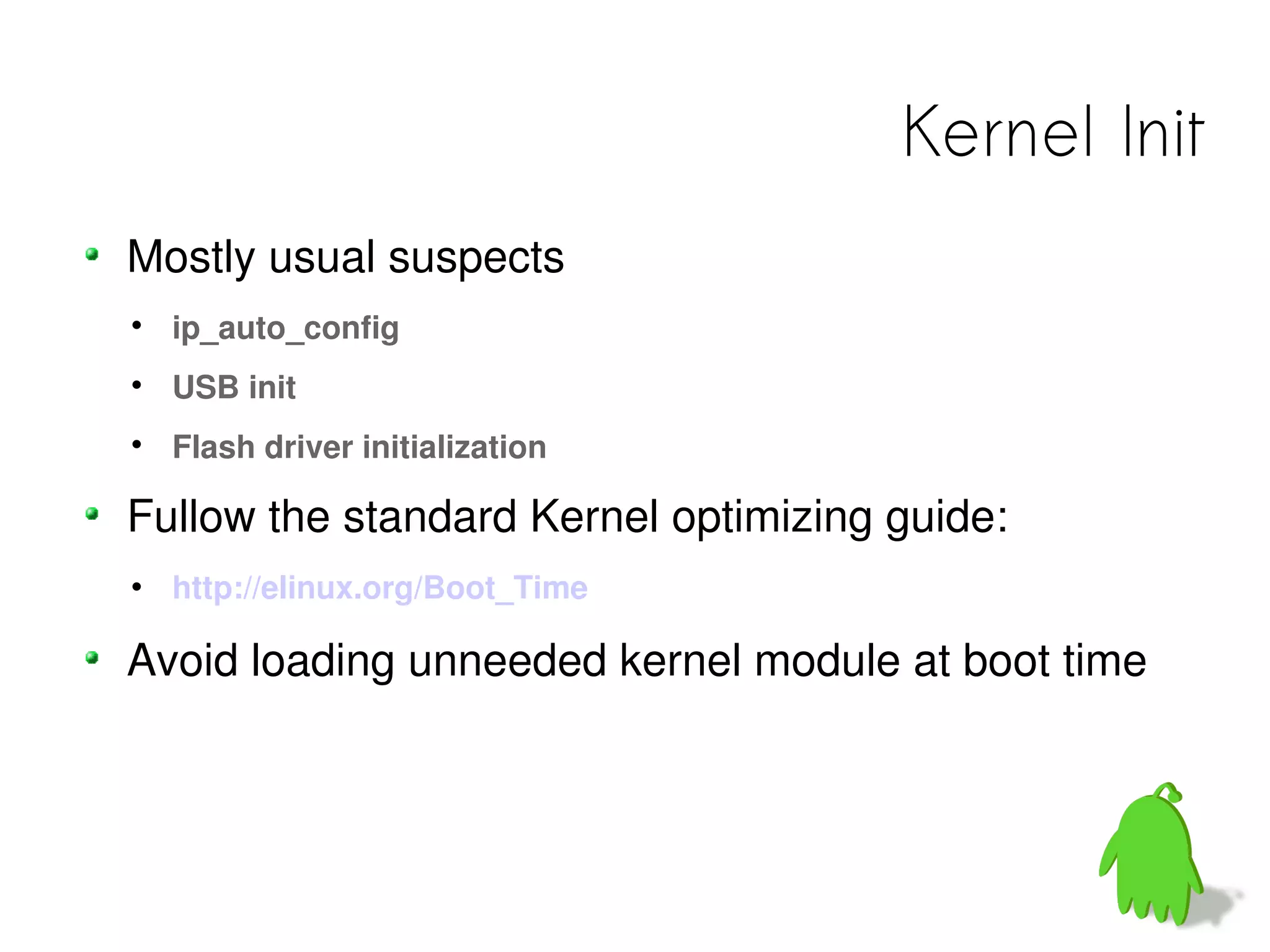

Kernel Init
Mostly usual suspects

    ip_auto_config

    USB init

    Flash driver initialization

Fullow the standard Kernel optimizing guide:
   http://elinux.org/Boot_Time

Avoid loading unneeded kernel module at boot time

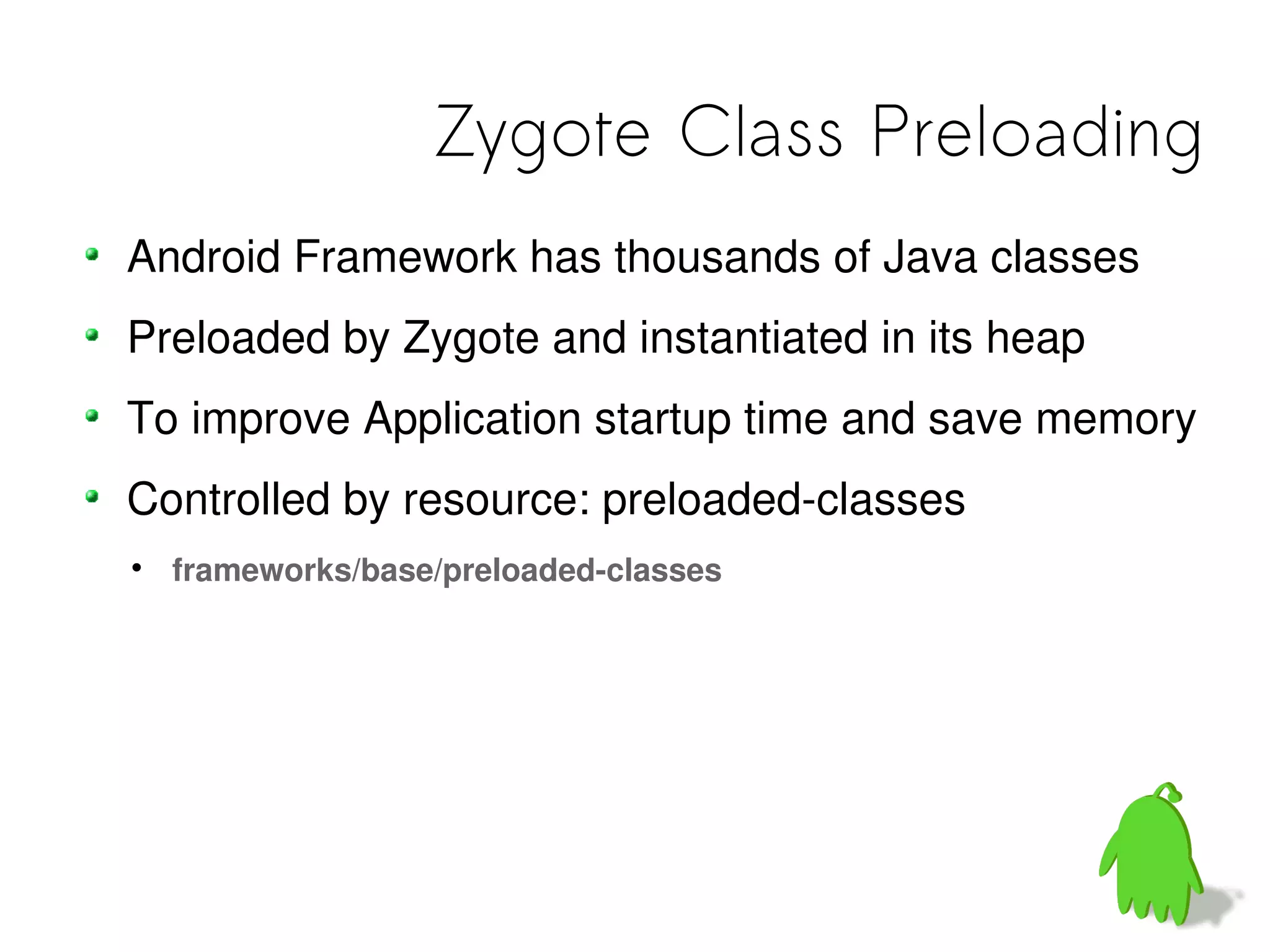

Zygote Class Preloading
Android Framework has thousands of Java classes
Preloaded by Zygote and instantiated in its heap
To improve Application startup time and save memory
Controlled by resource: preloaded-classes

    frameworks/base/preloaded-classes

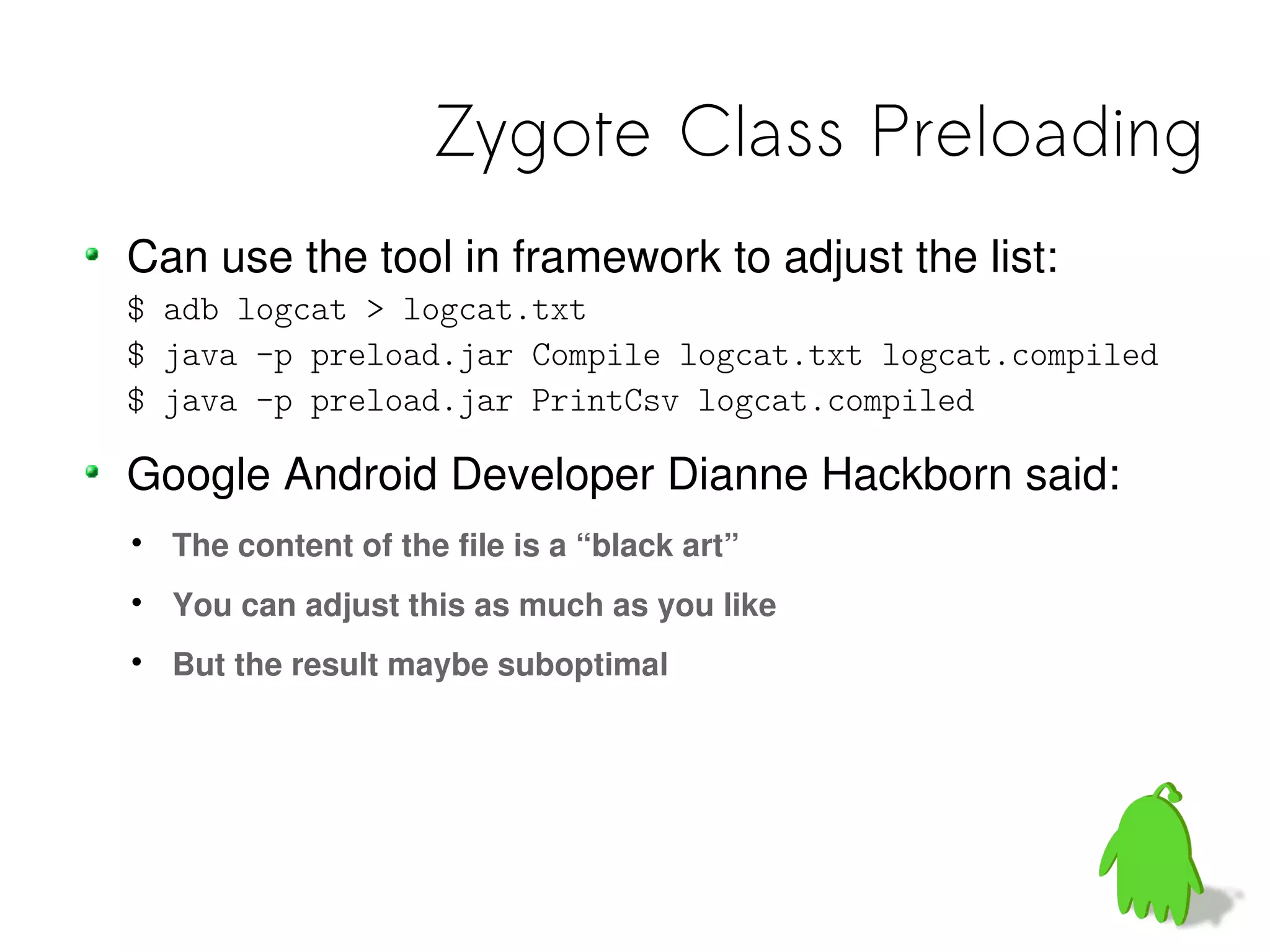

Zygote Class Preloading
Can use the tool in framework to adjust the list:
$ adb logcat > logcat.txt
$ java -p preload.jar Compile logcat.txt logcat.compiled
$ java -p preload.jar PrintCsv logcat.compiled

Google Android Developer Dianne Hackborn said:

    The content of the file is a “black art”

    You can adjust this as much as you like

    But the result maybe suboptimal

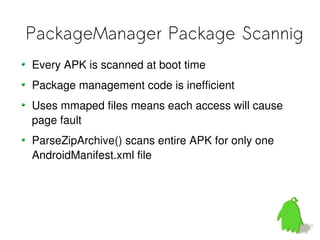

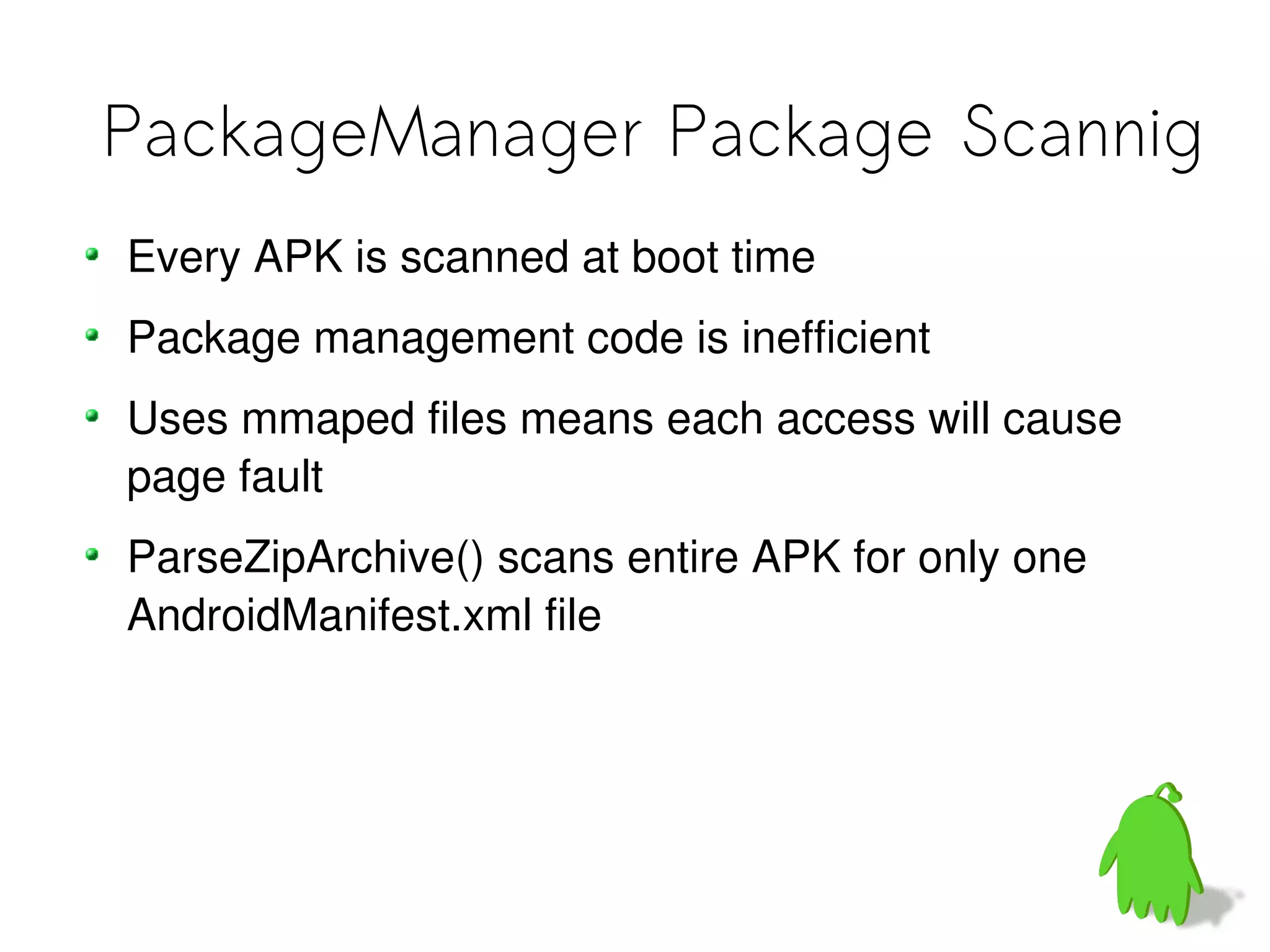

PackageManager Package Scannig
Every APK is scanned at boot time
Package management code is inefficient
Uses mmaped files means each access will cause
page fault
ParseZipArchive() scans entire APK for only one
AndroidManifest.xml file

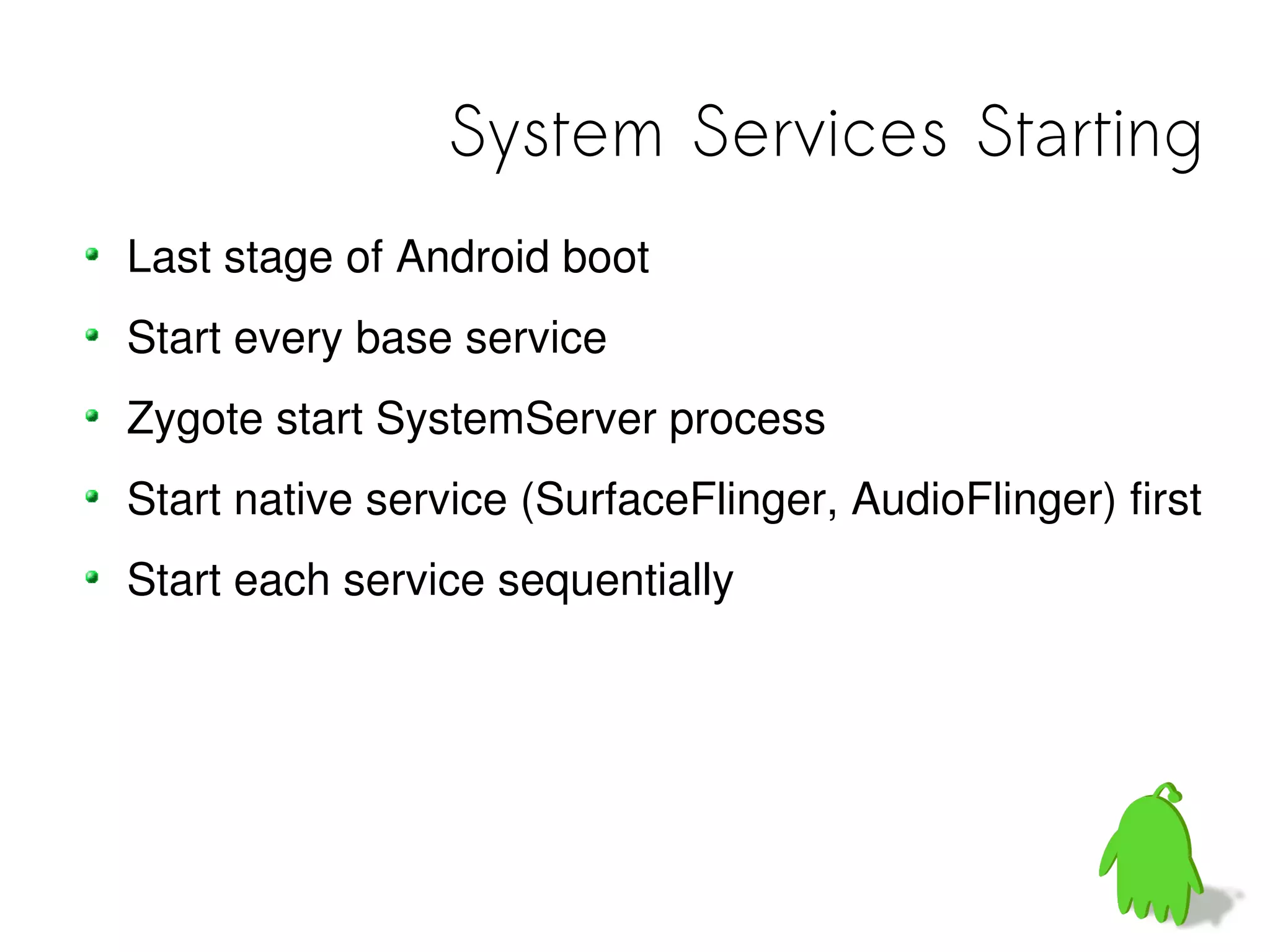

System Services Starting
Last stage of Android boot
Start every base service
Zygote start SystemServer process
Start native service (SurfaceFlinger, AudioFlinger) first
Start each service sequentially
Q&A

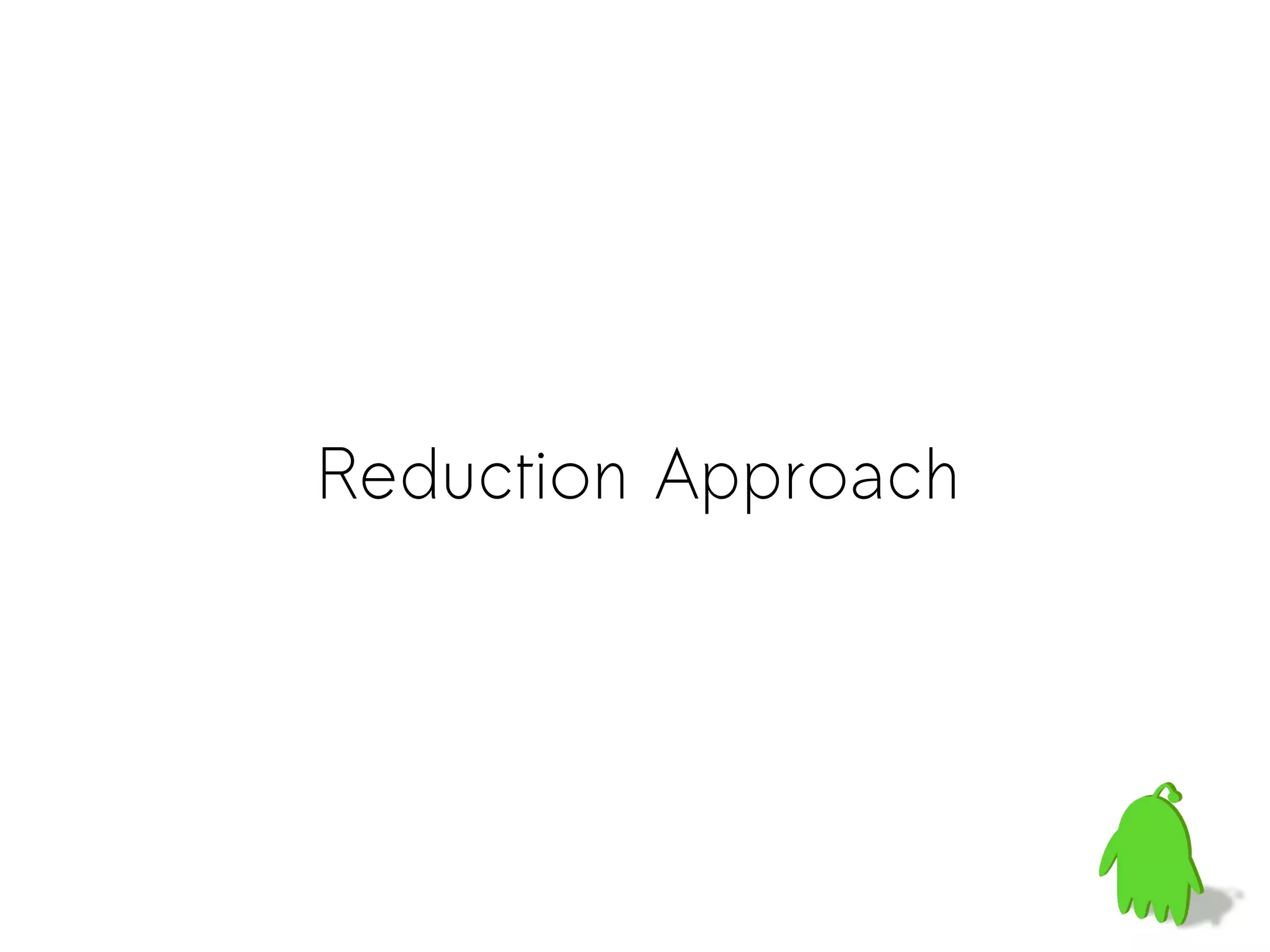

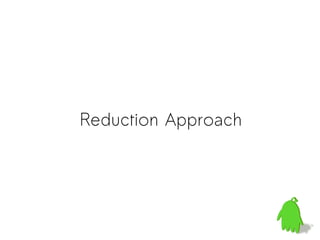

Reduction Approach

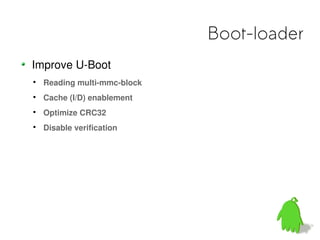

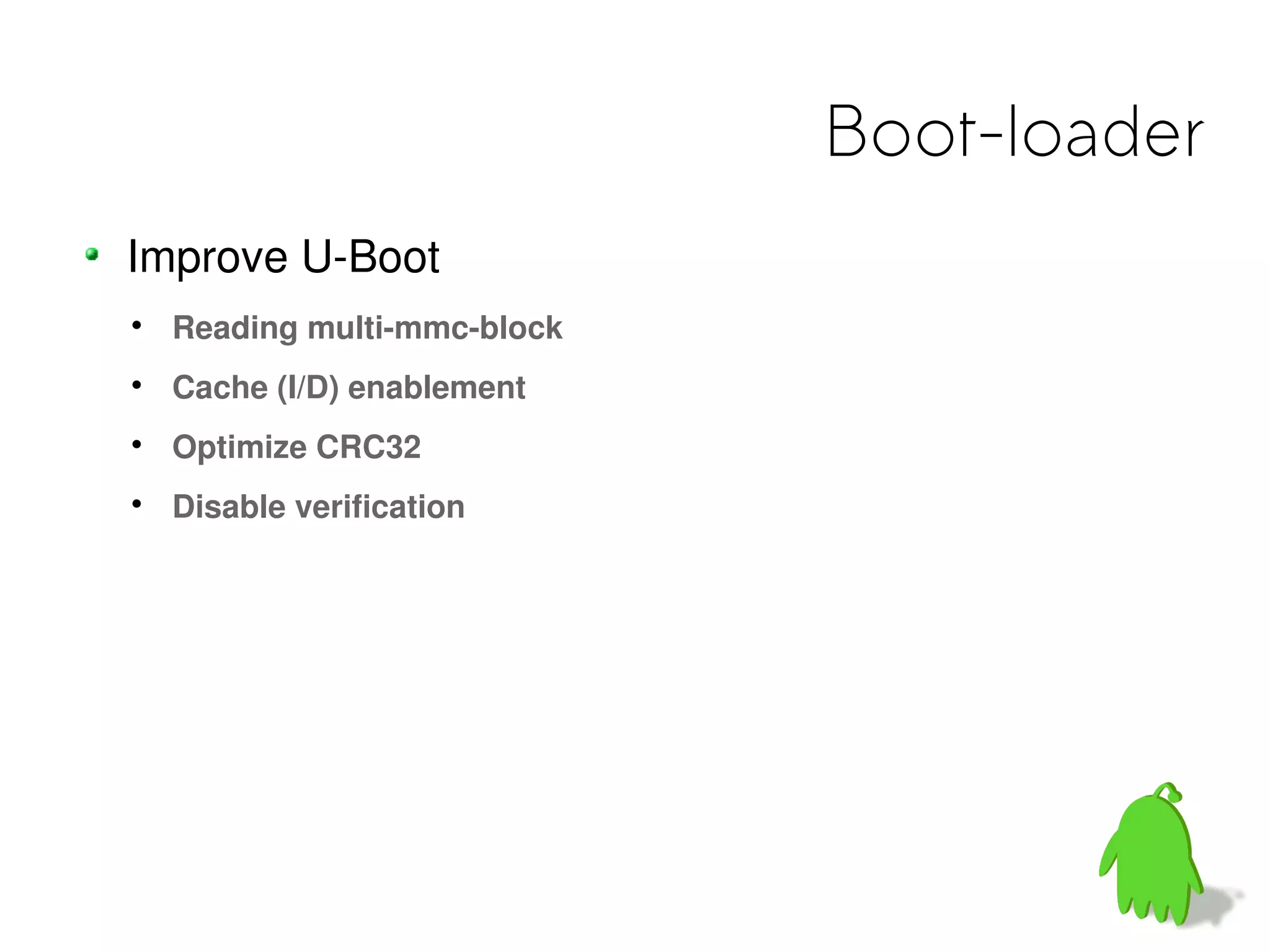

Boot-loader
Improve U-Boot

    Reading multi-mmc-block

    Cache (I/D) enablement

    Optimize CRC32

    Disable verification

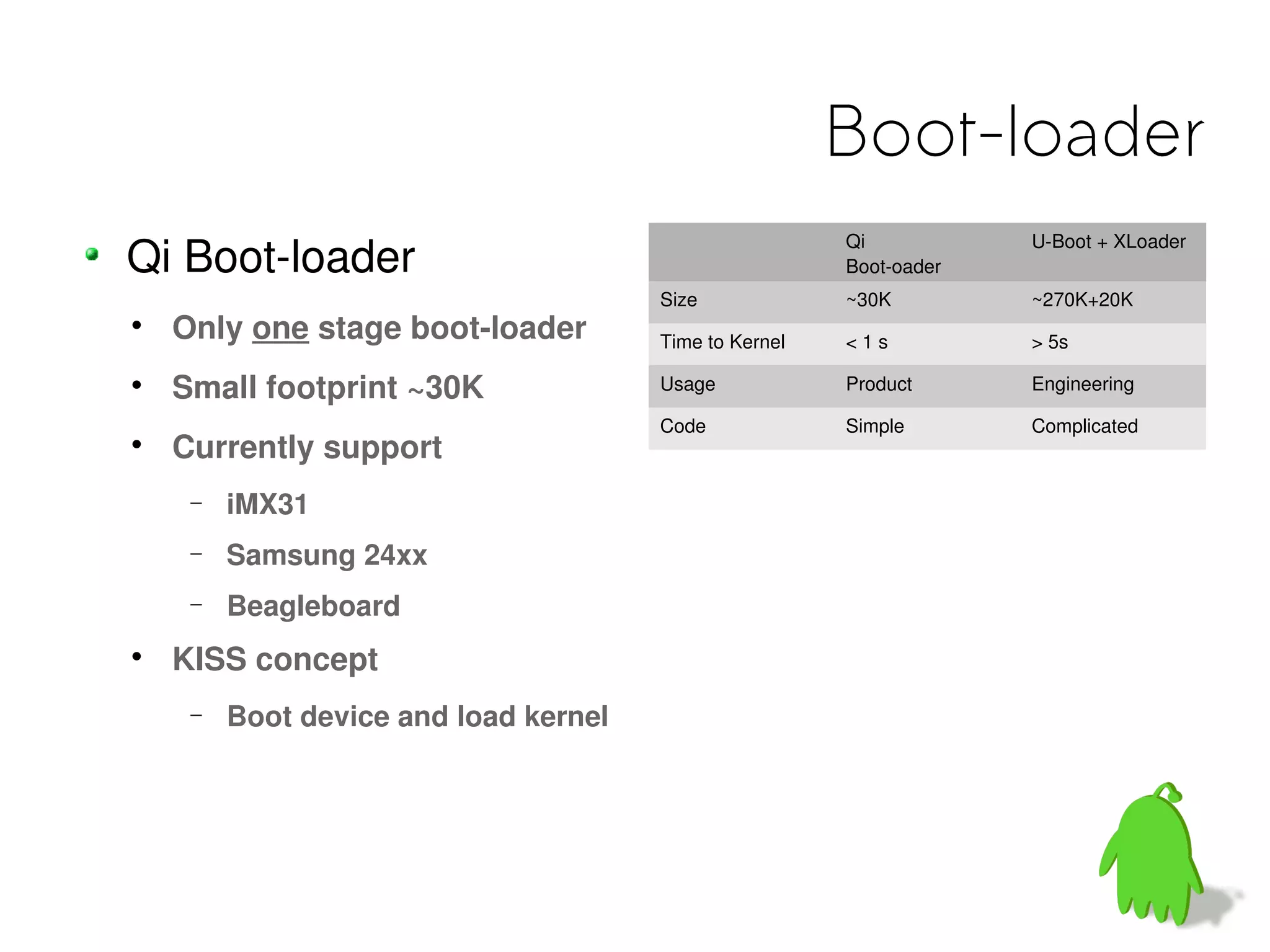

Boot-loader
Qi Boot-loader
                                                        Qi           U-Boot + XLoader
                                                        Boot-oader
                                       Size             ~30K         ~270K+20K

    Only one stage boot-loader         Time to Kernel   <1s          > 5s


    Small footprint ~30K               Usage            Product      Engineering

                                       Code             Simple       Complicated

    Currently support
     −   iMX31
     −   Samsung 24xx
     −   Beagleboard

    KISS concept
     −   Boot device and load kernel

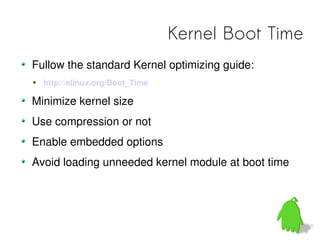

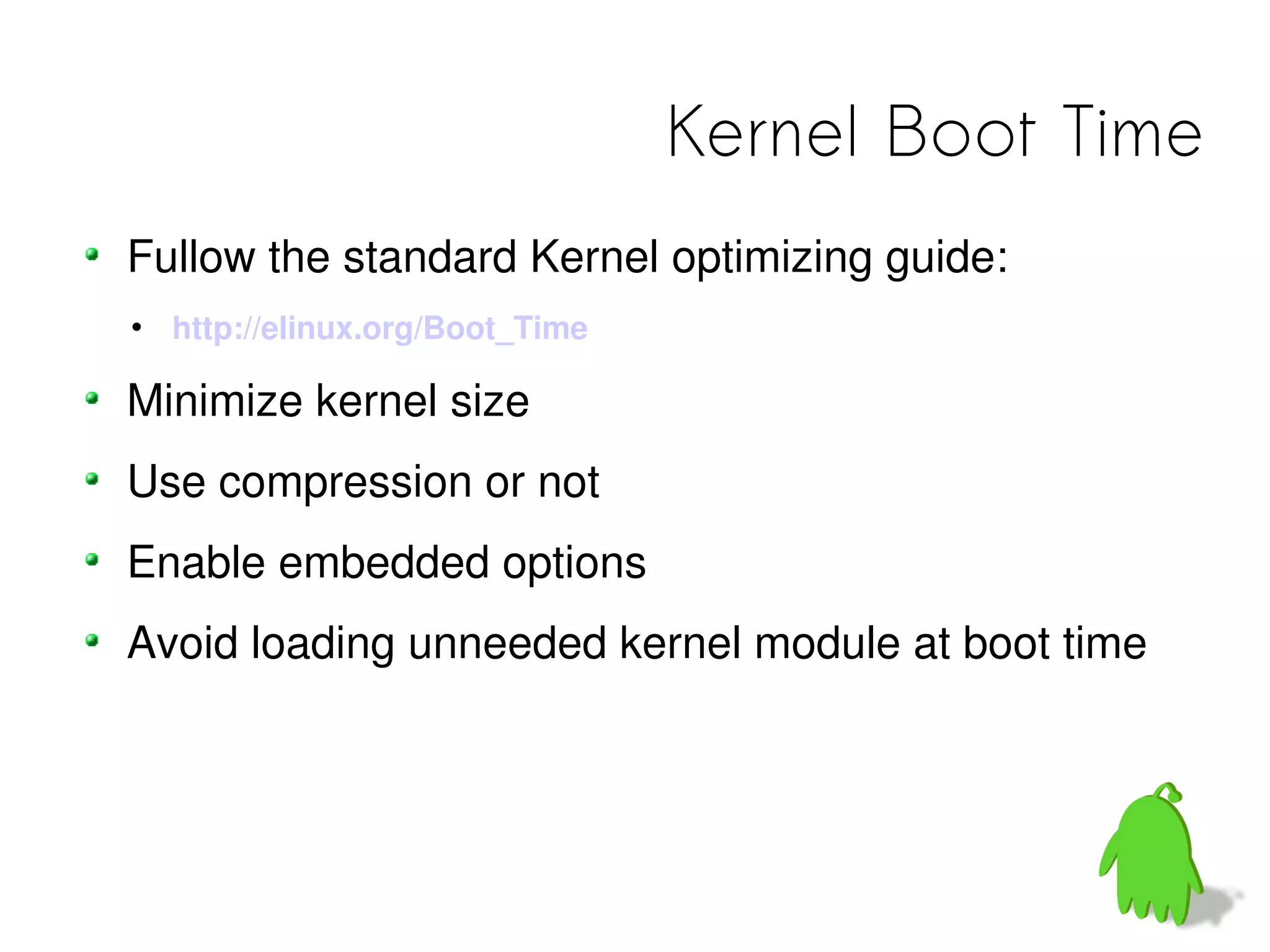

Kernel Boot Time
Fullow the standard Kernel optimizing guide:
   http://elinux.org/Boot_Time

Minimize kernel size
Use compression or not
Enable embedded options
Avoid loading unneeded kernel module at boot time

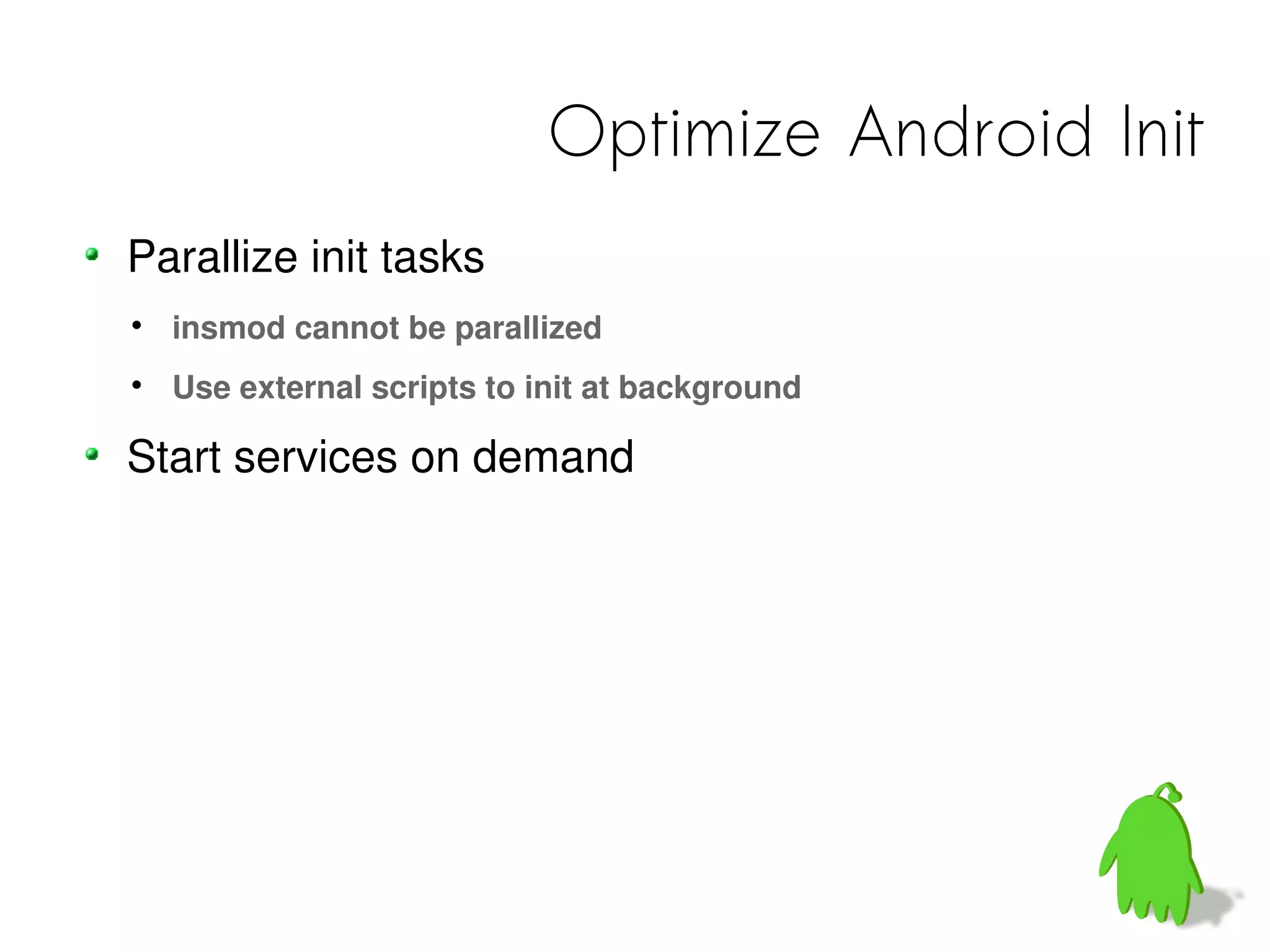

Optimize Android Init
Parallize init tasks

    insmod cannot be parallized

    Use external scripts to init at background

Start services on demand

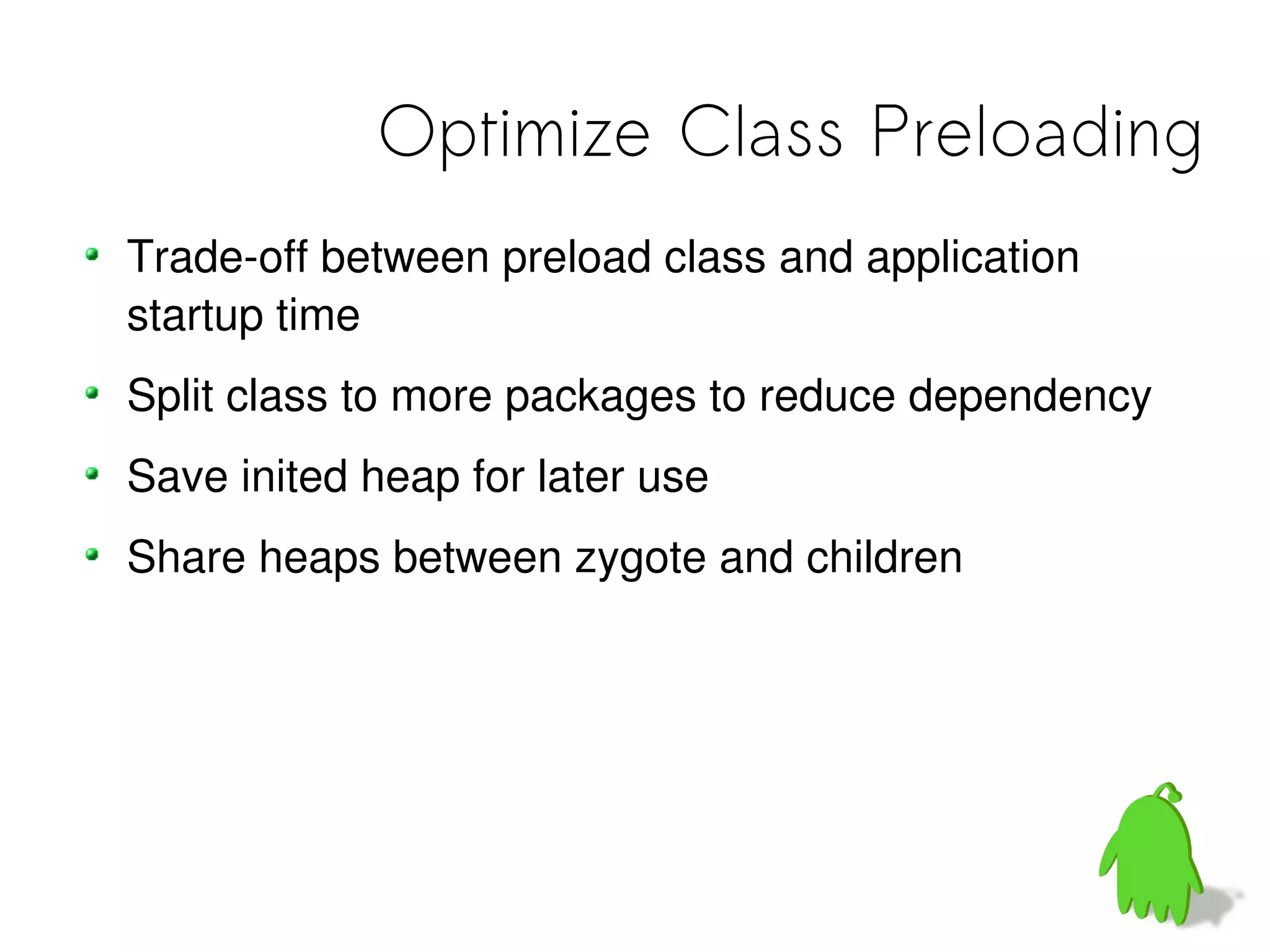

Optimize Class Preloading
Trade-off between preload class and application
startup time
Split class to more packages to reduce dependency
Save inited heap for later use
Share heaps between zygote and children

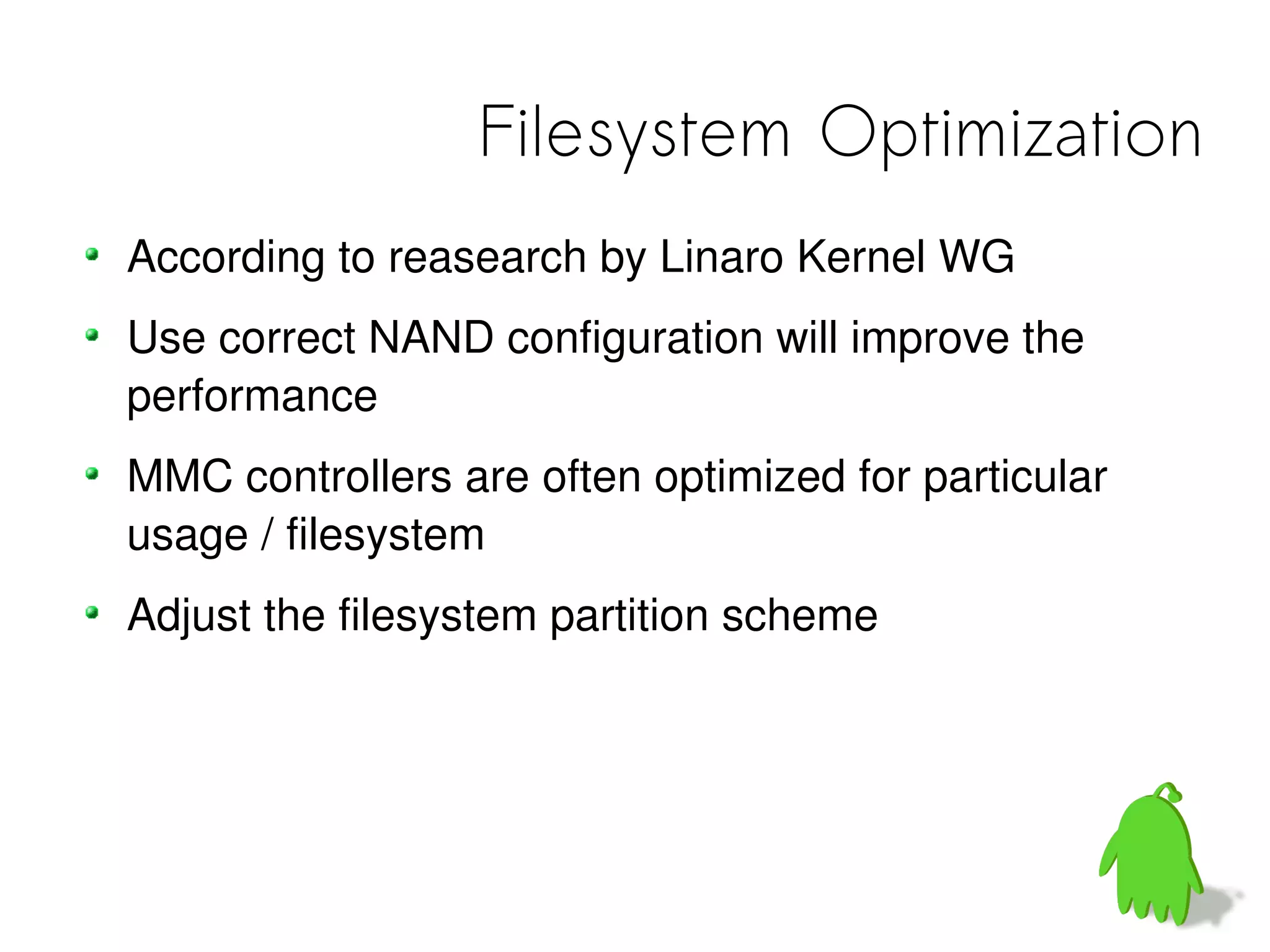

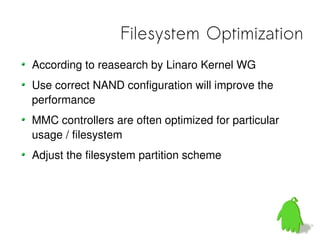

Filesystem Optimization
According to reasearch by Linaro Kernel WG
Use correct NAND configuration will improve the
performance
MMC controllers are often optimized for particular
usage / filesystem
Adjust the filesystem partition scheme

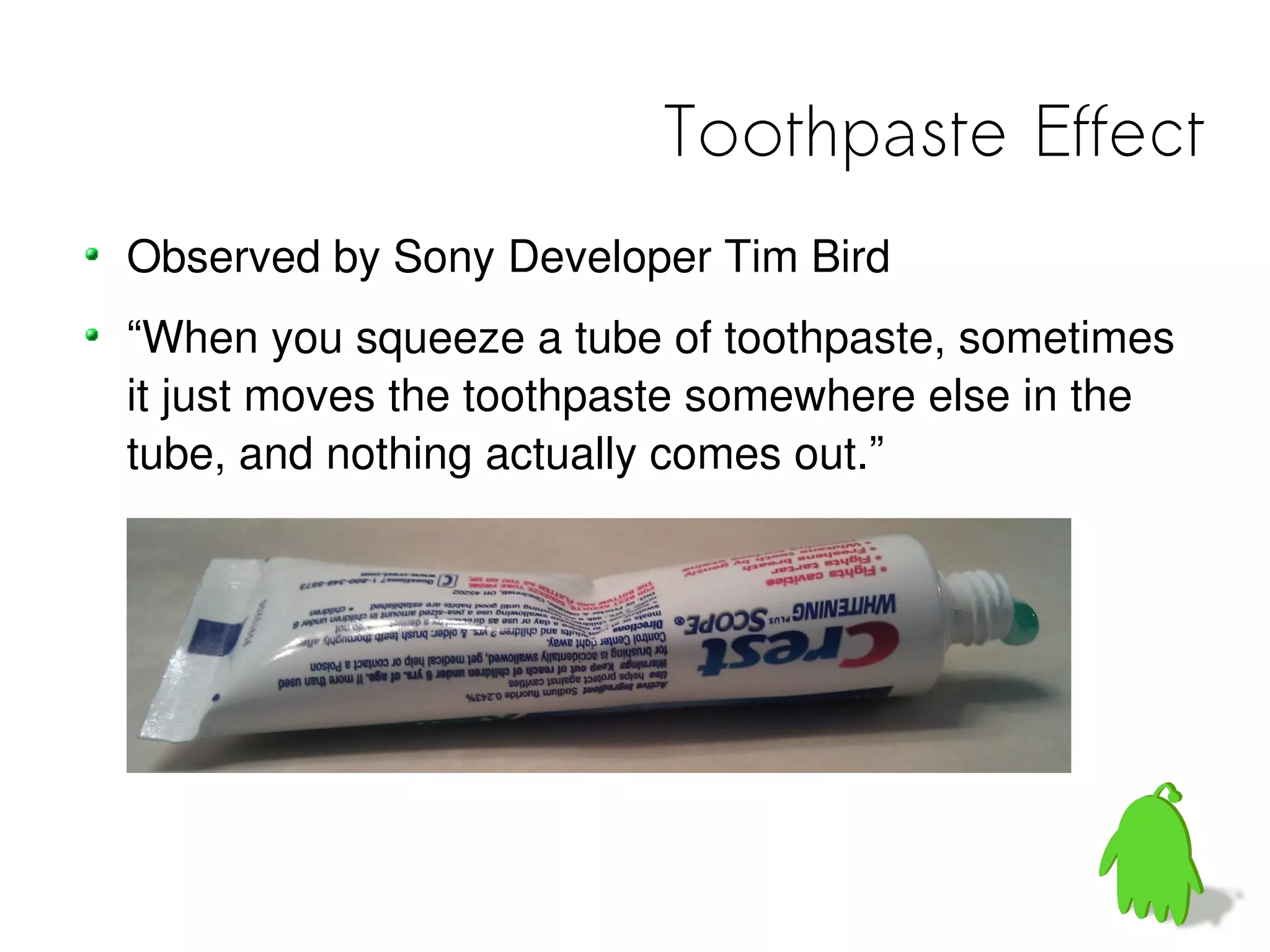

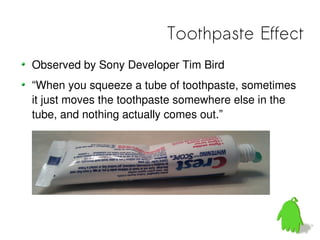

Toothpaste Effect
Observed by Sony Developer Tim Bird
“When you squeeze a tube of toothpaste, sometimes
it just moves the toothpaste somewhere else in the
tube, and nothing actually comes out.”
Q&A

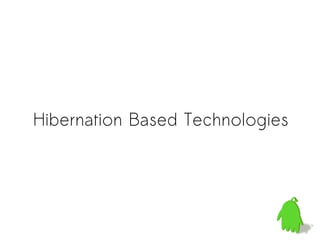

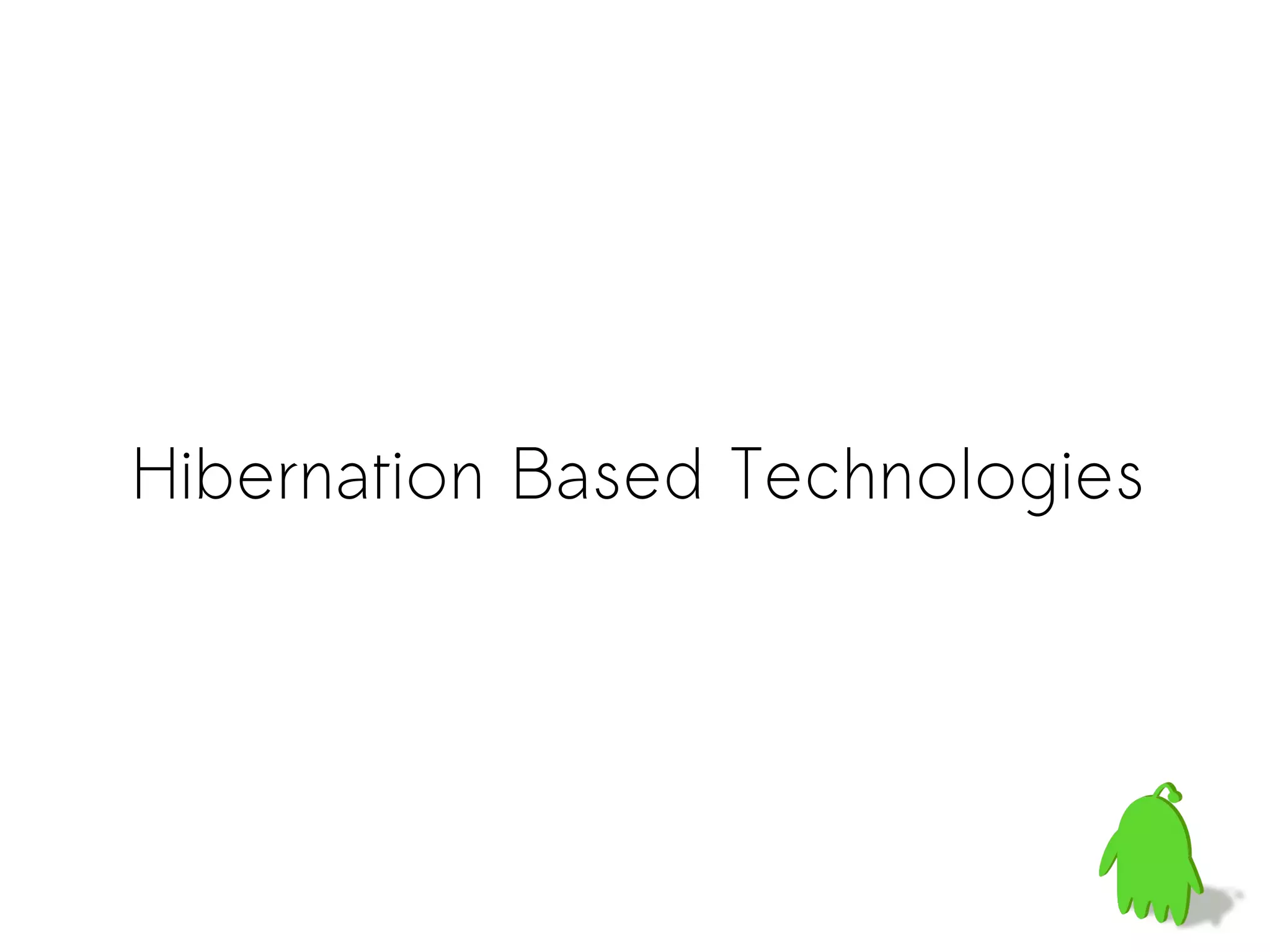

Hibernation Based Technologies

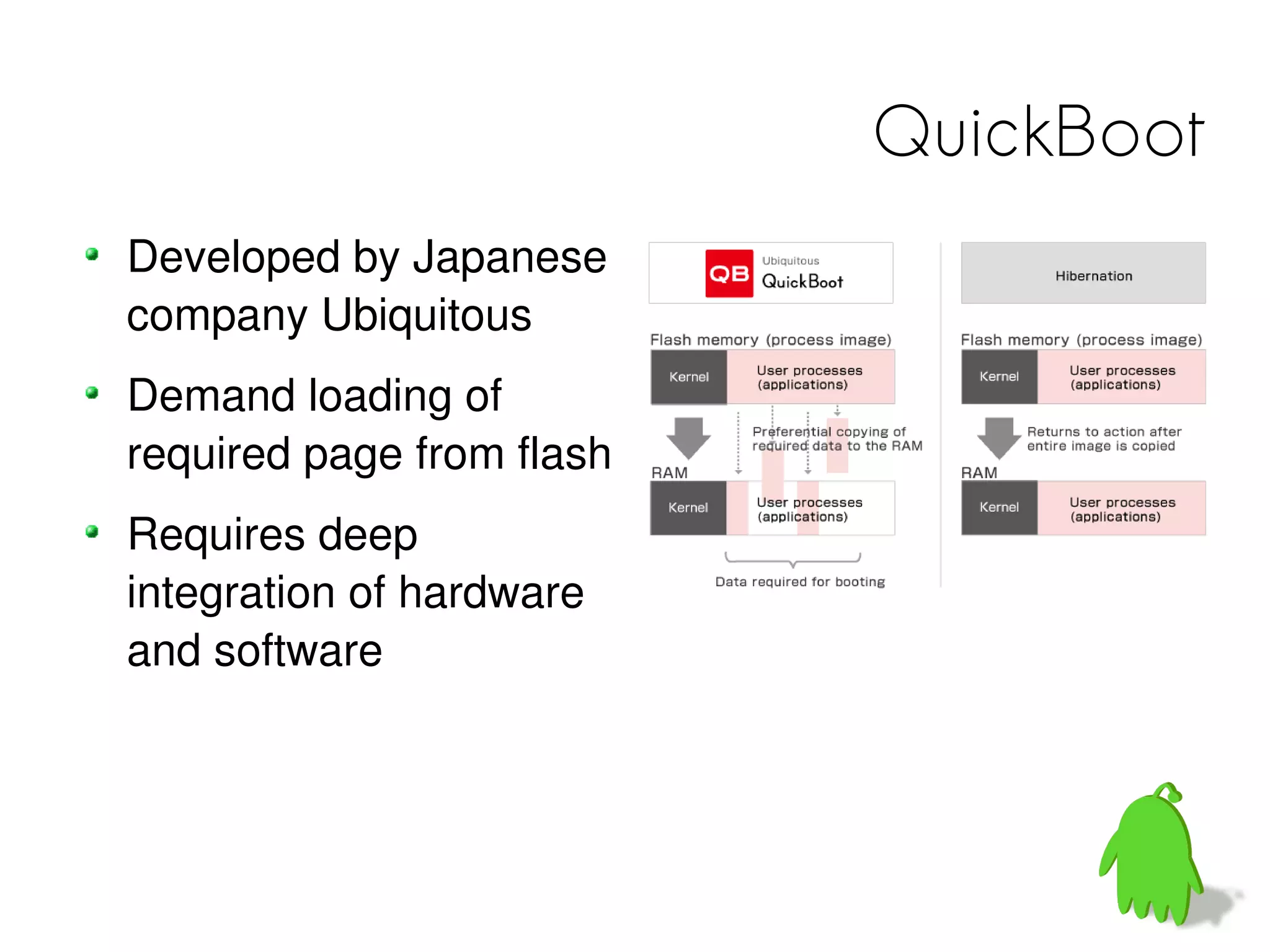

QuickBoot
Developed by Japanese
company Ubiquitous
Demand loading of
required page from flash
Requires deep
integration of hardware
and software

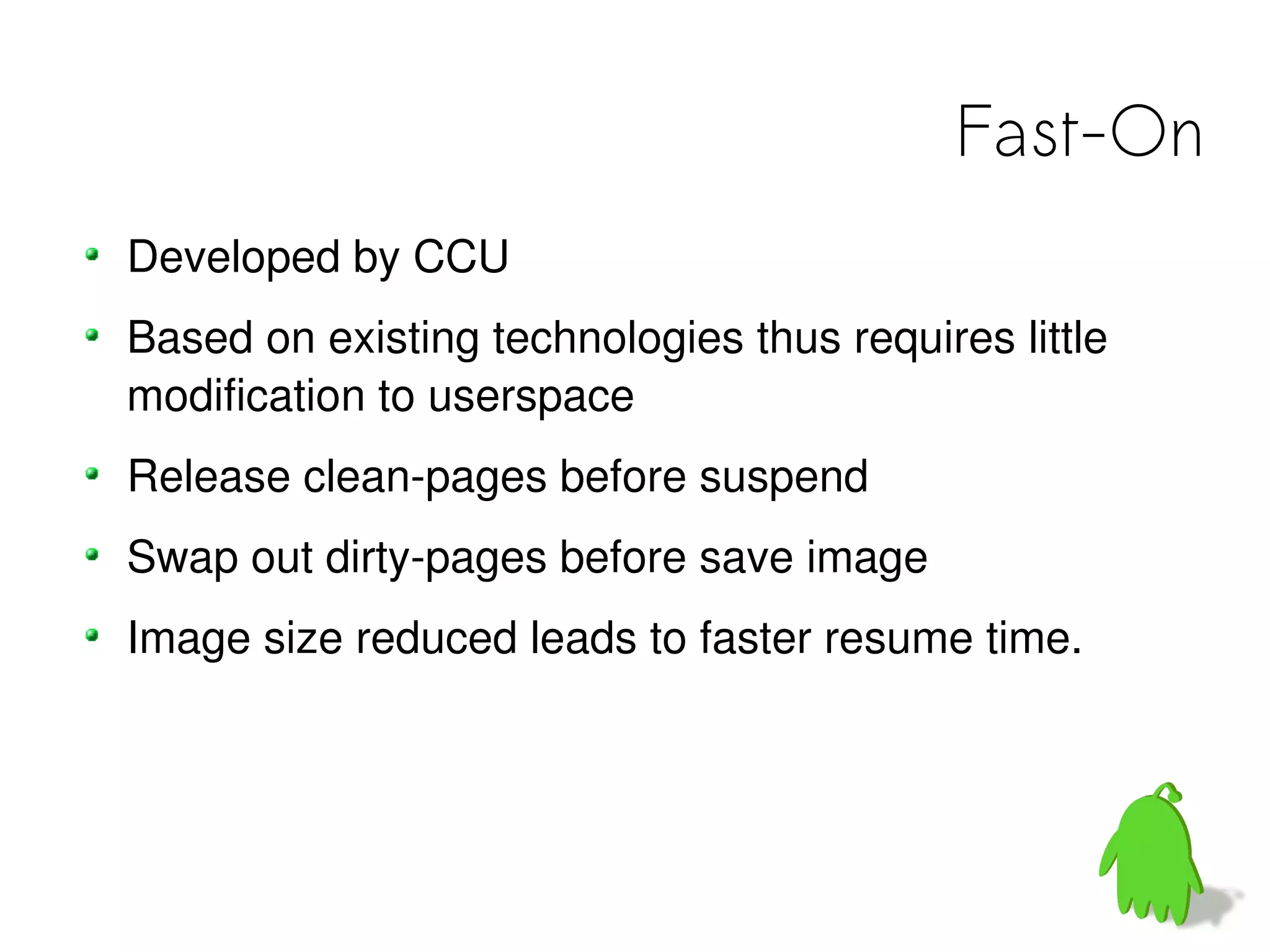

Fast-On
Developed by CCU
Based on existing technologies thus requires little
modification to userspace
Release clean-pages before suspend
Swap out dirty-pages before save image
Image size reduced leads to faster resume time.

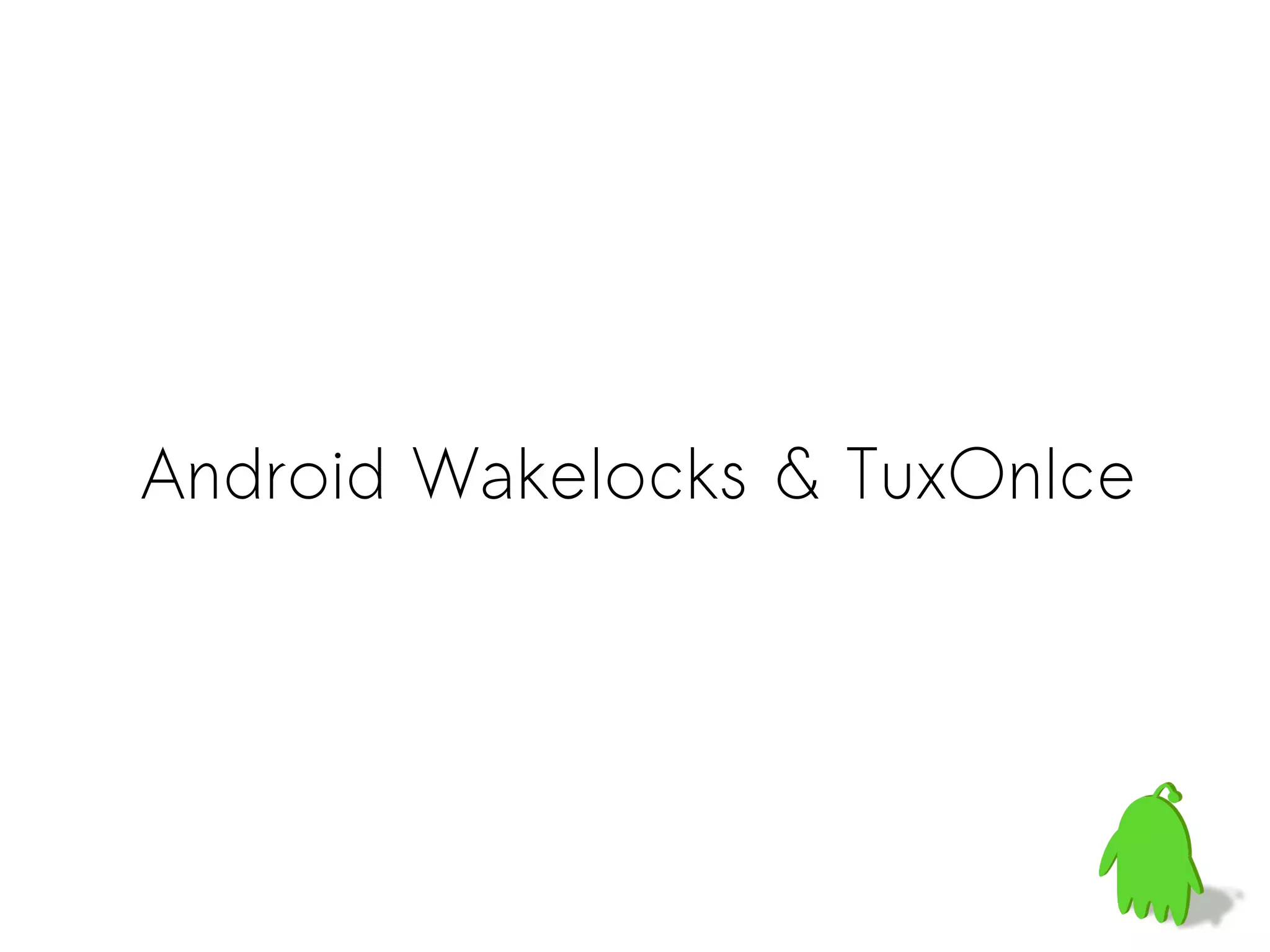

Android Wakelocks & TuxOnIce

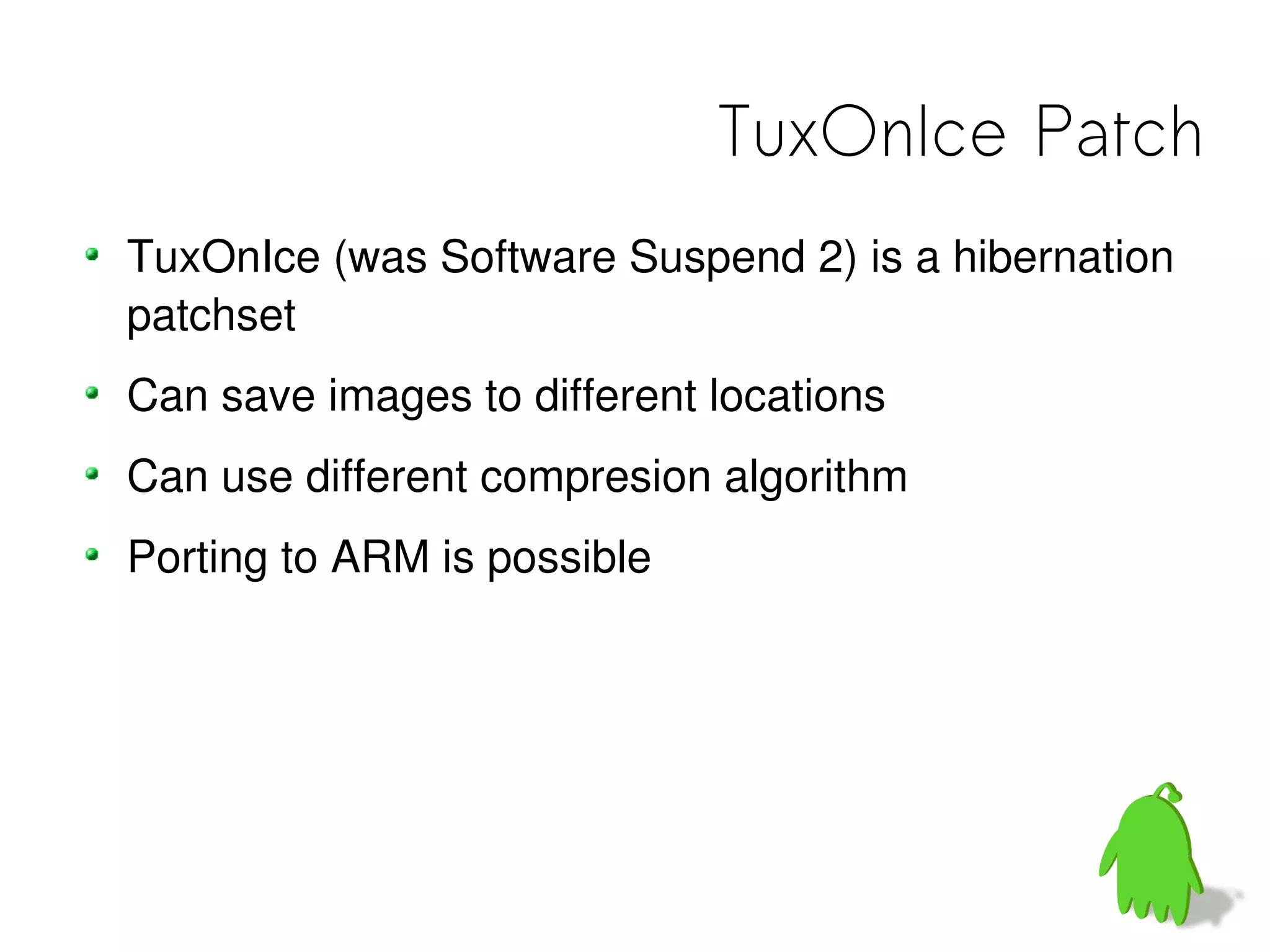

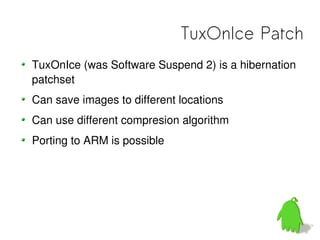

TuxOnIce Patch
TuxOnIce (was Software Suspend 2) is a hibernation
patchset
Can save images to different locations
Can use different compresion algorithm
Porting to ARM is possible

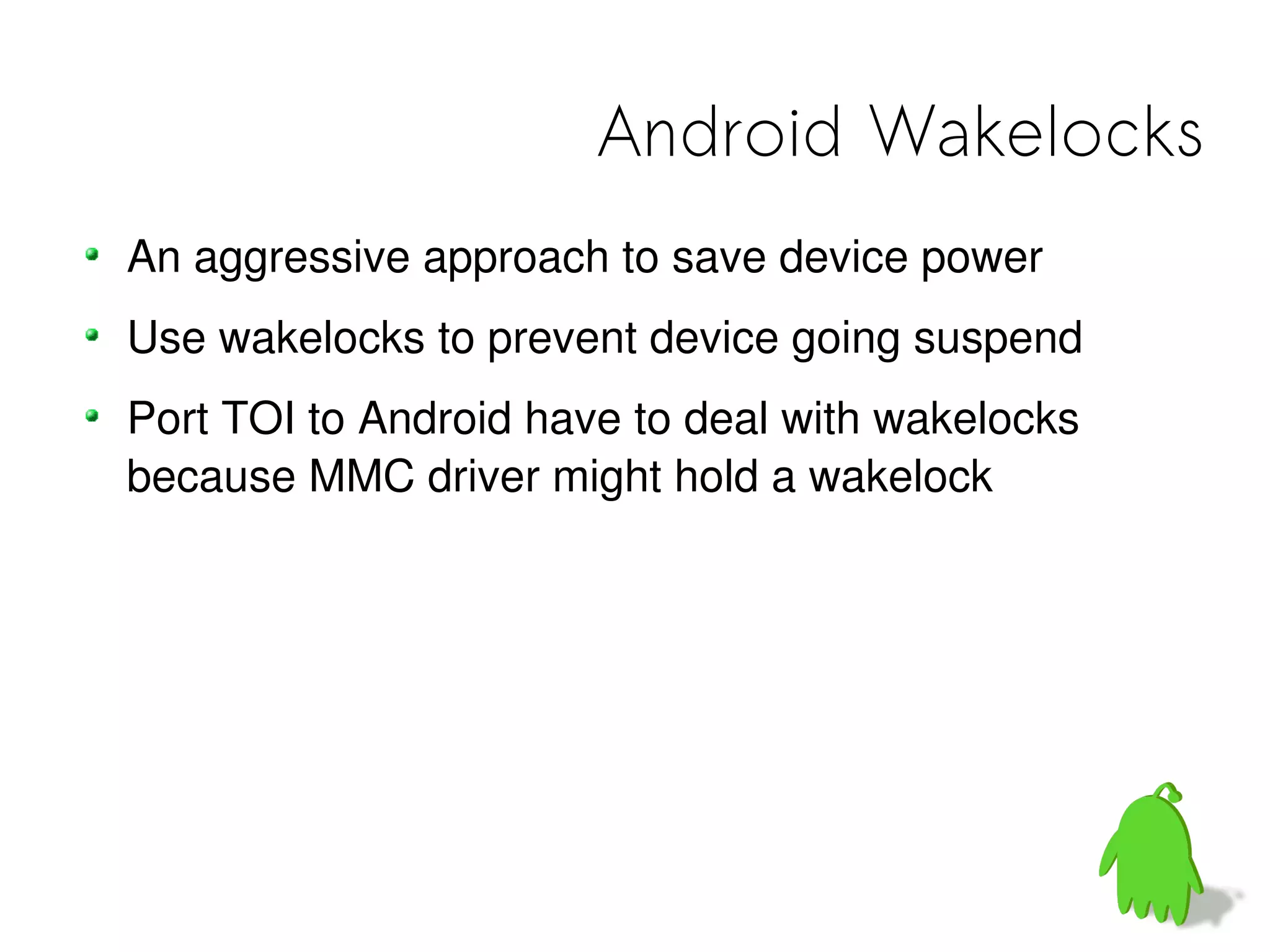

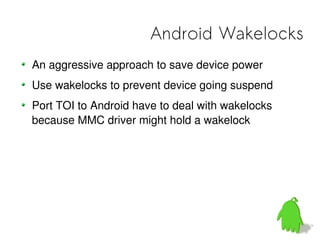

Android Wakelocks
An aggressive approach to save device power
Use wakelocks to prevent device going suspend
Port TOI to Android have to deal with wakelocks
because MMC driver might hold a wakelock

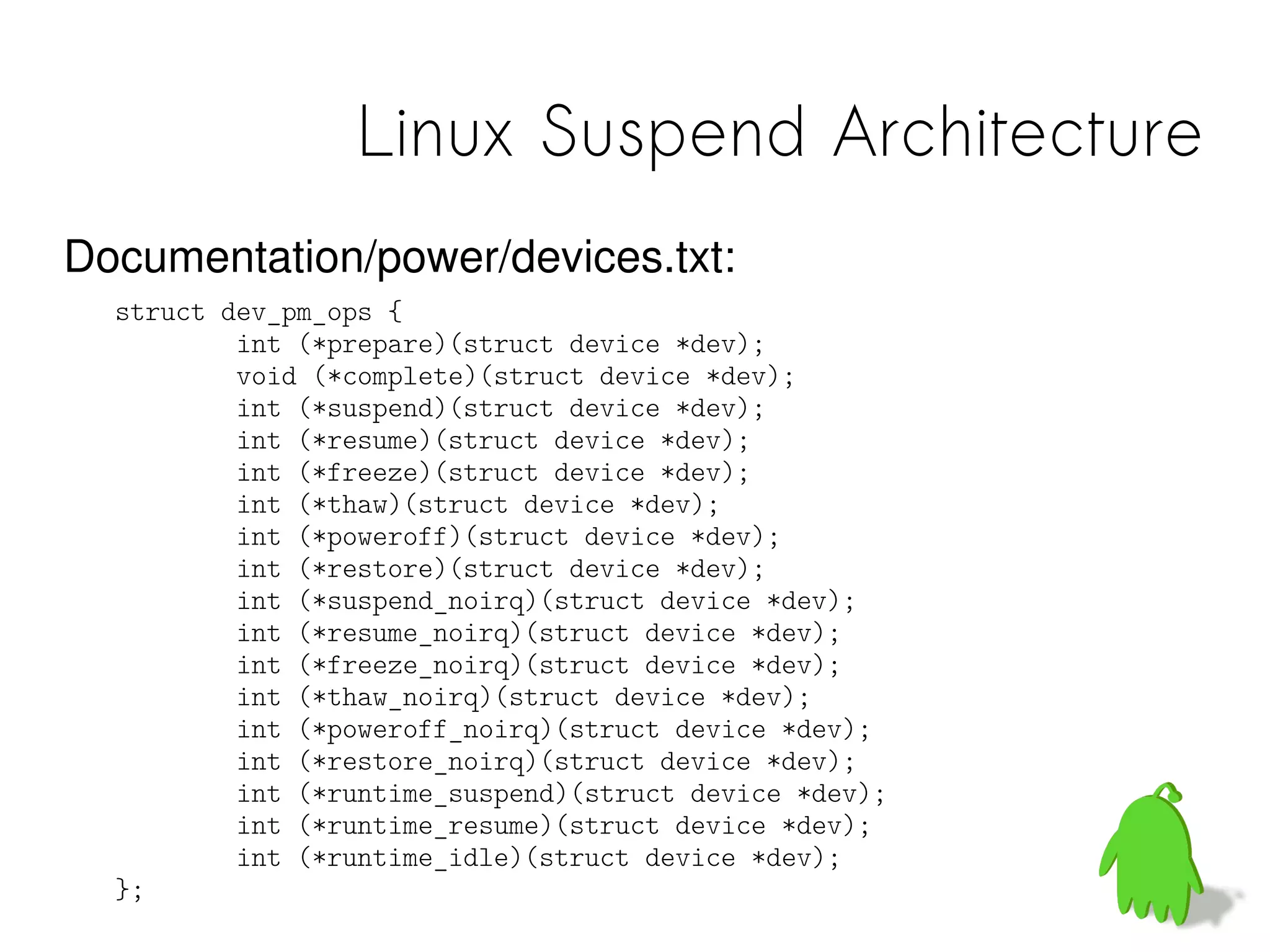

Linux Suspend Architecture
Documentation/power/devices.txt:
  struct dev_pm_ops {
          int (*prepare)(struct device *dev);
          void (*complete)(struct device *dev);
          int (*suspend)(struct device *dev);
          int (*resume)(struct device *dev);
          int (*freeze)(struct device *dev);
          int (*thaw)(struct device *dev);
          int (*poweroff)(struct device *dev);
          int (*restore)(struct device *dev);
          int (*suspend_noirq)(struct device *dev);
          int (*resume_noirq)(struct device *dev);
          int (*freeze_noirq)(struct device *dev);
          int (*thaw_noirq)(struct device *dev);
          int (*poweroff_noirq)(struct device *dev);
          int (*restore_noirq)(struct device *dev);
          int (*runtime_suspend)(struct device *dev);
          int (*runtime_resume)(struct device *dev);
          int (*runtime_idle)(struct device *dev);
  };
Q&A
We Don't Need Boot-loader

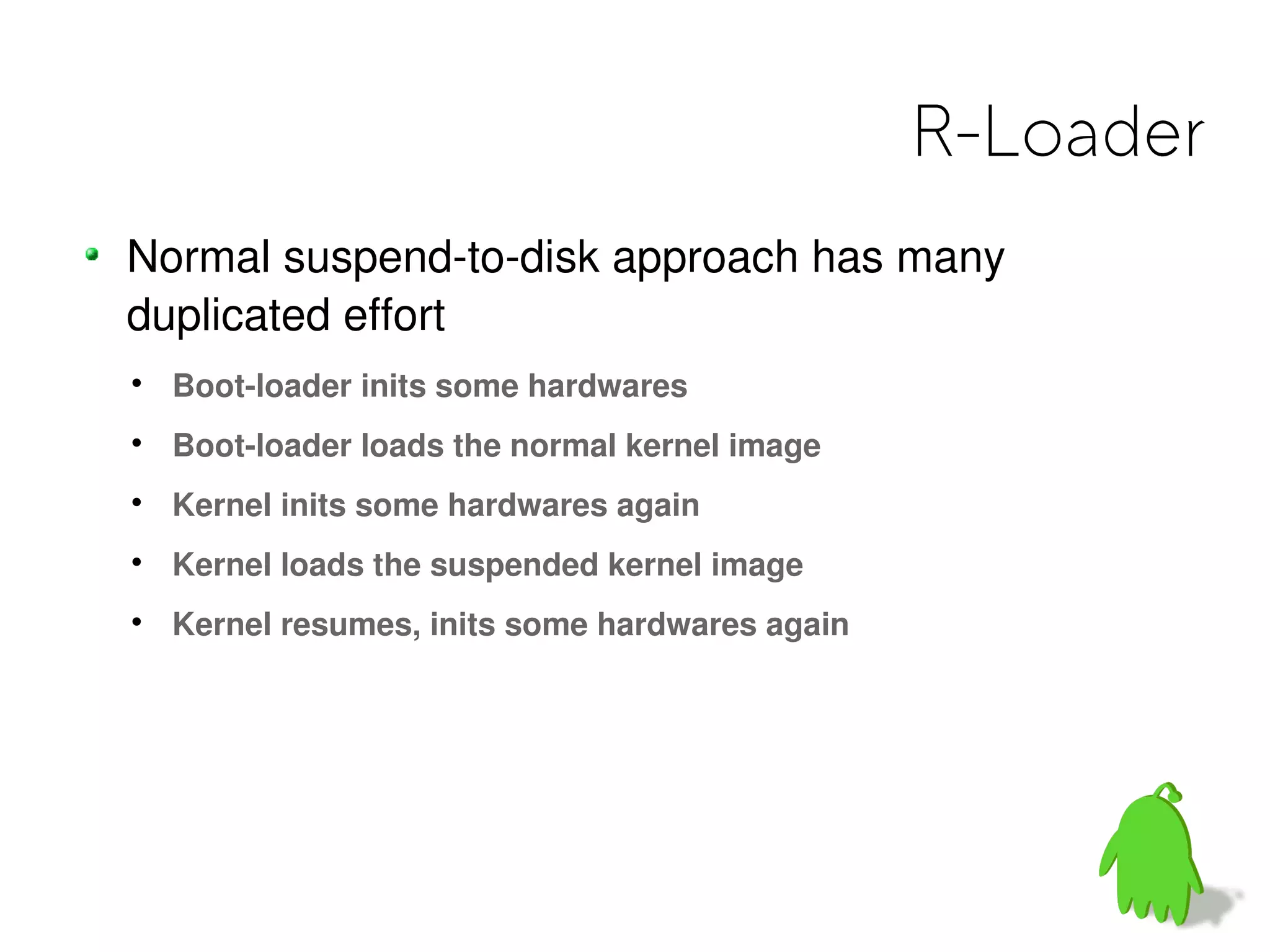

R-Loader
Normal suspend-to-disk approach has many
duplicated effort

    Boot-loader inits some hardwares

    Boot-loader loads the normal kernel image

    Kernel inits some hardwares again

    Kernel loads the suspended kernel image

    Kernel resumes, inits some hardwares again

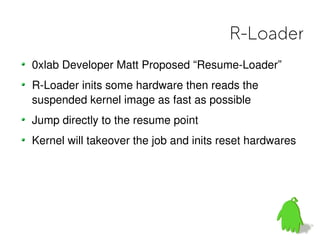

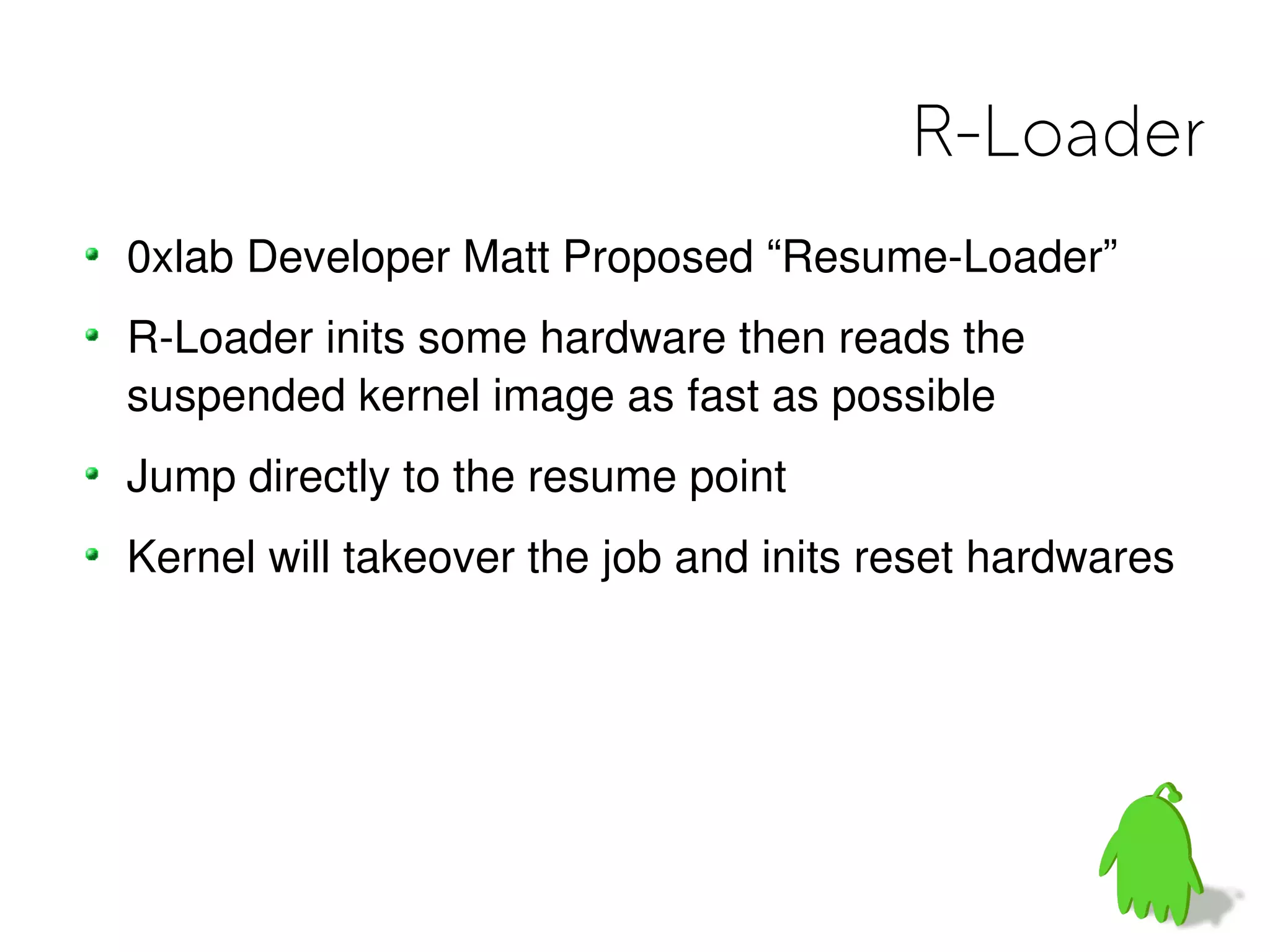

R-Loader
0xlab Developer Matt Proposed “Resume-Loader”
R-Loader inits some hardware then reads the
suspended kernel image as fast as possible
Jump directly to the resume point
Kernel will takeover the job and inits reset hardwares

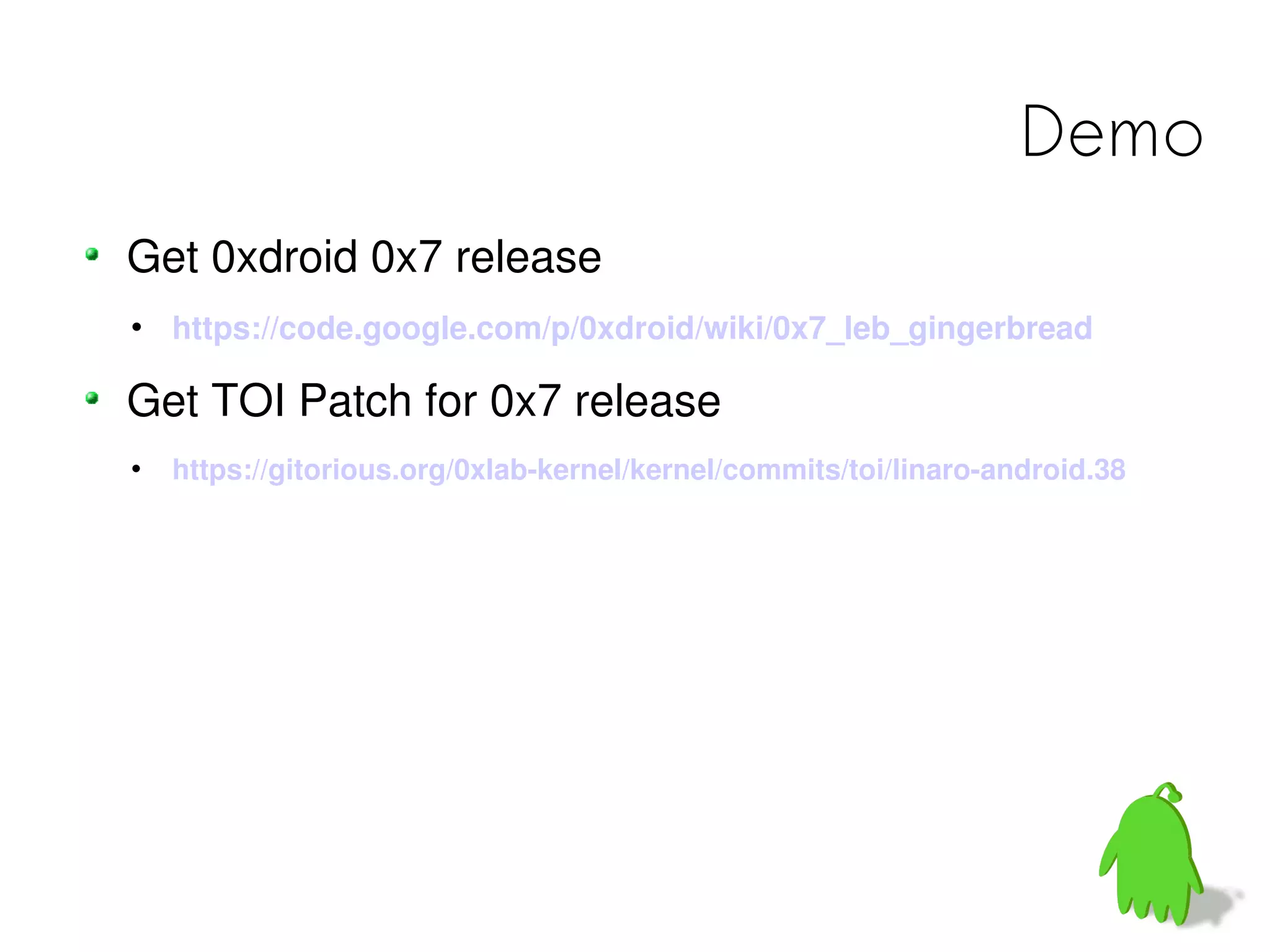

Demo
Get 0xdroid 0x7 release
   https://code.google.com/p/0xdroid/wiki/0x7_leb_gingerbread

Get TOI Patch for 0x7 release
   https://gitorious.org/0xlab-kernel/kernel/commits/toi/linaro-android.38

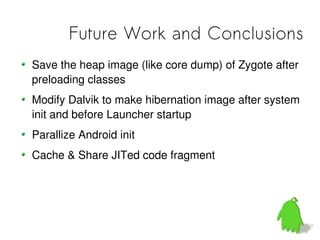

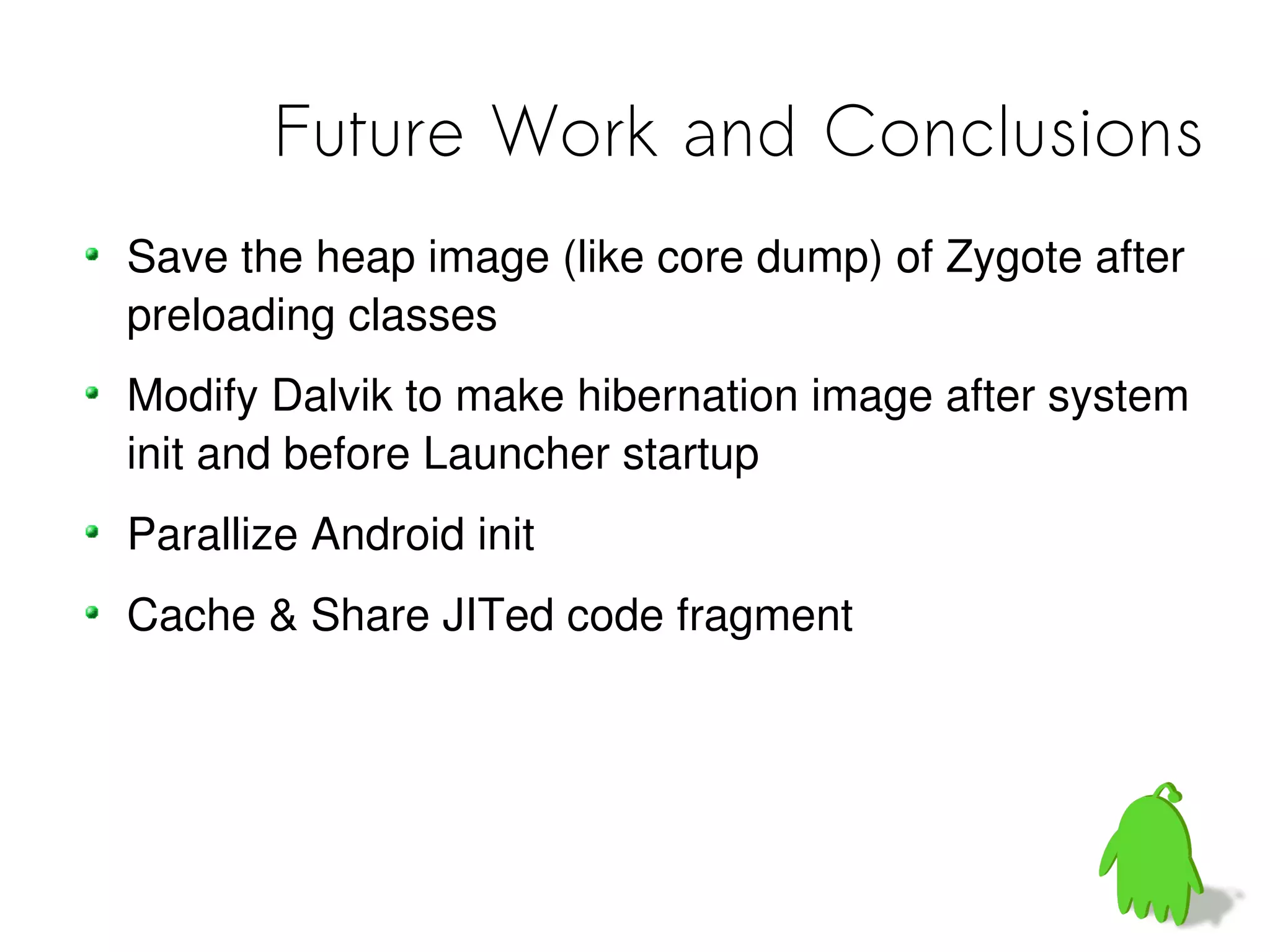

Future Work and Conclusions
Save the heap image (like core dump) of Zygote after
preloading classes
Modify Dalvik to make hibernation image after system
init and before Launcher startup
Parallize Android init
Cache & Share JITed code fragment
Q&A
http://0xlab.org

More Related Content

What's hot

Learning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device DriverLearning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device Driver
Nanik Tolaram

Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)
Emertxe Information Technologies Pvt Ltd

Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Opersys inc.

Porting Android
Porting AndroidPorting Android
Porting Android
Opersys inc.

U Boot or Universal Bootloader
U Boot or Universal BootloaderU Boot or Universal Bootloader
U Boot or Universal Bootloader
Satpal Parmar

Android Booting Sequence
Android Booting SequenceAndroid Booting Sequence
Android Booting Sequence
Jayanta Ghoshal

Q4.11: Porting Android to new Platforms
Q4.11: Porting Android to new PlatformsQ4.11: Porting Android to new Platforms
Q4.11: Porting Android to new Platforms
Linaro

qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
Adrian Huang

Android Booting Scenarios
Android Booting ScenariosAndroid Booting Scenarios
Embedded Android : System Development - Part IV
Embedded Android : System Development - Part IVEmbedded Android : System Development - Part IV
Embedded Android : System Development - Part IV
Emertxe Information Technologies Pvt Ltd

Android Security Internals
Android Security InternalsAndroid Security Internals
Android Security Internals
Opersys inc.

Introduction Linux Device Drivers
Introduction Linux Device DriversIntroduction Linux Device Drivers
Introduction Linux Device Drivers
NEEVEE Technologies

Improve Android System Component Performance
Improve Android System Component PerformanceImprove Android System Component Performance
Improve Android System Component Performance
National Cheng Kung University

Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)
Emertxe Information Technologies Pvt Ltd

Platform Drivers
Platform DriversPlatform Drivers
Android's HIDL: Treble in the HAL
Android's HIDL: Treble in the HALAndroid's HIDL: Treble in the HAL
Android's HIDL: Treble in the HAL
Opersys inc.

AndroidとSELinux
AndroidとSELinuxAndroidとSELinux
AndroidとSELinux
android sola

Kdump and the kernel crash dump analysis
Kdump and the kernel crash dump analysisKdump and the kernel crash dump analysis
Kdump and the kernel crash dump analysis
Buland Singh

Android Internals
Android InternalsAndroid Internals
Android Internals
Opersys inc.

Embedded_Linux_Booting
Embedded_Linux_BootingEmbedded_Linux_Booting
Embedded_Linux_Booting
Rashila Rr


What's hot (20)

Learning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device DriverLearning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device Driver

Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)

Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...

Porting Android
Porting AndroidPorting Android
Porting Android

U Boot or Universal Bootloader
U Boot or Universal BootloaderU Boot or Universal Bootloader
U Boot or Universal Bootloader

Android Booting Sequence
Android Booting SequenceAndroid Booting Sequence
Android Booting Sequence

Q4.11: Porting Android to new Platforms
Q4.11: Porting Android to new PlatformsQ4.11: Porting Android to new Platforms
Q4.11: Porting Android to new Platforms

qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...

Android Booting Scenarios
Android Booting ScenariosAndroid Booting Scenarios
Android Booting Scenarios

Embedded Android : System Development - Part IV
Embedded Android : System Development - Part IVEmbedded Android : System Development - Part IV
Embedded Android : System Development - Part IV

Android Security Internals
Android Security InternalsAndroid Security Internals
Android Security Internals

Introduction Linux Device Drivers
Introduction Linux Device DriversIntroduction Linux Device Drivers
Introduction Linux Device Drivers

Improve Android System Component Performance
Improve Android System Component PerformanceImprove Android System Component Performance
Improve Android System Component Performance

Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)

Platform Drivers
Platform DriversPlatform Drivers
Platform Drivers

Android's HIDL: Treble in the HAL
Android's HIDL: Treble in the HALAndroid's HIDL: Treble in the HAL
Android's HIDL: Treble in the HAL

AndroidとSELinux
AndroidとSELinuxAndroidとSELinux
AndroidとSELinux

Kdump and the kernel crash dump analysis
Kdump and the kernel crash dump analysisKdump and the kernel crash dump analysis
Kdump and the kernel crash dump analysis

Android Internals
Android InternalsAndroid Internals
Android Internals

Embedded_Linux_Booting
Embedded_Linux_BootingEmbedded_Linux_Booting
Embedded_Linux_Booting


Viewers also liked

Hardware Abstraction Layer
Hardware Abstraction LayerHardware Abstraction Layer
Hardware Abstraction Layer
Teh Kian Cheng

Diving inside Android Wifi
Diving inside Android WifiDiving inside Android Wifi
Diving inside Android Wifi
Nanik Tolaram

Android Custom Kernel/ROM design
Android Custom Kernel/ROM designAndroid Custom Kernel/ROM design
Android Custom Kernel/ROM design
Muhammad Najmi Ahmad Zabidi

HKG15-409: ARM Hibernation enablement on SoCs - a case study
HKG15-409: ARM Hibernation enablement on SoCs - a case studyHKG15-409: ARM Hibernation enablement on SoCs - a case study
HKG15-409: ARM Hibernation enablement on SoCs - a case study
Linaro

Android HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacyAndroid HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacy
Jollen Chen

Hibernation in Linux 2.6.29
Hibernation in Linux 2.6.29Hibernation in Linux 2.6.29
Hibernation in Linux 2.6.29
Varun Mahajan

Implement Checkpointing for Android (ELCE2012)
Implement Checkpointing for Android (ELCE2012)Implement Checkpointing for Android (ELCE2012)
Implement Checkpointing for Android (ELCE2012)
National Cheng Kung University

Qi -- Lightweight Boot Loader Applied in Mobile and Embedded Devices
Qi -- Lightweight Boot Loader Applied in Mobile and Embedded DevicesQi -- Lightweight Boot Loader Applied in Mobile and Embedded Devices
Qi -- Lightweight Boot Loader Applied in Mobile and Embedded Devices
National Cheng Kung University

nl80211 and libnl
nl80211 and libnlnl80211 and libnl
nl80211 and libnl
awkman

Debian & the BeagleBone Black
Debian & the BeagleBone BlackDebian & the BeagleBone Black
Debian & the BeagleBone Black
Raju Vindane

COS: A Configurable OS for Embedded SoC Systems
COS: A Configurable OS for Embedded SoC SystemsCOS: A Configurable OS for Embedded SoC Systems
COS: A Configurable OS for Embedded SoC Systems
Prateek Anand

Connecting Hardware to the Web with the BeagleBone
Connecting Hardware to the Web with the BeagleBoneConnecting Hardware to the Web with the BeagleBone
Connecting Hardware to the Web with the BeagleBone
Frank Hunleth

BeagleBone Workshop
BeagleBone WorkshopBeagleBone Workshop
BeagleBone Workshop
Chirag Nagpal

Beagle board
Beagle boardBeagle board
Beagle board
Kondaveeti Arun Gopal

How To Build Android for ARM Chip boards
How To Build Android for ARM Chip boardsHow To Build Android for ARM Chip boards
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
Nanik Tolaram

Android power management
Android power managementAndroid power management
Android power management
Jerrin George

BeagleBone Black Using Python
BeagleBone Black Using PythonBeagleBone Black Using Python
BeagleBone Black Using Python
Sai Viswanath

Android device driver structure introduction
Android device driver structure introductionAndroid device driver structure introduction
Android device driver structure introduction
William Liang

Accessing Hardware on Android
Accessing Hardware on AndroidAccessing Hardware on Android
Accessing Hardware on Android
Gary Bisson


Viewers also liked (20)

Hardware Abstraction Layer
Hardware Abstraction LayerHardware Abstraction Layer
Hardware Abstraction Layer

Diving inside Android Wifi
Diving inside Android WifiDiving inside Android Wifi
Diving inside Android Wifi

Android Custom Kernel/ROM design
Android Custom Kernel/ROM designAndroid Custom Kernel/ROM design
Android Custom Kernel/ROM design

HKG15-409: ARM Hibernation enablement on SoCs - a case study
HKG15-409: ARM Hibernation enablement on SoCs - a case studyHKG15-409: ARM Hibernation enablement on SoCs - a case study
HKG15-409: ARM Hibernation enablement on SoCs - a case study

Android HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacyAndroid HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacy

Hibernation in Linux 2.6.29
Hibernation in Linux 2.6.29Hibernation in Linux 2.6.29
Hibernation in Linux 2.6.29

Implement Checkpointing for Android (ELCE2012)
Implement Checkpointing for Android (ELCE2012)Implement Checkpointing for Android (ELCE2012)
Implement Checkpointing for Android (ELCE2012)

Qi -- Lightweight Boot Loader Applied in Mobile and Embedded Devices
Qi -- Lightweight Boot Loader Applied in Mobile and Embedded DevicesQi -- Lightweight Boot Loader Applied in Mobile and Embedded Devices
Qi -- Lightweight Boot Loader Applied in Mobile and Embedded Devices

nl80211 and libnl
nl80211 and libnlnl80211 and libnl
nl80211 and libnl

Debian & the BeagleBone Black
Debian & the BeagleBone BlackDebian & the BeagleBone Black
Debian & the BeagleBone Black

COS: A Configurable OS for Embedded SoC Systems
COS: A Configurable OS for Embedded SoC SystemsCOS: A Configurable OS for Embedded SoC Systems
COS: A Configurable OS for Embedded SoC Systems

Connecting Hardware to the Web with the BeagleBone
Connecting Hardware to the Web with the BeagleBoneConnecting Hardware to the Web with the BeagleBone
Connecting Hardware to the Web with the BeagleBone

BeagleBone Workshop
BeagleBone WorkshopBeagleBone Workshop
BeagleBone Workshop

Beagle board
Beagle boardBeagle board
Beagle board

How To Build Android for ARM Chip boards
How To Build Android for ARM Chip boardsHow To Build Android for ARM Chip boards
How To Build Android for ARM Chip boards

"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)

Android power management
Android power managementAndroid power management
Android power management

BeagleBone Black Using Python
BeagleBone Black Using PythonBeagleBone Black Using Python
BeagleBone Black Using Python

Android device driver structure introduction
Android device driver structure introductionAndroid device driver structure introduction
Android device driver structure introduction

Accessing Hardware on Android
Accessing Hardware on AndroidAccessing Hardware on Android
Accessing Hardware on Android


Similar to Android Boot Time Optimization

Rloader, alternative tech to achieve fast boot time for ARM Linux
Rloader, alternative tech to achieve fast boot time for ARM LinuxRloader, alternative tech to achieve fast boot time for ARM Linux
Rloader, alternative tech to achieve fast boot time for ARM Linux
matt_hsu

Fast boot
Fast bootFast boot
Fast boot
SZ Lin

Shorten Device Boot Time for Automotive IVI and Navigation Systems
Shorten Device Boot Time for Automotive IVI and Navigation SystemsShorten Device Boot Time for Automotive IVI and Navigation Systems
Shorten Device Boot Time for Automotive IVI and Navigation Systems
National Cheng Kung University

HKG18-TR14 - Postmortem Debugging with Coresight
HKG18-TR14 - Postmortem Debugging with CoresightHKG18-TR14 - Postmortem Debugging with Coresight
HKG18-TR14 - Postmortem Debugging with Coresight
Linaro

Android memory analysis Debug slides.pdf
Android memory analysis Debug slides.pdfAndroid memory analysis Debug slides.pdf
Android memory analysis Debug slides.pdf
VishalKumarJha10

Android crash debugging
Android crash debuggingAndroid crash debugging
Android crash debugging
Ashish Agrawal

Labs_BT_20221017.pptx
Labs_BT_20221017.pptxLabs_BT_20221017.pptx
Labs_BT_20221017.pptx
ssuserb4d806

Kernel debug log and console on openSUSE
Kernel debug log and console on openSUSEKernel debug log and console on openSUSE
Kernel debug log and console on openSUSE
SUSE Labs Taipei

Kernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysisKernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysis
Anne Nicolas

Containers with systemd-nspawn
Containers with systemd-nspawnContainers with systemd-nspawn
Containers with systemd-nspawn
Gábor Nyers

Android Internals
Android InternalsAndroid Internals
Android Internals
Opersys inc.

Linux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloudLinux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloud
Andrea Righi

Renesas DevCon 2010: Starting a QT Application with Minimal Boot
Renesas DevCon 2010: Starting a QT Application with Minimal BootRenesas DevCon 2010: Starting a QT Application with Minimal Boot
Renesas DevCon 2010: Starting a QT Application with Minimal Boot
andrewmurraympc

Android porting for dummies @droidconin 2011
Android porting for dummies @droidconin 2011Android porting for dummies @droidconin 2011
Android porting for dummies @droidconin 2011
pundiramit

Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...
Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...
Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...
confluent

Best Practices for performance evaluation and diagnosis of Java Applications ...
Best Practices for performance evaluation and diagnosis of Java Applications ...Best Practices for performance evaluation and diagnosis of Java Applications ...
Best Practices for performance evaluation and diagnosis of Java Applications ...
IndicThreads

YOW2020 Linux Systems Performance
YOW2020 Linux Systems PerformanceYOW2020 Linux Systems Performance
YOW2020 Linux Systems Performance
Brendan Gregg

Kernel Debugging & Profiling
Kernel Debugging & ProfilingKernel Debugging & Profiling
Kernel Debugging & Profiling
Anil Kumar Pugalia

Ch04 system administration
Ch04 system administration Ch04 system administration
Ch04 system administration
Raja Waseem Akhtar

Ch04
Ch04Ch04

Similar to Android Boot Time Optimization (20)

Rloader, alternative tech to achieve fast boot time for ARM Linux
Rloader, alternative tech to achieve fast boot time for ARM LinuxRloader, alternative tech to achieve fast boot time for ARM Linux
Rloader, alternative tech to achieve fast boot time for ARM Linux

Fast boot
Fast bootFast boot
Fast boot

Shorten Device Boot Time for Automotive IVI and Navigation Systems
Shorten Device Boot Time for Automotive IVI and Navigation SystemsShorten Device Boot Time for Automotive IVI and Navigation Systems
Shorten Device Boot Time for Automotive IVI and Navigation Systems

HKG18-TR14 - Postmortem Debugging with Coresight
HKG18-TR14 - Postmortem Debugging with CoresightHKG18-TR14 - Postmortem Debugging with Coresight
HKG18-TR14 - Postmortem Debugging with Coresight

Android memory analysis Debug slides.pdf
Android memory analysis Debug slides.pdfAndroid memory analysis Debug slides.pdf
Android memory analysis Debug slides.pdf

Android crash debugging
Android crash debuggingAndroid crash debugging
Android crash debugging

Labs_BT_20221017.pptx
Labs_BT_20221017.pptxLabs_BT_20221017.pptx
Labs_BT_20221017.pptx

Kernel debug log and console on openSUSE
Kernel debug log and console on openSUSEKernel debug log and console on openSUSE
Kernel debug log and console on openSUSE

Kernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysisKernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysis

Containers with systemd-nspawn
Containers with systemd-nspawnContainers with systemd-nspawn
Containers with systemd-nspawn

Android Internals
Android InternalsAndroid Internals
Android Internals

Linux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloudLinux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloud

Renesas DevCon 2010: Starting a QT Application with Minimal Boot
Renesas DevCon 2010: Starting a QT Application with Minimal BootRenesas DevCon 2010: Starting a QT Application with Minimal Boot
Renesas DevCon 2010: Starting a QT Application with Minimal Boot

Android porting for dummies @droidconin 2011
Android porting for dummies @droidconin 2011Android porting for dummies @droidconin 2011
Android porting for dummies @droidconin 2011

Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...
Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...
Kafka Summit SF 2017 - One Day, One Data Hub, 100 Billion Messages: Kafka at ...

Best Practices for performance evaluation and diagnosis of Java Applications ...
Best Practices for performance evaluation and diagnosis of Java Applications ...Best Practices for performance evaluation and diagnosis of Java Applications ...
Best Practices for performance evaluation and diagnosis of Java Applications ...

YOW2020 Linux Systems Performance
YOW2020 Linux Systems PerformanceYOW2020 Linux Systems Performance
YOW2020 Linux Systems Performance

Kernel Debugging & Profiling
Kernel Debugging & ProfilingKernel Debugging & Profiling
Kernel Debugging & Profiling

Ch04 system administration
Ch04 system administration Ch04 system administration
Ch04 system administration

Ch04
Ch04Ch04
Ch04


Recently uploaded

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Pitangent Analytics & Technology Solutions Pvt. Ltd

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF
Ajin Abraham

Christine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptxChristine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptx
christinelarrosa

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots
Pablo Gómez Abajo

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Neo4j

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf
UiPathCommunity

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
Jason Yip

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptxPRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
christinelarrosa

High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024
Vadym Kazulkin

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz


Recently uploaded (20)

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF

Christine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptxChristine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptx

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptxPRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx

High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar


Android Boot Time Optimization

  • 1. Connect your device to application
  • 2. Android Boot Time Optimization Kan-Ru Chen kanru@0xlab.org Sep 09, 2011
  • 3. Agenda Motivation Boot Time Measurement Android Boot Time Analysis Reduction Approach Hibernation Based Technologies We Don't Need Boot-loader Demo Future Work and Conclusions
  • 7. Printk Times Linux kernel feature Built-in since Linux 2.6.11 How to enable?  Add CONFIG_PRINTK_TIME=y to .config  Or choose from menuconfig Kernel hacking ---> [*] Show timing information on printks
  • 8. Printk Times Output Example linux$ dmesg [0.000000] per task-struct memory footprint: 1152 bytes [0.003692] Calibrating delay loop... 506.27 BogoMIPS (lpj=1978368) [0.079833] pid_max: default: 32768 minimum: 301 [0.080230] Security Framework initialized [0.080474] Mount-cache hash table entries: 512 [0.083892] CPU: Testing write buffer coherency: ok Analysis Tool linux$ dmesg > timefile linux$ scripts/show_delta timefile ... [0.194488 < 0.194488 >] OMAP DMA hardware revision 5.0 [0.259948 < 0.065460 >] bio: create slab <bio-0> at 0 [0.267822 < 0.007874 >] SCSI subsystem initialized ...
  • 9. initcall_debug Kernel Parameter Print the time spent for each initcall Output Example calling ipc_init+0x0/0x28 @ 1 msgmni has been set to 42 initcall ipc_init+0x0/0x28 returned 0 after 1872 usecs
  • 10. Bootchart Visualize the booting process Use “bootchartd” to collect CPU and IO utilization information. On Ubuntu: apt-get install bootchart bootchart-view Original “bootchartd” is not suitable for embedded usage.
  • 12. Strace Trace system calls during process execution and output timing information. $ strace -tt ls 15:11:04.243357 execve("/bin/ls", ["ls"], [/* 51 vars */]) = 0 15:11:04.244252 brk(0) = 0x234f000 15:11:04.244458 access("/etc/ld.so.nohwcap", F_OK) = -1 ENOENT 15:11:04.244676 mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE| MAP_ANONYMOUS, -1, 0) = 0x7f1444794000 15:11:04.244852 access("/etc/ld.so.preload", R_OK) = -1 ENOENT 15:11:04.245096 open("/etc/ld.so.cache", O_RDONLY) = 3
  • 13. OProfile OProfile is a system-wide profiler for Linux systems. Capable of profiling all running code at low overhead. Supports wide number of hardwares. Profiling daemon ported to Android and available in AOSP.
  • 14. OProfile Output Example $ opreport --exclude-dependent CPU: PIII, speed 863.195 MHz (estimated) Counted CPU_CLK_UNHALTED events (clocks processor is not halted)... 450385 75.6634 cc1plus 60213 10.1156 lyx 29313 4.9245 XFree86 11633 1.9543 as 10204 1.7142 oprofiled 7289 1.2245 vmlinux 7066 1.1871 bash 6417 1.0780 oprofile 6397 1.0747 vim ...
  • 15. Perf New profiling tool based on the performance counter subsystem of Linux. Very powerful and easy to use. Included in Linux source code: tools/perf/
  • 16. Perf Recording: $ perf record -a -f ^C [ perf record: Woken up 1 times to write data ] [ perf record: Captured and wrote 0.288 MB perf.data (~12567 samples)] Output $ perf report --sort comm,dso,symbol|head -10 # Events: 1K cycles # # Overhead Command Shared Object Symbol # ........ ........... ...................... ............ # 35.47% firefox libxul.so [.] 0xc1b3a7 3.08% firefox libcairo.so.2.11000.2 [.] 0xff88 2.98% Xorg Xorg (deleted) [.] 0xe201c 2.51% firefox firefox [.] 0x2726 1.49% Xorg [kernel.kallsyms] [k] find_vma 0.93% perf_3.0.0 perf_3.0.0 [.] hex2u64
  • 17. Perf Timechart $ perf timechart record $ perf timechart
  • 19. Bootchart Original “bootchartd” is not suitable on embedded devices. Android re-implemented in its “init” program.
  • 20. Bootchart To build: $ cd system/core/init $ touch init.c $ mm INIT_BOOTCHART=true
  • 21. Bootchart To run: $ adb shell 'echo 120 > /data/bootchart-start' Remember the /data directory must be write able during boot. Use grab-bootchart.sh to retrieve the data.
  • 22. Strace After analyzed the bootchart, can use strace to analyze individual progarm. Available in AOSP since Éclair
  • 23. Strace Modify init.rc from service zygote /system/bin/app_process -Xzygote /system/bin --zygote --start-system-server To service zygote /system/xbin/strace -tt -o/data/boot.strace /system/bin/app_process -Xzygote /system/bin --zygote --start-system-server
  • 24. Logcat Android log utility Can output timing information Adjust loglevel to 6 in init.rc  Displays time spent for each command
  • 25. Dalvik Method Tracer Method tracer is built into Dalvik Use DDMS or using calls inside source to collect data. // start tracing to "/sdcard/calc.trace" Debug.startMethodTracing("calc"); // ... // stop tracing Debug.stopMethodTracing();
  • 26. Stopwatch Not real stopwatch A utility in Android Framework for measuring C++ code. Output result to system log #include <utils/StopWatch.h> … { StopWatch watch("blah"); /* your codes here */ }
  • 27. Q&A
  • 28. Android Boot Time Analysis
  • 29. Boot-loader Init Usually constant time Avoid init hardware multiple times Ensure to use maximum CPU frequency Use faster NAND/MMC reading mechanism
  • 30. Kernel Init Mostly usual suspects  ip_auto_config  USB init  Flash driver initialization Fullow the standard Kernel optimizing guide:  http://elinux.org/Boot_Time Avoid loading unneeded kernel module at boot time
  • 31. Zygote Class Preloading Android Framework has thousands of Java classes Preloaded by Zygote and instantiated in its heap To improve Application startup time and save memory Controlled by resource: preloaded-classes  frameworks/base/preloaded-classes
  • 32. Zygote Class Preloading Can use the tool in framework to adjust the list: $ adb logcat > logcat.txt $ java -p preload.jar Compile logcat.txt logcat.compiled $ java -p preload.jar PrintCsv logcat.compiled Google Android Developer Dianne Hackborn said:  The content of the file is a “black art”  You can adjust this as much as you like  But the result maybe suboptimal
  • 33. PackageManager Package Scannig Every APK is scanned at boot time Package management code is inefficient Uses mmaped files means each access will cause page fault ParseZipArchive() scans entire APK for only one AndroidManifest.xml file
  • 34. System Services Starting Last stage of Android boot Start every base service Zygote start SystemServer process Start native service (SurfaceFlinger, AudioFlinger) first Start each service sequentially
  • 35. Q&A
  • 37. Boot-loader Improve U-Boot  Reading multi-mmc-block  Cache (I/D) enablement  Optimize CRC32  Disable verification
  • 38. Boot-loader Qi Boot-loader Qi U-Boot + XLoader Boot-oader Size ~30K ~270K+20K  Only one stage boot-loader Time to Kernel <1s > 5s  Small footprint ~30K Usage Product Engineering Code Simple Complicated  Currently support − iMX31 − Samsung 24xx − Beagleboard  KISS concept − Boot device and load kernel
  • 39. Kernel Boot Time Fullow the standard Kernel optimizing guide:  http://elinux.org/Boot_Time Minimize kernel size Use compression or not Enable embedded options Avoid loading unneeded kernel module at boot time
  • 40. Optimize Android Init Parallize init tasks  insmod cannot be parallized  Use external scripts to init at background Start services on demand
  • 41. Optimize Class Preloading Trade-off between preload class and application startup time Split class to more packages to reduce dependency Save inited heap for later use Share heaps between zygote and children
  • 42. Filesystem Optimization According to reasearch by Linaro Kernel WG Use correct NAND configuration will improve the performance MMC controllers are often optimized for particular usage / filesystem Adjust the filesystem partition scheme
  • 43. Toothpaste Effect Observed by Sony Developer Tim Bird “When you squeeze a tube of toothpaste, sometimes it just moves the toothpaste somewhere else in the tube, and nothing actually comes out.”
  • 44. Q&A
  • 46. QuickBoot Developed by Japanese company Ubiquitous Demand loading of required page from flash Requires deep integration of hardware and software
  • 47. Fast-On Developed by CCU Based on existing technologies thus requires little modification to userspace Release clean-pages before suspend Swap out dirty-pages before save image Image size reduced leads to faster resume time.
  • 49. TuxOnIce Patch TuxOnIce (was Software Suspend 2) is a hibernation patchset Can save images to different locations Can use different compresion algorithm Porting to ARM is possible
  • 50. Android Wakelocks An aggressive approach to save device power Use wakelocks to prevent device going suspend Port TOI to Android have to deal with wakelocks because MMC driver might hold a wakelock
  • 51. Linux Suspend Architecture Documentation/power/devices.txt: struct dev_pm_ops { int (*prepare)(struct device *dev); void (*complete)(struct device *dev); int (*suspend)(struct device *dev); int (*resume)(struct device *dev); int (*freeze)(struct device *dev); int (*thaw)(struct device *dev); int (*poweroff)(struct device *dev); int (*restore)(struct device *dev); int (*suspend_noirq)(struct device *dev); int (*resume_noirq)(struct device *dev); int (*freeze_noirq)(struct device *dev); int (*thaw_noirq)(struct device *dev); int (*poweroff_noirq)(struct device *dev); int (*restore_noirq)(struct device *dev); int (*runtime_suspend)(struct device *dev); int (*runtime_resume)(struct device *dev); int (*runtime_idle)(struct device *dev); };
  • 52. Q&A
  • 53. We Don't Need Boot-loader
  • 54. R-Loader Normal suspend-to-disk approach has many duplicated effort  Boot-loader inits some hardwares  Boot-loader loads the normal kernel image  Kernel inits some hardwares again  Kernel loads the suspended kernel image  Kernel resumes, inits some hardwares again
  • 55. R-Loader 0xlab Developer Matt Proposed “Resume-Loader” R-Loader inits some hardware then reads the suspended kernel image as fast as possible Jump directly to the resume point Kernel will takeover the job and inits reset hardwares
  • 56. Demo Get 0xdroid 0x7 release  https://code.google.com/p/0xdroid/wiki/0x7_leb_gingerbread Get TOI Patch for 0x7 release  https://gitorious.org/0xlab-kernel/kernel/commits/toi/linaro-android.38
  • 57. Future Work and Conclusions Save the heap image (like core dump) of Zygote after preloading classes Modify Dalvik to make hibernation image after system init and before Launcher startup Parallize Android init Cache & Share JITed code fragment
  • 58. Q&A
