Guidelines for Design and Location of X-
Ray Equipment
and Ensuring Radiation Safety
Presenter: Dr. Dheeraj Kumar
MRIT, Ph.D. (Radiology and Imaging)
Assistant Professor
Medical Radiology and Imaging Technology
School of Health Sciences, CSJM University, Kanpur

Introduction
This presentation will provide an in-depth understanding of the essential
guidelines for designing and locating X-ray equipment in accordance
with radiation protection guidelines.
Thursday, 02 November 2023
Guidelines for Design and Location of X-Ray Equipment By- Dr
Dheeraj Kumar
2

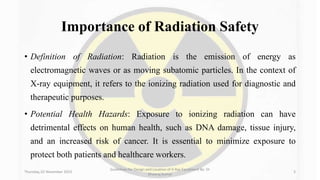

Importance of Radiation Safety
• Definition of Radiation: Radiation is the emission of energy as
electromagnetic waves or as moving subatomic particles. In the context of
X-ray equipment, it refers to the ionizing radiation used for diagnostic and
therapeutic purposes.
• Potential Health Hazards: Exposure to ionizing radiation can have
detrimental effects on human health, such as DNA damage, tissue injury,
and an increased risk of cancer. It is essential to minimize exposure to
protect both patients and healthcare workers.
Dheeraj Kumar
3

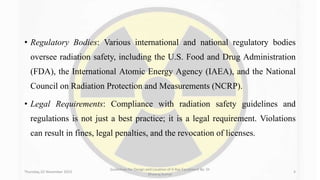

• Regulatory Bodies: Various international and national regulatory bodies
oversee radiation safety, including the U.S. Food and Drug Administration
(FDA), the International Atomic Energy Agency (IAEA), and the National
Council on Radiation Protection and Measurements (NCRP).
• Legal Requirements: Compliance with radiation safety guidelines and
regulations is not just a best practice; it is a legal requirement. Violations
can result in fines, legal penalties, and the revocation of licenses.
Dheeraj Kumar
4

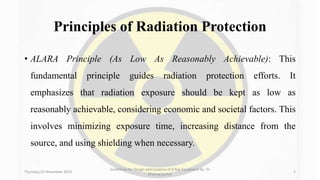

Principles of Radiation Protection
• ALARA Principle (As Low As Reasonably Achievable): This
fundamental principle guides radiation protection efforts. It
emphasizes that radiation exposure should be kept as low as
reasonably achievable, considering economic and societal factors. This
involves minimizing exposure time, increasing distance from the
source, and using shielding when necessary.
Dheeraj Kumar
5

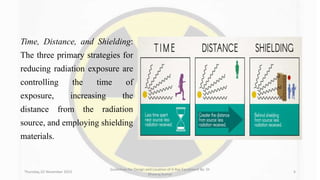

Time, Distance, and Shielding:
The three primary strategies for
reducing radiation exposure are
controlling the time of
exposure, increasing the
distance from the radiation
source, and employing shielding
materials.
Dheeraj Kumar
6

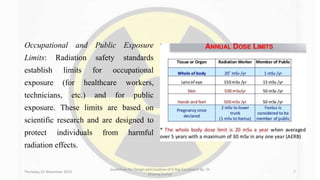

Occupational and Public Exposure
Limits: Radiation safety standards
establish limits for occupational
exposure (for healthcare workers,
technicians, etc.) and for public
exposure. These limits are based on
scientific research and are designed to
protect individuals from harmful
radiation effects.
Dheeraj Kumar
7

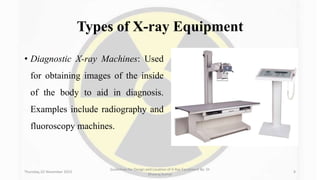

Types of X-ray Equipment
• Diagnostic X-ray Machines: Used
for obtaining images of the inside
of the body to aid in diagnosis.
Examples include radiography and
fluoroscopy machines.
Dheeraj Kumar
8

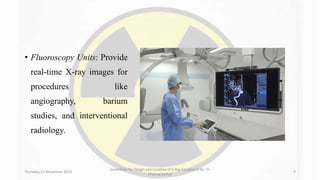

• Fluoroscopy Units: Provide
real-time X-ray images for
procedures like
angiography, barium
studies, and interventional
radiology.
Dheeraj Kumar
9

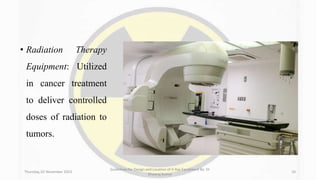

• Radiation Therapy
Equipment: Utilized
in cancer treatment
to deliver controlled
doses of radiation to
tumors.
Dheeraj Kumar
10

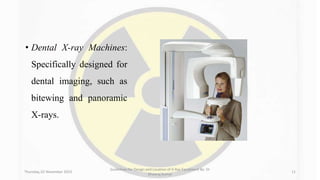

• Dental X-ray Machines:
Specifically designed for
dental imaging, such as
bitewing and panoramic
X-rays.
Dheeraj Kumar
11

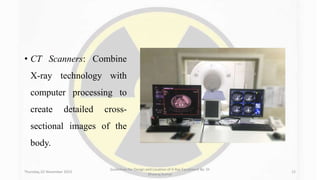

• CT Scanners: Combine
X-ray technology with
computer processing to
create detailed cross-
sectional images of the
body.
Dheeraj Kumar
12

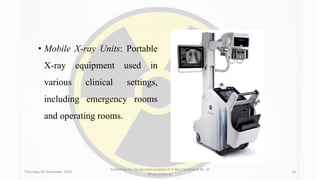

• Mobile X-ray Units: Portable
X-ray equipment used in
various clinical settings,
including emergency rooms
and operating rooms.
Dheeraj Kumar
13

Regulatory Guidelines
International Standards: Internationally recognized organizations like
the International Electrotechnical Commission (IEC) and the
International Organization for Standardization (ISO) establish standards
for X-ray equipment safety and performance. These standards provide a
global framework for quality assurance.
Dheeraj Kumar
14

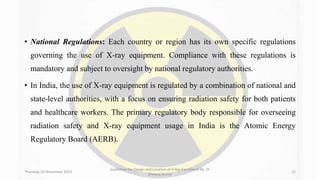

• National Regulations: Each country or region has its own specific regulations
governing the use of X-ray equipment. Compliance with these regulations is
mandatory and subject to oversight by national regulatory authorities.
• In India, the use of X-ray equipment is regulated by a combination of national and
state-level authorities, with a focus on ensuring radiation safety for both patients
and healthcare workers. The primary regulatory body responsible for overseeing
radiation safety and X-ray equipment usage in India is the Atomic Energy
Regulatory Board (AERB).
Dheeraj Kumar
15

Atomic Energy Regulatory Board (AERB)
• Role and Responsibilities: The AERB, established under the Atomic
Energy Act, 1962, functions as the national regulatory authority for nuclear
and radiation safety. Its primary role is to ensure the safe use of ionizing
radiation and radioactive materials in India.
• Licensing and Registration: AERB is responsible for granting licenses and
registrations for the use of X-ray equipment. This process involves a
thorough evaluation of the facility's compliance with safety standards and
guidelines.
Dheeraj Kumar
16

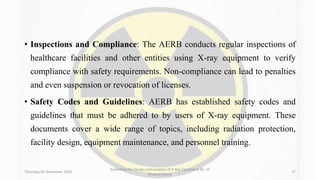

• Inspections and Compliance: The AERB conducts regular inspections of
healthcare facilities and other entities using X-ray equipment to verify
compliance with safety requirements. Non-compliance can lead to penalties
and even suspension or revocation of licenses.
• Safety Codes and Guidelines: AERB has established safety codes and
guidelines that must be adhered to by users of X-ray equipment. These
documents cover a wide range of topics, including radiation protection,
facility design, equipment maintenance, and personnel training.
Dheeraj Kumar
17

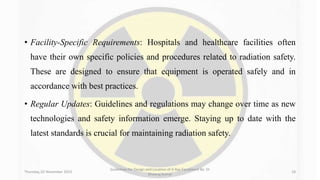

• Facility-Specific Requirements: Hospitals and healthcare facilities often
have their own specific policies and procedures related to radiation safety.
These are designed to ensure that equipment is operated safely and in
accordance with best practices.
• Regular Updates: Guidelines and regulations may change over time as new
technologies and safety information emerge. Staying up to date with the
latest standards is crucial for maintaining radiation safety.
Dheeraj Kumar
18

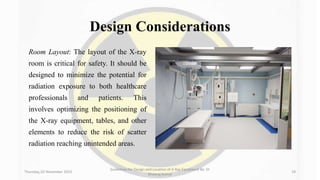

Design Considerations
Room Layout: The layout of the X-ray
room is critical for safety. It should be
designed to minimize the potential for
radiation exposure to both healthcare
professionals and patients. This
involves optimizing the positioning of
the X-ray equipment, tables, and other
elements to reduce the risk of scatter
radiation reaching unintended areas.
Dheeraj Kumar
19

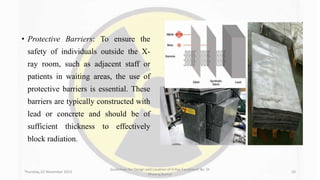

• Protective Barriers: To ensure the
safety of individuals outside the X-
ray room, such as adjacent staff or
patients in waiting areas, the use of
protective barriers is essential. These
barriers are typically constructed with
lead or concrete and should be of
sufficient thickness to effectively
block radiation.
Dheeraj Kumar
20

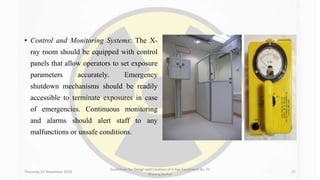

• Control and Monitoring Systems: The X-
ray room should be equipped with control
panels that allow operators to set exposure
parameters accurately. Emergency
shutdown mechanisms should be readily
accessible to terminate exposures in case
of emergencies. Continuous monitoring
and alarms should alert staff to any
malfunctions or unsafe conditions.
Dheeraj Kumar
21

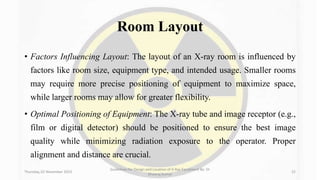

Room Layout
• Factors Influencing Layout: The layout of an X-ray room is influenced by
factors like room size, equipment type, and intended usage. Smaller rooms
may require more precise positioning of equipment to maximize space,
while larger rooms may allow for greater flexibility.
• Optimal Positioning of Equipment: The X-ray tube and image receptor (e.g.,
film or digital detector) should be positioned to ensure the best image
quality while minimizing radiation exposure to the operator. Proper
alignment and distance are crucial.
Dheeraj Kumar
22

• Minimizing Exposure Risks: Considerations like the use of ceiling-
suspended tubes and protective drapes can help minimize exposure risks to
staff and patients. The goal is to balance patient safety with diagnostic
image quality.
• Access Control and Personnel Movement: Access to the X-ray room should
be controlled to prevent unauthorized entry during exposures. Well-defined
protocols for personnel movement, such as staff positioning during
exposures, are essential for safety.
Dheeraj Kumar
23

Dheeraj Kumar
24

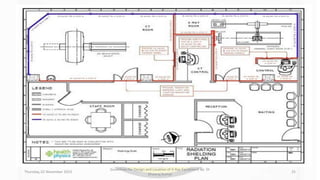

Dheeraj Kumar
25

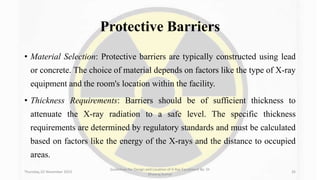

Protective Barriers
• Material Selection: Protective barriers are typically constructed using lead
or concrete. The choice of material depends on factors like the type of X-ray
equipment and the room's location within the facility.
• Thickness Requirements: Barriers should be of sufficient thickness to
attenuate the X-ray radiation to a safe level. The specific thickness
requirements are determined by regulatory standards and must be calculated
based on factors like the energy of the X-rays and the distance to occupied
areas.
Dheeraj Kumar
26

• Barrier Design: Barriers should extend from the floor to the ceiling and
may need to extend horizontally as well. The design should account for any
potential weak points, such as seams or penetrations for pipes and cables.

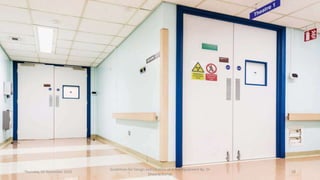

• Door and Window Considerations: Doors and windows in the X-ray room
should also be constructed with protective materials and designed to
minimize radiation leakage. Proper sealing and interlocking mechanisms are
important to ensure that the door is closed during exposures.
Dheeraj Kumar
27

Dheeraj Kumar
28

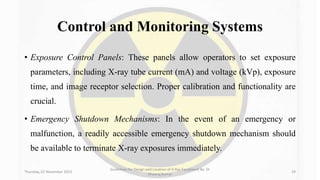

Control and Monitoring Systems
• Exposure Control Panels: These panels allow operators to set exposure
parameters, including X-ray tube current (mA) and voltage (kVp), exposure
time, and image receptor selection. Proper calibration and functionality are
crucial.
• Emergency Shutdown Mechanisms: In the event of an emergency or
malfunction, a readily accessible emergency shutdown mechanism should
be available to terminate X-ray exposures immediately.
Dheeraj Kumar
29

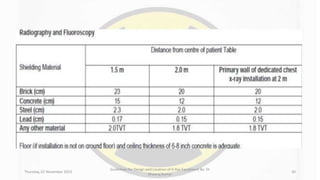

Dheeraj Kumar
30

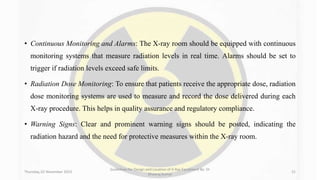

• Continuous Monitoring and Alarms: The X-ray room should be equipped with continuous
monitoring systems that measure radiation levels in real time. Alarms should be set to
trigger if radiation levels exceed safe limits.
• Radiation Dose Monitoring: To ensure that patients receive the appropriate dose, radiation
dose monitoring systems are used to measure and record the dose delivered during each
X-ray procedure. This helps in quality assurance and regulatory compliance.
• Warning Signs: Clear and prominent warning signs should be posted, indicating the
radiation hazard and the need for protective measures within the X-ray room.
Dheeraj Kumar
31

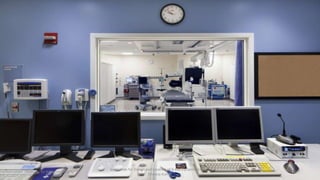

Dheeraj Kumar
32

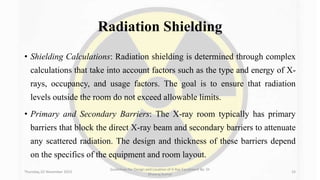

Radiation Shielding
• Shielding Calculations: Radiation shielding is determined through complex
calculations that take into account factors such as the type and energy of X-
rays, occupancy, and usage factors. The goal is to ensure that radiation
levels outside the room do not exceed allowable limits.
• Primary and Secondary Barriers: The X-ray room typically has primary
barriers that block the direct X-ray beam and secondary barriers to attenuate
any scattered radiation. The design and thickness of these barriers depend
on the specifics of the equipment and room layout.
Dheeraj Kumar
33

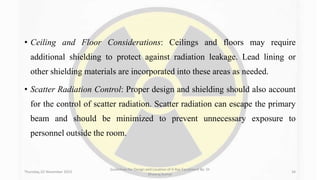

• Ceiling and Floor Considerations: Ceilings and floors may require
additional shielding to protect against radiation leakage. Lead lining or
other shielding materials are incorporated into these areas as needed.
• Scatter Radiation Control: Proper design and shielding should also account
for the control of scatter radiation. Scatter radiation can escape the primary
beam and should be minimized to prevent unnecessary exposure to
personnel outside the room.
Dheeraj Kumar
34

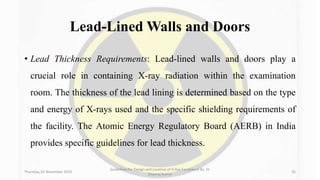

Lead-Lined Walls and Doors
• Lead Thickness Requirements: Lead-lined walls and doors play a
crucial role in containing X-ray radiation within the examination
room. The thickness of the lead lining is determined based on the type
and energy of X-rays used and the specific shielding requirements of
the facility. The Atomic Energy Regulatory Board (AERB) in India
provides specific guidelines for lead thickness.
Dheeraj Kumar
35

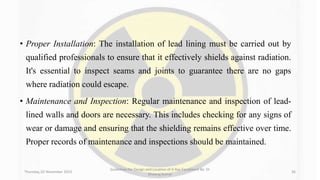

• Proper Installation: The installation of lead lining must be carried out by
qualified professionals to ensure that it effectively shields against radiation.
It's essential to inspect seams and joints to guarantee there are no gaps
where radiation could escape.
• Maintenance and Inspection: Regular maintenance and inspection of lead-
lined walls and doors are necessary. This includes checking for any signs of
wear or damage and ensuring that the shielding remains effective over time.
Proper records of maintenance and inspections should be maintained.
Dheeraj Kumar
36

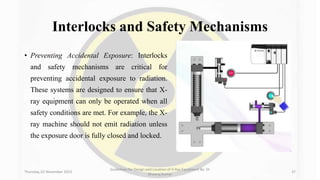

Interlocks and Safety Mechanisms
• Preventing Accidental Exposure: Interlocks
and safety mechanisms are critical for
preventing accidental exposure to radiation.
These systems are designed to ensure that X-
ray equipment can only be operated when all
safety conditions are met. For example, the X-
ray machine should not emit radiation unless
the exposure door is fully closed and locked.
Dheeraj Kumar
37

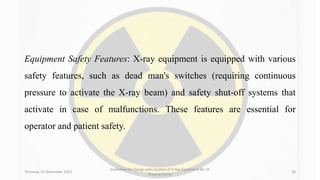

Equipment Safety Features: X-ray equipment is equipped with various
safety features, such as dead man's switches (requiring continuous
pressure to activate the X-ray beam) and safety shut-off systems that
activate in case of malfunctions. These features are essential for
operator and patient safety.
Dheeraj Kumar
38

• Training Requirements: Operators and healthcare professionals must be
trained in the proper use of interlocks and safety mechanisms. They should
understand how to respond to safety alarms, warnings, and potential
equipment malfunctions.
• Audible and Visual Warnings: Audible and visual warnings should alert
personnel to the status of the X-ray equipment. Alarms or indicators should
be easy to understand and acknowledge.
Dheeraj Kumar
39

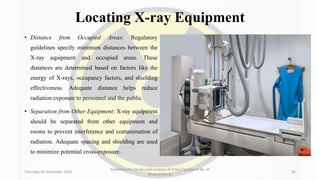

Locating X-ray Equipment
• Distance from Occupied Areas: Regulatory
guidelines specify minimum distances between the
X-ray equipment and occupied areas. These
distances are determined based on factors like the
energy of X-rays, occupancy factors, and shielding
effectiveness. Adequate distance helps reduce
radiation exposure to personnel and the public.
• Separation from Other Equipment: X-ray equipment
should be separated from other equipment and
rooms to prevent interference and contamination of
radiation. Adequate spacing and shielding are used
to minimize potential cross-exposure.
Dheeraj Kumar
40

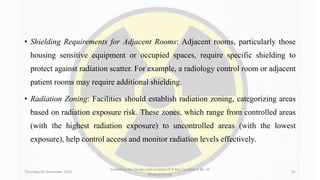

• Shielding Requirements for Adjacent Rooms: Adjacent rooms, particularly those
housing sensitive equipment or occupied spaces, require specific shielding to
protect against radiation scatter. For example, a radiology control room or adjacent
patient rooms may require additional shielding.
• Radiation Zoning: Facilities should establish radiation zoning, categorizing areas
based on radiation exposure risk. These zones, which range from controlled areas
(with the highest radiation exposure) to uncontrolled areas (with the lowest
exposure), help control access and monitor radiation levels effectively.
Dheeraj Kumar
41

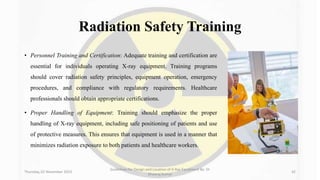

Radiation Safety Training
• Personnel Training and Certification: Adequate training and certification are
essential for individuals operating X-ray equipment. Training programs
should cover radiation safety principles, equipment operation, emergency
procedures, and compliance with regulatory requirements. Healthcare
professionals should obtain appropriate certifications.
• Proper Handling of Equipment: Training should emphasize the proper
handling of X-ray equipment, including safe positioning of patients and use
of protective measures. This ensures that equipment is used in a manner that
minimizes radiation exposure to both patients and healthcare workers.
Dheeraj Kumar
42

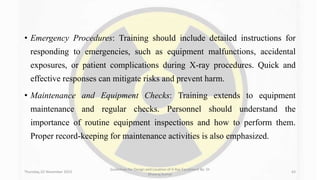

• Emergency Procedures: Training should include detailed instructions for
responding to emergencies, such as equipment malfunctions, accidental
exposures, or patient complications during X-ray procedures. Quick and
effective responses can mitigate risks and prevent harm.
• Maintenance and Equipment Checks: Training extends to equipment
maintenance and regular checks. Personnel should understand the
importance of routine equipment inspections and how to perform them.
Proper record-keeping for maintenance activities is also emphasized.
Dheeraj Kumar
43

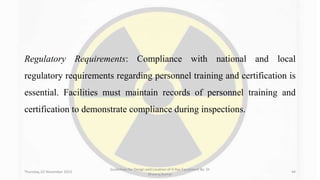

Regulatory Requirements: Compliance with national and local
regulatory requirements regarding personnel training and certification is
essential. Facilities must maintain records of personnel training and
certification to demonstrate compliance during inspections.
Dheeraj Kumar
44

Quality Assurance
• Routine Equipment Maintenance: Routine maintenance of X-
ray equipment is essential to ensure that it functions reliably
and safely. This includes tasks such as checking for loose
connections, verifying calibration, and ensuring that safety
features are operational.
• Calibration and Performance Checks: Periodic calibration
and performance checks are critical to maintaining the
accuracy of X-ray equipment. These checks involve verifying
that the equipment produces the desired image quality and
radiation output within specified limits.
Dheeraj Kumar
45

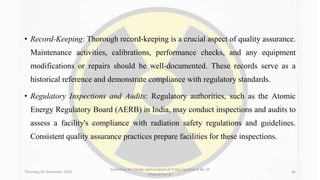

• Record-Keeping: Thorough record-keeping is a crucial aspect of quality assurance.
Maintenance activities, calibrations, performance checks, and any equipment
modifications or repairs should be well-documented. These records serve as a
historical reference and demonstrate compliance with regulatory standards.
• Regulatory Inspections and Audits: Regulatory authorities, such as the Atomic
Energy Regulatory Board (AERB) in India, may conduct inspections and audits to
assess a facility's compliance with radiation safety regulations and guidelines.
Consistent quality assurance practices prepare facilities for these inspections.
Dheeraj Kumar
46

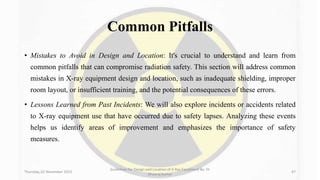

Common Pitfalls
• Mistakes to Avoid in Design and Location: It's crucial to understand and learn from
common pitfalls that can compromise radiation safety. This section will address common
mistakes in X-ray equipment design and location, such as inadequate shielding, improper
room layout, or insufficient training, and the potential consequences of these errors.
• Lessons Learned from Past Incidents: We will also explore incidents or accidents related
to X-ray equipment use that have occurred due to safety lapses. Analyzing these events
helps us identify areas of improvement and emphasizes the importance of safety
measures.
Dheeraj Kumar
47

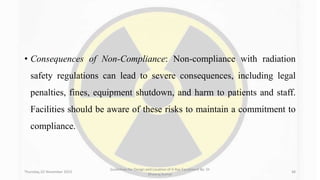

• Consequences of Non-Compliance: Non-compliance with radiation
safety regulations can lead to severe consequences, including legal
penalties, fines, equipment shutdown, and harm to patients and staff.
Facilities should be aware of these risks to maintain a commitment to
compliance.
Dheeraj Kumar
48

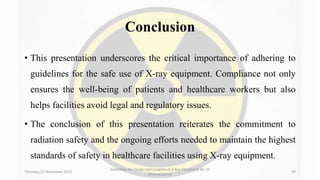

Conclusion
• This presentation underscores the critical importance of adhering to
guidelines for the safe use of X-ray equipment. Compliance not only
ensures the well-being of patients and healthcare workers but also
helps facilities avoid legal and regulatory issues.
• The conclusion of this presentation reiterates the commitment to
radiation safety and the ongoing efforts needed to maintain the highest
standards of safety in healthcare facilities using X-ray equipment.
Dheeraj Kumar
49

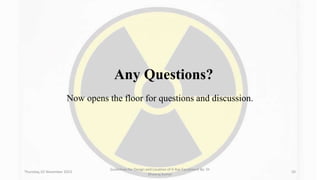

Any Questions?
Now opens the floor for questions and discussion.
Dheeraj Kumar
50

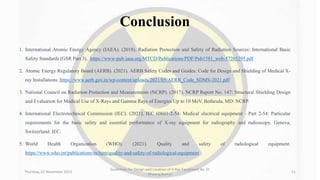

Conclusion
1. International Atomic Energy Agency (IAEA). (2018). Radiation Protection and Safety of Radiation Sources: International Basic
Safety Standards (GSR Part 3). https://www-pub.iaea.org/MTCD/Publications/PDF/Pub1581_web-57265295.pdf
2. Atomic Energy Regulatory Board (AERB). (2021). AERB Safety Codes and Guides: Code for Design and Shielding of Medical X-
ray Installations. https://www.aerb.gov.in/wp-content/uploads/2021/05/AERB_Code_SDMS-2021.pdf
3. National Council on Radiation Protection and Measurements (NCRP). (2017). NCRP Report No. 147: Structural Shielding Design
and Evaluation for Medical Use of X-Rays and Gamma Rays of Energies Up to 10 MeV. Bethesda, MD: NCRP.
4. International Electrotechnical Commission (IEC). (2021). IEC 60601-2-54: Medical electrical equipment - Part 2-54: Particular
requirements for the basic safety and essential performance of X-ray equipment for radiography and radioscopy. Geneva,
Switzerland: IEC.
5. World Health Organization (WHO). (2021). Quality and safety of radiological equipment.
https://www.who.int/publications/m/item/quality-and-safety-of-radiological-equipment
Dheeraj Kumar
51

Thank You
Dheeraj Kumar
52

Guidelines for X-Ray Equipments.pptx

More Related Content

What's hot

Similar to Guidelines for X-Ray Equipments.pptx

More from Dr. Dheeraj Kumar

Recently uploaded

Guidelines for X-Ray Equipments.pptx
